Point and Distributed Loading

Point and Distributed Loading. Tip deflection errors and sensitivity results. Point Loading Cases. b. a. F 2. F 1. Sensor 2. Sensor 1. Tip Deflection. x 1. x 2. Case 1: a = L/2, b = L. F1 > 0, F2 > F1. Case 2: a = L/2, b = L. F1 > 0, F1 > F2.

edric
Télécharger la présentation

Point and Distributed Loading

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Point and Distributed Loading Tip deflection errors and sensitivity results.

  2. Point Loading Cases b a F2 F1 Sensor 2 Sensor 1 Tip Deflection x1 x2 Case 1: a = L/2, b = L. F1 > 0, F2 > F1. Case 2: a = L/2, b = L. F1 > 0, F1 > F2. Case 3: a = L/2, b = L. F1 < 0, F2 > abs(F1).

  3. Deflection Errors at Tip

  4. Sensitivity of Deflection Errors with Respect to x1

  5. Sensitivity of Deflection Errors with Respect to x2

  6. Deflection and Curvatures when x1 = 25, x2 = 82.

  7. Conclusions: • Opposing loads lead to the same results as loads in the same direction (if magnitude is the same.) • If the load at the inflection point is larger than the load at the end, the range of deflection error and sensitivities are greater. • For all cases when a = L/2, the lowest deflection error at the tip is when x1 = 45 and x2 = 125.

  8. Distributed Loading Cases b a q Sensor 1 Sensor 2 Tip Deflection x1 x2 Case 1: a = L/2, b = L - a

  9. Case 1: q = 10e-3*9.81/75 Deflection Error at Tip Sensitivity w/Respect to x1 Sensitivity w/Respect to x2 When x1 = 25, x2 = 82:

  10. Conclusions: • For Case 1, deflection error at tip when x1 = 25, x2= 82 is 0.0574. • The best region for sensor placement seems to be when x1 = 28, x2 is in the range [122:138]. However, this is sensitive to x1. • If one sensor is at L/2 (start of loading), the position of the second sensor is not important in improving the accuracy of the curvature readings (hence the displacement error).

  11. Two Distributed Loads b a q2 q1 Sensor 2 Sensor 1 Tip Deflection x1 x2

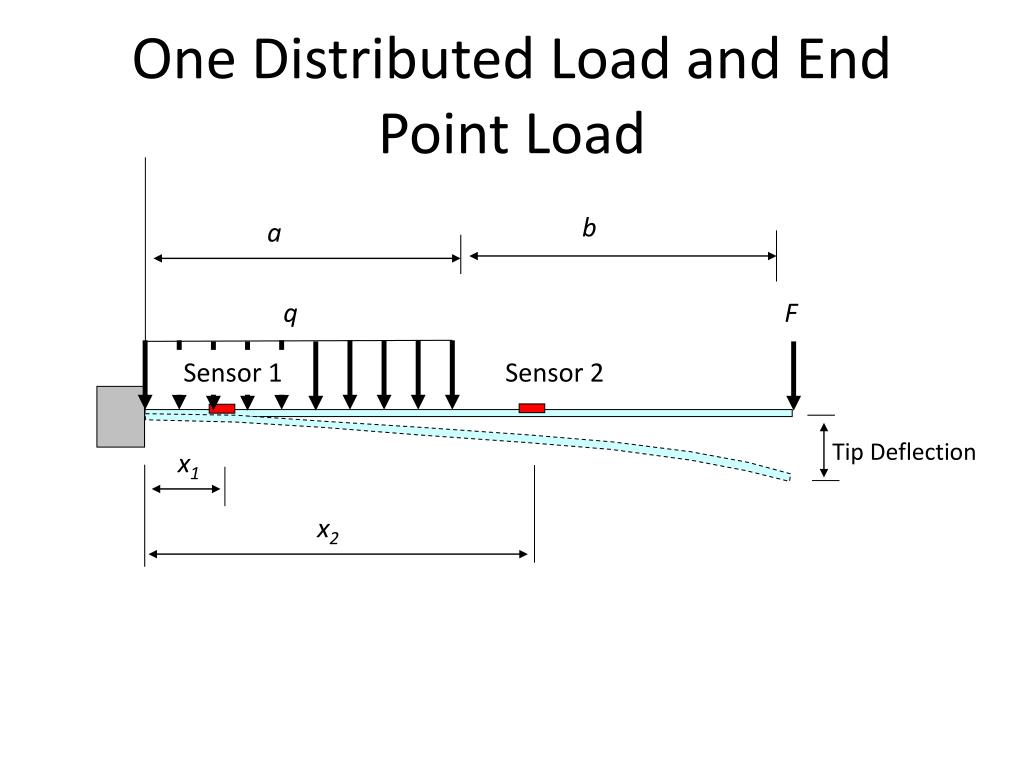

  12. One Distributed Load and End Point Load b a q F Sensor 1 Sensor 2 Tip Deflection x1 x2

  13. Three Loading Types • Given two point loads, distributed loads were found such that the curvature at x = 0 and x = L/2 was the same. • The distributed loading caused regions of similar deflection errors.

  14. Deflection Error at TipF1 = 2 grams, F2 = 5 grams

  15. Sensitivity in x1 positionF1 = 2 grams, F2 = 5 grams

  16. Sensitivity in x2 positionF1 = 2 grams, F2 = 5 grams

  17. Deflection and Curvature when x1 = 20, x2 = 80.F1 = 2 grams, F2 = 5 grams

  18. More Extreme Case • F1 and F2 are in opposite directions, and

  19. Deflection Error at TipF1 = -5 grams, F2 = 2 grams

  20. Sensitivity in x1 positionF1 = -5 grams, F2 = 2 grams

  21. Sensitivity in x2 positionF1 = -5 grams, F2 = 2 grams

  22. Deflection and Curvature when x1 = 20, x2 = 80.F1 = -5 grams, F2 = 2 grams
