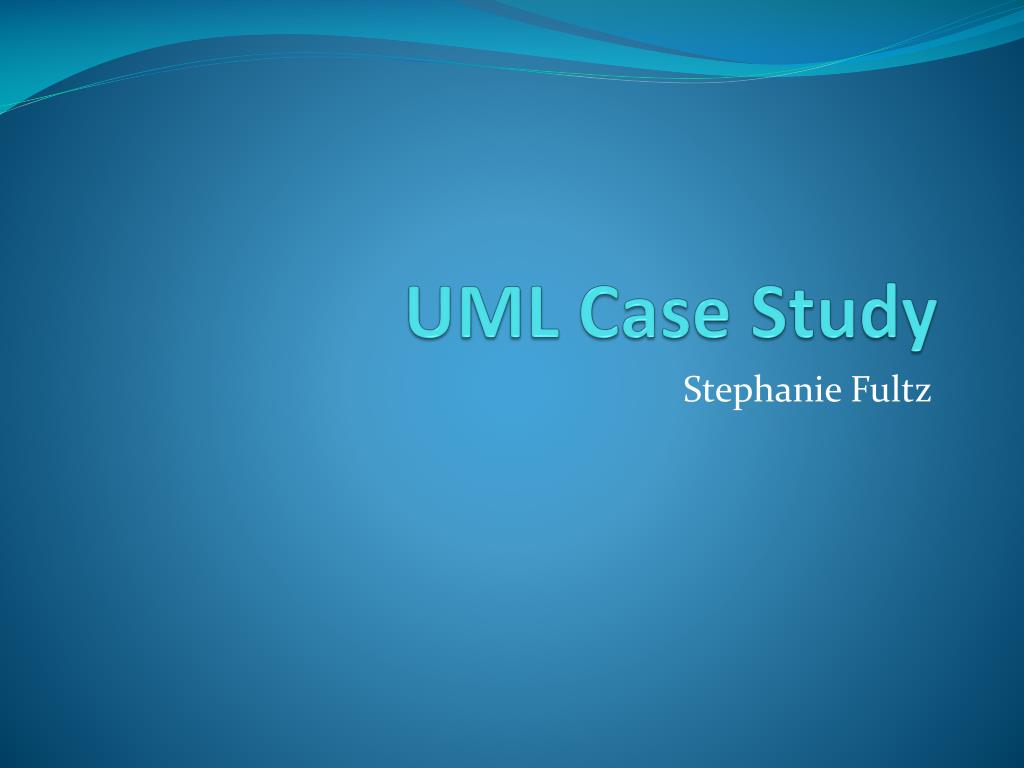

UML Case Study Stephanie Fultz
Overall Modeling • Modeling is a way of thinking about the problems using models organized around the real world ideas. • A modeling method comprises a language and also a procedure for using the language to construct models. • Modeling is the only way to visualize your design and check it against requirements before your crew starts to code.
Overall Tips Using UML • Know and Understand what you want to model and why it is worth modeling • Never Assume Prior Knowledge • Find the most appropriate UML technique that exists • Ensure users and customers do not associate the UML model with the tool that is creating it • Allow time for people to learn • Make Standards on how to apply the specific model • Create processes • Introduce technique to all stakeholders • Apply in daily work • Get Feedback • Be Flexible
Advantages • Provides communication • Intra-project communication, e.g. getting things across between team project members • Inter-project / post-project communication, things to be understood at later date • Most of the time people who are initially making the software are not the ones maintaining it or servicing it • You can model just about any type of application, running on any type and combination of hardware, operating system, programming language, and network, in UML • UML is effective for modeling large, complex software Systems • It is simple to learn for most developers, but provides advanced features for expert analysts, designers and architects • Use case modeling specifies the functional requirements of system in an object-oriented manner
Disadvantages • People have to be familiar with UML • Managers as well as programmers • Not everyone sees the advantage of using it • Development tools adopted don’t not support UML • UML tools can be expensive • The code generated by UML modeling tools was not production-ready • UML was too complex to learn and to use
Cloud Company • Leader in industrial weather monitoring systems (WMS) • Flagship product keeps track of temperature, humidity, barometric pressure, wind speed and direction • Real-time and historic • Customers: Aviation, maritime, agriculture, broadcast industry
Problem • Cloud is known for high reliable products that are somewhat expensive • Cut off customers that do not need the high end equipment • Competitor “Microburst” has announced a product line for the low end that can be upgraded in stages if needed • Product boasts it can be connected with high end equipment
Strategy • Microburst is not offering the product for at least six months • Cloud plans to work to build a low-end upgradable unit in the next six months to prevent Microburst from stealing the market
Dilemma • Requires significant engineering • Engineers will not commit to six month timeline • Believe it will be closer to 12 months • Cloud believes that twelve months will be too late
Plan • Cloud announced it’s new productand began taking orders • Nimbus LC 1.0 • Plan to ship in six months • Initially will repackage the old expensive high end system • Will loose money initially • Meanwhile engineers will develop the true low cost version and systems will be switched out during upgrade • Nimbus LC 2.0
Main System Requirements • New software has to be compatible with both the current hardware and new hardware • Processors will be different • New Hardware not even developed • Source code will need to be similar • Very quick timeline
User Requirements • This system shall provide automatic monitoring of various weather conditions. Specifically, it must measure: • Wind speed and direction • Temperature • Barometric pressure • Relative Humidity • Wind chill • Dew point temperature
User Requirements Cont. • 24-HourHistory – The user may direct the system to display the 24 hour history of any of the following measurements: • Temperature, Barometric Pressure, Relative Humidity • User Set Up - The system shall allow the station to be configured during installation. • Setting the current time, date, and time zone • Setting the units that will be displayed (English or metric)
Actors User. This actor views the real-time weather information that the station is measuring. It also interacts with the system to display the historical data associated with the individual sensors • Administrator. The role played by this actor is one of administering the system. This administration includes controlling the security aspects of the system, calibrating the individual sensors, setting the time/date, setting units of measure, and resetting the • station when required
Use Cases Use Case #1: Monitor Weather Data. The system will display the current temperature, barometric pressure, relative humidity, wind speed, wind direction, wind chill temperature, dew point, and barometric pressure trend. Monitor Weather Date • Use Case #2: View Temperature History. The system will display the history of the temperature readings. View Temp History • User Case #3: View Barometric Pressure History. The system will display the history of the barometric pressure readings. View Bar History
Conclusion • The use of UML helped lay the foundation for the planning Phase • Communication was key to beginning to create the new tool • Several tools were used to understand the problem • Class Diagrams • Sequence Diagrams • Code
Refrences • Chen, Minder. The Methodology-Fit of UML: An Empirical Study of UML Adaptation • Cloud Case study ~ http://www.objectmentor.com/resources/articles/Walking_through_A_UML_Design.pdf • Jonkhart, Fred. IT architect at Fortis. Amsterdam, Netherlands • http://www.omg.org/gettingstarted/what_is_uml.htm • http://www.inconcept.com/JCM/April1998/halpin.html
