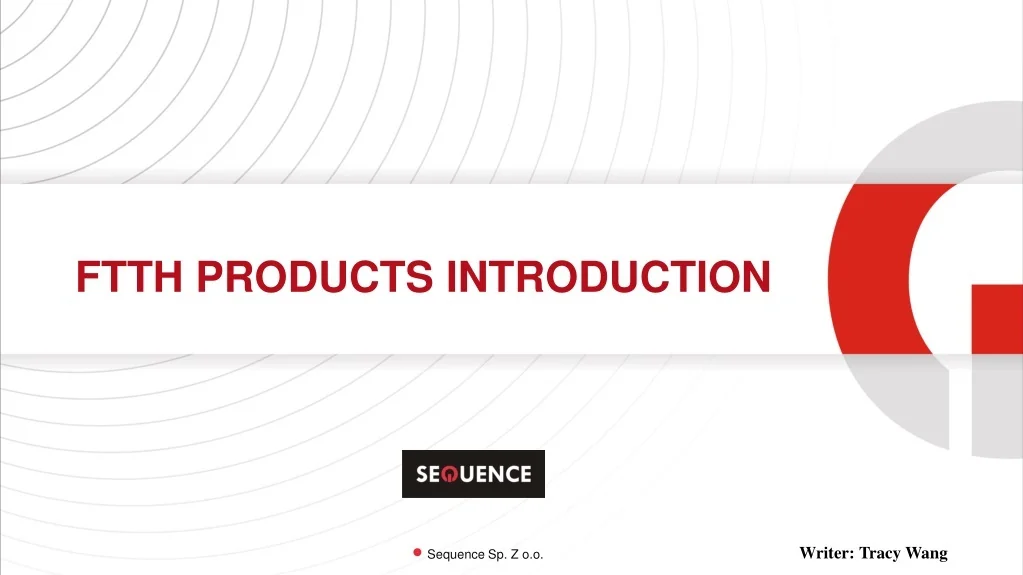

  1. FTTH PRODUCTS INTRODUCTION Writer: Tracy Wang  Sequence Sp. Z o.o.

  2. FTTH – Fiber To The Home

  3. ODN – Optical Distribution Network Splitters and Distribution Boxes Location Drop Cables and Indoor Installations High-rise Residential Office area Business Center OLTand ODF Location Optical Cables Residential area Center machine room Distribution Box

  4. ODN – Optical Distribution Network

  5. FTTH PRODUCTS OVERVIEW Splitter Series ABS Box Insert Type 19” Steel Box BOX Series Fiber Distribution BOX - ODF Connector Series Mechanical splicer Pigtail Adapter Patch cord connector Cable Series Flexible optical cable Optical cable Closure

  6. CONTENTS 1 SPLITTERS 2 FIBER DISTRIBUTION BOXES 3 ADAPTERS 4 OPTICAL CABLES

  7. SPLITTERS 1 Bare fiber splitter ABS box splitter Insert type splitter 19” Rack steel box splitter 2 FIBER DISTRIBUTION BOXES 3 ADAPTERS 4 OPTICAL CABLES

  8. SPLITTERS

  9. SPLITTERS

  10. SPLITTERS

  11. SPLITTERS – ABS BOX Installation mode: Indoor Wall-mounted Splitter BOX-1*8 100*80*10

  12. SPLITTERS – INSERT TYPE • PLC splitter features： • Good uniformity and low insertion loss • Low Polarization Dependent Loss • Excellent Environmental Stability • Excellent Mechanical • PLC splitter applications： • Fiber to the point (FTTX) • Fiber to the home (FTTH) • Passive optical networks(PON) • Local area networks (LAN) • Cable television (CATV) Splitter Insert-1×16 130*100*50

  13. SPLITTERS - 19” STEEL BOX 19” Steel Box Splitter 1*16 483*200*45

  14. The Splitters Features • Clear and obvious indentification on the point of connection and distribution of each core. • The whole cabling protection design to guarantee that fiber curvature radius is no less than 40 mm. • Environmentally stable • Custom-defined specifications • Easy installation • Low insertion loss • High uniformity • High reliability

  15. FIBER DISTRIBUTION BOXES 1 SPLITTERS 2 sCB-steel-24/48-outdoor sCB-ABS-24/48-indoor sCB-SMC-24/48-outdoor 3 ADAPTERS 4 OPTICAL CABLES

  16. FIBER DISTRIBUTION BOXES sCB-ABS-24-in/outdoor In/outdoor Box sCB-ABS-48-in/outdoor Fiber Distribution Box sCB-steel-24-outdoor sCB-steel-48-outdoor Outdoor Box sCB-SMC-24-outdoor sCB-SMC-48-outdoor

  17. Fiber distribution box mainly used as the interface between optical transmit network and optical transmit equipment. • It is widely used in FTTH access network; • Telecommunication Networks; • CATV Networks; • Data communications Networks; • Local Area Networks.

  18. FIBER DISTRIBUTION BOXES – ABS – in/outdoor ① ① ② ② ① sCB – ABS – 24 – in/outdoor 425*315*110 ② sCB – ABS – 24 – in/outdoor 340*265*110

  19. FIBER DISTRIBUTION BOXES – ABS – 16 – in/outdoor

  20. FIBER DISTRIBUTION BOXES – sCB – steel – 48 - outdoor Rubber sealing loop sCB – steel – 48 – outdoor 400*400*120

  21. FIBER DISTRIBUTION BOXES – – steel – 12 - outdoor

  22. It is mainly used for cable inlet, grounding and fixing and splicing between the terminal end and pigtail. Users can select unit or flange amount according to their practical needs. • Features of the structure: • The exterior with electrostatic spraying surface; • Light structure and good-looking; • The panels can be clamped with 12/24/48 cores FC/SC/ST adaptors; • The wiring connection device used in connecting optical cables and optical communication installations. • Suitable for the protective connection between cables and pigtails.

  23. OPTICAL CABLE CLOSURE – outdoor

  24. FIBER DISTRIBUTION BOXES – CUSTOMIZATION sCB – steel – 48 – outdoor 480*400*120

  25. ADAPTERS 1 SPLITTERS 2 FIBER DISTRIBUTION BOXES 3 Adapter Connecter Pigtail & Patch Cord 4 OPTICAL CABLES

  26. ADAPTERS Pigtail & Patch cord Connector Adapter SC/UPC SC/APC SC SC-SC SC/UPC SC/APC 2SCU/PC FC/UPC FC/APC FC FC-FC FC/UPC FC/APC LC/UPC LC/APC LC/UPC LC/APC LC-LC LC 2LC/UPC 2LC/APC 2LC/UPC 2LC/APC ST/UPC ST/UPC 2ST/UPC

  27. OPTICAL CABLES 1 SPLITTERS 2 FIBER DISTRIBUTION BOXES 3 ADAPTERS 4 GJXH / GJXFH / GJFJV / GJYXFCH GYXTW / GYTC8Y / GYXTC8Y / GYFTY / GYFXTY ADSS

  28. OPTICAL CABLES

  29. INDOOR CABLE – GJXH / GJXFH / GJYXFCH • The GJXH optical cable adopts G.657A optical fibers with a small bending radius, Therefore, it is much flexible. • GJXH optical cable with two parallel metal strength members, GJXFH optical cable with two parallel FRP (nonmetal strength members, Fiber Reinforced Plastics). It has excellent tensile and crush performance. • It is simple, lightweight, and functional. • With the curve design, the optical fibers can be separated, installed, and maintained easily. • The LSZH fireproof sheath is environmental friendly. GJXH GJXFH
