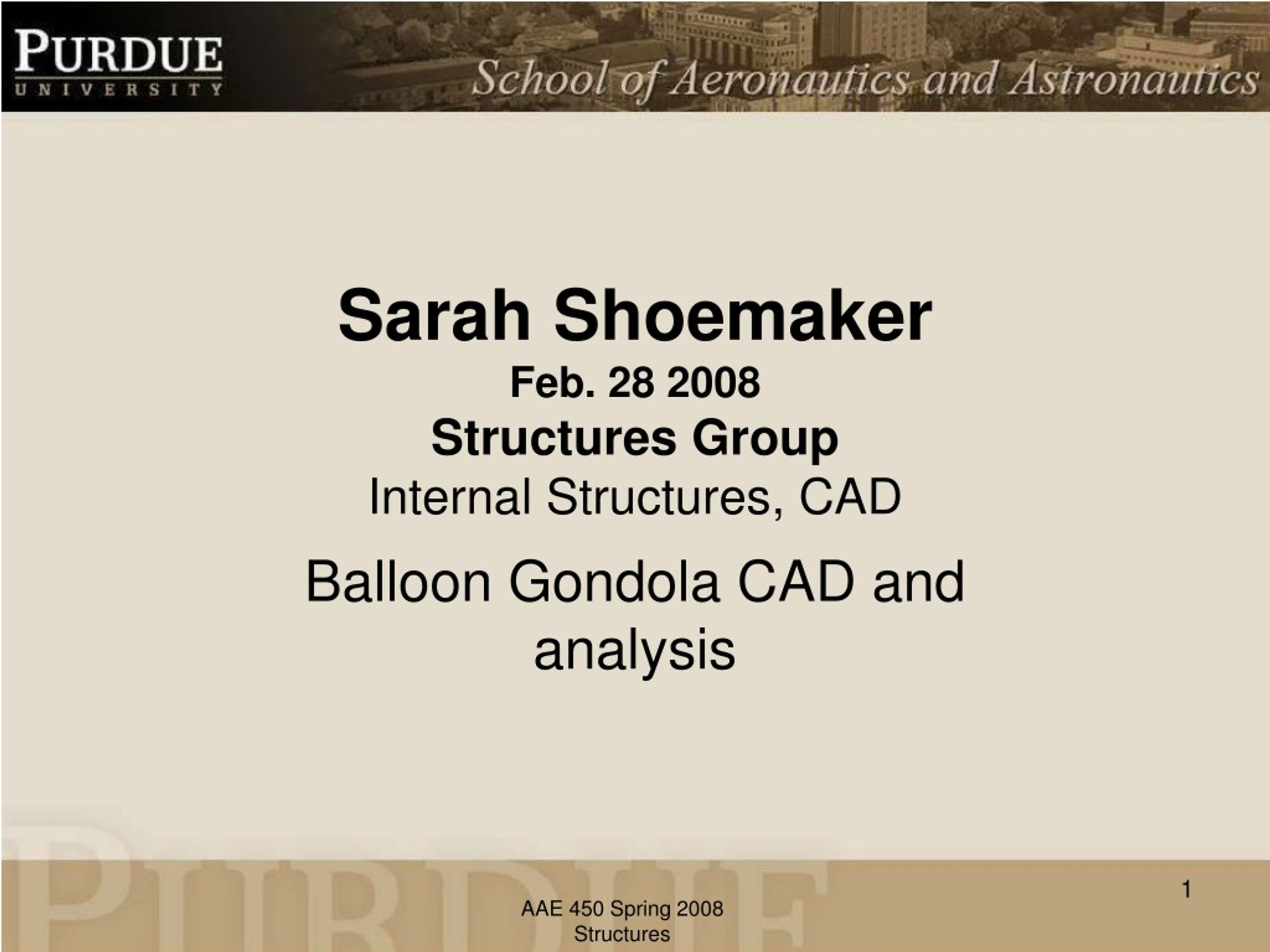

  1. Sarah ShoemakerFeb. 28 2008Structures GroupInternal Structures, CAD Balloon Gondola CAD and analysis AAE 450 Spring 2008 Structures

  2. Gondola Design • Triangular truss design • Aluminum • Sized for 5kg payload (easy to change) • Hole in bottom for exhaust • Guide rails may be added • Attach cables to corners Figure by Sarah Shoemaker AAE 450 Spring 2008 Structures

  3. Weight Analysis • Weight of rocket (5kg): 5,146.27 kg • Weight of gondola: 1,361.1 kg • Total weight (does not include cables and attachments): 6,507.37 • Total Lifting Force of balloon1: 69,820 N • Volume of Gas (assumed helium)1: 578,580 m^3 • Diameter of Balloon1: 100 m Future Work: • Stress analysis on gondola parts • CAD 1Code Balloon_Model produced by Jerald Balta and William Ling AAE 450 Spring 2008 Structures

  4. Backup slides References: • “FAQ’s-Hot Air Balloons”. Cameron Balloons. 2001 [http://cameronballoons.com/shapes_gallery.html]. Accessed Feb. 25 • Matlab code by Jerald and William AAE 450 Spring 2008 Structures

  5. Backup Slides (possible balloons) AAE 450 Spring 2008 Structures
