Exercise: A Complicated Resistive Circuit

elden avatar
elden
29 diapositives · 518 Views · Jul 08, 2014

A. B. D. C. Exercise: A Complicated Resistive Circuit. I 2. I 1. I 3. Loop 1. Loop 2. Loop 3. I 4. I 5. Loop 4. Find currents through resistors. loop 1:. loop 2:. loop 3:. nodes:. Five independent equations and five unknowns. Chapter 21. Magnetic Force.

Exercise: A Complicated Resistive Circuit - slide 1
01 / 29Exercise: A Complicated Resistive Circuit
1 / 17

Télécharger la présentation

Exercise: A Complicated Resistive Circuit
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

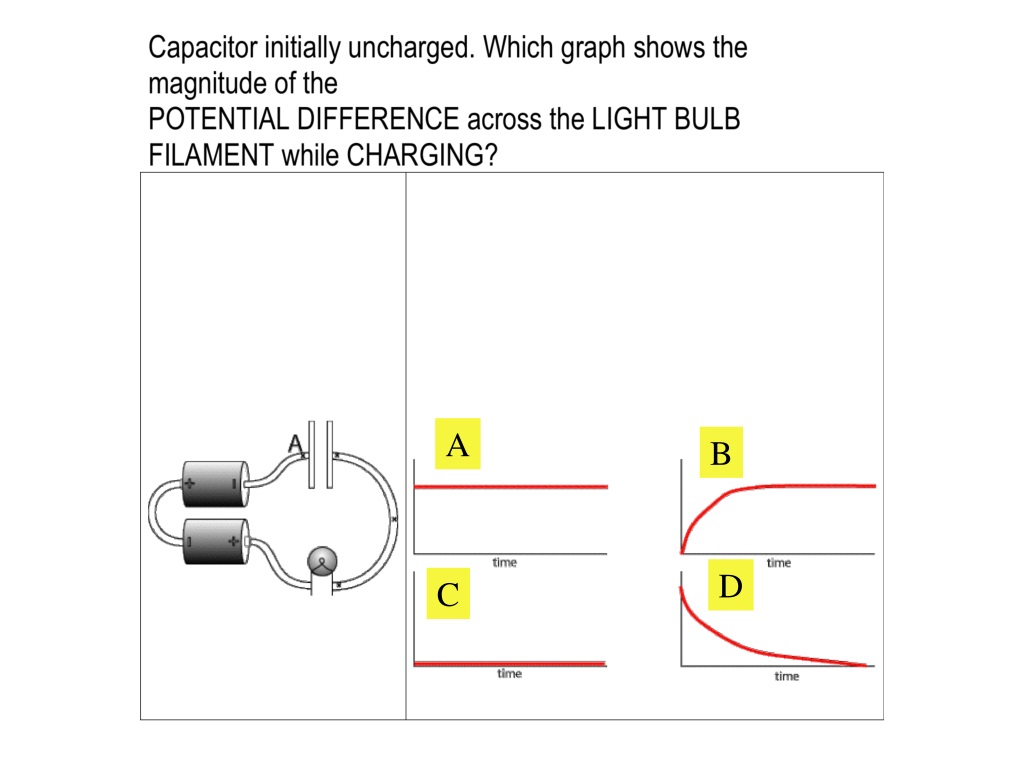

  1. A B D C

  2. Exercise: A Complicated Resistive Circuit I2 I1 I3 Loop 1 Loop 2 Loop 3 I4 I5 Loop 4 Find currents through resistors loop 1: loop 2: loop 3: nodes: Five independent equations and five unknowns

  3. Chapter 21 Magnetic Force

  4. Magnetic Field of a Moving Charge The Biot-Savart law for a moving charge The Biot-Savart law for a short piece of wire: How does magnetic field affects other charges?

  5. Magnetic Force on a Moving Charge Direction of the magnetic force depends on: the direction of B the direction of v of the moving charge the sign of the moving charge q – charge of the particle v – speed of the particle B – magnetic field

  6. Right Hand Rule for Magnetic Force Electron charge = -e: The magnetic force on a moving electron is in opposite direction to the direction of the cross product

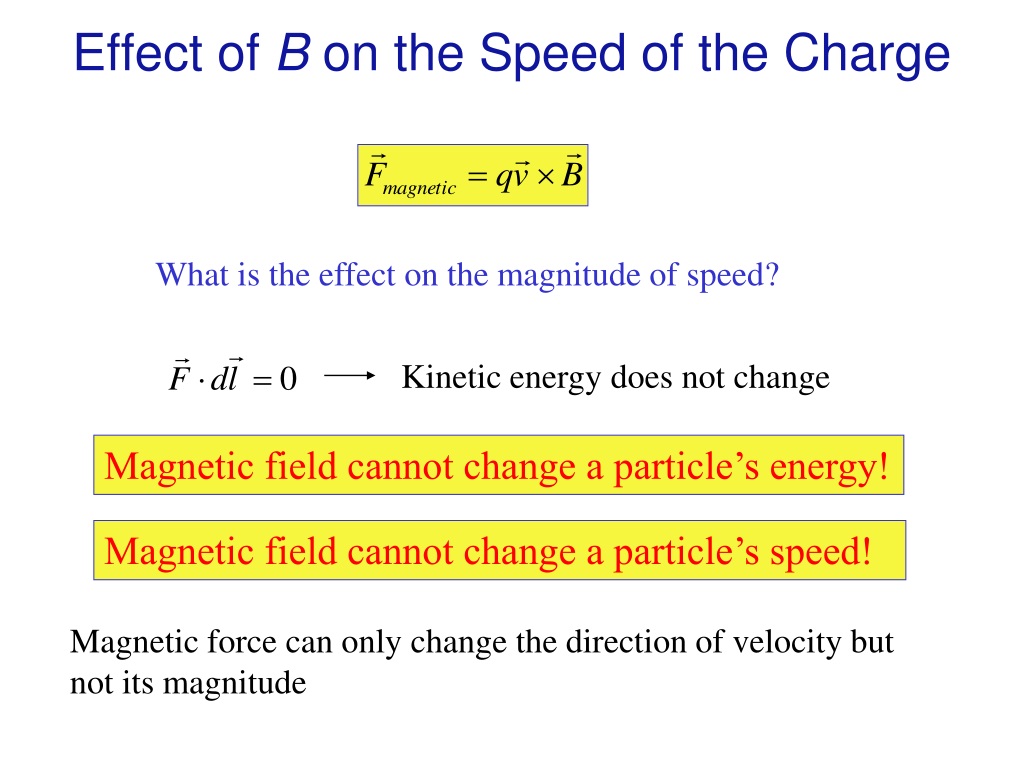

  7. Effect of B on the Speed of the Charge What is the effect on the magnitude of speed? Kinetic energy does not change Magnetic field cannot change a particle’s energy! Magnetic field cannot change a particle’s speed! Magnetic force can only change the direction of velocity but not its magnitude

  8. Magnitude of the Magnetic Force Single electron in uniform B: (v<<c) e/me = 1.78.1011 C/kg m/s ; =(1.78.1011 C/kg)m/s)() = 5.3 m/s2 Same as acceleration due to an E= V

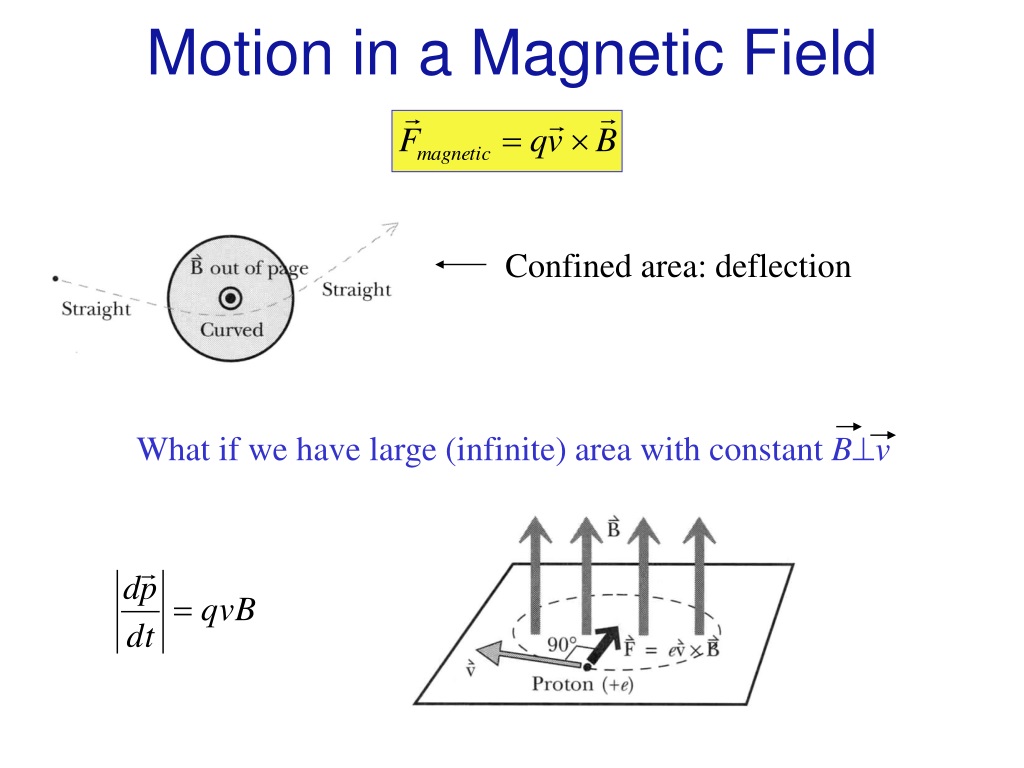

  9. Motion in a Magnetic Field What if we have large (infinite) area with constant Bv Confined area: deflection

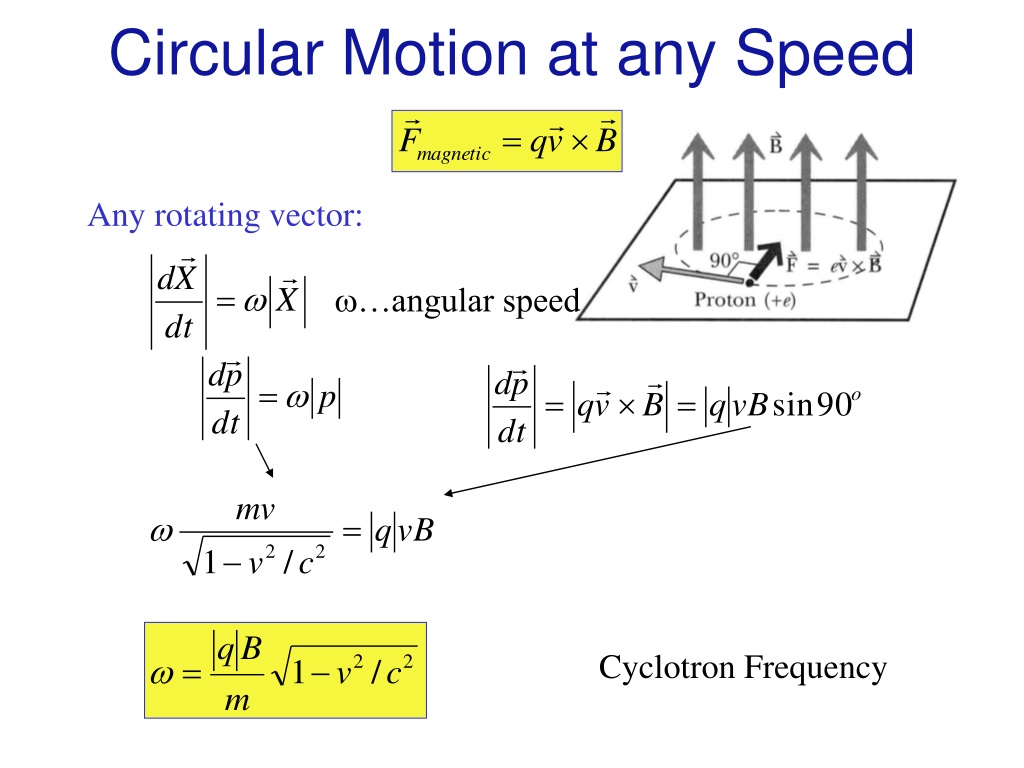

  10. Circular Motion at any Speed Any rotating vector: …angular speed Cyclotron Frequency

  11. Circular Motion at Low Speed if v<<c: independent of v! Alternative derivation: Circular motion: Period T: Non-Relativistic

  12. Determining the Momentum of a Particle valid even for relativistic speeds Position vector r: Circular motion Used to measure momentum in high-energy particle experiments

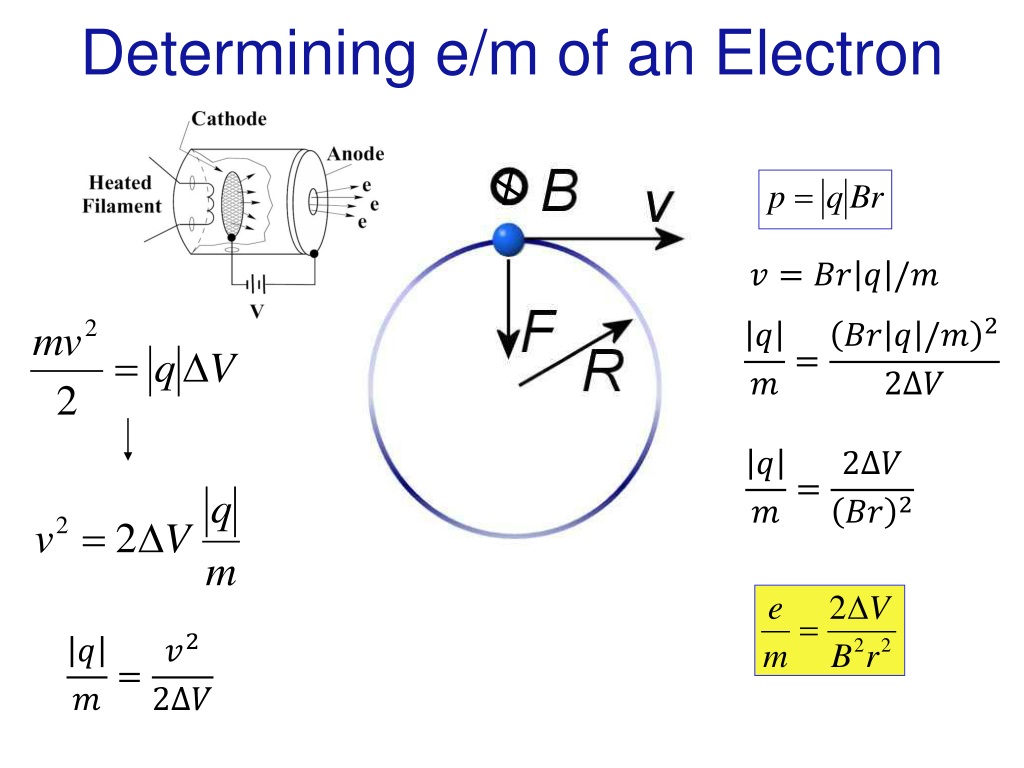

  13. Determining e/m of an Electron

  14. Joseph John Thomson (1856-1940) 1897: m/e >1000 times smaller than H atom

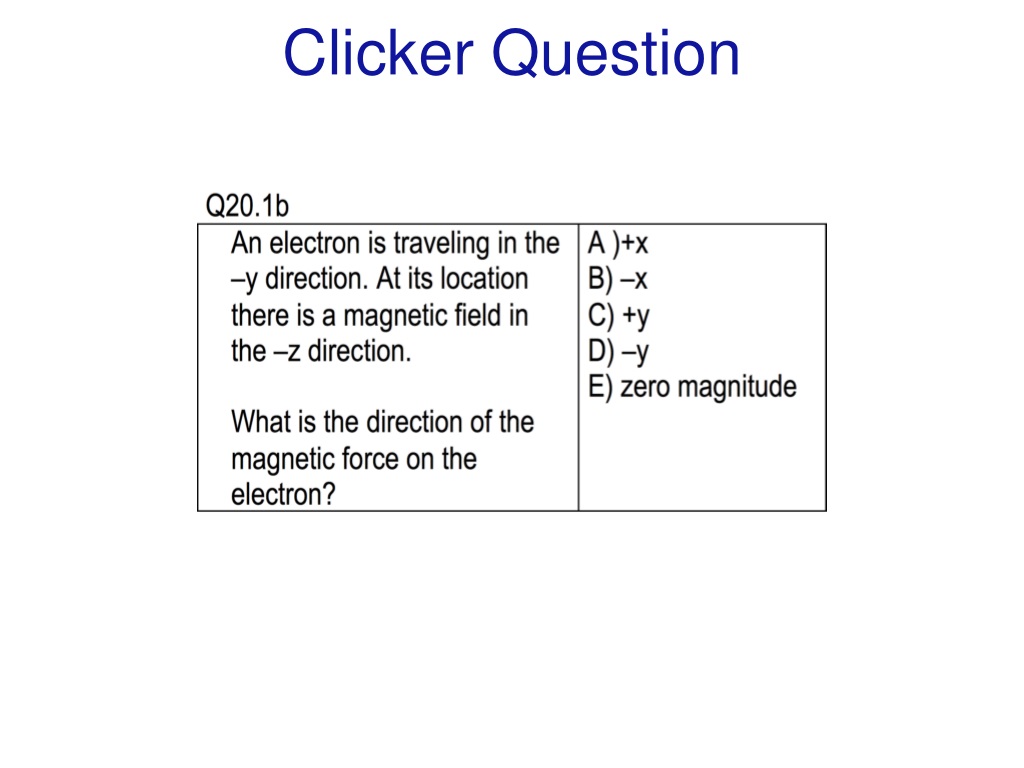

  15. Clicker Question

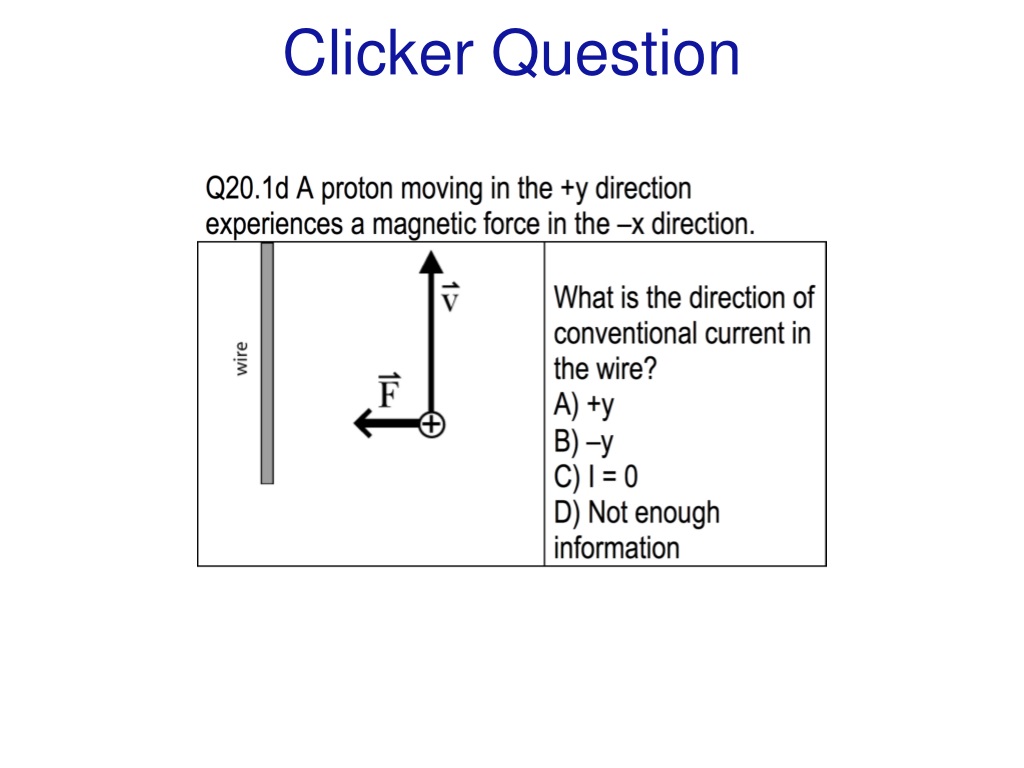

  16. Clicker Question

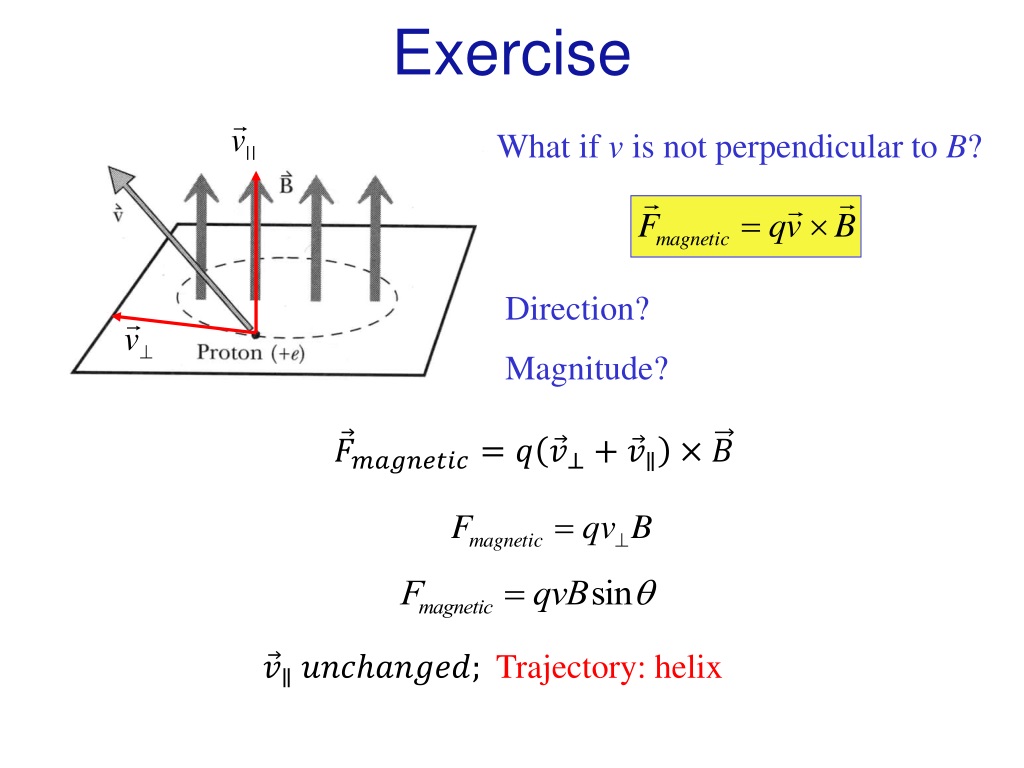

  17. Exercise What if v is not perpendicular to B? Direction? Magnitude? Trajectory: helix

  18. Exercise: Circular Motion Which direction is electron going?

  19. The Lorentz Force Can combine electric and magnetic forces: Coulomb law and Biot-Savart law have coefficients 1/(40) and 0/(4) to make the field and force equations consistent with each other

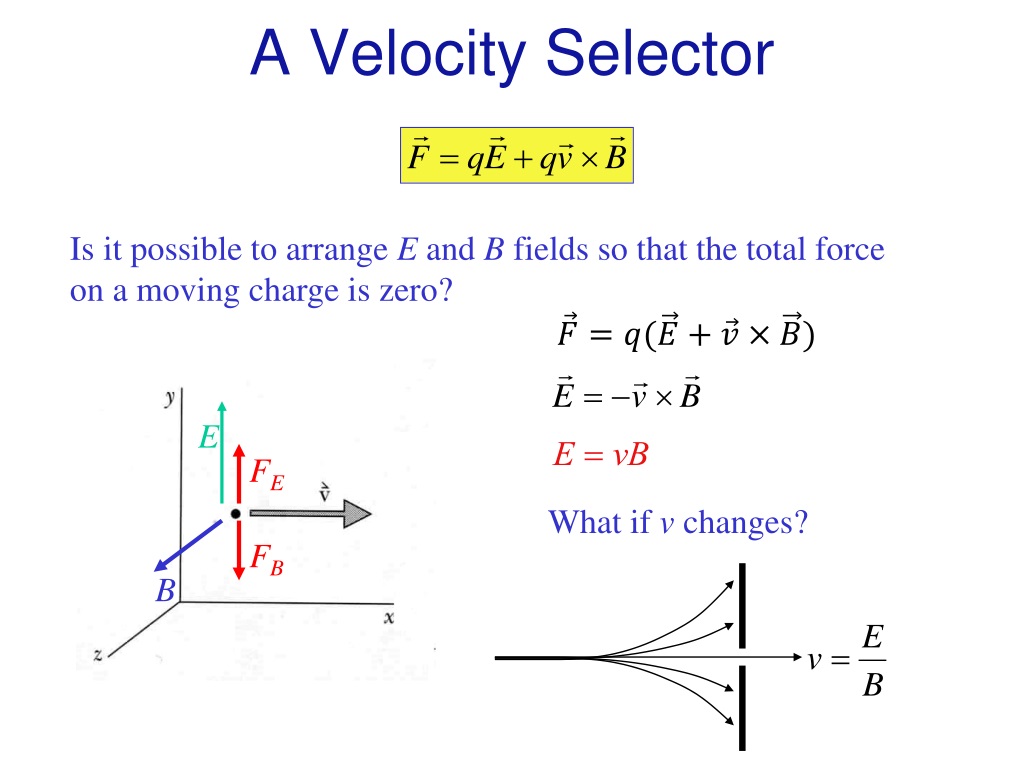

  20. A Velocity Selector E FE FB B Is it possible to arrange E and B fields so that the total force on a moving charge is zero? What if v changes?

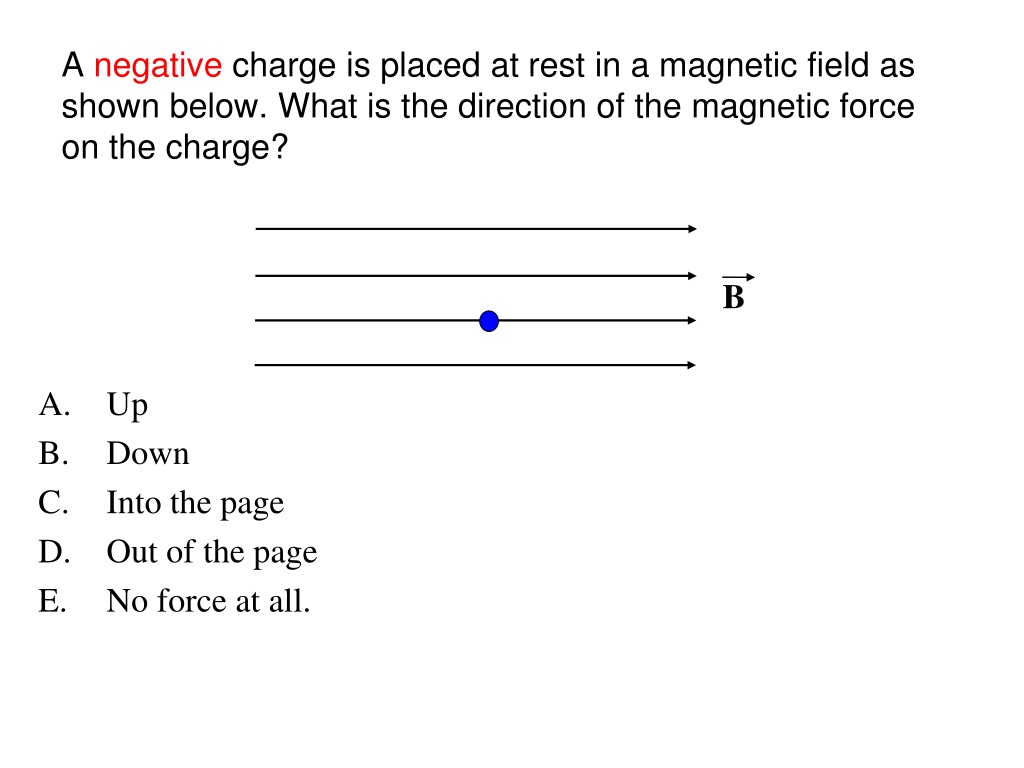

  21. A negative charge is placed at rest in a magnetic field as shown below. What is the direction of the magnetic force on the charge? B 73 of 140 0 • Up • Down • Into the page • Out of the page • No force at all.

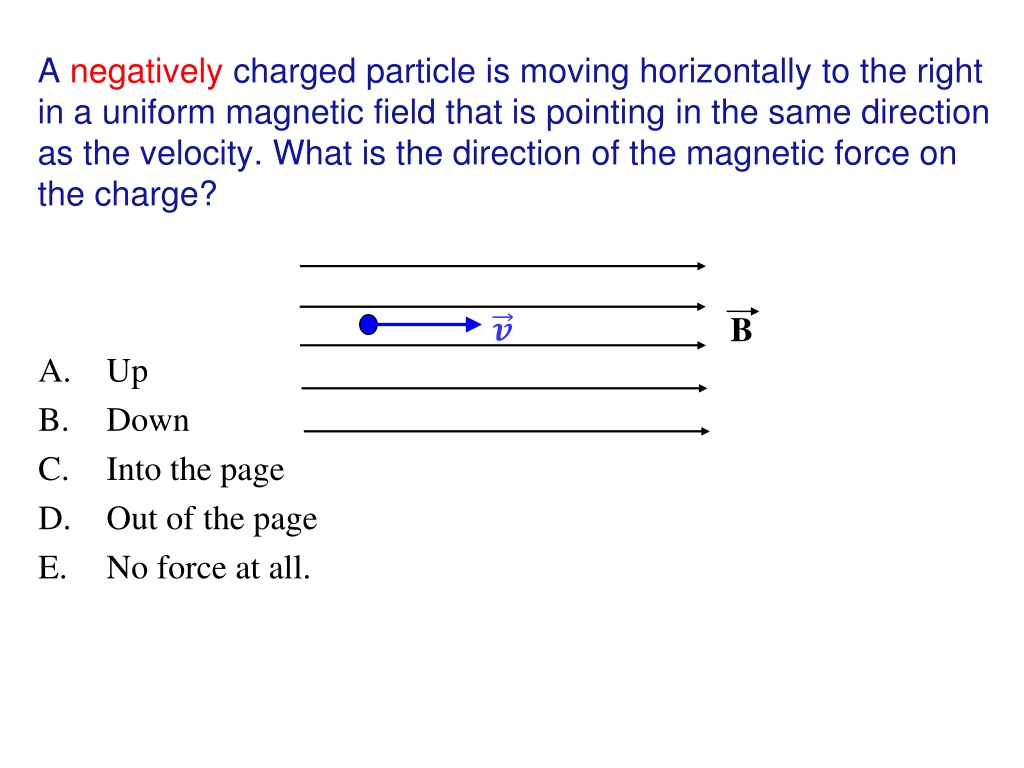

  22. A negatively charged particle is moving horizontally to the right in a uniform magnetic field that is pointing in the same direction as the velocity. What is the direction of the magnetic force on the charge? 72 of 140 0 • Up • Down • Into the page • Out of the page • No force at all. B

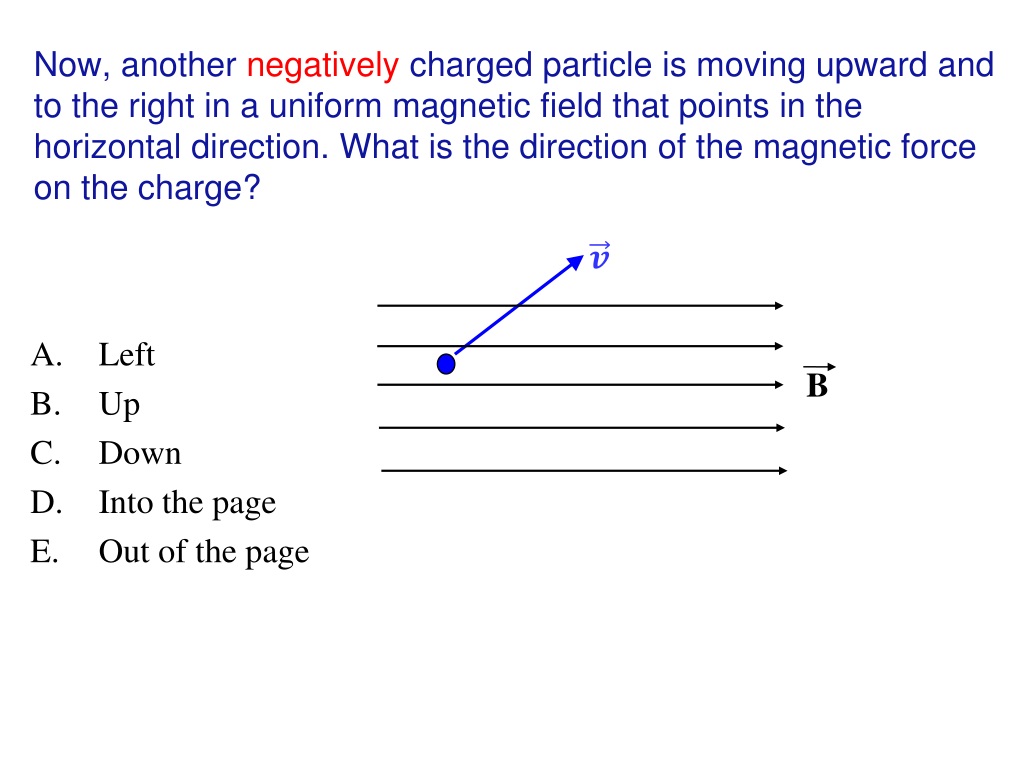

  23. Now, another negatively charged particle is moving upward and to the right in a uniform magnetic field that points in the horizontal direction. What is the direction of the magnetic force on the charge? B 70 of 140 0 • Left • Up • Down • Into the page • Out of the page

  24. Magnetic Force on a Current-carrying Wire Current:many charges are moving Superposition: add up forces on individual charges Number of moving charges in short wire: I Total force: Force of a short wire: In metals: charges q are negative. Will this equation still work?

  25. Hall Effect v B ???? - + When does it reach equilibrium? E h V>0

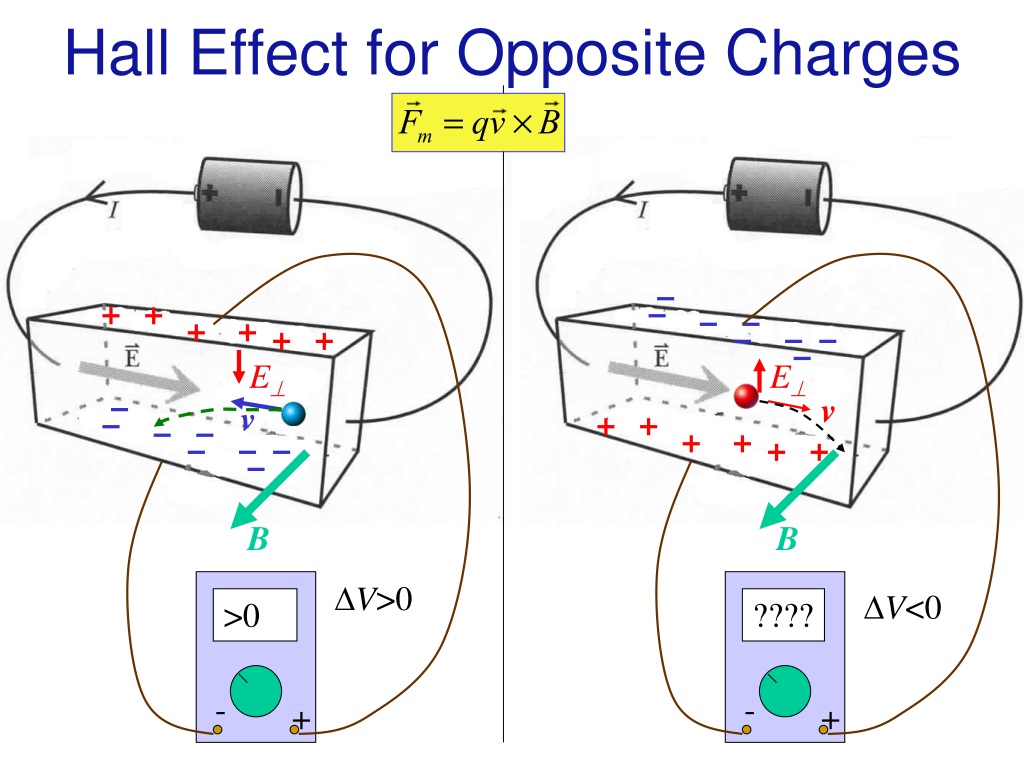

  26. Hall Effect for Opposite Charges E E v v B B >0 ???? V>0 - - + + V<0

  27. Hall Effect Edwin Herbert Hall (1855 - 1938) By measuring the Hall effect for a particular material, we can determine the sign of the moving particles that make up the current

  28. Hall Effect in a Metal What is the magnitude of the Hall effect in a metal? V Measure know the charge (e) Then we can find n Monovalent metals:n is the same as # of atoms per m3 Some metals:n is larger than # of atoms per m3

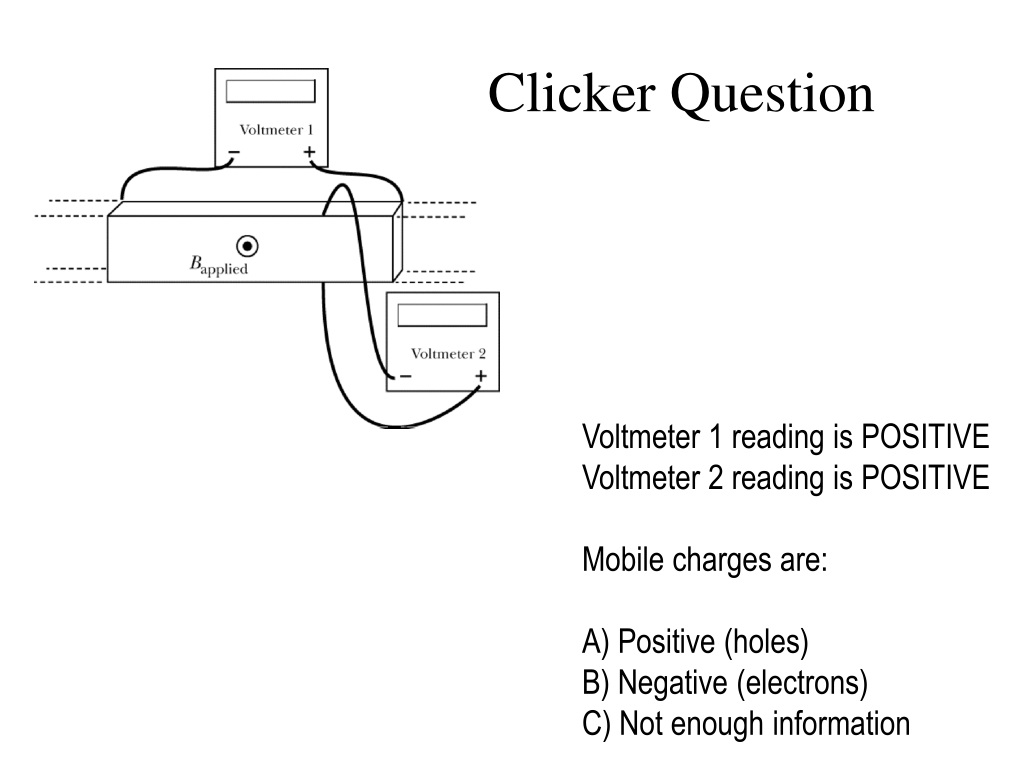

  29. Clicker Question • Voltmeter 1 reading is POSITIVE • Voltmeter 2 reading is POSITIVE • Mobile charges are: • A) Positive (holes) • B) Negative (electrons) • C) Not enough information
