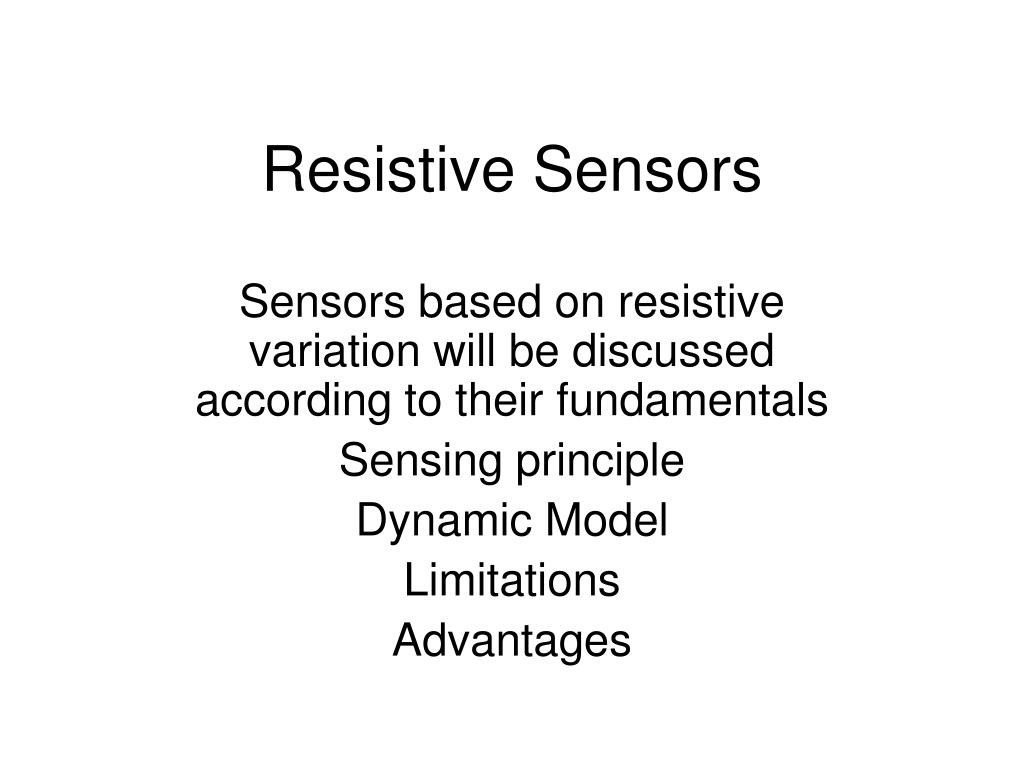

  1. Resistive Sensors Sensors based on resistive variation will be discussed according to their fundamentals Sensing principle Dynamic Model Limitations Advantages

  2. Resistive Sensors • Technology • Equivalent Electric Circuit • Applications

  3. Potentiometers • R = ρ l/A Ohm’s Law • Variable Resistance G. Little • Rotary rheostat MacLagan • 10 turn precision potentiometer Beckman • To avoid drifting resistance by temperature changes, keep V < √PR
