Step-by-Step Guide to Building Stairs with Cut Carriages for Student Groups

This group activity focuses on constructing staircases using cut carriages. Each member will require basic materials, including a 2x10 board and various plywood scraps. Tools needed include a framing square, circular saw, and hammer. The project will start with stair calculations, followed by individual members cutting their own carriages. Photo documentation of each construction stage is essential, culminating in a final photo with each member's completed work. This hands-on activity emphasizes teamwork and practical skills in carpentry.

elgin
Télécharger la présentation

Step-by-Step Guide to Building Stairs with Cut Carriages for Student Groups

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. BUILDING STAIRSWITHCUT-CARRIAGES GROUP MEMBERS: (2 or 3) _______________________ _______________________ _______________________ STUDENT GROUP ACTIVITY#1 ACCE

  2. ACCE

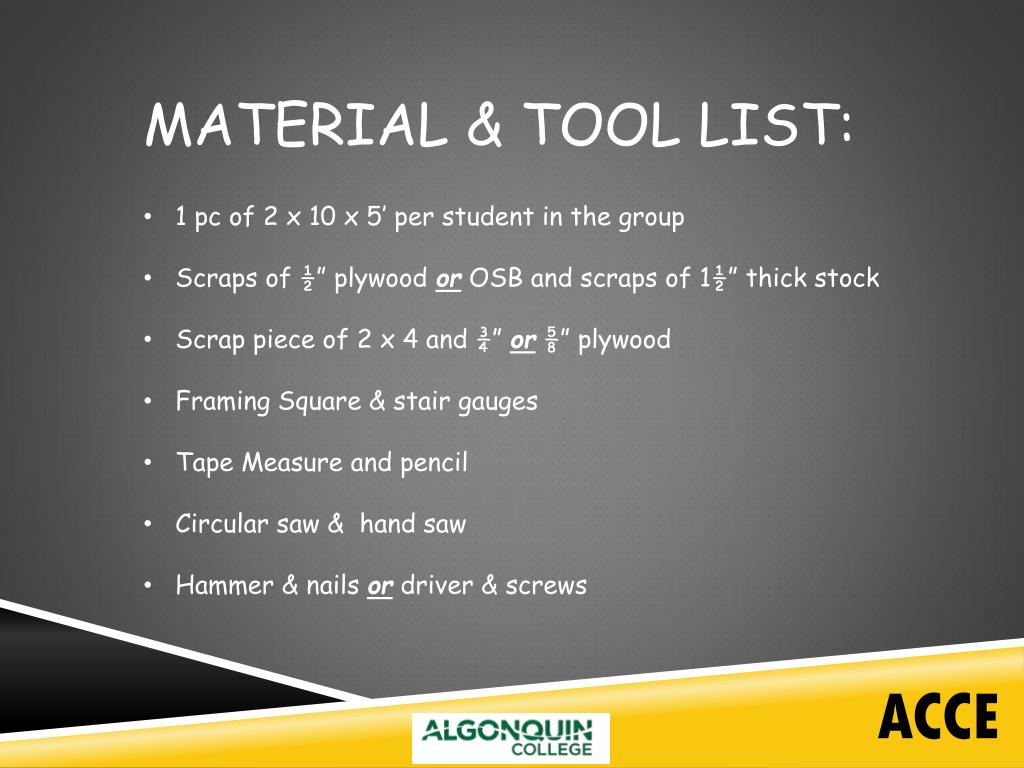

  3. MATERIAL & TOOL LIST: • 1 pc of 2 x 10 x 5’ per student in the group • Scraps of ½” plywood or OSB and scraps of 1½” thick stock • Scrap piece of 2 x 4 and ¾” or ⅝” plywood • Framing Square & stair gauges • Tape Measure and pencil • Circular saw & hand saw • Hammer & nails or driver & screws • ACCE

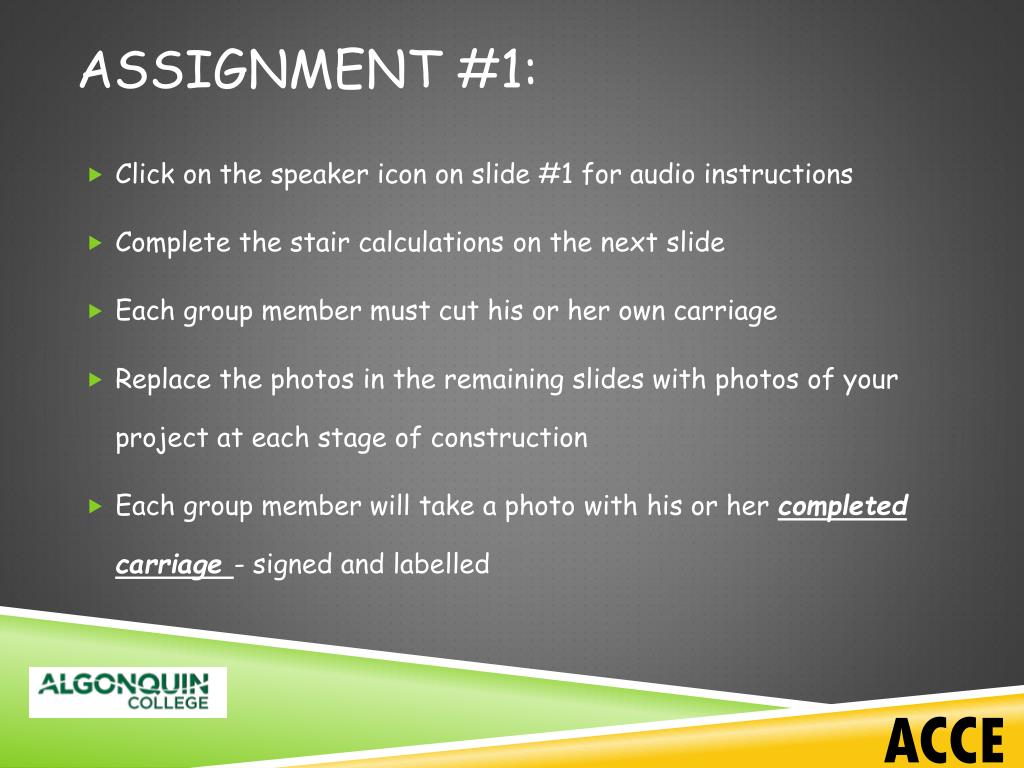

  4. Assignment #1: • Click on the speaker icon on slide #1 for audio instructions • Complete the stair calculations on the next slide • Each group member must cut his or her own carriage • Replace the photos in the remaining slides with photos of your project at each stage of construction • Each group member will take a photo with his or her completed carriage - signed and labelled • ACCE

  5. STAIR CALCULATIONS: Total Rise = 3’ 2⅛”= ________________”( Given) # of rises = _______________________ = _________. Unit Rise = ________________________ = _________. Unit Run = ________________________ = _________. Tread width = _____________________ = _________. # of Runs = _______________________ = _________. Total Run = _______________________ = _________. • ACCE

  6. Framing Square with Stair Gauges set at the correct positions • ACCE

  7. COMPLETED CUT CARRIAGE • ACCE

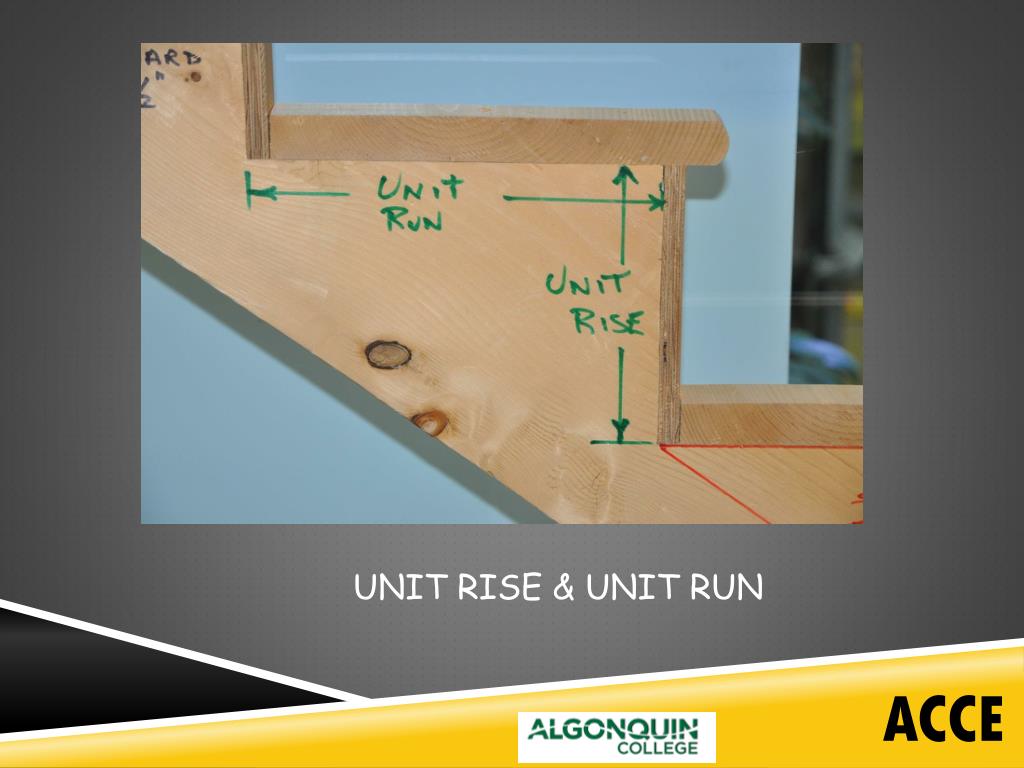

  8. UNIT RISE & UNIT RUN • ACCE

  9. STAIR TRIANGLE • ACCE

  10. TREAD, NOSING, & RISER BOARD • ACCE

  11. BOTTOM RISE & KICKER • ACCE

  12. TOP TREAD & HANGER BOARD • ACCE

  13. ALGONQUIN CENTRE for CONSTRUCTION EXCELLENCE • ACCE
