  1. Chapter 1REVIEW

  2. Chapter 1 TEST Vocabulary 25 pts Pts, Lines, Planes, Angles 18 pts Measurement/Precision 15 pts Angle/Segment Relationships 42 pts

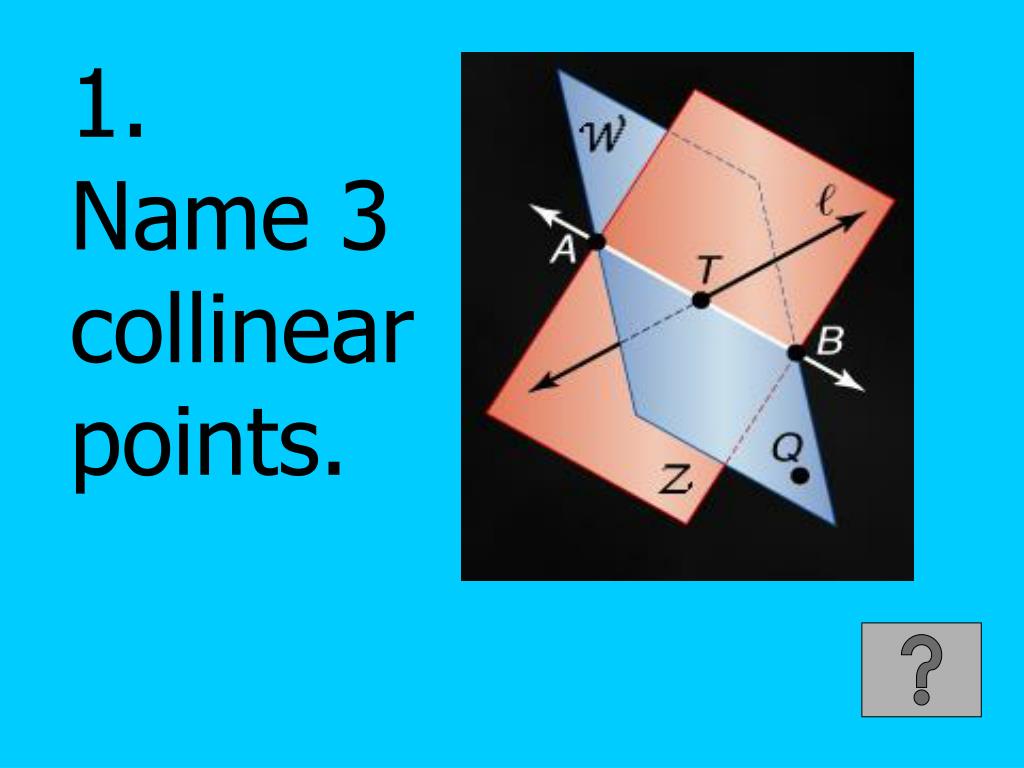

  3. 1.Name 3 collinear points.

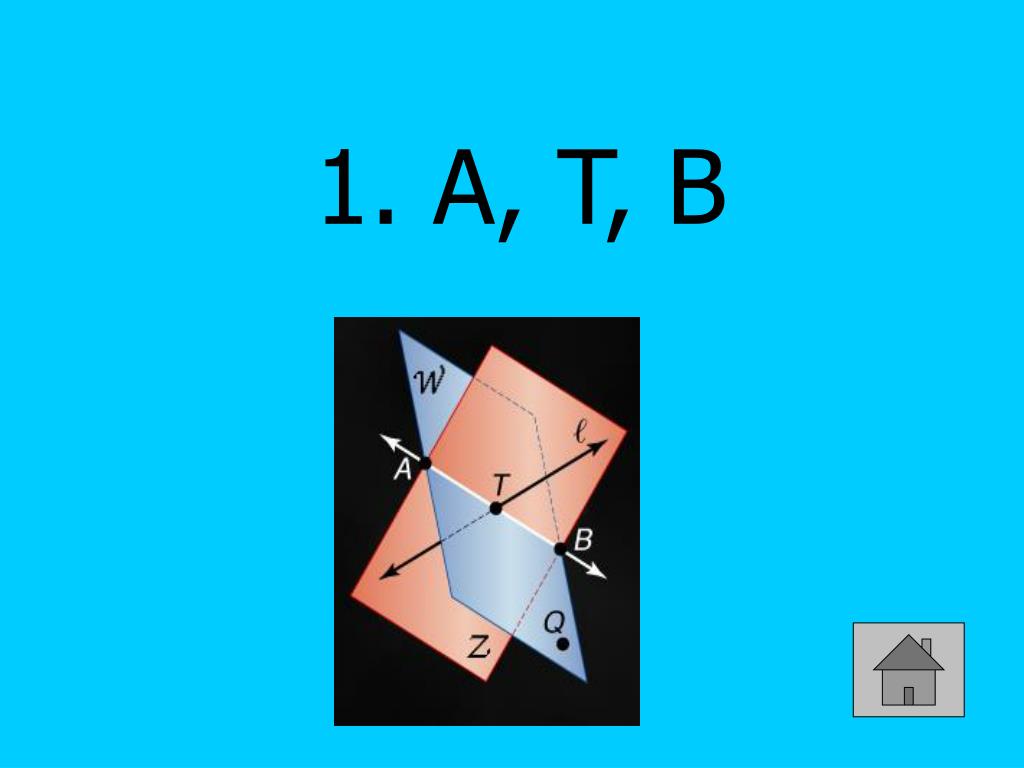

  4. 1. A, T, B

  5. 2. Another name forline AB.

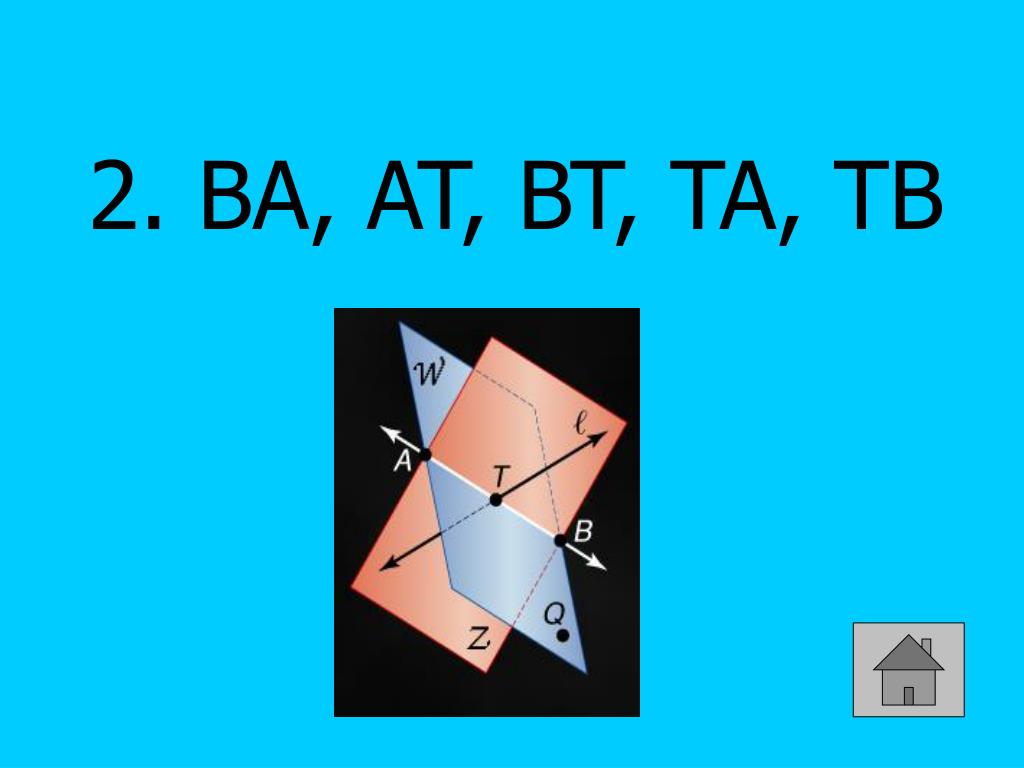

  6. 2. BA, AT, BT, TA, TB

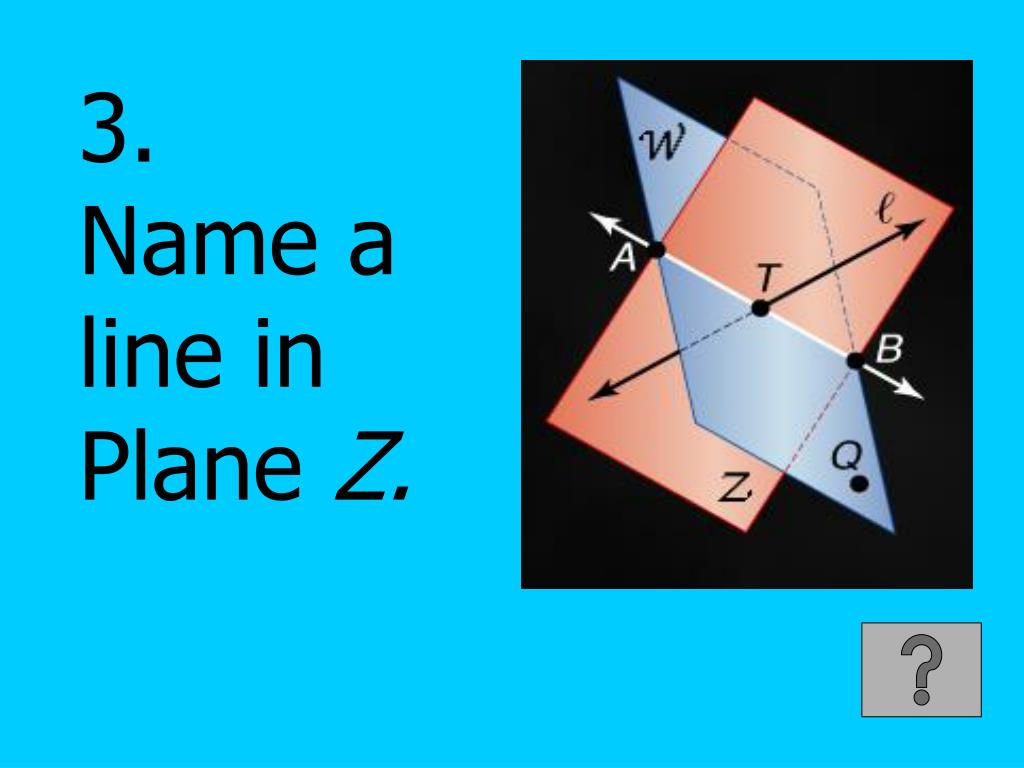

  7. 3.Name a line in Plane Z.

  8. 3. Line l or AT (AB)

  9. 4. Name the intersectionof planes Z and W.

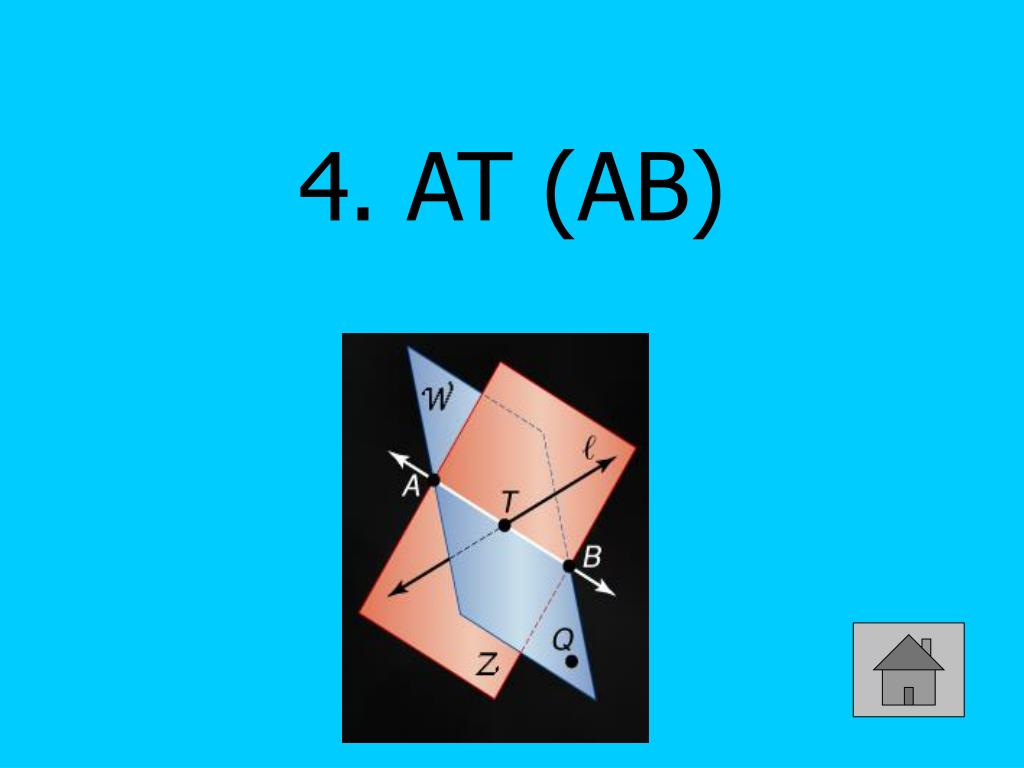

  10. 4. AT (AB)

  11. 5.Number oflines inPlane Z.

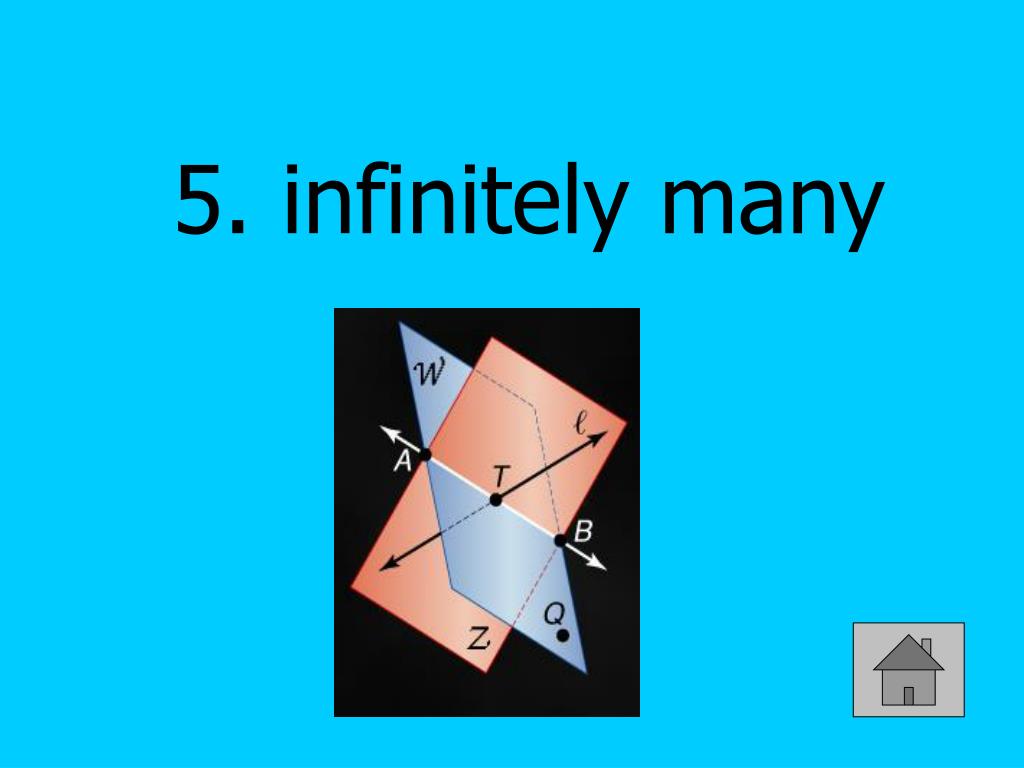

  12. 5. infinitely many

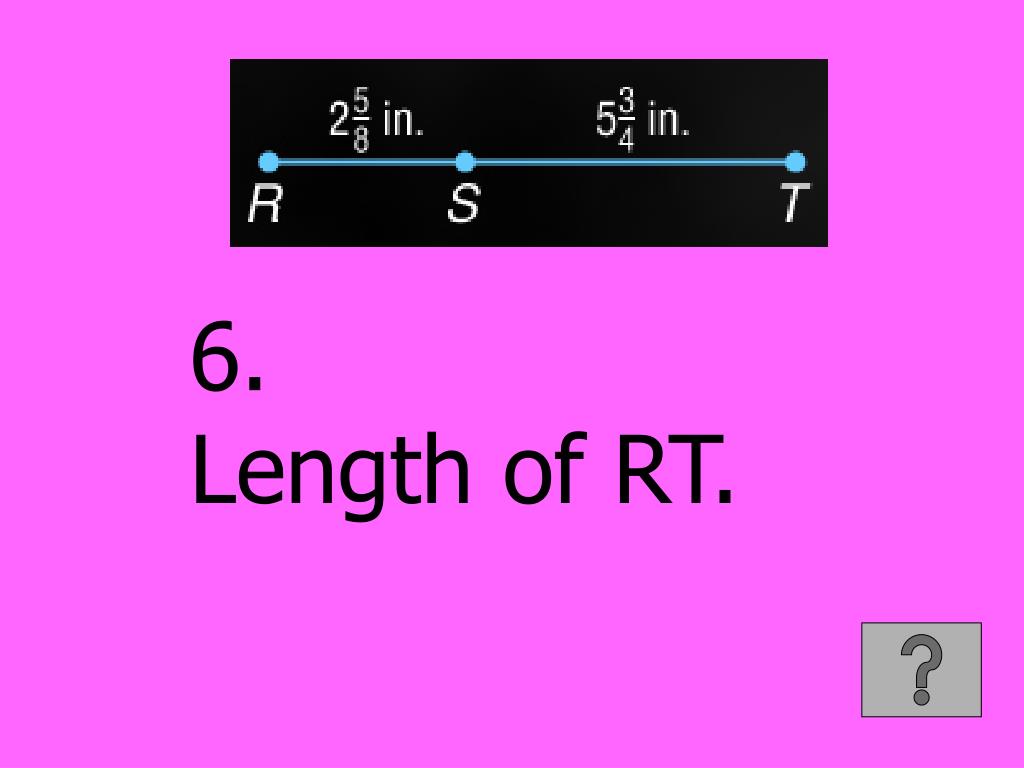

  13. 6.Length of RT.

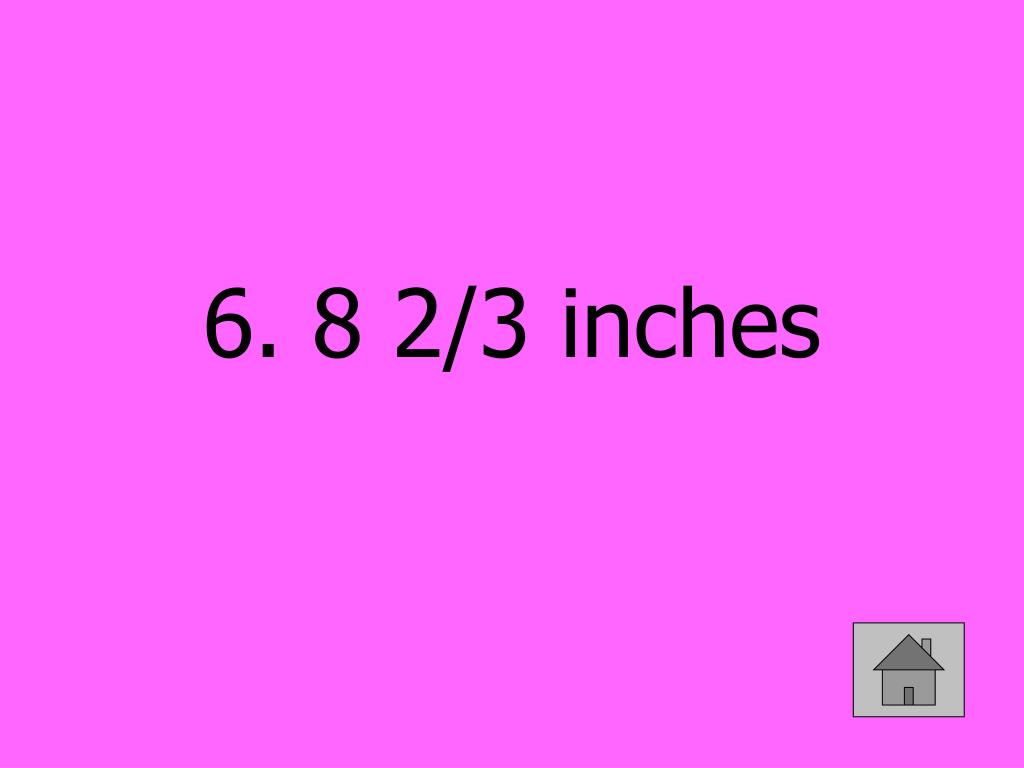

  14. 6. 8 2/3 inches

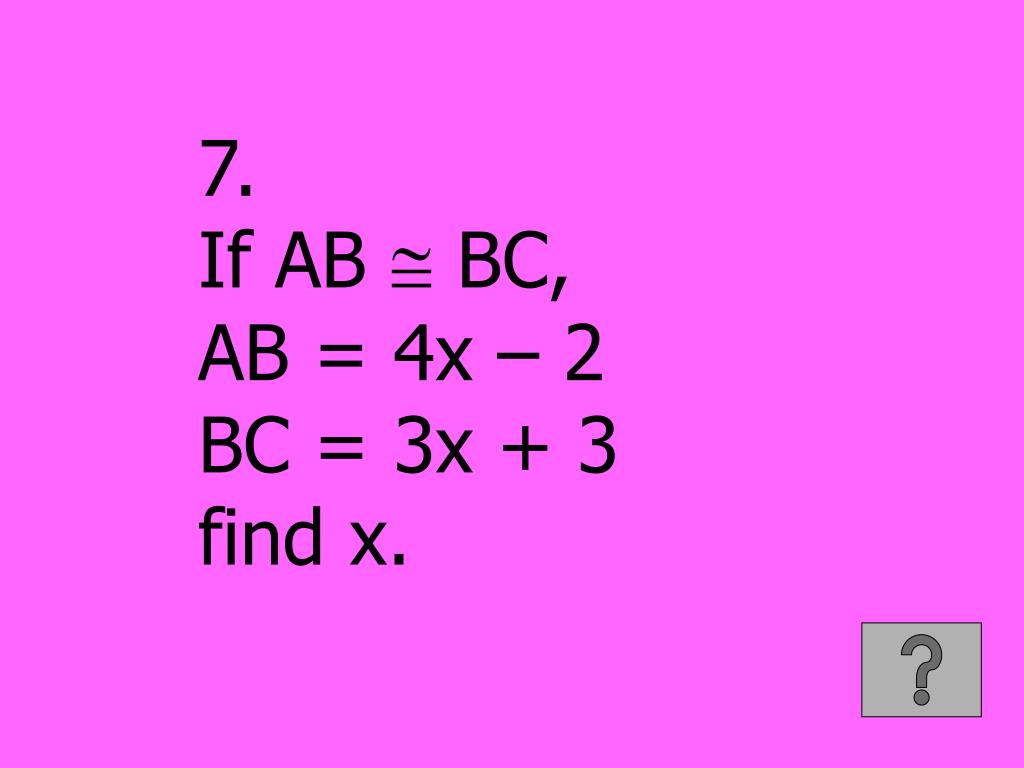

  15. 7.If AB  BC,AB = 4x – 2BC = 3x + 3find x.

  16. 7. x = 5

  17. 8.If P is between Q & R,PQ = 2yQR = 3y + 1PR = 21y = ?

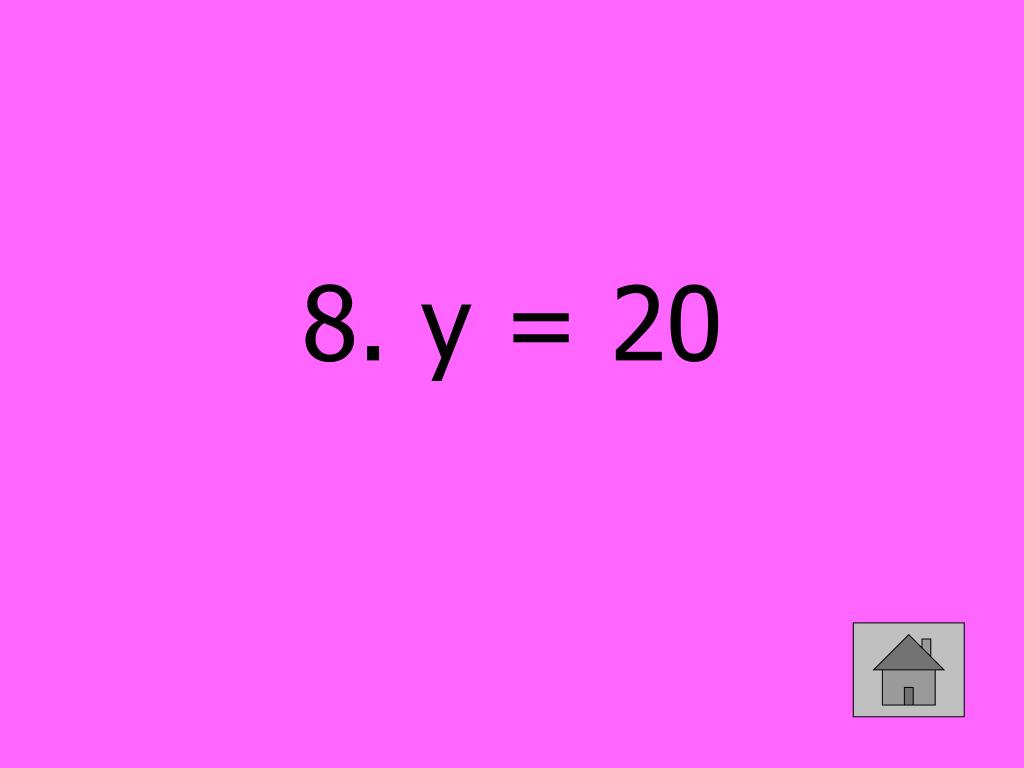

  18. 8. y = 20

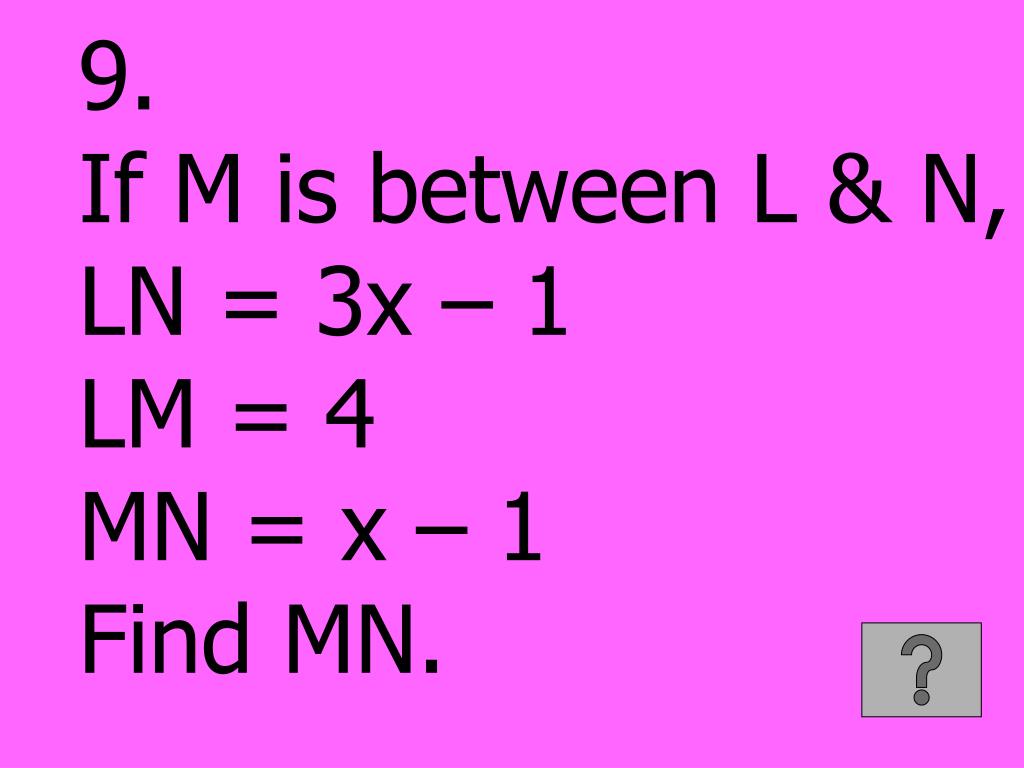

  19. 9.If M is between L & N,LN = 3x – 1LM = 4MN = x – 1Find MN.

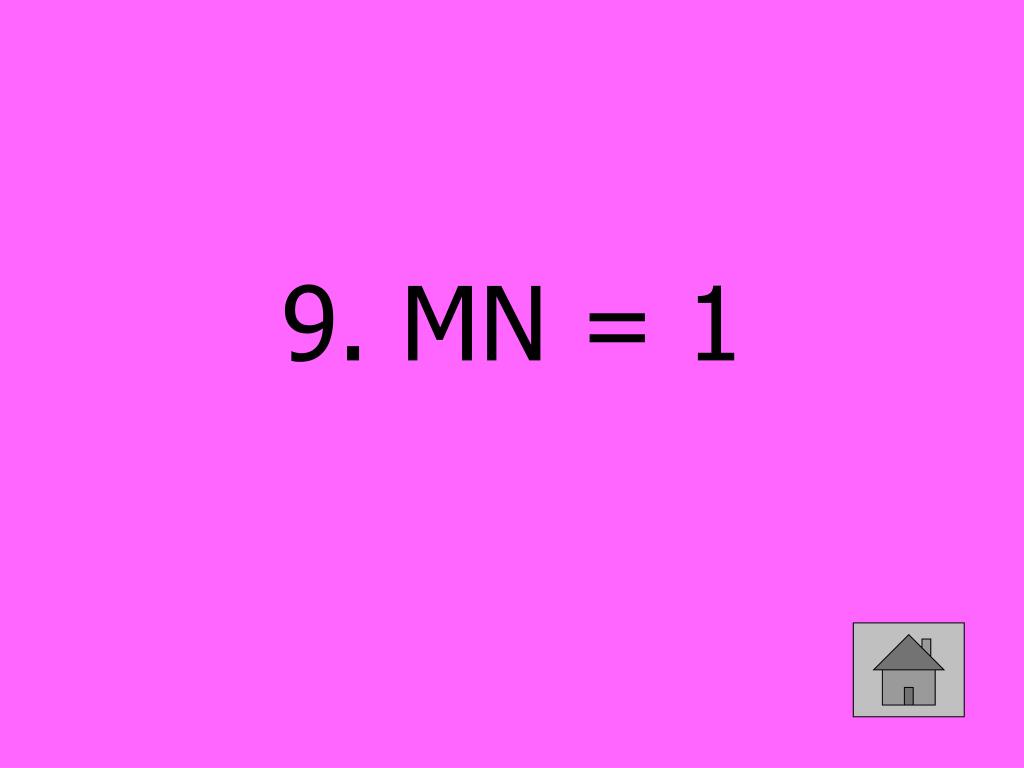

  20. 9. MN = 1

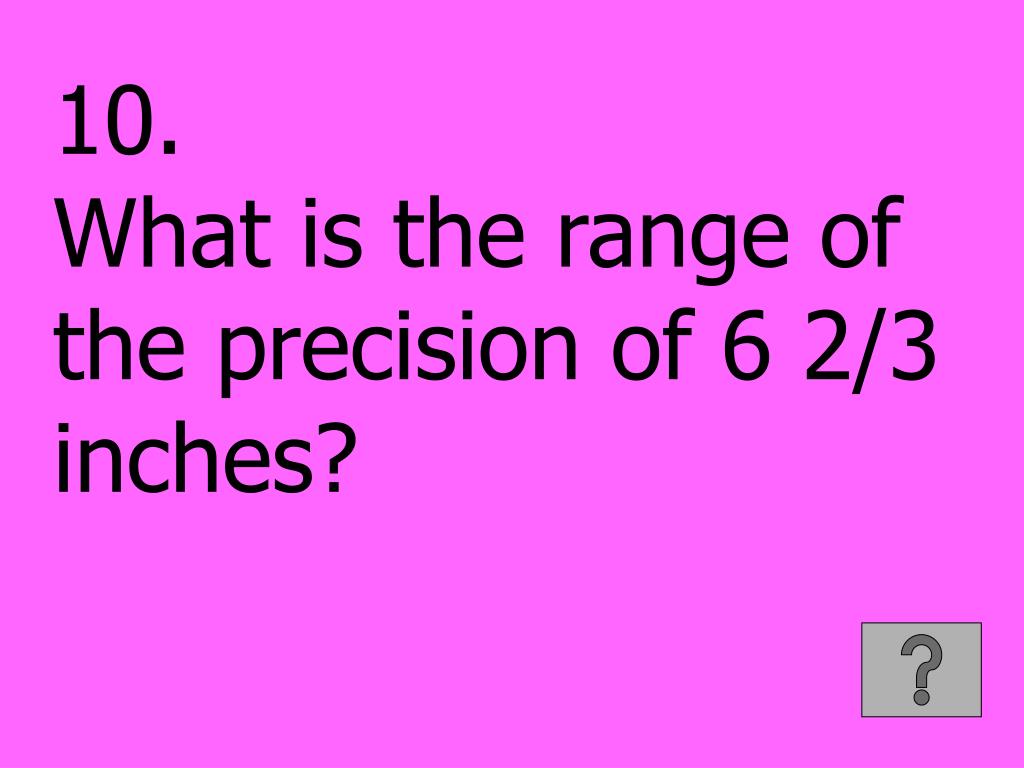

  21. 10.What is the range of the precision of 6 2/3 inches?

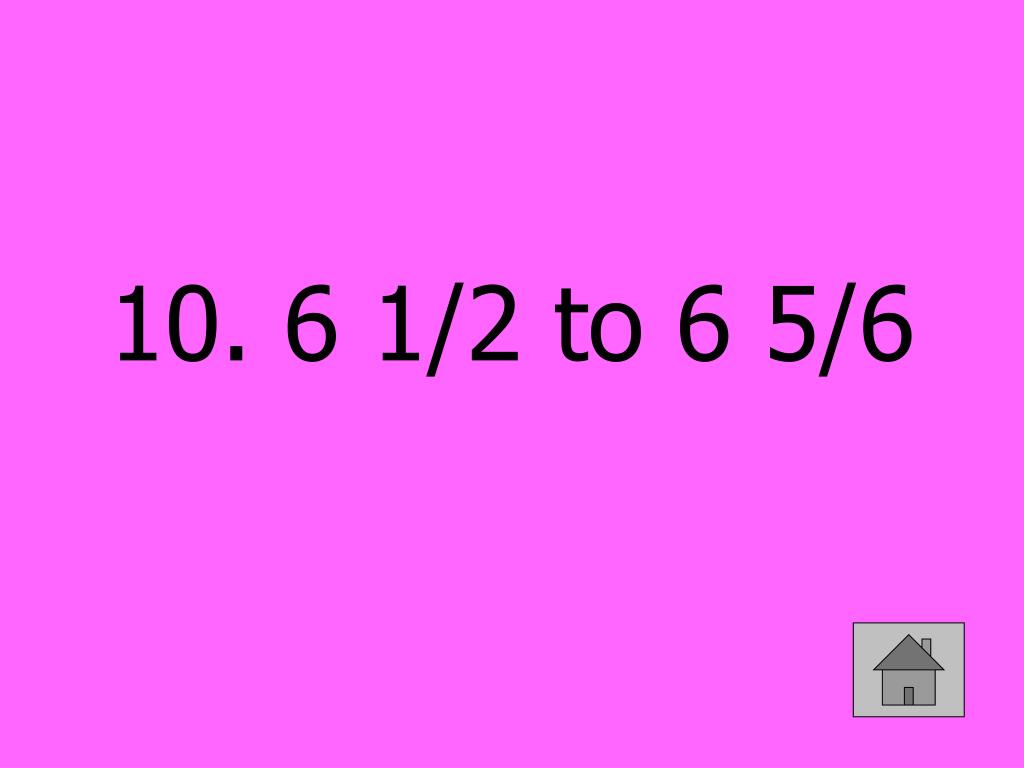

  22. 10. 6 1/2 to 6 5/6

  23. 11.Name thevertex of3.

  24. 11. C

  25. 12. Name a point in the interior of ACB

  26. 12. G

  27. 13.Name the sides of BAC.

  28. 13. ray AB, ray AC

  29. 14.Name 3acute angleswith vertex B.

  30. 14. ∠ ABC ∠ ABD ∠DBC

  31. 15.If BD bisectsABC,ABD=2x + 3DBC=3x-13ABD = ?

  32. 15. 35°

  33. 16.Name 2acutevertical angles.

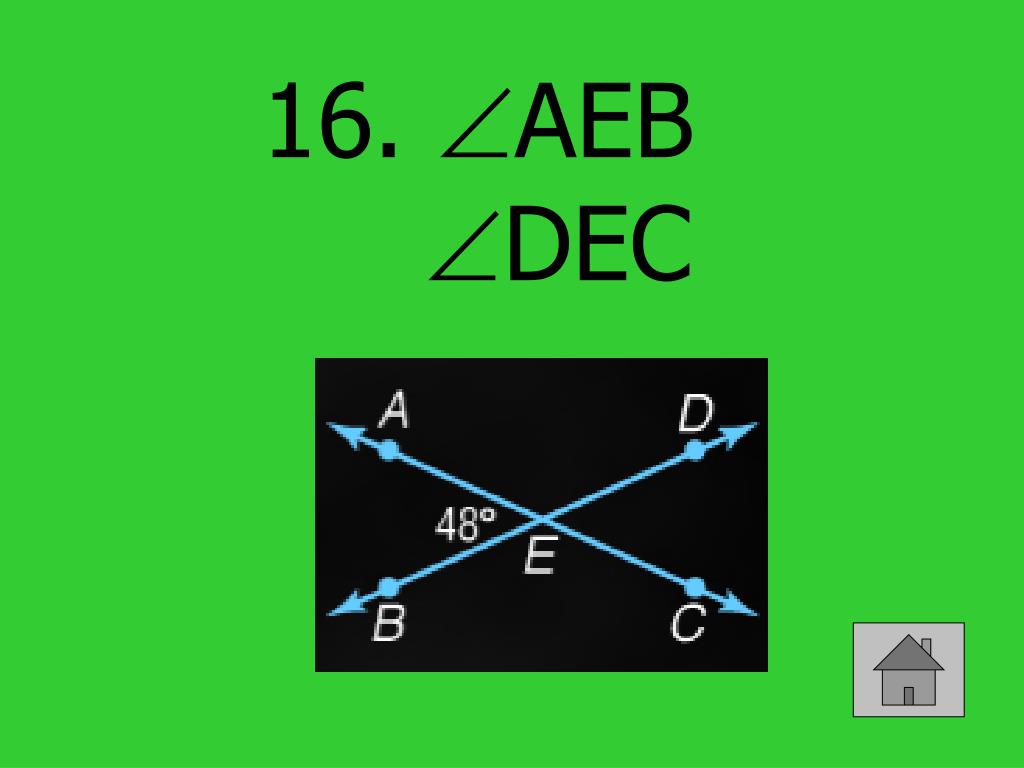

  34. 16. AEB DEC

  35. 17. Name a linear pair.

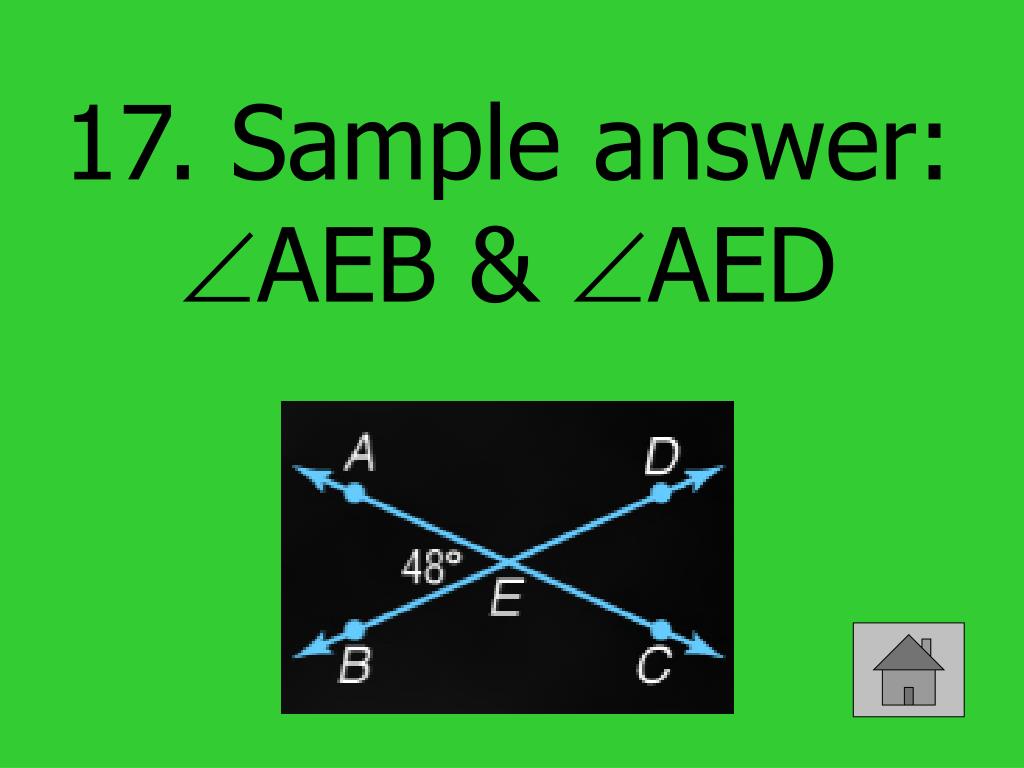

  36. 17. Sample answer:AEB & AED

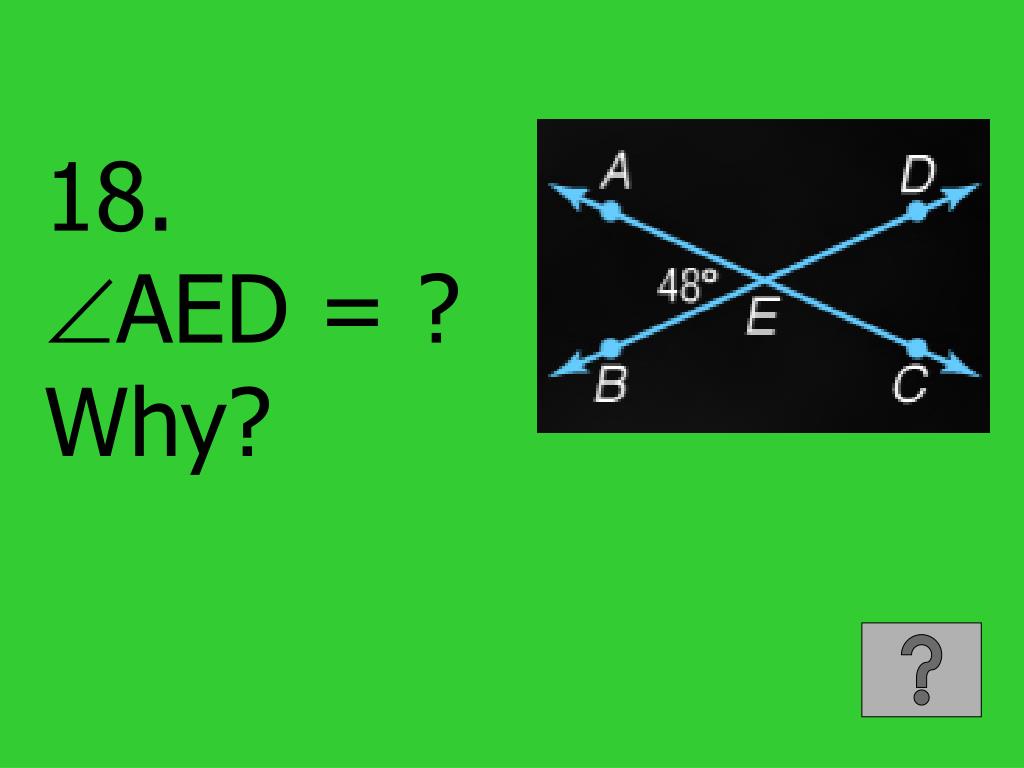

  37. 18.AED = ?Why?

  38. 18. 132ºSupplementary to 48 º

  39. 19.∠ 1 & ∠2 are supp∠1 is twice the measure of ∠2. ∠1 = ? ∠2 = ?

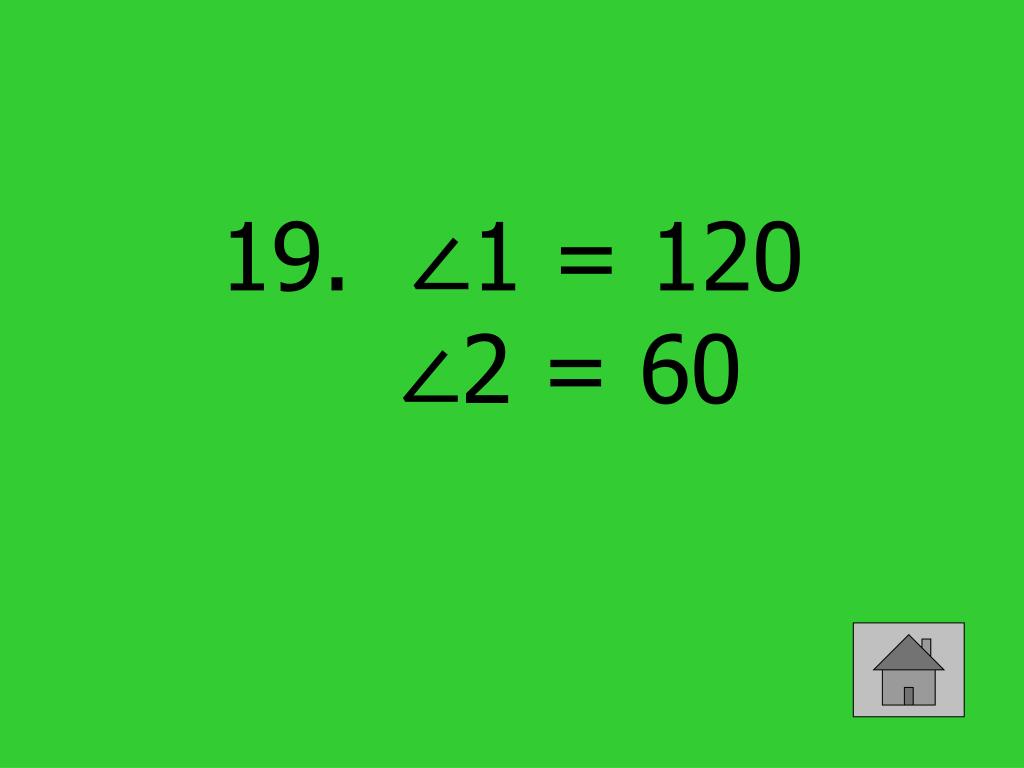

  40. 19. ∠1 = 120 ∠2 = 60

  41. 20.∠ 1 & ∠ 2 are complementary. ∠1 = 2x-1 ∠2 = 4x –17 ∠1 = ? ∠2 = ?

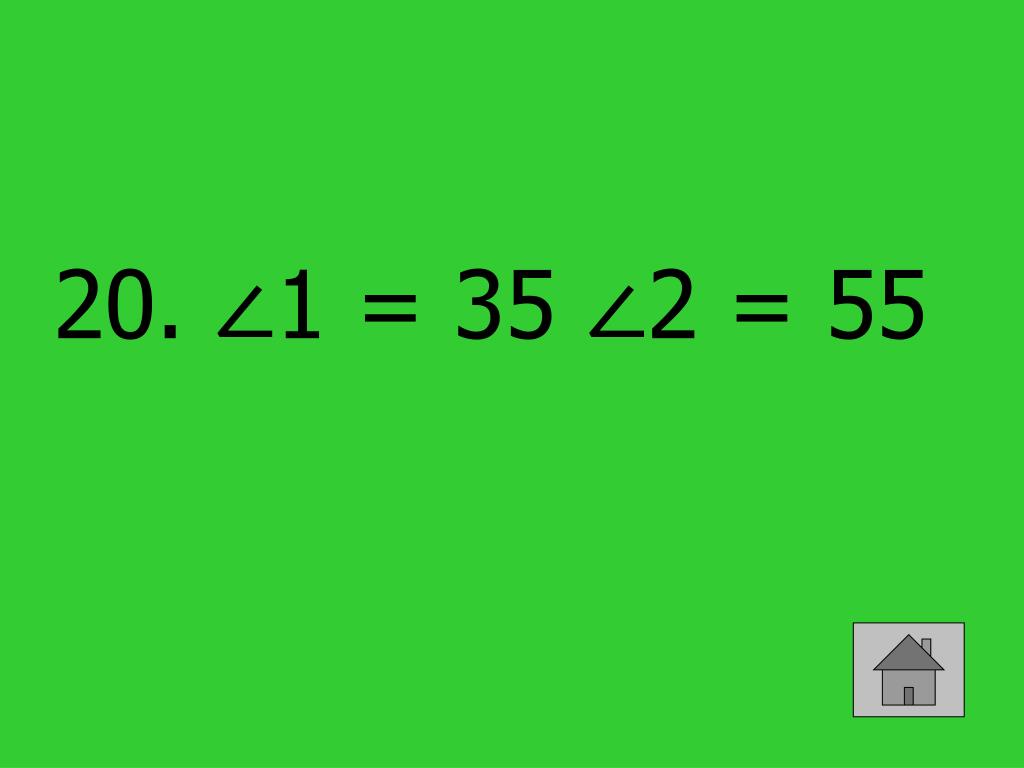

  42. 20. ∠1 = 35 ∠2 = 55

  43. Named after a Physics professor.

  44. Who is Jeff?

  45. Went to Hershey, PA this summer.

  46. Who is Lindsey?

  47. Wears a size 14 shoe.

  48. Who is Alex F?

  49. Born in Lancaster , CA.
