  1. Lecture 27: Supply Chain Scheduling 1 © J. Christopher Beck 2005

  2. Outline • The Beer Chain • Carlsberg Denmark Supply Chain Management • Supply Chain Introduction • Strategic, Tactical, Operational • Planning vs. Scheduling • Hierarchical Decomposition © J. Christopher Beck 2005

  3. Supply Chain Scheduling © J. Christopher Beck 2005

  4. Carlsberg • Sells many different brandsof beer • Sells many different “formats” • bottles, cans, kegs • 6-pack, 12, 24 © J. Christopher Beck 2005

  5. Distribution Centre Carlsberg Supply Chain Brewery 1 4 production lines Brewery 2 2 production lines Warehouses Stage 1 Stage 2 Stage 3 © J. Christopher Beck 2005

  6. Stage 1 Scheduling • 3 production steps on each line • brewing (and fermentation) • filtering • filling – bottling/packaging • All are resource constrained but filling is usually the bottleneck • Filling operation has different costs and processing times © J. Christopher Beck 2005

  7. Stage 1 Scheduling • All orders have fixed “lot size” • Products are divided into A,B,C categories • A – high runners – a lot of demand • C – specialty beers: more expensive, less demand • Sequence dependent changeovers! © J. Christopher Beck 2005

  8. Stage 1 Transportation • Either to DC or direct to a warehouse • Different lot size constraints (truck capacity) © J. Christopher Beck 2005

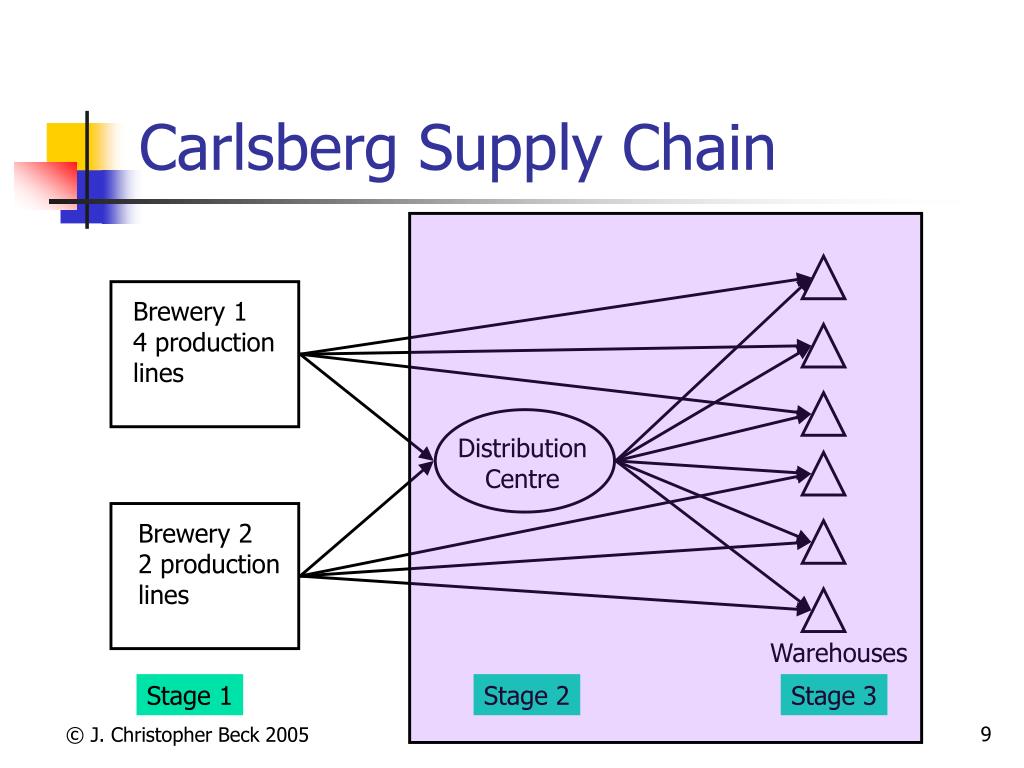

  9. Distribution Centre Carlsberg Supply Chain Brewery 1 4 production lines Brewery 2 2 production lines Warehouses Stage 1 Stage 2 Stage 3 © J. Christopher Beck 2005

  10. Stage 2 & 3 Optimization • Placement of pallets at DC and warehouses • Transportation to warehouses • Transportation to customers • vehicle routing © J. Christopher Beck 2005

  11. Scheduling Process • Medium term: 12 weeks • given demand and forecasts for products • 3 MIP models solved sequentially • Costs: production, storage (at brewery, DC, warehouse), transportation, tardiness, non-delivery penalty, and violation of safety stock • Each MIP is composed of 5-10 subproblems based on products © J. Christopher Beck 2005

  12. Safety Stock • One goal is customer service • Usually achieved by maintaining inventory at DC and warehouses • Minimum inventory levels = safety stock • A lot of safely stock  good customer service, but also high inventory costs! © J. Christopher Beck 2005

  13. Short Term Scheduling • Based on medium term schedule, short term scheduling plans the actual production for one week • More detailed model of resource (i.e., sequence dependent setup costs) • Use genetic algorithm or constraint programming • Transportation scheduling © J. Christopher Beck 2005

  14. Overall Process • Medium term plan is re-done every day using up-to-date information • takes 10 to 12 hours • Then short term scheduling is re-done © J. Christopher Beck 2005

  15. Comments • This is not a distributed scheduling solution! • Decompositions are crucial • medium term/short term • product-based • transportation scheduling decoupled from production scheduling © J. Christopher Beck 2005

  16. Supply Chain Optimization • Assume we are interested in minimizing the cost of the entire supply chain • Individual participants will cooperate to minimize overall cost • How many things are wrong with this assumption? © J. Christopher Beck 2005

  17. Levels & Horizons © J. Christopher Beck 2005

  18. Planning vs. Scheduling © J. Christopher Beck 2005

  19. Hierarchical Decomposition • Planning solves higher level problems based on aggregate data • The planning decisions are then used as constraints (e.g., due dates) for the scheduling • May be multiple independent scheduling problems • Planning decouples scheduling problems! © J. Christopher Beck 2005
