1. Building Knowledge Bases Compositionally Bruce Porter, Peter Clark Ken Barker, Art Souther, John Thompson James Fan, Dan Tecuci, Peter Yeh Marwan Elrakabawy, Sarah Tierney

2. Our Approach to RKF • Our goal: SME’s build knowledge bases by simply instantiating and assembling pre-built components. • Our approach: We build a Component Library containing representations of domain-specific concepts as well as common: • actions, such as Get and Enter • states, such as Be-Attached-To • entities, such as Barrier and Catalyst • property values, such as three microns and rapid Andwe develop computational methods for: • combining them and • using them to answer questions.

3. Generic Actions • About 200 actions, in about 20 clusters, based on linguistic studies and other KB projects • Are these sufficient? • Yes, based on an analysis of 6 chapters of the Alberts text and the encoding of much of chapter 7 • To test their coverage outside microbiology, we’ll be building dozens of KB’s this semester • Our Component Evaluation will provide hard data • Why keep it small? • So the Library will be easy to learn and use • So we can provide rich semantics for each action

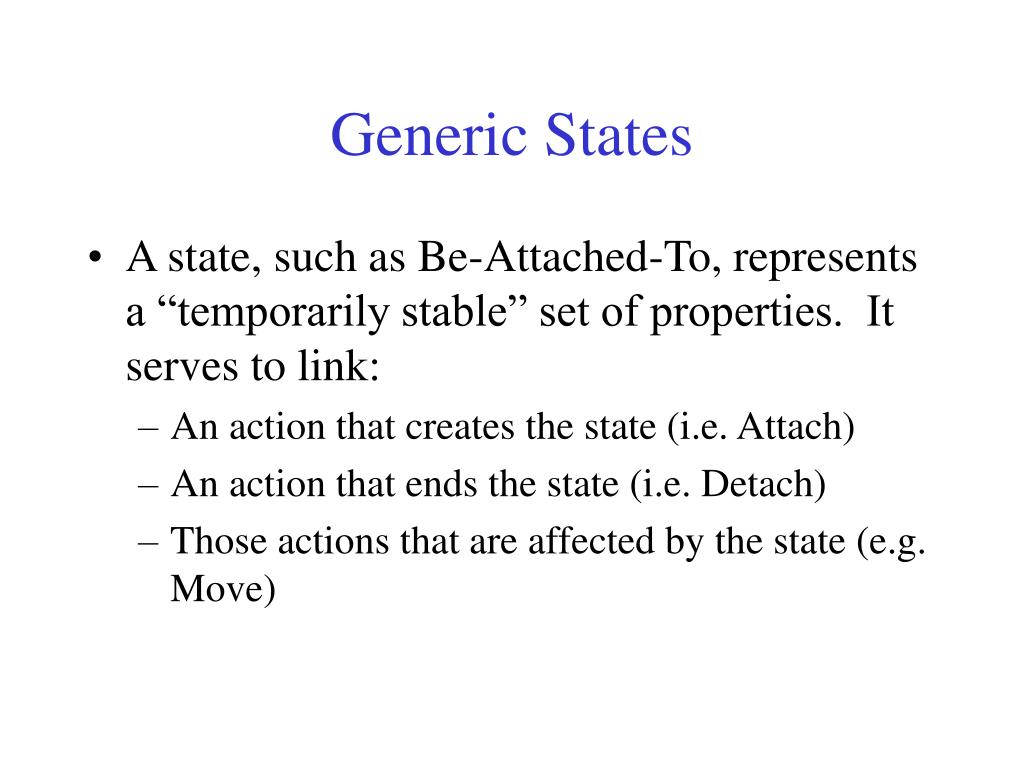

4. Generic States • A state, such as Be-Attached-To, represents a “temporarily stable” set of properties. It serves to link: • An action that creates the state (i.e. Attach) • An action that ends the state (i.e. Detach) • Those actions that are affected by the state (e.g. Move)

5. Generic Entities • small number of role concepts, defined by their participation in actions or states. Examples: container, sequence, nutrient, portal, portal covering

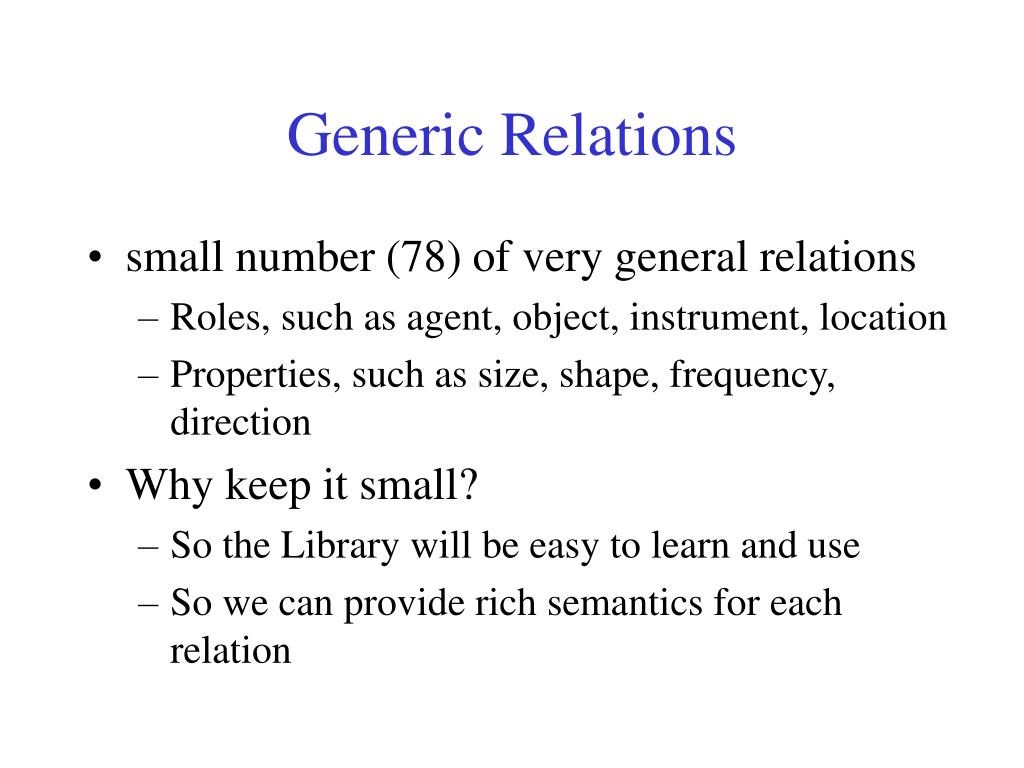

6. Generic Relations • small number (78) of very general relations • Roles, such as agent, object, instrument, location • Properties, such as size, shape, frequency, direction • Why keep it small? • So the Library will be easy to learn and use • So we can provide rich semantics for each relation

7. An Example:Bacterial RNA Transcription • main participantsbacterial dna, rna polymerase, rna transcript • scenario • polymerase makes contact with dna • polymerase moves along dna • polymerase recognizes promoter • polymerase transcribes gene, moving along DNA until it reaches terminator • transcript detaches from polymerase • polymerase breaks contact with dna

8. Participants from Pump Priming • bacterial dna, rna polymerase, rna transcript • in the domain-specific hierarchy • example • Bacterial-DNA has location: a Place regions: a Gene (abuts the Promoter region) (abuts the Terminator region) a Promoter a Terminatoretc.

9. location location object destination Move source object Place Move object source destination Be-Touching Place Events in the Process from the “Component Library” • example:Make-Contact • akatouch, adjoin, meet, contact Make-Contact destination object Entity Place Entity

10. Bacterial RNA Transcription Bacterial-RNA-Transcription-Scenario object result causer Bacterial-DNA RNA-Polymerase RNA-Transcript location regions Place Promoter Gene Terminator

11. object destination object location Be-Touching Bacterial RNA Transcription Make-Contact Move Recognize Transcribe Detach Break-Contact Bacterial-DNA RNA-Polymerase RNA-Transcript location regions Place Promoter Gene Terminator

12. source object path destination object location Be-Touching Bacterial RNA Transcription Make-Contact Move Recognize Transcribe Detach Break-Contact Bacterial-DNA RNA-Polymerase RNA-Transcript location regions Place Promoter Gene Terminator

13. source object path destination Bacterial RNA Transcription Make-Contact Move Recognize Transcribe Detach Break-Contact Bacterial-DNA RNA-Polymerase RNA-Transcript location object Be-Touching regions location Place Promoter Gene Terminator

14. Bacterial RNA Transcription Make-Contact Move Recognize Transcribe Detach Break-Contact object causer Bacterial-DNA RNA-Polymerase RNA-Transcript location object Be-Touching regions location Place Promoter Gene Terminator

15. subevent object Move dest source Bacterial RNA Transcription Make-Contact Move Recognize Transcribe Detach Break-Contact object causer result Bacterial-DNA RNA-Polymerase RNA-Transcript location object Be-Touching regions location Place Promoter Gene Terminator

16. subevent object Move dest source Bacterial RNA Transcription Make-Contact Move Recognize Transcribe Detach Break-Contact object causer result Bacterial-DNA RNA-Polymerase RNA-Transcript location object Be-Touching regions location Place Promoter Gene Terminator

17. object Be-Attached-To Bacterial RNA Transcription Make-Contact Move Recognize Transcribe Detach Break-Contact object object location Bacterial-DNA RNA-Polymerase RNA-Transcript location object Be-Touching regions location Place Promoter Gene Terminator

18. Bacterial RNA Transcription Make-Contact Move Recognize Transcribe Detach Break-Contact object object location Bacterial-DNA RNA-Polymerase RNA-Transcript location object Be-Touching regions location Place Promoter Gene Terminator

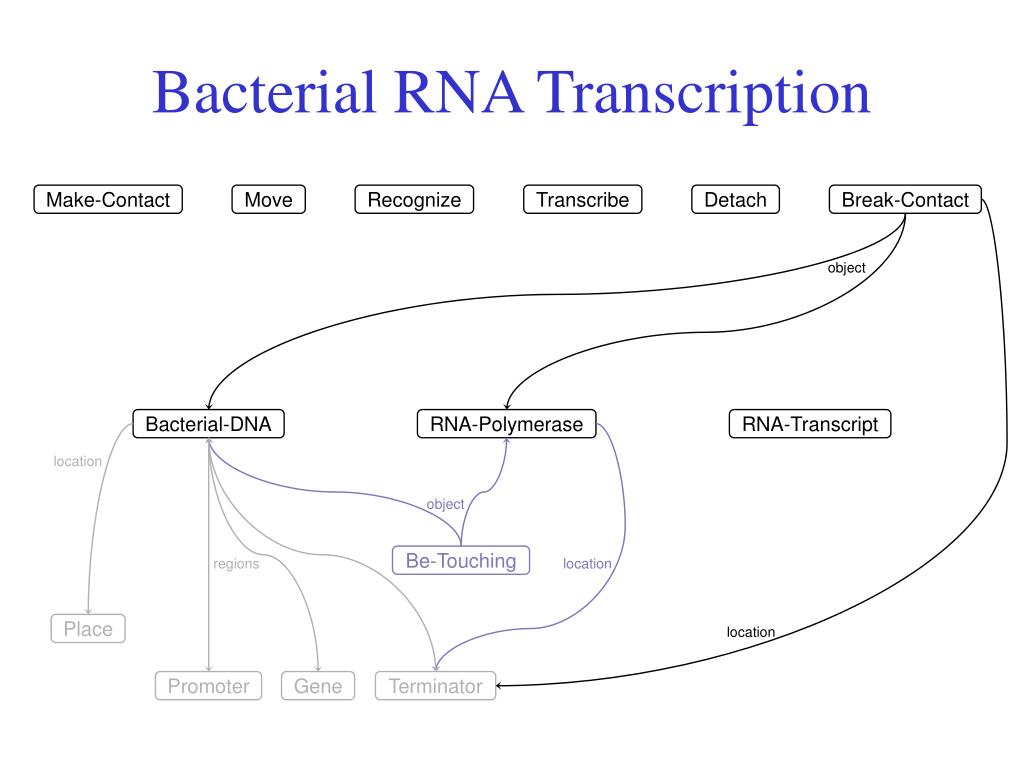

19. Bacterial RNA Transcription Make-Contact Move Recognize Transcribe Detach Break-Contact object Bacterial-DNA RNA-Polymerase RNA-Transcript location object Be-Touching regions location Place location Promoter Gene Terminator

20. Bacterial RNA Transcription Make-Contact Move Recognize Transcribe Detach Break-Contact object Bacterial-DNA RNA-Polymerase RNA-Transcript location object Be-Touching regions location Place location Promoter Gene Terminator

21. Bacterial RNA Transcription Make-Contact Move Recognize Transcribe Detach Break-Contact object Bacterial-DNA RNA-Polymerase RNA-Transcript location regions location Place location Promoter Gene Terminator

22. Summary • SME assembles a declarative representation from both generic and domain-specific components • SME specifies only the components and the links in the assembly; most of the complexity within components is kept “under the hood” • KANAL can “exercise” the declarative representation, verifying completeness and consistency • KM’s simulator can execute the declarative representation to answer questions
