Analysis of Bubble Sort Performance Based on Comparative Steps and Running Time Complexity

This document explores the Bubble Sort algorithm, focusing on its comparative analysis and running time. It breaks down the inner loop execution, illustrating how the number of comparison steps varies with array length ( n ) and sums to ( frac{(n-1) cdot n}{2} ). The relationship between maximum running time ( T(n) ) and execution steps is examined, revealing that ( T(n) = a_2n^2 + a_1n + a_0 ) can be simplified for large ( n ) to ( T(n) = Θ(n^2) ). Additional considerations regarding the impact of initializations, compiler quality, and hardware speed are identified.

elke
Télécharger la présentation

Analysis of Bubble Sort Performance Based on Comparative Steps and Running Time Complexity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

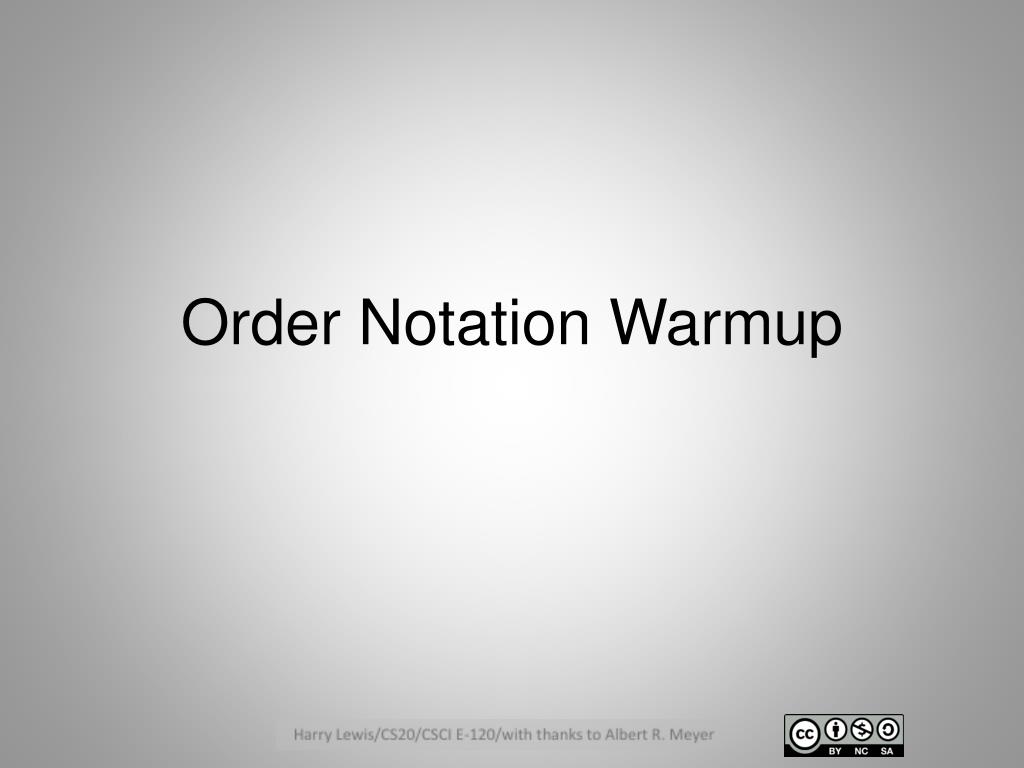

  1. Order Notation Warmup

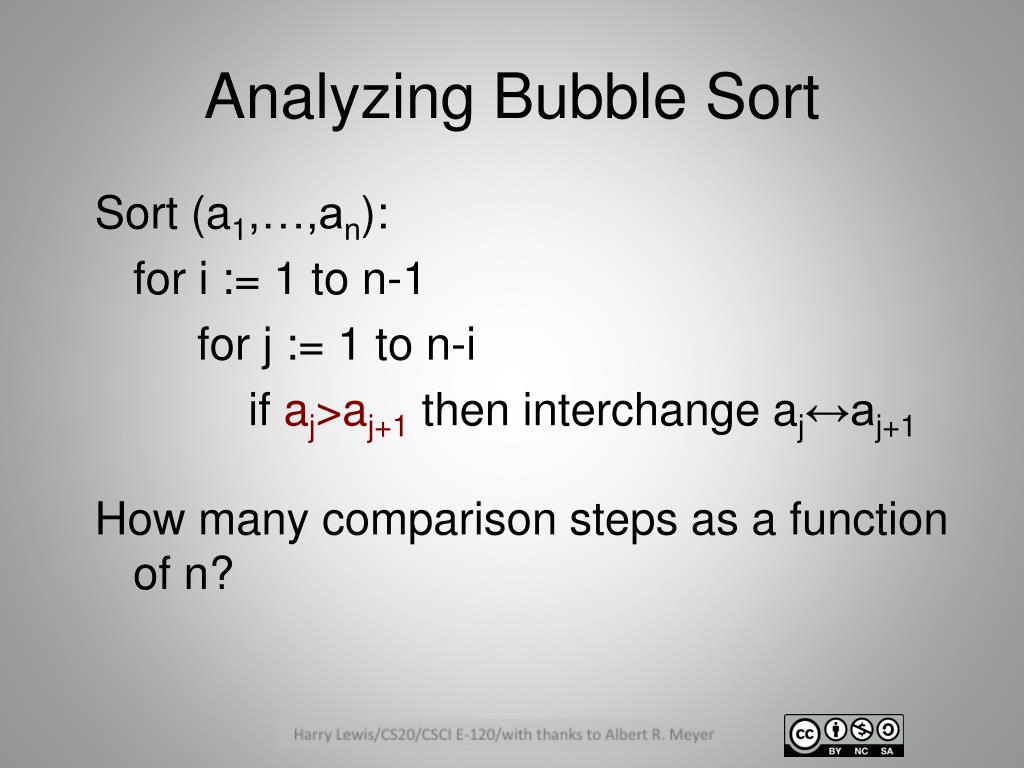

  2. Analyzing Bubble Sort Sort (a1,…,an): for i := 1 to n-1 for j := 1 to n-i if aj>aj+1then interchange aj↔aj+1 How many comparison steps as a function of n?

  3. Inner loop is executed n-1 times when i=1 n-2 times when i=2 … 1 time when i=n-1 For a total of 1+2+3+…+(n-2)+(n-1) =((n-1)∙n)/2. The exact running time depends on details of the code (initializations, for example), the quality of the compiler, the speed of the computer, etc.

  4. Let T(n) be the maximum running time of this program for any array of length n. (Small variations due to whether swaps actually occur) T(n) = a2n2 + a1n + a0 for some constants a0, a1, a2. But the last two terms become increasing inconsequential as n increases since a1n + a0 = o(a2n2). So the most useful thing to say is that T(n)=𝚯(n2) (why both upper and lower bound?)
