  1. Felix Kossak felix.kossak@scch.at+43 7236 3343 811 www.scch.at Model Checking An overview Model Checking

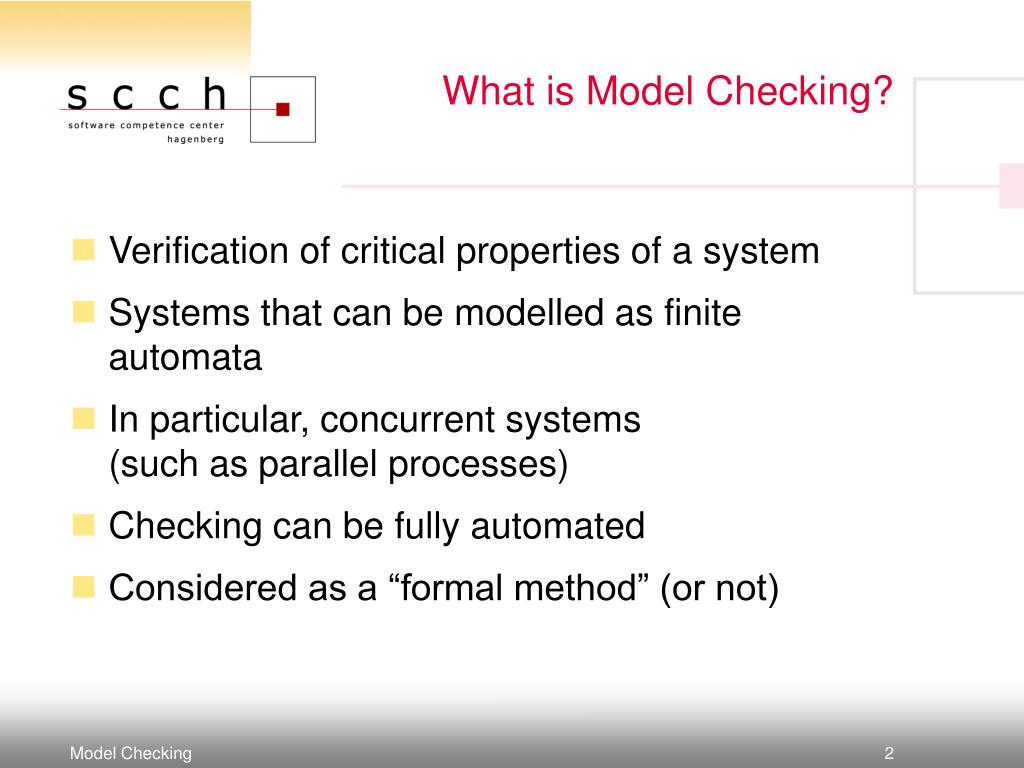

  2. What is Model Checking? • Verification of critical properties of a system • Systems that can be modelled as finite automata • In particular, concurrent systems(such as parallel processes) • Checking can be fully automated • Considered as a “formal method” (or not) Model Checking

  3. Areas of Application • “Classical” Model Checking has been successfully applied in e.g. • Design of electronic circuits • Network protocol design • Is - or could - also be applied in: • Parallel process design • Real-time systems • Workflow, architectures; algorithms in general (flowchart level) • Software verification: e.g. termination of loops • ... Model Checking

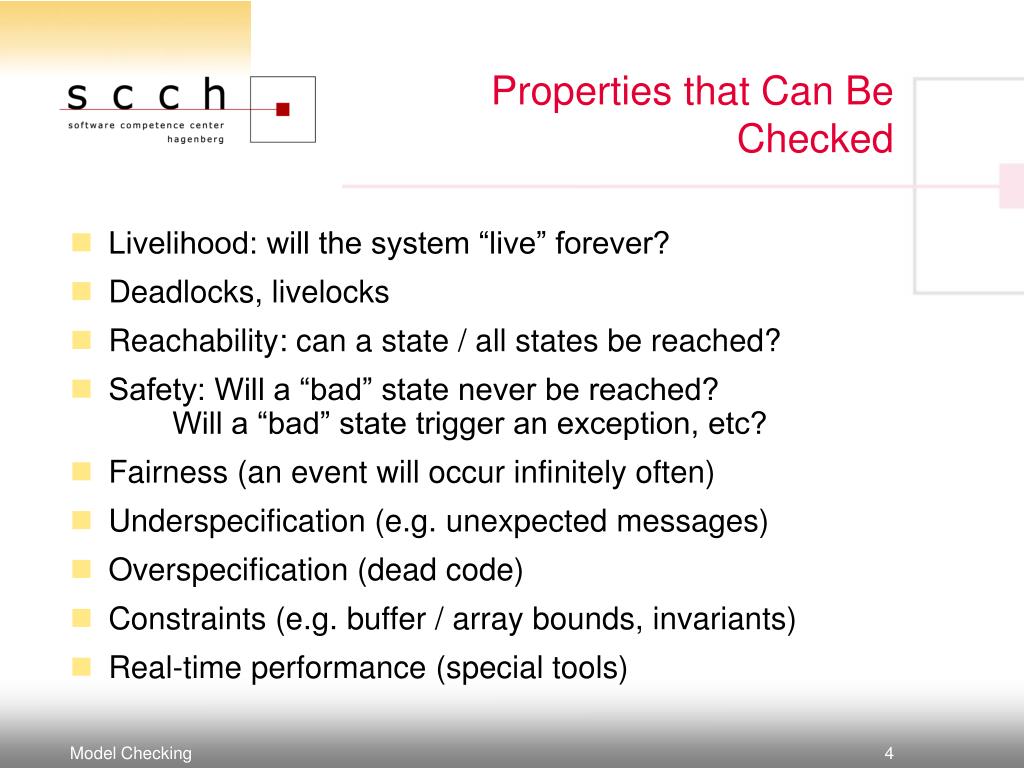

  4. Properties that Can Be Checked • Livelihood: will the system “live” forever? • Deadlocks, livelocks • Reachability: can a state / all states be reached? • Safety: Will a “bad” state never be reached? Will a “bad” state trigger an exception, etc? • Fairness (an event will occur infinitely often) • Underspecification (e.g. unexpected messages) • Overspecification (dead code) • Constraints (e.g. buffer / array bounds, invariants) • Real-time performance (special tools) Model Checking

  5. Application Examples • Network protocols • Process scheduling • Process communication • Shared resources: e.g. printer manager • Hardware / machine controllers • Architecture design • Workflow design • Algorithm design (on flowchart level) Model Checking

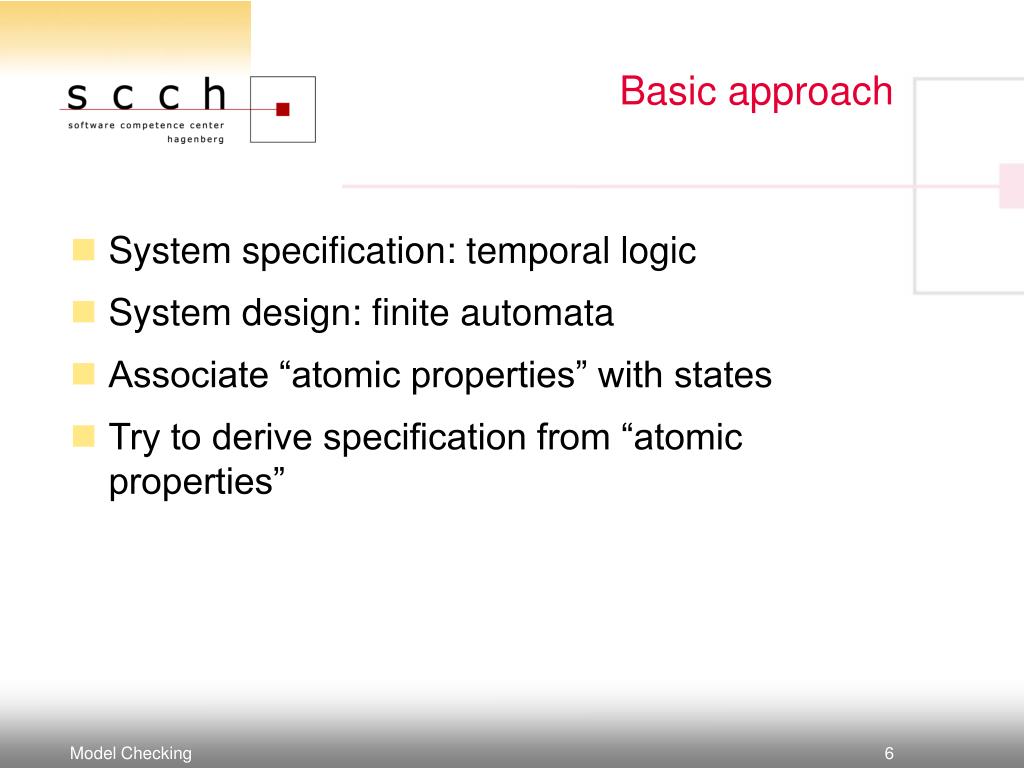

  6. Basic approach • System specification: temporal logic • System design: finite automata • Associate “atomic properties” with states • Try to derive specification from “atomic properties” Model Checking

  7. Limits • Size of the automaton: “state explosion” • In practice, the number of states becomes soon very large • potentially exponential w.r.t. system description • Simplification while preserving correctness? • For specific problems, rather than problem classes Model Checking

  8. Technical Details • Automata • ‘Kripke structures’ • Petri nets, etc • Specification in temporal logic • CTL* • Data structures: research issue • Binary Decision Diagrams (BDD) Model Checking

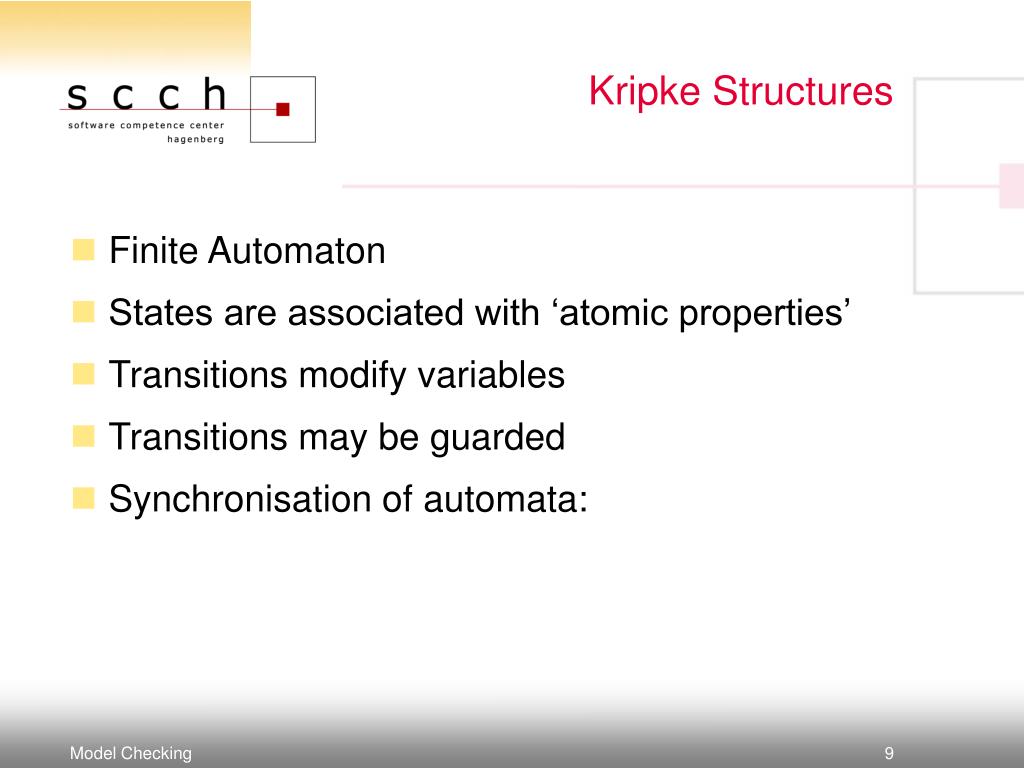

  9. Kripke Structures • Finite Automaton • States are associated with ‘atomic properties’ • Transitions modify variables • Transitions may be guarded • Synchronisation of automata: Model Checking

  10. Synchronisationof Automata • Global variables • Message queues • Synchronous / asynchronous • Theoretical size: | A | x | B | • → ‘State explosion’ Model Checking

  11. Temporal Logic:CTL* • “Computation Tree Logic” • boolean combinators (propos. connectives) • temporal combinators: • next state (X) • a future state (F) • all future states (G) • until (U) • while not (W) Model Checking

  12. Temporal Logic:CTL* (2) • path quantifiers: • all executions out of current state (A) • there exists an execution (E) • 2 basically different subsets of CTL* • CTL: each combinator directly under A/E • LTL: no path quantifiers Model Checking

  13. Model CheckingCTL • CTL: • “marking” • traverse each state of automaton Aand each subformula of temporal formula f • O( |A| x | f | ) Model Checking

  14. Model CheckingLTL • construct FA which recognises the negation of temporal formula f • synchronise this FA with the automaton A • Is the language accepted empty?(reachability) • O( | A | x 2 | f | ) (worst case) Model Checking

  15. Binary Decision Diagrams(BDD) • Data structure for state sets • Reduced decision tree • Share identical subtrees • Delete superfluous nodes • Problems with • non-Boolean variables • asynchronous automata • Solution: e.g. Multi-valued Decision Diagrams Model Checking

  16. Tools • The most important tools are academic • open source, some free even for commercial use • SMV (NuSMV) • SPIN • Some are part of comprehensive design software • (in particular commercial tools) Model Checking

  17. NuSMV • Free re-implementation of SMV • Designed for electronic circuits in the first place • Automaton is modelled similar to a programme in C • Temporal logic: CTL • Basic data structure: OBDD Model Checking

  18. SPIN • Designed for software verification • Automaton is modelled similar to SMV(like a programme) • Temporal Logic: PLTL • Basic data structure: POR Model Checking

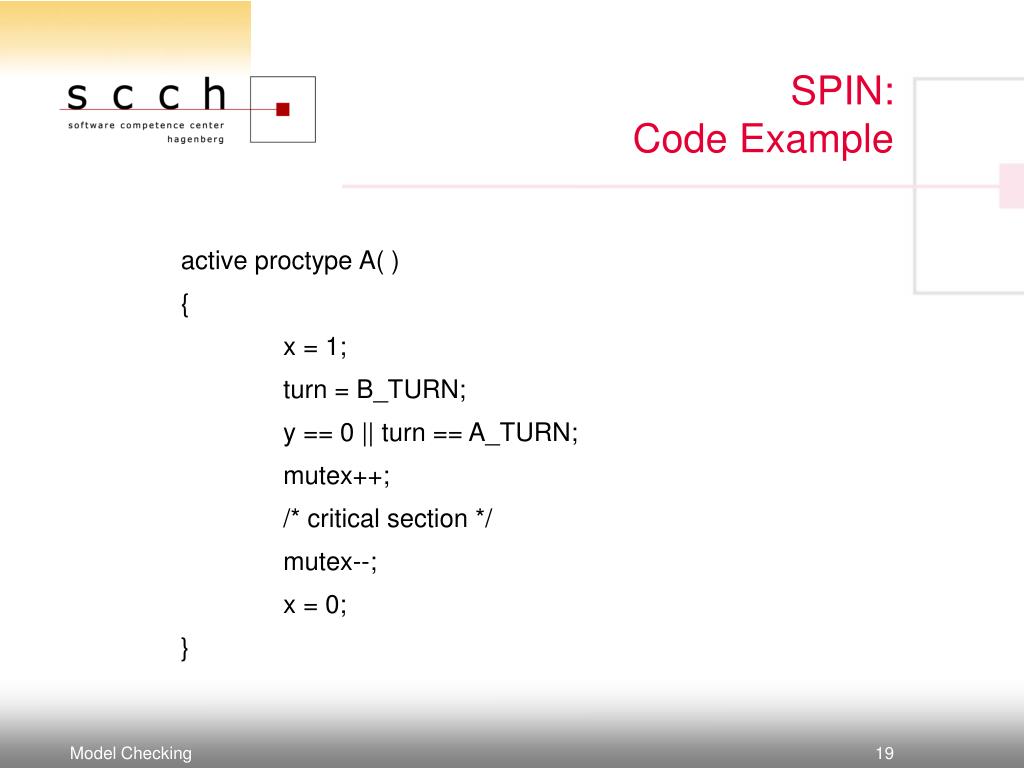

  19. SPIN:Code Example active proctype A( ) { x = 1; turn = B_TURN; y == 0 || turn == A_TURN; mutex++; /* critical section */ mutex--; x = 0; } Model Checking

  20. Design/CPN(now CPN Tools): • Based on Coloured Petri Nets (CPN) • Elements can be timed • Interactive simulation • Reachability graphs can be generated for model checking • Analysis using CTL possible (Computation Tree Logic, a temporal logic) Model Checking

  21. Design/CPN:Graphic Design Model Checking

  22. Design/CPN:Restrictions; Successor • Restrictions: • only for Unix / Linux and Mac • no longer maintained • Successor: CPN Tools • for Windows (2000, XP) • better GUI • but limited model checking capability(new version last week, yet to be evaluated) Model Checking

  23. Other Toolsfor Timed Automata • Academic: • KRONOS, UPPAAL, Verus • only for scientific purposes available (?) • Other: • VeriSoft (by Bell Labs): free(yet to be evaluated) Model Checking

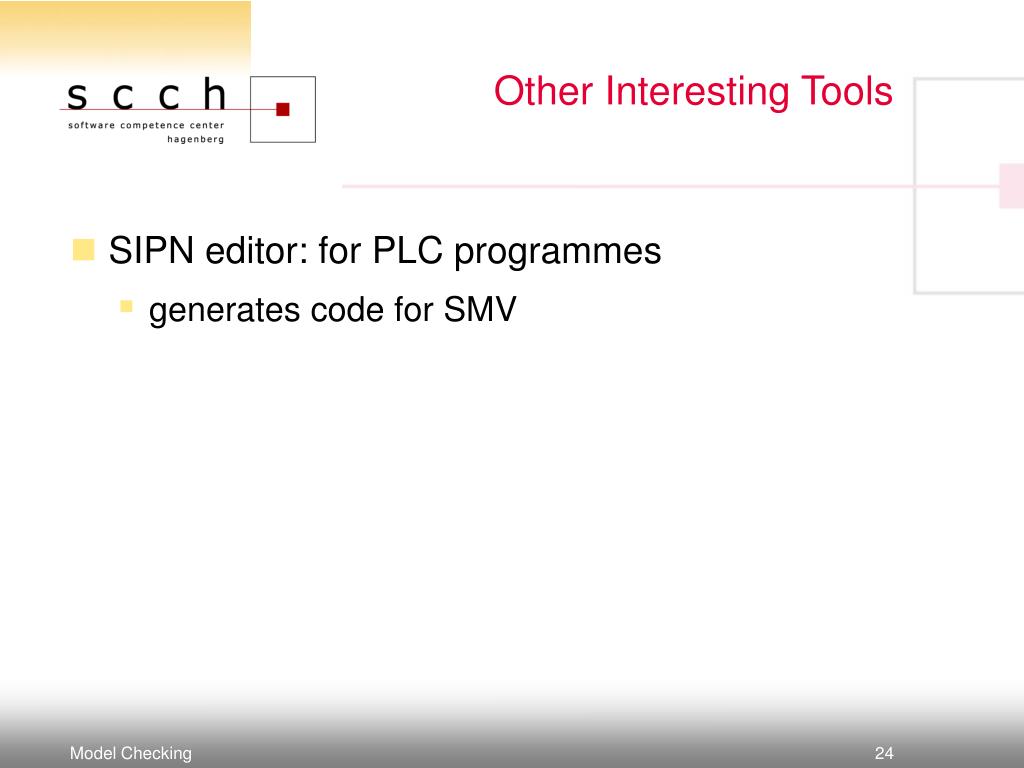

  24. Other Interesting Tools • SIPN editor: for PLC programmes • generates code for SMV Model Checking

  25. References& Links • B. Bérard, M. Bidoit, A. Finkel, F. Laroussinie, A. Petit, L. Petrucci, Ph. Schnoebelen: Systems and Software Verification; Model-Checking Techniques and Tools. Springer, 2001 • http://www.abo.fi/%7Ejolilius/mclinks.htm(many links, but seemingly not maintained for a while) Model Checking
