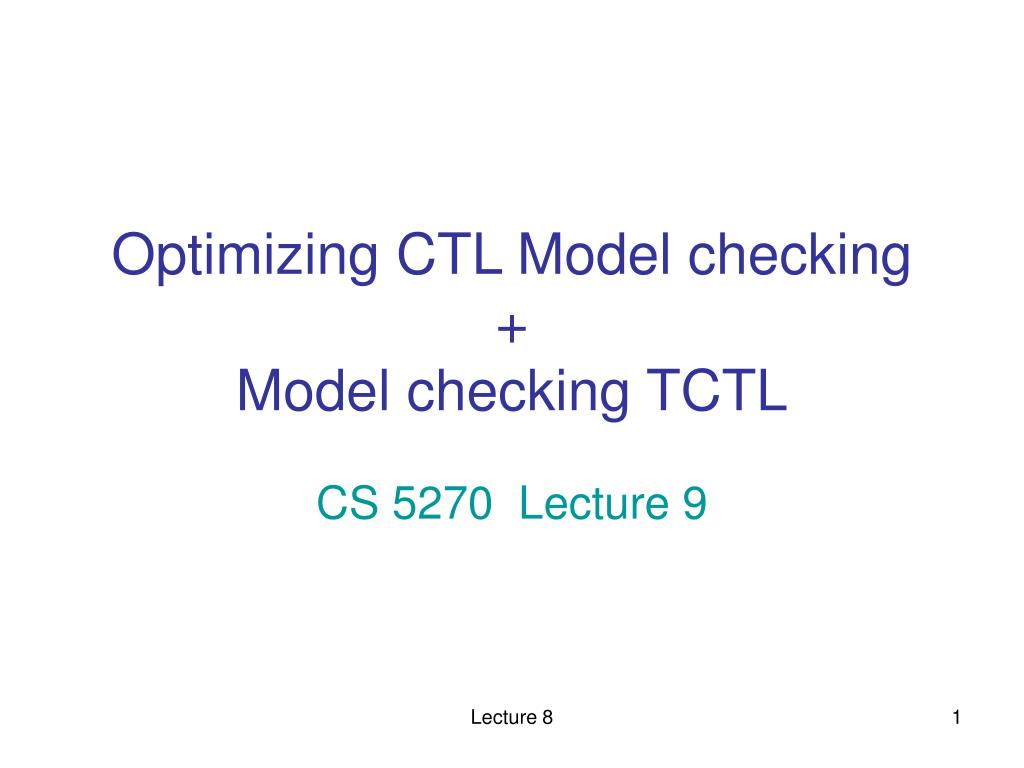

  1. Optimizing CTL Model checking+Model checking TCTL CS 5270Lecture 9 Lecture 8

  2. A(FG p) not AF( AG p) Lecture 8

  3. Today… • Summary • Optimizations for model checking • ROBDDs • TCTL- • Syntax • Semantics • Algorithm for MC • Optimizations Lecture 8

  4. Summary: Model checking CTL Lecture 8

  5. Optimization • The principal one: • Reduce to a problem with Boolean variables/Boolean formulæ • Is this reasonable? • Well – most modelling is done like this – even when you do have (non-boolean) variables • + efficiencies from efficient operations on boolean functions Lecture 8

  6. States as boolean formulæ • Encode states using m boolean variables. • Allows for 2m states. • For example: m=3: • S={s1,s2,s3,s4,s5,s6,s7,s8} • Propositional booleans a,b,c: • S={000,001,010,011,100,101,110,111} • S = {abc, abc, abc , … } Lecture 8

  7. Transitions as boolean formulæ • Encode (s,s’) using before and after propositional boolean variables • a,b,c and a’,b’,c’. • For example: (s1,s4): • (s1,s4) = (abc)  (a’b’c’) Lecture 8

  8. Sufficient for modelling? • Encode another mutual exclusion protocol • Two processes, P1 and P2 share booleans • Co-operate for mutual exclusion • Third process T1 monitors and sets a turn variable • System is parallel composition: P1 || P2 || T1 Lecture 8

  9. Co-operative mutex: Process P1 P1 = if (idle1) { wait1 = true; idle1 = false; } else if (wait1 & idle2) { active1 = true; wait1 = false; } else if (wait1 & wait2 & (!turn)) { active1 = true; wait1 = false; } if (active1) { CritSect(); idle1 = true; active1 = false; }; ( followed by P1 ) Lecture 8

  10. Co-operative mutex: Process P2 P2 = if (idle2) { wait2 = true; idle2 = false; } else if (wait2 & idle1) { active2 = true; wait2 = false; } else if (wait2 & wait1 & turn) { active2 = true; wait2 = false; } if (active2) { CritSect(); idle2 = true; active2 = false; }; ( followed by P2 ) Lecture 8

  11. Co-operative mutex: Process T1 if (idle1 & wait2) { turn = true; } else if (idle2 & wait1) { Turn = false; }; ( followed by T1 ) (P1 || P2 || T1); System; T1 = System = Lecture 8

  12. State transition diagram – whole system Lecture 8

  13. Transitions as predicates • P1 = (i1w1’i1’)  (w1i2a1’w1’)  (w1w2ta1’w1’)  (a1i1’a1’) • P2 = (i2w2’i2’)  (w2i1a2’w2’) • (w2w1ta2’w2’)  (a2i2’a2’) • T1 = (i1w2t’)  (i2w1t’) Lecture 8

  14. Ordered Binary Decision Tree Lecture 8

  15. OBDT example: (i1i2)(i3i4) Lecture 8

  16.  ROBDD: (i1i2)(i3i4) Lecture 8

  17.  ROBDD: (i1i2)(i3i4) Lecture 8

  18.  ROBDD: (i1i2)(i3i4) Lecture 8

  19.  ROBDD: (i1i2)(i3i4) Lecture 8

  20.  ROBDD: (i1i2)(i3i4) Lecture 8

  21.  ROBDD: (i1i2)(i3i4) Lecture 8

  22. History… • The ROBDD optimization originally by Bryant (86) – paper on boolean graphs • The application to model checking by McMillan (Originally in late 80’s – subject of thesis in 1992) • smv – Symbolic model verifier – originally by McMillan Lecture 8

  23. Today… • Summary • Optimizations for model checking • ROBDDs • TCTL- • Syntax • Semantics • Algorithm for MC • Optimizations Lecture 8

  24. Regional transition system (RTS) • Given TATTS = (s,s0,Act, ), then the RTS is a quotiented transition system RTS = (Ř,Ř0, Act,), where Ř= {(s,[v]t) | (s,v)s [v]tREGv}, and Ř0= {(s,[v]t) | (s,v)s0 [v]tREGv}, and • finally, (s,[v]t)  (s’,[v’]t) if and only if there is a transition (s,v) (s’,v’) in TATTS. a a Lecture 8

  25. Regional transition system (RTS) • Notation: Ř – a set of regions ř – a particular region in the set: (s,[v]t) r – a particular valuation: (s,v) Lecture 8

  26. Regional transition system (RTS) Lecture 8

  27. Kripke structure/model for TCTL • Def: A TCTL model over a set of atomic propositions AP is the 4-tuple (Ř,Δ,AP,L) • Ř – finite set of regions from RTS • Δ ŘŘ - a total transition relation • AP – a finite set of atomic propositions • L: Ř→ 2AP – A labelling function which labels each region with the propositions true in that region Note that the propositions may include clock constraints… Lecture 8

  28. TCTL- syntax • Given pAP, xX (model clock variables), zZ (property clock variables), (XZ) (clock constraints), then p and  are TCTL- formulæ, and if 1 and 2 are TCTL- formulæ then so are: • 1 • 1  2 • 1  2 • z in 1 • A( 1U 2 ) • E( 1U 2 ) Lecture 8

  29. TCTL examples • Note: temporal operators can be subscripted: • A( 1U<72 ) means 1 holds until (within 7 time units) 2 becomes true. • Implemented as: z in A( (1z<7) U2 ) • A( alarm U<7boiler-off): the alarm is on until (within 7 time units) the boiler-off is signaled. • EF<7( alarm ) = E( true U<7alarm): the alarm will be on within 7 time units. Lecture 8

  30. Semantics of TCTL • Expressed in terms of a model, and the modelling relation² which links a model, a composite stater=(s,v) and a formula clock valuation with a property. • M,(r,f)²P - means that (TCTL) property P holds in (or is satisfied in) state r in the case of a formula valuation f for a given model M Lecture 8

  31. (Inductive) definition of ² M,(r,f)²P  pL(ř) M,(r,f)²  v  f ² M,(r,f)²1 (M,(r,f)²1 ) M,(r,f)²1  2  M,(r,f)²1, and M,(r,f)²2 M,(r,f)²1  2  M,(r,f)²1, or M,(r,f)²2 Lecture 8

  32. (Inductive) definition of ² • M,(r,f)²z in 1  M,(r,z in f)²1 • The notation z in f asserts that z is reset to 0 whenever it appears in the formula f • M,(r,f)² A( 1 U2 )  for every path p from r, for some j, M,(j)²2, and i<j, M,(i)²1  2. Lecture 8

  33. (Inductive) definition of ² • M,(r,f)² E( 1 U2 )  for one path p from r, for some j, M,(j)²2, and i<j, M,(i)²1  2. • Note that in both EU and AU, the condition up until 2 is 1  2. and not just 1!! Lecture 8

  34. AU: 1  2 until 2 Lecture 8

  35. Model checking TCTL • Definition of a labelling algorithm in the notes – not much different from CTL • The only problem is this definition uses a least fixpoint iteration over an infinite set… • In practice use the region construction… Lecture 8

  36. Optimization for TCTL MC • We have already seen the steps to create a (finite) regional automaton • Apart from that there is no magic bullet, and real-time model checking has an equivalent region-space explosion • For this reason, limit the size of systems • … so far … Lecture 8

  37. Uppaal – more formally • TCTL, but with restrictions that amount to only safety (reachability) formulæ: • Set of clock constraints Z in formula is {} • Syntax just AG() and EF() (outer level) •  ::= a | x op n |  | 12 (op {,,,,}) • a is a location in the model • Other properties (bounded liveness…) require extended models/automatons: • compare system model with other test model Lecture 8
