  1. There are 3 types of Plate Boundaries.Each one has a type of STRESS on the rock & a way that it breaks, called a FAULT: • Divergent Boundaries • Convergent Boundaries • Transform Boundaries Let’s break it down…

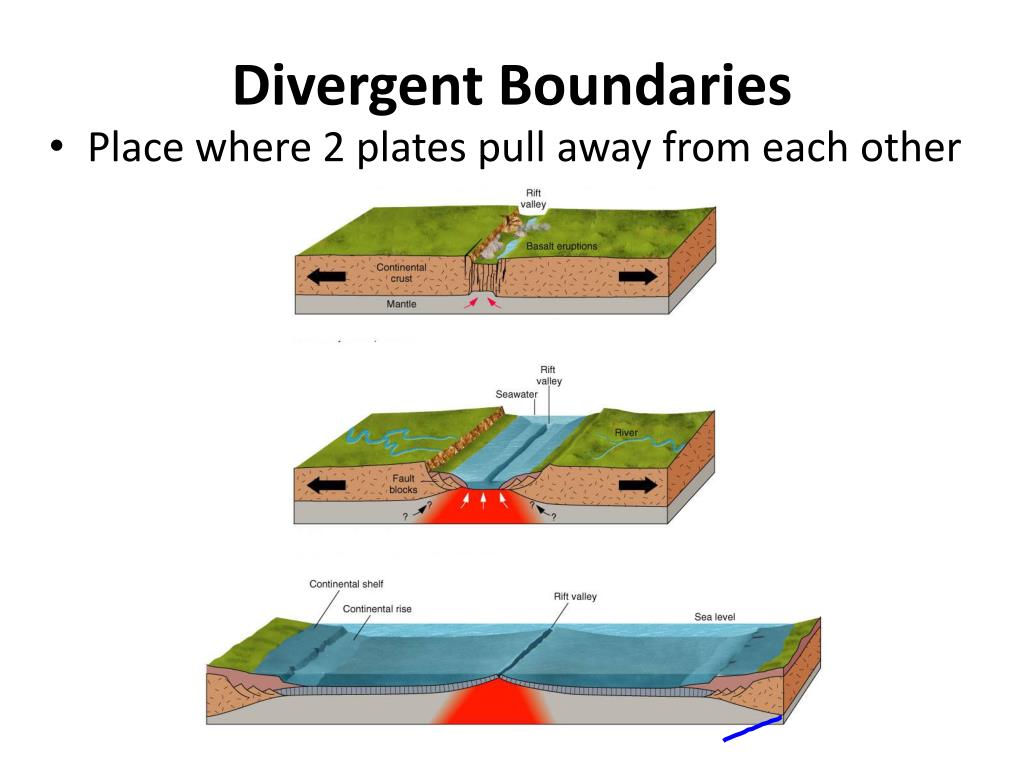

  2. Divergent Boundaries • Place where 2 plates pull away from each other

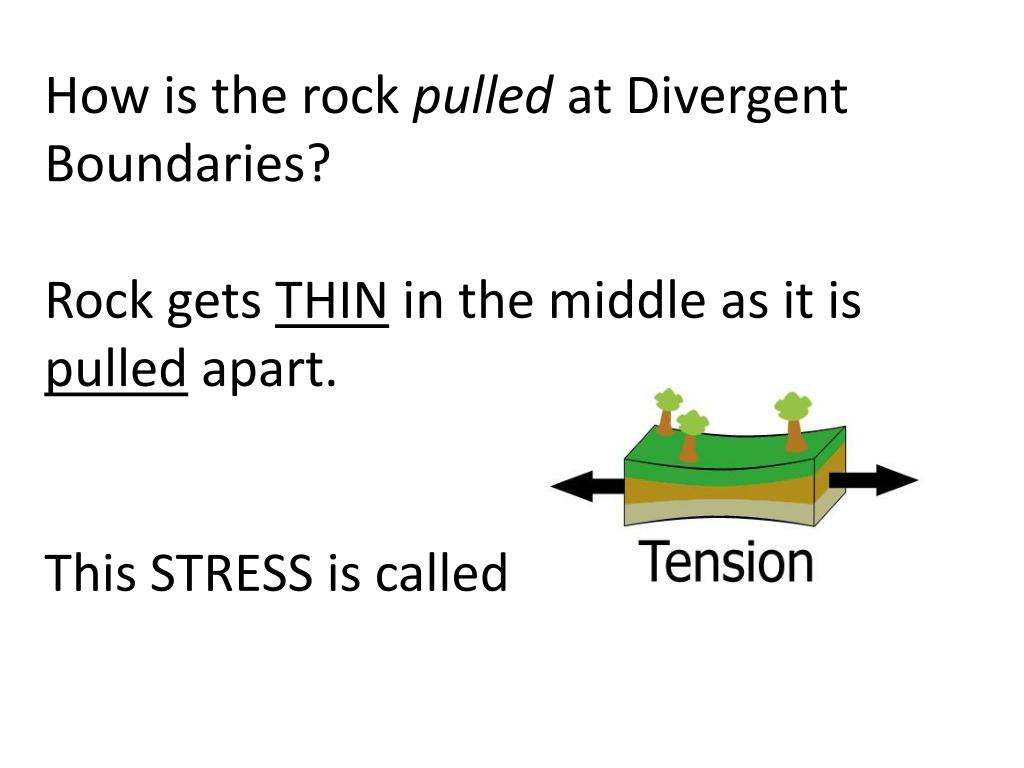

  3. How is the rock pulled at Divergent Boundaries?Rock gets THIN in the middle as it is pulled apart.This STRESS is called

  4. What happens when the rock SNAPS from the Stress of Tension?A Normal Fault (fault is a break in Earth’s crust)Rock drops down as it breaks

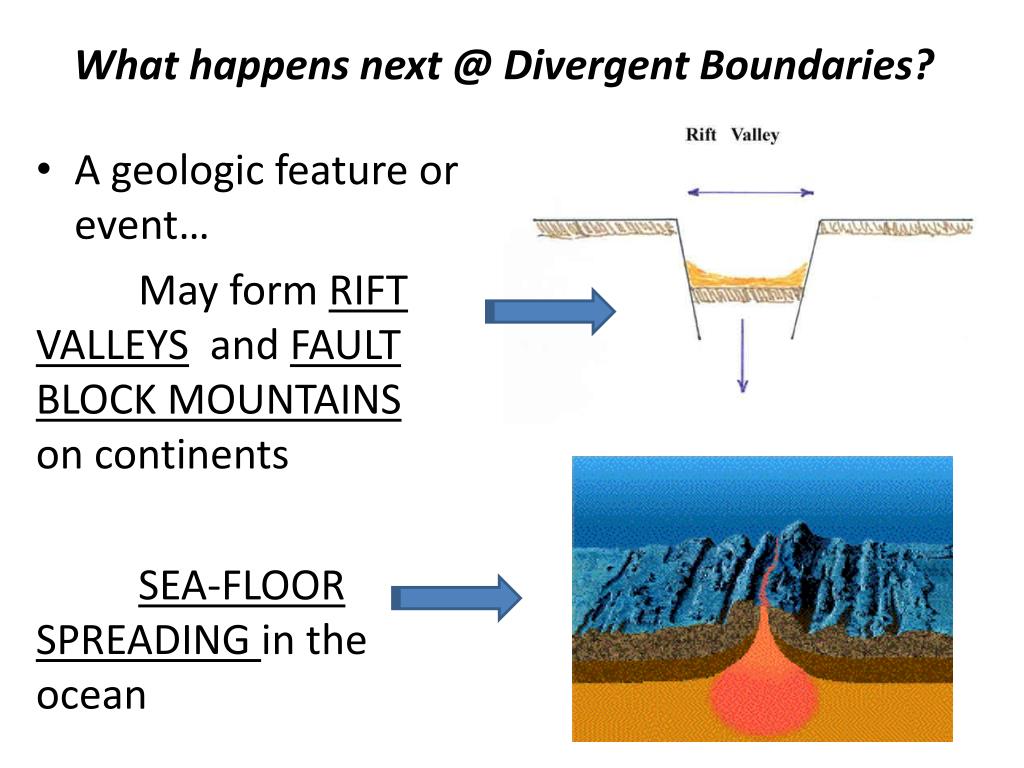

  5. What happens next @ Divergent Boundaries? • A geologic feature or event… May form RIFT VALLEYS and FAULT BLOCK MOUNTAINS on continents SEA-FLOOR SPREADING in the ocean

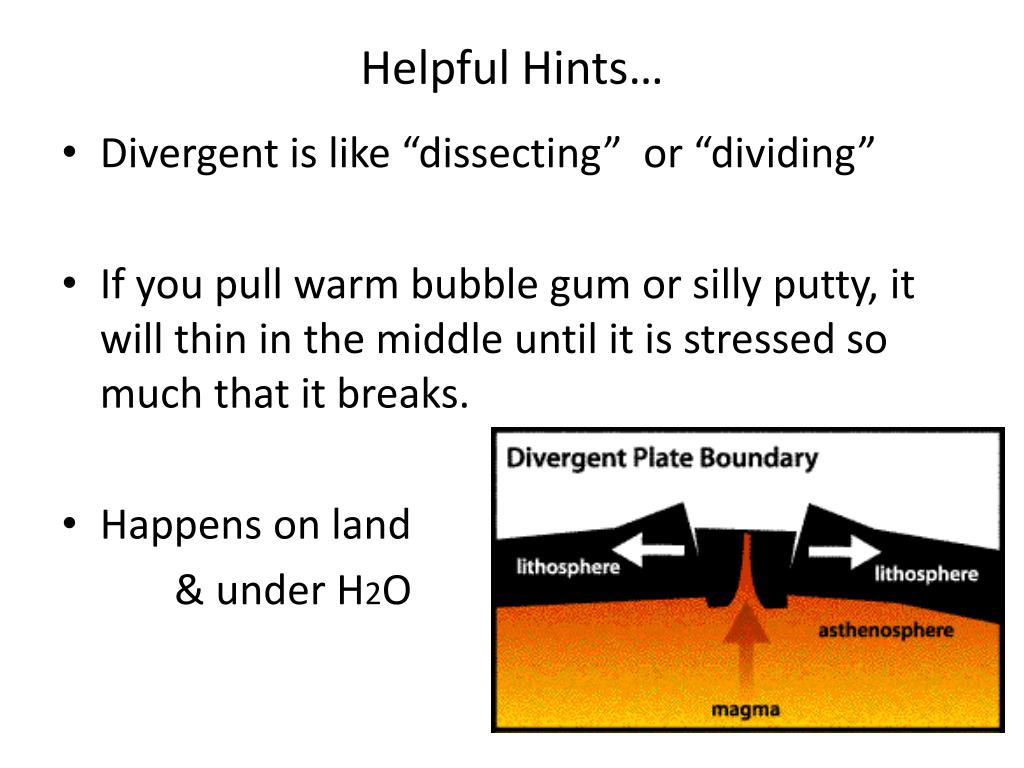

  6. Helpful Hints… • Divergent is like “dissecting” or “dividing” • If you pull warm bubble gum or silly putty, it will thin in the middle until it is stressed so much that it breaks. • Happens on land & under H2O

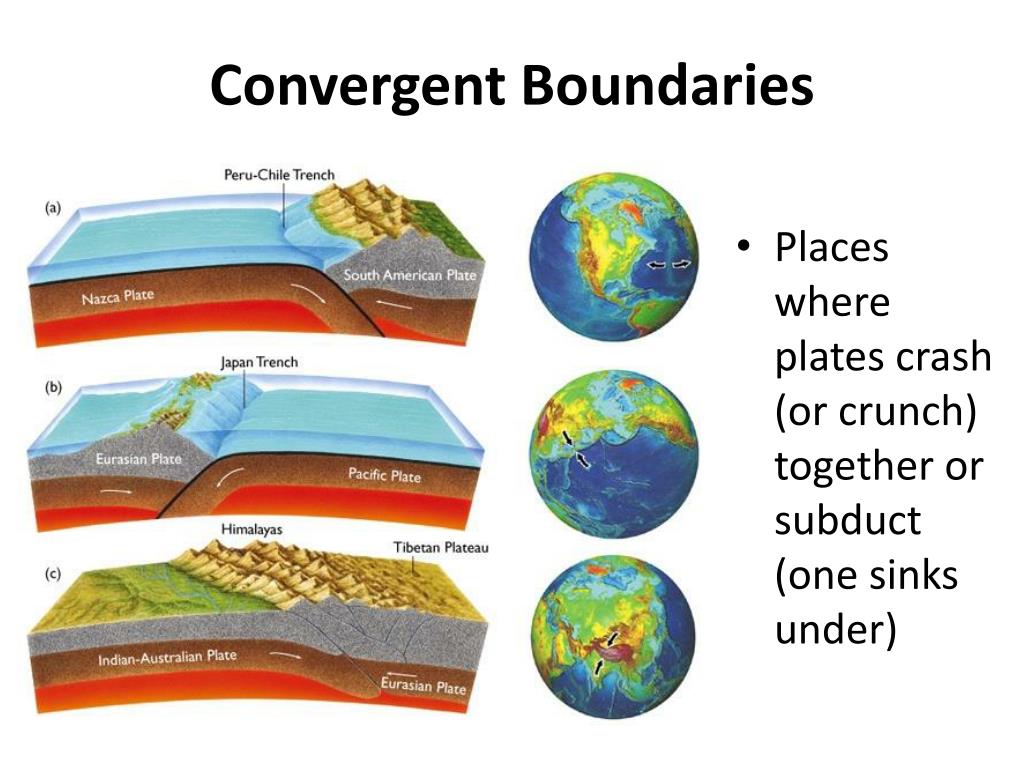

  7. Convergent Boundaries • Places where plates crash (or crunch) together or subduct (one sinks under)

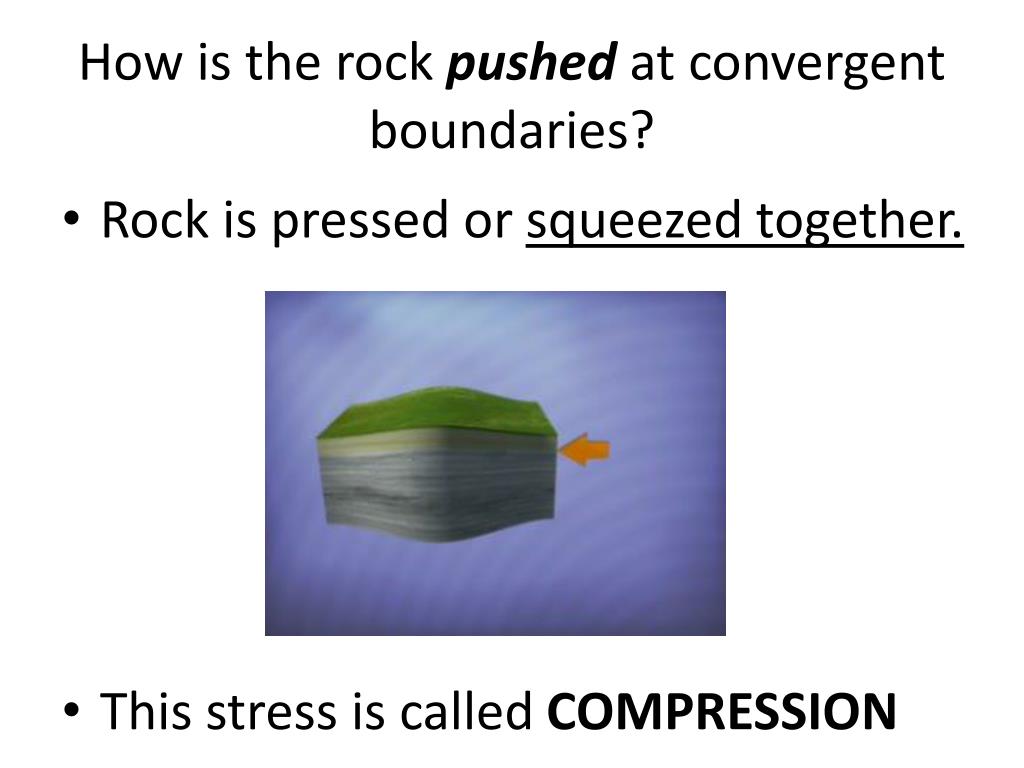

  8. How is the rock pushed at convergent boundaries? • Rock is pressed or squeezed together. • This stress is called COMPRESSION

  9. What happens when the rock is squeezed from the Stress of Compression? • A REVERSE FAULT • Rock is forced upward as it is squeezed.

  10. What happens next @ Convergent Boundaries? • May form Mountain Ranges. These are Folded Mtns. Like the Himalayas or the Rockies.

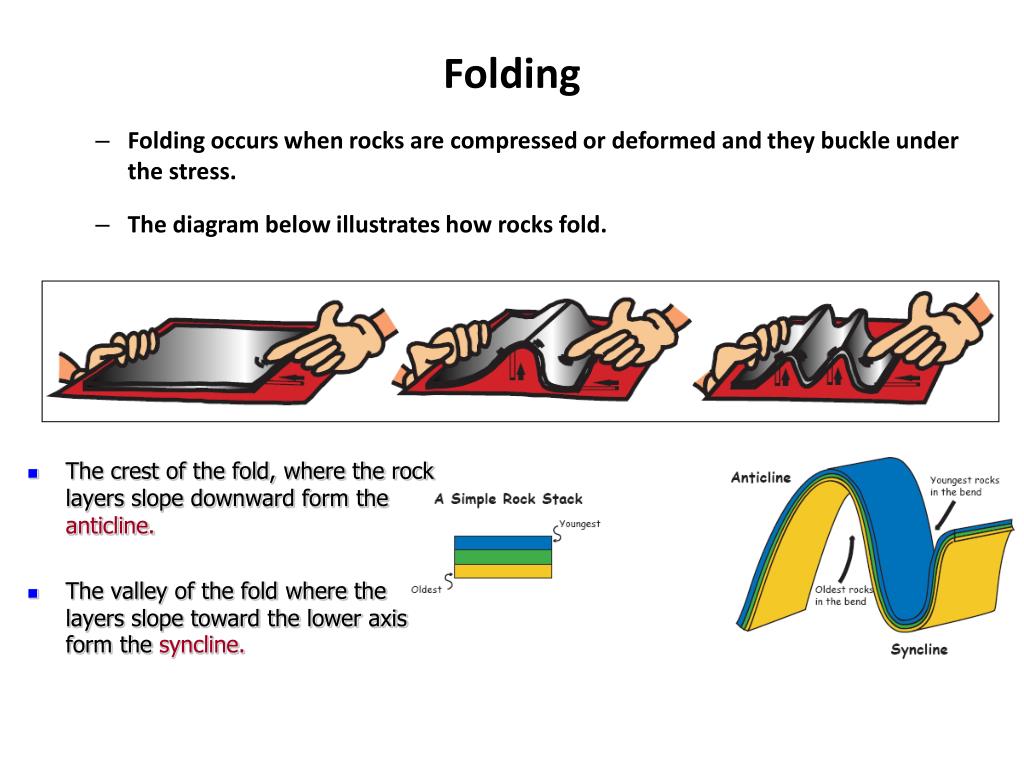

  11. Folding • Folding occurs when rocks are compressed or deformed and they buckle under the stress. • The diagram below illustrates how rocks fold. • The crest of the fold, where the rock layers slope downward form the anticline. • The valley of the fold where the layers slope toward the lower axis form the syncline.

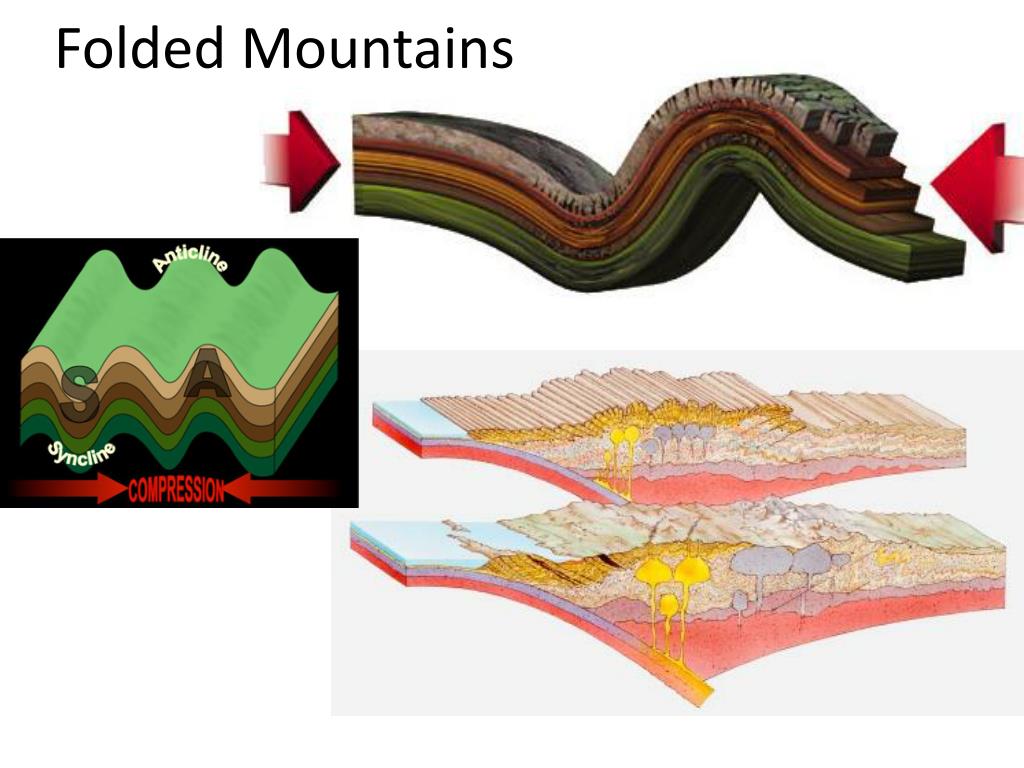

  12. Folded Mountains

  13. What else happens @ Convergent Boundaries? • May form Volcanoes @ Subduction Zones as denser oceanic plate dives under less dense continental plate.

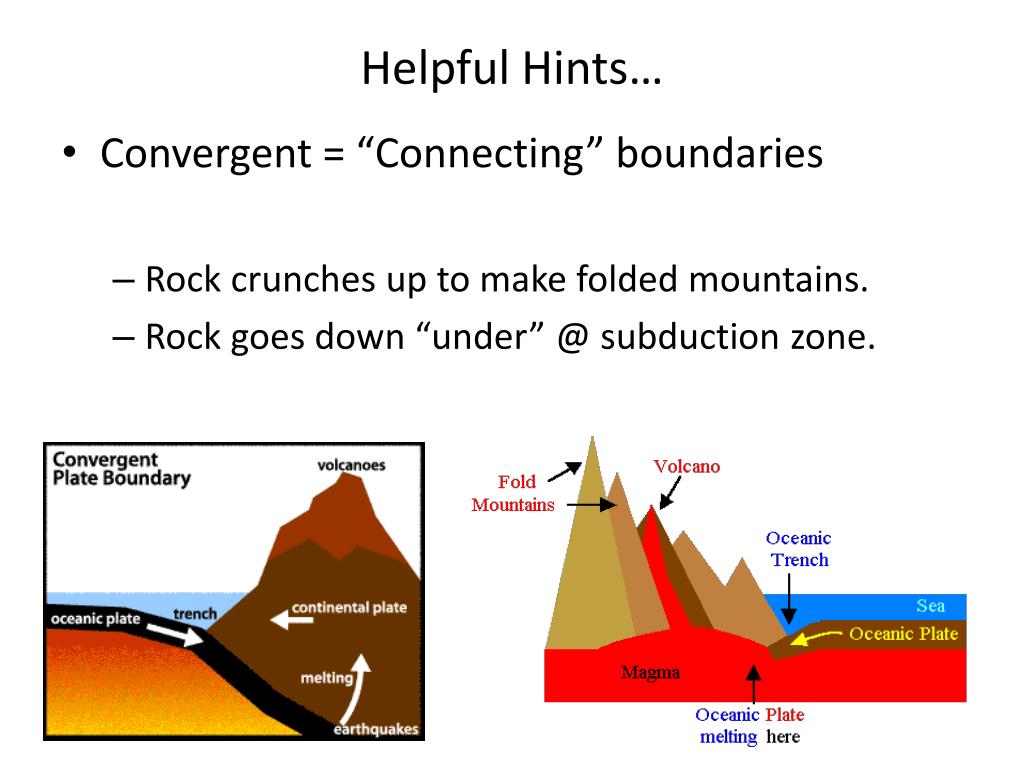

  14. Helpful Hints… • Convergent = “Connecting” boundaries • Rock crunches up to make folded mountains. • Rock goes down “under” @ subduction zone.

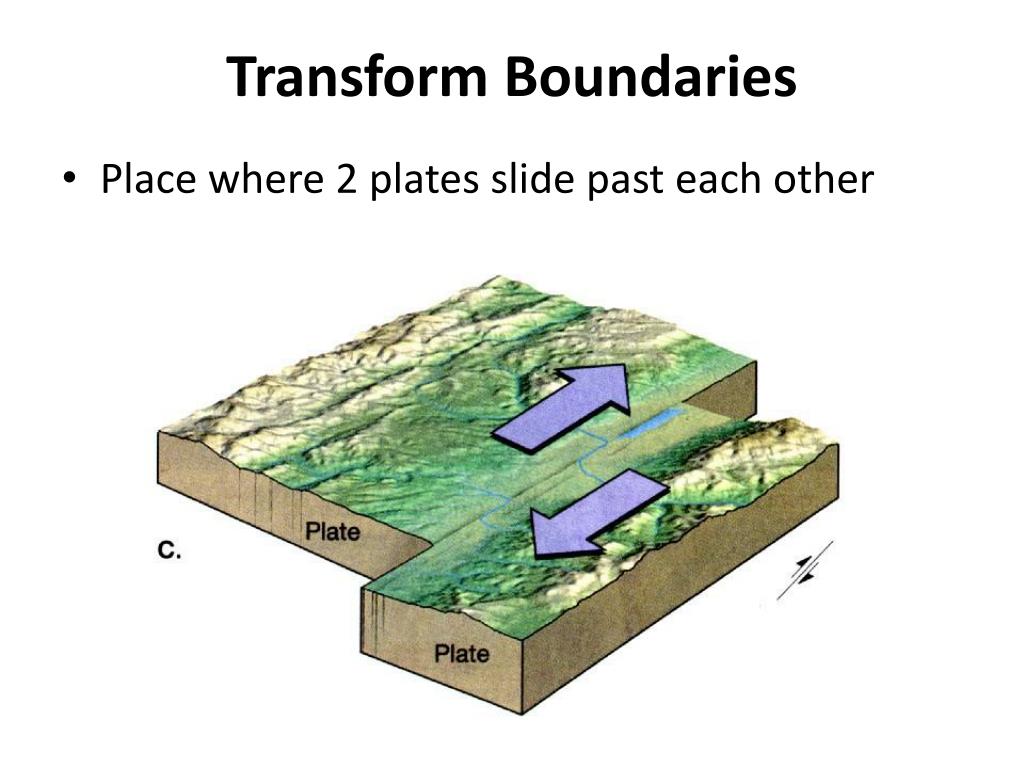

  15. Transform Boundaries • Place where 2 plates slide past each other

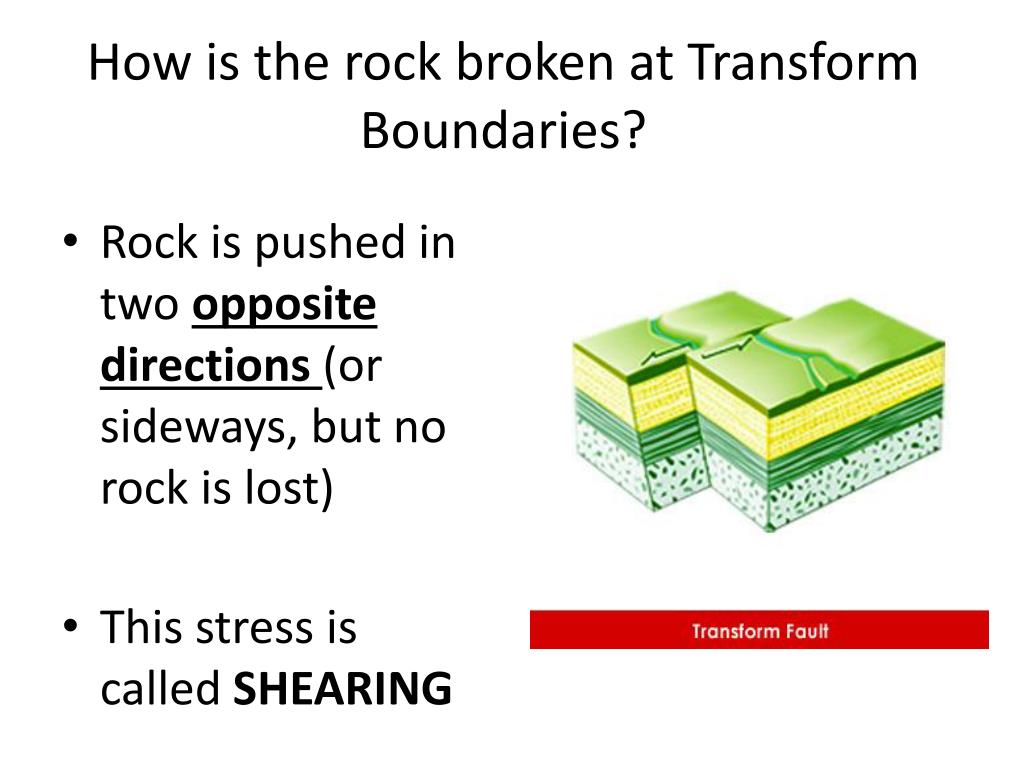

  16. How is the rock broken at Transform Boundaries? • Rock is pushed in two opposite directions (or sideways, but no rock is lost) • This stress is called SHEARING

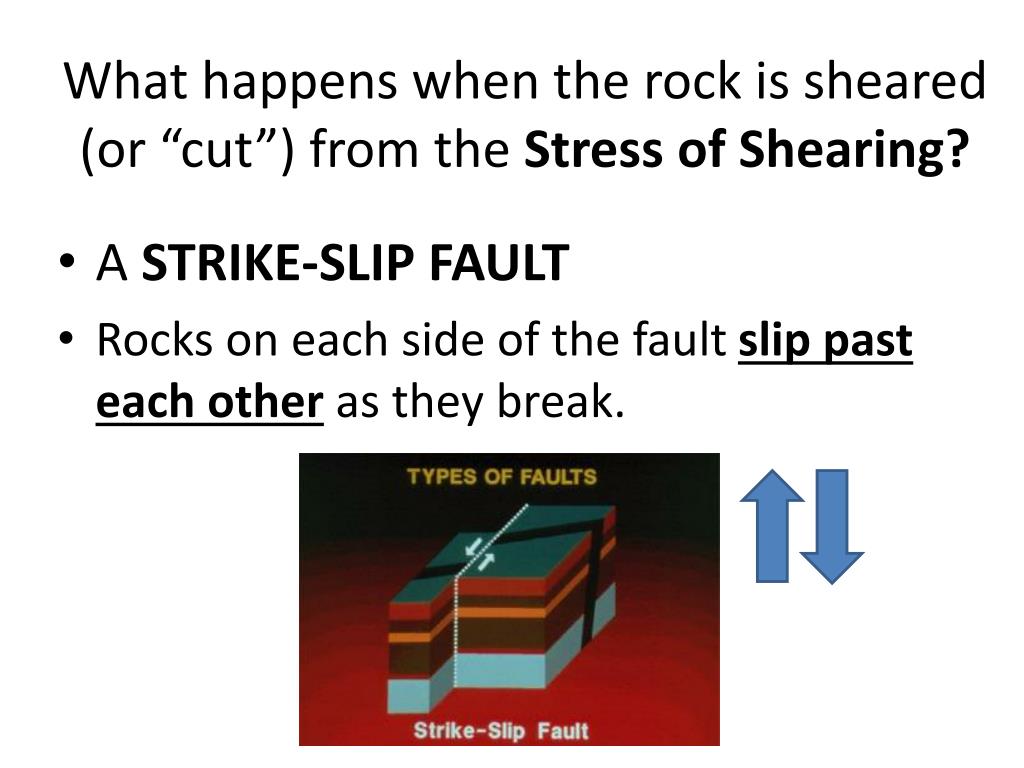

  17. What happens when the rock is sheared (or “cut”) from the Stress of Shearing? • A STRIKE-SLIP FAULT • Rocks on each side of the fault slip past each other as they break.

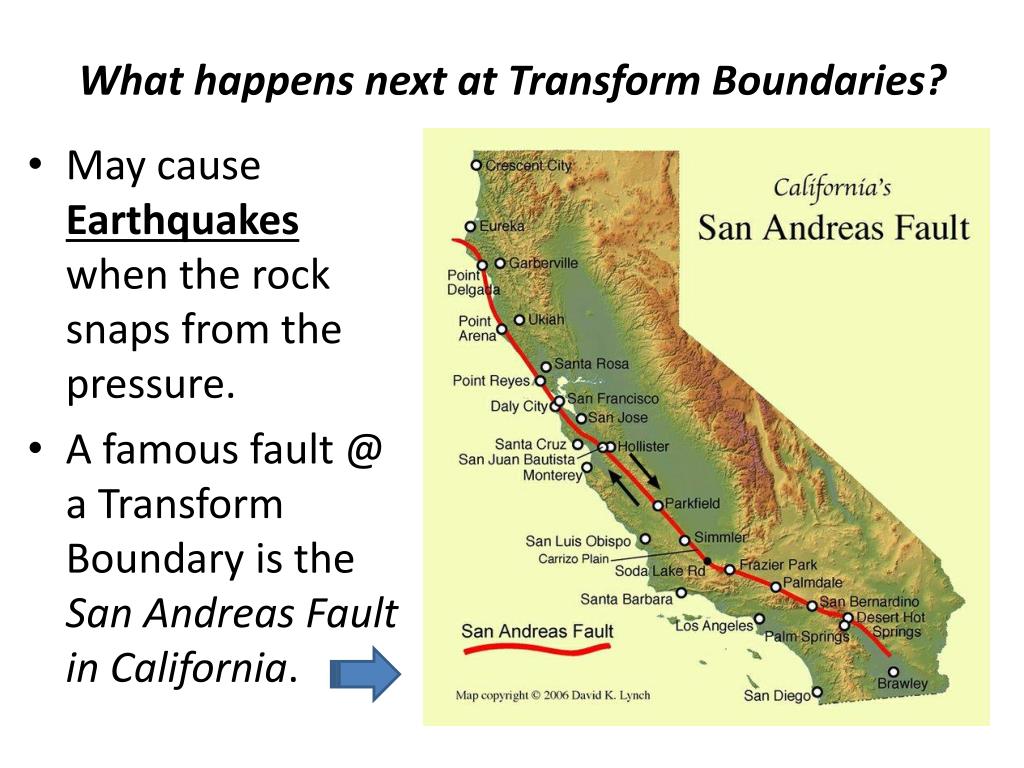

  18. What happens next at Transform Boundaries? • May cause Earthquakes when the rock snaps from the pressure. • A famous fault @ a Transform Boundary is the San Andreas Fault in California.

  19. Helpful Hints… • Shearing means cutting (“Shears” are like scissors) • Transform boundaries run like trains going past each other in different directions & they shake the ground! San Andreas Fault, CA 

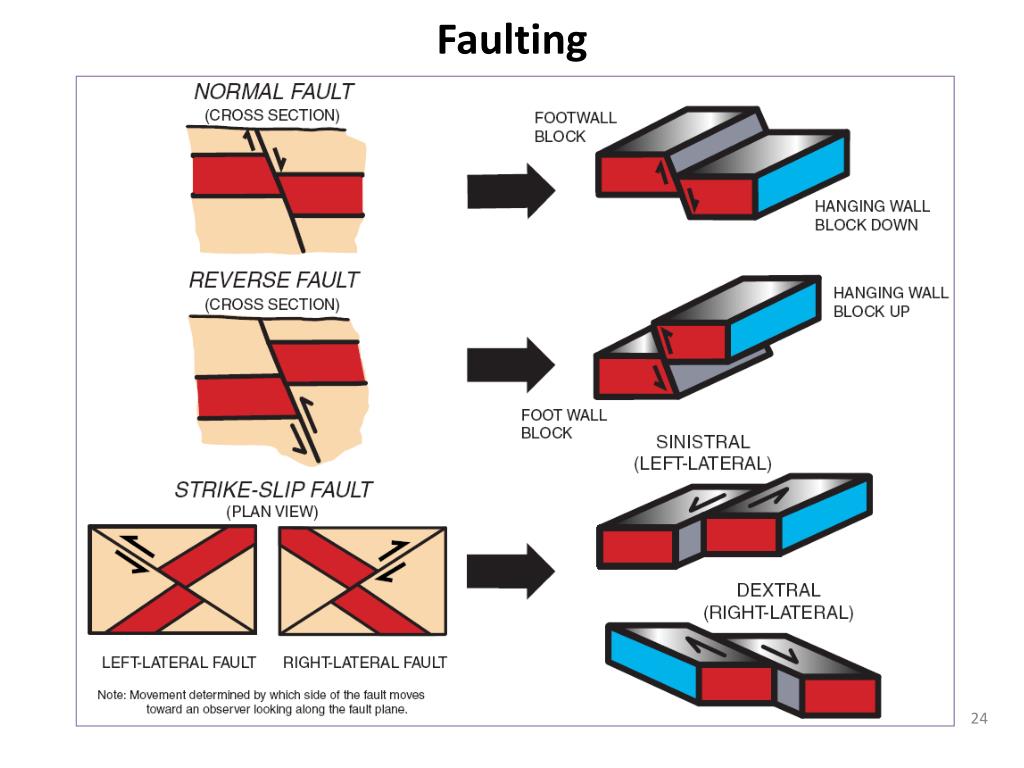

  20. Faulting

  21. Normal

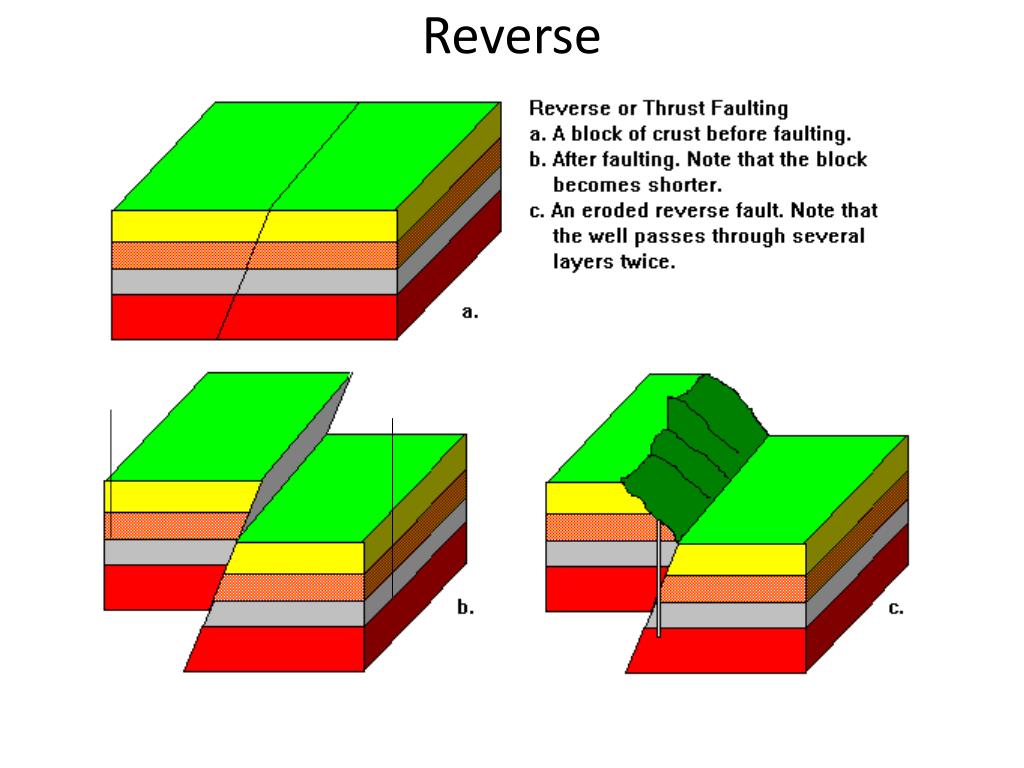

  22. Reverse

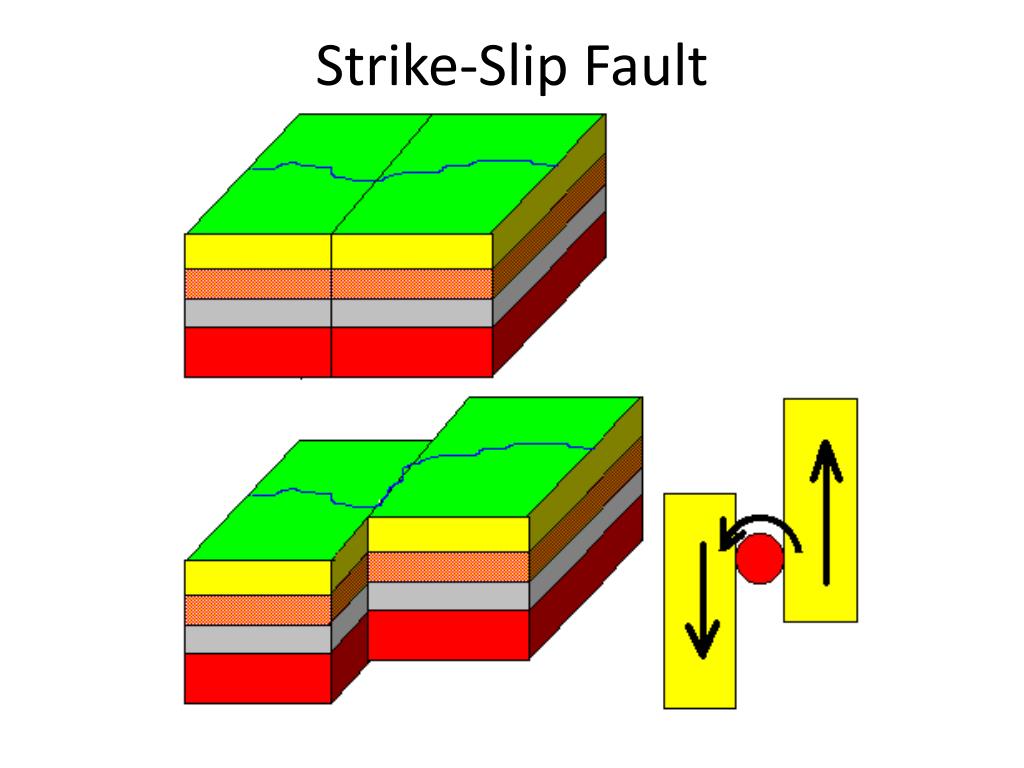

  23. Strike-Slip Fault

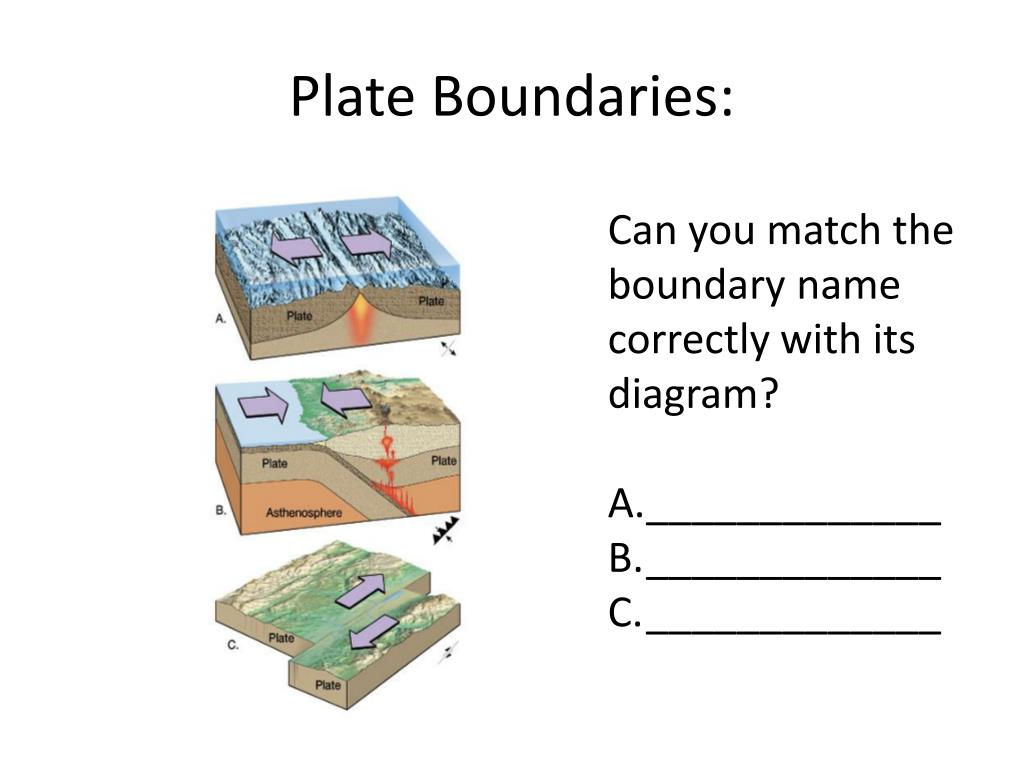

  24. Plate Boundaries: • Can you match the boundary name correctly with its diagram? • _____________ • _____________ • _____________
