Week 13 Deliverables

Week 13 Deliverables Team Highlander Modifications from last mock-up include offset lever assembly, solid ski assembly, upward-swinging levers. Reasons why old design is better: less footprint area, fewer parts, more aesthetically pleasing, handle rotation constrained by frame, no drilling required. To-do list for next week: Contact REAR about design, machine welding pieces using water jet, start machining stopper legs in wood, finalize CAD drawings.

ellis
Télécharger la présentation

Week 13 Deliverables

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Week 13 Deliverables Team Highlander

  2. Modifications from last Mock-Up • Lever assembly is offset from walker • Ski assembly is now solid • Levers swing upward

  3. Working shots

  4. Working Shots

  5. Working Shots

  6. Reasons why old design is better • Less footprint area • Less parts • More aesthetically pleasing • Handle rotation in constrained by frame; less complex • No drilling through frame required • Able to collapse

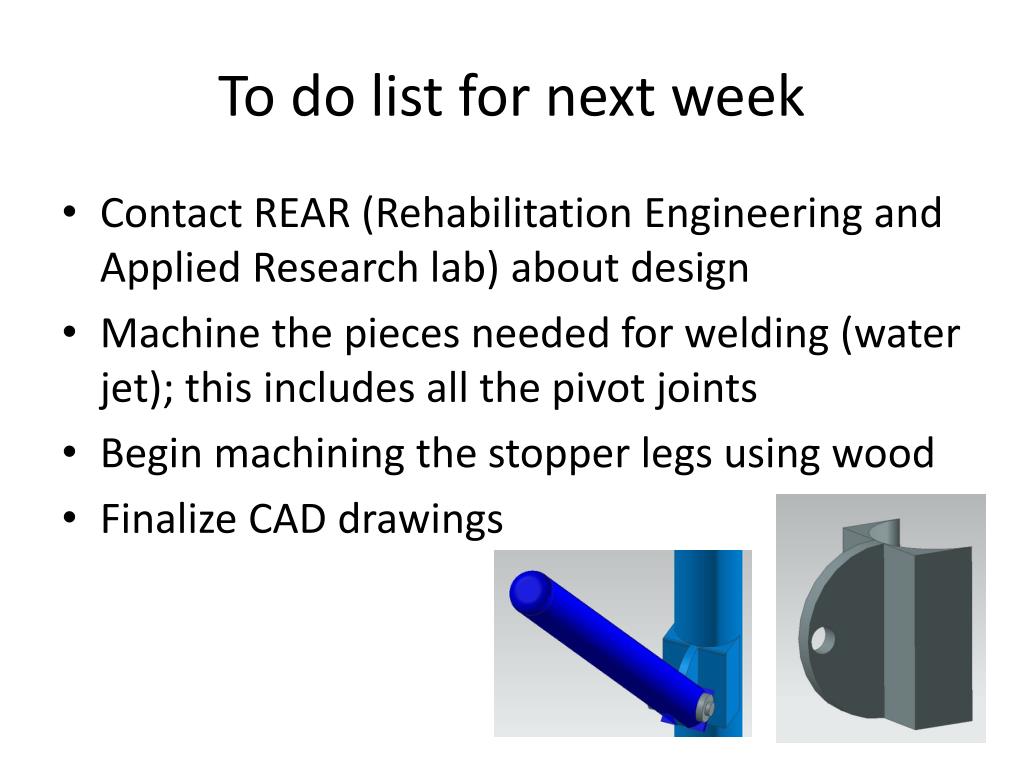

  7. To do list for next week • Contact REAR (Rehabilitation Engineering and Applied Research lab) about design • Machine the pieces needed for welding (water jet); this includes all the pivot joints • Begin machining the stopper legs using wood • Finalize CAD drawings
