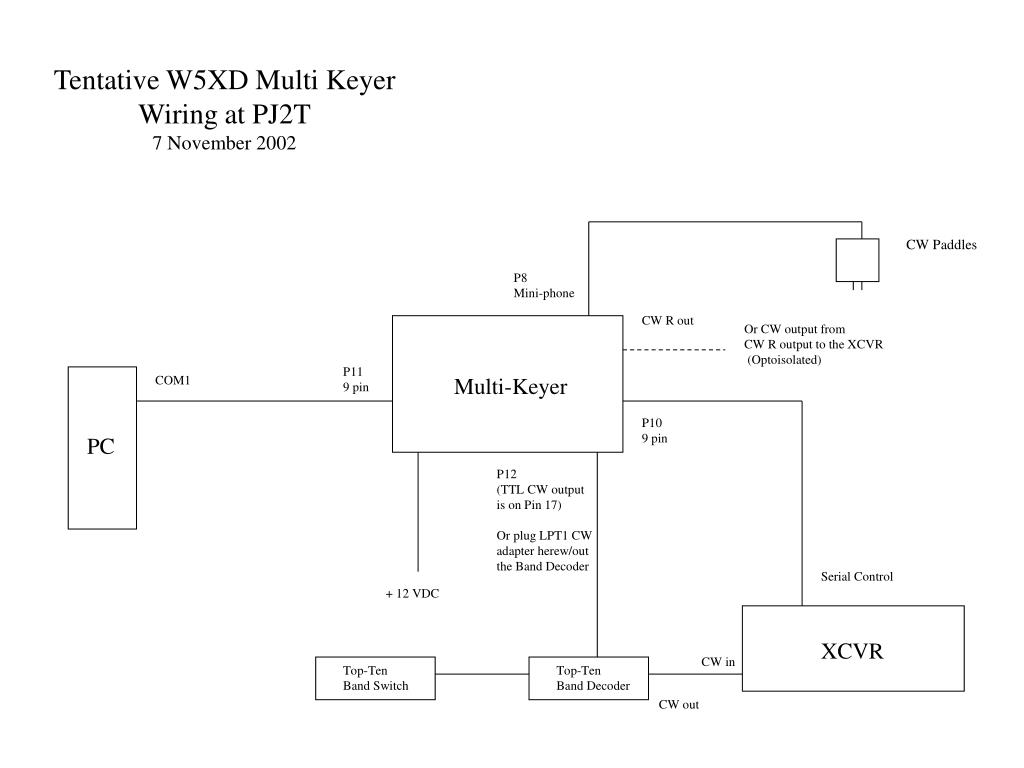

Tentative W5XD Multi Keyer Wiring at PJ2T 7 November 2002. CW Paddles. P8 Mini-phone. CW R out. Or CW output from CW R output to the XCVR (Optoisolated). P11 9 pin. COM1. Multi-Keyer. P10 9 pin. PC. P12 (TTL CW output is on Pin 17) Or plug LPT1 CW adapter herew/out
