Types of Data

elon avatar
elon
18 diapositives · 783 Views · Jul 31, 2014

Types of Data. Predefined Data Items: Numerical/alphabetical items whose meaning and format are specified explicitly. Common in transaction oriented systems Text: A series of characters; meaning is not important Images Audio Video. Logical Vs Physical Views of Data.

#types of data #types of data ppt #powerpoint #presentation
Types of Data - slide 1
01 / 18Types of Data
1 / 17

Télécharger la présentation

Types of Data
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

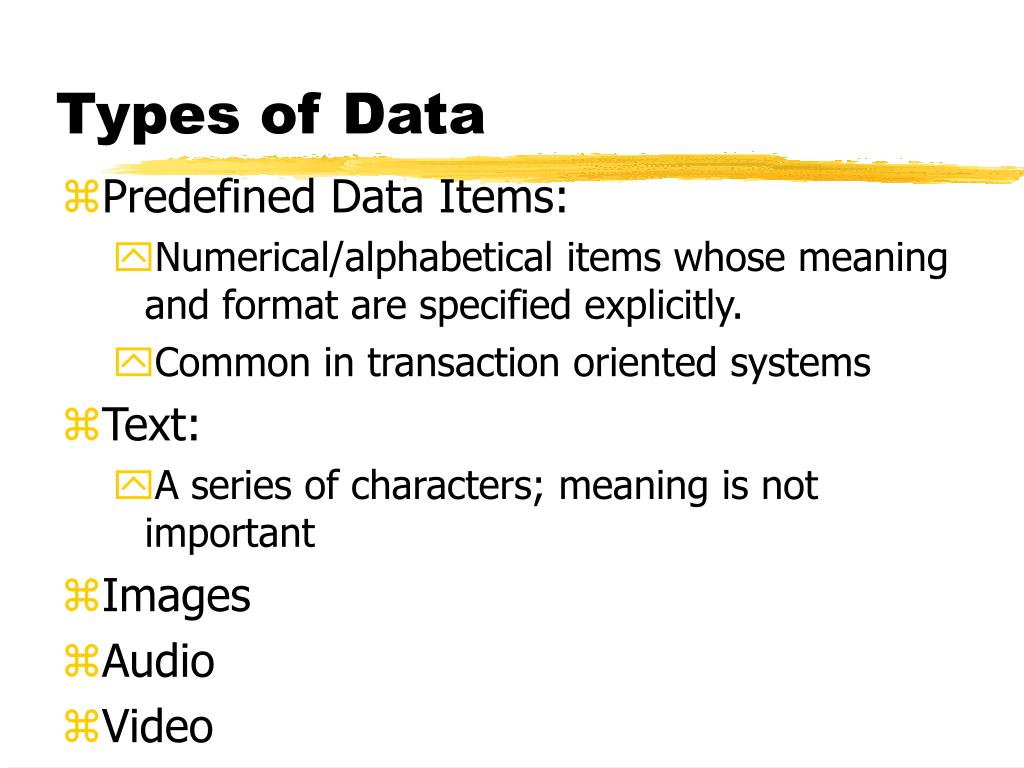

  1. Types of Data • Predefined Data Items: • Numerical/alphabetical items whose meaning and format are specified explicitly. • Common in transaction oriented systems • Text: • A series of characters; meaning is not important • Images • Audio • Video

  2. Logical Vs Physical Views of Data • A logical view of data expresses the way a user thinks about the data • Usually expressed in terms of a data model. • A physical view of data is the way computers handle the data, i.e., the storage and retrieval of it. • Usually stated in terms of specific locations on storage devices plus techniques used to access it

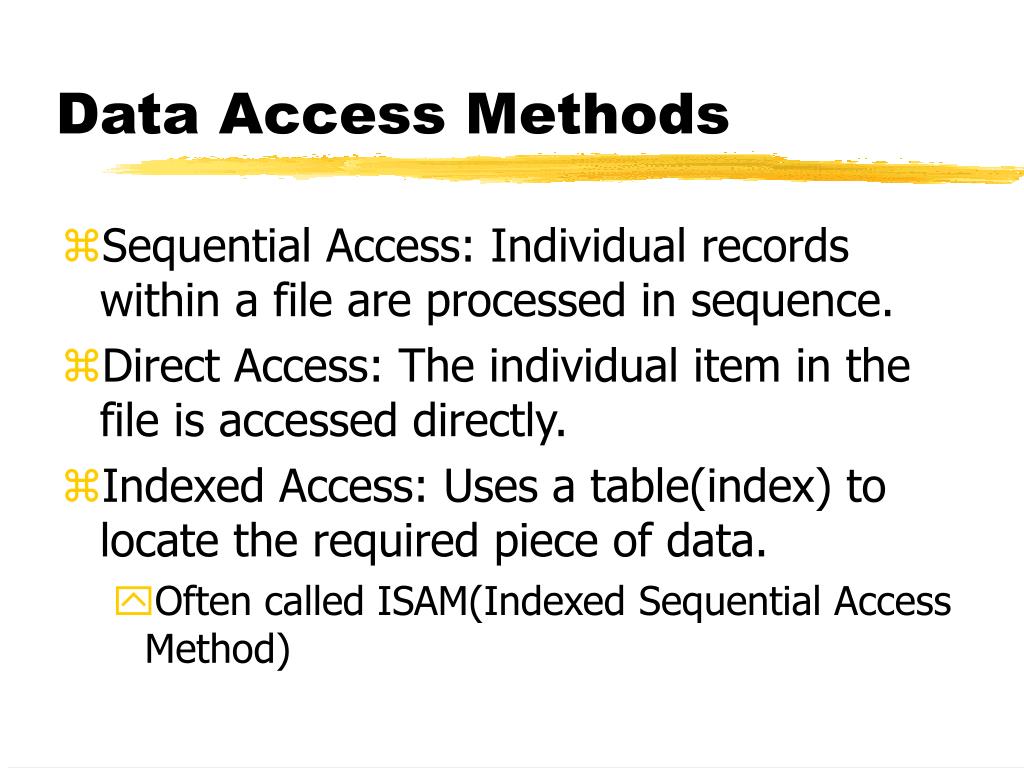

  3. Data Access Methods • Sequential Access: Individual records within a file are processed in sequence. • Direct Access: The individual item in the file is accessed directly. • Indexed Access: Uses a table(index) to locate the required piece of data. • Often called ISAM(Indexed Sequential Access Method)

  4. Transaction Processing • Logical Reference: Identifies the data that a programmer wants but does not specify how to find the data. • Record Locking: The ability to lock the specific record temporarily to prevent access by any other process until it is unlocked.

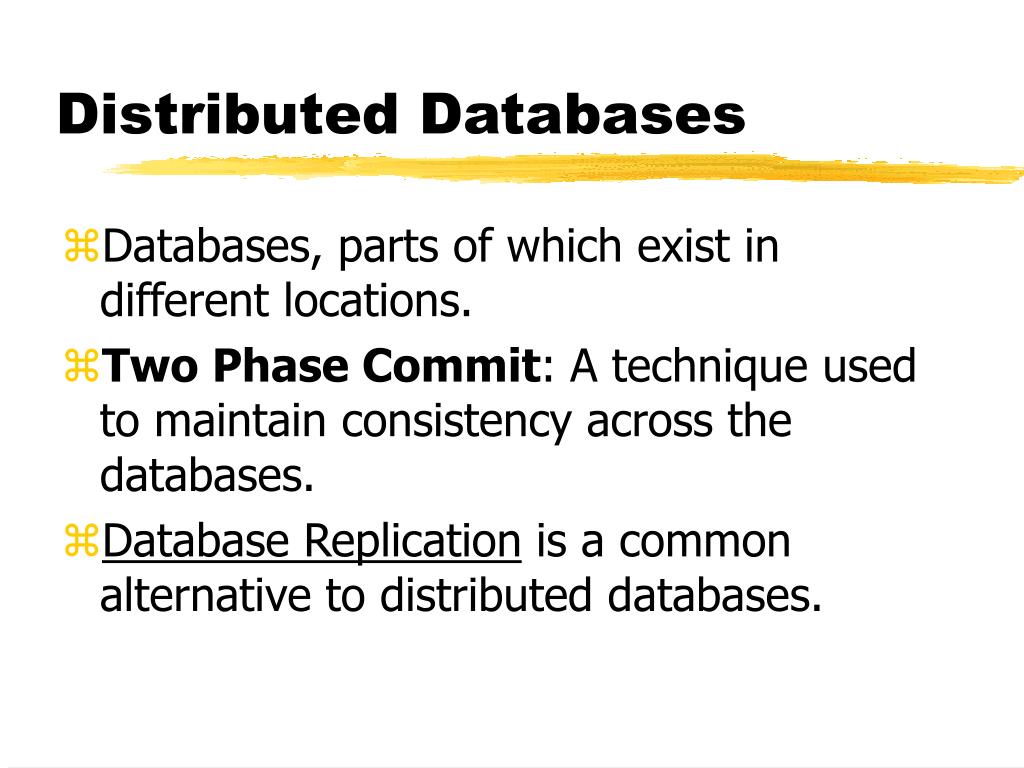

  5. Distributed Databases • Databases, parts of which exist in different locations. • Two Phase Commit: A technique used to maintain consistency across the databases. • Database Replication is a common alternative to distributed databases.

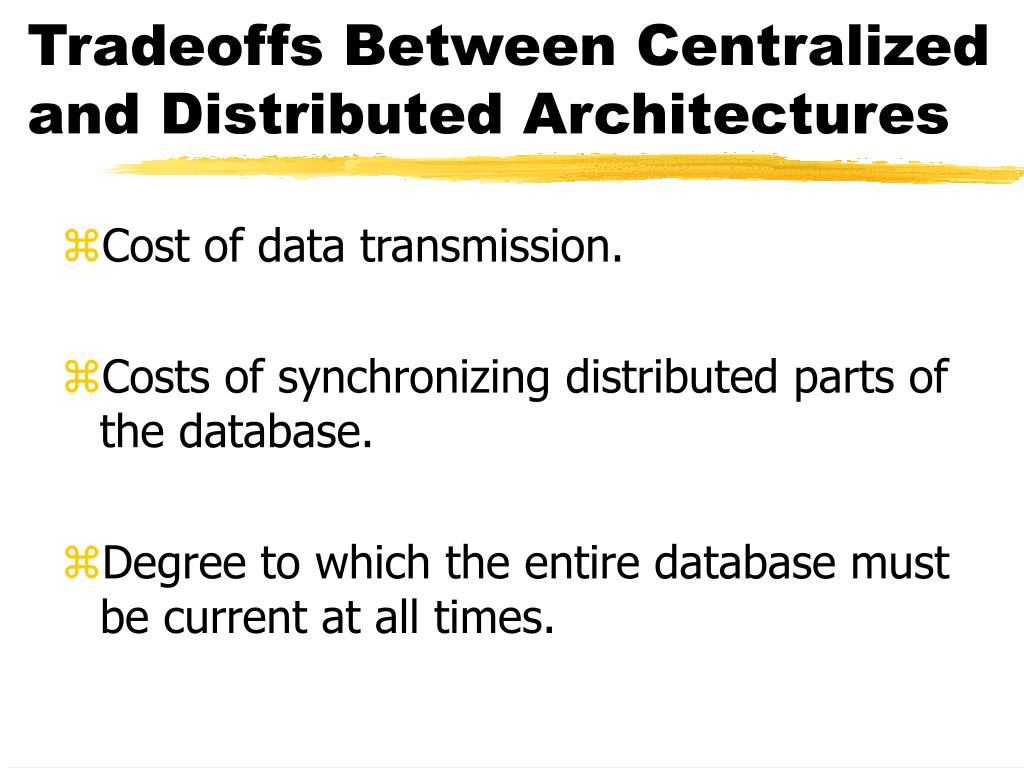

  6. Tradeoffs Between Centralized and Distributed Architectures • Cost of data transmission. • Costs of synchronizing distributed parts of the database. • Degree to which the entire database must be current at all times.

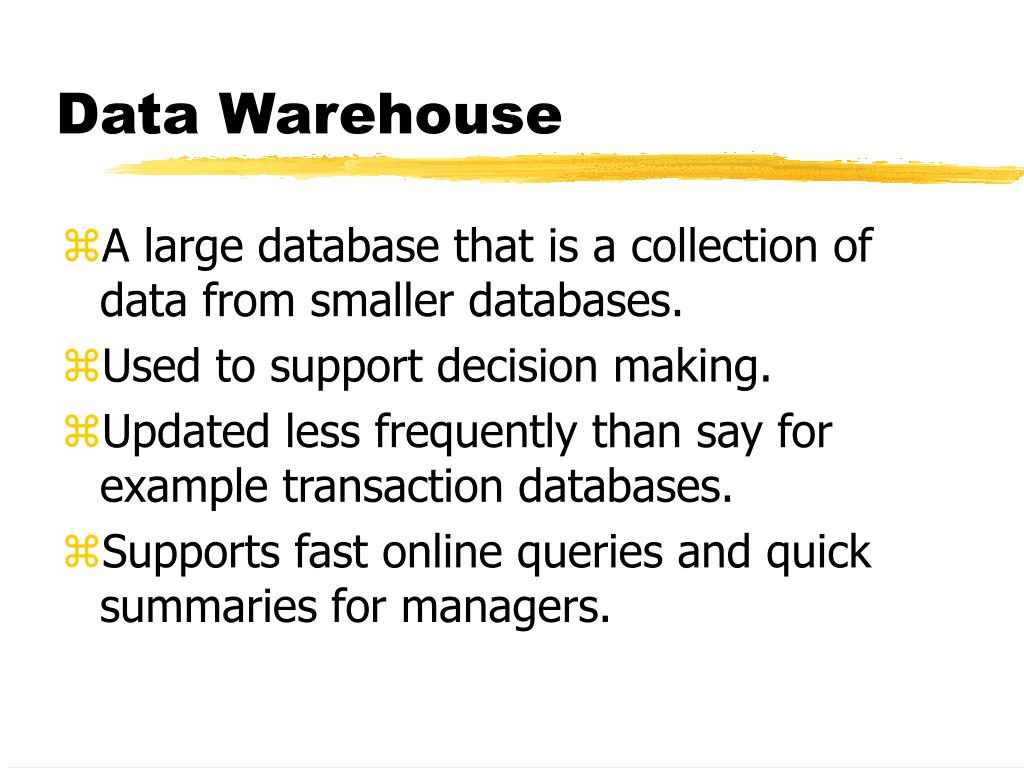

  7. Data Warehouse • A large database that is a collection of data from smaller databases. • Used to support decision making. • Updated less frequently than say for example transaction databases. • Supports fast online queries and quick summaries for managers.

  8. Data Warehouse (Contd.) • Global in view. • Data mart is a subset of a data warehouse that provides data about a specific function or a department. • Can “drill down” into several layers of data to locate a problem or an opportunity • Queries are often multidimensional in nature.

  9. Capabilities a good DBMS must possess • Controlling Redundancy • Problems with redundancy: • Need for single logical update • Waste of storage space • Inconsistency • Restricting Unauthorized Access • Provide a security and authorization subsystem

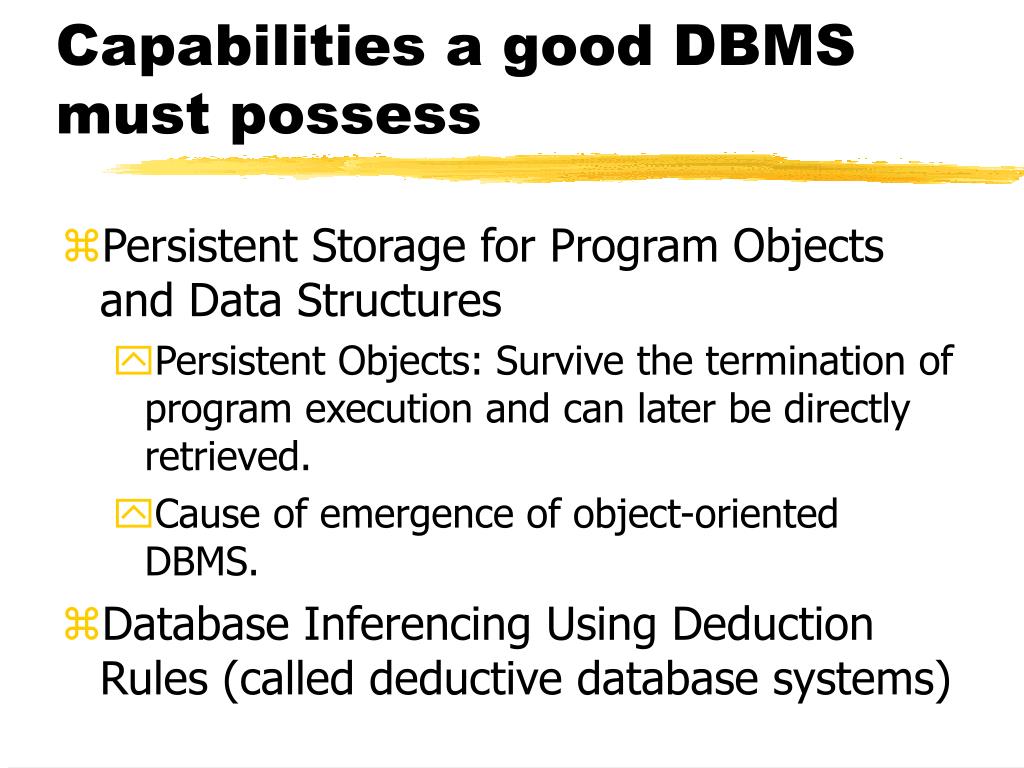

  10. Capabilities a good DBMS must possess • Persistent Storage for Program Objects and Data Structures • Persistent Objects: Survive the termination of program execution and can later be directly retrieved. • Cause of emergence of object-oriented DBMS. • Database Inferencing Using Deduction Rules (called deductive database systems)

  11. Capabilities a good DBMS must possess • Providing Multiple User Interfaces. • Representing Complex Relationships among Data. • Enforcing Integrity Constraints • Specifying data type for each data item. • Specifying that records in one file must be related to records in other files. • Providing Backup and Recovery.

  12. Implications of the Database Approach • Potential for Enforcing Standards • Reduced Application Development Time • Flexibility • Availability of Up-to-Date Information • Economies of Scale

  13. Factors Related to Information Usefulness • Information Quality • Information Accessibility • Information Presentation

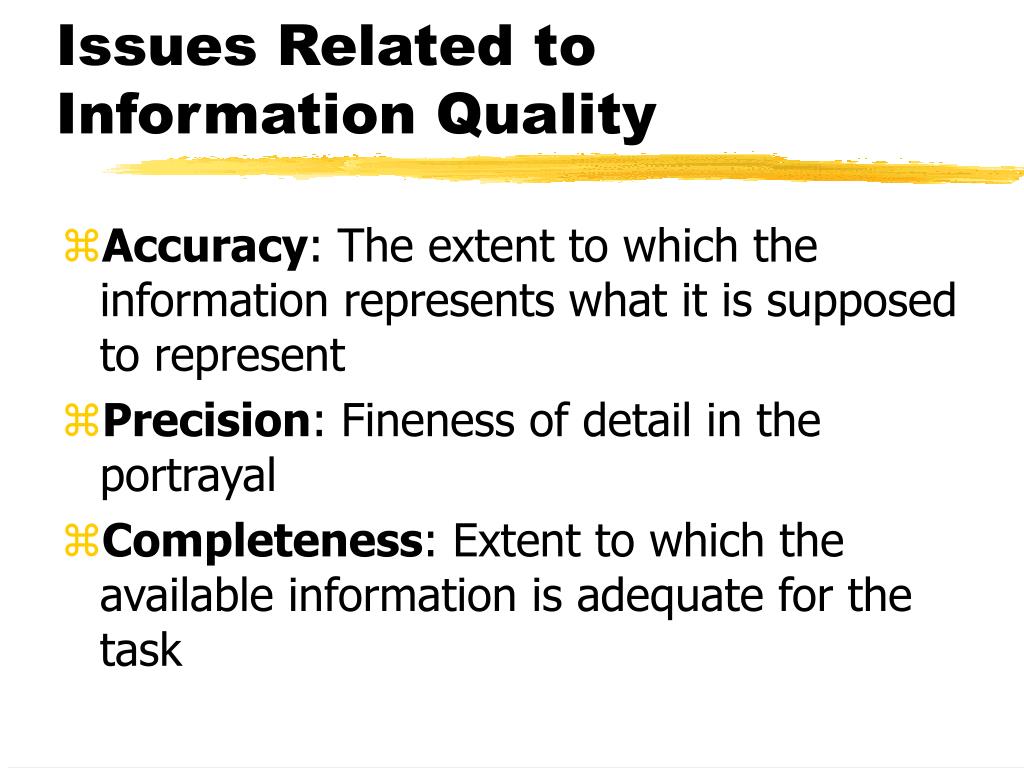

  14. Issues Related to Information Quality • Accuracy: The extent to which the information represents what it is supposed to represent • Precision: Fineness of detail in the portrayal • Completeness: Extent to which the available information is adequate for the task

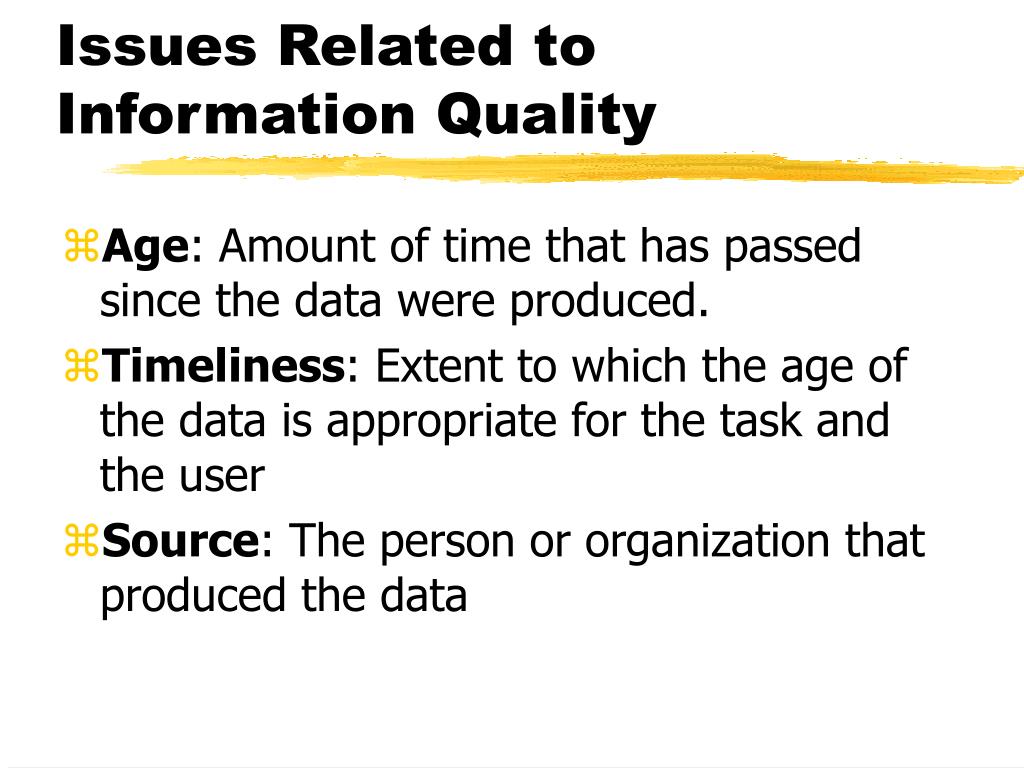

  15. Issues Related to Information Quality • Age: Amount of time that has passed since the data were produced. • Timeliness: Extent to which the age of the data is appropriate for the task and the user • Source: The person or organization that produced the data

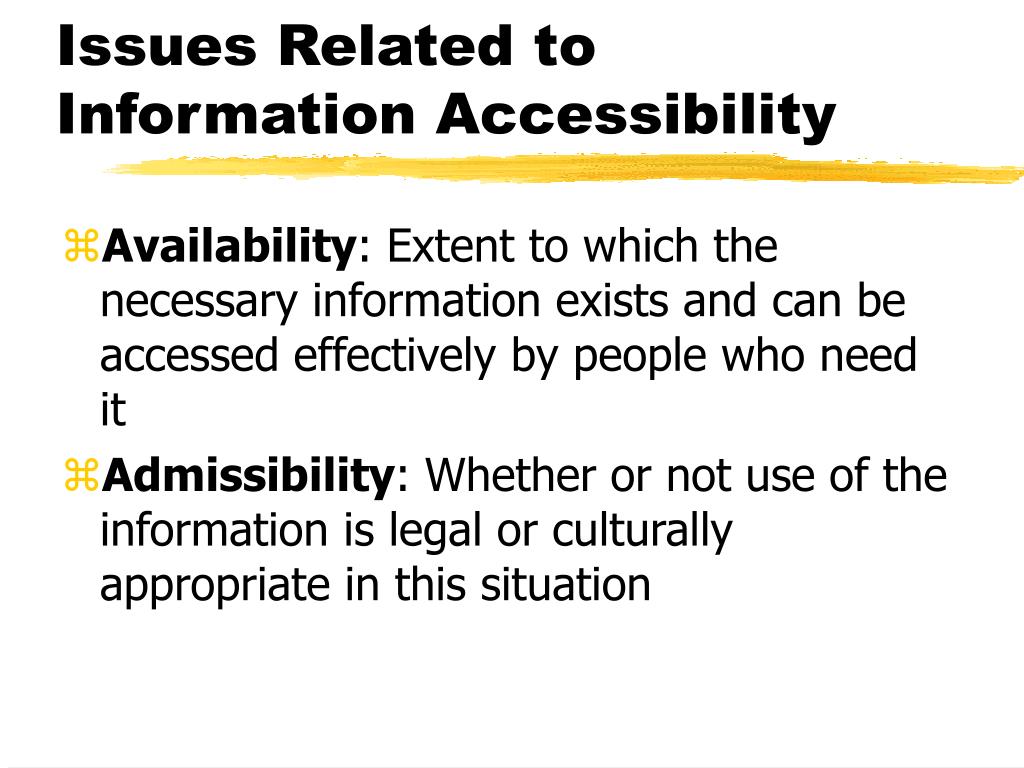

  16. Issues Related to Information Accessibility • Availability: Extent to which the necessary information exists and can be accessed effectively by people who need it • Admissibility: Whether or not use of the information is legal or culturally appropriate in this situation

  17. Issues Related to Information Presentation • Level of Summarization: Comparison between number of items in the original data and number of items displayed. • Format: Form in which information is displayed to the user.

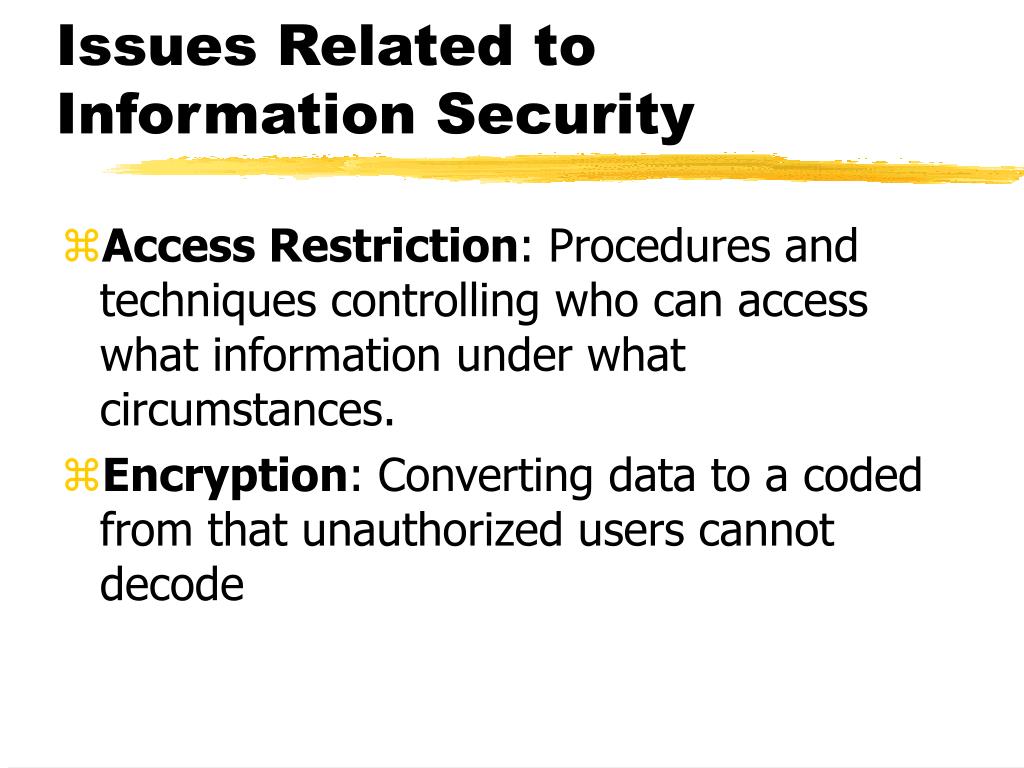

  18. Issues Related to Information Security • Access Restriction: Procedures and techniques controlling who can access what information under what circumstances. • Encryption: Converting data to a coded from that unauthorized users cannot decode
