Presentation Transcript

  1. CDHD Introduction 2011

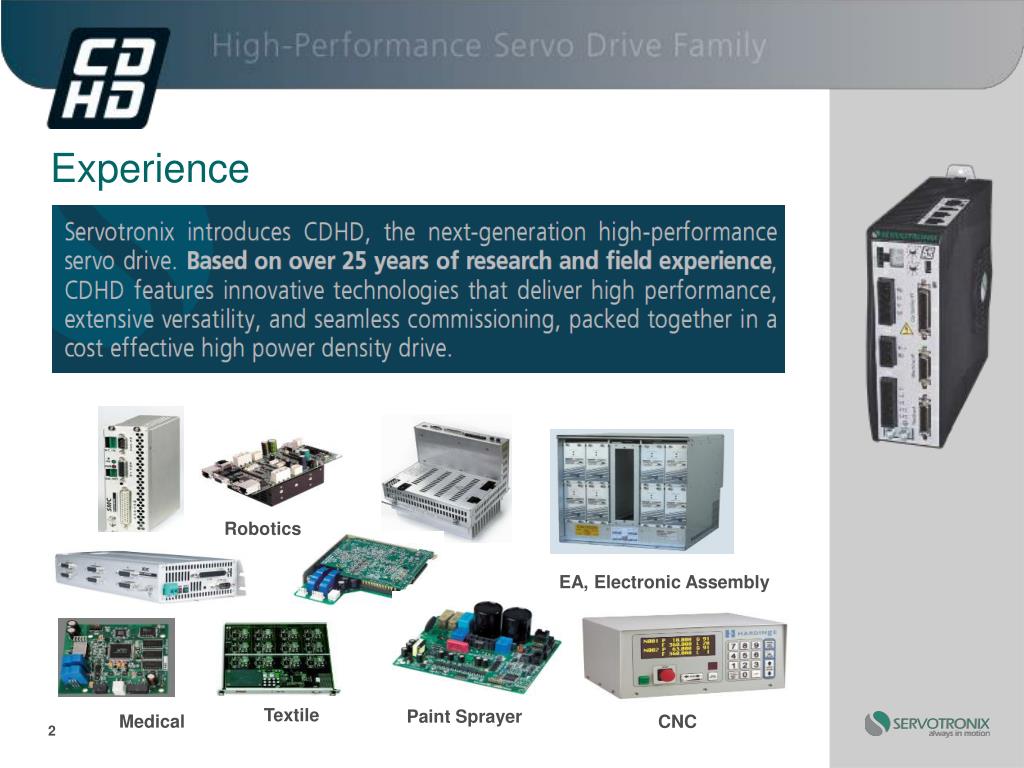

  2. Robotics EA, Electronic Assembly Textile Paint Sprayer Medical CNC Experience

  3. Ease of Use Power Density Performance • Smaller size • Increased bandwidth • Much more features • User-Friendly

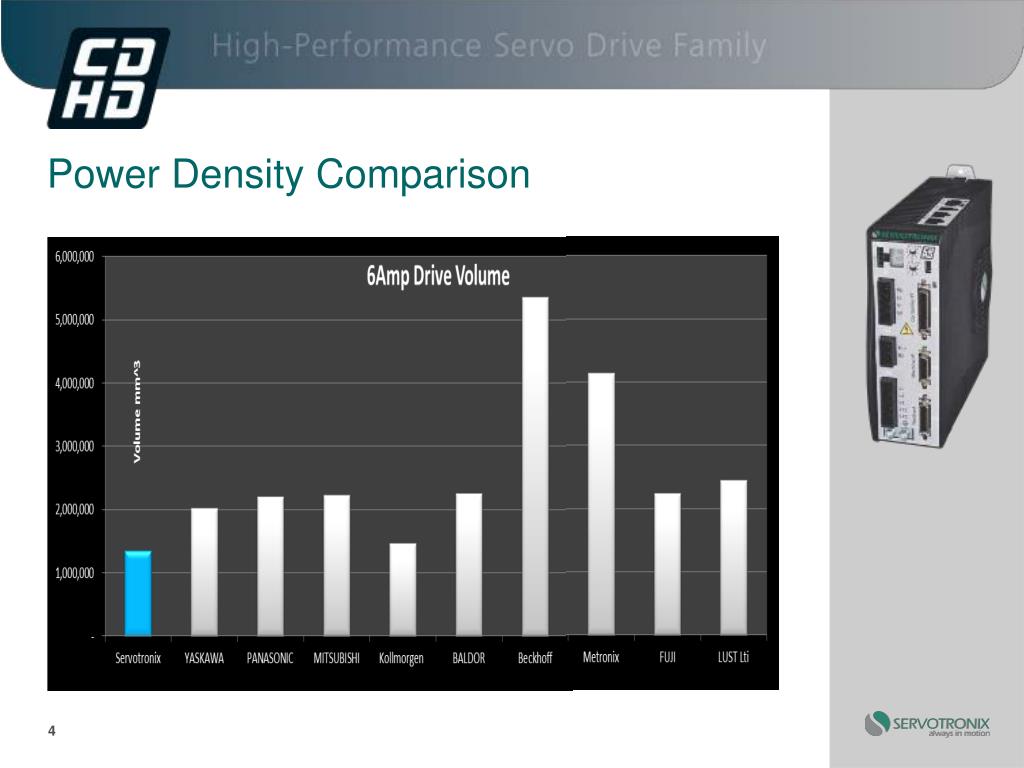

  4. Power Density Comparison

  5. Key Features • Innovative algorithms to provide higher bandwidth • Minimized position error and settling time • Supports Rotary and Linear motors • Supports Brushed and Brushless motors • Wide range of communication options • Safe-Torque-Off (STO) • Wide range of feedback options Possible firmware customization to address special application requirements.

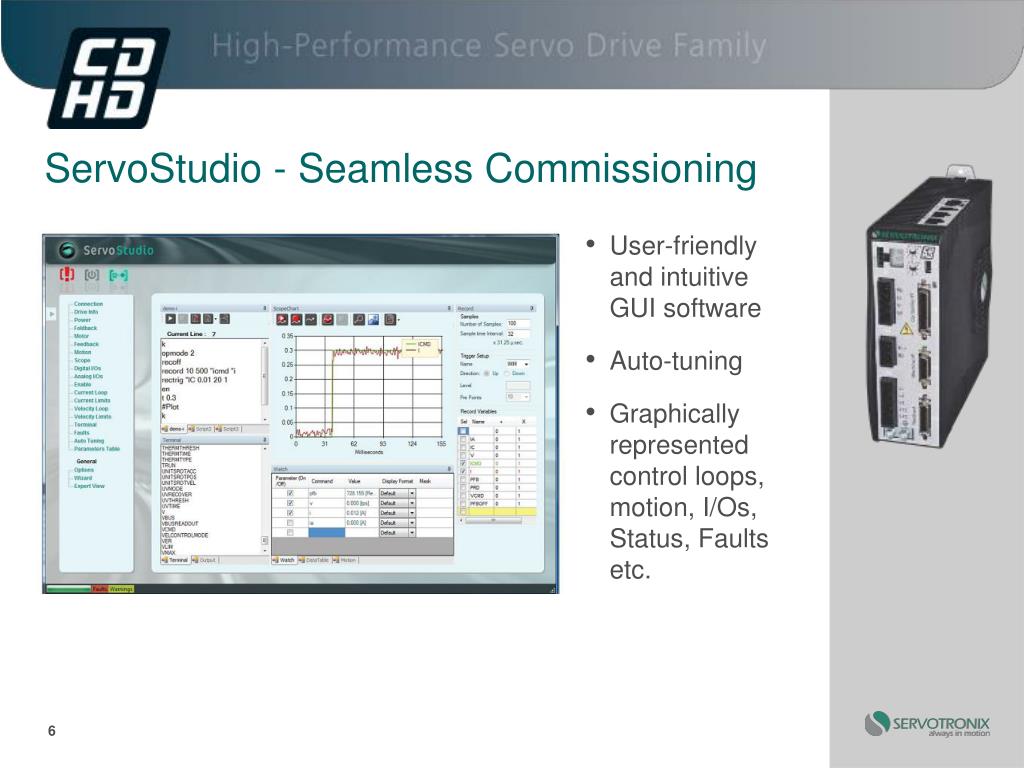

  6. ServoStudio - Seamless Commissioning • User-friendly and intuitive GUI software • Auto-tuning • Graphically represented control loops, motion, I/Os, Status, Faults etc.

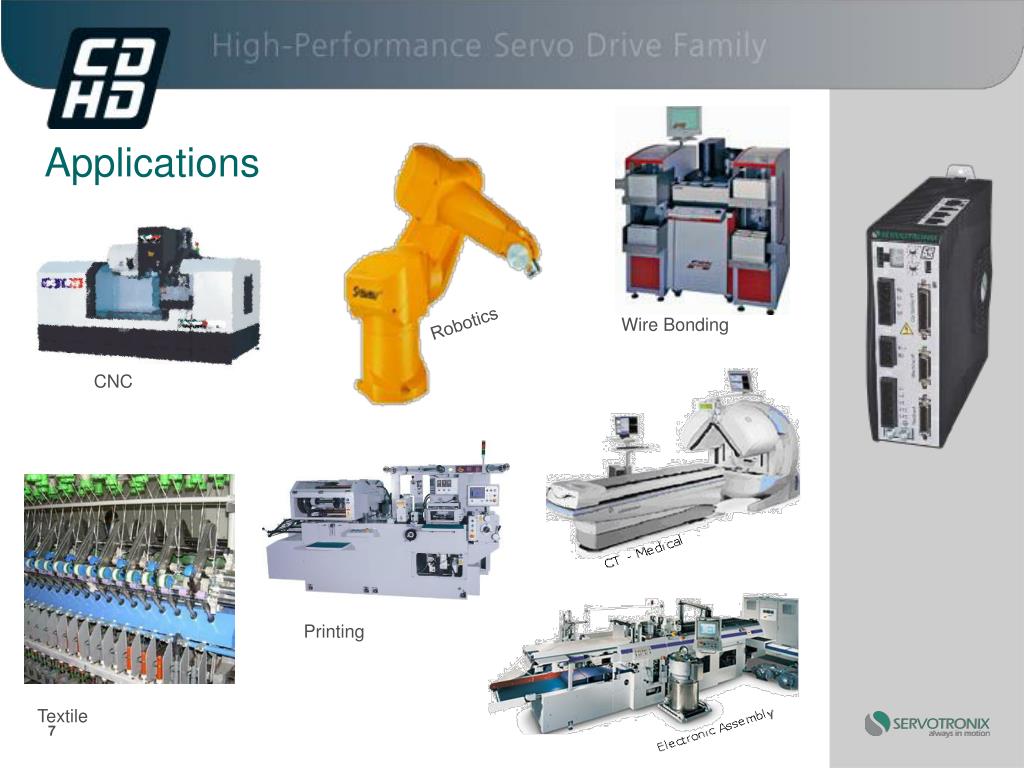

  7. Robotics Applications Wire Bonding CNC Printing Textile

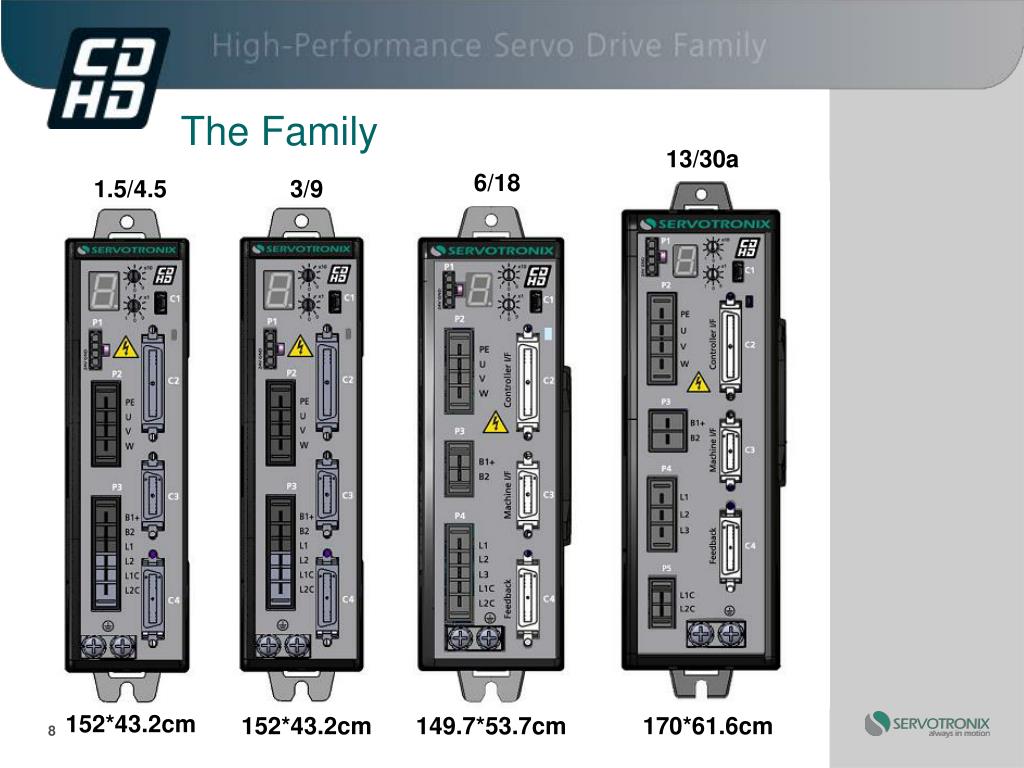

  8. 13/30a 6/18 1.5/4.5 3/9 152*43.2cm 152*43.2cm 149.7*53.7cm 170*61.6cm The Family

  9. Drive & Motor

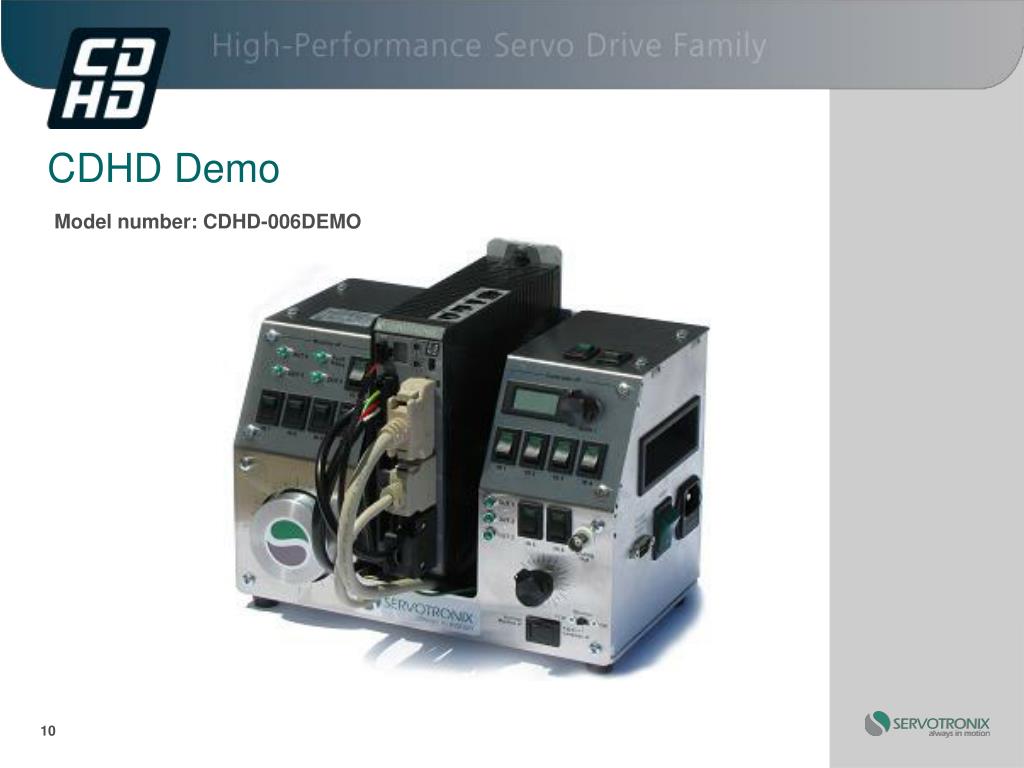

  10. CDHD Demo Model number: CDHD-006DEMO

  11. Roadmap • ETHERCAT, SERCOS III, PWM • High Power (400V) • DC Versions • Customized Products

  12. References & Documentations • Promotional flyer • Quick start guide • User manual • VarCom manual

  13. Ordering Information

  14. Thank You All Toda Raba

  15. Additional Slides

  16. 230VAC 1.5 Amp / 4.5 Amp peak RMS (Q4, 2011) 230VAC 3 Amp / 9 Amp peak RMS (Q4, 2011) 230VAC 6 Amp / 18 Amp peak RMS (Released) 230VAC 13 Amp / 30 Amp peak RMS (Q4, 2011) 230VAC 25 Amp / 50 Amp peak RMS 480VAC 1.5 Amp / 4.5 Amp peak RMS 480VAC 3 Amp / 9 Amp peak RMS 480VAC 6 Amp / 18 Amp peak RMS (Q4, 2011) 480VAC 13 Amp / 30 Amp peak RMS 480VAC 25 Amp / 50 Amp peak RMS CDHD Family Road Map
