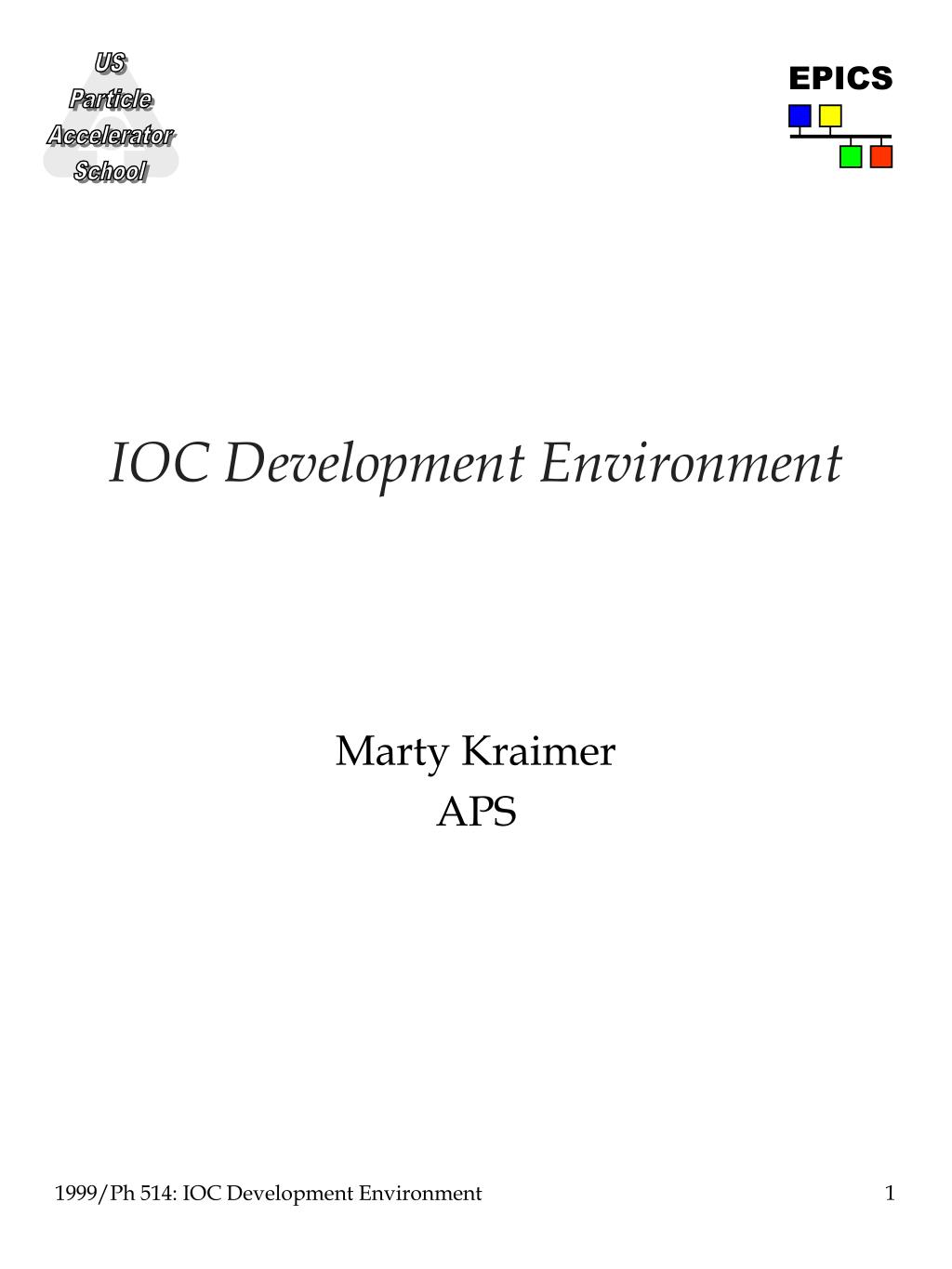

1. IOC Development Environment Marty Kraimer APS

2. Reference EPICS IOC Applications Building and Source Release Control Marty Kraimer,Janet Anderson,Ralph Lange June 15, 1998

3. Overview • Create and build IOC applications • databases • vxWorks startup files • SNL programs • New record, device, driver support • Access security configuration files • Other IOC code • Special Host code • Source management features • CVS can be used • IOC software is divided into <top> areasEach <top> is separately managed • gnumake + rules builds all components • User prerequisites • Understands C • Knows how to use a text editor • Has superficial knowledge of make

4. <top> Directory Structure <top>/ config/ Configuration + Rules xxxApp/ All source files except startup src/ Code xxxSrc/ Arbitrary number of xxxSrc Db/ Databases xxxDb Arbitrary number of xxxDb ... May have others: adl, etc xxxApp/ Arbitrary number of xxxApp iocBoot/ Only one iocBoot iocxxx Directory for each ioc … bin/ install directory <host_arch>/ <target_arch>/ … <other install directories>

5. Install directories By default installed into <top>/<xxx> <top> bin/ Object and executables solaris/ mv167/ lib/ Object libraries <arch> include/ e.g. xxxRecord.h dbd/ menu, recordtype, device, driver,etc db/ record instances, templates, etc ...

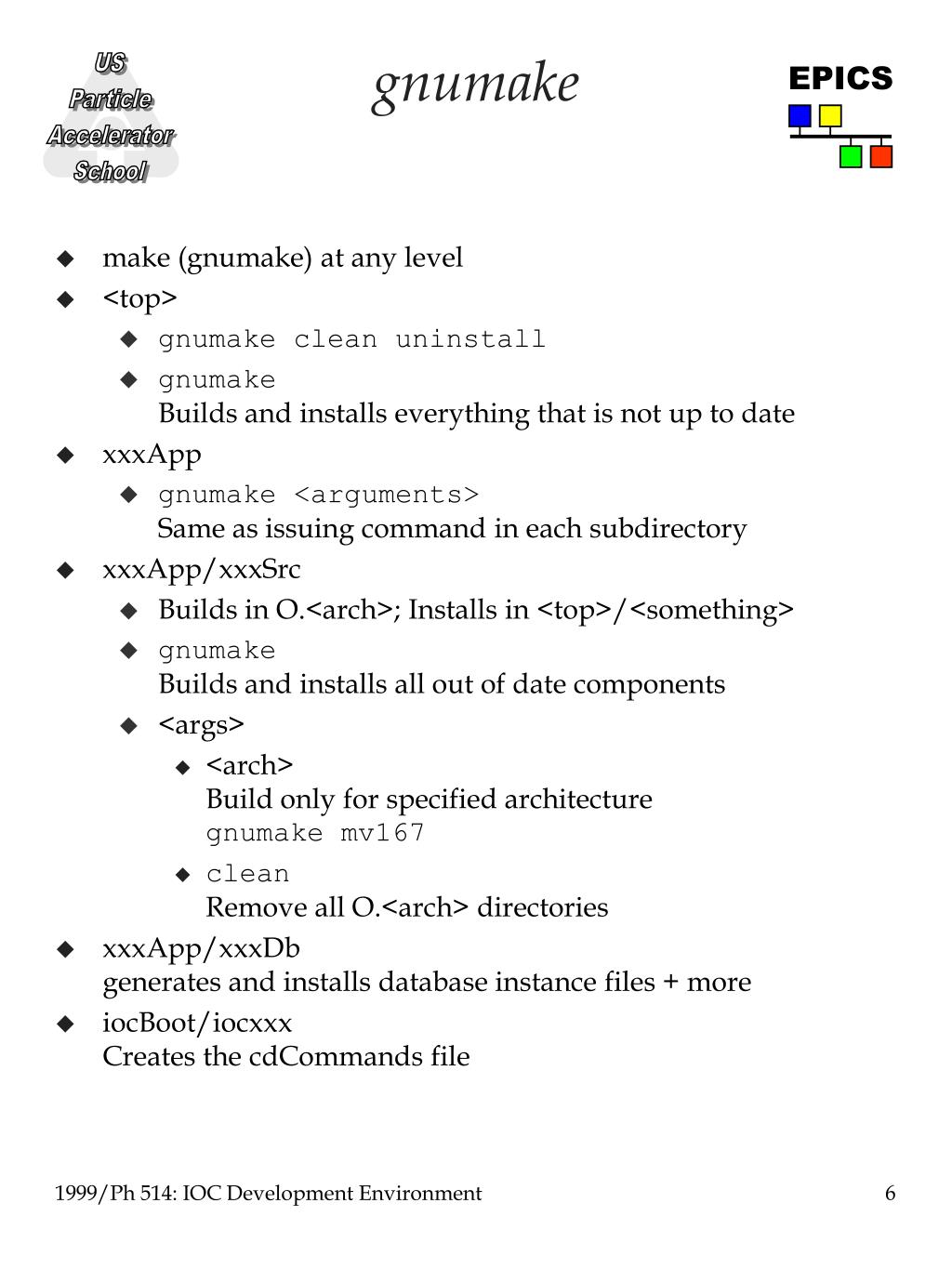

6. gnumake • make (gnumake) at any level • <top> • gnumake clean uninstall • gnumakeBuilds and installs everything that is not up to date • xxxApp • gnumake <arguments>Same as issuing command in each subdirectory • xxxApp/xxxSrc • Builds in O.<arch>; Installs in <top>/<something> • gnumakeBuilds and installs all out of date components • <args> • <arch>Build only for specified architecturegnumake mv167 • cleanRemove all O.<arch> directories • xxxApp/xxxDbgenerates and installs database instance files + more • iocBoot/iocxxxCreates the cdCommands file

7. config files • Files meant to be modified • CONFIG - Can override make variablesCROSS_COMPILER_TARGET_ARCHS = mv167 • CONFIG_APPDefinitions for <top>s referenced in RELEASE • RELEASELocation of other <top> areasEPICS_BASE=/usr/local/epics/baseR3.13.1 • Other files • RULES.xxxFiles containing make rules • *.plPerl scripts used by make rules • Structure of shared <top> areas • Just another <top> • Everything intended for use by other <top>s is installed.

8. xxxApp/src files • base.dbd - definitions supplied by base • get from base or other <top> and edit • menu, recordtype, device, driver taken from base • much support commented outinclude “menuGlobal.dbd”...#include “egRecord.dbd”...#device(ai,VME_IO,devAiXy566Se,”XYCOM-566 SE Scanned”) • baseLIBOBJS - objects supplied by base • get from base or other <top> and edit • object modules for record, device, driver support • Like base.dbd much support commented out • changes made to this must match base.dbd

9. base.dbd and baseLIBOBJS base.dbd include "menuGlobal.dbd" include "menuConvert.dbd" include "aiRecord.dbd" #include "aaiRecord.dbd" include "aoRecord.dbd" #include "aaoRecord.dbd" device(ai,CONSTANT,devAiSoft,"Soft Channel") device(ai,CONSTANT,devAiSoftRaw,"Raw Soft Channel") #device(ai,VME_IO,devAiXy566Se,"XYCOM-566 SE Scanned") #driver(drvGpib) driver(drvBitBus) #driver(drvBb910) #LIBOBJS += $(EPICS_BASE_BIN)/aaiRecord.o #LIBOBJS += $(EPICS_BASE_BIN)/aaoRecord.o LIBOBJS += $(EPICS_BASE_BIN)/aiRecord.o LIBOBJS += $(EPICS_BASE_BIN)/aoRecord.o LIBOBJS += $(EPICS_BASE_BIN)/devAiSoft.o LIBOBJS += $(EPICS_BASE_BIN)/devAiSoftRaw.o #LIBOBJS += $(EPICS_BASE_BIN)/devAiXy566Se.o #LIBOBJS += $(EPICS_BASE_BIN)/drvBb910.o LIBOBJS += $(EPICS_BASE_BIN)/drvBitBus.o #LIBOBJS += $(EPICS_BASE_BIN)/drvGpib.o baseLIBOBJS

10. xxxApp/src continued • Makefile.Host RECTYPES += xxxRecord.h DBDEXPAND += xxxInclude.dbd DBDNAME = xxxApp.dbd • xxxInclude.dbd include “base.dbd” include “xxxRecord.dbd” device(xxx,CONSTANT,devXxxSoft,”Softchannel”) • Makefile.Vx LIBOBJS += xxxRecord.o LIBOBJS += sncExample.o include ../baseLIBOBJS LIBNAME = xxxLib INSTALLS += iocCore seq PROD += xxx.o

11. xxxApp/xxxDb/Makefile.Host • databases installed into <top>/db DB += xxx.db • Template files expanded on host • yyy.template has the format record(ai,”$(USER):aiExample$(NO)”){… } • yyy.substitutions file yyy.template {{USER=“mrk”,NO=“1”}{USER=“mrk”,NO=“2”} } DB += yyy.db USES_TEMPLATE += yyy.template • Template files to be expanded at boot time via dbLoadTemplate() DB += zzz.template zzz.substitutions • Support for capfast generated files • Can also expand .dbd files

12. iocBoot • iocBoot/MakefileExecutes make in each subdirectory • iocBoot/iocxxx/MakefileCreates cdCommands. Make sure that ARCH = <arch> is defined correctly • cdCommands looks like startup=“<full path to iocxxx>“ appbin=“<full path to top/bin/arch>“ … • st.cmd looks like < cdCommands cd appbin ld < iocCore ld < xxxLib cd startup dbLoadDatabase(“../../dbd/xxxApp.dbd”) dbLoadRecords(“../../db/xxx.db”,”user=mrk”) iocInit

13. makeBaseApp • Execute the commands cd ~/ioc mkdir example cd example <path>/makeBaseApp.pl -t example example <path>/makeBaseApp.pl -i -t example example The first command creates: <top>/ Makefile config/ ... exampleApp src/ ... Db/ ... The second command creates: <top>/iocBoot Makefile iocexample/ … Each command can be issued multiple times • Look at example!!!

14. Application Templates • makeBaseApp uses templates • base supplies the following <base>/templates/makeBaseApp/top/Makefileconfig exampleAppexampleBootsimpleAppsimpleBoot • Application templates can be created. • <top>/config/RELEASE contains TEMPLATE_TOP = <full path to template top> • Templates are just like another <top>
