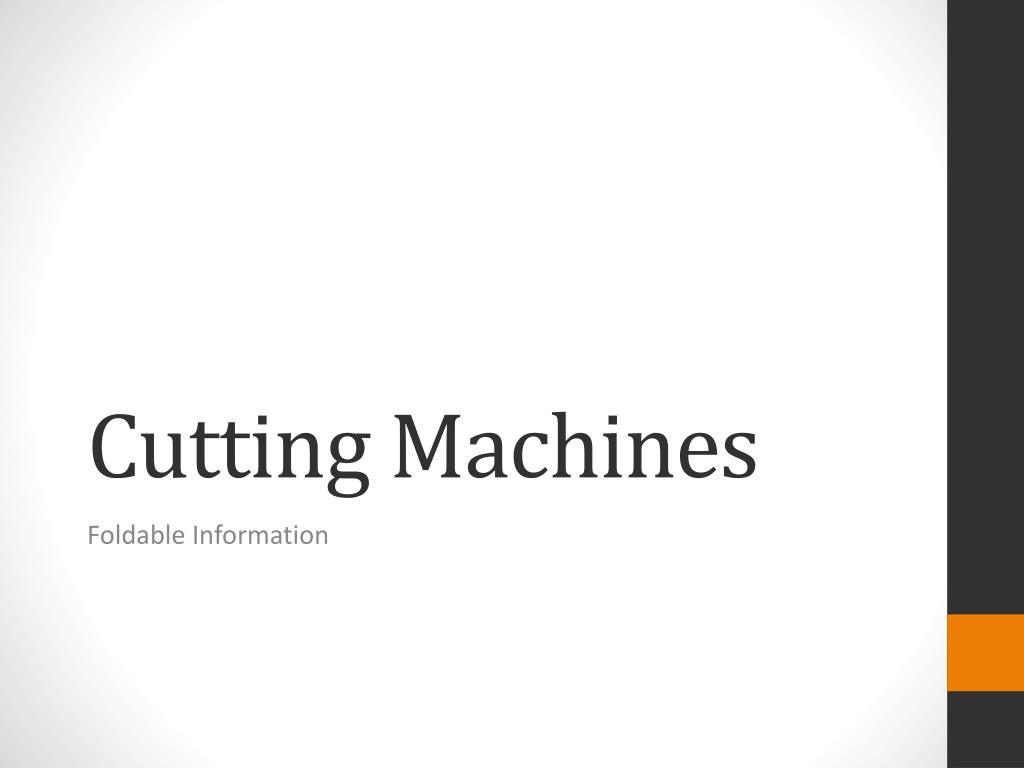

  1. Cutting Machines Foldable Information

  2. Center punch • Cutting Oil Related Terms Drill Press

  3. Used to drill holes into or through a piece of metal. Use Drill Press

  4. Secure metal to the table using a clamp. • Remove key from chuck after bit is tight. • Place long end of metal on the left side of the column. • If the piece starts to spin keep the bit held down and turn the machine off. Safety Rules Drill Press

  5. Horizontal Cutting • Vertical Cutting • Blade Guide Related Terms Metal Cutting Band Saw

  6. Used to make straight or slightly curved cuts into metal. Uses Metal Cutting Band Saw

  7. When using the band saw in the horizontal position make sure to securely clamp the material. • When using the band saw in the vertical position make sure the table is screwed into position. • Do not force the blade into the cut. Let the machine do the work. Safety Rules Metal Cutting Band Saw

  8. Facing • Turning • Cross Feed • Compound Feed Related Terms Metal Lathe

  9. Used to turn a cylindrical object down to a smaller diameter. • Used to face the end of a piece to make it flat. • Used to cut threads. Uses Metal Lathe

  10. Turn the machine by hand before turning it on. • Secure the material in the chuck then remove the key. • Keep hands clear of moving parts. • Do not stand in front of the chuck when turning on the machine. Safety Rules Metal Lathe

  11. Ferrous Metal Related Terms Abrasive Saw

  12. Used to quickly cut ferrous tubing to length. Use Abrasive Saw

  13. Stand off to the side of the blade before pulling the power switch. • Make sure the piece is tight in the clamp before cutting. • Pull the saw slowly through the metal. • Used to cut ferrous metals only. Safety Rules Abrasive Saw

  14. Tool Rest • Spark arrestor • Wheel dresser Related Terms Bench Grinder

  15. Used to sharpen tools • Used to shape metal Uses Bench Grinder

  16. Keep tool rest about 1/8” away from wheel. • Check wheel for cracks before turning on the machine. • Keep spark arrestor and face shields in place. • Used to grind ferrous metal only. • Use wheel dresser as necessary to keep wheel true. Safety Rules Bench Grinder

  17. Direction of sparks • Location of power cord Related Terms Angle Grinder

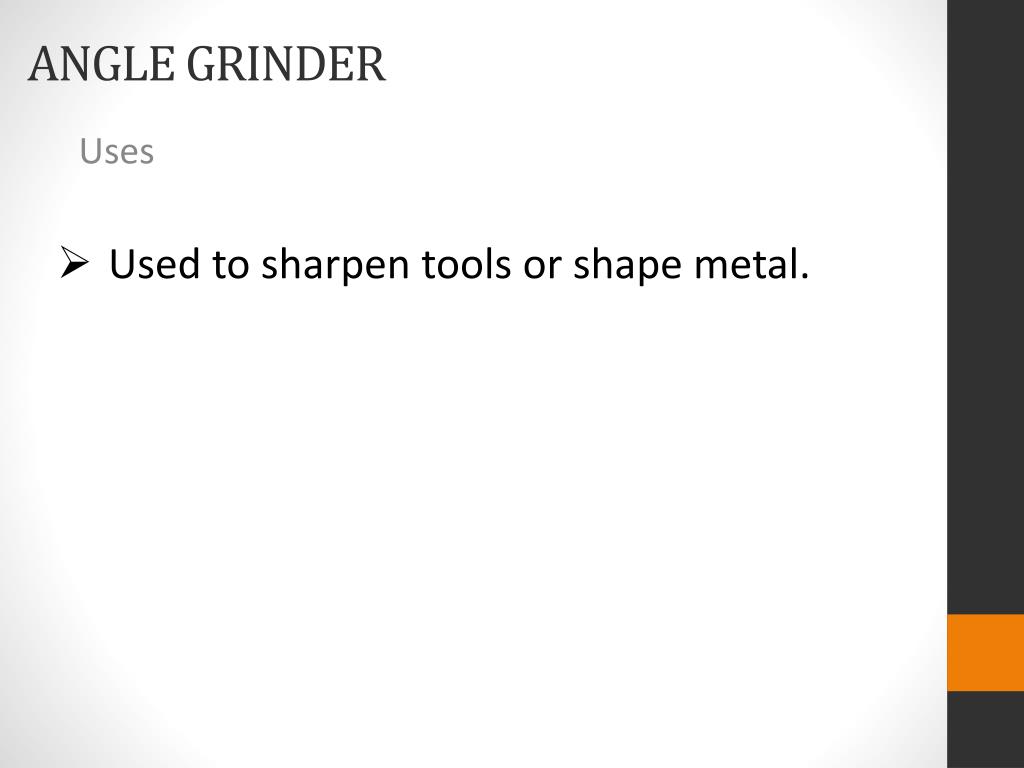

  18. Used to sharpen tools or shape metal. Uses Angle Grinder

  19. Never aim sparks in the direction of people or flammable materials. • Keep the disc moving on top of the metal. Never hold it in 1 spot. • Do not use the edge of the grinding wheel to grind with. Safety Rules Angle Grinder

  20. Disc Rotation • Adhesive backed disc Related Terms Disc Sander

  21. Used to give metal its final shape. • Removes rust or scale • Preps metal for welding. Uses Disc Sander

  22. Keep table about 1/8” from the disc. • Keep metal being sanded flat on the table. • Sand only on the downward rotating side of the disc. • After being shut off the disc can be slowed to a stop with a piece of scrap wood pressed against its outer edge. Safety Rules Disc Sander
