  1. Small Field TMF 2004 Gymnasium Elišky Krásnohorské

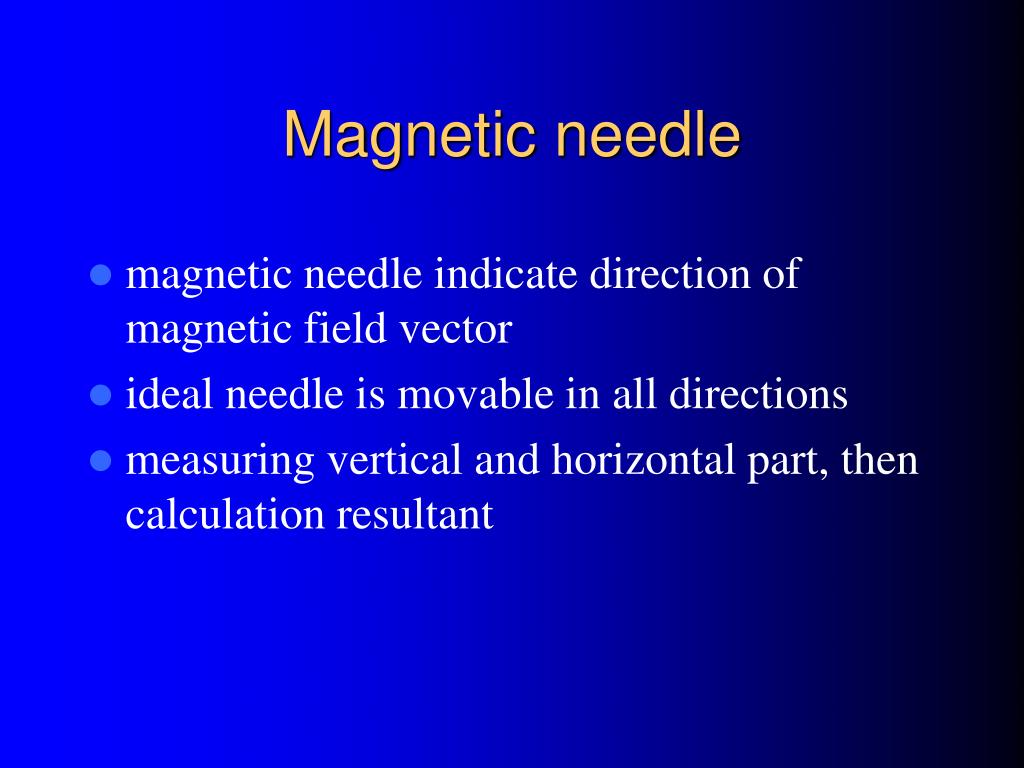

  2. Magnetic needle • magnetic needle indicate direction of magnetic field vector • ideal needle is movable in all directions • measuring vertical and horizontal part, then calculation resultant

  3. Measuring magnetic induction • direct force measuring is not ideal • using secondary field • constant field, measuring angle size • constant angle, variable magnetic field

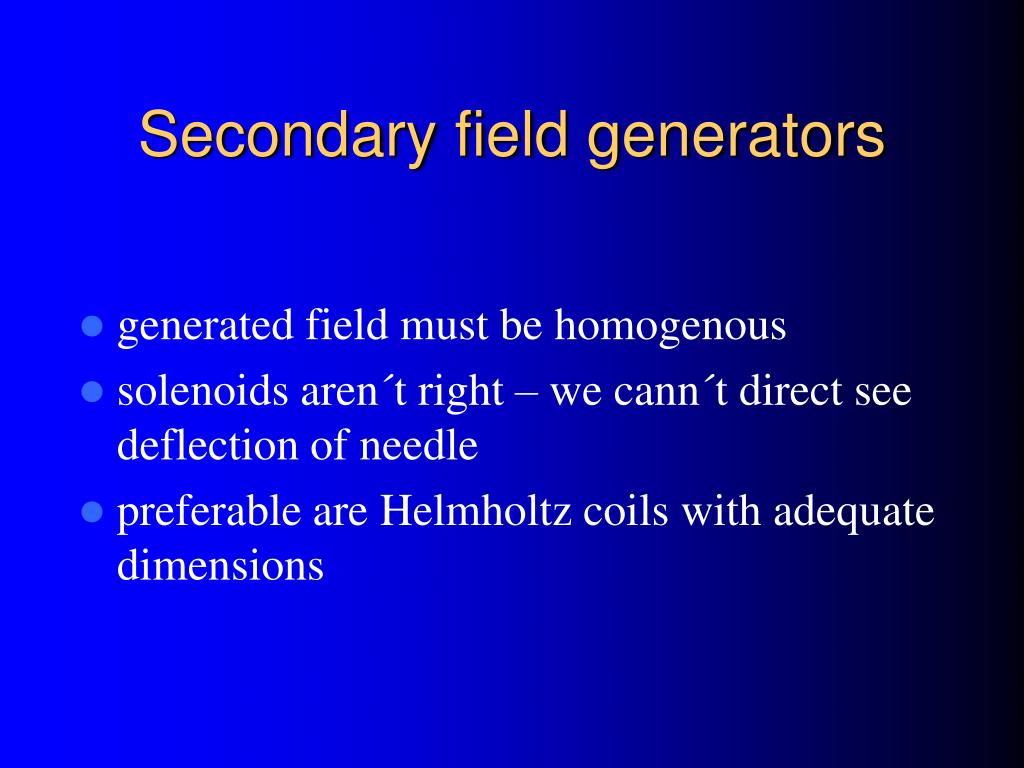

  4. Secondary field generators • generated field must be homogenous • solenoids aren´t right – we cann´t direct see deflection of needle • preferable are Helmholtz coils with adequate dimensions

  5. Used Helmholtz coils

  6. Scheme of Helmholtz coils

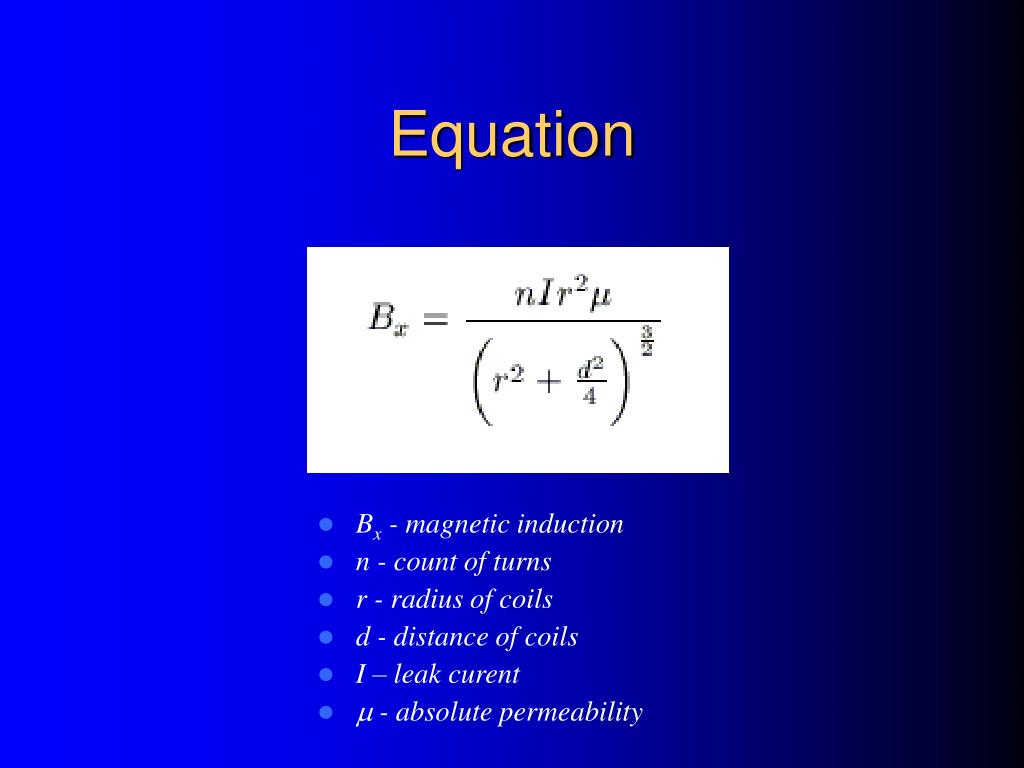

  7. Equation • Bx - magnetic induction • n - count of turns • r - radius of coils • d - distance of coils • I – leak curent •  - absolute permeability

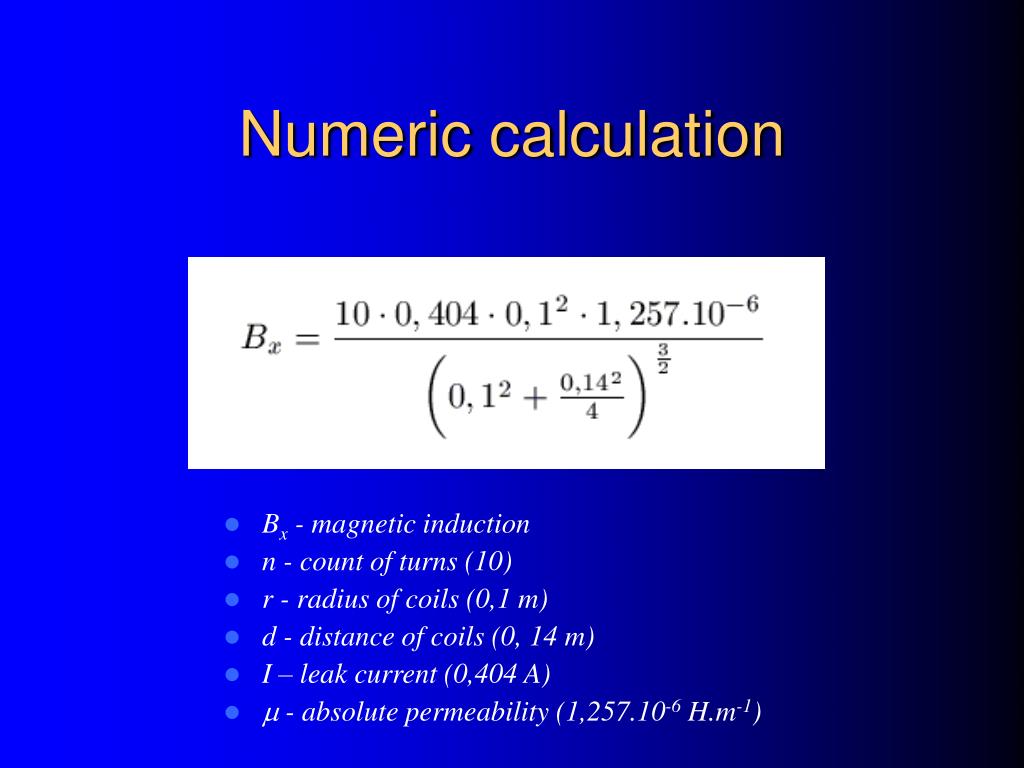

  8. Numeric calculation • Bx - magnetic induction • n - count of turns (10) • r - radius of coils (0,1 m) • d - distance of coils (0, 14 m) • I – leak current (0,404 A) •  - absolute permeability (1,257.10-6 H.m-1)

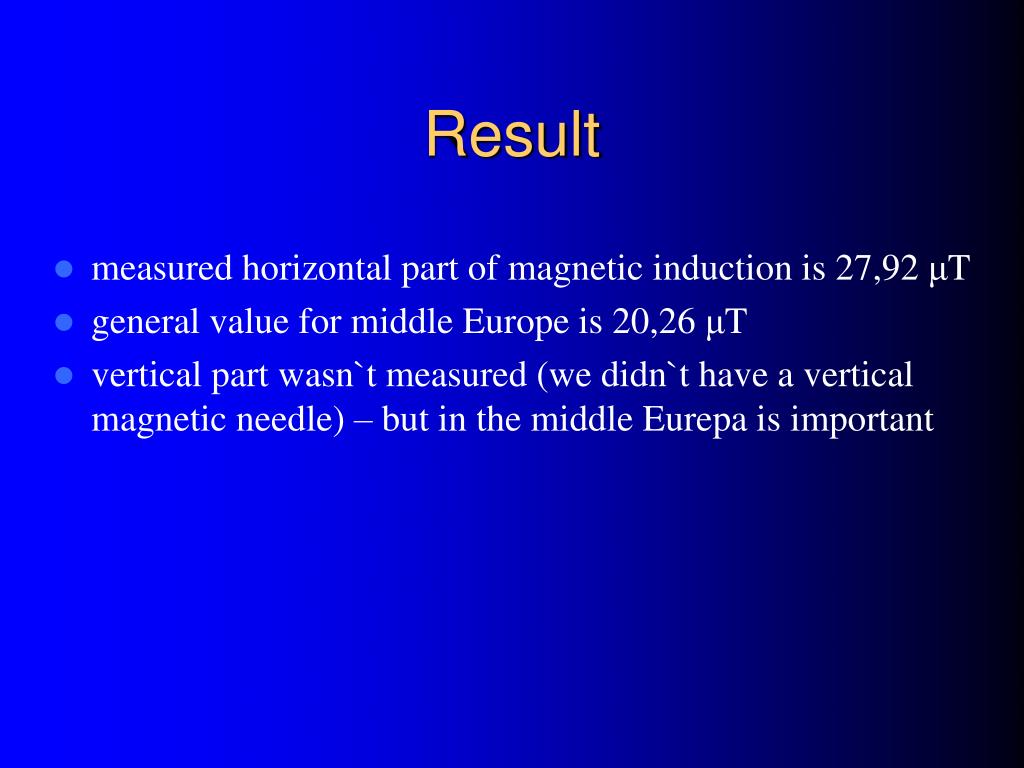

  9. Result • measured horizontal part of magnetic induction is 27,92 μT • general value for middle Europe is 20,26 μT • vertical part wasn`t measured (we didn`t have a vertical magnetic needle) – but in the middle Eurepa is important

  10. Other methods for measuring small magnetic fields • proton precission magnetometers • optically pumped magnetometers • overhauser magnetometers • fluxgate magnetometers
