Presentation Transcript

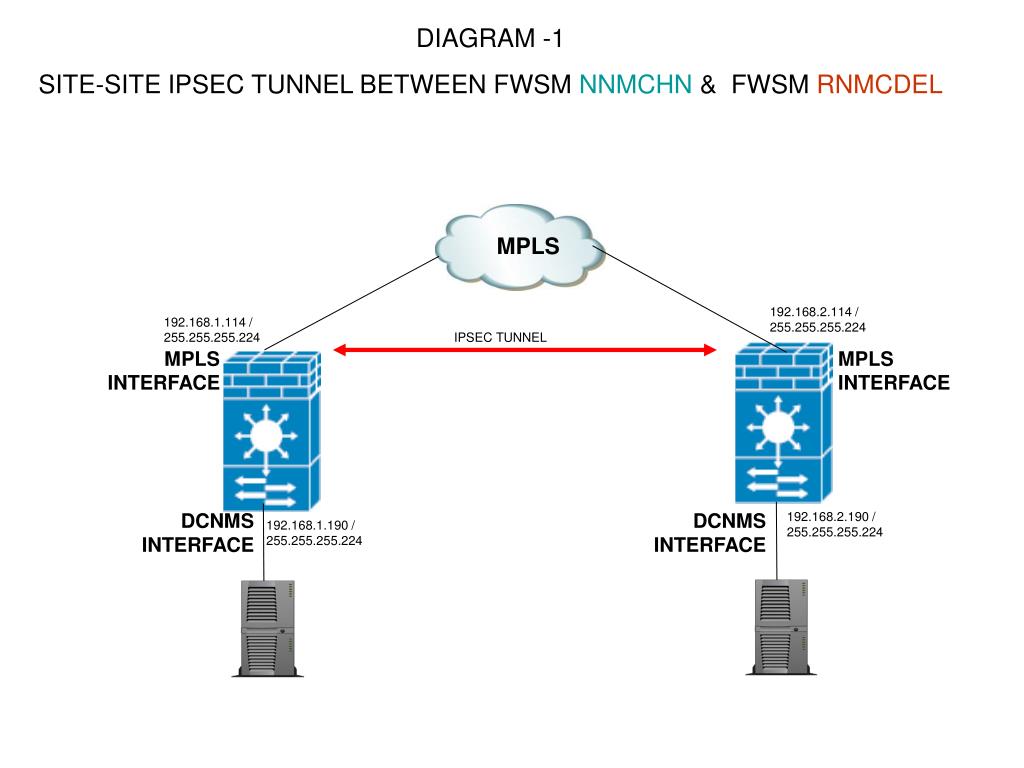

  1. DIAGRAM -1 SITE-SITE IPSEC TUNNEL BETWEEN FWSM NNMCHN & FWSM RNMCDEL MPLS 192.168.2.114 / 255.255.255.224 192.168.1.114 / 255.255.255.224 IPSEC TUNNEL MPLS INTERFACE MPLS INTERFACE DCNMS INTERFACE DCNMS INTERFACE 192.168.2.190 / 255.255.255.224 192.168.1.190 / 255.255.255.224

  2. DIAGRAM -2 SITE-SITE IPSEC TUNNEL BETWEEN LINUX OS /IOS ROUTER & FWSM RNMCDEL IPSEC TUNNEL MPLS 192.168.2.114 / 255.255.255.224 192.168.1.114 / 255.255.255.224 MPLS INTERFACE MPLS INTERFACE DCNMS INTERFACE DCNMS INTERFACE 192.168.2.190 / 255.255.255.224 192.168.1.190 / 255.255.255.224
