MPLS: A Comprehensive Overview

Learn about MPLS (Multiprotocol Label Switching) with topics such as Label Switched Paths, Traffic Engineering, CoS, and protection switching. Understand how to use ATM switches as routers. Explore control-driven vs data-driven approaches and label distribution in this informative guide.

tbatten
Télécharger la présentation

MPLS: A Comprehensive Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

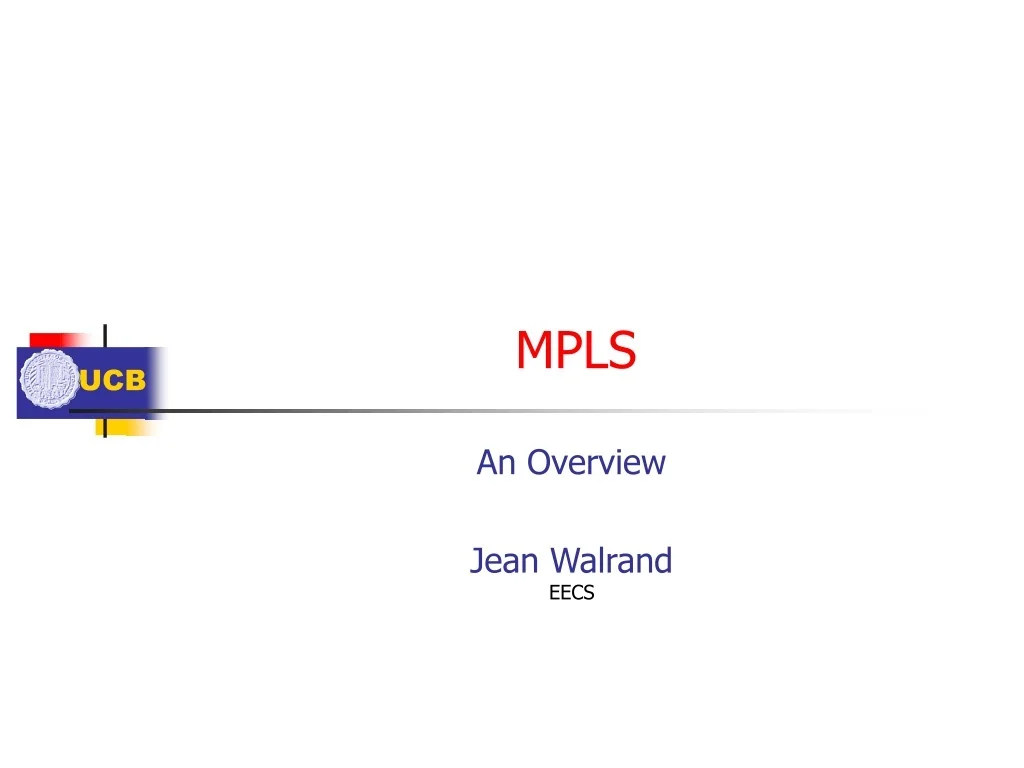

  1. MPLS An Overview Jean WalrandEECS

  2. Outline • Objectives • Label Switching • LSP setup

  3. Control Routing Classify -> Label -> LSP Traffic Engineering CoS Protection Switching Use ATM switches as routers ... Objectives

  4. Label Switched Paths Label-Switched Router: Switch based on label Re-label ... LSR LER Label Edge Router Ingress: Classify Label LER Egress: Pop Note: Push and pop

  5. 7 6 Label Switched Paths (continued) • Example 10 10 10 10 10

  6. Control Driven (prior to data) Data Driven Label Distribution Request OK, Label Note: Deadlocks are possible

  7. Details: Labels

  8. Details: Layers
