  1. Holding the Internet Accountable David Andersen, Hari Balakrishnan, Nick Feamster, Teemu Koponen, Daekyeong Moon, Scott Shenker

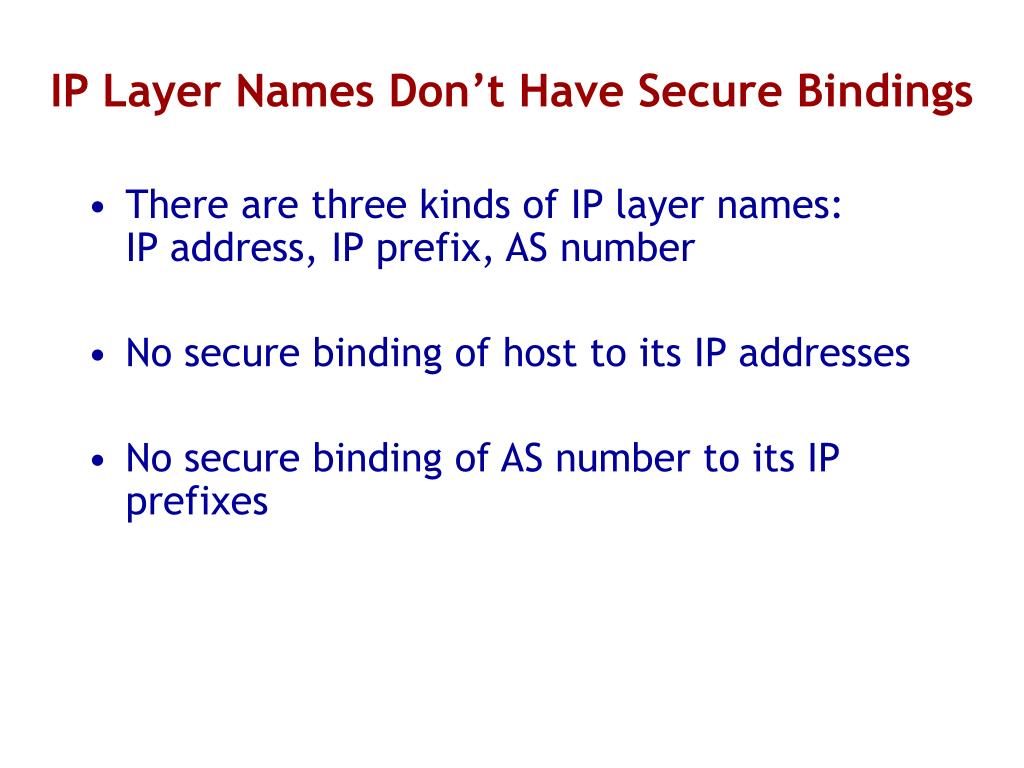

  2. IP Layer Names Don’t Have Secure Bindings • There are three kinds of IP layer names: IP address, IP prefix, AS number • No secure binding of host to its IP addresses • No secure binding of AS number to its IP prefixes

  3. Problematic Result: IP Lacks Accountability • Any host can spoof any other host • No intrinsic support in IP to detect or prevent • A network can advertise prefixes arbitrarily • Many misconfigs; some examples of ill intent • S-BGP requires external mechanisms to bind prefix to AS and AS to public key • No intrinsic support in IP to detect or prevent • Accountability: Ability to associate action with entity or hold entity responsible for action • Basis for security in real-world • Foundation for raising level of Internet security

  4. AIP: Accountable Internet Protocol • Goal: Intrinsic support for network-layer accountability in the Internet • Key idea: New addressing (naming) scheme for networks and hosts • Simple protocols that use properties of addressing scheme as foundation • Securing BGP, anti-spoofing, targeted traffic throttling (anti-DoS)

  5. Address = AD1:EID Each host has a global EID [HIP, DOA, LISP] AIP Addressing Autonomous domains,each with unique ID(smaller than an AS) AD2 • AD and EID are self-certifying [SFS] flat names • AD = hash(public_key_of_AD, other_stuff) • Self-certification binds name to named entity AD1 AD3 If multihomed, has multiple addressesAD1:EID,AD2:EID,AD3:EID • AD and EID are self-certifying [SFS] flat names • AD = hash(public_key_of_AD, other_stuff) • Self-certification binds name to named entity

  6. Routers in R, G, B use only AD field to forward: route_lookup(Y) AIP Forwarding and Routing AD G AD B AD R AD Y Source Y:EID Once packet is in AD Y (destination AD), Y’s routers: route_lookup(EID) Inter-AD routing uses AD numbers as routing objects: Y: AD path = [B G R]; B: AD path = [G R]; etc.Note absence of prefixes Intra-AD routing disseminates EIDs (many ways possible)

  7. With AIP Addresses, Accountability is Intrinsic • (Recall) Ability to associate action with entity or hold entity responsible for action • Control-plane accountability improves security of routing protocol (BGP) • Source accountability detects spoofing and forgery • Also helps throttle traffic from “well-intentioned” [Shaw] compromised hosts • Mechanisms borrow ideas from previous work [S-BGP, uRPF], but goals achieved more readily

  8. Control-Plane Accountability (for BGP) • Origin authentication: Ensure routing prefix being originated by AS X actually belongs to X • Path authentication: Ensuring accuracy of AS path • S-BGP and soBGP require external infrastructures • Routing registry recording prefix ownership • PKI (database) mapping AS to its public key • In practice, registries notoriously inaccurate • With AIP: ADs exchange pub keys via BGP messages • Path auth identical to S-BGP (but no PKI) • Origin auth achieved “just like that” (no registry)

  9. Source Accountability: Detecting Spoofing • Property 1: When challenged, only entity with AD A’s private key can prove packet was sent with source address A: • Property 2: When challenged, only entity with EID E’s private key can prove packet was sent with source address :E • Any entity seeing packet can check these two properties using a verification protocol

  10. Accept &forward Y In accept cache? Receive nonce resp N N Local AD? Trust nbhrAD? Verify signature Add A (or E):ifaceto accept cache Y AIP Verification Protocol Receive pktw/ srcA:E Y SLA, uRPF,… N Drop pktSend nonce to A or E Nonce response must be signed w/ A’s (or E’s) priv key

  11. AIP Enables Secure Shut-Off • Problem: Compromised host X sending stream of unwanted traffic to destination D • X is “well-intentioned”, owner benign [Shaw] D X Shut-off packet signed by D to X:{time, D’s pub key, hash of recent pkt recd from X by D, TTL} • Can send shut-offs to hosts or to ADs • Shut-off scheme implemented in NIC firmware • Immutable by host software (updates require physical access via USB/serial port)

  12. Limitations and Concerns • AIP handles spoofing, but what about minting? • Any entity can make up self-certified addresses • Each AD must control #EIDs per host to protect • Any entity can make up routing announcements for non-existent ADs • We’re studying a few approaches to this problem • Key management and compromise? • Each AD has master key pair and current key pair; uses master to issue change • But AD number and all its addresses must change • More concerns in paper: routing scalability wrt state and update volume), traffic engineering, …

  13. Conclusion • Q: How to achieve network-layer accountability in an internetwork? • A: Self-certifying internetwork addresses • AD:EID (AIP) • Each field derived from public keys • Control-plane (routing) and source (anti-spoofing) accountability are now intrinsic • Ideas compose well with other mechanisms for mobility, higher availability, etc.
