Electron Configuration and Energy Levels:

Electron Configuration and Energy Levels:. Ground state: A ll the electrons in an atom have the lowest possible energies Most stable electron configuration. Example: Sodium (Na). Pictures show all the electrons in a sodium atom Neutral Sodium has 11 protons (p+) and 11 electrons (e-)

emery-mccall
Télécharger la présentation

Electron Configuration and Energy Levels:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Electron Configuration and Energy Levels: Ground state: All the electrons in an atom have the lowest possible energies Most stable electron configuration

  2. Example: Sodium (Na) • Pictures show all the electrons in a sodium atom • Neutral Sodium has 11 protons (p+) and 11 electrons (e-) • First layer fills up with 2 electrons - 9 left over • Next layer fills up with 8 electrons - 1 left over • Last electron is all alone in the next layer

  3. All of the Electron Shells

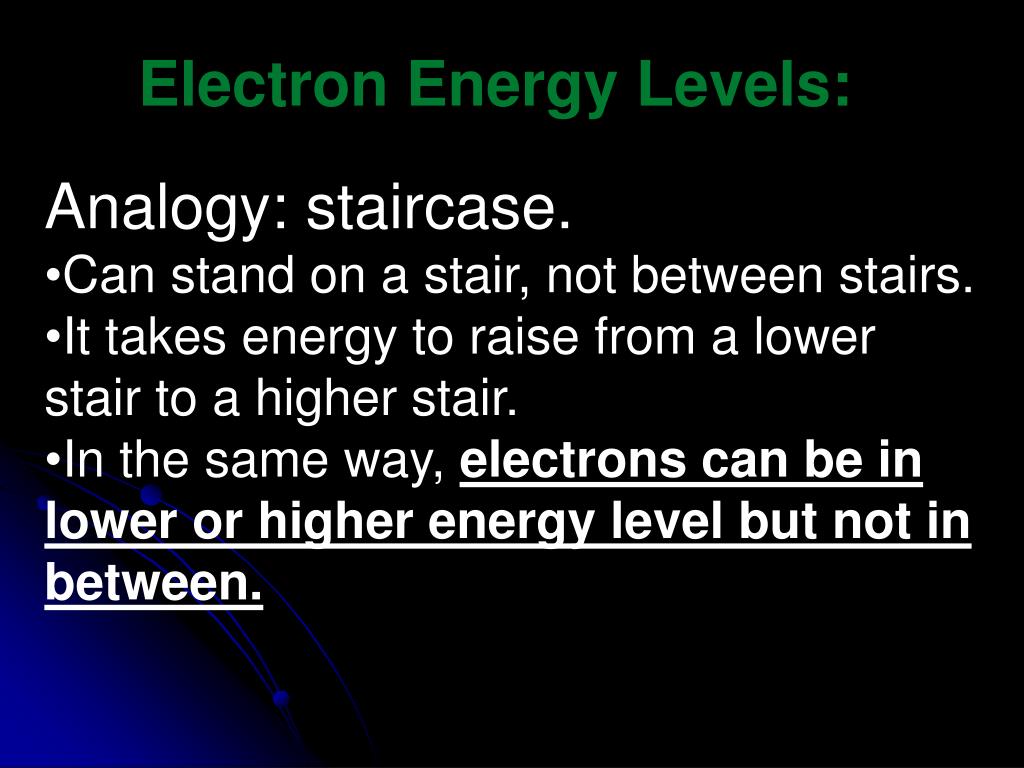

  4. Electron Energy Levels: • Analogy: staircase. • Can stand on a stair, not between stairs. • It takes energy to raise from a lower stair to a higher stair. • In the same way, electrons can be in lower or higher energy level but not in between.

  5. Electron Configuration and Energy Levels: • Electrons can not exist between energy levels (shells). • They must jump from one level to the next. • Energy must be added to atom for electron to jump to higher energy level. • When electron falls back to it’s original state, energy is released as specific wavelength of light.

  6. Electrons become excited, and move to a higher energy level. Electron returns to Ground State Energy is given off as light. Electron at Ground State. Add energy in the form of heat.

  7. Emission Spectrum • Each element has different “energy staircase” , i.e. unique series of electron energy steps. • To move between steps, electrons absorb or emit specific amounts of energy, • Amount of energy corresponds to specific wavelengths (colors) of light. • Emission spectrum: unique series of energy differences (i.e. colors) between steps allows identification of elements by light energy they emit.

  8. Red . Orange . Yellow . Green . Blue . Indigo . Violet Red Orange Yellow Green Blue Indigo Violet Long wavelength Less Energy Short wavelength Greater Energy

  9. Flame Test • We will place samples of elements into a flame. • This will add energy to the atom in the form of heat. • The electrons will them become excited, and jump to a higher energy level.

  10. Flame Test • Then the electrons will return to their original ground state. • As they return to a lower energy level, the energy will be given off in the form of light. • Different elements will have different flame colors because of their unique electrons. • This characteristic spectrum can be used to identify an element.
