EPR

DESCRIPTION

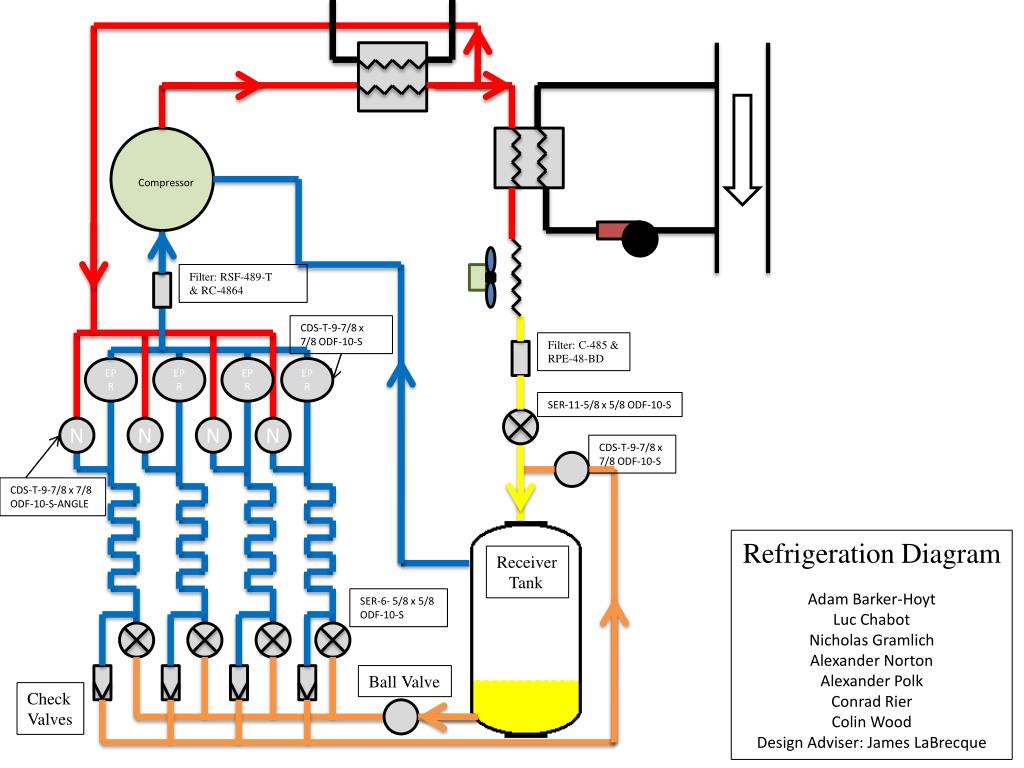

Compressor. Filter: RSF-489-T & RC-4864. CDS-T-9-7/8 x 7/8 ODF-10-S. Filter: C-485 & RPE-48-BD. EPR. EPR. EPR. EPR. SER-11-5/8 x 5/8 ODF-10-S. N. N. N. N. CDS-T-9-7/8 x 7/8 ODF-10-S. CDS-T-9-7/8 x 7/8 ODF-10-S-ANGLE. Refrigeration Diagram Adam Barker-Hoyt Luc Chabot

EPR

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Compressor Filter: RSF-489-T & RC-4864 CDS-T-9-7/8 x 7/8 ODF-10-S Filter: C-485 & RPE-48-BD EPR EPR EPR EPR SER-11-5/8 x 5/8 ODF-10-S N N N N CDS-T-9-7/8 x 7/8 ODF-10-S CDS-T-9-7/8 x 7/8 ODF-10-S-ANGLE Refrigeration Diagram Adam Barker-Hoyt Luc Chabot Nicholas Gramlich Alexander Norton Alexander Polk Conrad Rier Colin Wood Design Adviser: James LaBrecque Receiver Tank SER-6- 5/8 x 5/8 ODF-10-S Ball Valve Check Valves
