  1. File and data base concepts DB design

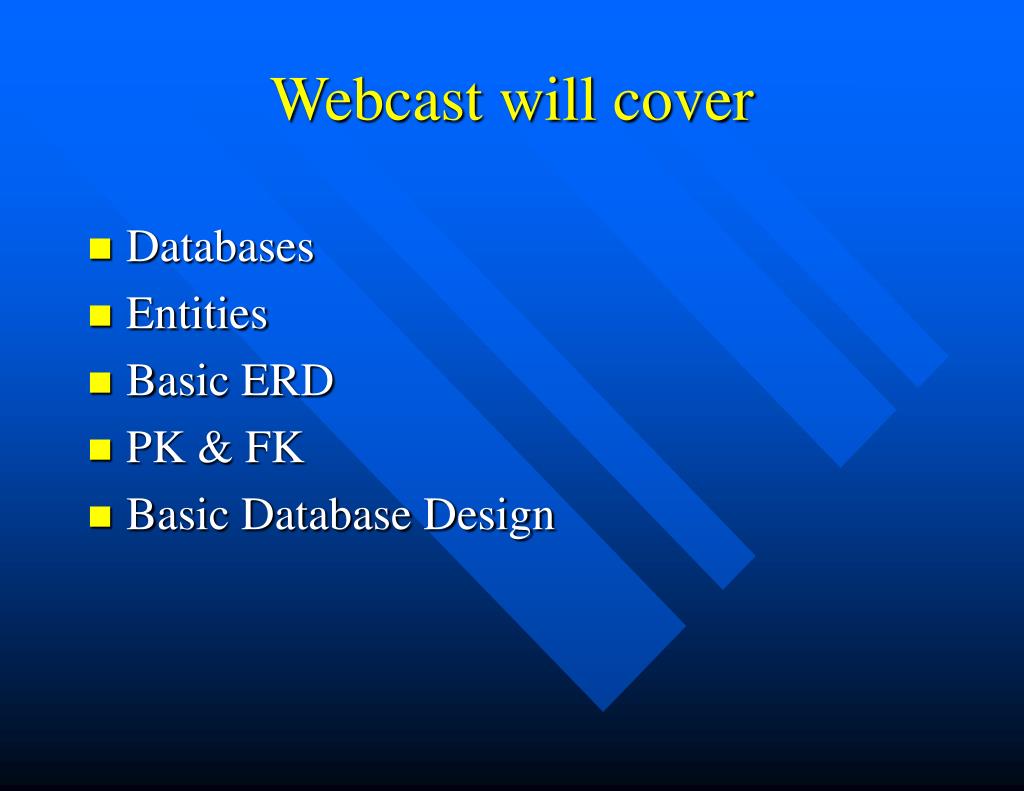

  2. Webcast will cover • Databases • Entities • Basic ERD • PK & FK • Basic Database Design

  3. DBMS DB: subsystems DDL User OS DBM Data DML Base Application program DB logical structures: hierachical network relational

  4. Views, Schema and Subschemas 1 2 5 4 7 9 10 8 15 12 17 13

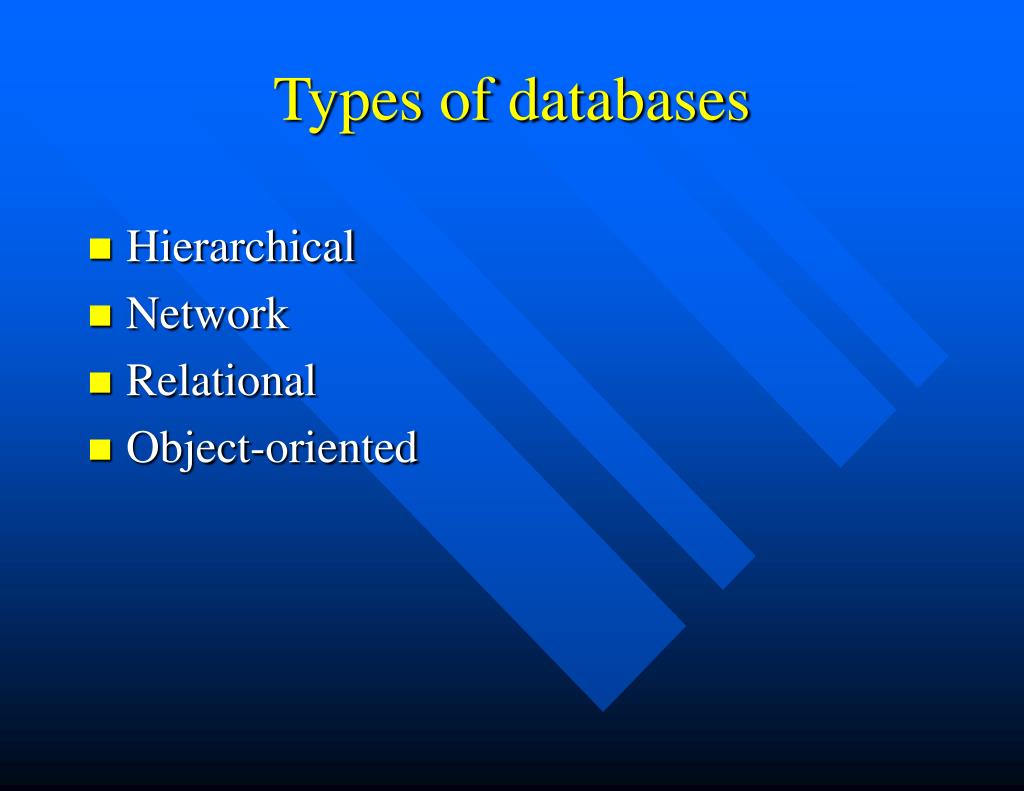

  5. Types of databases • Hierarchical • Network • Relational • Object-oriented

  6. DBMS Has Two Parts • DML: Data Manipulation Language • DDL: Data Definition Language

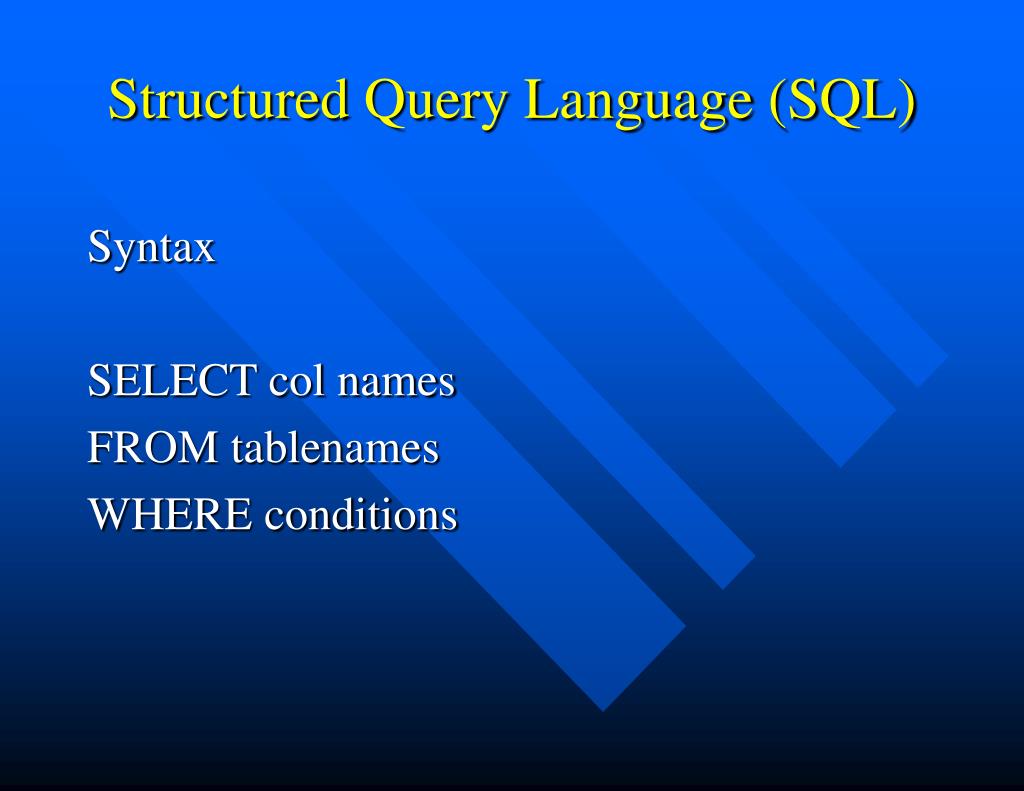

  7. Structured Query Language (SQL) Syntax SELECT col names FROM tablenames WHERE conditions

  8. Employee name Job Title Roomlocation Extension Andazola, Genevieve Secretary, Financial Aid 1-308 2245 Secretary, Student Carter, Georgia 1-224 4716 Affairs Secretary, Placement Durbin,Martina 1-110 4235 Service Secretary II,Student Ezikian, Olivia 1-224 4714 Affairs Director,Placement Hart, Dr. John 1-110B 4234 Services Jacobs, Harry M. Director, Financial Aid 1-308 2244 Assistant Director, Jones, Madalena 1-224 4715 Student Affairs Smith, Rose Secretary, Admissions 1-104 4823 Vice-President, Student Wells, Dr.Janet 1-224 4713 Affairs York, Richard Director, Admissions 1-104 4822 Example

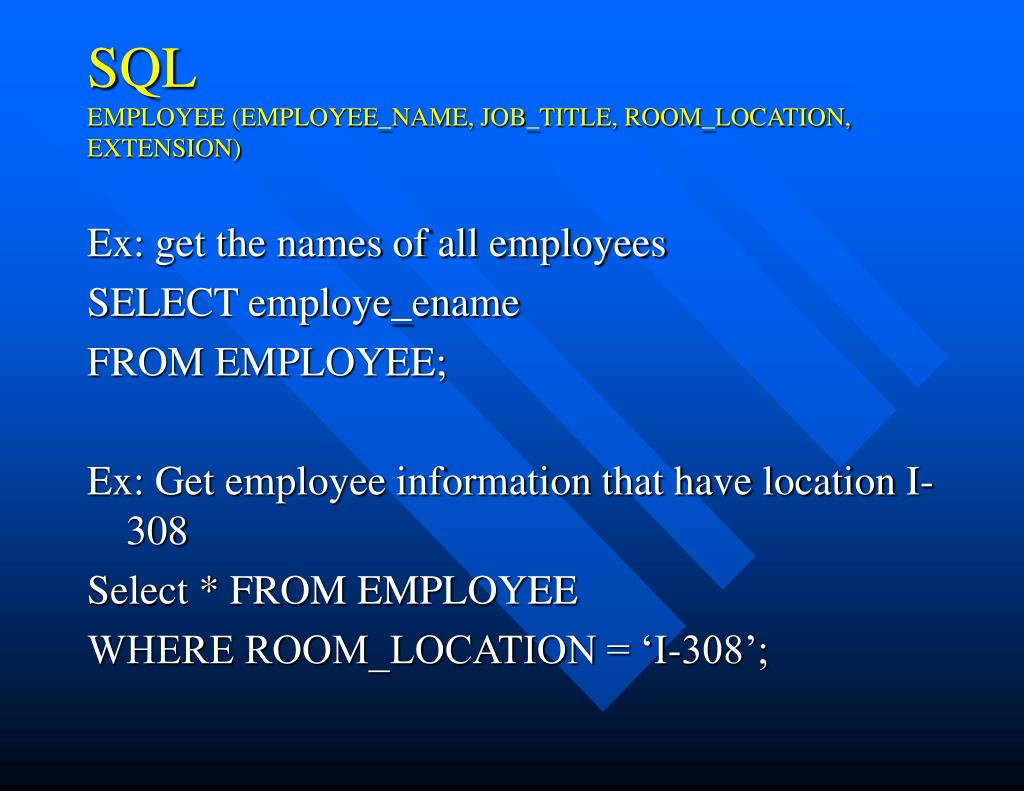

  9. SQLEMPLOYEE (EMPLOYEE_NAME, JOB_TITLE, ROOM_LOCATION, EXTENSION) Ex: get the names of all employees SELECT employe_ename FROM EMPLOYEE; Ex: Get employee information that have location I-308 Select * FROM EMPLOYEE WHERE ROOM_LOCATION = ‘I-308’;

  10. PRIMARY KEY (PK) a unique identifier guarantees that each row of a relation can be uniquely addressed

  11. BANK ACCOUNT ( ss#, cust name, cust address) What’s the PK?

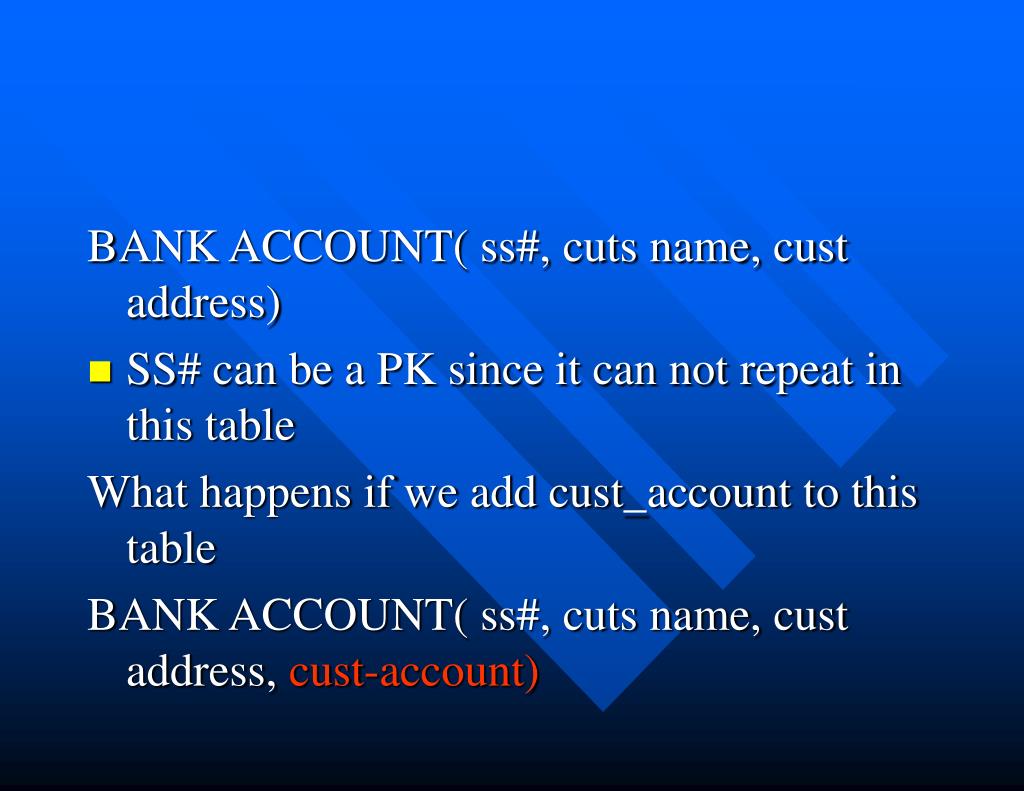

  12. BANK ACCOUNT( ss#, cuts name, cust address) • SS# can be a PK since it can not repeat in this table What happens if we add cust_account to this table BANK ACCOUNT( ss#, cuts name, cust address, cust-account)

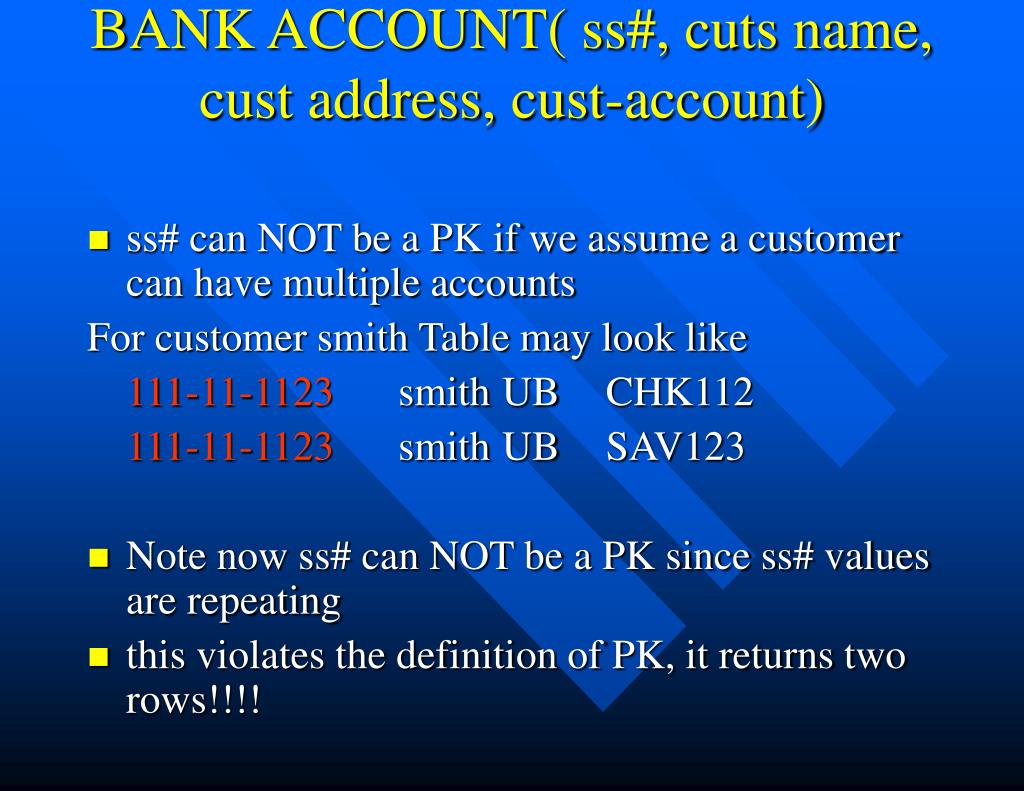

  13. BANK ACCOUNT( ss#, cuts name, cust address, cust-account) • ss# can NOT be a PK if we assume a customer can have multiple accounts For customer smith Table may look like 111-11-1123 smith UB CHK112 111-11-1123 smith UB SAV123 • Note now ss# can NOT be a PK since ss# values are repeating • this violates the definition of PK, it returns two rows!!!!

  14. BANK ACCOUNT( ss#, cuts name, cust address, cust-account) • Can cust-account can be a PK?Only if two customers can NOT share the same account, i.e., no joint account

  15. BANK ACCOUNT( ss#, cuts name, cust address, cust-account) • PK must be a combination of TWO attributes • In this case SS# and cust-account Should be PK for this relation

  16. FK • Relates two tables • Used to maintain INTEGRITY (cross reference) An attribute in ONE table must match values in another table where that attribute is a PK

  17. VENDOR and PRODUCT tables VENDOR (Vend_CODE, VEND_CONTACT, VEND_ADDRESS, VEND_PHONE) PRODUCT (PROD_CODE, PROD-DESCRIPTION, PROD_PRICE, PROD_ON_HAND, VEND_CODE) Red implies PK for each table Purple key is PRODUCT table is FK to VENDOR table

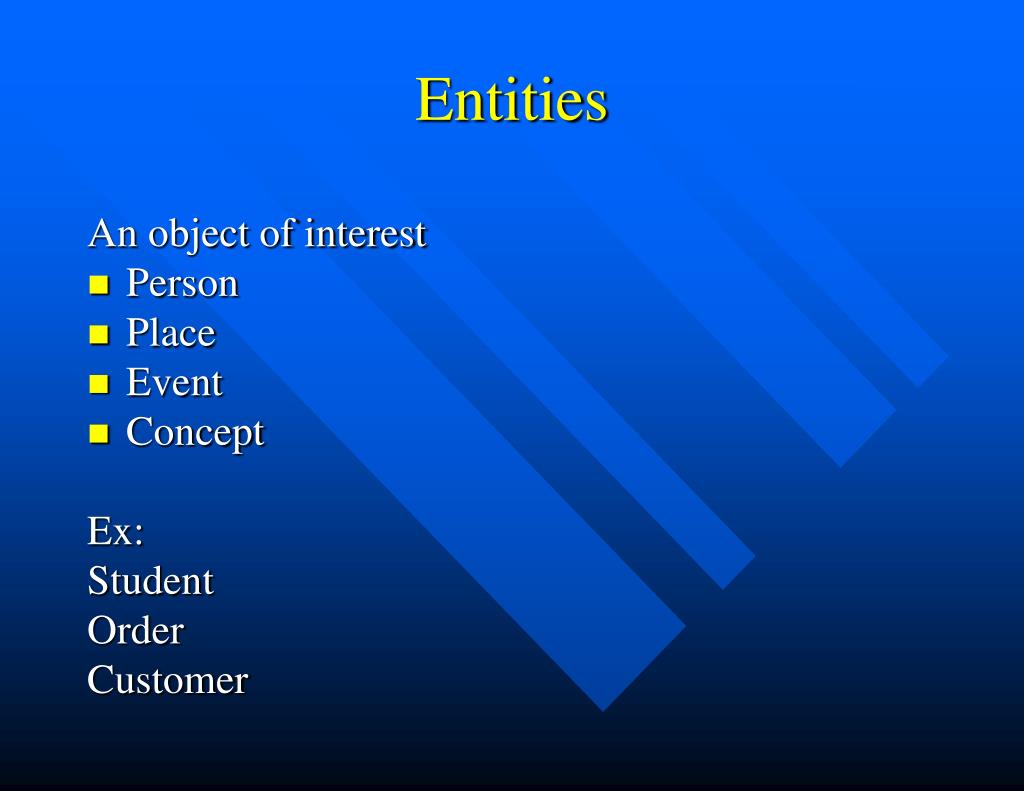

  18. Entities An object of interest • Person • Place • Event • Concept Ex: Student Order Customer

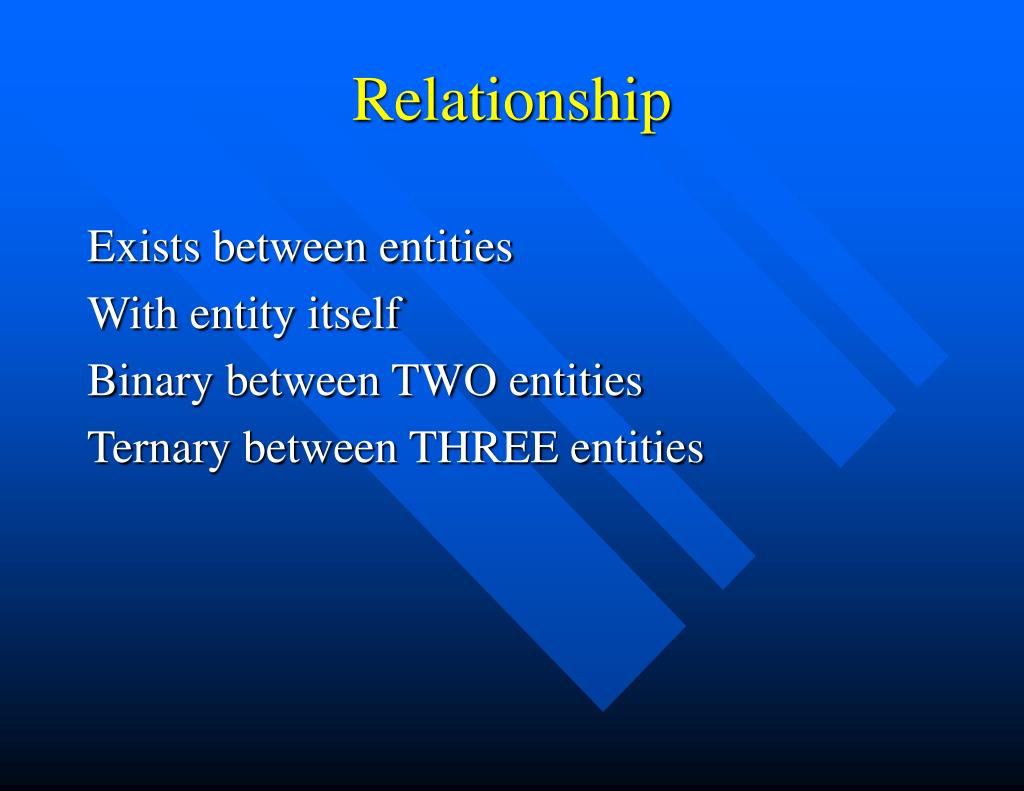

  19. Relationship Exists between entities With entity itself Binary between TWO entities Ternary between THREE entities

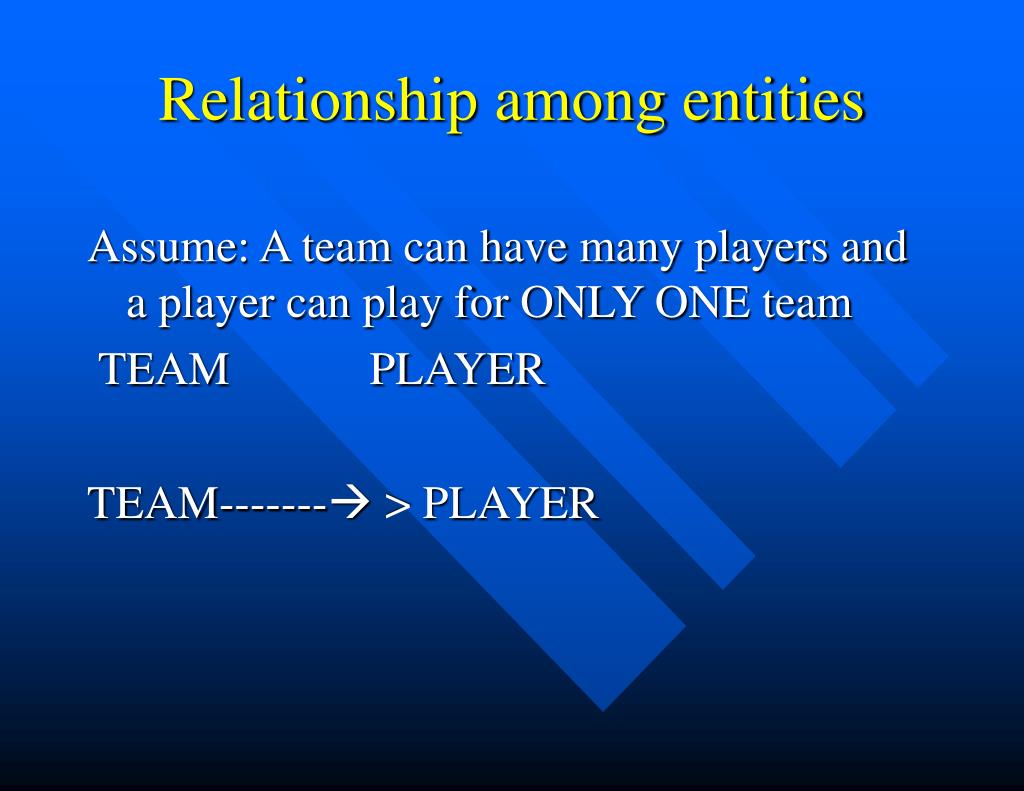

  20. Relationship among entities Assume: A team can have many players and a player can play for ONLY ONE team TEAM PLAYER TEAM------- > PLAYER

  21. Relationship? STUDENT CLUB Can a student belong to many clubs? Yes then 1:m Can a club have many student members? Yes then 1:n M:N STUDENT <-------->CLUB

  22. DB Design Concepts how to represent entities and relations ENROLLMENT (SID, SNAME, SADD,CID,CNAME,GRADE,SEMESTER)

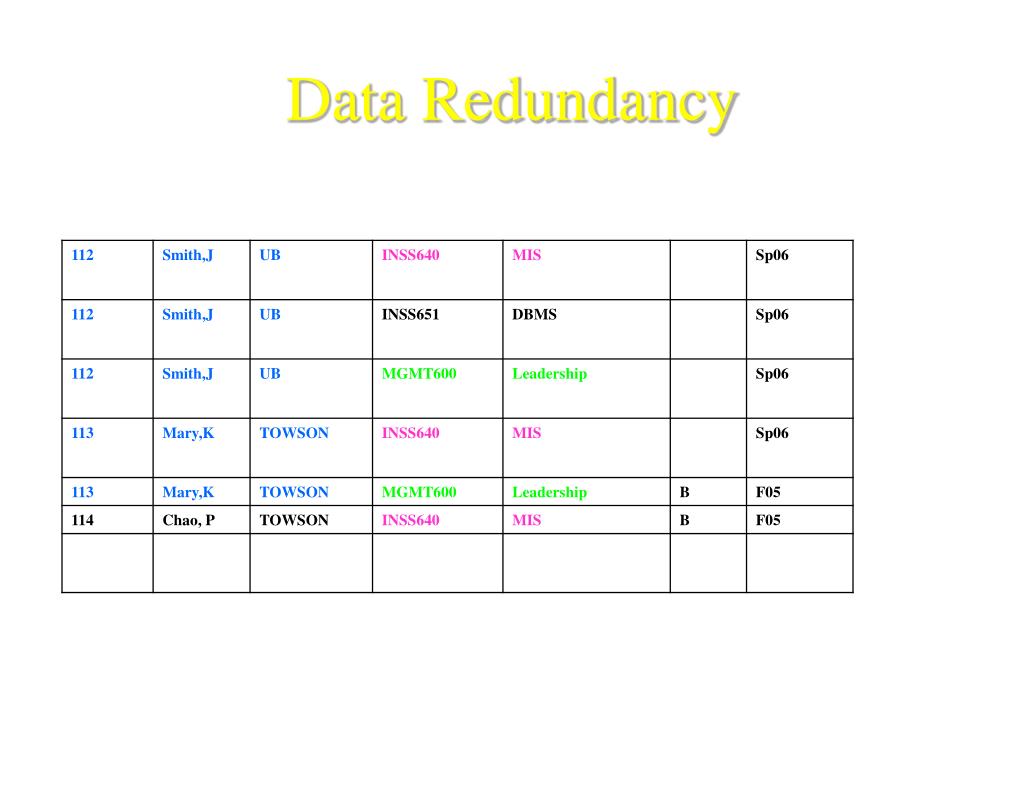

  23. Data Redundancy

  24. Remove redundancy STUDENT (SID,SNAME,SADD) CLASS(CID,CNAME) GRADE (SID,CID,GRADE,SEMESTER)

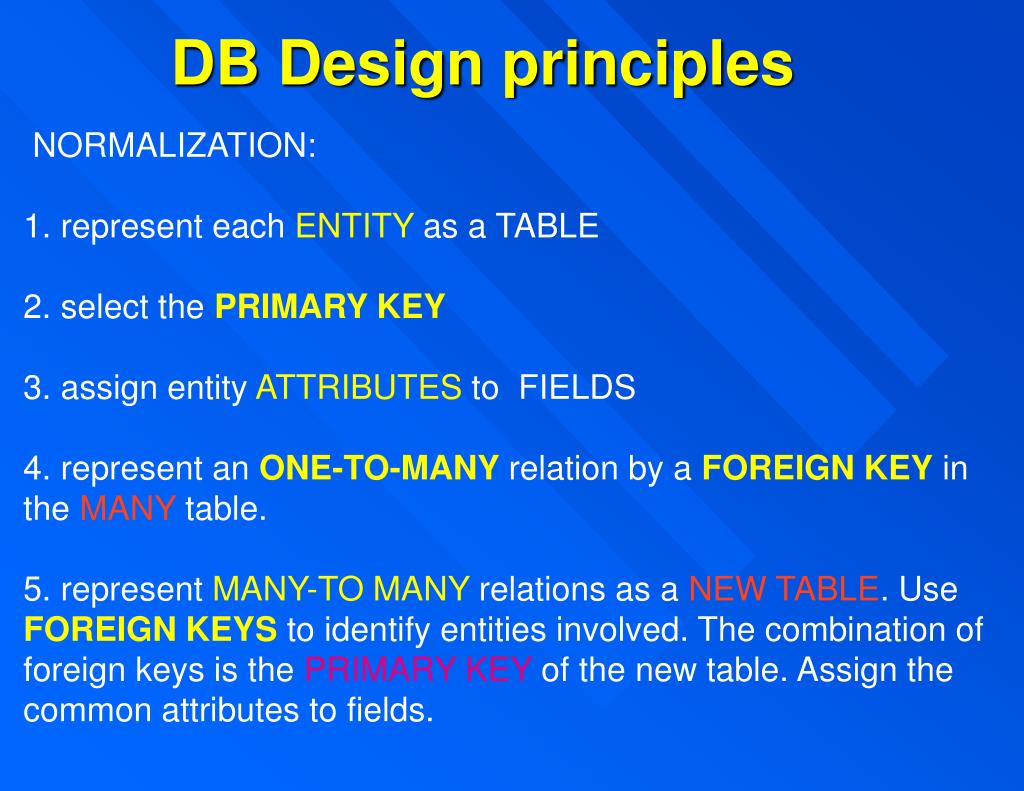

  25. NORMALIZATION: 1. represent each ENTITY as a TABLE 2. select the PRIMARY KEY 3. assign entity ATTRIBUTES to FIELDS 4. represent an ONE-TO-MANY relation by a FOREIGN KEY in the MANY table. 5. represent MANY-TO MANY relations as a NEW TABLE. Use FOREIGN KEYS to identify entities involved. The combination of foreign keys is the PRIMARY KEYof the new table. Assign the common attributes to fields. DB Design principles
