  1. LabVIEWCore Iwith RADE introduction • EN/ICE/MTA

  2. ADE Rapid Application Development Environment based on LabVIEW

  3. Why was RADE developed?

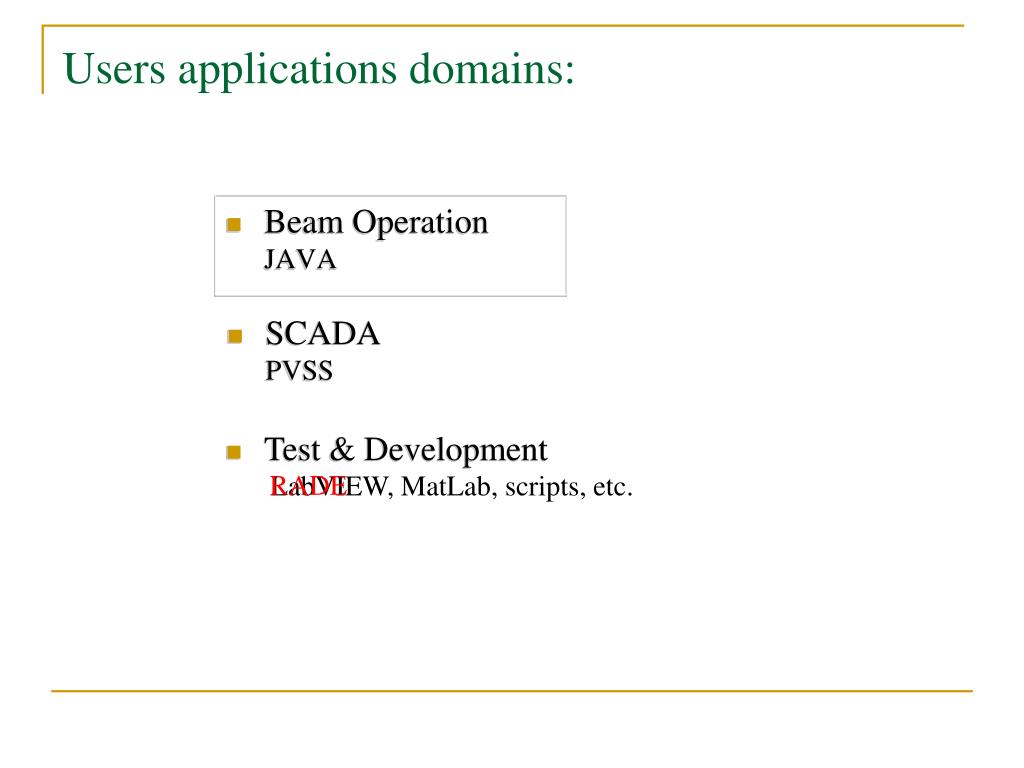

  4. Users applications domains: • Beam Operation JAVA • SCADA PVSS • Test & Development RADE LabVIEW, MatLab, scripts, etc.

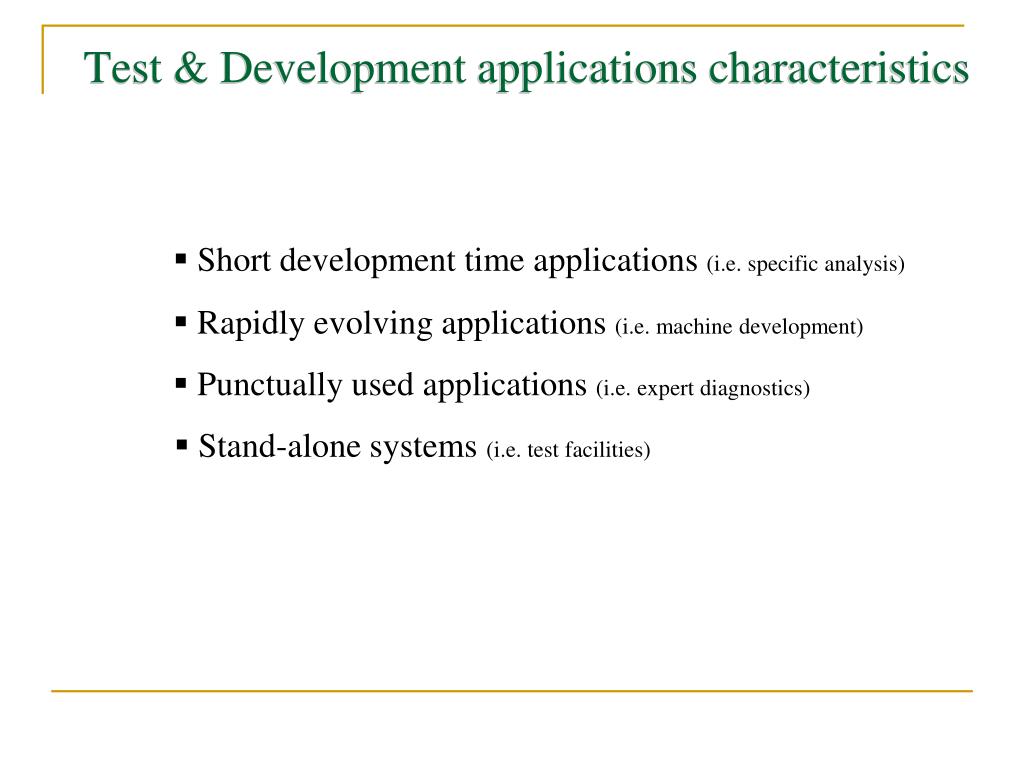

  5. Test & Development applications characteristics • Short development time applications (i.e. specific analysis) • Rapidly evolving applications (i.e. machine development) • Punctually used applications (i.e. expert diagnostics) • Stand-alone systems (i.e. test facilities)

  6. LabVIEW programming language our effort Test & Development applications requirements • Fast programming • Rapid learning curve • Drag and drop GUI development • Wide range of analysis libraries • Light/independent environment • Integration with CERN infrastructures

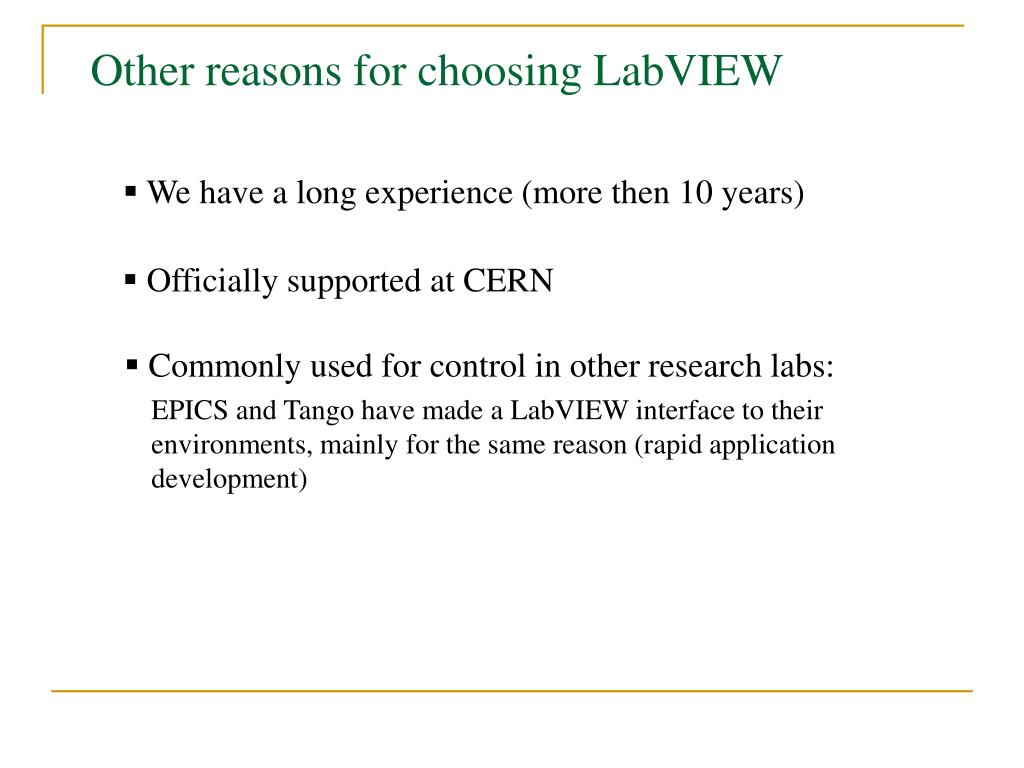

  7. Other reasons for choosing LabVIEW • We have a long experience (more then 10 years) • Officially supported at CERN • Commonly used for control in other research labs: EPICS and Tango have made a LabVIEW interface to their environments, mainly for the same reason (rapid application development)

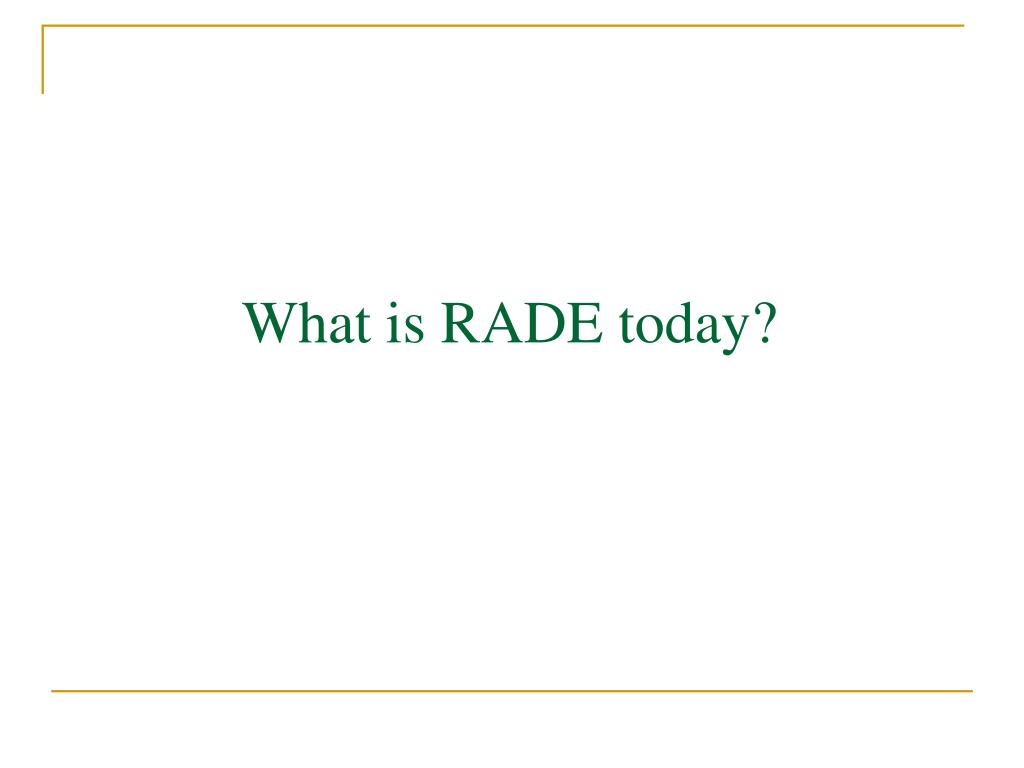

  8. What is RADE today?

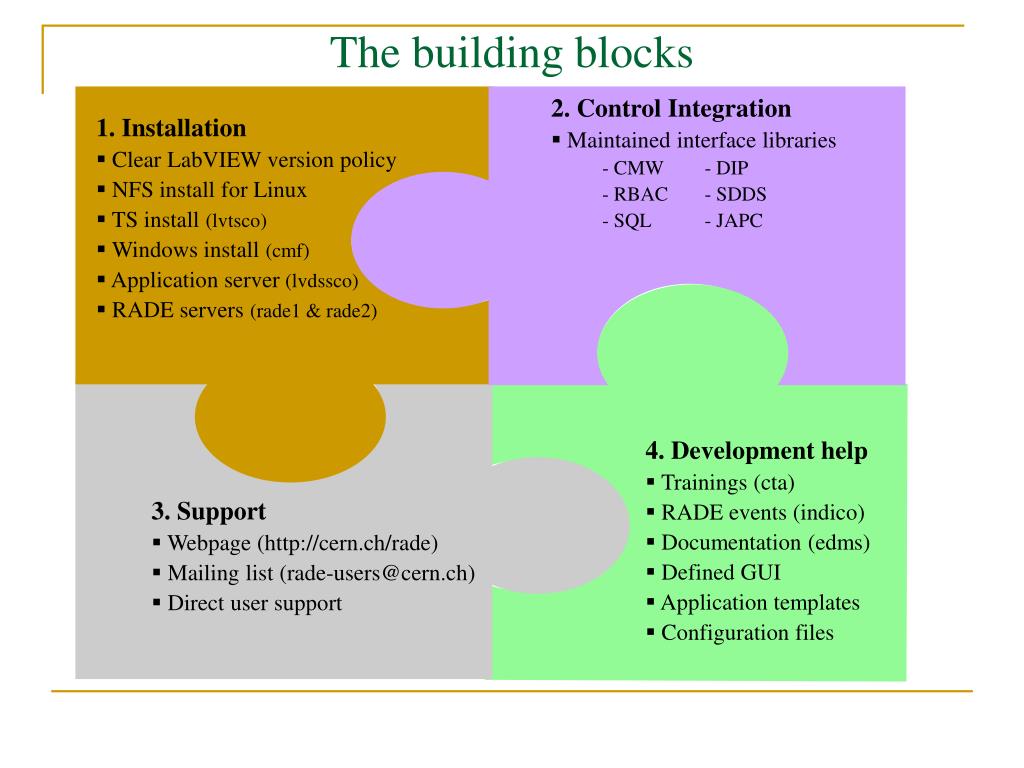

  9. 2. Control Integration • Maintained interface libraries - CMW - DIP - RBAC - SDDS • SQL - JAPC 1. Installation • Clear LabVIEW version policy • NFS install for Linux • TS install (lvtsco) • Windows install (cmf) • Application server (lvdssco) • RADE servers (rade1 & rade2) 4. Development help • Trainings (cta) • RADE events (indico) • Documentation (edms) • Defined GUI • Application templates • Configuration files 3. Support • Webpage (http://cern.ch/rade) • Mailing list (rade-users@cern.ch) • Direct user support The building blocks

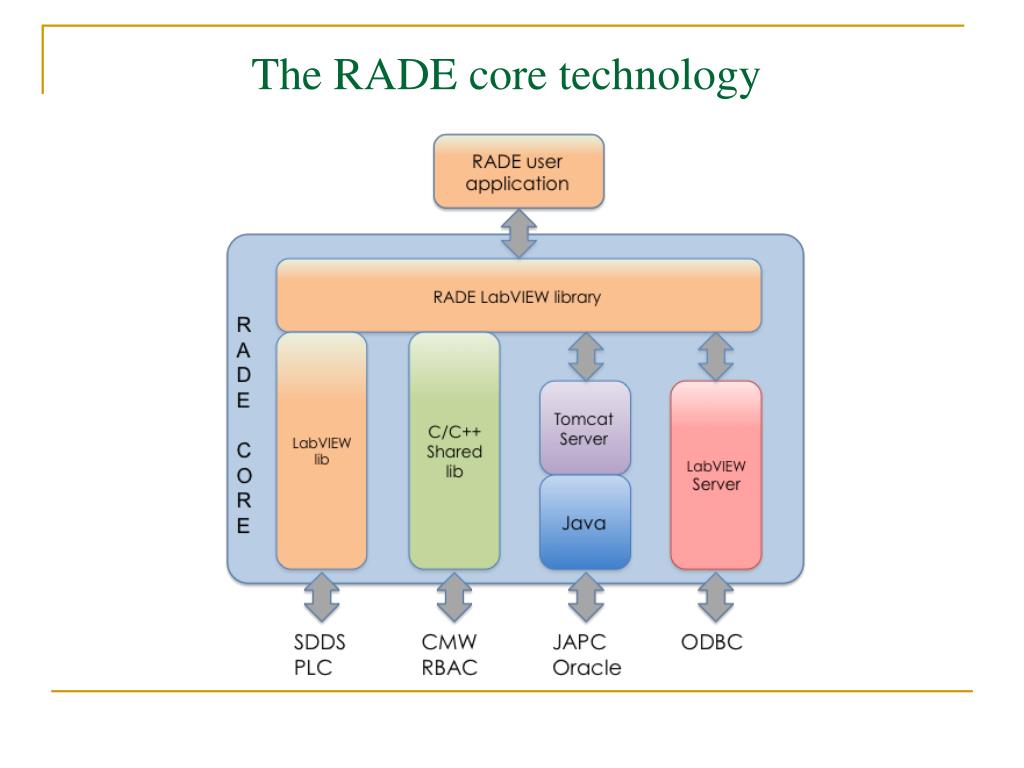

  10. The RADE core technology

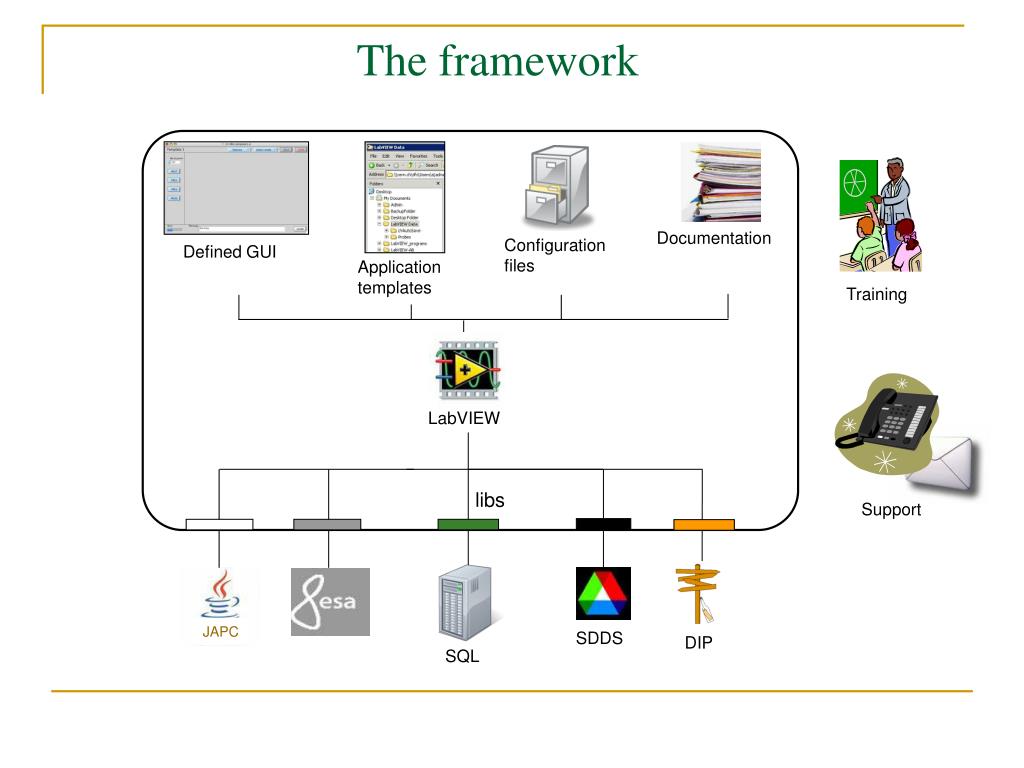

  11. Defined GUI Configuration files Application templates Documentation Training LabVIEW libs Support JAPC SDDS SQL The framework DIP

  12. The User Palette

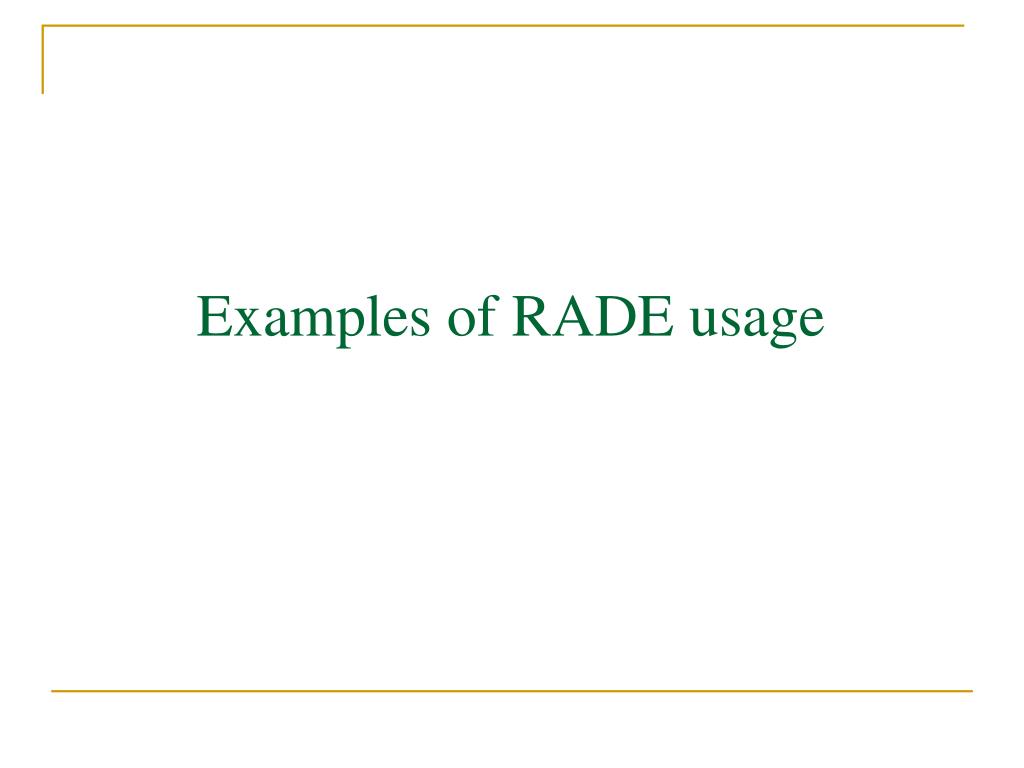

  13. Examples of RADE usage

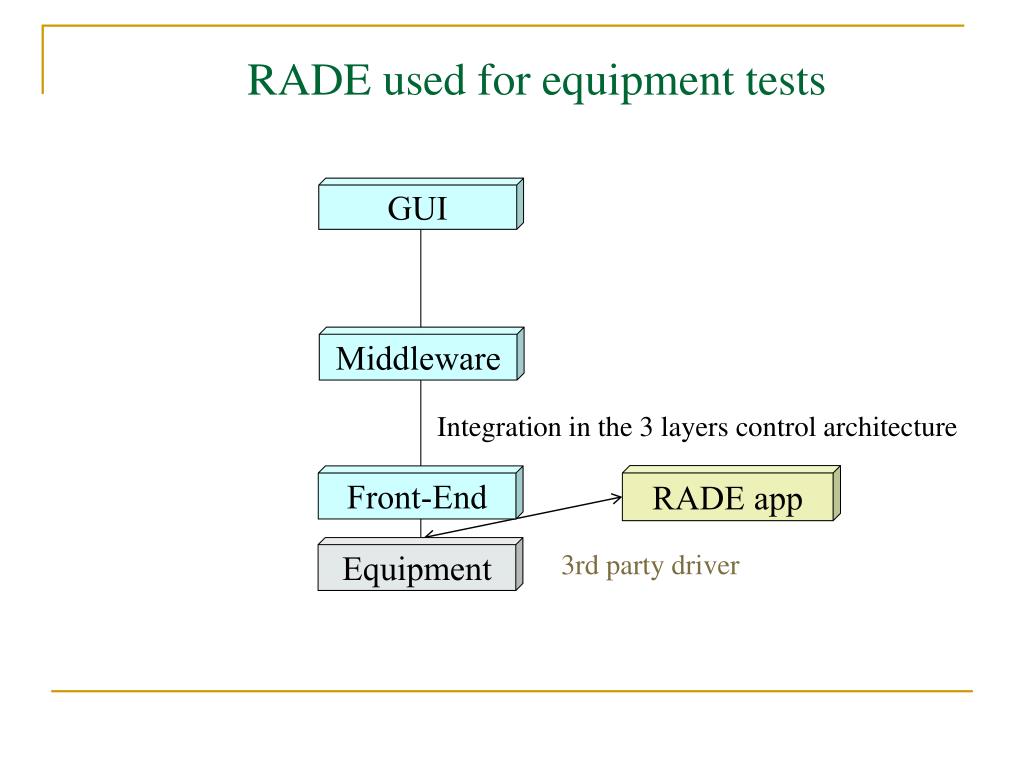

  14. GUI Middleware RADE app Front-End 3rd party driver RADE used for equipment tests Integration in the 3 layers control architecture Equipment

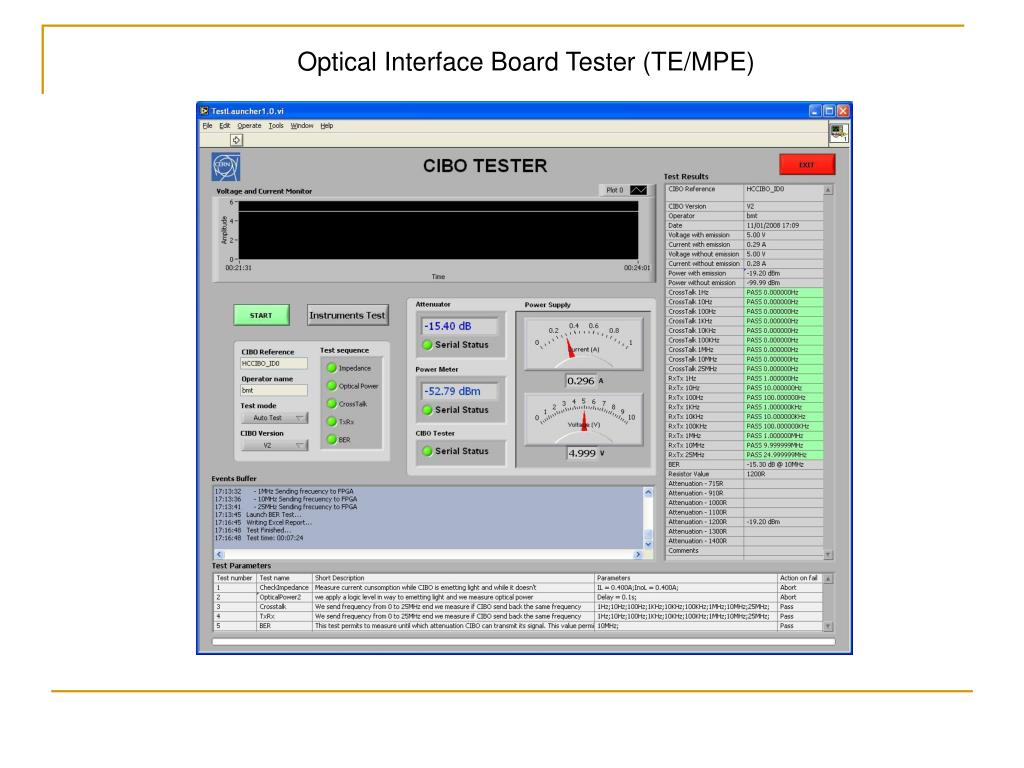

  15. Optical Interface Board Tester (TE/MPE)

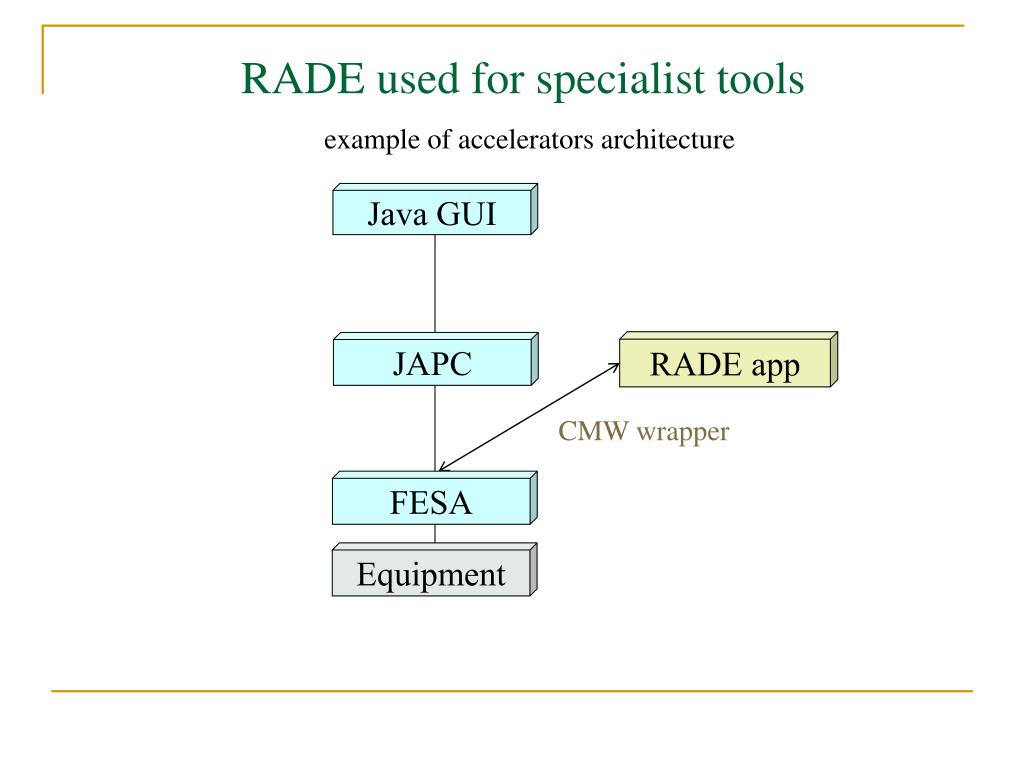

  16. Java GUI RADE app JAPC CMW wrapper FESA RADE used for specialist tools example of accelerators architecture Equipment

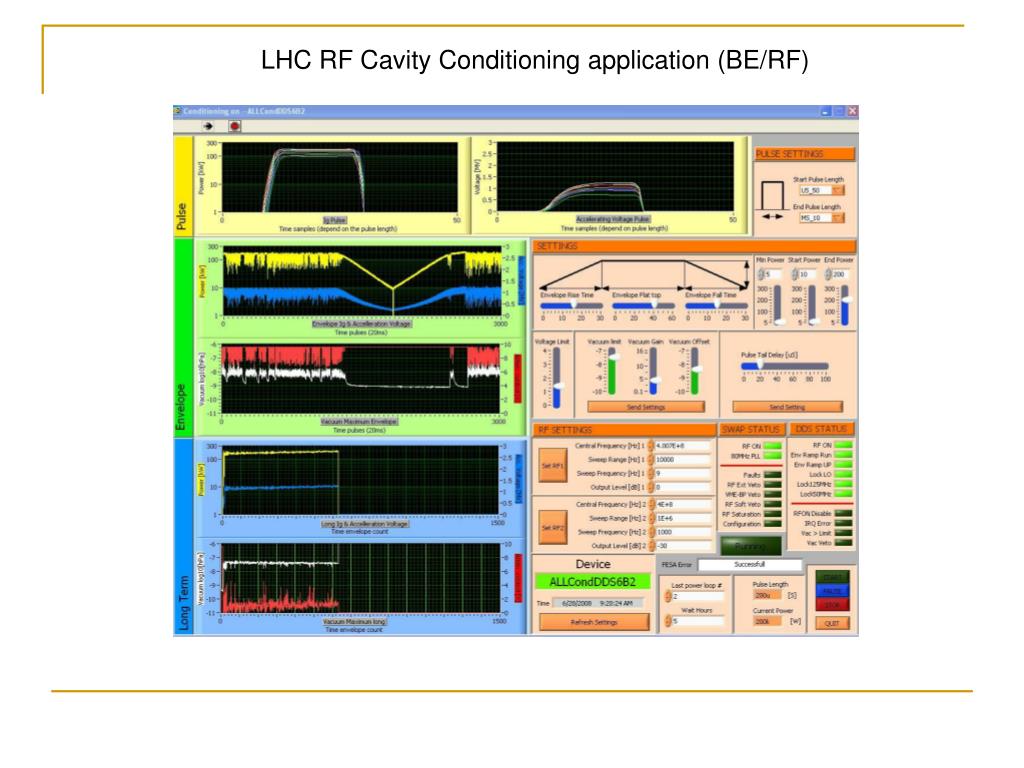

  17. LHC RF Cavity Conditioning application (BE/RF)

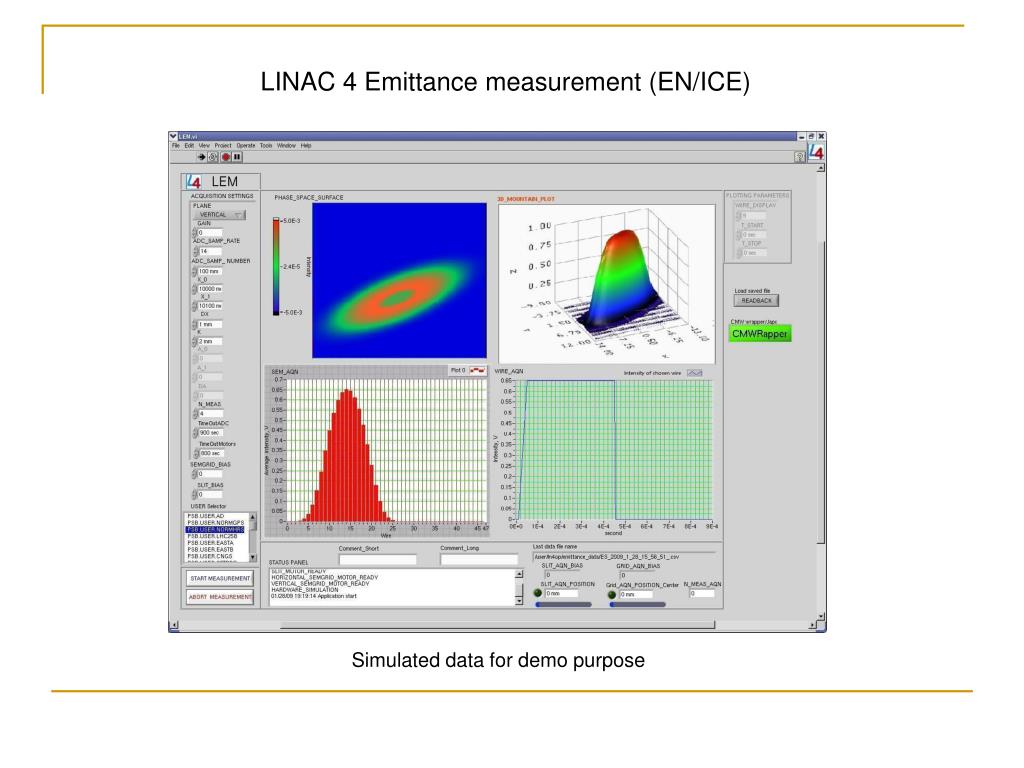

  18. LINAC 4 Emittance measurement (EN/ICE) Simulated data for demo purpose

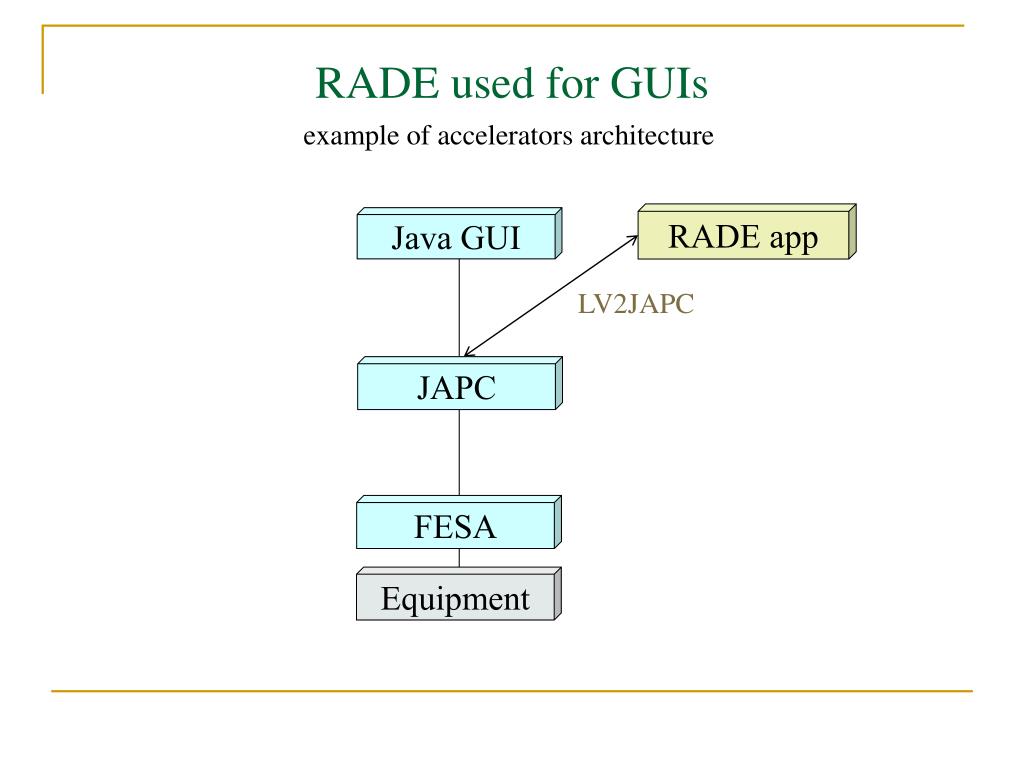

  19. Java GUI JAPC FESA RADE used for GUIs example of accelerators architecture RADE app LV2JAPC Equipment

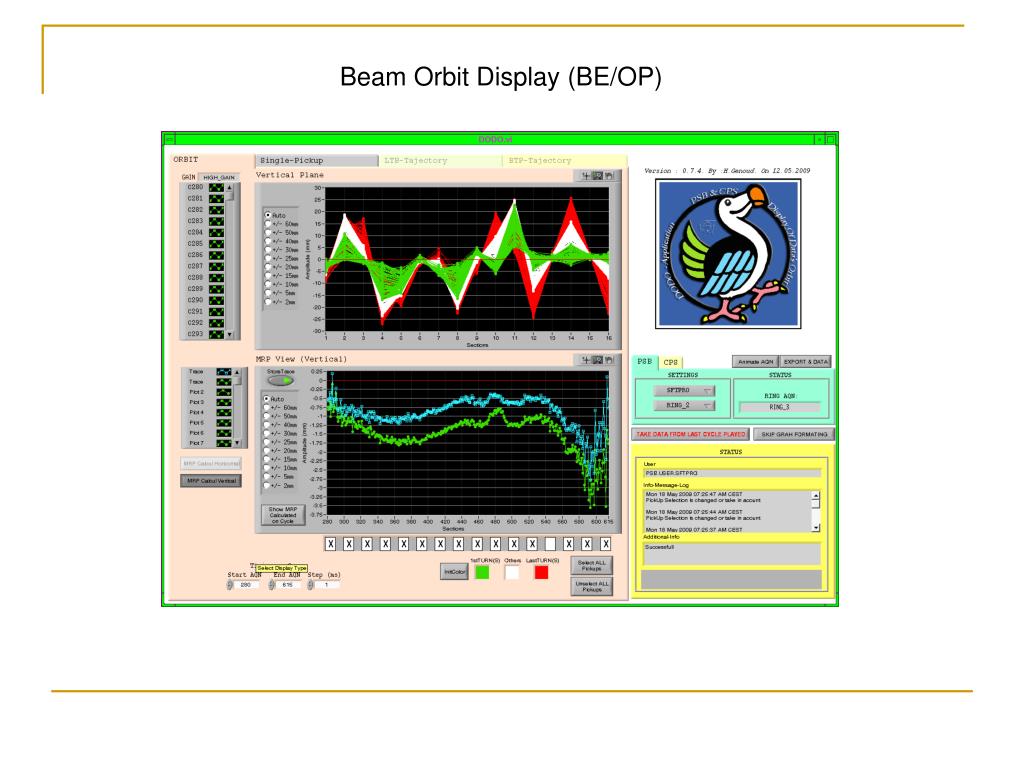

  20. Beam Orbit Display (BE/OP)

  21. Java GUI JAPC FESA RADE used for offline applications example of accelerators architecture RADE app SDDS lib SDDS Equipment

  22. Post Mortem Analysis (EN/ICE)

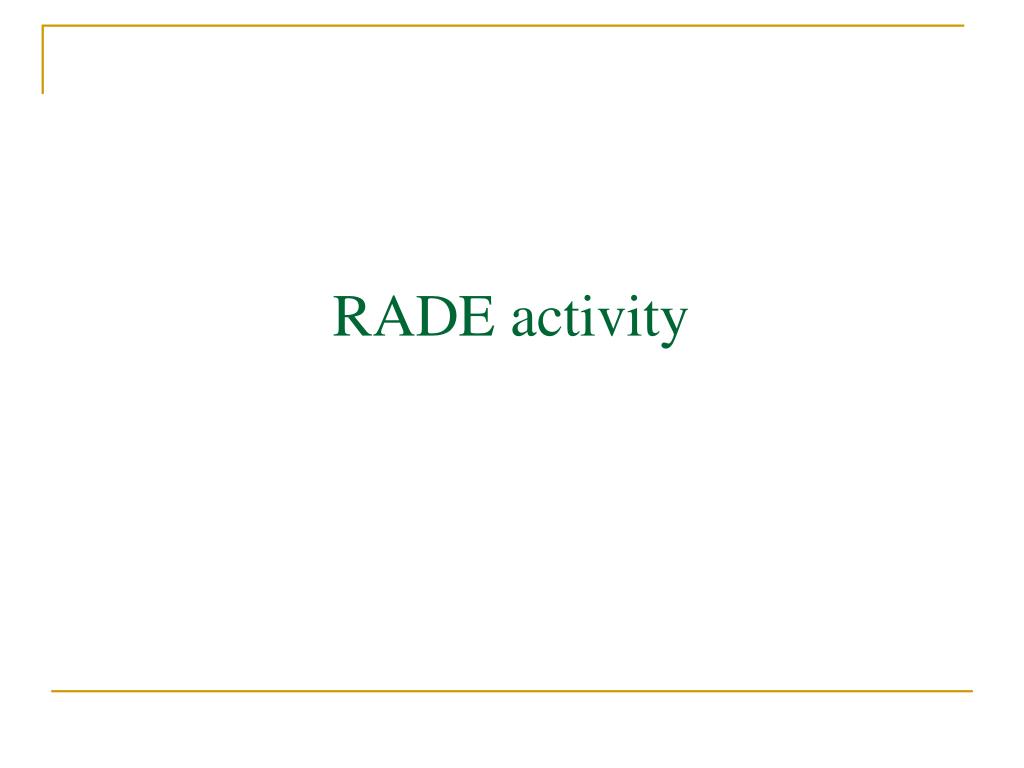

  23. RADE activity

  24. Investment People involved: • 2 FTE (temporary) for development • 0.5 FTE (staff) for support Users: • 80 registered RADE users (on 430 LabVIEW users)

  25. Present domains of use… Test facilities Expert tools Machine development

  26. … evolving to supervision • Interface to DIP • Interface to LASER alarms • libnodave wrapper for Siemens PLCs • UNICOS in LabVIEW Operation domain SCADA domain

  27. ADE Questions?
