  1. Lecture 8: Design, Simulation Synthesis and Test Tools ELEC 2200: Digital Logic CircuitsNitin Yogi (yoginit@auburn.edu) ELEC2200-002 Lecture 8 (Updated)

  2. X-Win32 • X-Win32 is used to log into UNIX session • Use Windows Auburn login and password to log into X-Win32 session. ELEC2200-002 Lecture 8 (Updated)

  3. Start X-Win32 from here ELEC2200-002 Lecture 8 (Updated)

  4. Windows Security Alert Warning If Windows Security Alert window pops up, press OK ELEC2200-002 Lecture 8 (Updated)

  5. You might also get this screen Double click on “Scan for Unix/Linux hosts” Click on any of the server names and click on “Select” ELEC2200-002 Lecture 8 (Updated)

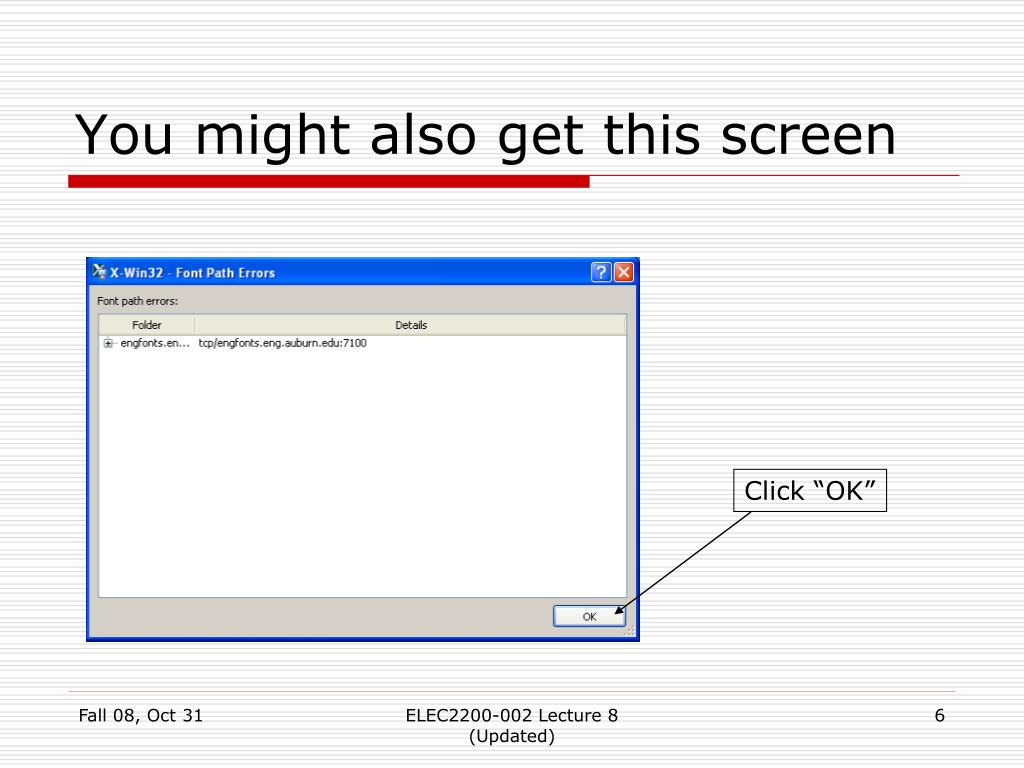

  6. You might also get this screen Click “OK” ELEC2200-002 Lecture 8 (Updated)

  7. X-Win32 Login Screen ELEC2200-002 Lecture 8 (Updated)

  8. UNIX session • Setup the softwares required to run the tools for simulation, synthesis and test • At the command prompt type the following command and hit “Enter”>> user-setup Command prompt to type commands in ELEC2200-002 Lecture 8 (Updated)

  9. User Setup screen Click on button “Electronics Data Analysis (EDA)” ELEC2200-002 Lecture 8 (Updated)

  10. 3. Click the X button on the top right 2. Click on the following software packages:eda/Modelsim/6.4 eda/ICFlow/2006.1 eda/DFT/2006.3 1. Go to the bottom of the option screen ELEC2200-002 Lecture 8 (Updated)

  11. Click on “Save and Quit” ELEC2200-002 Lecture 8 (Updated)

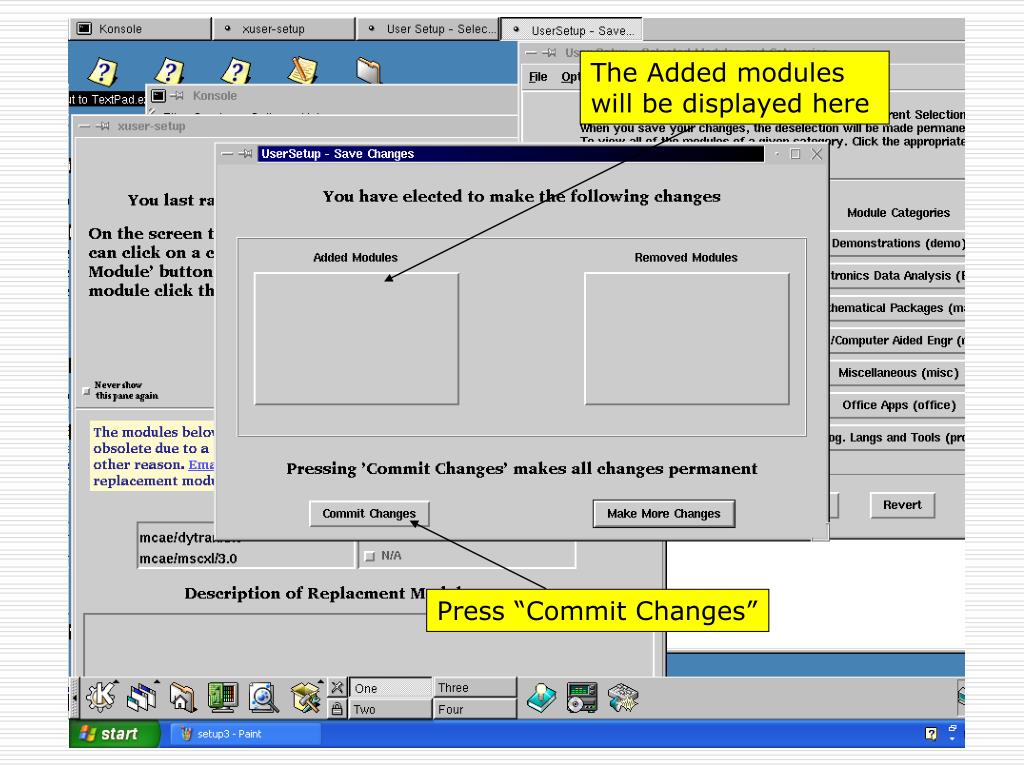

  12. The Added modules will be displayed here Press “Commit Changes” ELEC2200-002 Lecture 8 (Updated)

  13. X-Win32 reset • Exit X-Win32 and restart the X-Win32 session again as described earlier ELEC2200-002 Lecture 8 (Updated)

  14. UNIX environment • When you log-in into X-Win32, the current default directory is the H: of windows system • Some useful UNIX commands • >> cd<directory_name>: change directory • >> cd .. : go up one directory • >> ls: list contents of directory • >> pwd: display the full path of the current dir. • >> mkdir: create directory ELEC2200-002 Lecture 8 (Updated)

  15. Setting the simulation environment • In the current default directory, create another directory for your designs by using the mkdir command. • Ex. >> mkdir my_name • Do not use spaces while giving names as it may create problems in UNIX • This new directory can be accessed in windows in H drive • Ex. by accessing H:\my_name • Change to this new directory using the cd command • Ex. >> cd my_name • In the current design directory (ex. my_name) run the following commands: • >> vlib work • >> vmap work work ELEC2200-002 Lecture 8 (Updated)

  16. Example VHDL code Need to add this for compiling library IEEE; use IEEE.std_logic_1164.all; use IEEE.numeric_std.all; entity my_ckt is port ( A: in bit; B: in bit; S: in bit; X: out bit; Y: out bit ); end my_ckt ; architecture behav_seq of my_ckt is signal Xtmp: bit; begin p1: process (A,B,S,Xtmp) begin if (S=‘0’) then Xtmp <= A; else Xtmp <= B; end if; if ((Xtmp = ‘0’) and (S = ‘0’)) then Y <= ‘1’; else Y <= ‘0’; end if; X <= Xtmp; end process p1; end; ELEC2200-002 Lecture 8 (Updated)

  17. Designing, compiling and simulating designs • Write VHDL description in any text editor (notepad, wordpad) and save the file as *.vhd • To simulate any design, you need to compile your design first. Compile your VHDL design using the command:>> vcom <VHDL filename>e.g.>> vcom my_ckt.vhd • We shall use the tool ModelSim for simulating the designTo invoke ModelSim, use the following command:>> vsim <design_name>e.g.>> vsim my_ckt ELEC2200-002 Lecture 8 (Updated)

  18. ELEC2200-002 Lecture 8 (Updated)

  19. 1. Click on “View > List” to select it (displayed as a tick) 2. Click on “View > Objects” to select it (displayed as a tick) ELEC2200-002 Lecture 8 (Updated)

  20. ELEC2200-002 Lecture 8 (Updated)

  21. 1. Select the input and output signals by clicking and holding the CTRL key 2. Click “Edit > Copy” ELEC2200-002 Lecture 8 (Updated)

  22. Click on the list window and then click “Edit > Paste” ELEC2200-002 Lecture 8 (Updated)

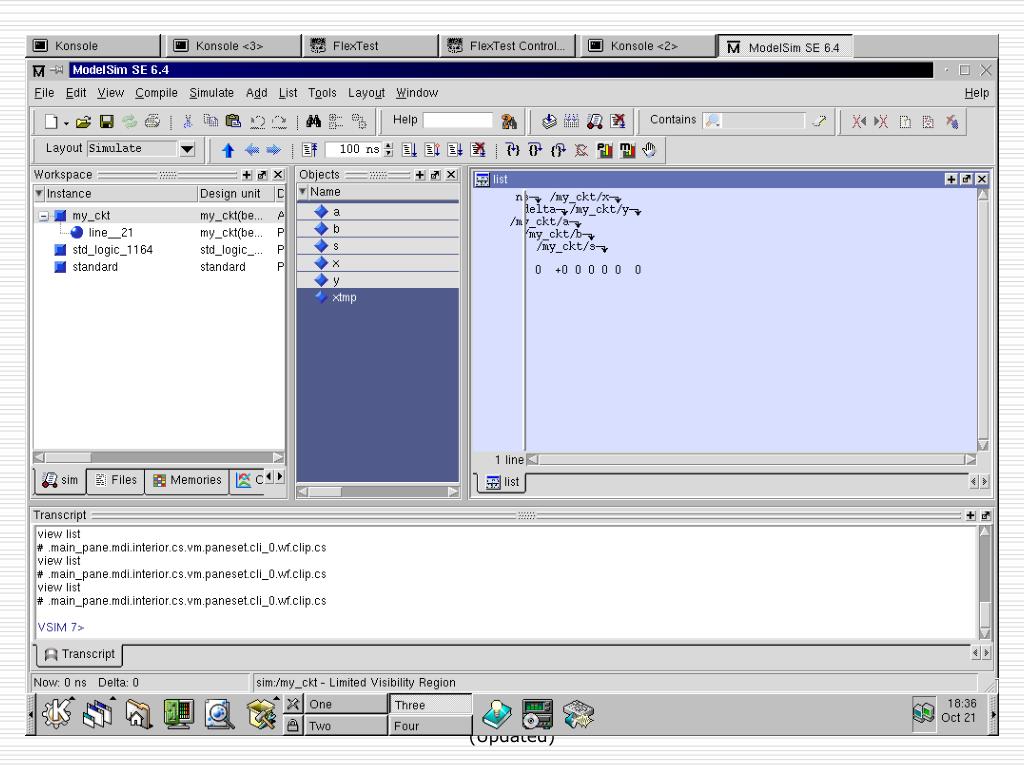

  23. ELEC2200-002 Lecture 8 (Updated)

  24. Right click the input signal name and then click Force ELEC2200-002 Lecture 8 (Updated)

  25. Enter the value of the signal over here and then click OK If the signal is of type bit_vectoryou will assign binary values here. Ex. “010” for a signal of type bit_vector(2 downto 0) ELEC2200-002 Lecture 8 (Updated)

  26. To simulate, click Simulate > Run > Run 100 ELEC2200-002 Lecture 8 (Updated)

  27. ELEC2200-002 Lecture 8 (Updated)

  28. ELEC2200-002 Lecture 8 (Updated)

  29. Click on the list window then on File > Export > Tabular list ELEC2200-002 Lecture 8 (Updated)

  30. ELEC2200-002 Lecture 8 (Updated)

  31. Useful resource • VHDL Design and Simulation using ModelSim • http://www.eng.auburn.edu/department/ee/mgc/quickvhdl/modelsim.html ELEC2200-002 Lecture 8 (Updated)

  32. Synthesis • We shall use the tool Leonardo to synthesize the behavioral description into structural level netlist • Command to invoke Leonardo is:>> leonardo ELEC2200-002 Lecture 8 (Updated)

  33. Click on LeonardoSpectrum Level 3 and then click OK ELEC2200-002 Lecture 8 (Updated)

  34. 1. Click on Advanced FlowTabs 2. Under the “Technology” tab, click on the ASIC plus sign ELEC2200-002 Lecture 8 (Updated)

  35. Click ADK then TSMC 0.18 micron (typ), then click on “Load Library” ELEC2200-002 Lecture 8 (Updated)

  36. Click the “Input” tab and then the button besides “Open files” ELEC2200-002 Lecture 8 (Updated)

  37. Select the required VHDL file and click “Open” ELEC2200-002 Lecture 8 (Updated)

  38. Current selected designs will be displayed in this list Click on the “Read” button to read the current selected VHDL design(s) into the tool ELEC2200-002 Lecture 8 (Updated)

  39. 1. Click on “Optimize” tab 2. Click the type of optimization: area or delay 3. Click “Optimize” ELEC2200-002 Lecture 8 (Updated)

  40. 1. Click on “Report” tab 2. Click on “Report Area” ELEC2200-002 Lecture 8 (Updated)

  41. 1. Select the report being displayed 1. Select the report being displayed 2. Select Edit > Copy to copy the report. This can then be pasted in MS Word 2. Select Edit > Copy to copy the report. This can then be pasted in MS Word ELEC2200-002 Lecture 8 (Updated)

  42. Click on the “Report Delay” tab and then on the button “Report Delay” ELEC2200-002 Lecture 8 (Updated)

  43. 2. Select Edit > Copy to copy the report. This can then be pasted in MS Word 1. Select the report being displayed ELEC2200-002 Lecture 8 (Updated)

  44. 1. Select “Output” tab 2. Select the Verilog option in the Format menu and enter a name for the output netlist file (*.v) 3. Click “Write” ELEC2200-002 Lecture 8 (Updated)

  45. Changes in design performed by Synthesis tool Leonardo • Data-type changes • Integer data type in behavioral design is mapped to bit_vector data type (array of bits) in structural design • Ex. a signal A of integer data type of range -27 to +27-1 defined in the behavioral design is mapped/changed to a data type bit_vector(0 to 7) • Enumerated / User-defined data types are encoded as binary numbers • Ex. A signal of typetemperature with values (high, medium, low) defined at the behavioral level may be encoded as (00, 01, 11) at the structural level ELEC2200-002 Lecture 8 (Updated)

  46. Preparing for simulation of netlist • The netlist saved from Leonardo is in Verilog format (and not VHDL) • You need to compile your verilog netlist to simulate it • Before you compile your verilog netlist, you need to compile all the gate designs that your netlist uses. • The gate designs are in a file named adk.vhd at the location $ADK/technology • To compile the gate designs, type the following command in your current working directory at the command prompt: • >> vcom $ADK/technology/adk.vhd -work ./work/ ELEC2200-002 Lecture 8 (Updated)

  47. Simulation of netlist • You need to compile your verilog netlist in order to simulate it. • Command to compile Verilog netlist:>> vlog <Verilog file_name>e.g. >> vlog my_ckt.v • Simulate the design using ModelSim • Command to invoke ModelSim:>> vsim <design_name>e.g.>> vsim my_ckt ELEC2200-002 Lecture 8 (Updated)

  48. ELEC2200-002 Lecture 8 (Updated)

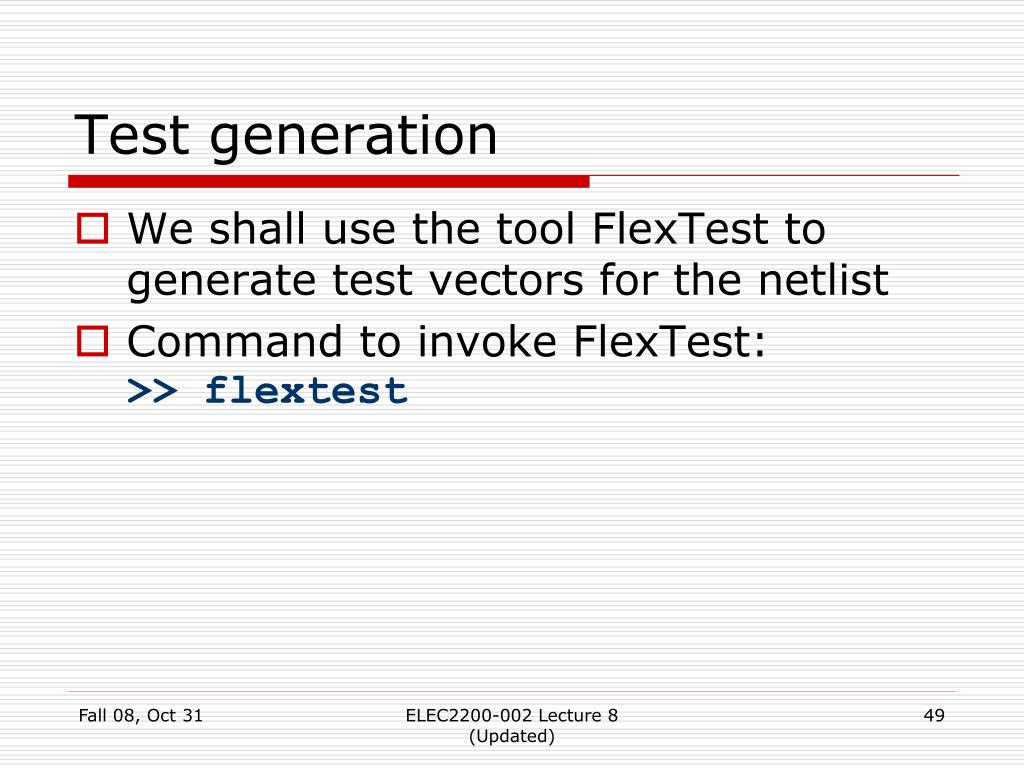

  49. Test generation • We shall use the tool FlexTest to generate test vectors for the netlist • Command to invoke FlexTest:>> flextest ELEC2200-002 Lecture 8 (Updated)

  50. 1. Select the output netlist file generated by Leonardo using the Browse button 2. Click on the “Browse” button to select the ATPG Library ELEC2200-002 Lecture 8 (Updated)
