  1. 332:479 Concepts in VLSIDesignLecture 8 DC & Transient Response David Harris and Michael Bushnell Harvey Mudd College and Rutgers University Spring 2004

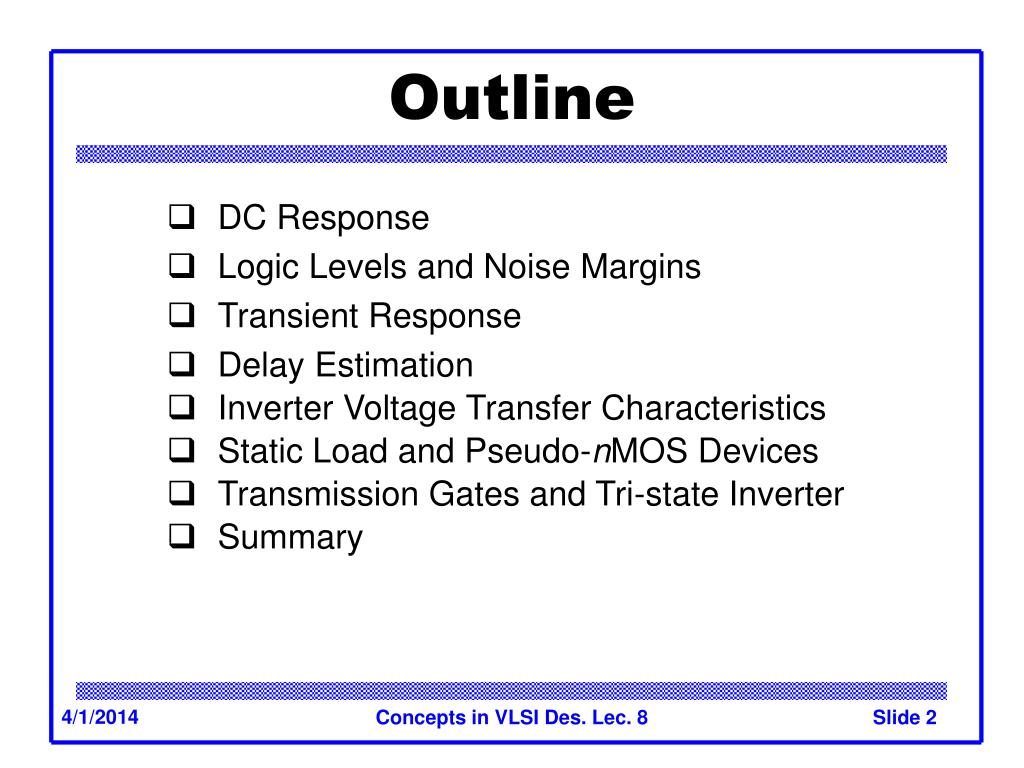

  2. Outline • DC Response • Logic Levels and Noise Margins • Transient Response • Delay Estimation • Inverter Voltage Transfer Characteristics • Static Load and Pseudo-nMOS Devices • Transmission Gates and Tri-state Inverter • Summary Concepts in VLSI Des. Lec. 8

  3. Activity 1)If the width of a transistor increases, the current will  increase decrease not change 2)If the length of a transistor increases, the current will increase decrease not change 3)If the supply voltage of a chip increases, the maximum transistor current will increase decrease not change 4)If the width of a transistor increases, its gate capacitance will increase decrease not change 5)If the length of a transistor increases, its gate capacitance will increase decrease not change 6)If the supply voltage of a chip increases, the gate capacitance of each transistor will increase decrease not change Concepts in VLSI Des. Lec. 8

  4. Activity 1)If the width of a transistor increases, the current will  increase decrease not change 2)If the length of a transistor increases, the current will increase decrease not change 3)If the supply voltage of a chip increases, the maximum transistor current will increase decrease not change 4)If the width of a transistor increases, its gate capacitance will increase decrease not change 5)If the length of a transistor increases, its gate capacitance will increase decrease not change 6)If the supply voltage of a chip increases, the gate capacitance of each transistor will increase decrease not change Concepts in VLSI Des. Lec. 8

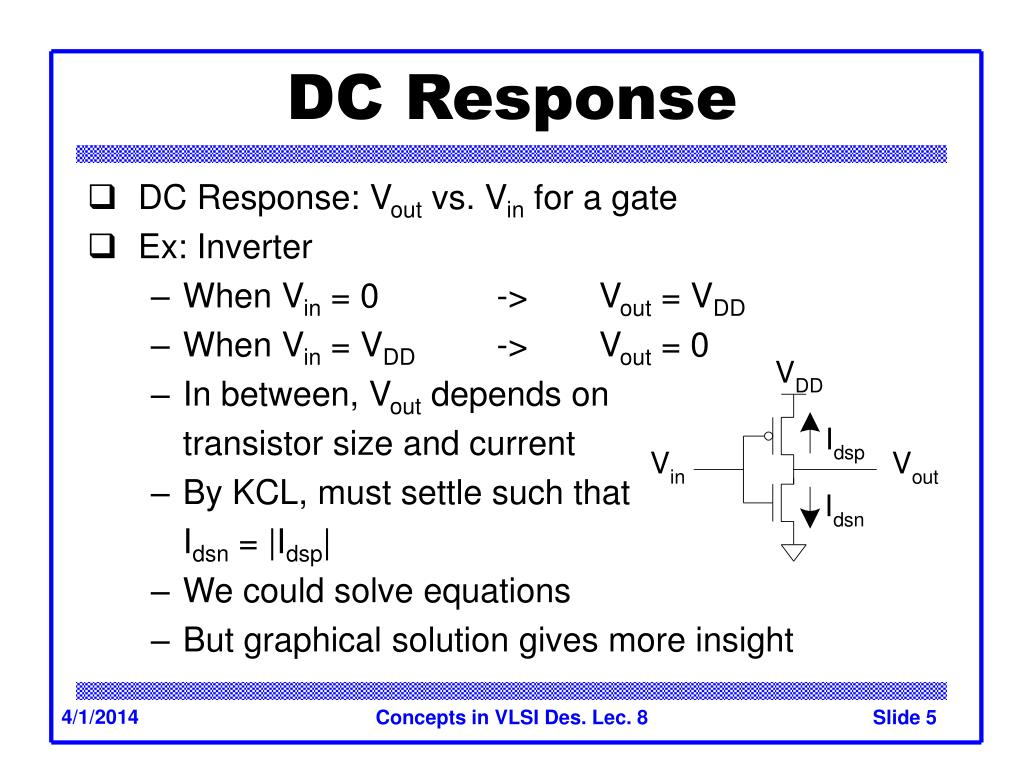

  5. DC Response • DC Response: Vout vs. Vin for a gate • Ex: Inverter • When Vin = 0 -> Vout = VDD • When Vin = VDD -> Vout = 0 • In between, Vout depends on transistor size and current • By KCL, must settle such that Idsn = |Idsp| • We could solve equations • But graphical solution gives more insight Concepts in VLSI Des. Lec. 8

  6. Transistor Operation • Current depends on region of transistor behavior • For what Vin and Vout are nMOS and pMOS in • Cutoff? • Linear? • Saturation? Concepts in VLSI Des. Lec. 8

  7. nMOS Operation Concepts in VLSI Des. Lec. 8

  8. nMOS Operation Concepts in VLSI Des. Lec. 8

  9. nMOS Operation Vgsn = Vin Vdsn = Vout Concepts in VLSI Des. Lec. 8

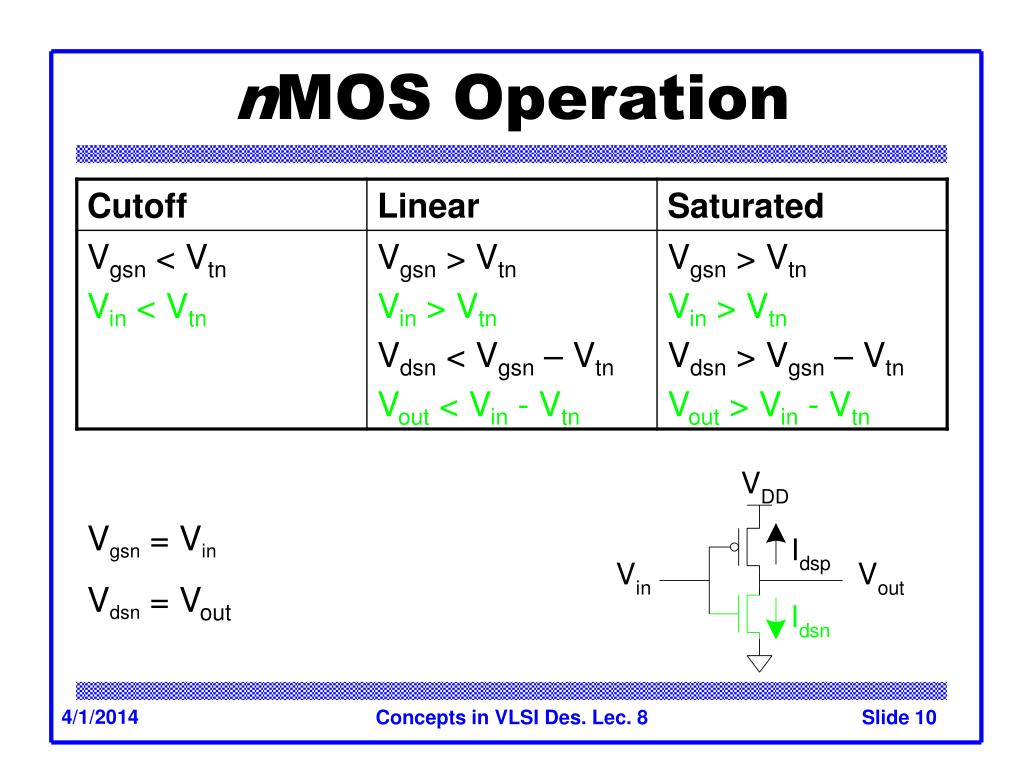

  10. nMOS Operation Vgsn = Vin Vdsn = Vout Concepts in VLSI Des. Lec. 8

  11. pMOS Operation Concepts in VLSI Des. Lec. 8

  12. pMOS Operation Concepts in VLSI Des. Lec. 8

  13. pMOS Operation Vgsp = Vin - VDD Vdsp = Vout - VDD Vtp < 0 Concepts in VLSI Des. Lec. 8

  14. pMOS Operation Vgsp = Vin - VDD Vdsp = Vout - VDD Vtp < 0 Concepts in VLSI Des. Lec. 8

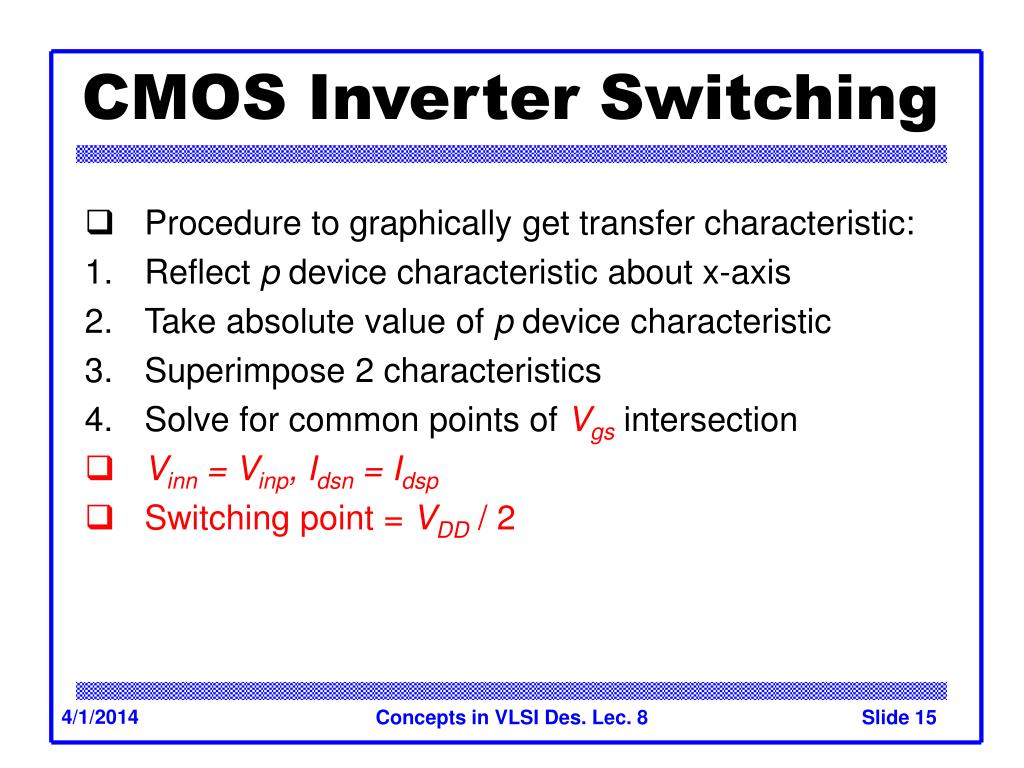

  15. CMOS Inverter Switching • Procedure to graphically get transfer characteristic: • Reflect p device characteristic about x-axis • Take absolute value of p device characteristic • Superimpose 2 characteristics • Solve for common points of Vgs intersection • Vinn = Vinp, Idsn = Idsp • Switching point = VDD / 2 Concepts in VLSI Des. Lec. 8

  16. I-V Characteristics • Make pMOS is wider than nMOS such that bn = bp Concepts in VLSI Des. Lec. 8

  17. Current vs. Vout, Vin Concepts in VLSI Des. Lec. 8

  18. Load Line Analysis • For a given Vin: • Plot Idsn, Idsp vs. Vout • Vout must be where |currents| are equal in Concepts in VLSI Des. Lec. 8

  19. Load Line Analysis • Vin = 0 Concepts in VLSI Des. Lec. 8

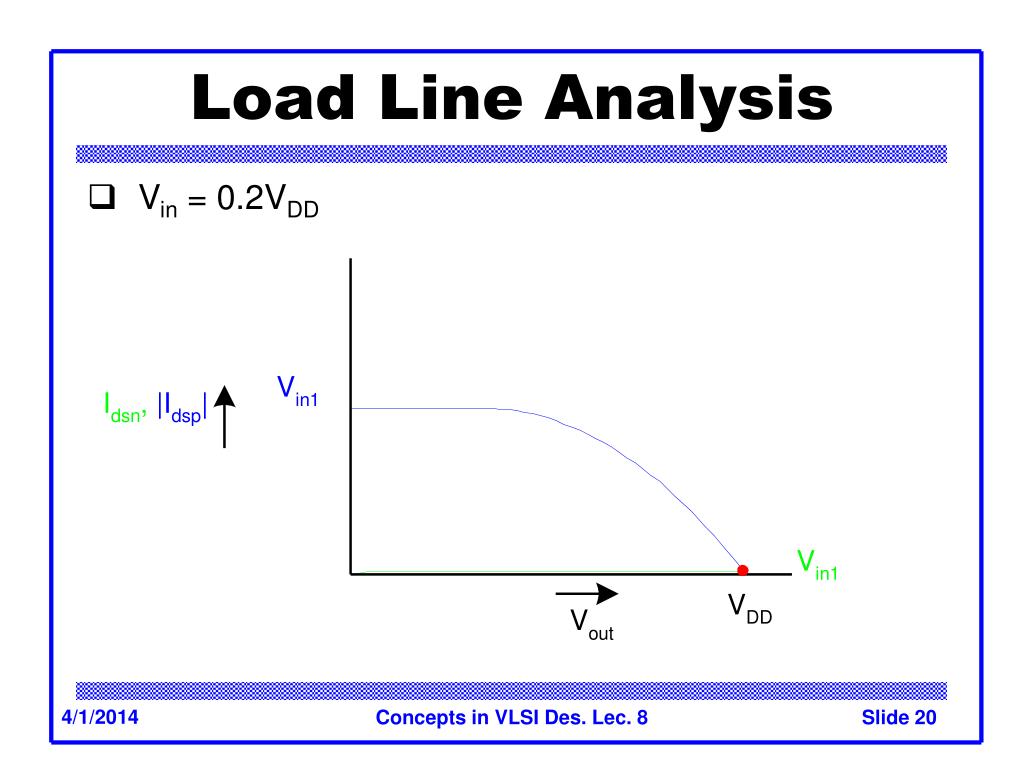

  20. Load Line Analysis • Vin = 0.2VDD Concepts in VLSI Des. Lec. 8

  21. Load Line Analysis • Vin = 0.4VDD Concepts in VLSI Des. Lec. 8

  22. Load Line Analysis • Vin = 0.6VDD Concepts in VLSI Des. Lec. 8

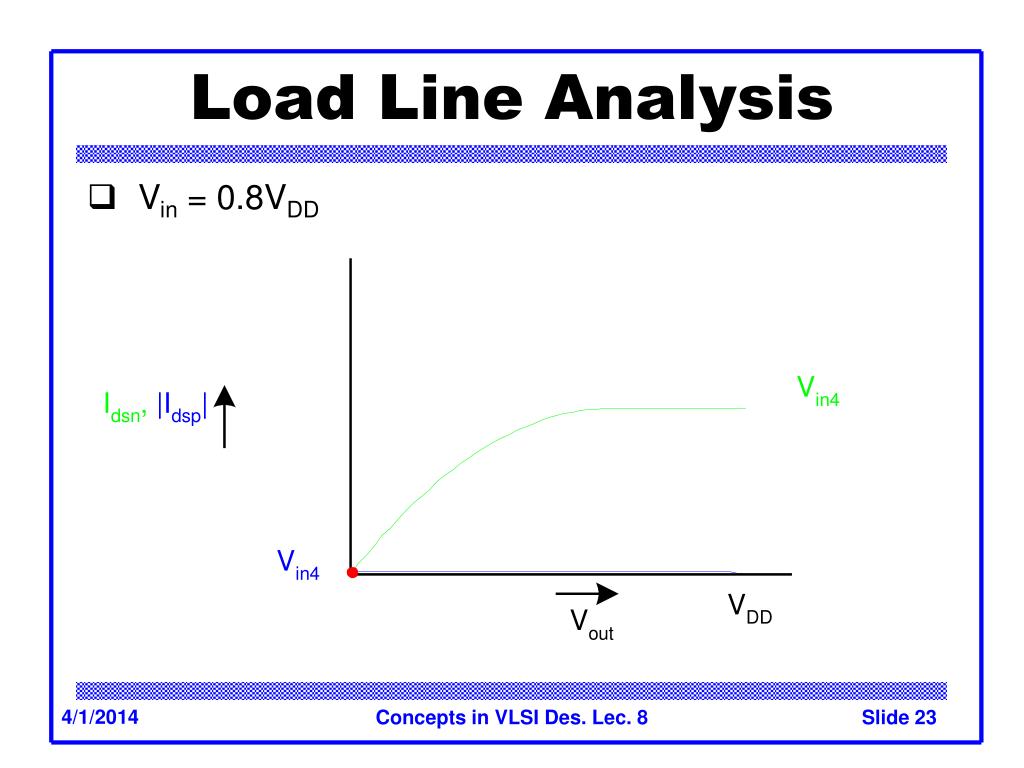

  23. Load Line Analysis • Vin = 0.8VDD Concepts in VLSI Des. Lec. 8

  24. Load Line Analysis • Vin = VDD Concepts in VLSI Des. Lec. 8

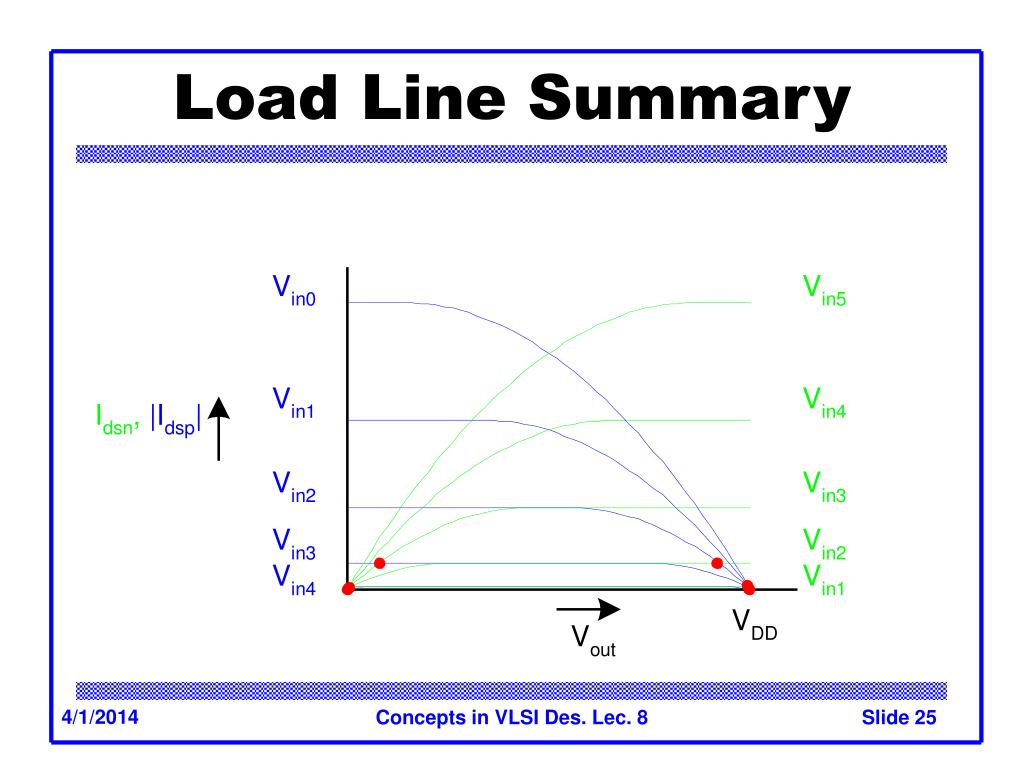

  25. Load Line Summary Concepts in VLSI Des. Lec. 8

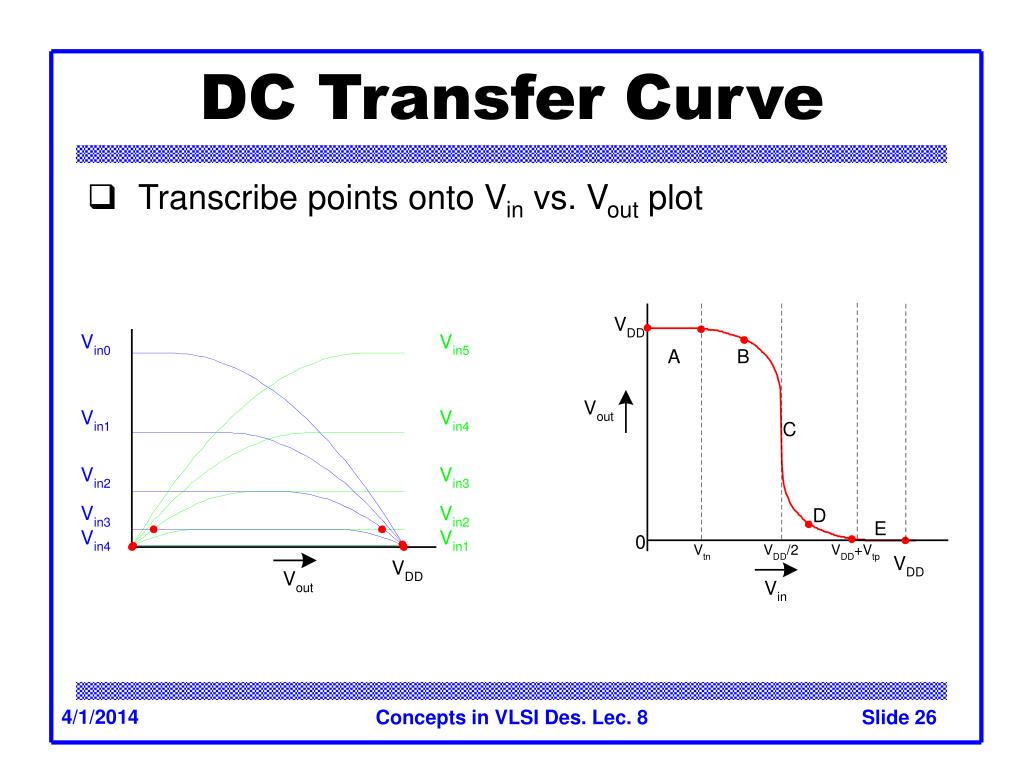

  26. DC Transfer Curve • Transcribe points onto Vin vs. Vout plot Concepts in VLSI Des. Lec. 8

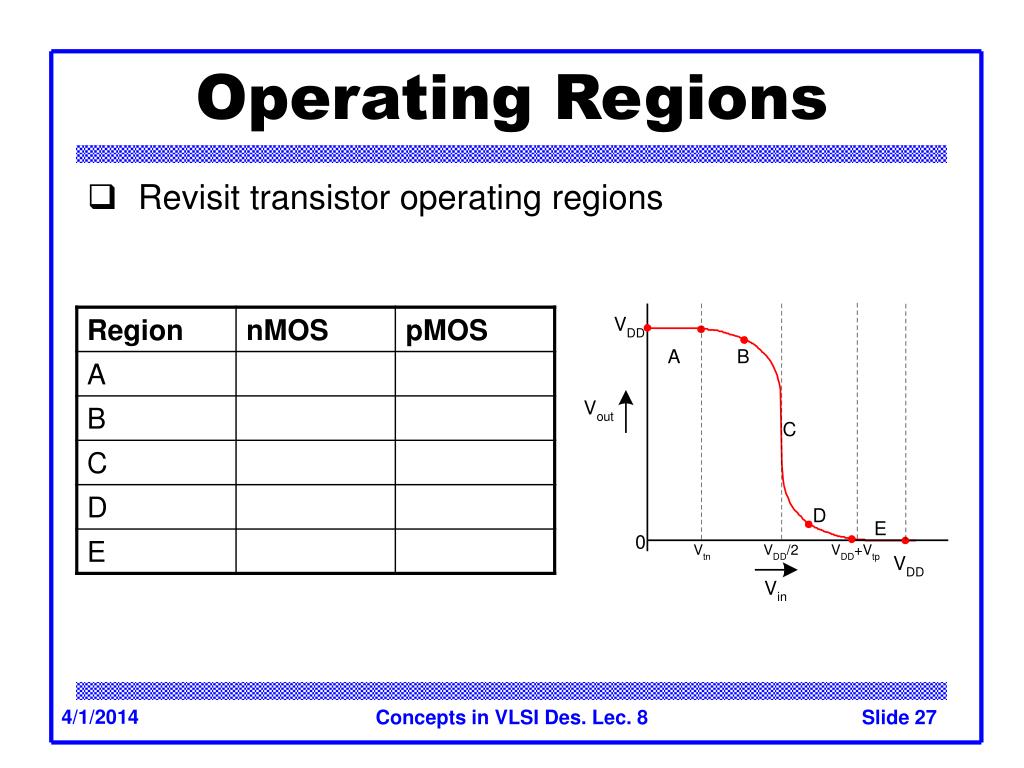

  27. Operating Regions • Revisit transistor operating regions Concepts in VLSI Des. Lec. 8

  28. Operating Regions • Revisit transistor operating regions Concepts in VLSI Des. Lec. 8

  29. Five Regions of Operation • Transition – both transistors on – short current pulse drawn from supply • A 0 Vin Vtn, n cutoff, p linear, Vout = VDD • B Vtn Vin < VDD / 2, p linear, n saturated • For n, Vgs = Vin • Idsn = bn [ Vin – Vtn ]2 2 • For p, Vgs = Vin – VDD; Vds = (Vout - VDD) • Idsp = - bp (Vin – VDD – Vtp) (Vout – VDD) – (Vout – VDD)2 2 ] [ Concepts in VLSI Des. Lec. 8

  30. Regions of Operation • Let Idsp = - Idsn, and then • Vout = (Vin–Vtp) + (Vin–Vtp)2 – 2(Vin- - Vtp) VDD – bn (Vin– Vtn)2 • bp • C Both n and p devices saturated – unstable • 2 current sources in series • Idsp= - ½ bp (Vin – VDD – Vtp)2 • Idsn = ½ bn (Vin - Vtn)2 VDD 2 Concepts in VLSI Des. Lec. 8

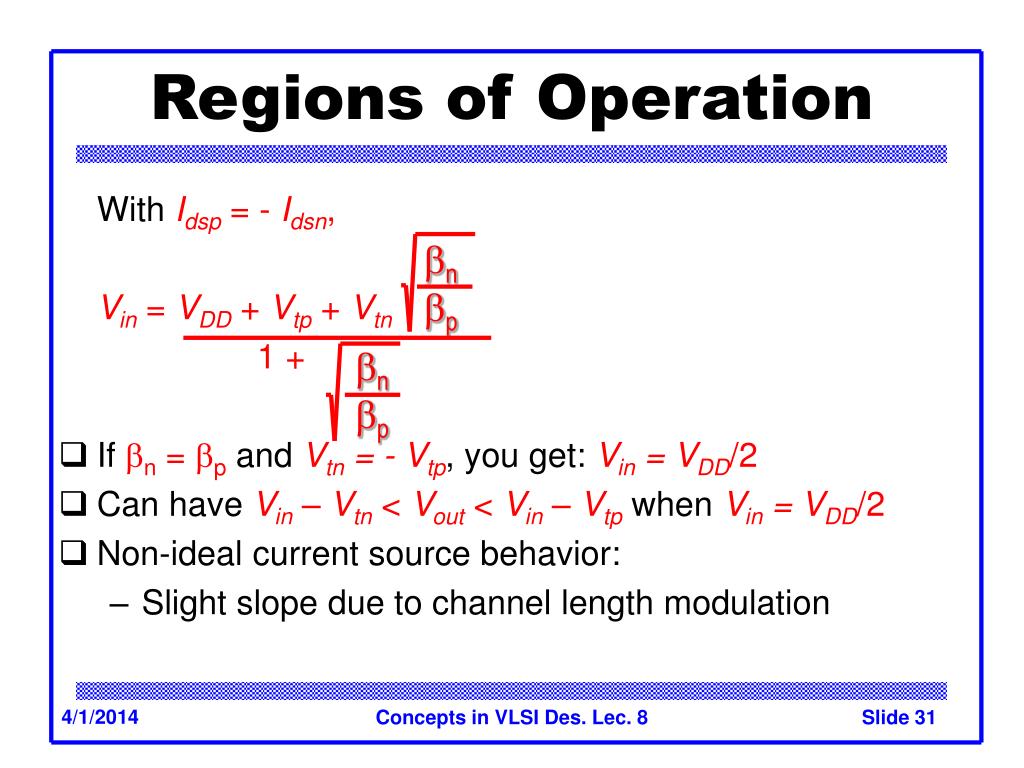

  31. Regions of Operation • WithIdsp = - Idsn, • Vin = VDD + Vtp + Vtn • 1 + • If bn = bp and Vtn = - Vtp, you get: Vin = VDD/2 • Can have Vin – Vtn < Vout < Vin – Vtp when Vin = VDD/2 • Non-ideal current source behavior: • Slight slope due to channel length modulation bn bp bn bp Concepts in VLSI Des. Lec. 8

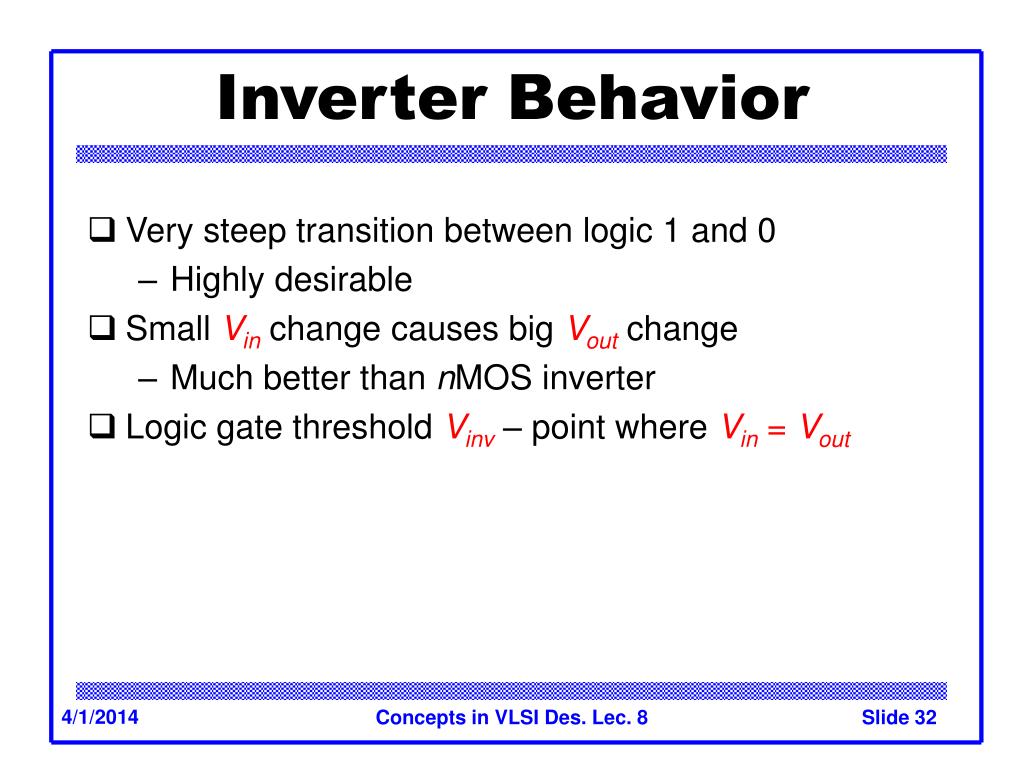

  32. Inverter Behavior • Very steep transition between logic 1 and 0 • Highly desirable • Small Vinchange causes big Vout change • Much better than nMOS inverter • Logic gate threshold Vinv – point where Vin = Vout Concepts in VLSI Des. Lec. 8

  33. Regions of Operation • Dp in saturation, n in linear region • VDD/2 < VinVDD + Vtp • Idsp = - ½ bp (Vin – VDD – Vtp)2 • Idsn = bn [ (Vin – Vtn) Vout - ½ Vout2 ] • With Idsp = - Idsn, then • Vout = (Vin – Vtn) - (Vin – Vtn)2 - (Vin – VDD –Vtp)2 bp bn Concepts in VLSI Des. Lec. 8

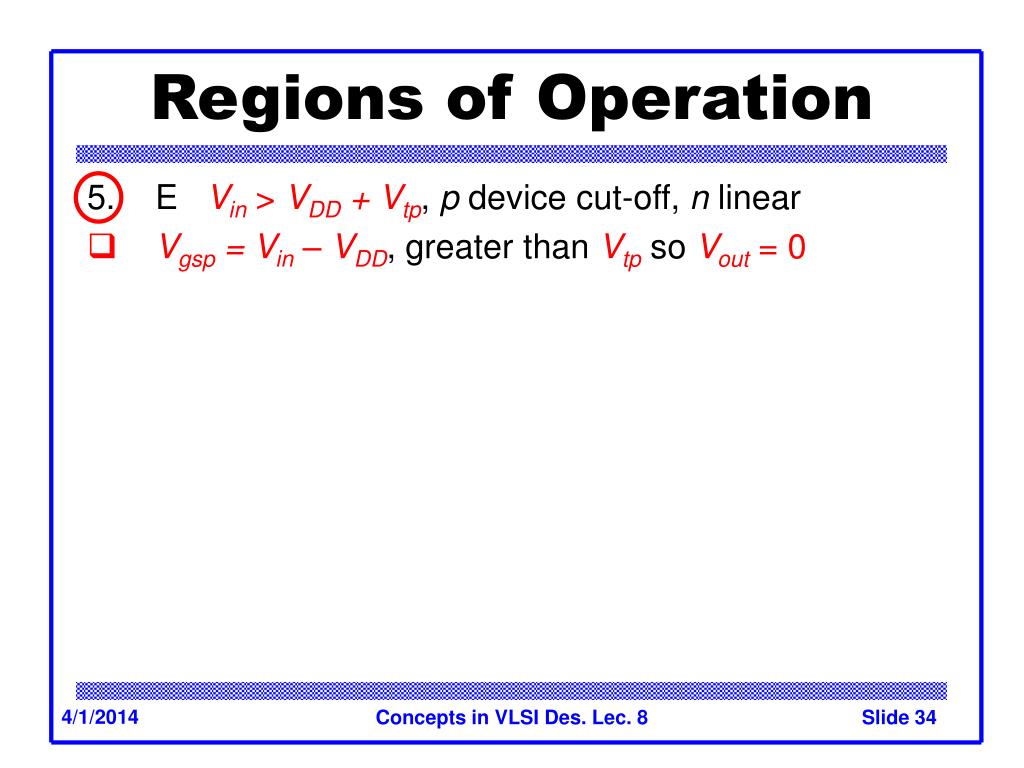

  34. Regions of Operation • E Vin > VDD + Vtp, p device cut-off, n linear • Vgsp = Vin – VDD, greater than Vtp so Vout = 0 Concepts in VLSI Des. Lec. 8

  35. Beta Ratio • If bp / bn 1, switching point will move from VDD/2 • Called skewed gate • Other gates: collapse into equivalent inverter Concepts in VLSI Des. Lec. 8

  36. Beta Ratio Influence on Transfer Characteristic • baT-1.5IdsaT-1.5 • Due to decreased m as T increases • Gate threshold Vinv – state where Vin = Vout • To change , must change channel L or W • = 1 is nice – a capacitive load can charge & discharge in equal times • Equal current source & sink capabilities bn bp bn bp Concepts in VLSI Des. Lec. 8

  37. Temperature Dependency bn bp • Since voltage transfer depends on • So, it is roughly independent of T • Vtn, Vtp decrease slightly as T increases: • Extent of Region A reduced • Extent of Region E increased • If T rises by 50 oC, Vtn & Vtp each drop 200 mV • 0.2 V shift in inverter threshold Concepts in VLSI Des. Lec. 8

  38. Noise Margins • How much noise can a gate input see before it does not recognize the input? Concepts in VLSI Des. Lec. 8

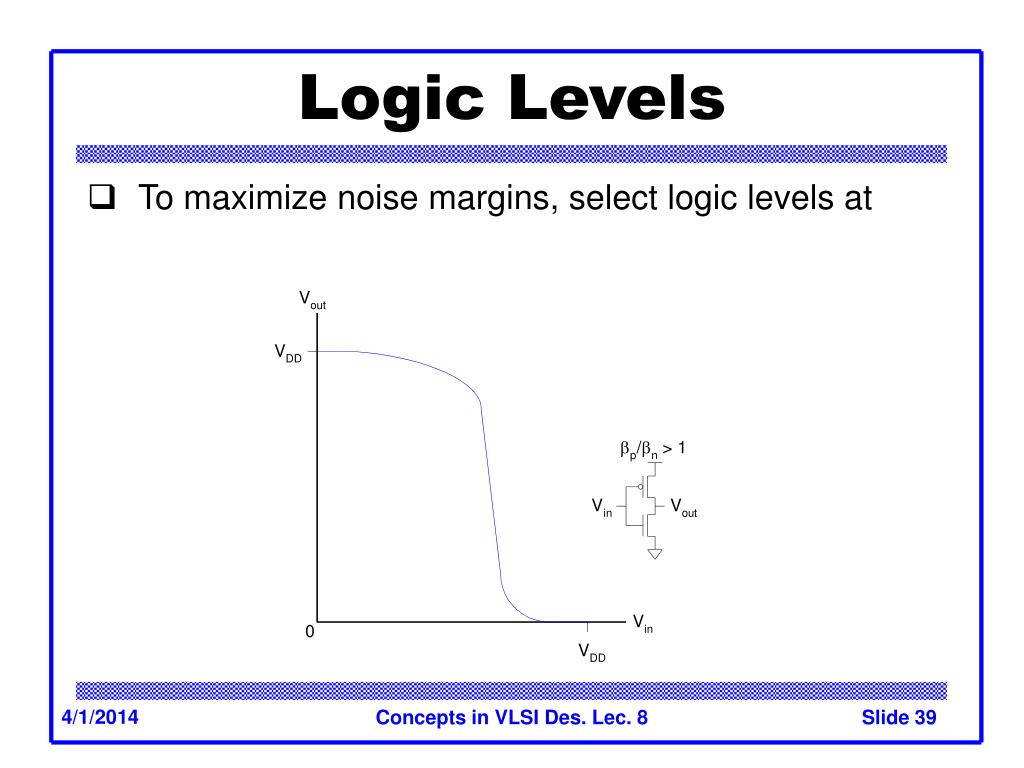

  39. Logic Levels • To maximize noise margins, select logic levels at Concepts in VLSI Des. Lec. 8

  40. Logic Levels • To maximize noise margins, select logic levels at • Unity gain point of DC transfer characteristic Concepts in VLSI Des. Lec. 8

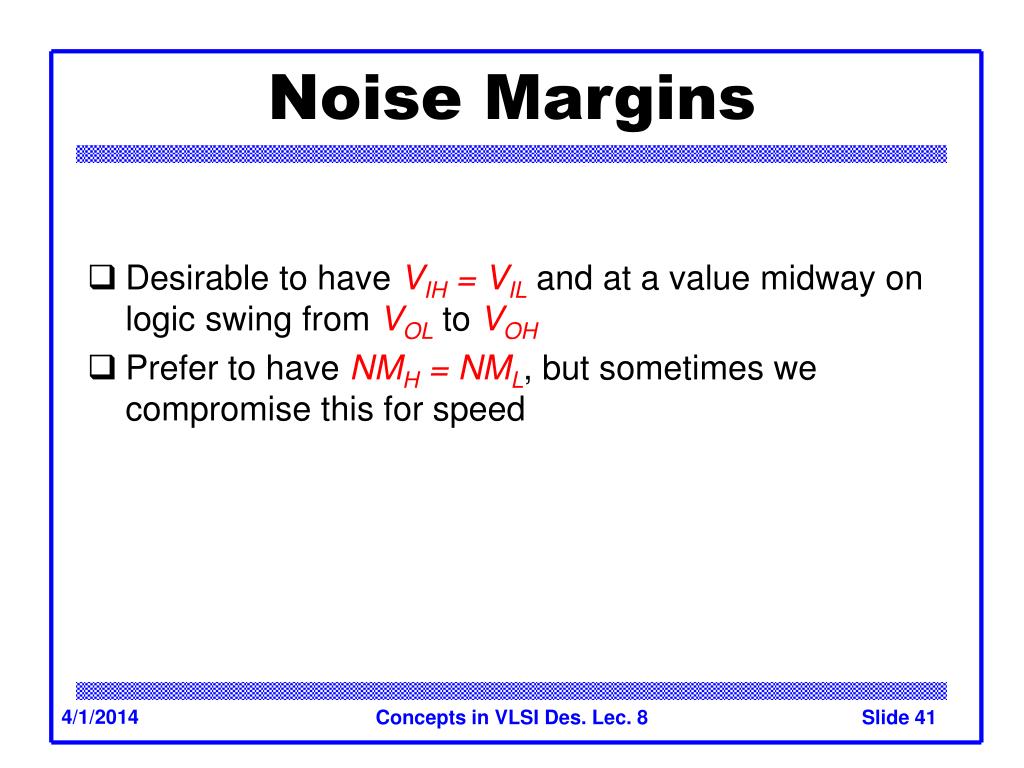

  41. Noise Margins • Desirable to have VIH = VIL and at a value midway on logic swing from VOL to VOH • Prefer to haveNMH = NML,but sometimes we compromise this for speed Concepts in VLSI Des. Lec. 8

  42. Transient Response • DC analysis tells us Vout if Vin is constant • Transient analysis tells us Vout(t) if Vin(t) changes • Requires solving differential equations • Input is usually considered to be a step or ramp • From 0 to VDD or vice versa Concepts in VLSI Des. Lec. 8

  43. Inverter Step Response • Ex: find step response of inverter driving load cap Concepts in VLSI Des. Lec. 8

  44. Inverter Step Response • Ex: find step response of inverter driving load cap Concepts in VLSI Des. Lec. 8

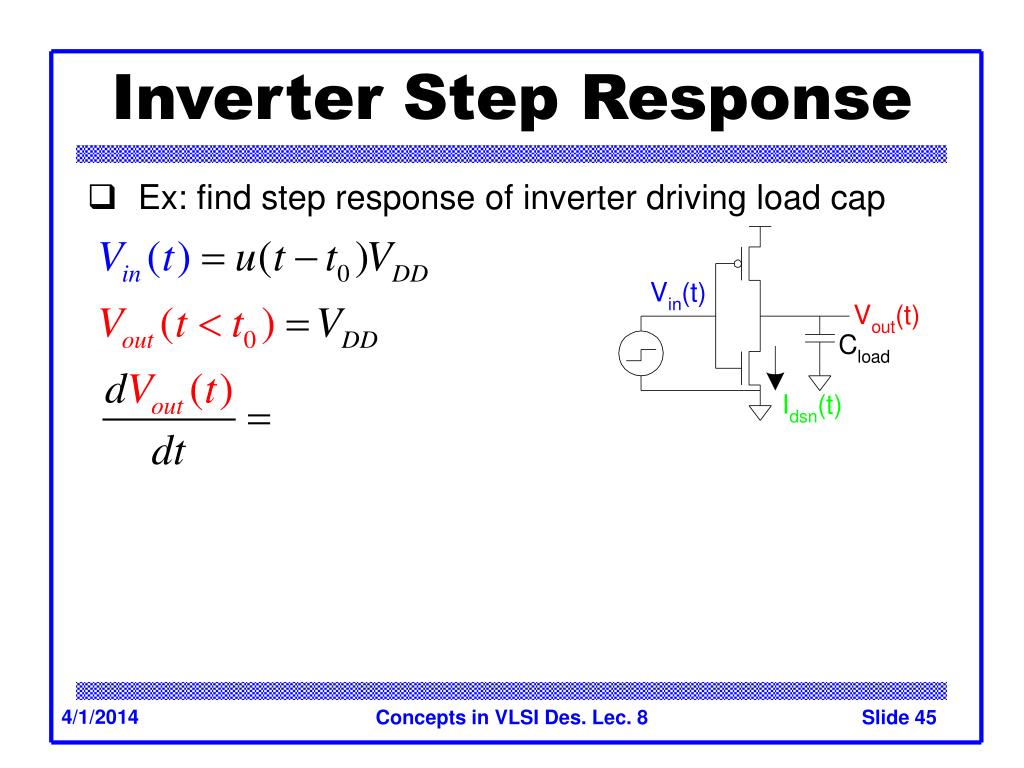

  45. Inverter Step Response • Ex: find step response of inverter driving load cap Concepts in VLSI Des. Lec. 8

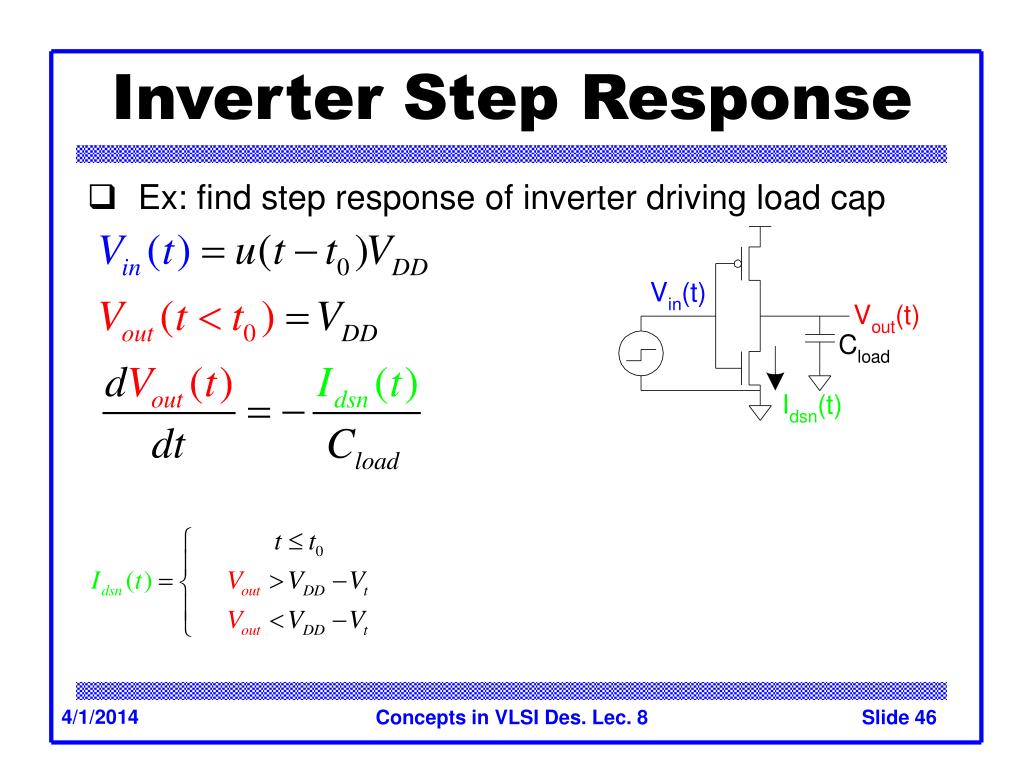

  46. Inverter Step Response • Ex: find step response of inverter driving load cap Concepts in VLSI Des. Lec. 8

  47. Inverter Step Response • Ex: find step response of inverter driving load cap Concepts in VLSI Des. Lec. 8

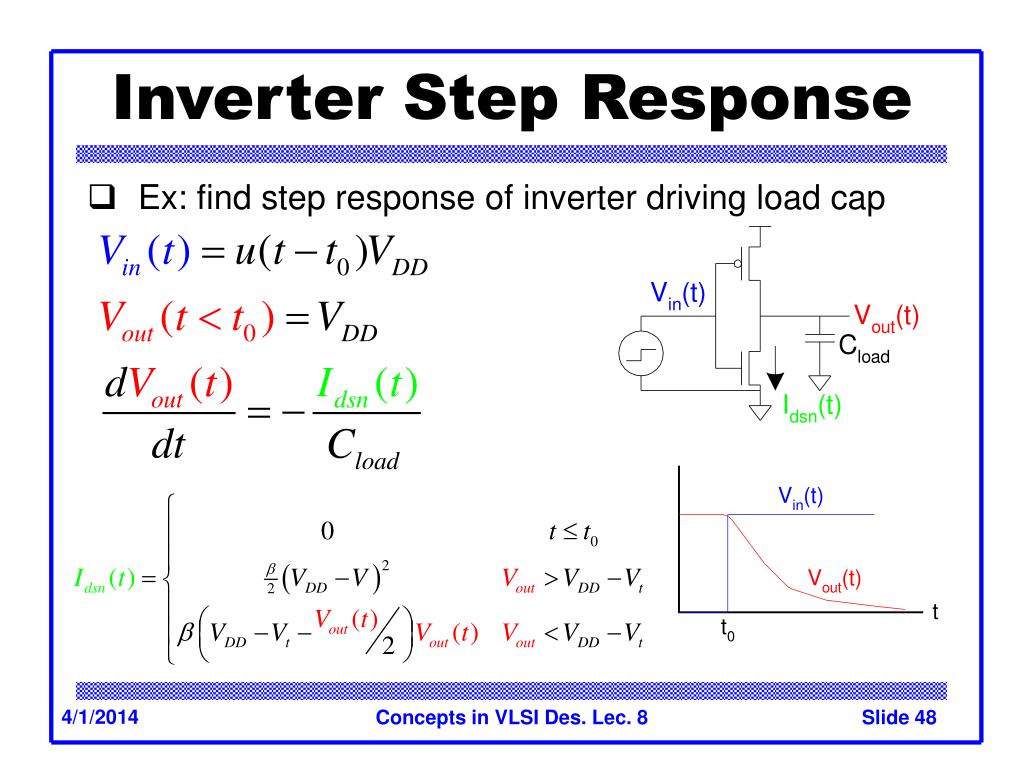

  48. Inverter Step Response • Ex: find step response of inverter driving load cap Concepts in VLSI Des. Lec. 8

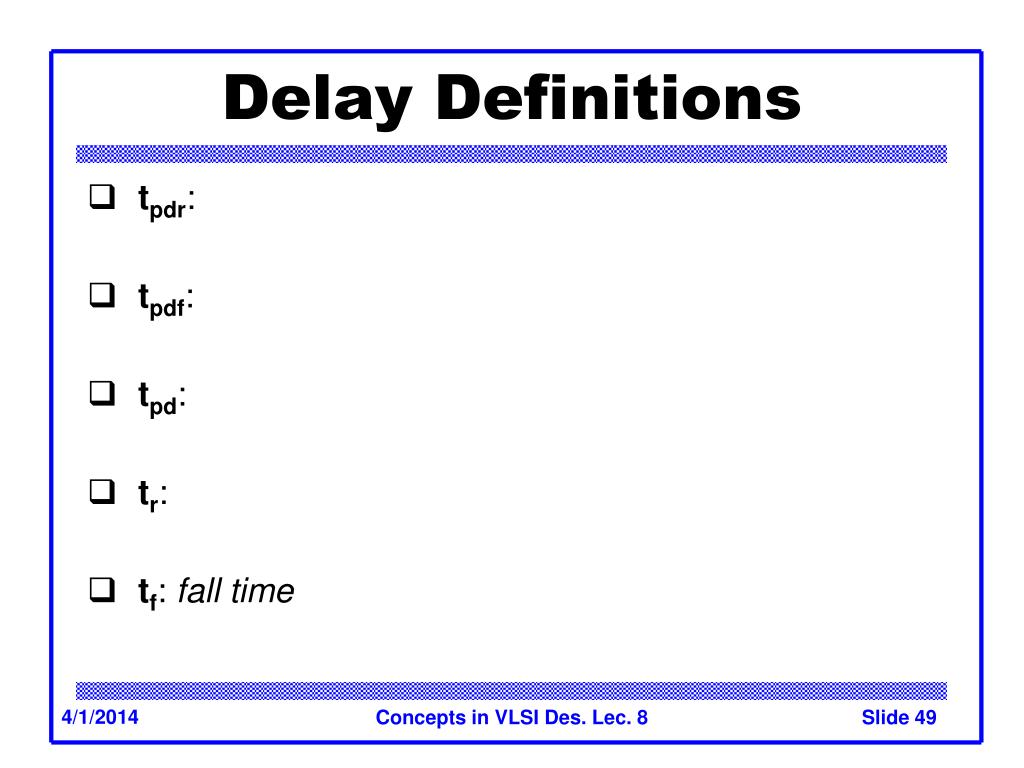

  49. Delay Definitions • tpdr: • tpdf: • tpd: • tr: • tf: fall time Concepts in VLSI Des. Lec. 8

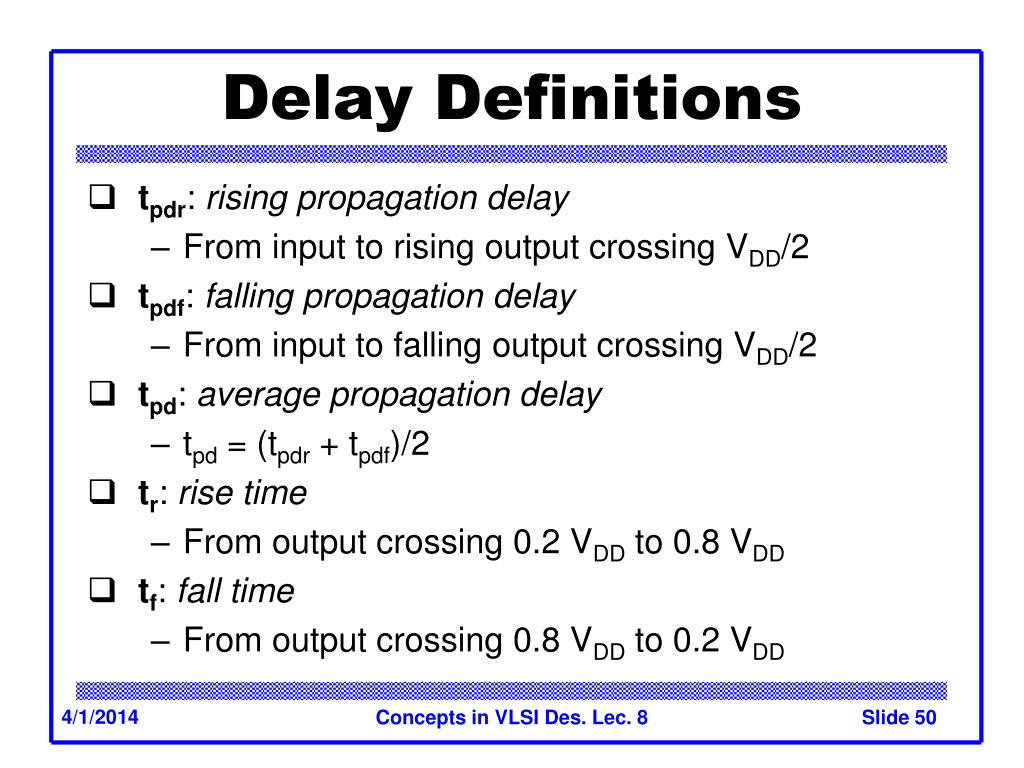

  50. Delay Definitions • tpdr: rising propagation delay • From input to rising output crossing VDD/2 • tpdf: falling propagation delay • From input to falling output crossing VDD/2 • tpd: average propagation delay • tpd = (tpdr + tpdf)/2 • tr: rise time • From output crossing 0.2 VDD to 0.8 VDD • tf: fall time • From output crossing 0.8 VDD to 0.2 VDD Concepts in VLSI Des. Lec. 8
