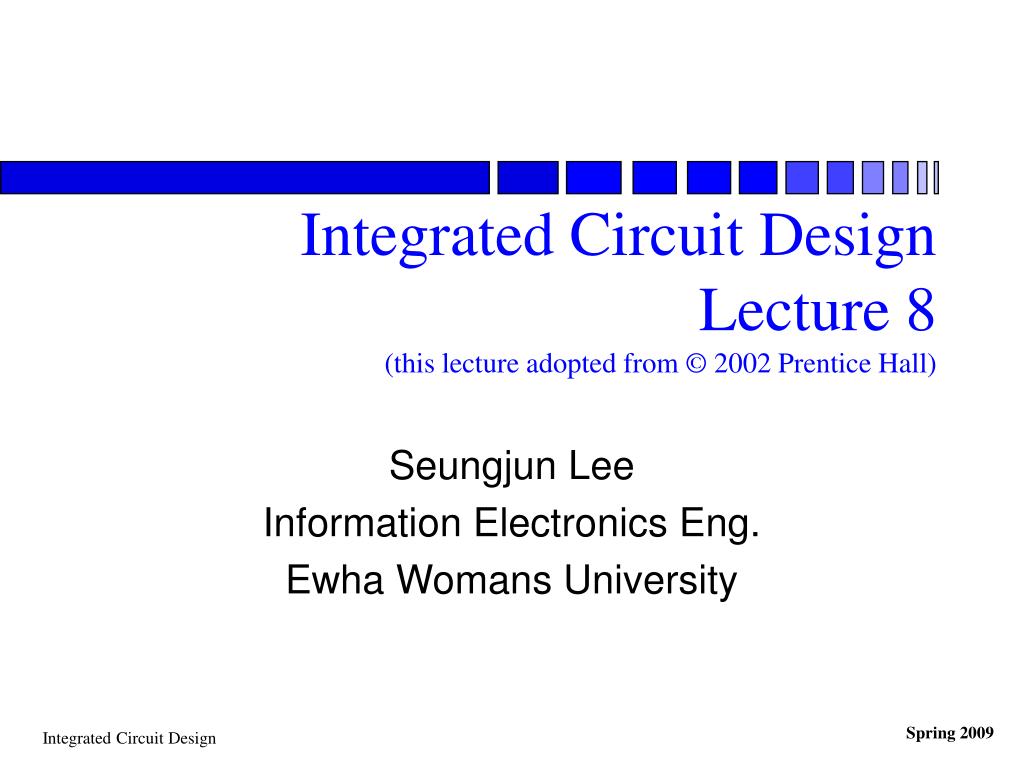

  1. Integrated Circuit DesignLecture 8(this lecture adopted from © 2002 Prentice Hall) Seungjun Lee Information Electronics Eng. Ewha Womans University

  2. Review • So far, we have reviewed • Device characteristics (Ch. 3) • Diode and MOS transistor • Inverter Basics (Ch. 1) • CMOS Inverter (Ch. 5) • Voltage Transfer Characteristic • Propagation Delay • Power Consumption • Impact of Technology Scaling

  3. In This Lecture • Combinational Logic Design • Static CMOS design • Complementary CMOS • Ratioed Logic • Pass-Transistor Logic

  4. Combinational vs. Sequential Logic

  5. Static CMOS Circuit • At every point in time (except during the switching transients) each gate output is connected to either VDD or GND via a low-resistive path. • The outputs of the gates assume the value of the Boolean function at all times (ignoring, once again, the transient effects during switching periods). • This is in contrast to the dynamic circuit class, which relies on temporary storage of signal values on the capacitance

  6. NMOS Transistors in Series/Parallel Connection • Transistors can be thought as a switch controlled by its gate signal • NMOS switch closes when switch control input is high

  7. PMOS Transistors in Series/Parallel Connection

  8. CL CL CL CL Threshold Drops VDD VDD S D VDD D S 0 VDD 0 VDD - VTn VGS VDD 0 VDD |VTp| VGS D S VDD S D

  9. Construction of Complementary CMOS Logic VDD B A Out Out A B

  10. Construction of Complementary CMOS Logic VDD B A Out A B Out = AB

  11. Complementary CMOS Logic PUN: Pull-Up Network Out PDN: Pull-Down Network PUN and PDN are Dual Network Complementary CMOS gates are ‘inverting’

  12. Example Gate: NAND

  13. Example Gate: NOR

  14. Example Gate: COMPLEX CMOS GATE Out =

  15. Constructing a Complex Gate

  16. Constructing a Complex Gate • Out = (AB + C)D

  17. Properties of Complementary CMOS Gates
