Concept for Spallation Target & Remote-Handling System

Concept for Spallation Target & Remote-Handling System. Retractable Target with its own “In-situ” Shielded Flask Three modes: (a) Production mode  Target in beam (b) UCN Service mode  Target retracted (service cryostat or beamline)

emmanuel-manning
Télécharger la présentation

Concept for Spallation Target & Remote-Handling System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

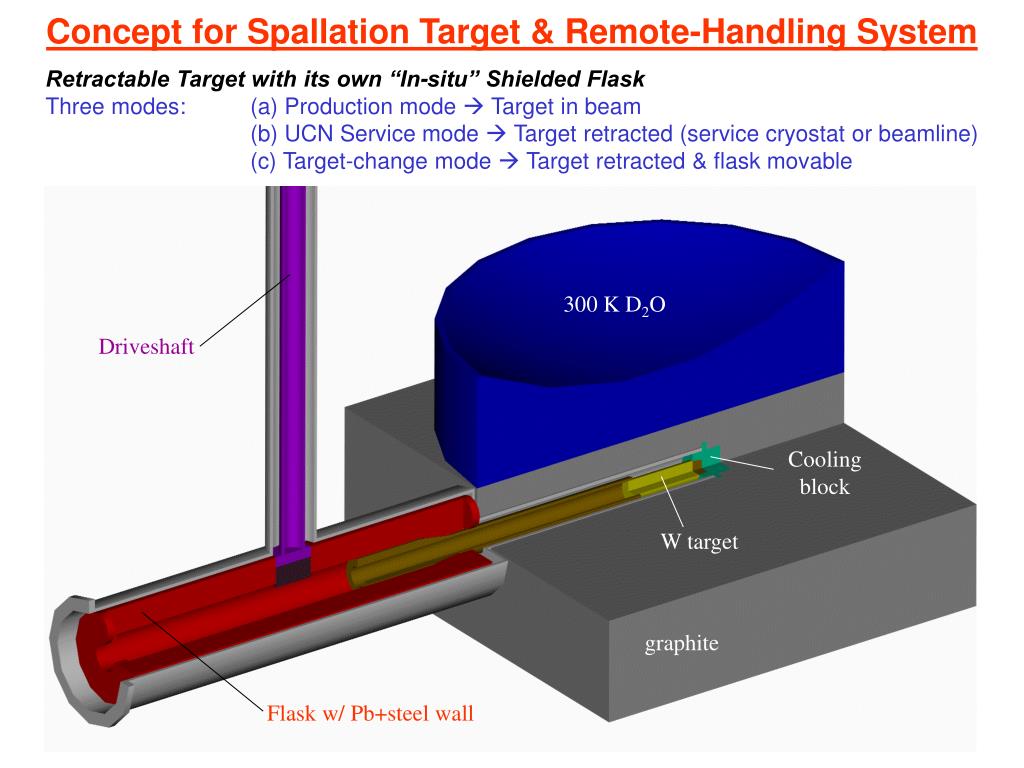

  1. Concept for Spallation Target & Remote-Handling System Retractable Target with its own “In-situ” Shielded Flask Three modes: (a) Production mode  Target in beam (b) UCN Service mode  Target retracted (service cryostat or beamline) (c) Target-change mode  Target retracted & flask movable 300 K D2O Driveshaft Cooling block W target graphite Flask w/ Pb+steel wall

  2. Spallation Target System (Concept/Layout after consultation with Target & Remote-Handling experts) Flexible shaft/cable (STOW) for shutters (Removable) Driveshaft for Target motion (w/ self-locating clutch) 300 K D2O Moderator near this region Rack & Pinion system Mount Target Beam Lead Cask/Pig Valve Rail & Bearings Water lines ( *Note: Wall thickness of Target Flask/Pig not yet optimized )

  3. 20 K D2O cryostat 300 K D2O tank Target in primary “Operation” position Tungsten Spallation target 40 mA proton beam: - ON for 60 sec - OFF for 180 sec Target Beam Lead Cask/Pig Valve Common Vacuum between Beamline & Target
