Acceleration- Change in Velocity

Acceleration- Change in Velocity. occurs when an object ______________ in speed . occurs when an object _____________________. occurs when an object __________ in speed. Types of acceleration. Increasing speed Example: Car speeds up at green light Decreasing speed

enid
Télécharger la présentation

Acceleration- Change in Velocity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Acceleration- Change in Velocity • occurs when an object ______________ in speed. • occurs when an object _____________________ • occurs when an object __________ in speed.

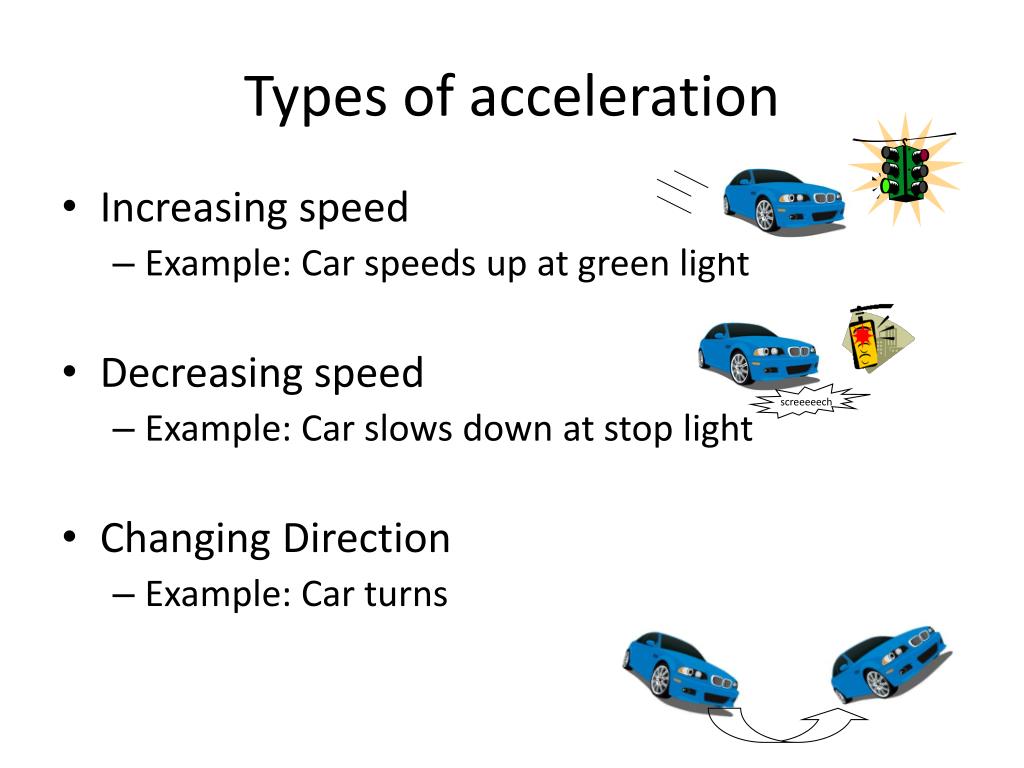

  2. Types of acceleration • Increasing speed • Example: Car speeds up at green light • Decreasing speed • Example: Car slows down at stop light • Changing Direction • Example: Car turns screeeeech

  3. Question 1 • How can a car be accelerating if its speed is a constant 65 km/h? _______________________________________ _______________________________________

  4. Calculating Acceleration Acceleration = Final speed – Initial speed Time

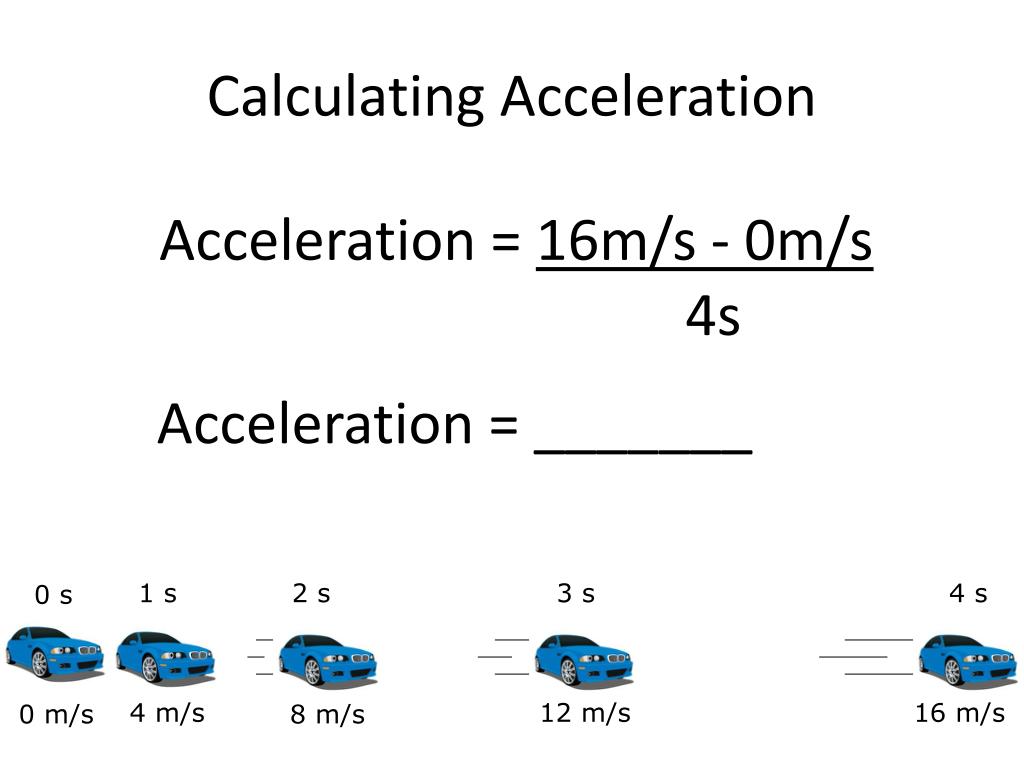

  5. Calculating Acceleration Acceleration = 16m/s - 0m/s 4s Acceleration = _______ 1 s 2 s 3 s 4 s 0 s 4 m/s 12 m/s 16 m/s 0 m/s 8 m/s

  6. Question 2 • A skydiver accelerates from 20 m/s to 40 m/s in 2 seconds. What is the skydiver’s average acceleration? a = m/s – m/s s a = ____ a = __________

  7. Graphing Acceleration • Can use 2 kinds of graphs • Speed vs. time • Distance vs. time

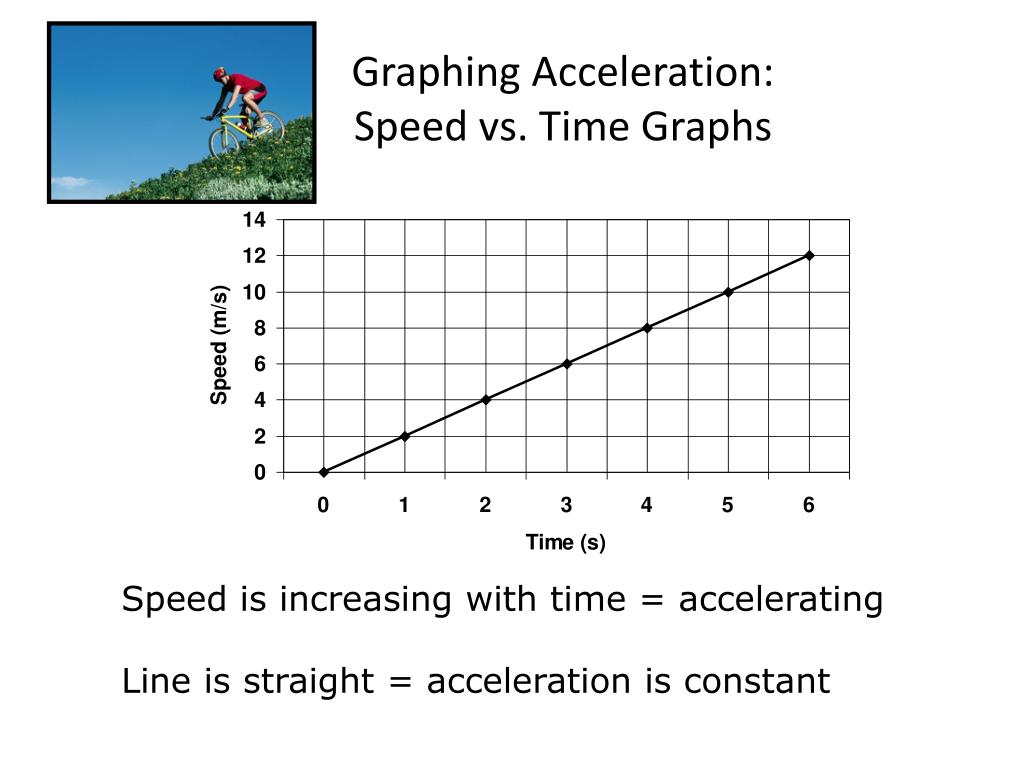

  8. Graphing Acceleration:Speed vs. Time Graphs • Speed is increasing with time = accelerating • Line is straight = acceleration is constant

  9. Graphing Acceleration:Speed vs. Time Graphs Rise = 4 m/s Run = 2 s • In Speed vs. Time graphs: • Acceleration = Rise/Run • = 4 m/s ÷ 2 s = ________

  10. Graphing Acceleration:Distance vs. Time Graphs Curved line means the object is accelerating. Your speed is increasing. Remember slope = speed.

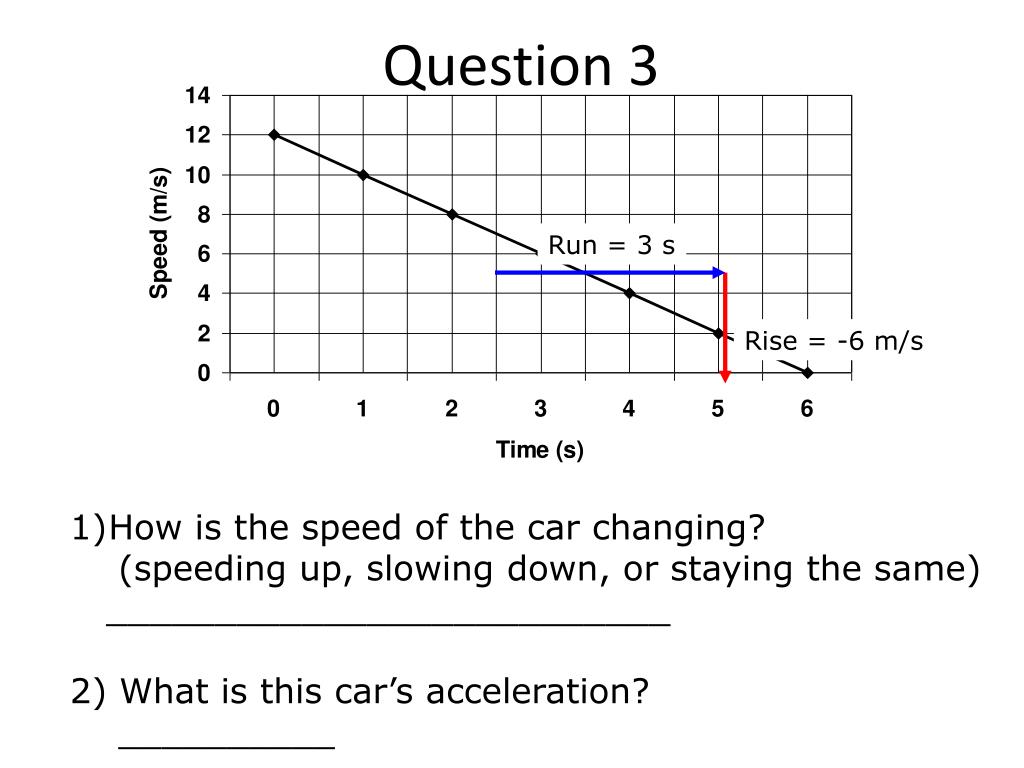

  11. Question 3 Run = 3 s Rise = -6 m/s How is the speed of the car changing? (speeding up, slowing down, or staying the same) __________________________ 2) What is this car’s acceleration? __________

  12. Question 4 • Which line(s) represents an object that is accelerating? ________________________________ • Which line(s) show positive acceleration? • ________________________________ • 3) Which line(s) show negative acceleration? • ________________________________ • 4) Which line(s) show constant acceleration? • _________________________________
