Hinode/EIS Data Products and Archive Access Jian Sun (MSSL)
Primary Mirror Entrance Filter CCD Camera Front Baffle Grating Extreme ultraviolet Imaging Spectrometer (EIS) Doschek, G, et.al SPD 2006 EIS Basics: work as Imaging Spectrometer to do either raster scanning or sit-and-stare observation four slit/slot sections: 1”, 2” and 40”, 266” core line: Ca XVII (192.8A), Fe XII (195.12A), HeII (256.32A) + multiple project lines temperature coverage: log T = 4.7, 5.4, 6.0 - 7.3 K spatial resolution: 1 arcsec pixels 2 arcsec solar resolution line spectroscopy with ~ 25 km/s pixel sampling
Shift of FOV center with coarse-mirror motion Maximum FOV for raster observation 360 800 800 512 512 512 Raster-scan range 266 slot 40 slot EIS Slit EIS Field-of-View (FOV) Doschek, G, et.al SPD 2006
Data products from EIS Intensity, Velocity and width maps example fits file: eis_l0_20061202_025412.fits
Velocity map (cont.) width map (cont.)
EIS Slot Movie:example fits: eis_l0_20070120_121234.fits --- eis_l0_20070120_1724.fits
Access to EIS data: 1. From various data archives: MSSL: http://msslxr.mssl.ucl.ac.uk:8080/SolarB DARTS: http://darts.isas.jaxa.jp/solar/hinode Oslo: http://sdc.uio.no/search/API From EIS catalogue GUI tool: IDL> eis_cat From EIS command-line: IDL> eis_dbase IDL> eis_list_study, tstart, tend, studies, [search=search, files=files] (eg. eis_list_study,’1-may-07’,’2-may-07’,studies,search=‘target=Active Region’)

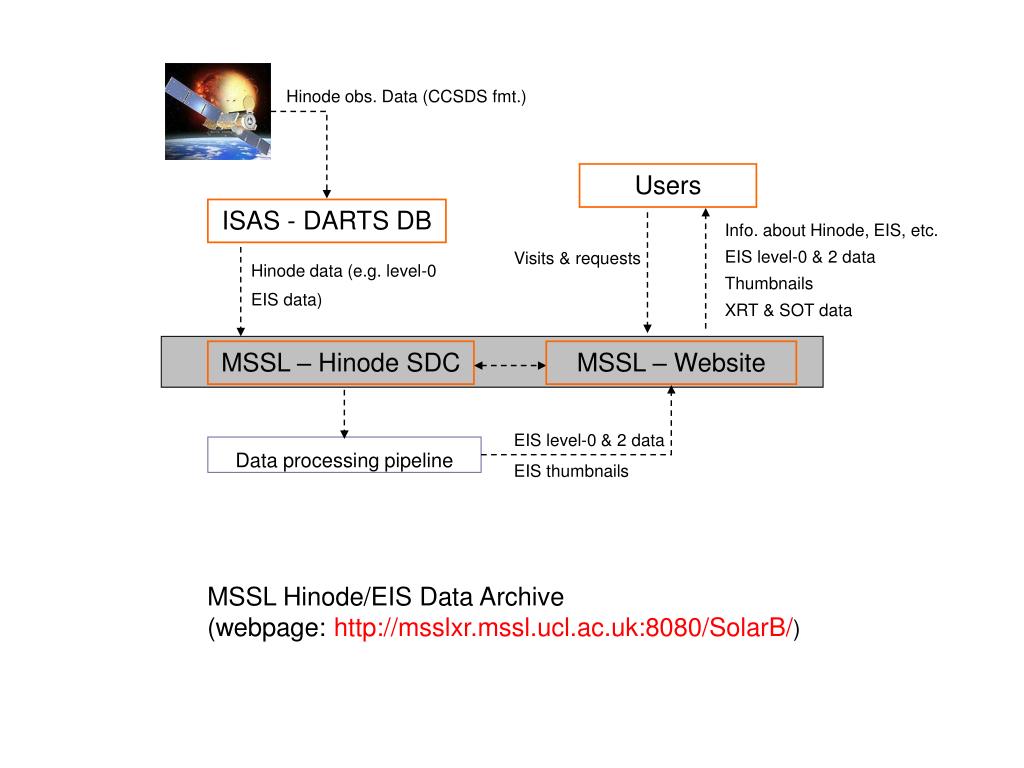

Hinode obs. Data (CCSDS fmt.) Users ISAS - DARTS DB Info. about Hinode, EIS, etc. EIS level-0 & 2 data Thumbnails XRT & SOT data Visits & requests Hinode data (e.g. level-0 EIS data) MSSL – Hinode SDC MSSL – Website EIS level-0 & 2 data EIS thumbnails Data processing pipeline Hinode/EIS Data Access: from Satellite to Users: MSSL Hinode/EIS Data Archive (webpage: http://msslxr.mssl.ucl.ac.uk:8080/SolarB/)
Deliver EIS data to the end-user in a easy way • See the data first before downloading • Useful information is provided on website for Hinode/EIS • Interactive help desk (EIS wiki)
SQL query for complex search Four catalogue tables in EIS DB eis_level0 eis_level2 eis_thumbs eis_studies SQL query examples: Select * From eis_level0 as t1 where t1.DATE_OBS > '2007-09-01T00:00:00' and t1.DATE_OBS < '2007-09-02T01:00:00' Select * from eis_level0 as t1 where t1.DATE_OBS > '2007-03-03T00:00:00' and t1.DATE_OBS < '2007-04-03T00:00:00' and t1.SLIT_ID=‘40”’ and t1.TARGET = ‘Active Region’ order by t1.DATE_OBS
EIS Data Archive User’s Guide: http://msslxr.mssl.ucl.ac.uk:8080/SolarB/daArchGuides.jsp EIS thumbnails introduction: http://msslxr.mssl.ucl.ac.uk:8080/SolarB/daArchGuides_thumbs.jsp How to EIS level-2 data: http://msslxr.mssl.ucl.ac.uk:8080/SolarB/daArchGuides_level2.jsp
There are over 230 EIS studies available for your observation!
but if there are special requirements: Design your study with EIS software tools: eis_mk_raster, eis_mk_study, etc. Submit your science proposal and study design to eis_obs@mssl.ucl.ac.uk EIS operation Access the data from MSSL Hinode/EIS data archive All information about EIS planning and studies are provided on MSSL Hinode/EIS website!
Other useful resources: EIS Mapper:http://www.scs.gmu.edu/~kdere/eis_mapper.html EIS Observing Timeline Database: http://solar-b.nrl.navy.mil/cgi-bin/timeline4.cgi EIS Wiki (Help Desk): http://msslxr.mssl.ucl.ac.uk:8080/eiswiki/
