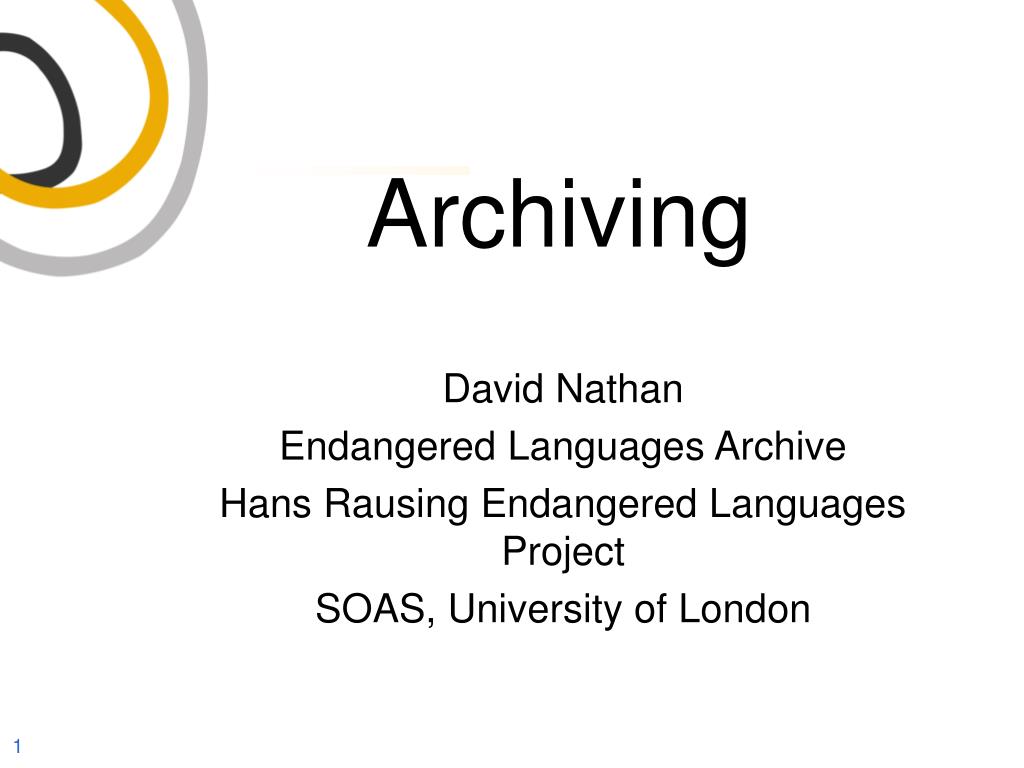

  1. Archiving David Nathan Endangered Languages Archive Hans Rausing Endangered Languages Project SOAS, University of London

  2. Topics • Introducing ELAR and digital language archives • Preservation • Archive interactions with documentation • What and how to archive • Protocol • Metadata • Evaluation of audio • Archives and revitalisation • Archivism : mobilisation • Video • Conclusions

  3. Introducing ELAR and digital language archives

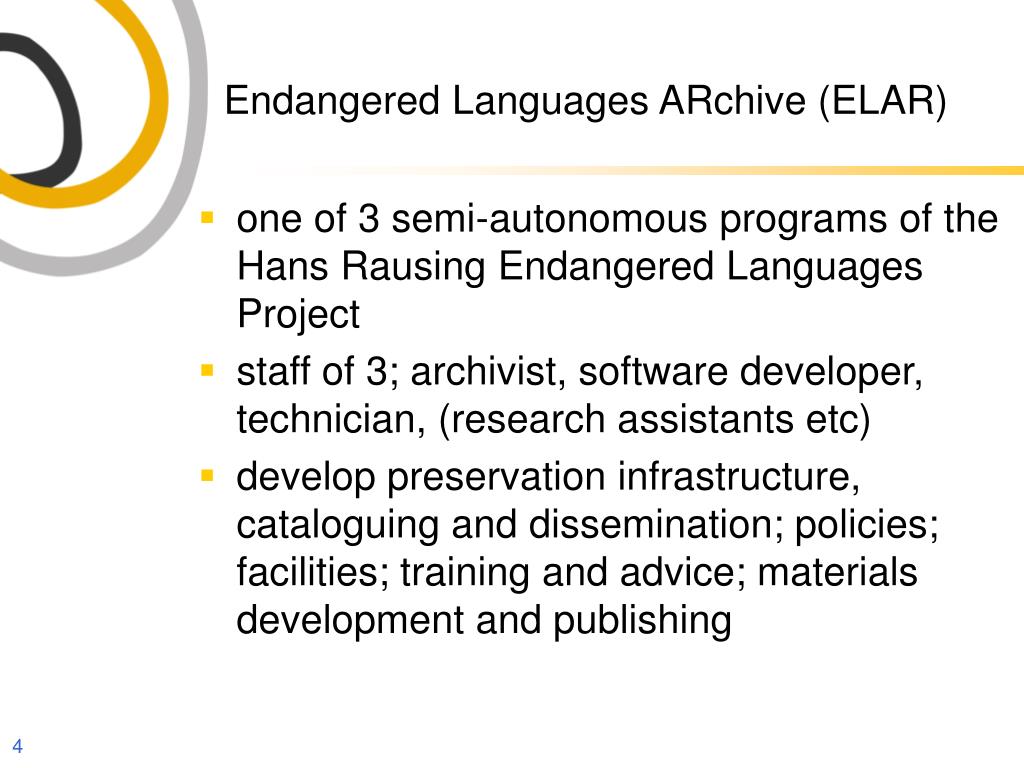

  4. Endangered Languages ARchive (ELAR) • one of 3 semi-autonomous programs of the Hans Rausing Endangered Languages Project • staff of 3; archivist, software developer, technician, (research assistants etc) • develop preservation infrastructure, cataloguing and dissemination; policies; facilities; training and advice; materials development and publishing

  5. What is a digital language archive? • a trusted repository created and maintained by an institution with a commitment to the long-term preservation of archived material • will have policies and processes for materials acquisition, cataloguing, preservation, dissemination, migration to new digital formats • a collection of managed materials

  6. What is archiving of language materials? • preparing materials in a structured form suitable for long-term preservation • creating long-term relationships • it is not backup • it is not dissemination/publication • it should not impinge on good linguistic practice

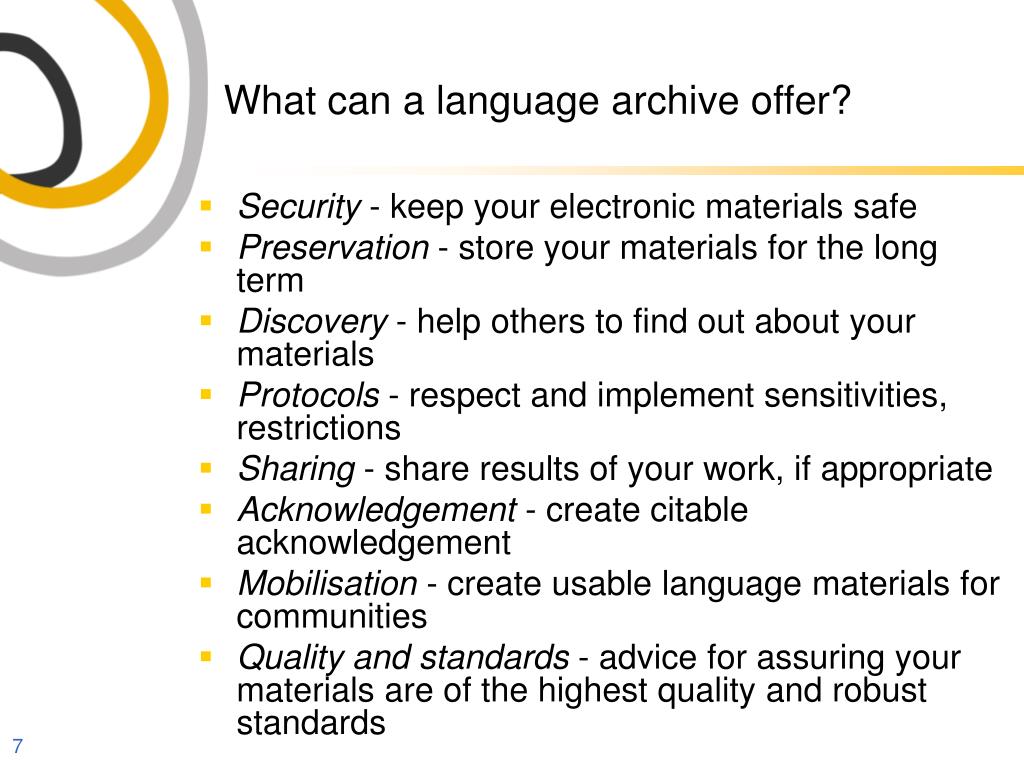

  7. What can a language archive offer? • Security - keep your electronic materials safe • Preservation - store your materials for the long term • Discovery - help others to find out about your materials • Protocols - respect and implement sensitivities, restrictions • Sharing - share results of your work, if appropriate • Acknowledgement - create citable acknowledgement • Mobilisation - create usable language materials for communities • Quality and standards - advice for assuring your materials are of the highest quality and robust standards

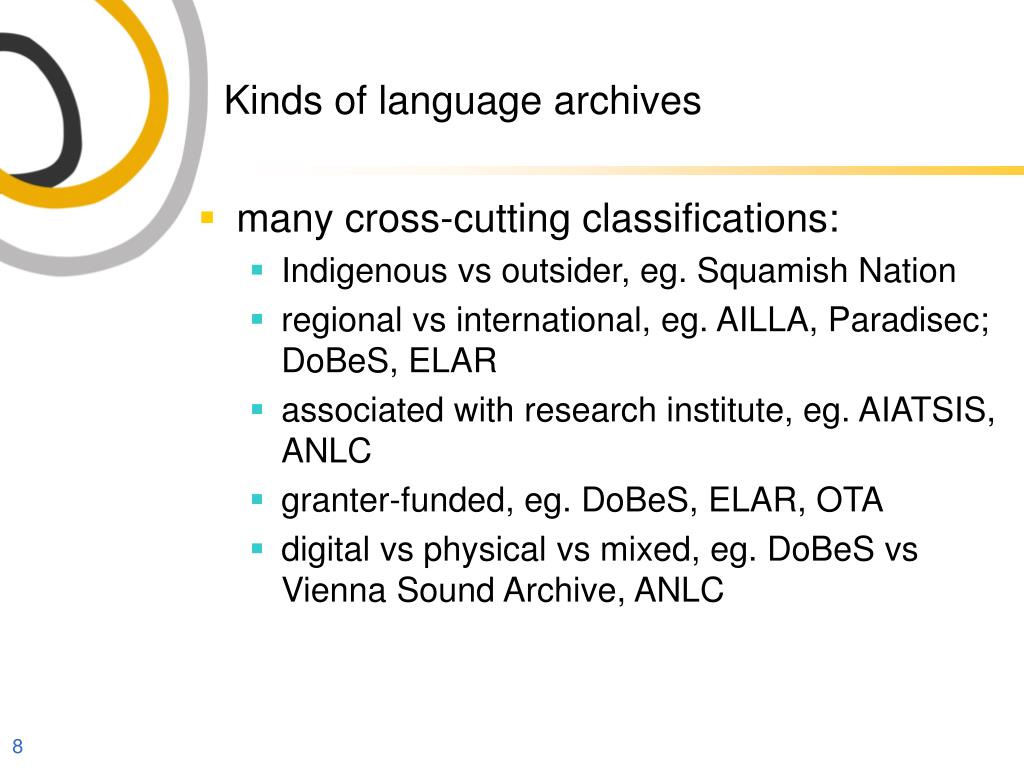

  8. Kinds of language archives • many cross-cutting classifications: • Indigenous vs outsider, eg. Squamish Nation • regional vs international, eg. AILLA, Paradisec; DoBeS, ELAR • associated with research institute, eg. AIATSIS, ANLC • granter-funded, eg. DoBeS, ELAR, OTA • digital vs physical vs mixed, eg. DoBeS vs Vienna Sound Archive, ANLC

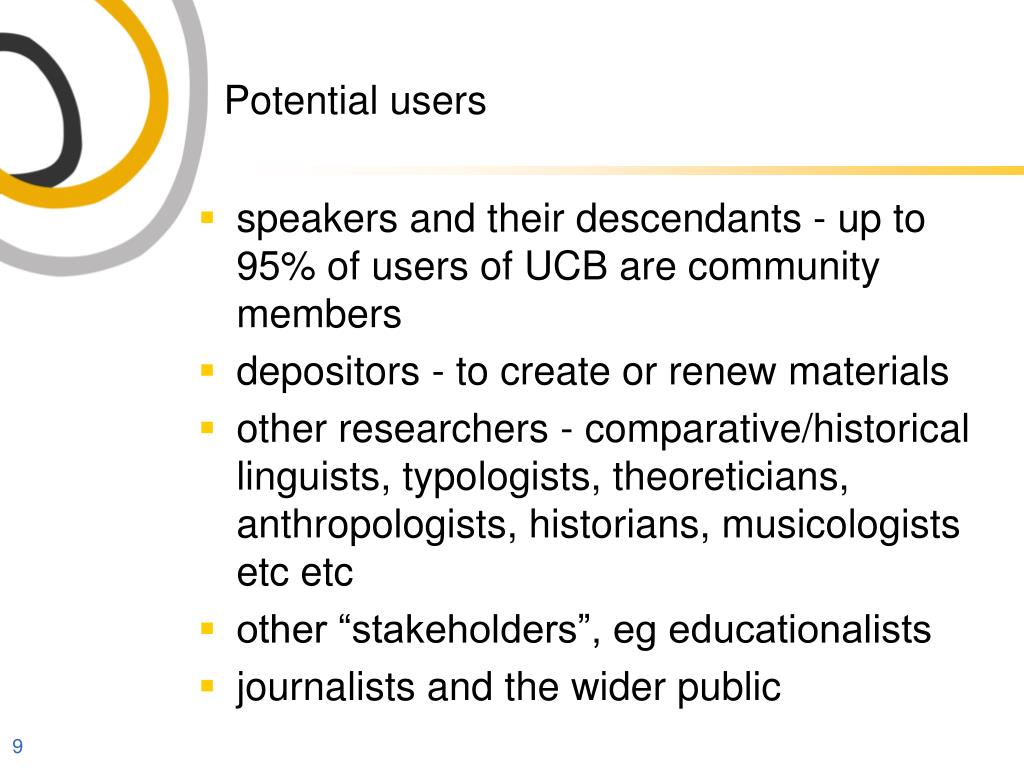

  9. Potential users • speakers and their descendants - up to 95% of users of UCB are community members • depositors - to create or renew materials • other researchers - comparative/historical linguists, typologists, theoreticians, anthropologists, historians, musicologists etc etc • other “stakeholders”, eg educationalists • journalists and the wider public

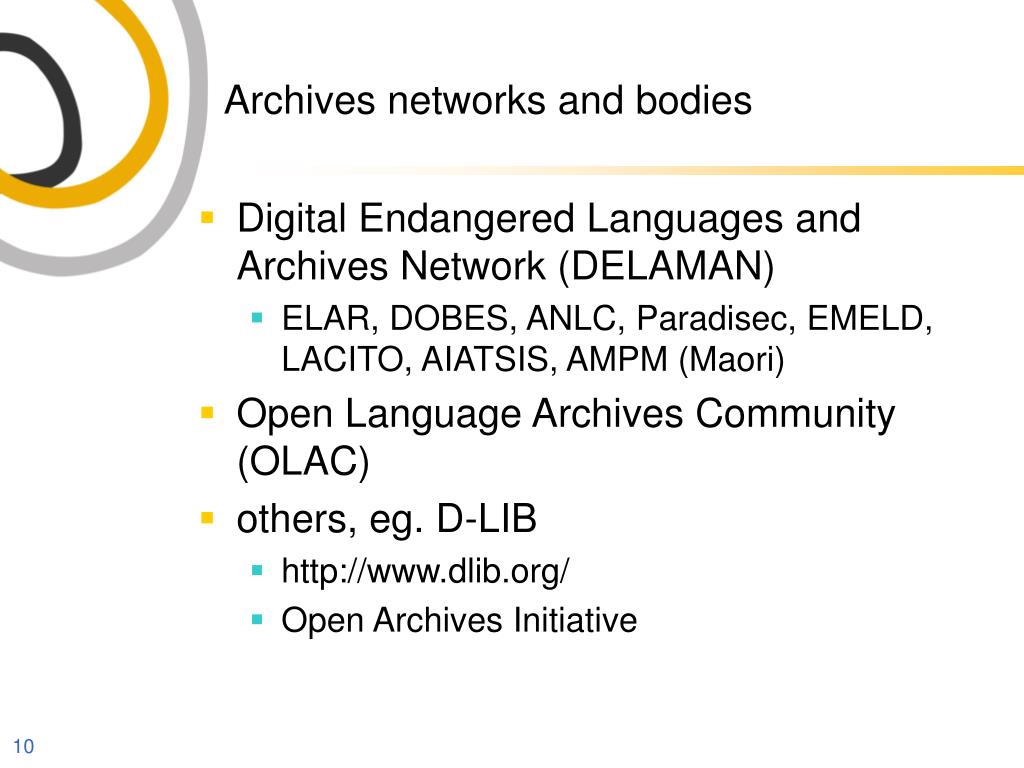

  10. Archives networks and bodies • Digital Endangered Languages and Archives Network (DELAMAN) • ELAR, DOBES, ANLC, Paradisec, EMELD, LACITO, AIATSIS, AMPM (Maori) • Open Language Archives Community (OLAC) • others, eg. D-LIB • http://www.dlib.org/ • Open Archives Initiative

  11. afd_34 afd_34 afd_34 afd_34 afd_34 dfa dfadf fds fdafds dfa dfadf fds fdafds dfa dfadf fds fdafds dfa dfadf fds fdafds dfa dfadf fds fdafds Digital archive architectures • OAIS archives define three types of ‘packages’ ingestion, archive, dissemination: Producers Ingestion Archive Dissemination Designated communities

  12. afd_34 afd_34 afd_34 afd_34 afd_34 dfa dfadf fds fdafds dfa dfadf fds fdafds dfa dfadf fds fdafds dfa dfadf fds fdafds dfa dfadf fds fdafds ‘Live Archives’ - architecture • Boundary between depositors, users and archive: • users add, update content; customise outputs Producers Ingestion Archive Dissemination Designated communities

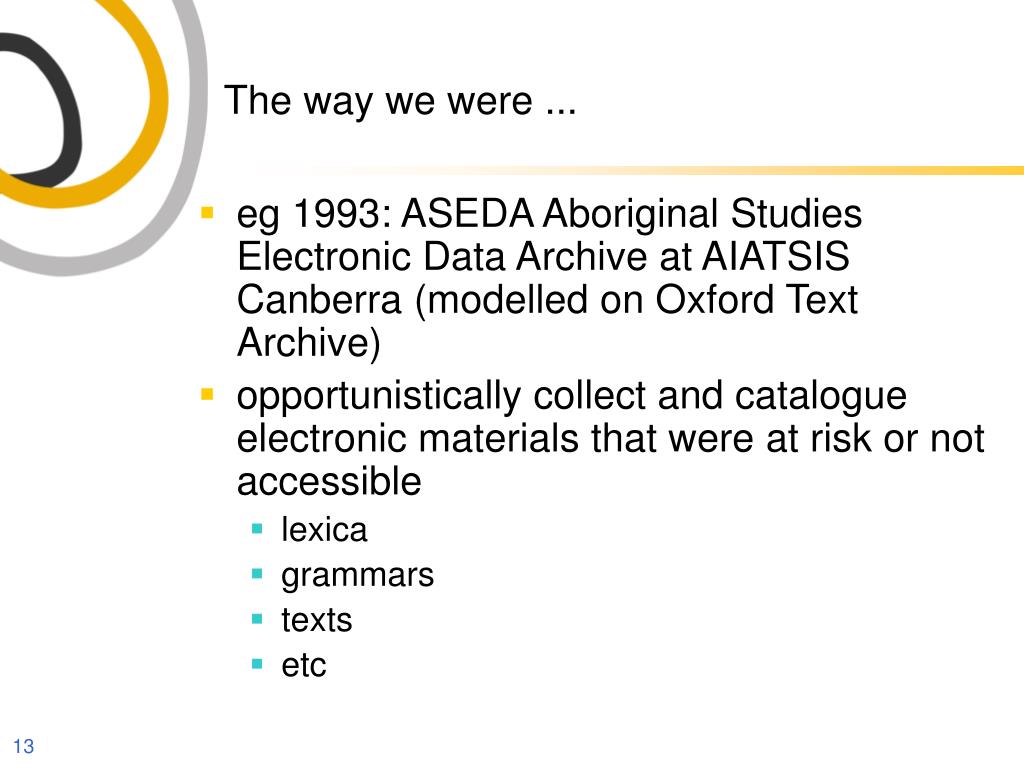

  13. The way we were ... • eg 1993: ASEDA Aboriginal Studies Electronic Data Archive at AIATSIS Canberra (modelled on Oxford Text Archive) • opportunistically collect and catalogue electronic materials that were at risk or not accessible • lexica • grammars • texts • etc

  14. How things have changed .. • types of data (modalities and some genres) • means of storage • standardisation and metadata • dissemination • (most explosive) expanded into practice and workflow of linguists

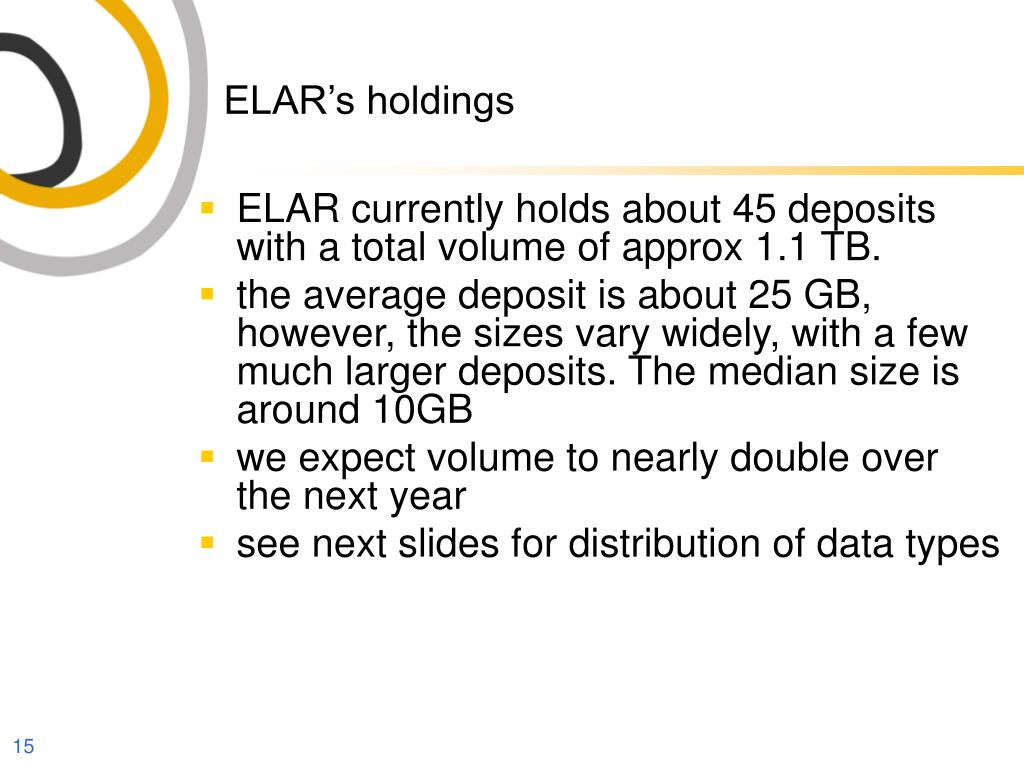

  15. ELAR’s holdings • ELAR currently holds about 45 deposits with a total volume of approx 1.1 TB. • the average deposit is about 25 GB, however, the sizes vary widely, with a few much larger deposits. The median size is around 10GB • we expect volume to nearly double over the next year • see next slides for distribution of data types

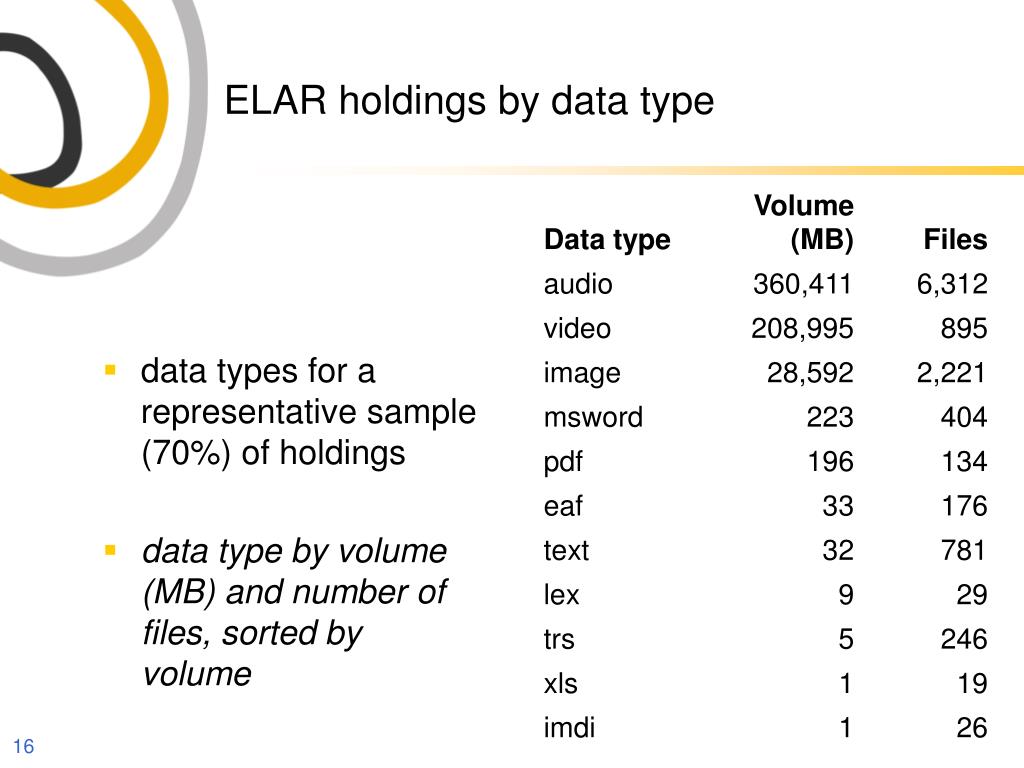

  16. ELAR holdings by data type • data types for a representative sample (70%) of holdings • data type by volume (MB) and number of files, sorted by volume

  17. If you are a depositor, ELAR will • preserve your deposited materials • provide for making changes where possible • provide web-based metadata management • implement your access restrictions etc • give feedback about materials • provide advice, general and specific • assistance, eg data conversion • provide some equipment and services • on a case by case basis, develop resources

  18. Preservation

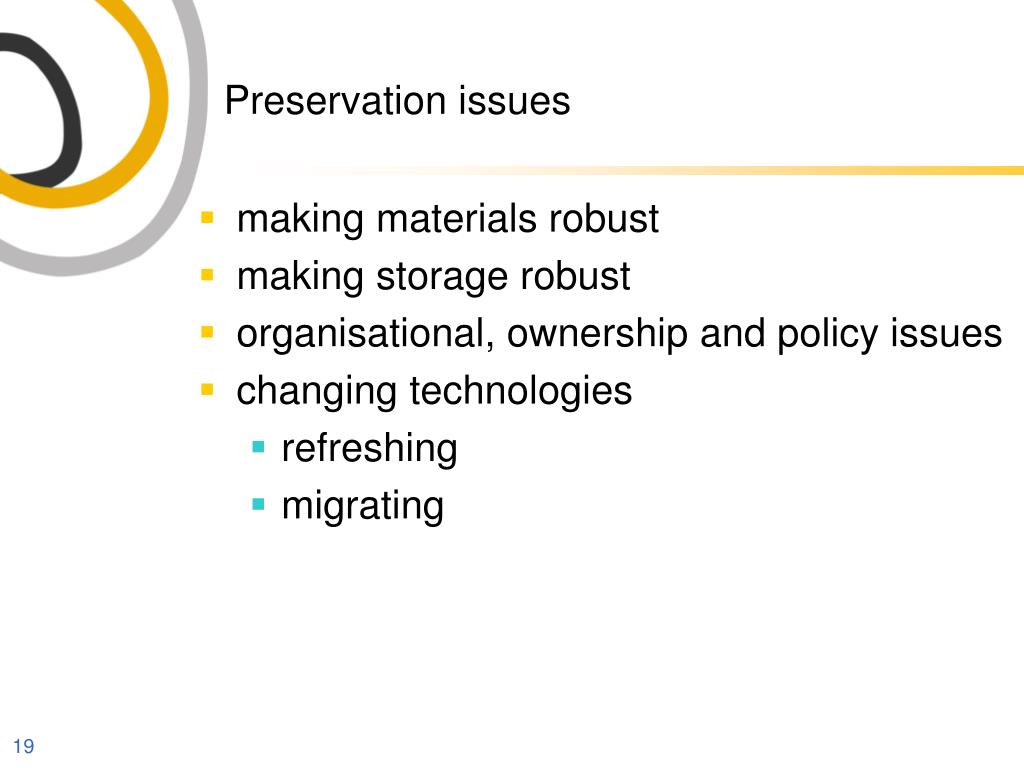

  19. Preservation issues • making materials robust • making storage robust • organisational, ownership and policy issues • changing technologies • refreshing • migrating

  20. Changing technologies • advantages of digital preservation • primarily: copying • items no longer unique • also transmission, dissemination • other implications • robust formats (standard, open, explicit) • formats with long horizons • formats easy to refresh • formats that don’t require particular software (sometimes software is intrinsic!) • may have to describe software or even archive the software

  21. Two preservation models • “preserve the bytestream” • keep the exact original at all costs • LOCKSS • “lots of copies keep stuff safe” • http://lockss.stanford.edu/ • guess which community it came from!

  22. Some backup issues • risk management • undetected problems and useless backups • aspects of professional backup: • scheduled frequencies, eg monthly, weekly, daily • retention • media and locations • naming/versions • proven restoration

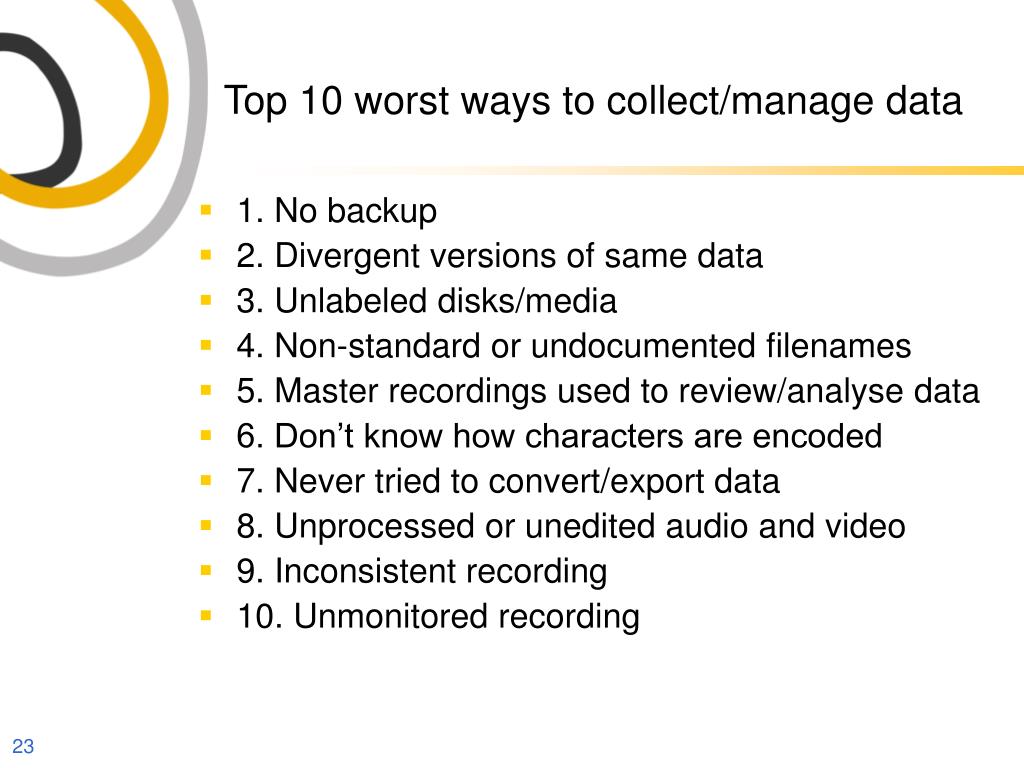

  23. Top 10 worst ways to collect/manage data • 1. No backup • 2. Divergent versions of same data • 3. Unlabeled disks/media • 4. Non-standard or undocumented filenames • 5. Master recordings used to review/analyse data • 6. Don’t know how characters are encoded • 7. Never tried to convert/export data • 8. Unprocessed or unedited audio and video • 9. Inconsistent recording • 10. Unmonitored recording

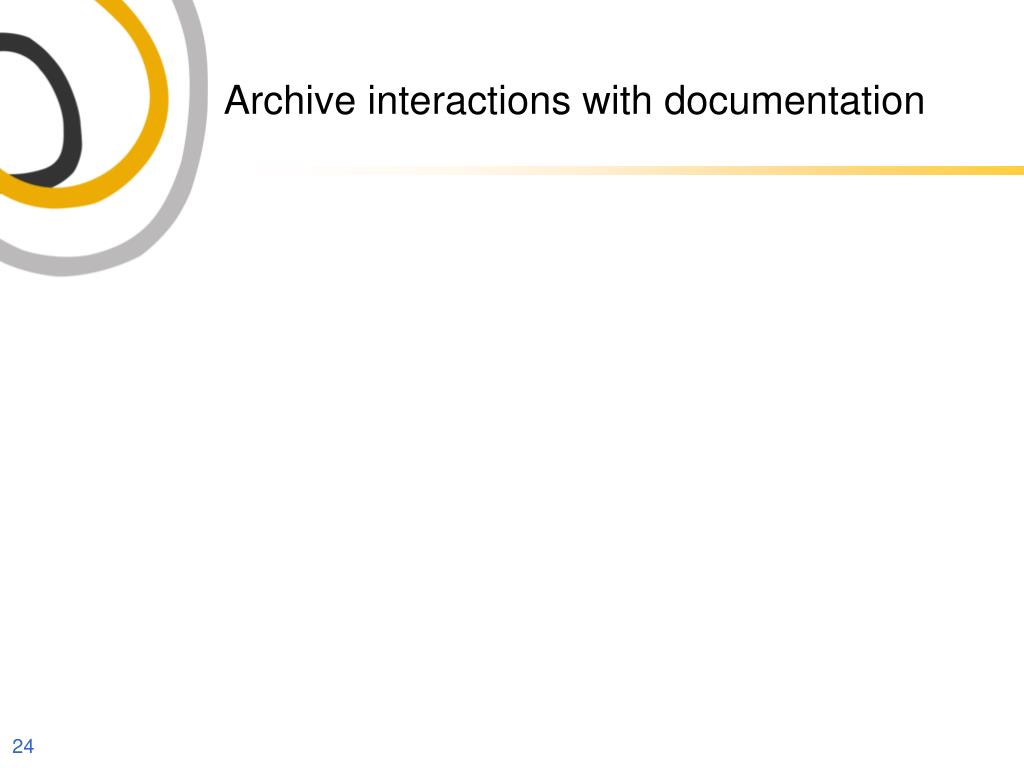

  24. Archive interactions with documentation

  25. Documenter and archive interactions • grant formulation and application • communications, questions, advice • training • archiving services

  26. Documenter & archive interactions

  27. Query/interaction topics • analysis of approx 150 queries from documenters/linguists over nearly 2 years

  28. What and how to archive

  29. What can you archive (at ELAR)? • media - sound, video • graphics - images, scans • text - fieldnotes, grammars, description, analysis • structured data - aligned and annotated transcriptions, databases, lexica • metadata - structured, standardised contextual information about the materials

  30. Archive objects • informed by traditions, eg document archives • sometimes called “resources”, bundles • it could be a file, a set of files, a directory, a “session” or a coherent item with many parts • should have archival qualities eg Bird & Simons “7 Dimensions” (or see Thieberger in LDD2) • may impose standard structures or formats • need deposit event and processes • legal and protocol • verification • accession • ongoing processes

  31. Archive objects should be selected • example: video: How much volume allocated? • answer: ... • however, e.g.: • unlikely that linguist is in position to plan and consistently create excellent video, so selection is unavoidable • data has always been selected!

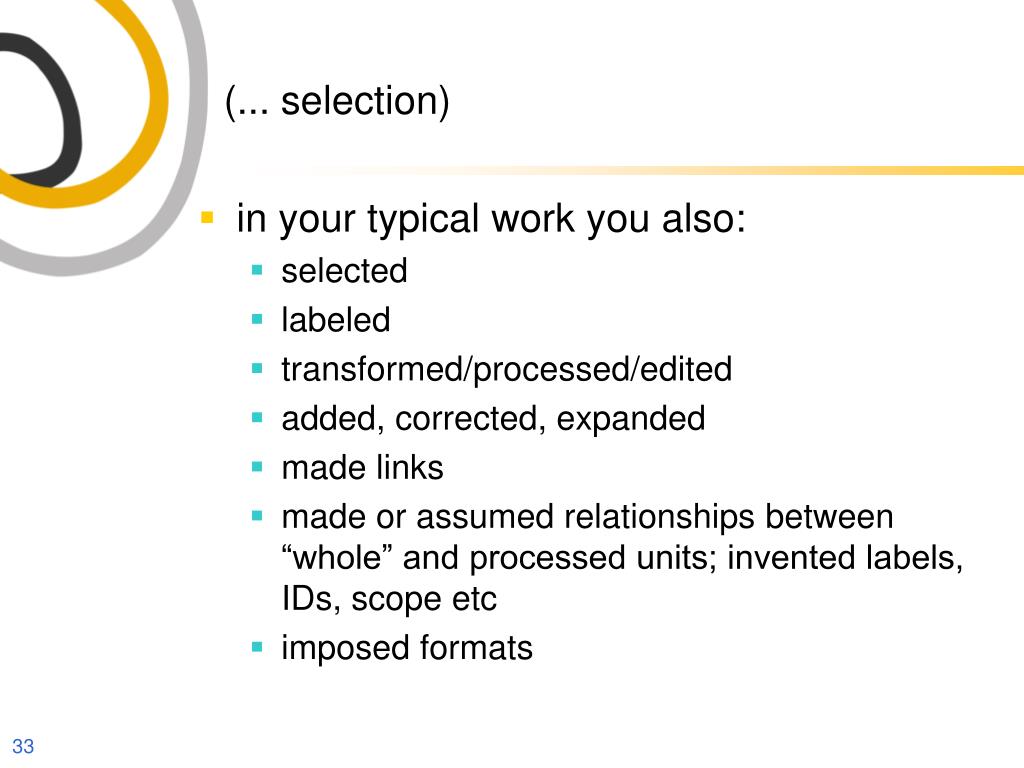

  32. (... selection) • in your typical work you also: • selected • labeled • transformed/processed/edited • added, corrected, expanded • made links • made or assumed relationships between “whole” and processed units; invented labels, IDs, scope etc • imposed formats

  33. Data portability • Bird and Simons 2003: (for language documentation) our data should have integrity, flexibility, longevity and utility

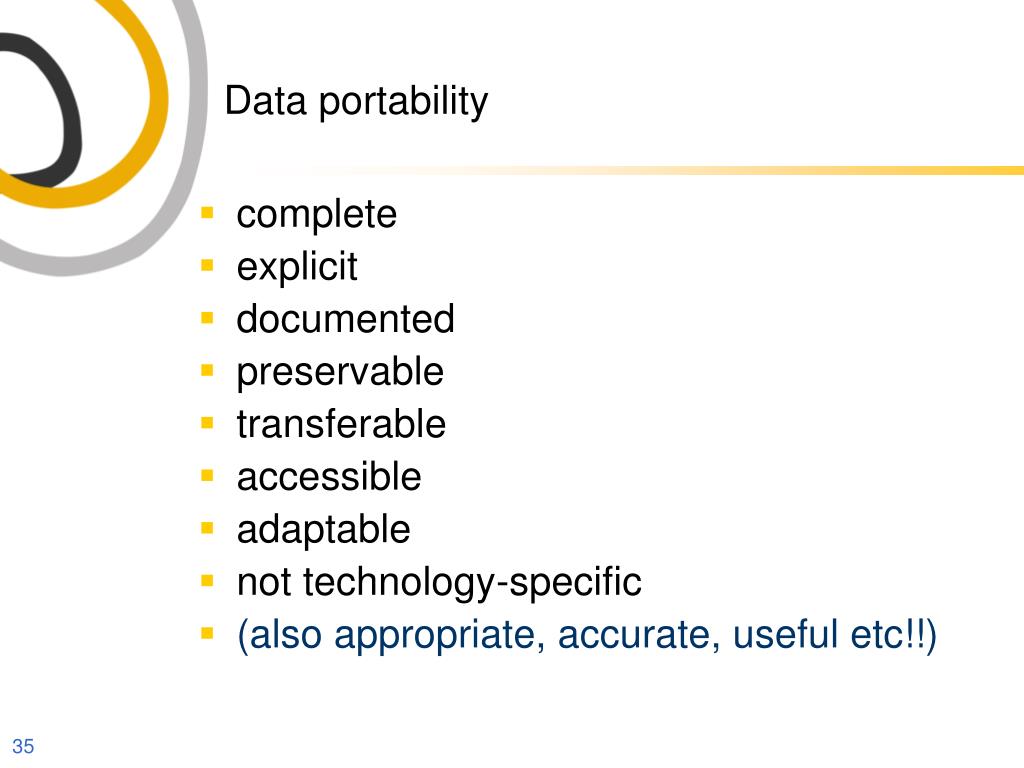

  34. Data portability • complete • explicit • documented • preservable • transferable • accessible • adaptable • not technology-specific • (also appropriate, accurate, useful etc!!)

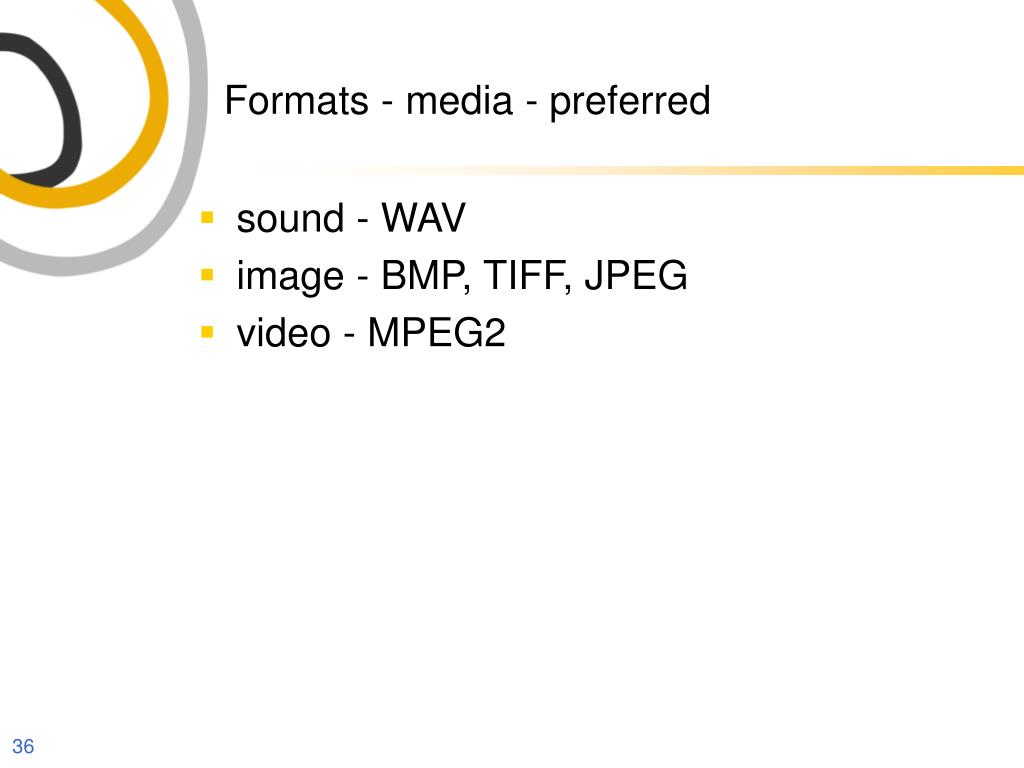

  35. Formats - media - preferred • sound - WAV • image - BMP, TIFF, JPEG • video - MPEG2

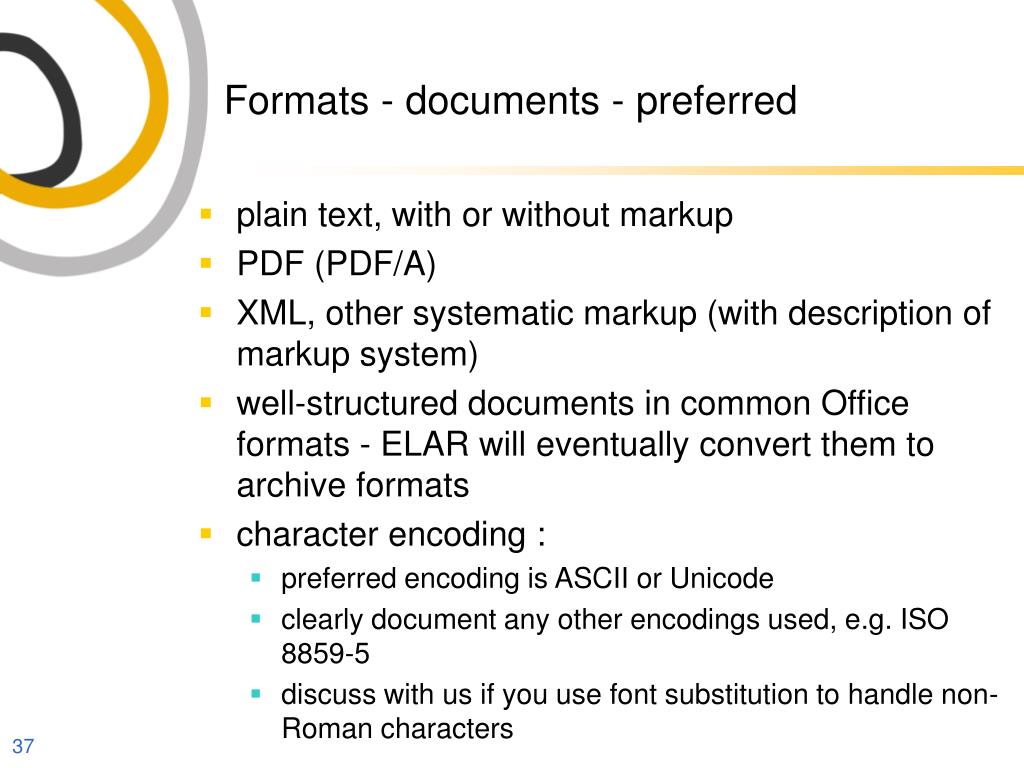

  36. Formats - documents - preferred • plain text, with or without markup • PDF (PDF/A) • XML, other systematic markup (with description of markup system) • well-structured documents in common Office formats - ELAR will eventually convert them to archive formats • character encoding : • preferred encoding is ASCII or Unicode • clearly document any other encodings used, e.g. ISO 8859-5 • discuss with us if you use font substitution to handle non-Roman characters

  37. Formats - characters - preferred • character encoding : • ASCII or Unicode (UTF-8) • you must clearly document any other encodings used, e.g. ISO 8859-9 • discuss with us if you use font substitution to handle non-Roman characters

  38. Filenames and directories • characters [A-Z], [a-z], [0-9], underscore and a single full stop before the extension • correct MIME extension • favour lower case letters • maximum length 30 characters • maximum directory depth 8 • = ASCII only, no spaces

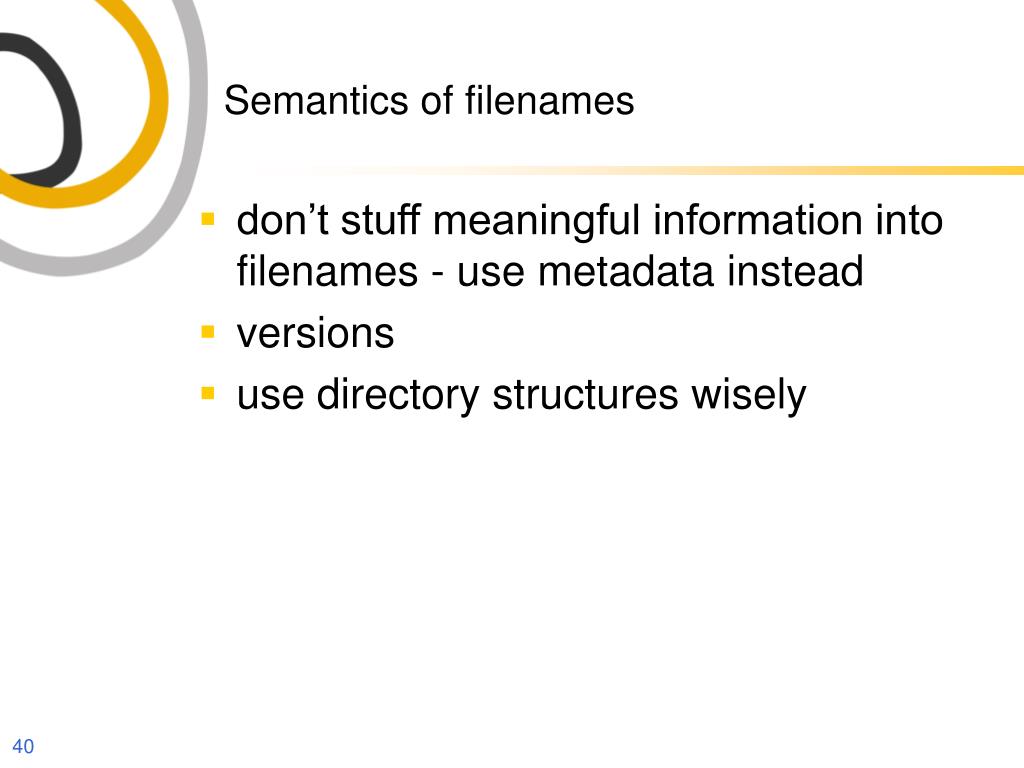

  39. Semantics of filenames • don’t stuff meaningful information into filenames - use metadata instead • versions • use directory structures wisely

  40. Data format duty cycle examples

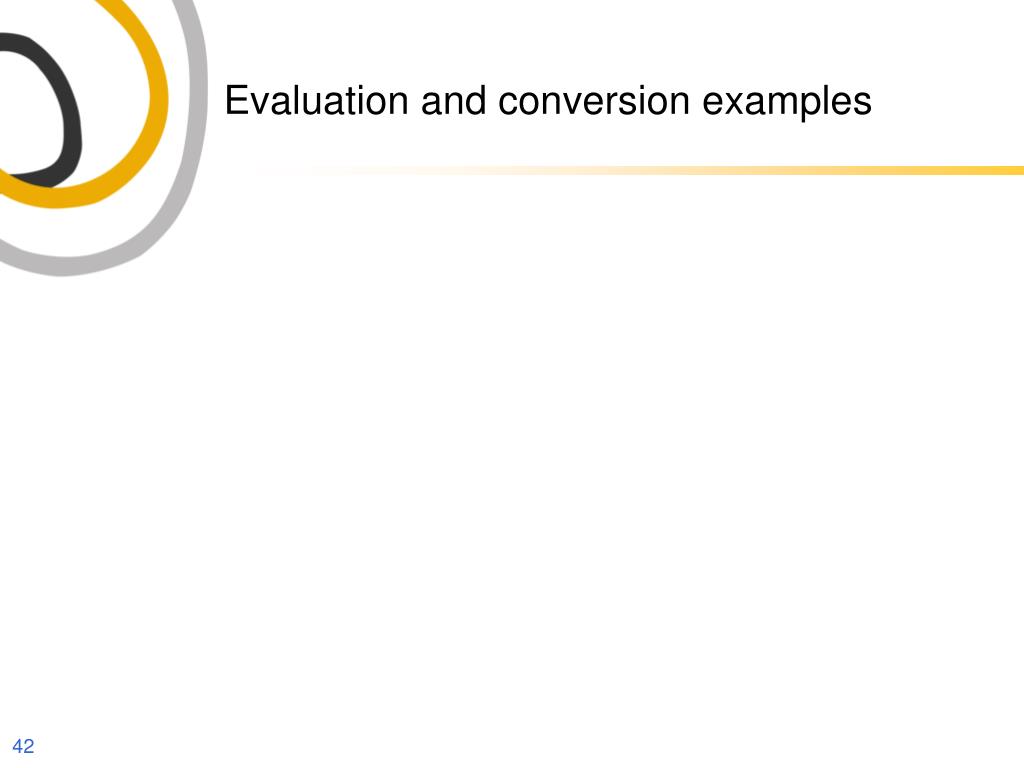

  41. Evaluation and conversion examples

  42. Characters • did my characters comethrough? • answer: ... • however: • perhaps ELAR should do it? hápa ki hená mázaska wikcémna núpa iyóphe-wa-ye kst DBW wóz?az?a-s?ni yeló DB OK wash things-NEG ASS.M 'he didn't do the wash' wózaza-sni yeló DB OK wash things-NEG ASS.M 'he didn't do the wash'

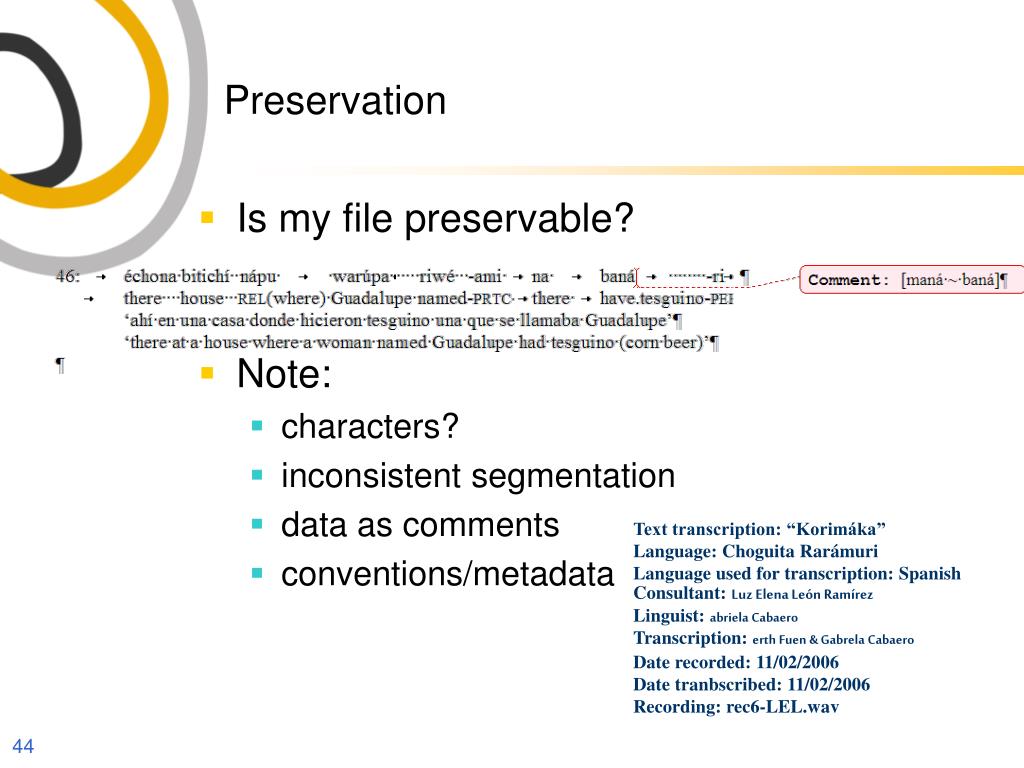

  43. Preservation • Is my file preservable? • Note: • characters? • inconsistent segmentation • data as comments • conventions/metadata Text transcription: “Korimáka” Language: Choguita Rarámuri Language used for transcription: Spanish Consultant: Luz Elena León Ramírez Linguist: abriela Cabaero Transcription: erth Fuen & Gabrela Cabaero Date recorded: 11/02/2006 Date tranbscribed: 11/02/2006 Recording: rec6-LEL.wav

  44. Knowledge representation 1 - before wama momol chi naron mon chayako (LB) / wama momol chi naron chayako (MD) wama momol chi nan mon chayako (more emphatic(LB) / wama momol chi nan chayako (MD) Why don't you and him do it? + Notes have both of these sentences without the negator mon. OK runon naynangkroy ile ri He ate their sago. * kipin kannangkroy ngolu intended: We ate their cassowary. OK kipin kanangkroy ngolu We ate their cassowary.

  45. Knowledge representation 1 - after * kipin kannangkroy ngolu intended: We ate their cassowary. OK kipin kanangkroy ngolu We ate their cassowary. <sentence.set num="75"> <version> <walman>Kipin kannangkroy ngolu</walman> <judgement>*</judgement> </version> <english>We ate their cassowary. </english> </sentence.set> <sentence.set num="76"> <version> <walman>Kipin kanangkroy ngolu</walman> <judgement>OK</judgement> </version> <english>We ate their cassowary.</english> </sentence.set>

  46. Knowledge representation 2 • avoid generic software “convert to XML” <?xml version=“1.0” encoding=“UTF-8”?> <FMPXMLRESULT xmlns=“http://www.filemaker.com/fmpxmlresult”> <PRODUCT BUILD=“06/26/2002” NAME=“FileMaker Pro” VERSION=“6.0v2”/> <DATABASE DATEFORMAT=“M/d/yyyy” LAYOUT=““ NAME=“Videos” RECORDS=“13” TIMEFORMAT=“h:mm:ss a”/> <METADATA> <FIELD EMPTYOK=“YES” MAXREPEAT=“1” NAME=“Index name” TYPE=“TEXT”/> <FIELD EMPTYOK=“YES” MAXREPEAT=“1” NAME=“Image desc” TYPE=“TEXT”/> <FIELD EMPTYOK=“YES” MAXREPEAT=“1” NAME=“Date” TYPE=“TEXT”/> <FIELD EMPTYOK=“YES” MAXREPEAT=“1” NAME=“Content” TYPE=“TEXT”/> </METADATA> <RESULTSET FOUND=“13”> <ROW MODID=“16” RECORDID=“40”> <COL><DATA>Morly Beeta</DATA></COL> <COL><DATA>Interview with Morly Beeta</DATA></COL> <COL><DATA>Jan/13/05</DATA></COL> <COL><DATA>Obu history by Morly Beeta</DATA></COL> </ROW>

  47. ELAR conversion - original

  48. ELAR conversion - XHTML

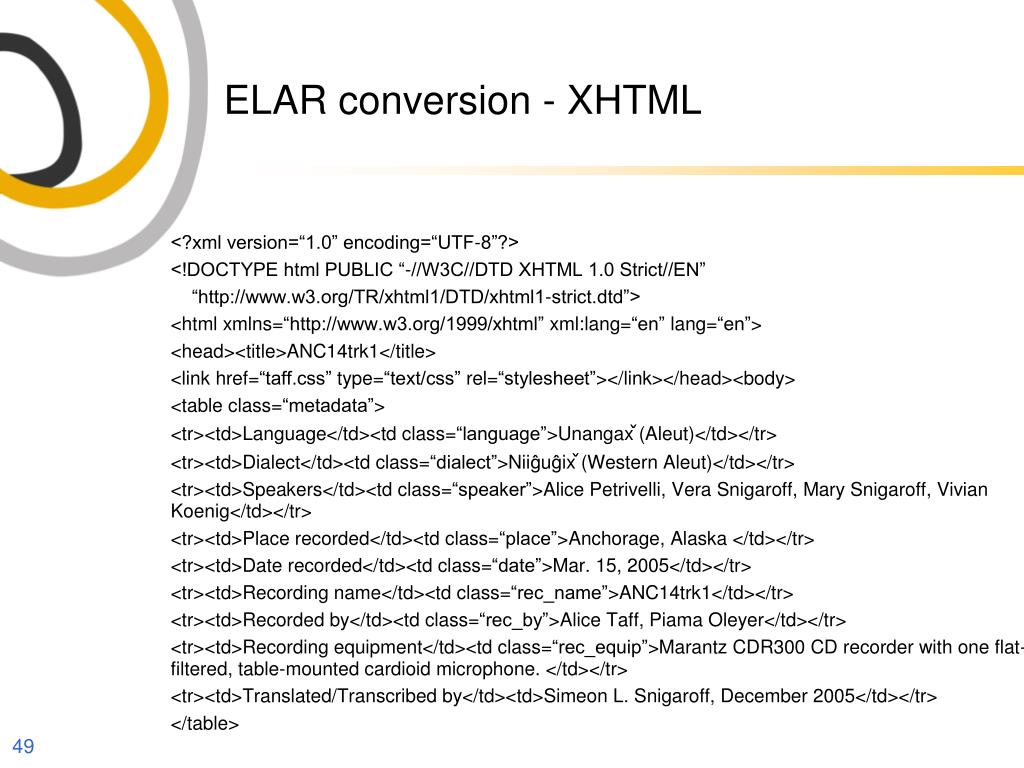

  49. ELAR conversion - XHTML
