  1. Performance Characterization of Video-Shot-Change Detection Methods U. Gargi, R. Kasturi, S. Strayer Presented by: Isaac Gerg

  2. What is a Shot? • “The process of identifying changes in the scene content of a video sequence so that alternate representations may be derived for the purposes of browsing and retrieval.” ~ Quoted directly • Shot – A sequence of frames shot from the same camera. • Shot-Change examples: cuts, transitions, wipes, etc.

  3. Why Do We Care? • Indexing – video retrieval • Compression (e.g. MPEG) – determining key frames. • Removing commercials! (TiVo)

  4. Preview • Create a method for measuring the performance of a shot-change algorithm. • Measure both false detections & missed detections. • Measure performance of both cut detection & gradual transition detection. • Apply shot-change algorithms to ground truth video sequence. • Perform measurements and throughput analysis. • Compare the results.

  5. Ground Truth Video Sequence • 640x480 @ 30 frames/s. • ~75 minutes in length • M-JPEG format • Human volunteers used to establish ground truth. • Custom software used to notate shot-change.

  6. Defining a Detection • Algorithm detection must occur within so many frames of ground truth detection. Mapping Range = RM • Cut changes: RM= 3Gradual Transition:RM=10

  7. Detection Performance Measurements Where: MD is Missed Detections; FA is False Alarms.

  8. Desirable Characteristics • 90%-95% recall with 70%-75% precision. • Robust. • Automatic thresholds. • High throughput. • Perform well on both cuts and gradual transitions.

  9. Algorithms Evaluated • Color Histograms • RGB, HSV, YIQ, XYZ, L*a*b, L*u*v, Munsell, Opponent • Frame Difference Measurements • Bin-to-bin Differences (B2B), Chi-square test, Histogram intersection, Average Color • Dimensionality – 1D, 2D, 3D • MPEG Algorithms – A, B, C, D, E, F • Block Matching Methods – A, B, C

  10. Best Methods - Cut • Histogram intersection: • 1D and 3D methods.

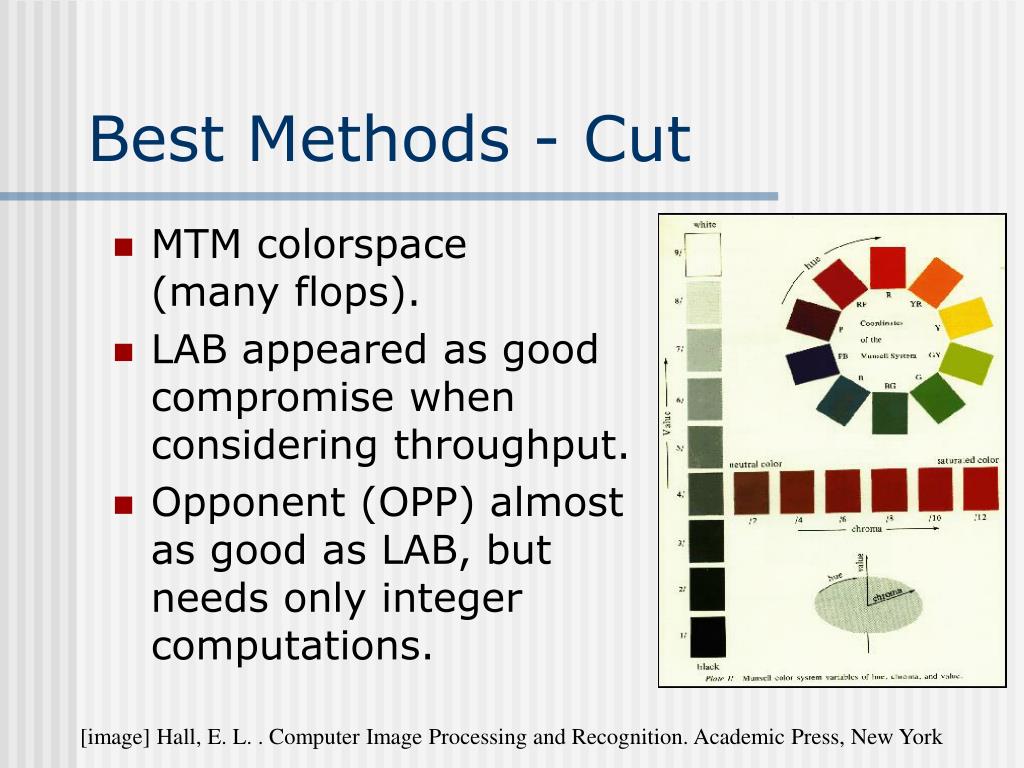

  11. Best Methods - Cut • MTM colorspace (many flops). • LAB appeared as good compromise when considering throughput. • Opponent (OPP) almost as good as LAB, but needs only integer computations. [image] Hall, E. L. . Computer Image Processing and Recognition. Academic Press, New York

  12. Best Methods - Cut • Best recall: MPEG-A, 97% with 6% precision. Uses only I frames. • Best precision: MPEG-D, 88% with 79% recall. Uses I, B, & P frames.

  13. Worst Methods - Cut • Chi-square test histogram difference: • Average color of a frame. • 2D methods.Indicates luminance is important. • YYY colorspace. Indicates color content is important • All the block-matching methods.

  14. Best Methods - Transition Only MPEG algorithms evaluated. • MPEG-D: Uses all frames (I, P, B). Uses multiframe differences to detect gradual transitions. Uses 11 parameters. • MPEG-F: Uses color information (Y, Cr, Cb). Uses order statistics to detect gradual transitions. Needs 7 parameters.

  15. Worst Methods - Transition • MPEG-A was the worst. Only contains I frames. • Most performed poorly as they expected a particular transition curve.

  16. MPEG - Source Effects • Desirable to have a good MPEG method independent of encoder. • Authors found dependence on algorithm performance and MPEG encoder used. • MPEG does not specify encoding method, only syntax of encoded bitstream. • Different error estimates or DCT matrices may be used during encoding. • MPEG-F appeared to be the most robust.

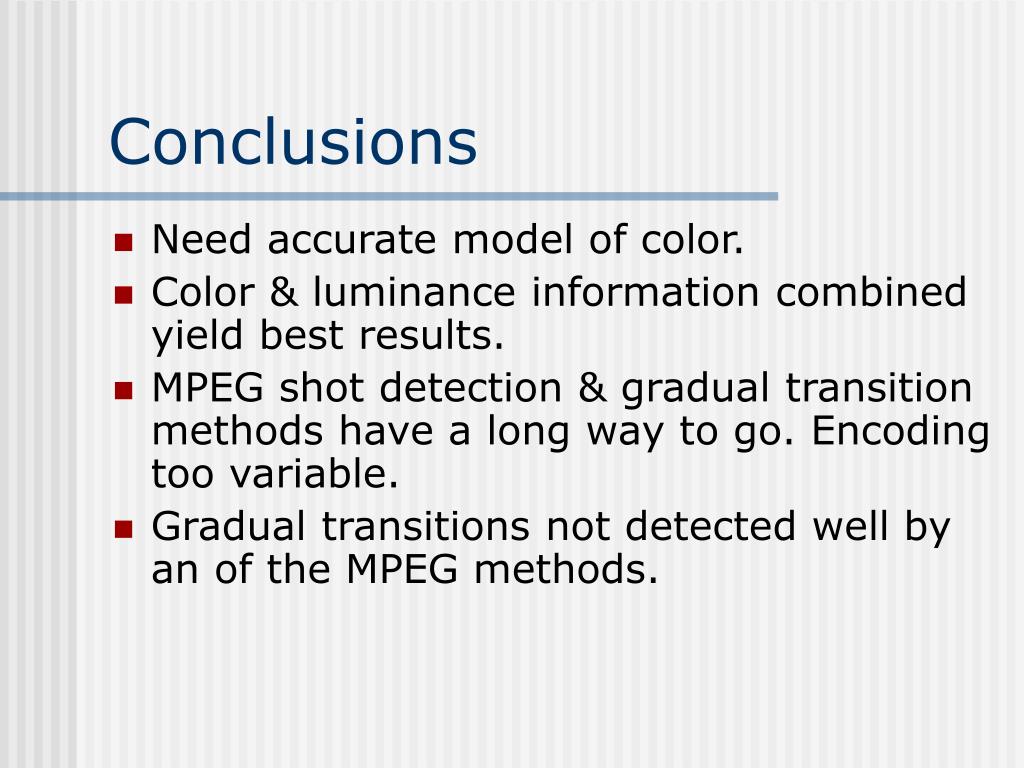

  17. Conclusions • Need accurate model of color. • Color & luminance information combined yield best results. • MPEG shot detection & gradual transition methods have a long way to go. Encoding too variable. • Gradual transitions not detected well by an of the MPEG methods.

  18. Questions?
