Aggregating Federated Audit Repositories for Healthcare Facilities

erline avatar
erline
8 diapositives · 111 Views · Jan 06, 2020

Learn how to aggregate and extract audit records for processing using media/files and other tools in the ATNA repository. Explore the advantages of a standard approach and building on existing infrastructure for cloud systems and warehouse computing. Discover the capabilities of RFC-5424 and ATNA for aggregation and federation, and find out about different content formats and transport options. Understand the stability of works in progress and the extent of analysis reporting defined by ITI.

#aggregating federated audit repositories for healthcare facilities #aggregating federated audit repositories for healthcare facilities ppt #powerpoint #presentation
Aggregating Federated Audit Repositories for Healthcare Facilities - slide 1
01 / 8Aggregating Federated Audit Repositories for Healthcare Facilities
1 / 17

Télécharger la présentation

Aggregating Federated Audit Repositories for Healthcare Facilities
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

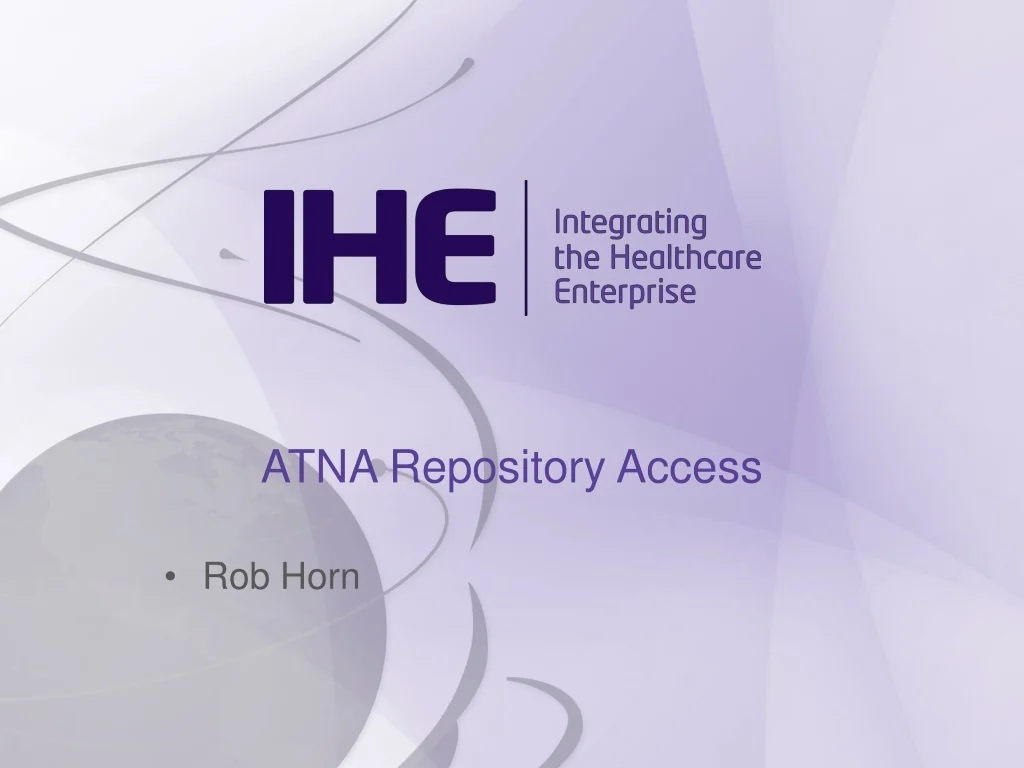

  1. ATNA Repository Access Rob Horn

  2. Problem How to aggregate federated audit repositories How to extract audit records for processing How to use media/files/etc. for transferring audit records The present ITI framework is silent on the external capabilities of a repository. Silence on aggregation makes it much harder to merge, restructure, and modify medium to large healthcare facilities and networks.

  3. Customer Value A standard approach allows use of COTS A standard approach that is not healthcare specific will have greater advantages Build on existing infrastructure for cloud systems, warehouse computing, etc.

  4. Existing RFC-5424 ATNA specifies use of RFC-5424 ATNA does not require support for RFC-5424 aggregation and federation capabilities. Some ATNA implementations do provide that, because it is part of RFC-5424. Content (ATNA, SystemD, other formats) RFC-5424 Tags Transport (UCP/TCP/TLS)

  5. RFC-5424 categorization All RFC-5424 compliant messages (e.g., ATNA plus all other) are tagged with: Priority Facility Type Severity Time Original Source Original application Original process ID Message ID ATNA adds structure requirements to the Message Contents.

  6. Aggregation RFC 5424 defines a store/filter/forward mechanism ITI could add it as an option so that aggregation, etc. are verified as part of connectathon. The example configurations from the RFC are:

  7. Extract A RESTful manner to query for an extract would simplify analysis programs. SystemD is specifying a query mechanism for extraction, although the present API assumes internal system call not HTTP. A standard format for extracts would simplify analysis programs. ATNA specifies an XML encoding SystemD is specifying a JSON encoding for syslog messages Other groups are specifying a JSON encoding for syslog messages

  8. Issues Do we restrict ourselves to healthcare ATNA compliant messages only? or FHIR only? Or DICOM only? How stable are the various works in progress (SystemD, FHIR, Rsyslog, …) To what extent does ITI define specific analysis reports, e.g., “reporting of disclosures”, versus enable implementation of applications for reporting purposes.
