  1. Amarillo International Airport Aircraft Familiarization 232.35

  2. Beechcraft 1900

  3. Objectives ARFF Personnel should be able to do the following: 1. Identify the propulsion system

  4. Objectives ARFF Personnel should be able to do the following: 2. Locate normal entry doors, emergency exit openings and evacuation slides

  5. Objectives ARFF Personnel should be able to do the following: 3. Demonstrate the opening of all doors and compartments

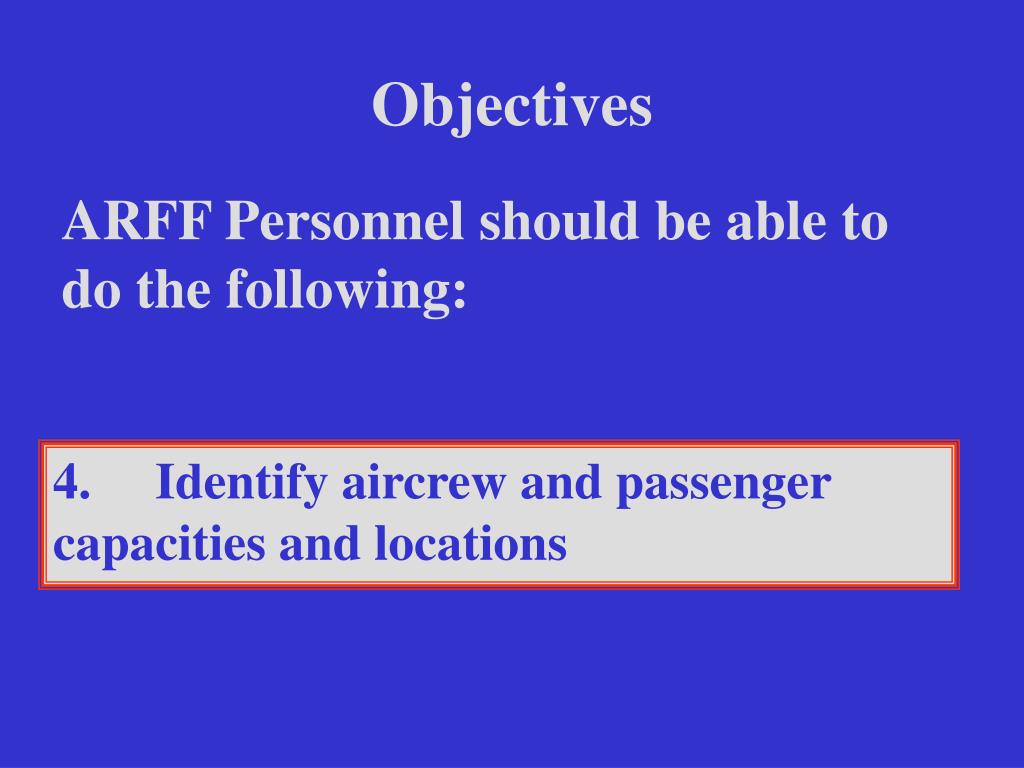

  6. Objectives ARFF Personnel should be able to do the following: 4. Identify aircrew and passenger capacities and locations

  7. Objectives ARFF Personnel should be able to do the following: 5. Indicate the type of fuel used, location of fuel tanks and capacity of fuel tanks

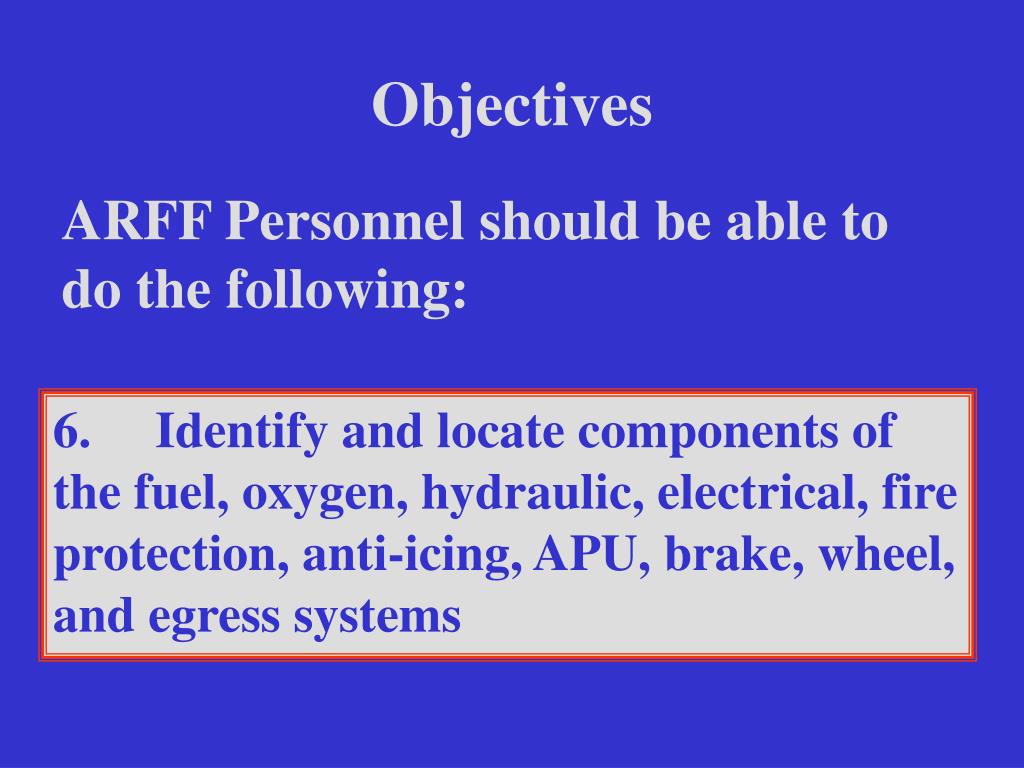

  8. Objectives ARFF Personnel should be able to do the following: 6. Identify and locate components of the fuel, oxygen, hydraulic, electrical, fire protection, anti-icing, APU, brake, wheel, and egress systems

  9. Objectives ARFF Personnel should be able to do the following: 7. Identify and locate the flight data recorder and cockpit voice recorder

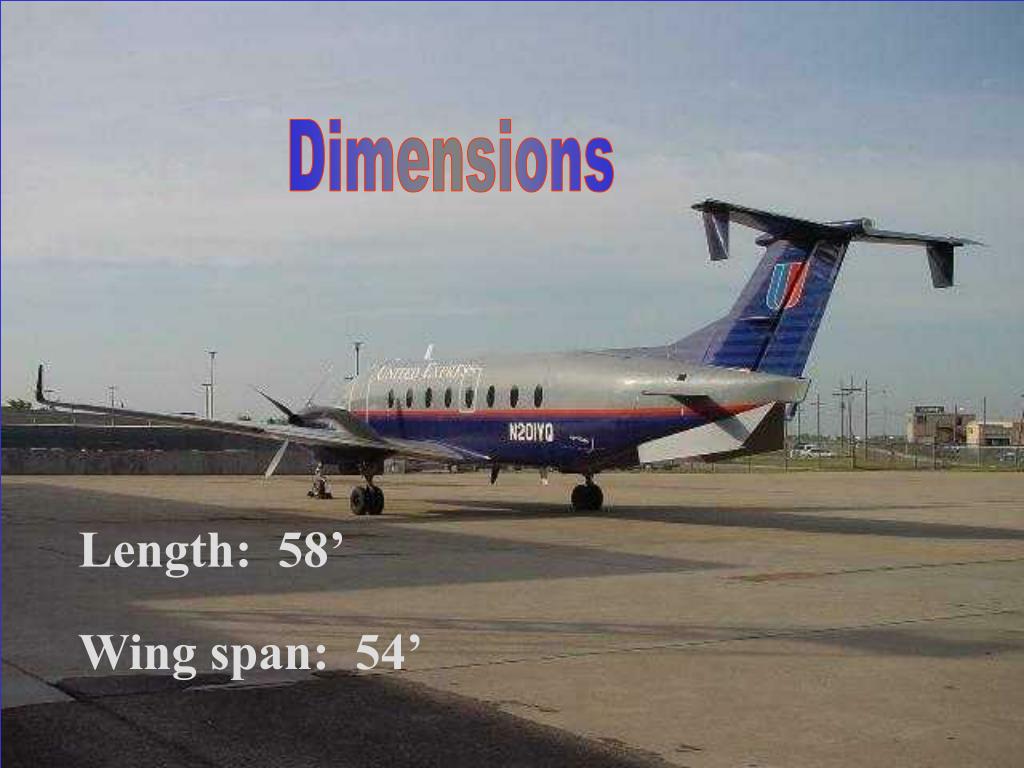

  10. Dimensions Length: 58’ Wing span: 54’

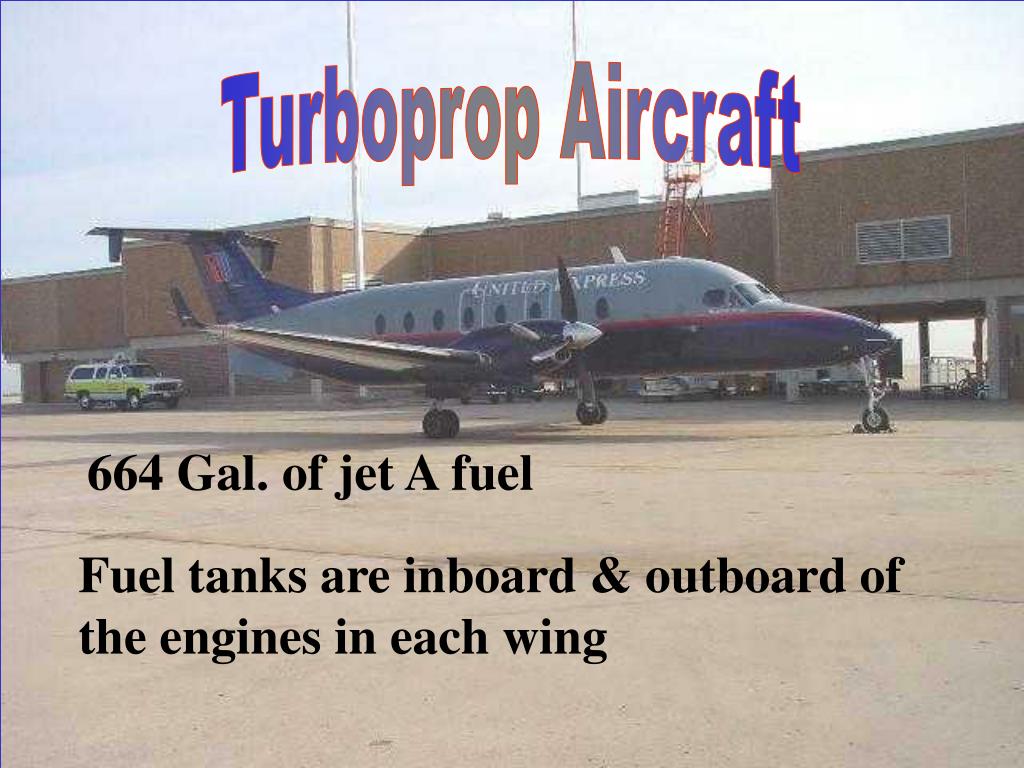

  11. Turboprop Aircraft 664 Gal. of jet A fuel Fuel tanks are inboard & outboard of the engines in each wing

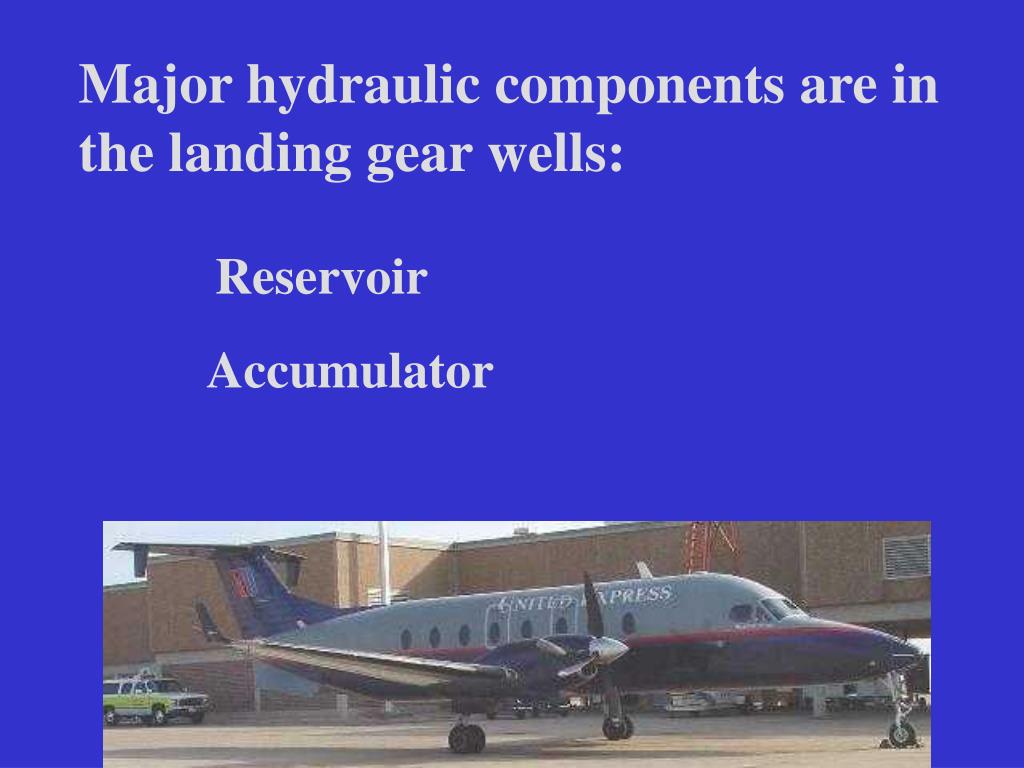

  12. Major hydraulic components are in the landing gear wells: Reservoir Accumulator

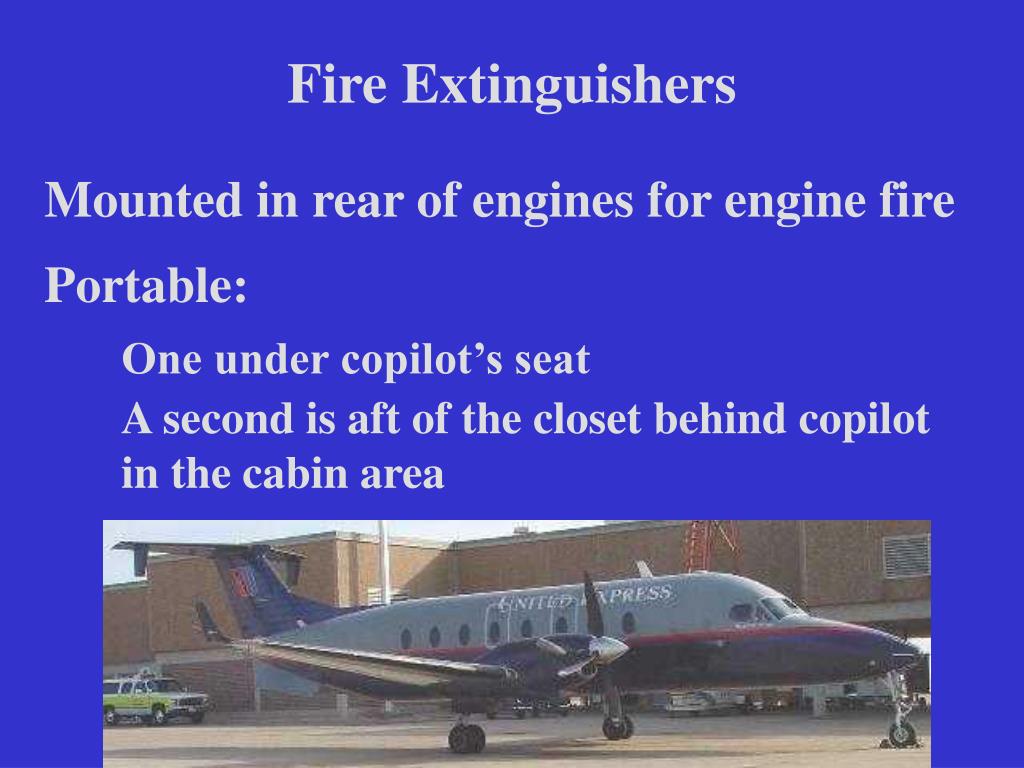

  13. Fire Extinguishers Mounted in rear of engines for engine fire Portable: One under copilot’s seat A second is aft of the closet behind copilot in the cabin area

  14. No APU Cabin can be pressurized by engine bleed air

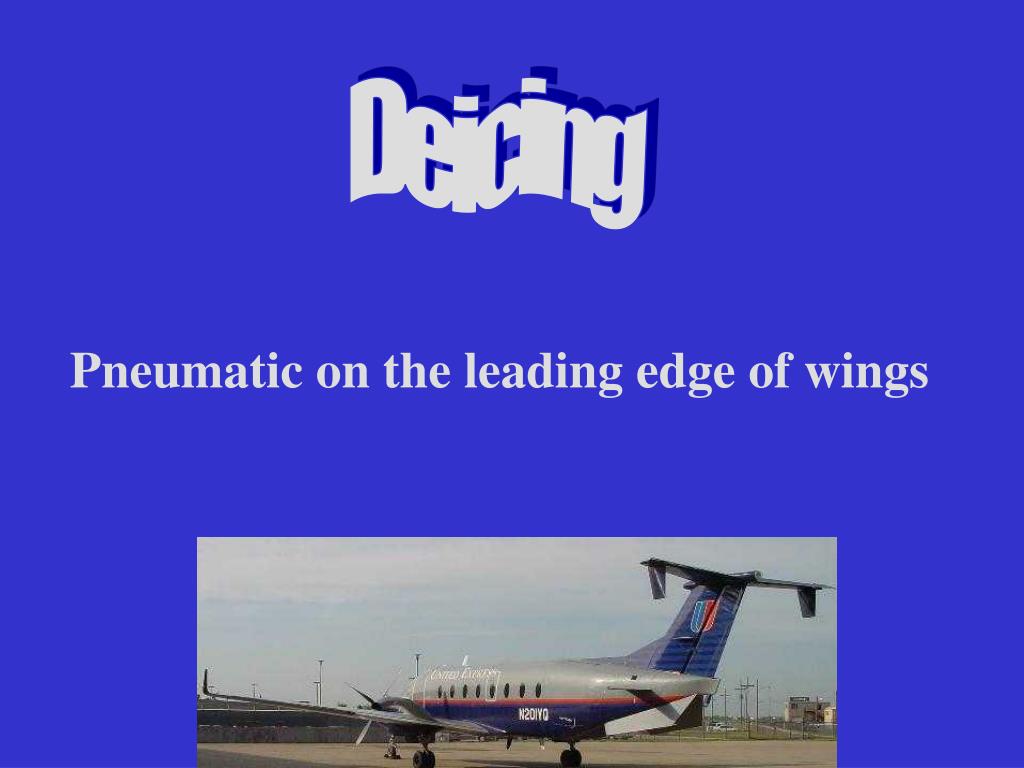

  15. Deicing Pneumatic on the leading edge of wings

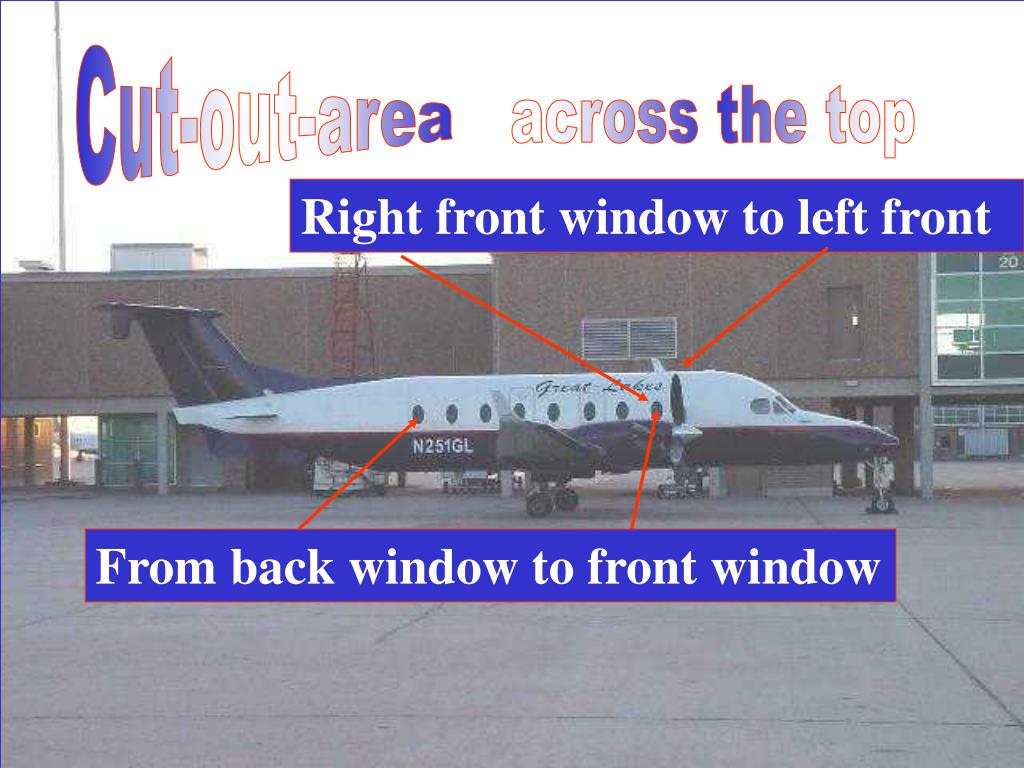

  16. Right front window to left front From back window to front window Cut-out-area across the top

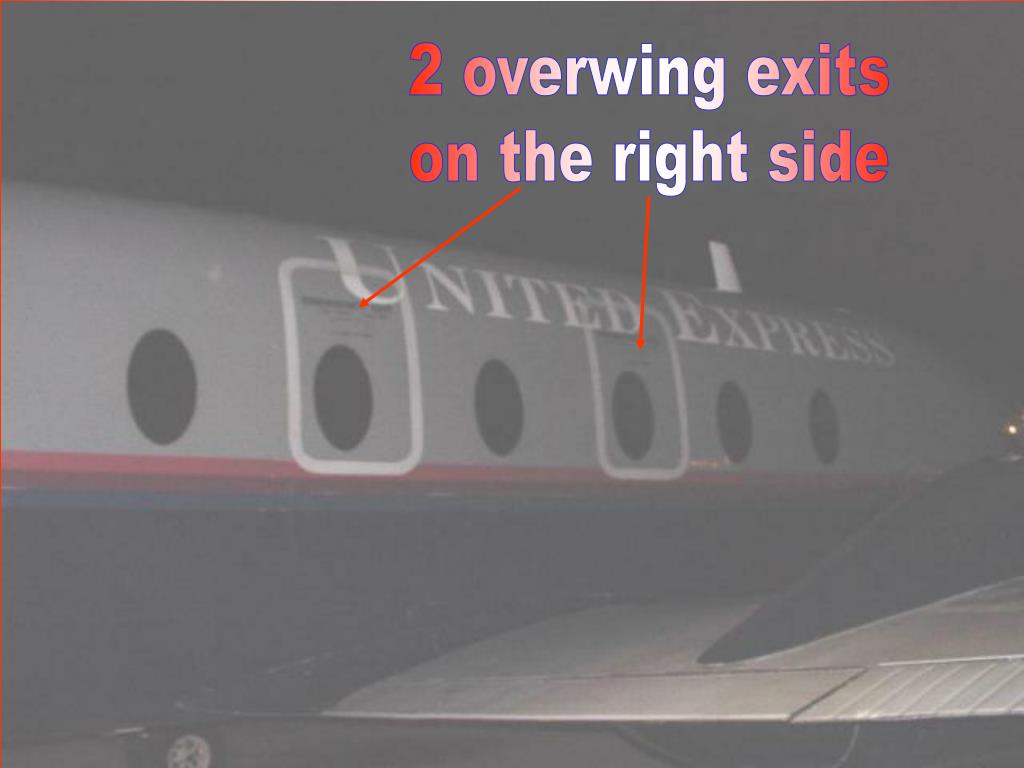

  17. 2 overwing exits on the right side

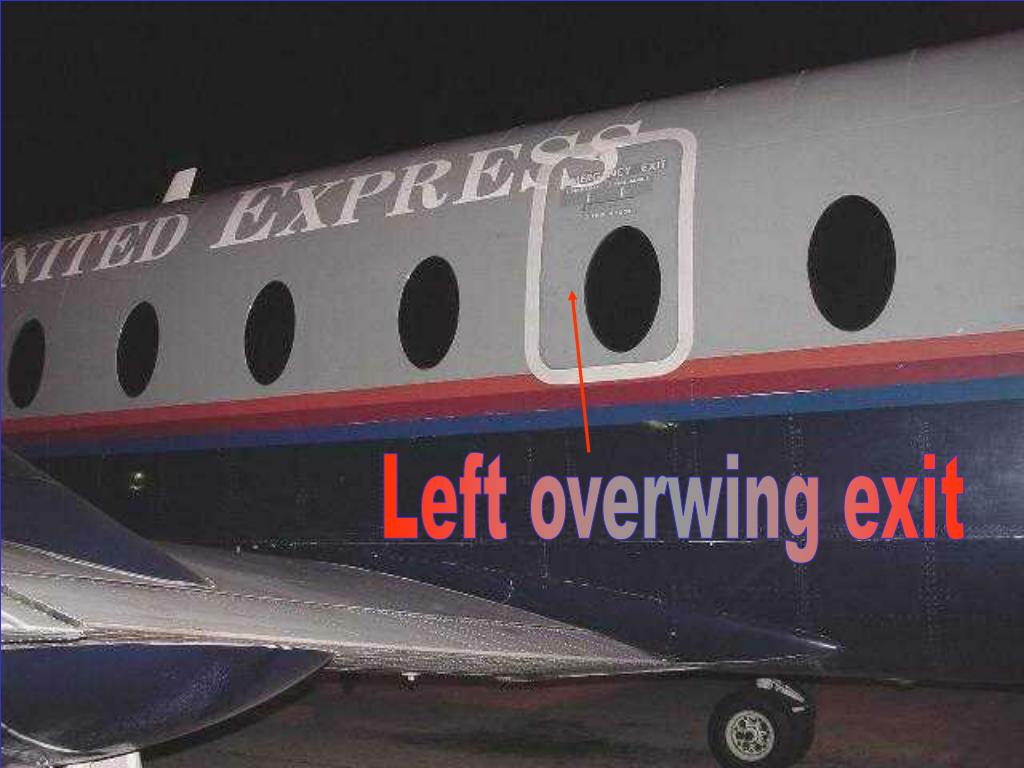

  18. Left overwing exit

  19. Follow directions to open

  20. Cabin Door Follow directions to open

  21. Push red release button to set up stair rails

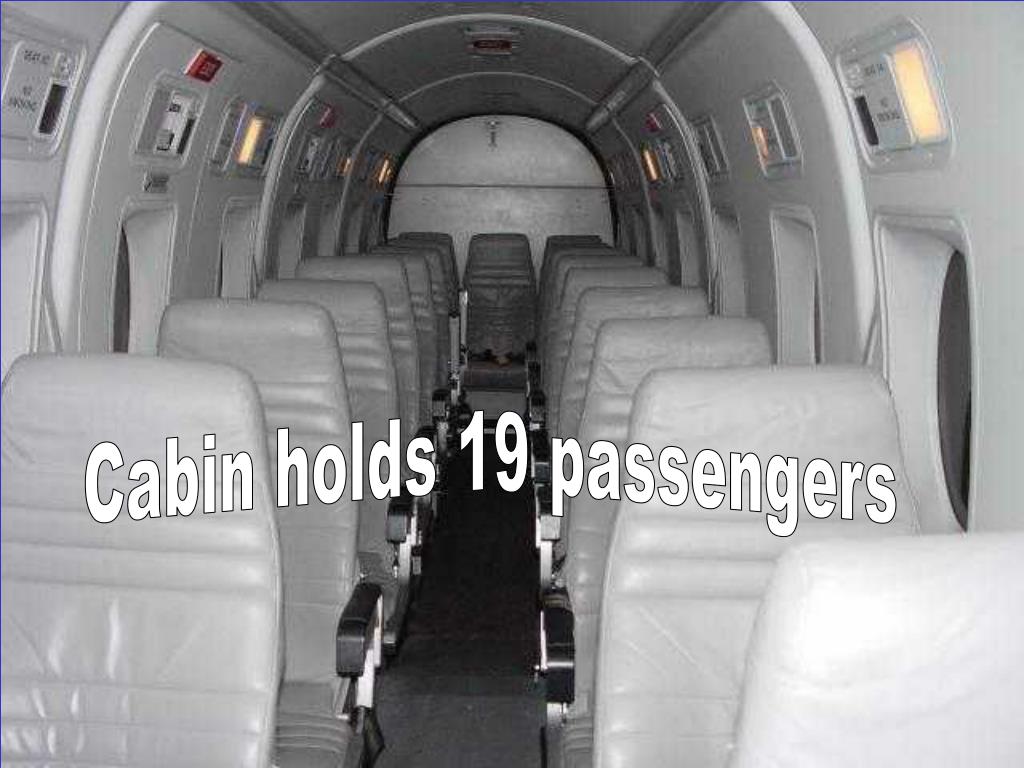

  22. Cabin holds 19 passengers

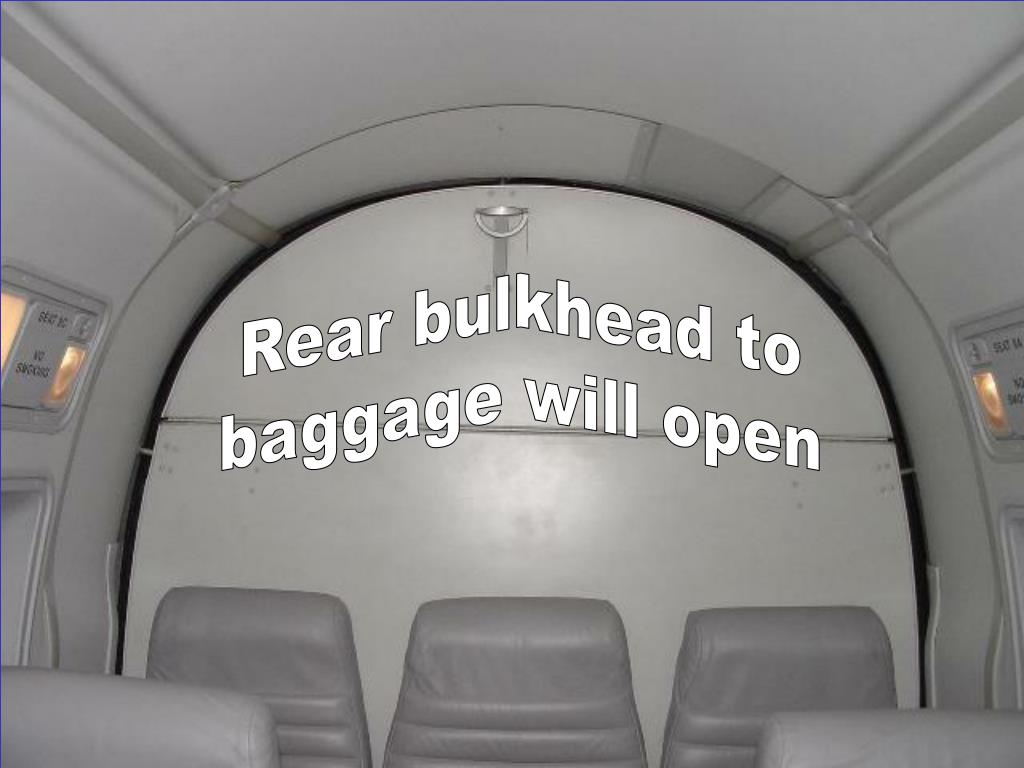

  23. Rear bulkhead to baggage will open

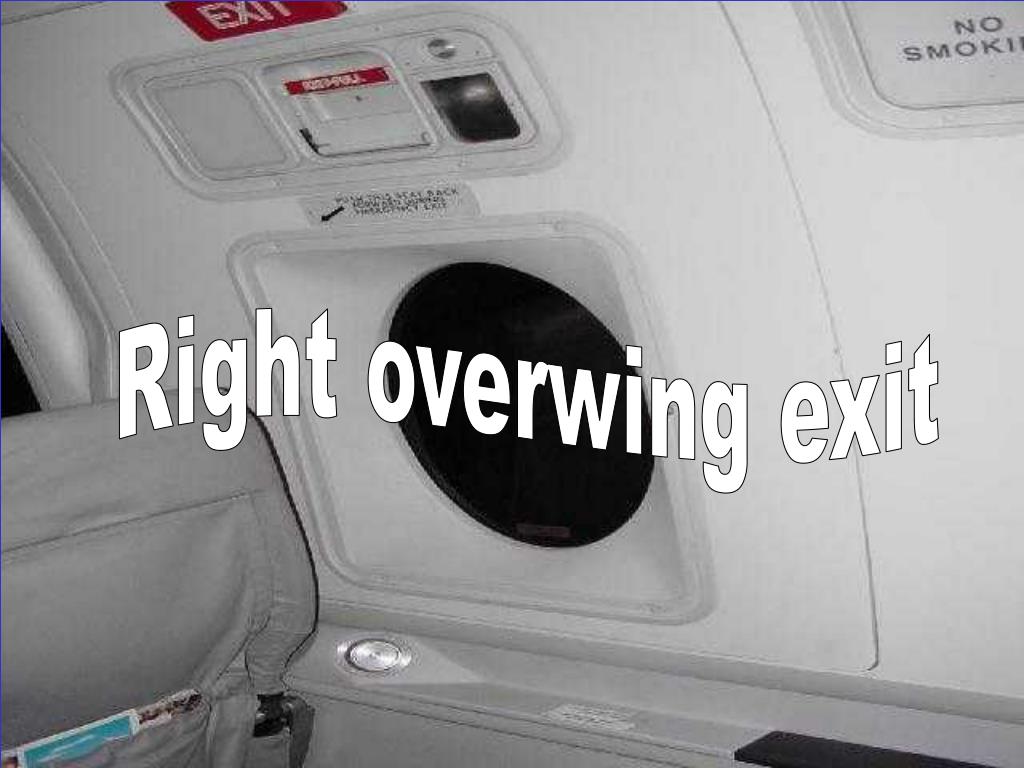

  24. Right overwing exit

  25. Battery Switch

  26. Bar labeled: Master Switch Battery Switch

  27. "ENG FIRE - PUSH TO EXT" "FIRE PULL" Shuts off engine Arms Extinguishing system Engine Fire Controls

  28. Cargo Door Located in the left aft of the aircraft

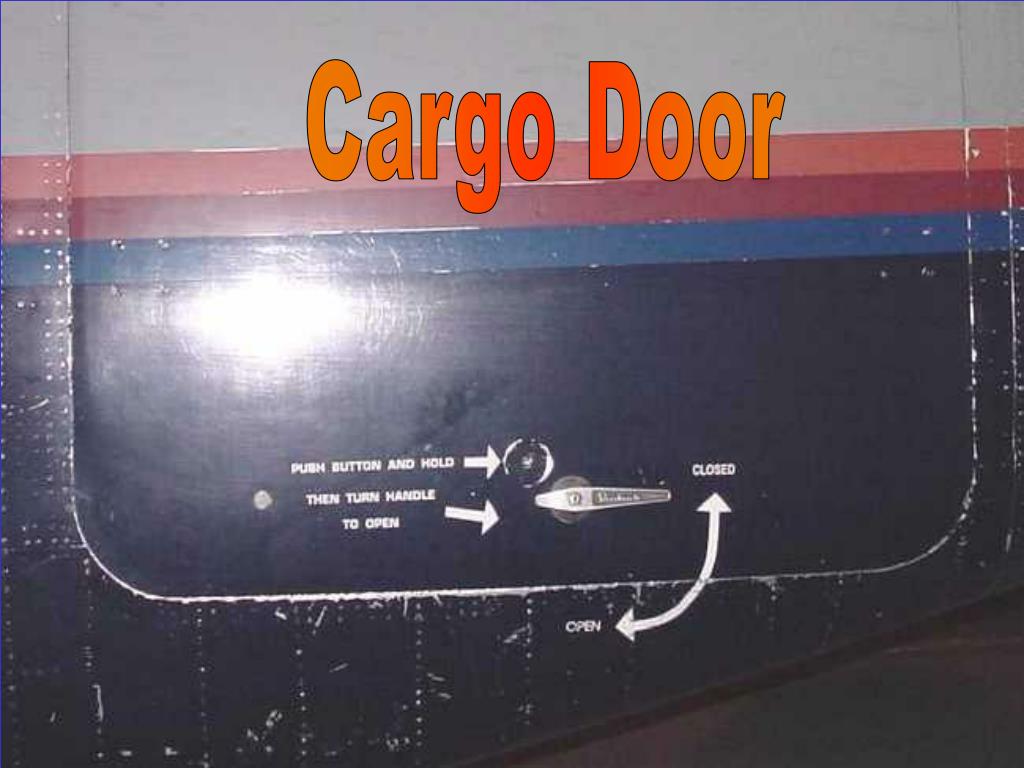

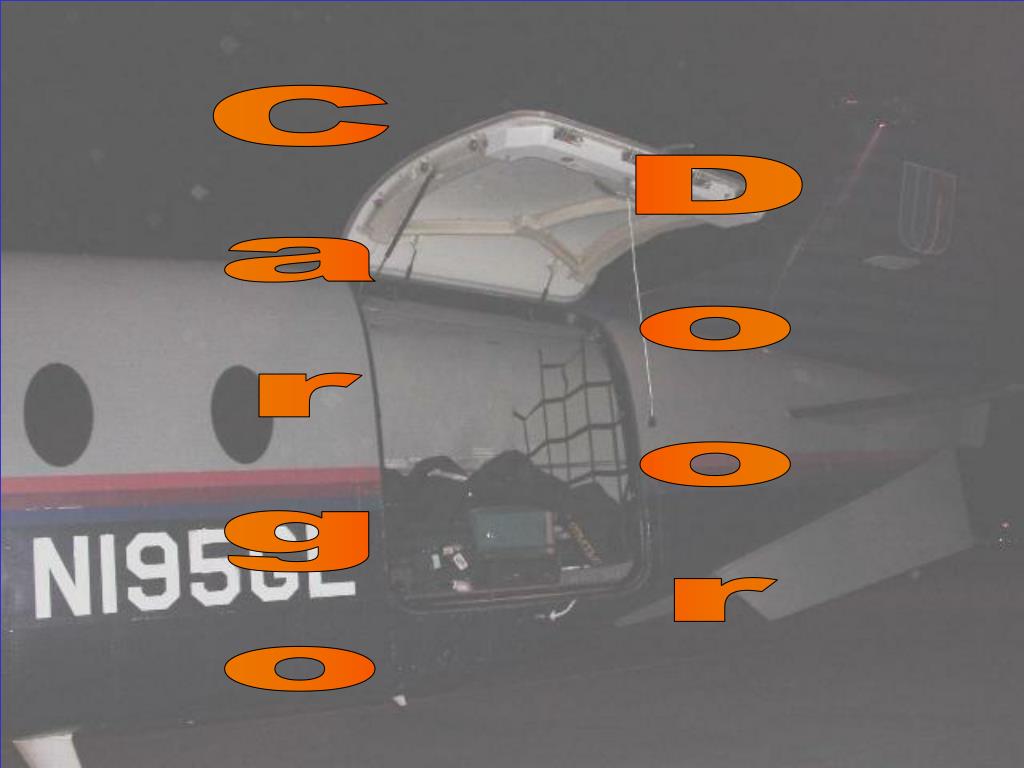

  29. Cargo Door

  30. Cargo Door

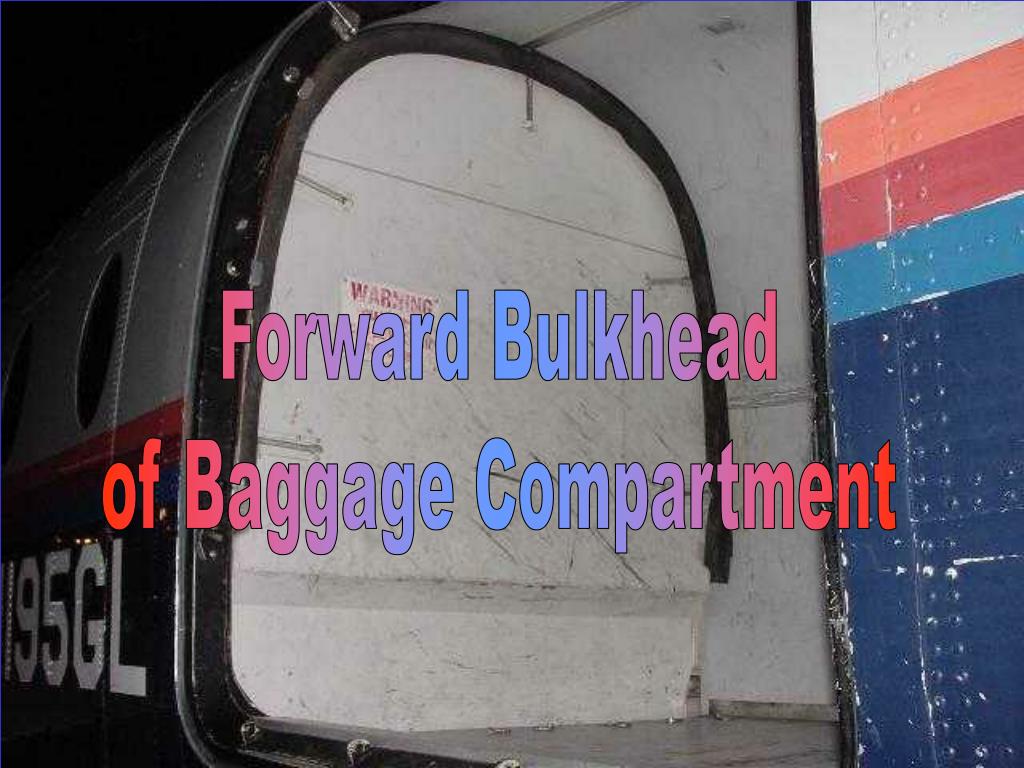

  31. Forward Bulkhead of Baggage Compartment

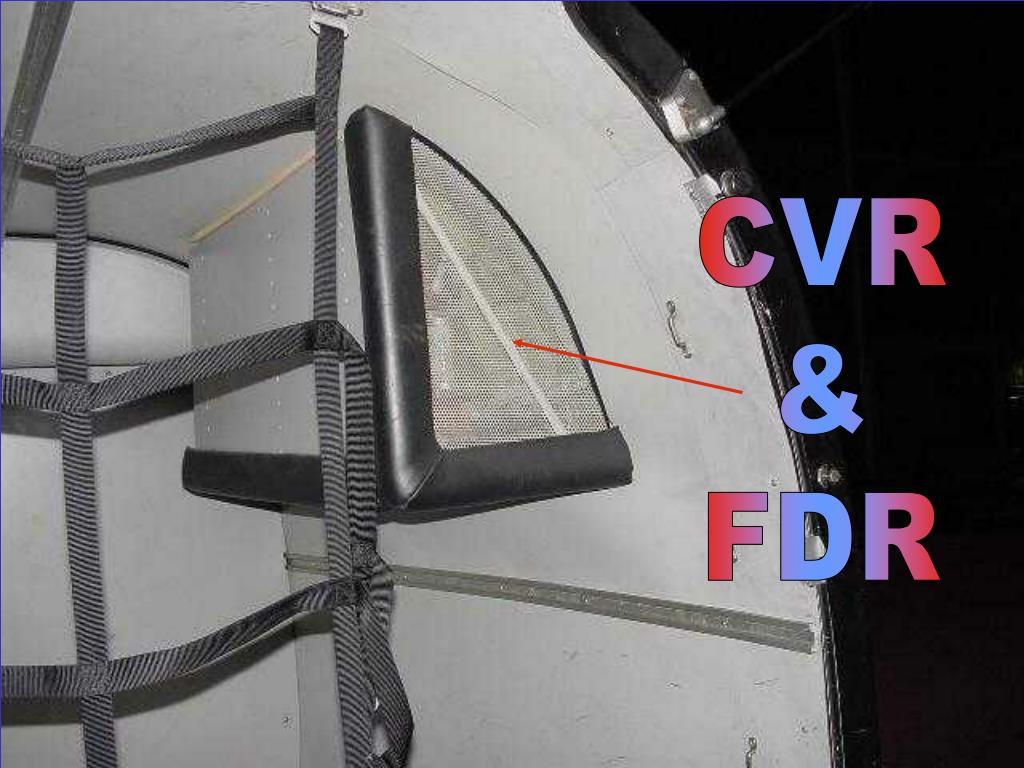

  32. CVR & FDR

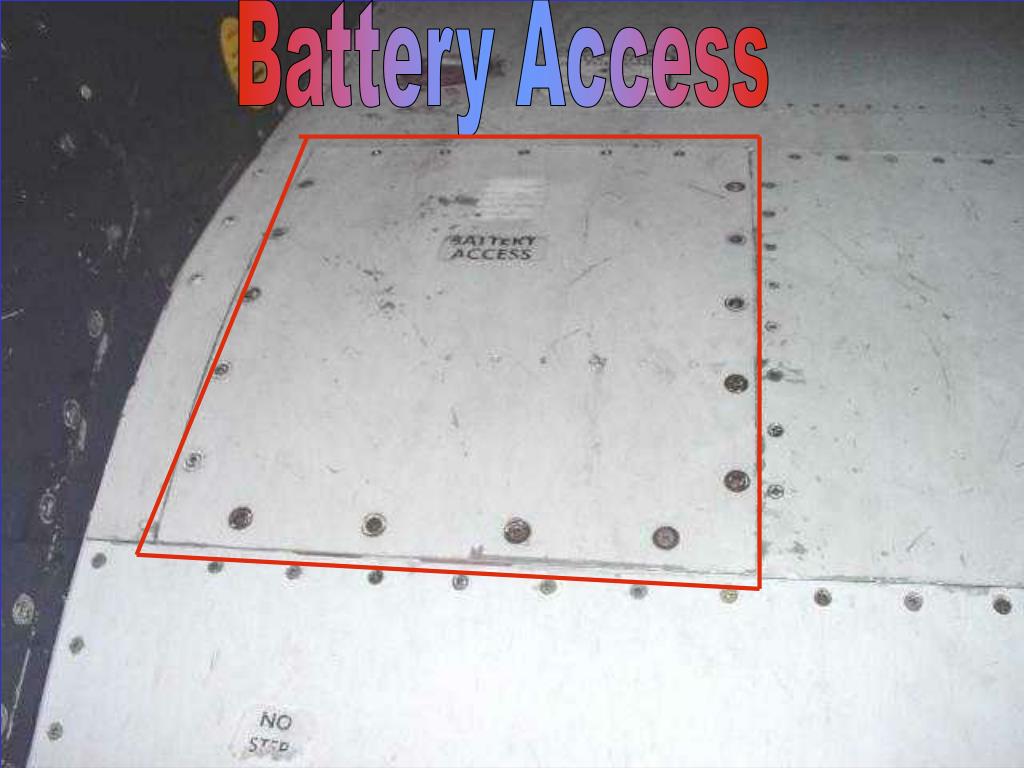

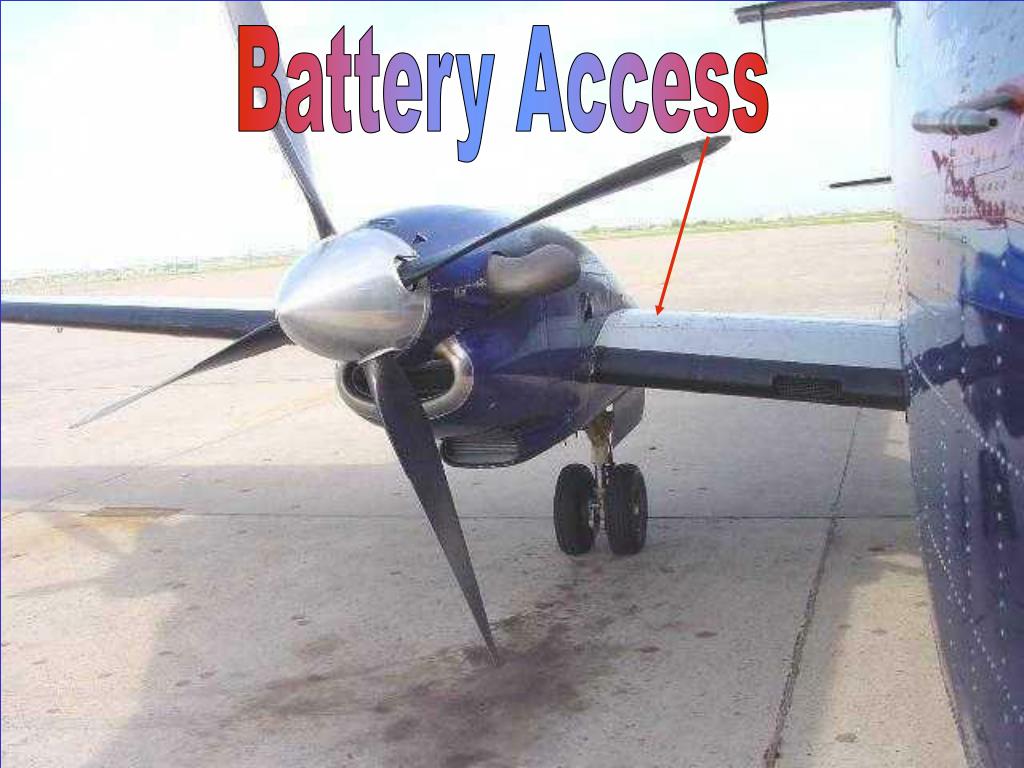

  33. Battery Access

  34. Battery Access

  35. Oxygen Access

  36. Crew of 2 NO Flight Attendant

  37. If further help is needed... You're in trouble
