Chapter 6: Physical Transformations of Pure Substances

Chapter 6: Physical Transformations of Pure Substances. Homework: Exercises(a only):4, 5, 8, 12, 15 Problems:4, 6,10, 15, 21. Phase Diagrams. Phase - a form of matter that is uniform throughout in chemical composition and physical state (J. Willard Gibbs)

Télécharger la présentation

Chapter 6: Physical Transformations of Pure Substances

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

  1. Chapter 6: Physical Transformations of Pure Substances Homework: Exercises(a only):4, 5, 8, 12, 15 Problems:4, 6,10, 15, 21

  2. Phase Diagrams • Phase- a form of matter that is uniform throughout in chemical composition and physical state (J. Willard Gibbs) • Homogeneous - one phase present, e.g., glass of cracked ice (not including the glass) • Heterogeneous - more than one phase, e.g., glass of cracked ice with water • Phase transition - spontaneous conversion of one phase to a another • Occurs at characteristic temperature for a given pressure, transition temperature, Ttrs • At Ttrs, phases are in equilibrium and Gibbs energy minimized • Example ice and water at 0°C • This says nothing about the rate the transition occurs • Graphite is the stable phase of carbon at R.T., but diamonds exist because rate of thermodynamically “spontaneous” to low • Such kinetically persistent unstable phases are called metastable phases • Phase Diagram is a P,T plot showing regions of thermodynamically stable phases • Lines separating phases are called phase boundaries • Vapor-liquid boundary shows variation of vapor pressure with temperature • Solid-liquid boundary shows variation of sublimation pressure with temperature

  3. pc 1 atm = pex Tb Phase Boundaries (cont.) • Boiling Points • Temperature at which vapor pressure equals external pressure • Normal boiling point (Tb) external pressure = 1 atm (H2O: 100.0°C) • Standard boiling point external pressure = 1 bar (0.987 atm) (H2O: 99.6°C) • Critical Point • In closed vessel boiling does not occur. Pressure increases and fluid level drops. rliquid decreases and rvapor increase as T increases • At some point rliquid = rvapor and boundary disappears: critical temperature (Tc),vapor pressure is critical pressure, pc • Above a single uniform phase exists, supercritical fluid • Highest temperature liquid can exist • Melting Points • Melting temperature both solid and liquid phases exist. • Equivalent to freezing temperature • Normal freezing(melting) point (Tf) external pressure = 1 atm (H2O: 0°C) • Standard freezing point external pressure = 1 bar (0.987 atm) • Triple Point (T3) - place at which 3 phase boundaries meet • All 3 phases exist simultaneously • Typically solid, liquid and gas • Lowest pressure and temperature liquid can exist • Invariant, property of substance (H2O: 273.15K, 6.11 mbar) supercritical fluid

  4. Ice VI,VII, liquid 22 kbar, 81.6 °C Phase Diagrams - Water Ice VI,VII, VIII 21 kbar, ~5 °C • Slope of solid-liquid boundary means large Dp necessary to significantly change melting temp. • Negative slope means Tmelt decreases as p increase • Due to structure of water • Liquid has lower volume than solid (rliquid>rsolid) • High pressure phases • Different crystal structure and density • Ice I (hexagonal); Ice III (Tetragonal) • At -175°C and 1 atm: Ice I (r = 0.94 g/cc); Ice VI (r = 1.31 g/cc); • Can melt at higher temperatures than Ice I • Ice VII melts at 100°C but only exists at p>25 kbar • 8 triple points (6 plotted) • Only one between solid (Ice I), liquid and gas

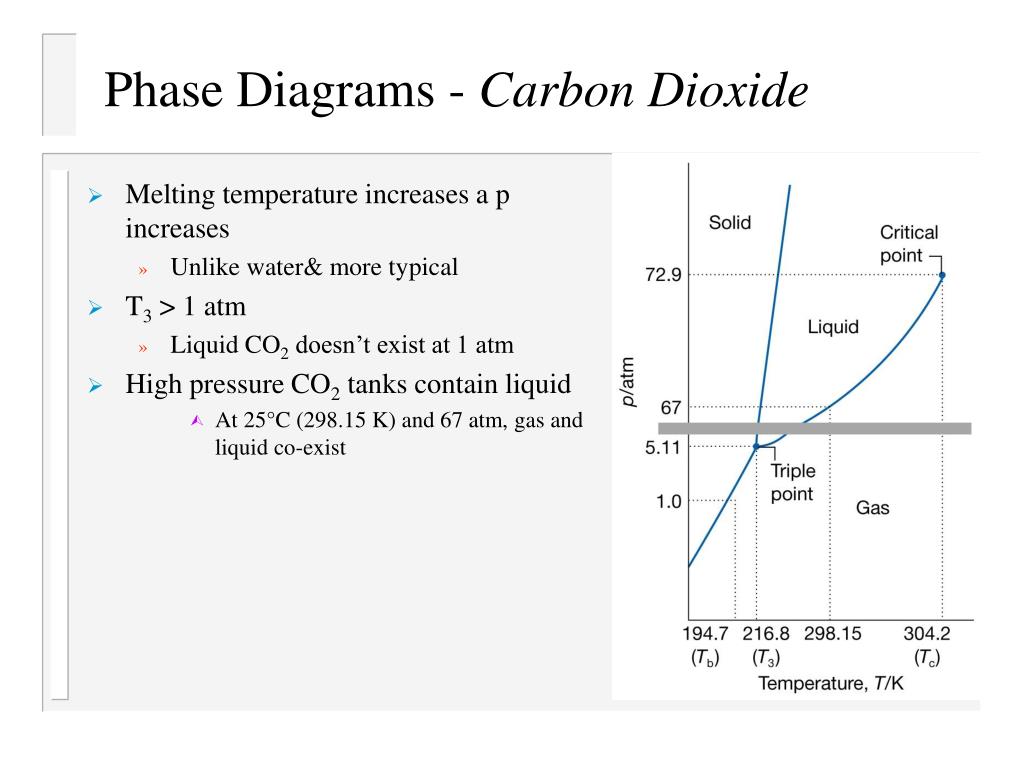

  5. Phase Diagrams - Carbon Dioxide • Melting temperature increases a p increases • Unlike water& more typical • T3 > 1 atm • Liquid CO2 doesn’t exist at 1 atm • High pressure CO2 tanks contain liquid • At 25°C (298.15 K) and 67 atm, gas and liquid co-exist

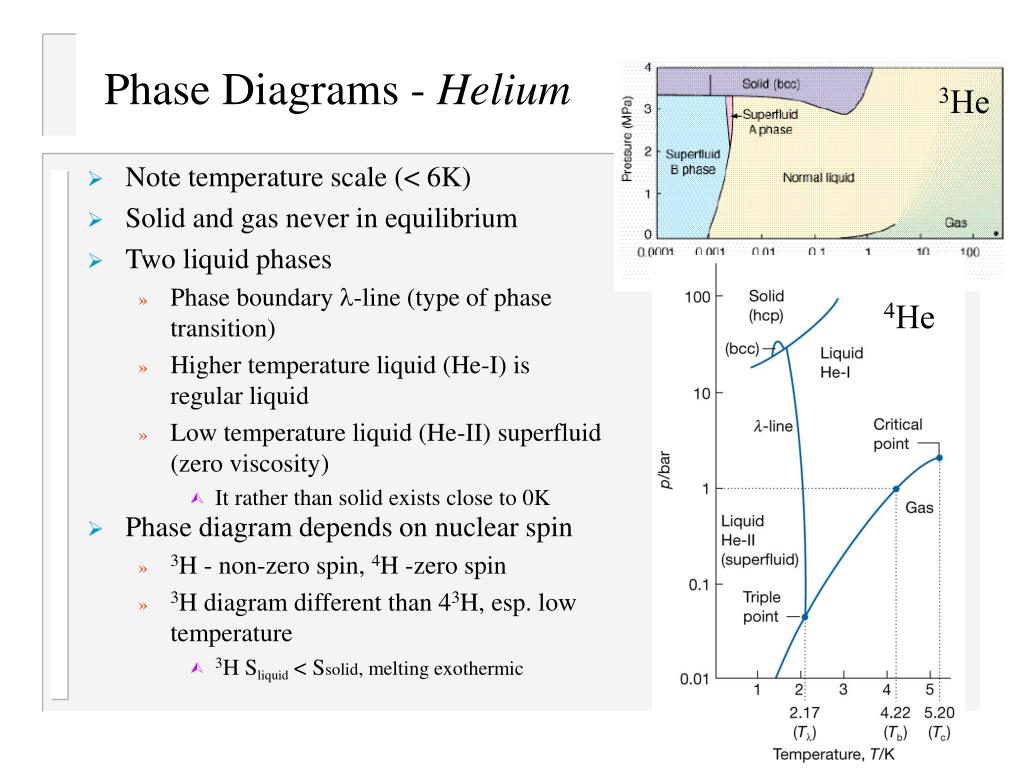

  6. 3He 4He Phase Diagrams - Helium • Note temperature scale (< 6K) • Solid and gas never in equilibrium • Two liquid phases • Phase boundary l-line (type of phase transition) • Higher temperature liquid (He-I) is regular liquid • Low temperature liquid (He-II) superfluid (zero viscosity) • It rather than solid exists close to 0K • Phase diagram depends on nuclear spin • 3H - non-zero spin, 4H -zero spin • 3H diagram different than 43H, esp. low temperature • 3H Sliquid < Ssolid, melting exothermic

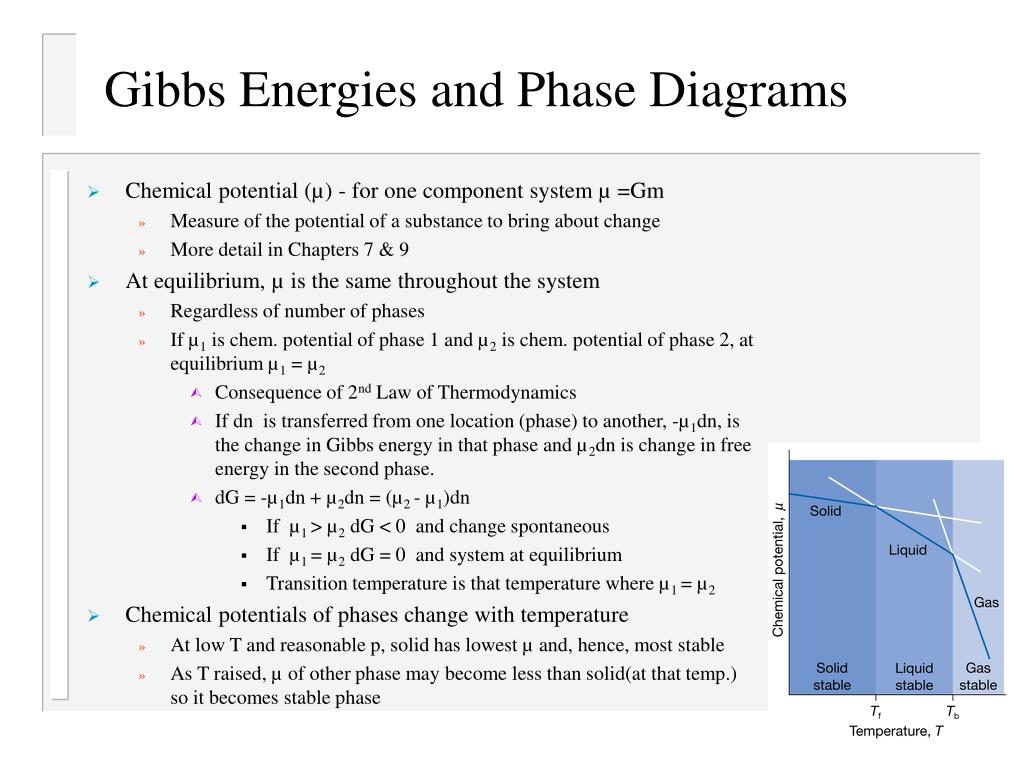

  7. Gibbs Energies and Phase Diagrams • Chemical potential (µ) - for one component system µ =Gm • Measure of the potential of a substance to bring about change • More detail in Chapters 7 & 9 • At equilibrium, µ is the same throughout the system • Regardless of number of phases • If µ1 is chem. potential of phase 1 and µ2 is chem. potential of phase 2, at equilibrium µ1 = µ2 • Consequence of 2nd Law of Thermodynamics • If dn is transferred from one location (phase) to another, -µ1dn, is the change in Gibbs energy in that phase and µ2dn is change in free energy in the second phase. • dG = -µ1dn + µ2dn = (µ2 - µ1)dn • If µ1 > µ2 dG < 0 and change spontaneous • If µ1 = µ2 dG = 0 and system at equilibrium • Transition temperature is that temperature where µ1 = µ2 • Chemical potentials of phases change with temperature • At low T and reasonable p, solid has lowest µ and, hence, most stable • As T raised, µ of other phase may become less than solid(at that temp.) so it becomes stable phase

  8. Vm(l)> Vm(s) Vm(s)> Vm(l) T and p Dependence on Melting • Recall, (∂G/∂T)p = -S so (∂µ/∂T)p = -Sm • Since Sm> 0 for all pure substances, (∂µ/∂T)p < 0 or a plot of µ vs. T will have a negative slope • Because Sm(gas)> Sm(liquid)> Sm(solid)> slopes going from gas ® solid increasingly negative • Transitions (melting, vaporization) occur when µ of one phase becomes greater than another so substances melt when µ(liquid)>µ(solid) • Phase change means modifying relative values of µ for each phase • Given differences in slopes, change in T easiest way to do it • Similarly, (∂G/∂p)T = V so (∂µ/∂T)p = Vm • Because Vm increases with p, graph of µ vs. T translates upward as p increases • For most substances Vm(l)> Vm(s), µ(l) increases more than µ(s), Tfincreases as p increases (a) • Consistent with observations and physical sense higher p retards movement to lower density • Water exception since Vm(s)> Vm(l), as p increases µ(s) increases more than µ(l), so Tfdecreases as p increases (b)

  9. Assessing Effect of Pressure on Melting Example 6.1 Calculate Dµ for each state over pressure range, Dµ (water) D p = 1 bar; Dµ (ice) D p = 1 bar • Dµ (water) = 1.80 J mol-1 and Dµ (ice) = 1.97 J mol-1 • J mol-1 are units of µ just like G • Dµ (water) < Dµ (ice), so tendency for ice to melt • Look at Self Test 6.2(opposite of water)

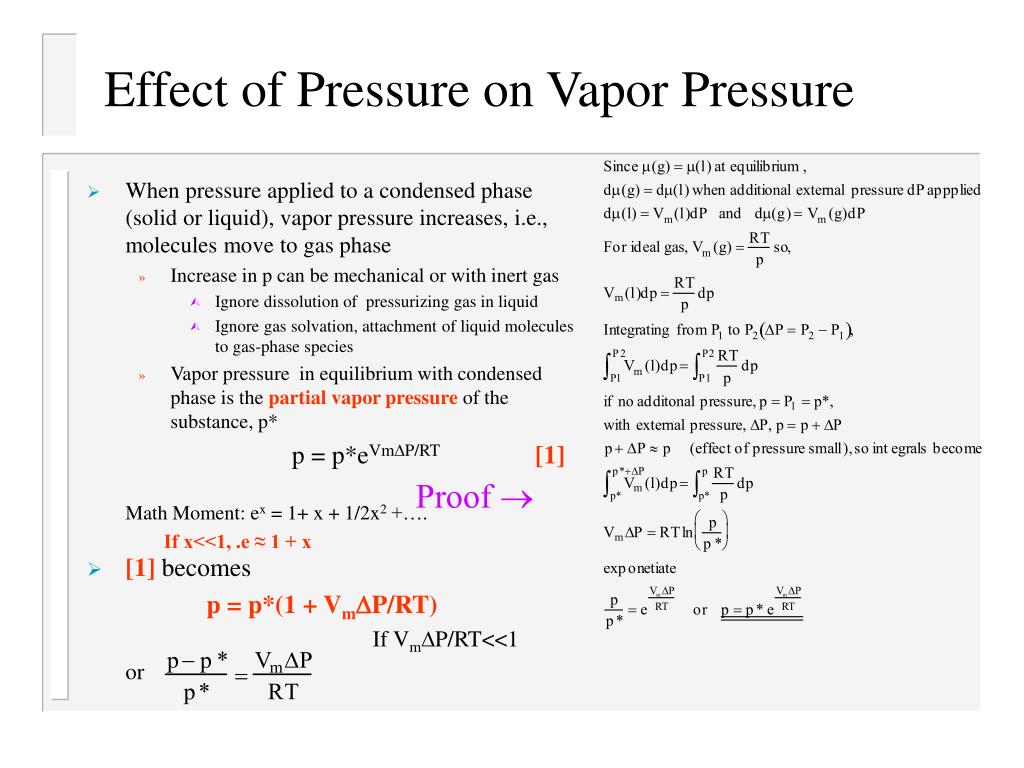

  10. Effect of Pressure on Vapor Pressure • When pressure applied to a condensed phase (solid or liquid), vapor pressure increases, i.e., molecules move to gas phase • Increase in p can be mechanical or with inert gas • Ignore dissolution of pressurizing gas in liquid • Ignore gas solvation, attachment of liquid molecules to gas-phase species • Vapor pressure in equilibrium with condensed phase is the partial vapor pressure of the substance, p* p = p*eVmDP/RT [1] Proof ® Math Moment: ex = 1+ x + 1/2x2 +…. If x<<1, .e ≈ 1 + x • [1] becomes p = p*(1 + VmDP/RT) If VmDP/RT<<1 or

  11. µa = µb Location of Phase Boundaries • Phase boundaries occur when chemical potentials are equal and phases are in equilibrium, or for phases a and b: µa(p,T) = µb(p,T) • Need to solve this equation for p, p= f(T) • On plot of p vs. T, f(T) is a gives the phase boundary • Slopes of phase boundaries • Slope is dp/dT • If p and T are changed such that two phases, a and b , are in equilibrium, dµa = dµb But, dµ = -SmdT + Vdp So, -Sa,m,dT + Va,mdp = -Sb,m,dT + Vb,mdp Or(Sb,m,-Sa,m,)dT + = (Vb,m- Va,m )dp But (Sb,m,- Sa,m,) = DtrsS and (Va,m - Vb,m) = DtrsV • This rearranges to: dp/dT = DtrsS / DtrsV where and are the entropy and volume of transition • This is called the Clapeyron Equation • Exact expression for the phase boundary at equilibrium • Can be used to predict appearance of phase diagrams and form of boundaries

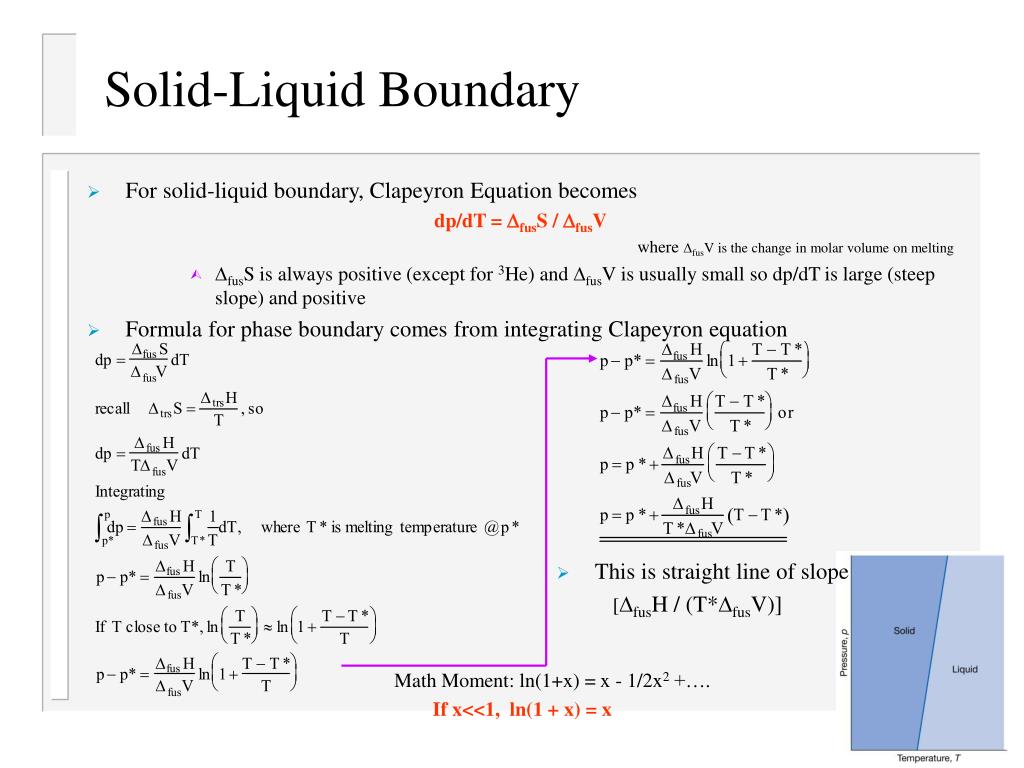

  12. This is straight line of slope [DfusH / (T*DfusV)] Solid-Liquid Boundary • For solid-liquid boundary, Clapeyron Equation becomes dp/dT = DfusS / DfusV where DfusV is the change in molar volume on melting • DfusS is always positive (except for 3He) and DfusV is usually smallso dp/dT is large (steep slope) and positive • Formula for phase boundary comes from integrating Clapeyron equation Math Moment: ln(1+x) = x - 1/2x2 +…. If x<<1, ln(1 + x) = x

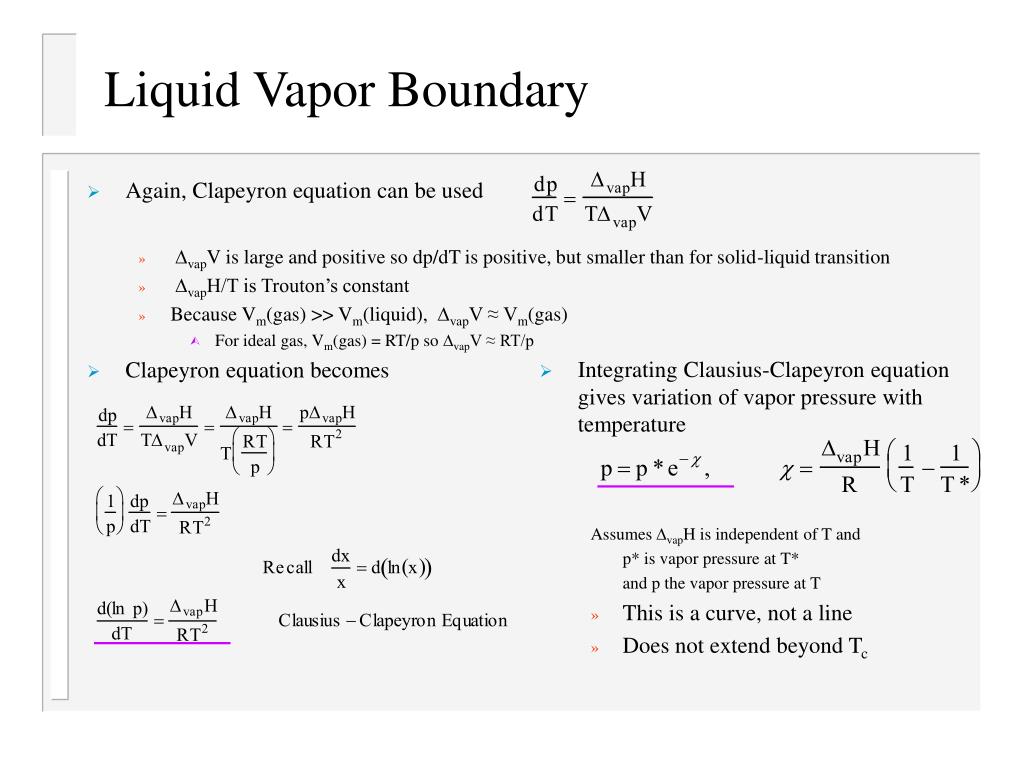

  13. Integrating Clausius-Clapeyron equation gives variation of vapor pressure with temperature Assumes DvapH is independent of T and p* is vapor pressure at T* and p the vapor pressure at T • This is a curve, not a line • Does not extend beyond Tc Liquid Vapor Boundary • Again, Clapeyron equation can be used • DvapV is large and positive so dp/dT is positive, but smaller than for solid-liquid transition • DvapH/T is Trouton’s constant • Because Vm(gas) >> Vm(liquid), DvapV ≈ Vm(gas) • For ideal gas, Vm(gas) = RT/p so DvapV ≈ RT/p • Clapeyron equation becomes

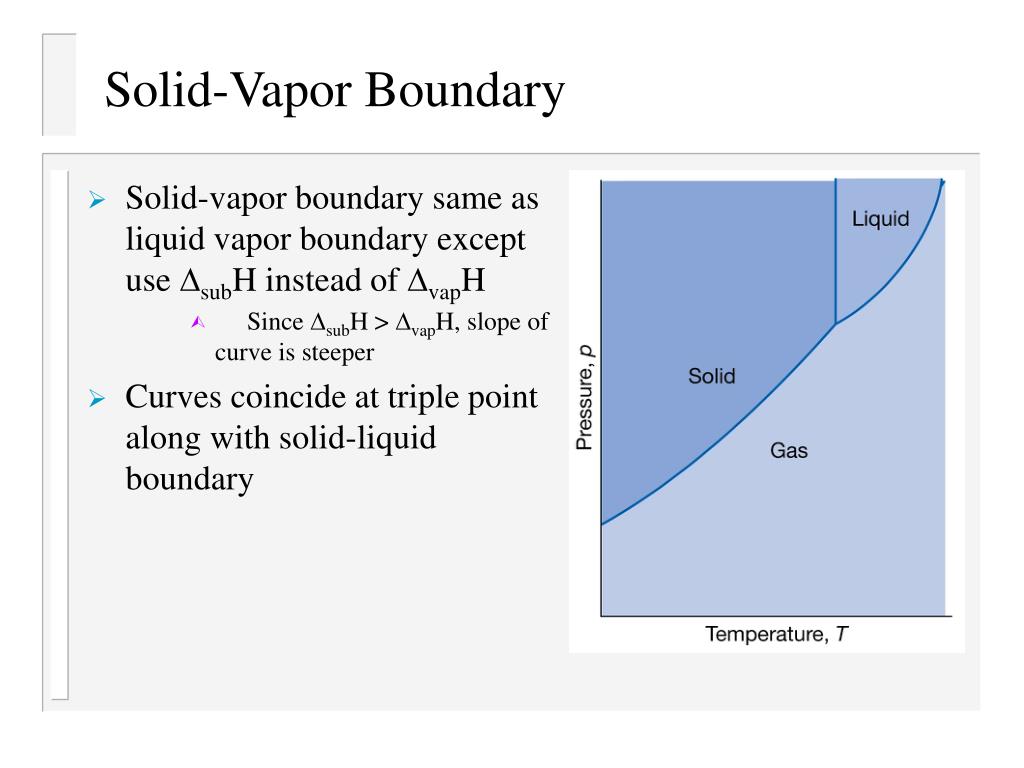

  14. Solid-Vapor Boundary • Solid-vapor boundary same as liquid vapor boundary except use DsubH instead of DvapH • Since DsubH > DvapH, slope of curve is steeper • Curves coincide at triple point along with solid-liquid boundary

  15. V, H. S Cp µ Ttrs Ttrs Ttrs Classification of Phase TransitionsEhrenfest Clasification • We’ve been talking a lot about the slopes of phase transitions, (∂µ/∂T)p or (∂µ/∂V)T • Transitions are accompanied by changes in entropy and volume • At transition from a phase, a, to another phase, b (∂µb /∂T)p - (∂µa /∂T)p = -Sb,m + Sa,m = - Strs = -DtrsH/T (∂µb /∂p)T - (∂µa /∂p)T = Vb,m - Va,m = -DtrsV • 1st Order Transitions (e.g., melting, vaporization) • Since DfusH, DvapH and DfusV, DvapV are non-zero, the changes in µ {(∂µ/∂T)p or (∂µ/∂p)T} as you approach the transition are different. • There is a discontinuity at the transition • A transition in which the slope of µ, (∂µ/∂T)p , is discontinuous is called a 1st order transition • Cp is slope of plot of H vs. T (∂H/∂T)p at 1st order transition is infinite • Infinitesimal change in T produces finite change in H

  16. Cp V, S, H µ Ttrs Ttrs Ttrs Classification of Phase TransitionsEhrenfest Classification (continued) • 2nd Order Transition (glass transition, superconducting to conducting transition) • (∂µ/∂T)p , is continuous • Volume and entropy don’t change at transition • (∂2µ/∂T2)p is discontinuous • Heat capacity is discontinuous, but not infinite • l -Transition (4He super-fluid to liquid transition, order-disorder transition in b-brass) • Not 1st order, (∂µ/∂T)p , is continuous • Heat capacity is discontinuous, and infinite at transition temperature

  17. Liquid Surfaces • Surface effects can be expressed in terms of thermodynamic functions since work is required to change the surface area of a liquid • If s is the surface area of a liquid, ds is its infinitesimal change when an amount of work, dw is done • dw is proportional to the surface area of the liquid, i.e., dw = gds • g the proportionality constant is defined as the surface tension • Dimensions of g : energy/area (J/m2 or N/m) • To calculate the work needed to create or change a surface by a particular area increment you only need to calculate the area since is a constant • Look at Self Test 6.4 • At constant volume and temperature the work is the Helmholtz energy (A) dA = gds • As ds decreases the Helmholtz energy minimizes • This is the direction of spontaneous change so surfaces of liquids tend to contract • Often minimizing of dA results in curved surfaces

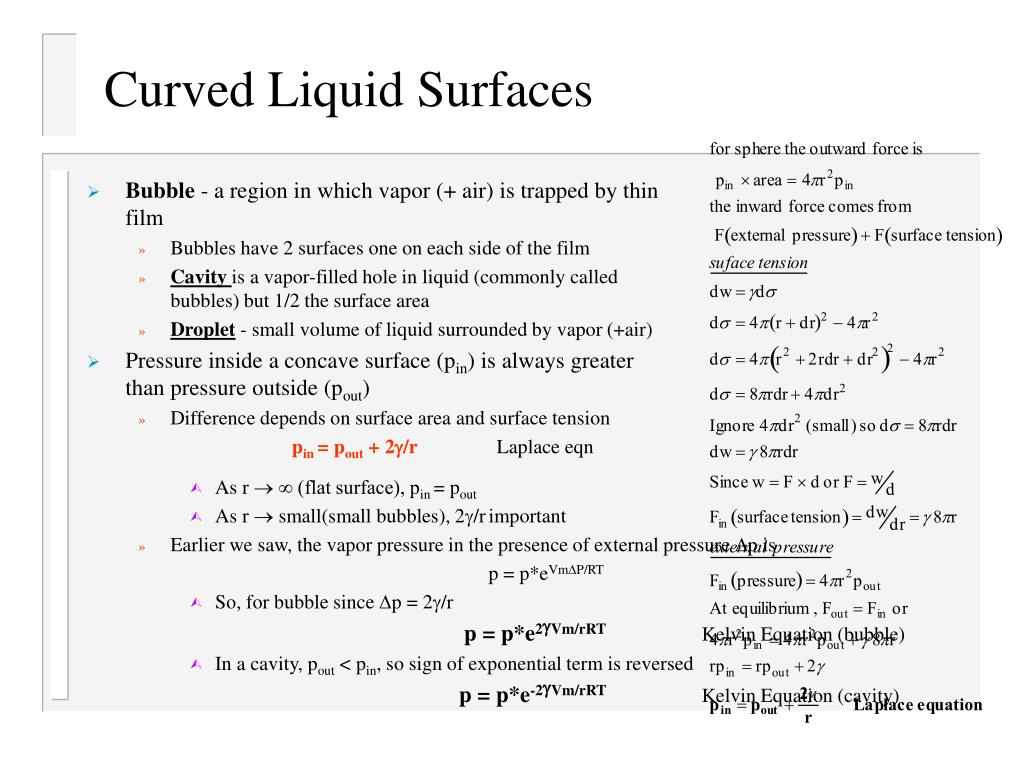

  18. Curved Liquid Surfaces • Bubble - a region in which vapor (+ air) is trapped by thin film • Bubbles have 2 surfaces one on each side of the film • Cavityis a vapor-filled hole in liquid (commonly called bubbles) but 1/2 the surface area • Droplet - small volume of liquid surrounded by vapor (+air) • Pressure inside a concave surface (pin) is always greater than pressure outside (pout) • Difference depends on surface area and surface tension pin = pout + 2g/r Laplace eqn • As r ® ∞ (flat surface), pin = pout • As r ® small(small bubbles), 2g/rimportant • Earlier we saw, the vapor pressure in the presence of external pressure Dp is p = p*eVmDP/RT • So, for bubble since Dp = 2g/r p = p*e2gVm/rRTKelvin Equation (bubble) • In a cavity, pout < pin, so sign of exponential term is reversed p = p*e-2gVm/rRTKelvin Equation (cavity)

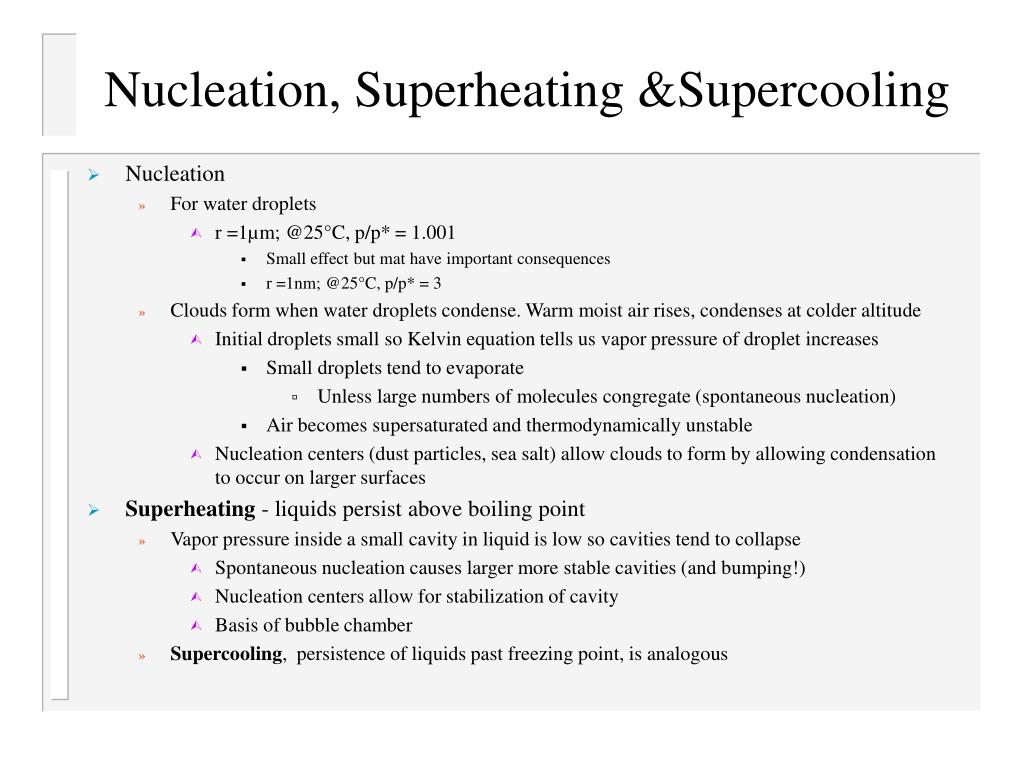

  19. Nucleation, Superheating &Supercooling • Nucleation • For water droplets • r =1µm; @25°C, p/p* = 1.001 • Small effect but mat have important consequences • r =1nm; @25°C, p/p* = 3 • Clouds form when water droplets condense. Warm moist air rises, condenses at colder altitude • Initial droplets small so Kelvin equation tells us vapor pressure of droplet increases • Small droplets tend to evaporate • Unless large numbers of molecules congregate (spontaneous nucleation) • Air becomes supersaturated and thermodynamically unstable • Nucleation centers (dust particles, sea salt) allow clouds to form by allowing condensation to occur on larger surfaces • Superheating - liquids persist above boiling point • Vapor pressure inside a small cavity in liquid is low so cavities tend to collapse • Spontaneous nucleation causes larger more stable cavities (and bumping!) • Nucleation centers allow for stabilization of cavity • Basis of bubble chamber • Supercooling, persistence of liquids past freezing point, is analogous

  20. Capillaries • Capillary action - tendency of liquids to rise up/fall in narrow bore (capillary) tubes • Capillary rise/fall • If liquid has tendency to adhere to the tube walls (e.g. water), energy lowest when most surface is covered • Liquid creeps up wall (concave meniscus) • Pressure beneath curve of meniscus is lower than atmosphere by 2g/r, where r is radius (Kelvin equation, cylindrical tube) • Pressure at flat surface = atmospheric pressure (r ® ∞) • Liquid rises in capillary until hydrostatic equilibrium is reached • As liquid rises p increases by rgh (r = density; h= height) • At equilibrium, pcapillary = pexternal or2g/r = rgh Height of capillary rise h = 2g/rgr • As tube gets smaller, h gets higher • Can be used to measure surface tension of liquids • gis temperature dependent • If liquid has a tendency not to adhere (e.g. Hg) liquid will fall in capillary because pressure less under meniscus • Treatment the same, except sign reversed

  21. Contact Angle • Contact angle is the angle between edge of meniscus and wall • If qc ≠ 0, then the equation for capillary rise becomes h = 2g(Cosqc)/rgr • Arises from balance of forces at the point of contact between liquid and solid • The surface tension is essentially the energy needed to create a unit area of each of the interfaces • gsg = Energy to create unit area at gas-solid interface • glg = Energy to create unit area at gas-liquid interface • gsl = Energy to create unit area at solid-liquid interface • At equilibrium, the vertical forces in capillary are in balance so gsg =gsl + Cos(qc) glg Or Cos(qc) =( gsg -gsl )/ glg See diagram® “wets” • Work of adhesion (wad) of liquid to solid is gsg+ glg - gsl • So Cos(qc) =( gsg -gsl )/ glg =(wad -glg )/ glg=(wad / glg ) - 1 • If liquid wets surface 0° < qc < 90° , 1> Cos(qc) > 0so 1< (wad / glg ) < 2 • If liquid doesn’t wet surface 90° < qc < 180° , 0> Cos(qc) > -1 so 1> (wad / glg ) >0 • Takes more work to overcome cohesive forces in liquid “doesn’t wet”
