  1. CODA run-control JLAB DAQ GroupV. Gyurjyan C. Timmer A. Smith New Horizons governor school

  2. Run-control history • Eiffel • C++ • Java

  3. Run-control design requirements • Extendable. • Network distributed. • Platform independent. • Software centric. • Flexible. • Dynamic hierarchical. • Synchronization via message passing. • Real-time hardware actions and knowledge processing. • Maintainable code replicating the old run-control functionality. • Integration with the detector control and legacy software systems.

  4. Agent properties • Autonomy. • Proactive intelligence. • Adaptive intelligence. • Temporal continuity. • Mobility. • Rationality/benevolence.

  5. Multi - Agent approach • Distributes computational resource. • Accommodates legacy systems. • Peer-to-peer model. • Global coordination. • High performance.

  6. FIPA- Foundation for Intelligent Physical Agents • FIPA framework (http://www.fipa.org). • FIPA is a specification NOT an implementation. • Directory Facilitator (DF). • Agent Management System (AMS). • Agent Communication Channel (ACC) . • Java Agent DEvelopment framework (JADE) -FIPA specification JAVA implementation (http://sharon.cselt.it/projects/jade).

  7. Run-Control Platform Architecture Communication through message passing. Message can contain any arbitrary objects. JVM1 JVM2 NODE3 HV hardware

  8. COOL- Control Oriented Ontology Language • Based on RDFS (Resource Definition Framework Schema). • Control domain knowledge creation and reuse. • Knowledge base sharing. • Domain knowledge and operational knowledge separation. • Domain knowledge analyses. • Extensible via XML-namespaces and RDF modularization.

  9. XML or RDF? • After all both are text constructs. • Duplet vs. triplet to transfer human knowledge. XML RDF Tag Value Resource Subject Predicate Property Object Value

  10. COOL taxonomy Subjects/Objects Predicates • Control • Component • Process • Command • Data • Node • Loop • Option • hasComponentName • hasComponentType • hasPriority • hasProcess • Differentiate • hasSession • hasRunType • hasCode • hasNode • hasFirst • hasNext • hasInput • hasOutput • resultNotify • acceptData • acceptStatus • hasCommand • hasCheckWith • isPartOf • hasData • hasCommandName • hasCommandType • hasExpectedOk • hasTimeOut • hasLoop • returnData • inputdata • hasDataContent • hasDataType • hasDataCardinality • hasTimeStamp • hasSemantics • hasNodename • hasIP • isLocal • hasUser • hasPasswd • hasDataFile • hasDataLimit • hasEventLimit • hasTokenInterval • Splitmb • hasOption • hasComponent • acceptsComponent • hasScrupulosity • loopRepete • loopDelay • stopAt

  11. Extending run-control state machine • Any control process can be defined as a CODA component. • Every component can have associated processes. • Each process can be attached to the CODA standard state machine transition by means of isPartOf COOL predicate. • COOL process is RDF subclass of the COOL component. • Every process has associated COOL command. • COOl command can have expectedOk predicate. Control A >> hasProcess >> B Process B >> isPartOf >> download B1 >> expectedOk >> Output String Process B >> hasProcess >> B1 Process B >> hasProcess >> Bn

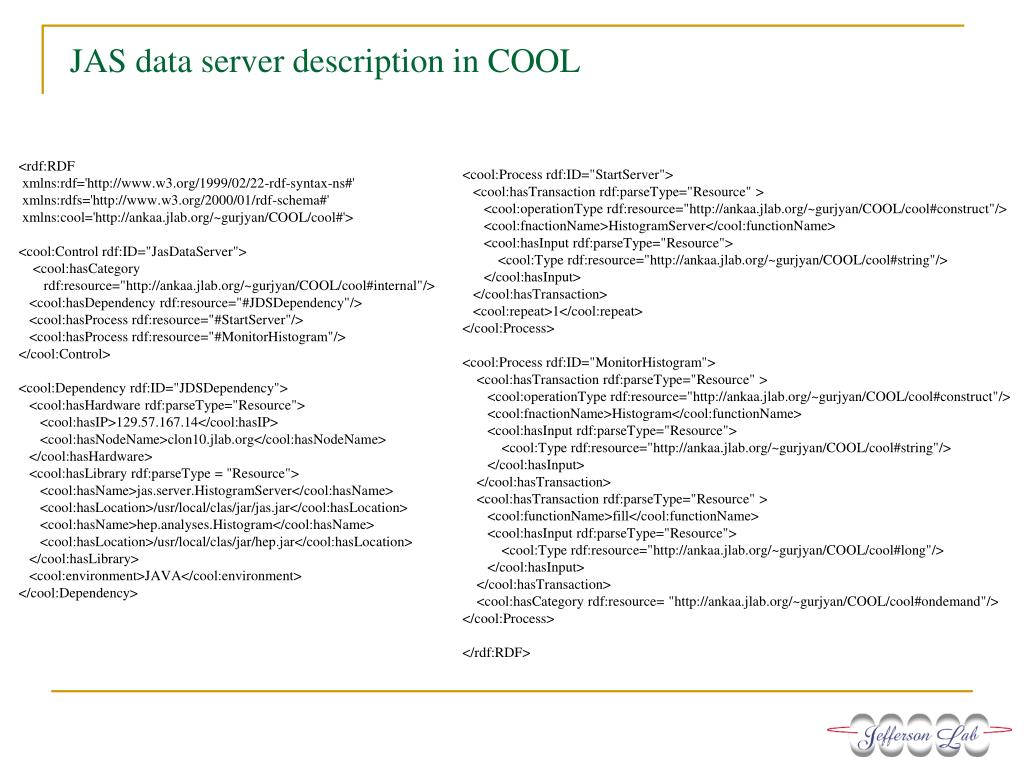

  12. JAS data server description in COOL <rdf:RDF xmlns:rdf='http://www.w3.org/1999/02/22-rdf-syntax-ns#' xmlns:rdfs='http://www.w3.org/2000/01/rdf-schema#' xmlns:cool='http://ankaa.jlab.org/~gurjyan/COOL/cool#'><cool:Control rdf:ID="JasDataServer"> <cool:hasCategory rdf:resource="http://ankaa.jlab.org/~gurjyan/COOL/cool#internal"/> <cool:hasDependency rdf:resource="#JDSDependency"/> <cool:hasProcess rdf:resource="#StartServer"/> <cool:hasProcess rdf:resource="#MonitorHistogram"/></cool:Control><cool:Dependency rdf:ID="JDSDependency"> <cool:hasHardware rdf:parseType="Resource"> <cool:hasIP>129.57.167.14</cool:hasIP> <cool:hasNodeName>clon10.jlab.org</cool:hasNodeName> </cool:hasHardware> <cool:hasLibrary rdf:parseType = "Resource"> <cool:hasName>jas.server.HistogramServer</cool:hasName> <cool:hasLocation>/usr/local/clas/jar/jas.jar</cool:hasLocation> <cool:hasName>hep.analyses.Histogram</cool:hasName> <cool:hasLocation>/usr/local/clas/jar/hep.jar</cool:hasLocation> </cool:hasLibrary> <cool:environment>JAVA</cool:environment></cool:Dependency> <cool:Process rdf:ID="StartServer"> <cool:hasTransaction rdf:parseType="Resource" > <cool:operationType rdf:resource="http://ankaa.jlab.org/~gurjyan/COOL/cool#construct"/> <cool:fnactionName>HistogramServer</cool:functionName> <cool:hasInput rdf:parseType="Resource"> <cool:Type rdf:resource="http://ankaa.jlab.org/~gurjyan/COOL/cool#string"/> </cool:hasInput> </cool:hasTransaction> <cool:repeat>1</cool:repeat></cool:Process><cool:Process rdf:ID="MonitorHistogram"> <cool:hasTransaction rdf:parseType="Resource" > <cool:operationType rdf:resource="http://ankaa.jlab.org/~gurjyan/COOL/cool#construct"/> <cool:fnactionName>Histogram</cool:functionName> <cool:hasInput rdf:parseType="Resource"> <cool:Type rdf:resource="http://ankaa.jlab.org/~gurjyan/COOL/cool#string"/> </cool:hasInput> </cool:hasTransaction> <cool:hasTransaction rdf:parseType="Resource" > <cool:functionName>fill</cool:functionName> <cool:hasInput rdf:parseType="Resource"> <cool:Type rdf:resource="http://ankaa.jlab.org/~gurjyan/COOL/cool#long"/> </cool:hasInput> </cool:hasTransaction> <cool:hasCategory rdf:resource= "http://ankaa.jlab.org/~gurjyan/COOL/cool#ondemand"/></cool:Process></rdf:RDF>

  13. COOL GUI and knowledge auto-transfer from mSQL to COOL db2cool

  14. Run-control GUI

  15. Conclusion • New run-control is ready to be released. • Extended graphing and monitoring capabilities. • Backwards compatibility between old and new run configuration files. • Agent platform administration and fault tolerance. • Integration of the foreign processes through DP, vmeServer and Shell interfaces. • Process abstraction has been implemented through the newly developed control oriented ontology language. Future plans • Integration of the EPICS processes through the channel access interface. • Integration of the CAEN HV control systems through the CAEN OPC server interface. • Develop agent supporting JXTA peer to peer specification. • Run-control web interface.
