ESM post processing workflow

1. ESM post processing workflow

2. ESM post processing (PP) tables on (http://esm.zmaw.de) • In these tables will be allinformation necessary for post processing (PP) : • What (which code, …) will be filled in CERA data base (and archived (=DISK?)) ? • Which PP of output is necessary for which code ? • What are the corresponding meta data (CF-names available ?, …) • See also : cdo –t <partab> <file> ? => Unify and completePP-tables for different models (see continuing slides) => Create or adapt corresponding CERA code tables(see below : new table ‘millenium’ or old ‘echam5’, … ???)

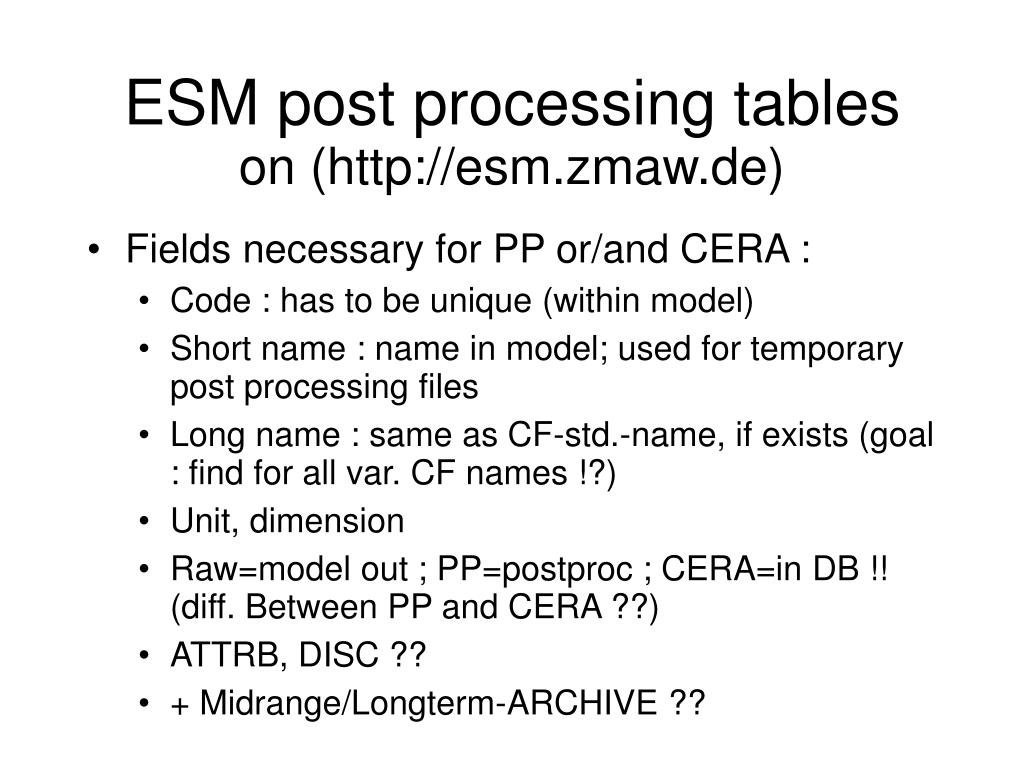

3. ESM post processing tables on (http://esm.zmaw.de) • Fields necessary for PP or/and CERA : • Code : has to be unique (within model) • Short name : name in model; used for temporary post processing files • Long name : same as CF-std.-name, if exists (goal : find for all var. CF names !?) • Unit, dimension • Raw=model out ; PP=postproc ; CERA=in DB !! (diff. Between PP and CERA ??) • ATTRB, DISC ?? • + Midrange/Longterm-ARCHIVE ??

10. Post processing steps • Write raw output of component models on work space (WS) /disk array (DA) (by expid.run) • Postprocessing on workspace WS (by expid.post) • Regrid, pressure levels, … (afterburner) • Convert output in grib format, if necessary (CDOs) • tar and szip files (prepare for archiving) • Further postprocessing, e.g. monthly means, … (CDOs) • Split raw files in (time series of) codes (for dbfill) • Archive output (by expid.arch) • Keep midrange storage data on disk DA • Longterm storage data on archive AR • Fill postproc. output in CERA (DB) (by expid.dbfill) • Quality assurance, controlling, clean up etc.

11. expid.run AR (long term) Experiment (Model run) Write raw files on DA expid.post Rawfiles: - multicode DA:mr_out/ archive WS Pp. data to archive Pp. data for DB Postprocessing Transfer DB files expid.dbfill CERA-DB Pp. data for DB Fill in DB General scheme

12. Questions to the modellers • Fill out PP- and code-tables ! • Which output has to be stored where ? • Archive raw (and postproc. ?) files as tar/szip/grib files on mid-range(DA)/long-term(/ut) ? -> ‘DISC’? • Store time series/monthly means of which codes in CERA data base ? -> see tables => Which temporary files can be (re)moved when ? • Is this changing for different experiments ? • Further infos PP (esp. DB fill) has to ‘know’ ?

13. Action items for IMDI (SRE) • Create SRE-scripts for each component model (called by expid.post) : • expid.echam.post (more or less ready ?) • expid.jsbach.post (open; as echam ?) • expid.mpiom.post (open) • expid.hamocc.post (open; as mpiom ?) • Trigger automatic data base filling • Quality assurance, Monitoring, Controlling, clean up etc.

14. ECHAM5 run AR expid.run Write raw files on DA expid.echam.post archive Monthly grib files (multicode) WS ATM.expid.grb afterburner BOT.expid.grb split in codes code1 : 1 code time series code2 : 1 code time series ………………….. tar and transfer to DB expid.dbfill DB Pp. data for DB Fill in DB ECHAM

15. JSBACH (as ECHAM ?) .post

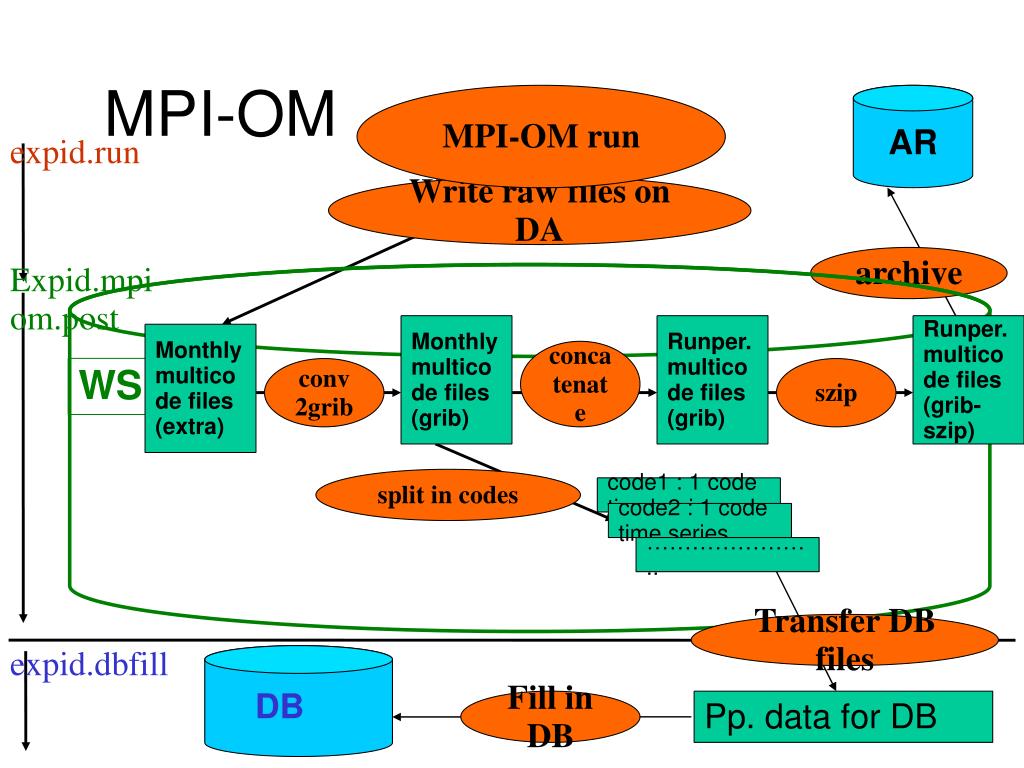

16. MPI-OM run AR expid.run Write raw files on DA Expid.mpiom.post archive Runper. multicode files (grib-szip) Monthly multicode files (grib) Monthly multicode files (extra) Runper. multicode files (grib) WS conv2grib concatenate szip split in codes code1 : 1 code time series code2 : 1 code time series ………………….. Transfer DB files expid.dbfill DB Pp. data for DB Fill in DB MPI-OM

17. Monthly ? Rawfiles (netCDF) HAMMOC (as MPI-OM ??) .post

18. Monitoring and error handling • Check (automatically) file sizes, … after each PP-step (as well tar files) • If output checked in step m => • Status (‘ok’ or ‘error’) in corresponding log file • If error occurs => • Assure, that errors are detected in time and communicated to responsible persons ! • If error occurs => What are the necessary actions (stop step m-1 ? , …. ??) • Assure ‘restart’ of workflow, if status is set again of ‘ok’

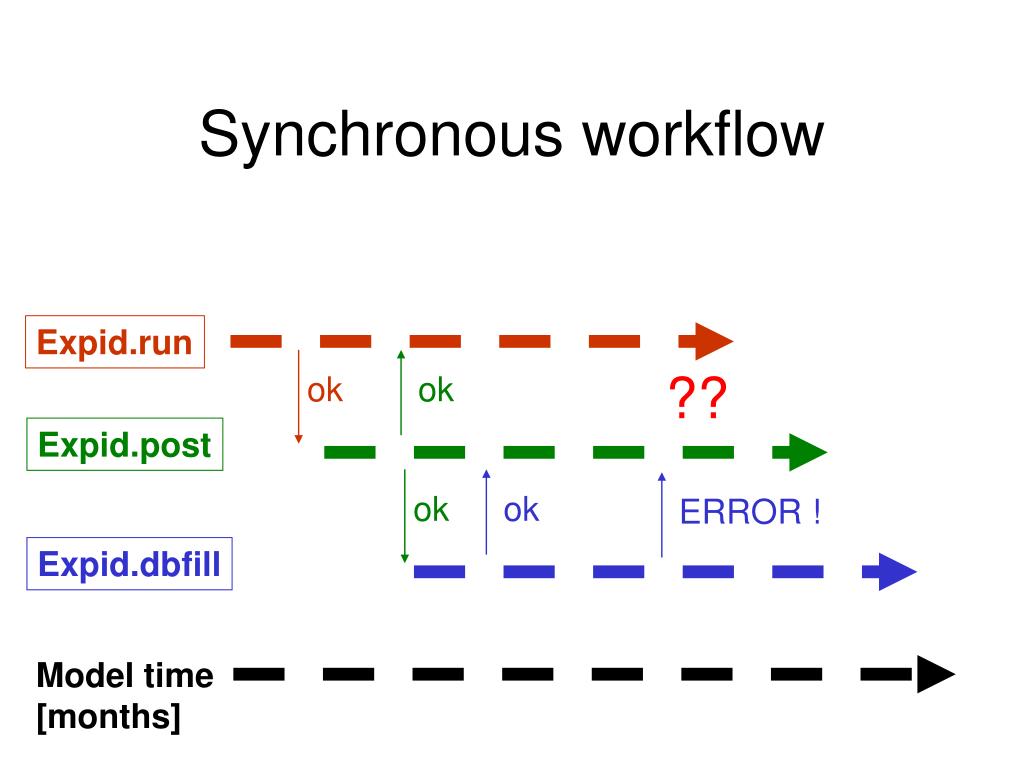

19. Expid.run ?? ok ok Expid.post ok ok ERROR ! Expid.dbfill Synchronous workflow Model time [months]

20. ( Visions or the future ?? ) ESM post processing workflow

21. Post processing steps (vision 1) • Write model output (timeseries of codes, means, …) directly by the model run (expid.run) in the data base (DB) • Optional : Archive output on disc/tape (AR)

22. expid.run optional Experiment (Model run) AR archive Write_sql ( Output from model … • … directly from model run as it should stored in DB ( e.g. timeseries of singular codes, monthly means) ) DB General scheme (vision 1)

23. Vision 1 : Counter arguments • Actual postprocessing (esp. afterburner (convert spectral to regular grid, pressure levels, ‘merging’ of codes etc. )) has to be implemented in the model itself • What happens if data base filling ‘hangs’ • On the compute server must exist a data base (Oracle) interface • ….

24. Post processing steps (vision 2) • Write model raw output (multicode and –level, model specific formated and gridded, …) on workspace (WS) (expid.run) • Postprocess and prepare data on DA and prepare for archiving and data base filling (by expid.post) • Write this postproc. data fromWS / DA in the data base (DB) (in expid.post) • Optional : Archive output on disc/tape (AR) (in expid.post)

25. expid.run Experiment (Model run) AR Write raw files on DA archive expid.post Rawfiles: - multicode, modelspecific WS Pp. data to archive Pp. data for DB Postprocessing Fill in DB DB General scheme (vision 2)

26. Vision 2 : Preconditions • Workspace DA must be mounted on a system accessible by the data base, • Or in other words : files should be directly written from WS in DB • Performance ? : Write and read on the same disc (but same problem with file transfer ?) • … further counter arguments ??
