  1. ROOM OCCUPANCY INDICATOR AbeerZidan Fatima Al-sayyied

  2. INTRODUCTION Our senior design project aims to create a functional system where the number of people in a room can be determined based on tabulating people entering and exiting a room.

  3. OUR OBJECTIVES Accurately sense whether or not someone enters or exits a room through ultrasonic sensors Keep/Update count value in the microcontroller Transmit and receive the count value wirelessly Convert count value so a computer can understand it using MAX-232/RS-232 Display count value on the computer

  4. Applications • • Easy way to know the number of people in a room or building • • Connects settings of heating, lighting, and other utilities to room occupancy • • Assists situations where evacuation may be necessary, e.g. bomb threats, fire alarms, etc. • • Improves time management, e.g. hotel housekeepers can skip occupied rooms

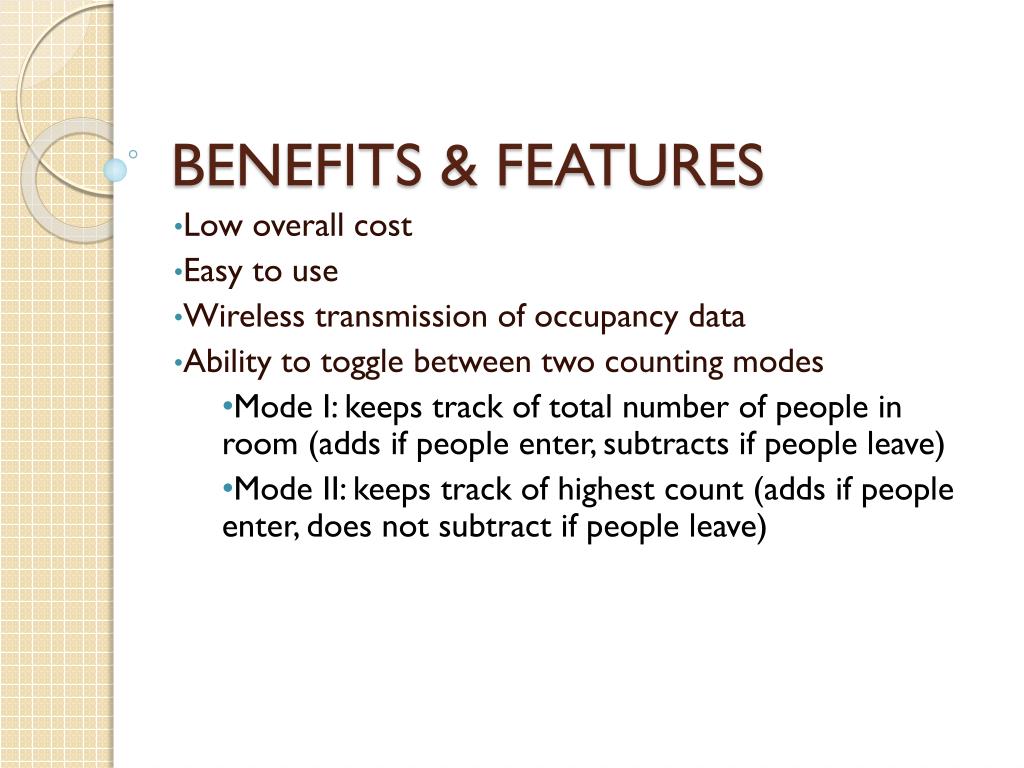

  5. BENEFITS & FEATURES Low overall cost Easy to use Wireless transmission of occupancy data Ability to toggle between two counting modes Mode I: keeps track of total number of people in room (adds if people enter, subtracts if people leave) Mode II: keeps track of highest count (adds if people enter, does not subtract if people leave)

  6. REVIEW ORIGINAL DESIGN

  7. ORIGINAL DESIGN Room A5 people Channel 0 5 people Room A Wireless Communication Room B4 people Channel 1 4 people Master Room Room B Sensors -> Pic -> Transmitter -> Receiver -> Pic -> MAX -> RS -> Display

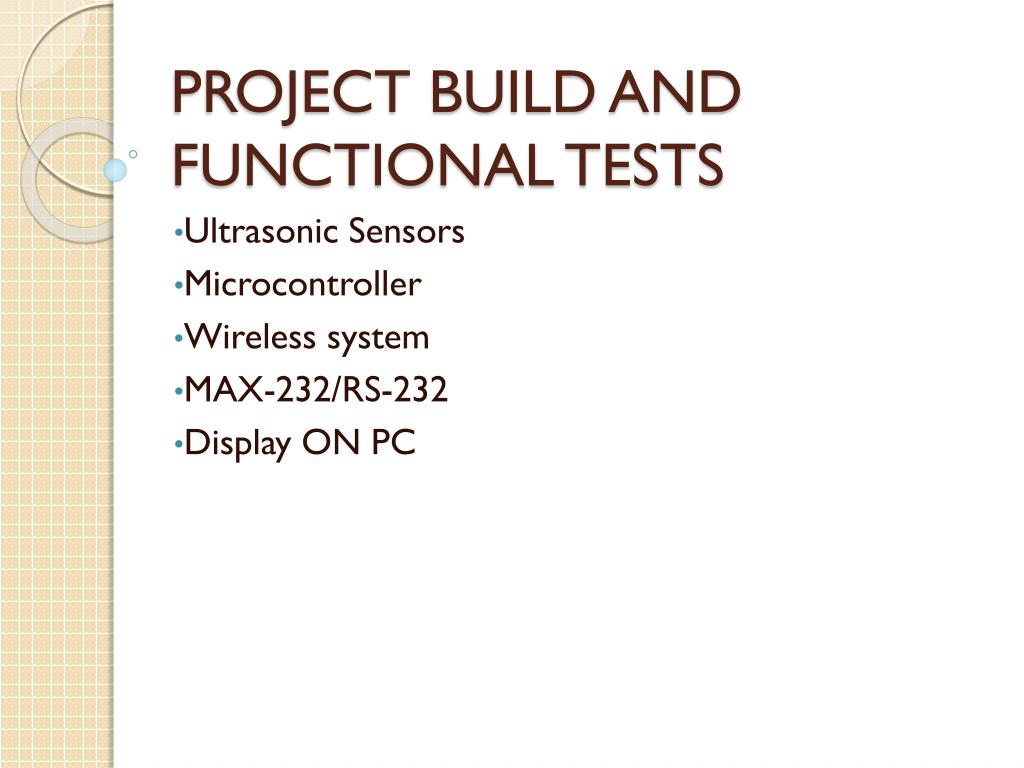

  8. PROJECT BUILD AND FUNCTIONAL TESTS Ultrasonic Sensors Microcontroller Wireless system MAX-232/RS-232 Display ON PC

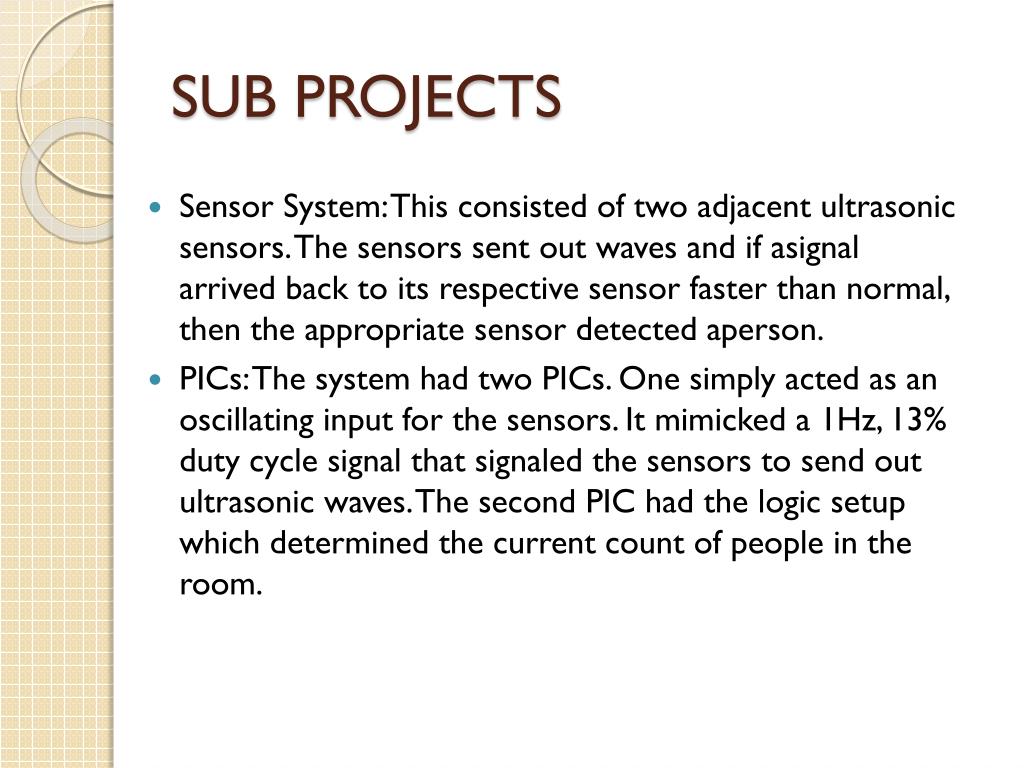

  9. SUB PROJECTS • Sensor System: This consisted of two adjacent ultrasonic sensors. The sensors sent out waves and if asignal arrived back to its respective sensor faster than normal, then the appropriate sensor detected aperson. • PICs: The system had two PICs. One simply acted as an oscillating input for the sensors. It mimicked a 1Hz, 13% duty cycle signal that signaled the sensors to send out ultrasonic waves. The second PIC had the logic setup which determined the current count of people in the room.

  10. CON. • Transmitter/Receiver System: This portion of our design wirelessly transferred the occupancy value from the first PIC to the MAX-232. • MAX-232/RS-232: The MAX-232 converted the signal that came from the receiver into a signal that the RS-232 could read. The RS-232 then fed this signal into the display.

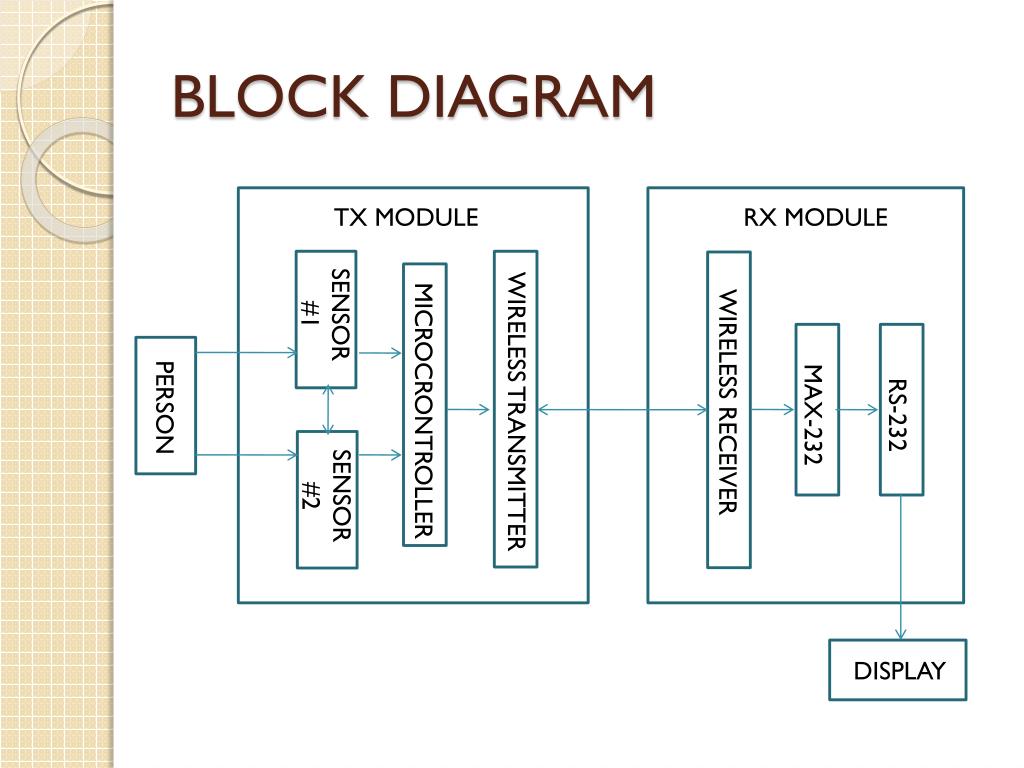

  11. BLOCK DIAGRAM TX MODULE RX MODULE SENSOR #1 MICROCRONTROLLER PERSON DISPLAY MAX-232 RS-232 WIRELESS RECEIVER WIRELESS TRANSMITTER SENSOR #2

  12. Sensor SRF08 • The SRF08 appears as a set of 36 registers • Reg.0: read\ write ; read gives version of srf • write gives unit of measure • Reg.1: read; photo sensor gives a value from 0-255 that represent light intensity • Reg.2: gives the distance

  13. SENSOR DISTANCE & RANGE x = ? x = ? 22° 22° 22° 22° y = ? y = ? wall wall NOT PREFERRED PREFERRED tan 22° = 0.4 ≥ x/(2y)  x/y ≥ 0.8

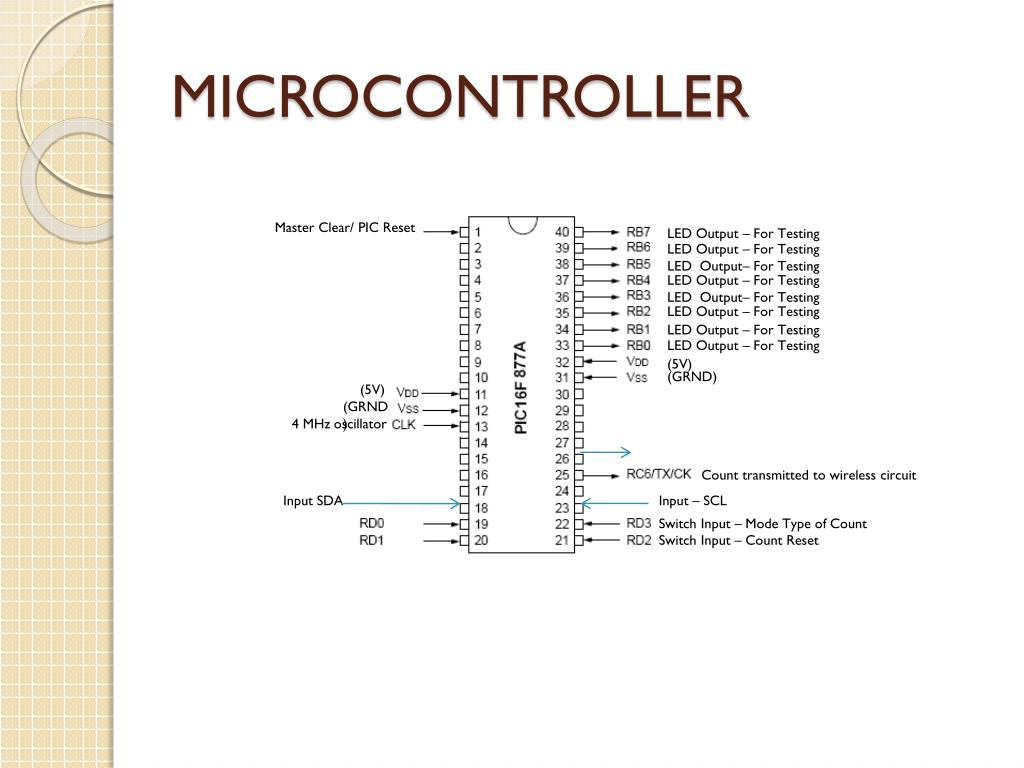

  14. MICROCONTROLLER Master Clear/ PIC Reset LED Output – For Testing LED Output – For Testing LED Output– For Testing LED Output – For Testing LED Output– For Testing LED Output – For Testing LED Output – For Testing LED Output – For Testing (5V) (GRND) (5V) (GRND) 4 MHz oscillator Count transmitted to wireless circuit Input SDA Input – SCL Switch Input – Mode Type of Count Switch Input – Count Reset

  15. Microcontrollor • Detect the current count of people in the room and make calculations on it and send it to Tx • This process was done by making a state machine in order to know previous input values and to handle the frequency issues involved in checking the sensors’ outputs. • The pic operates at two modes: • Default mode :room occupancy indicator(tracked current amount of people) • Secondary mode: total amount of people who entered a room over atime

  16. STATE MACHINE 00/11 ENTRY (ADD 1) STATE 0 (START) 01 (S1 on 1st) 10 (S2 on 1st) 00/11/01 00/11/10 EXIT (SUBTRACT 1) 10 (S2 on 2nd) 11 01 (S1 on 2nd) STATE 1 STATE 2 TRANSITION STATE unconditional unconditional 00/10/01

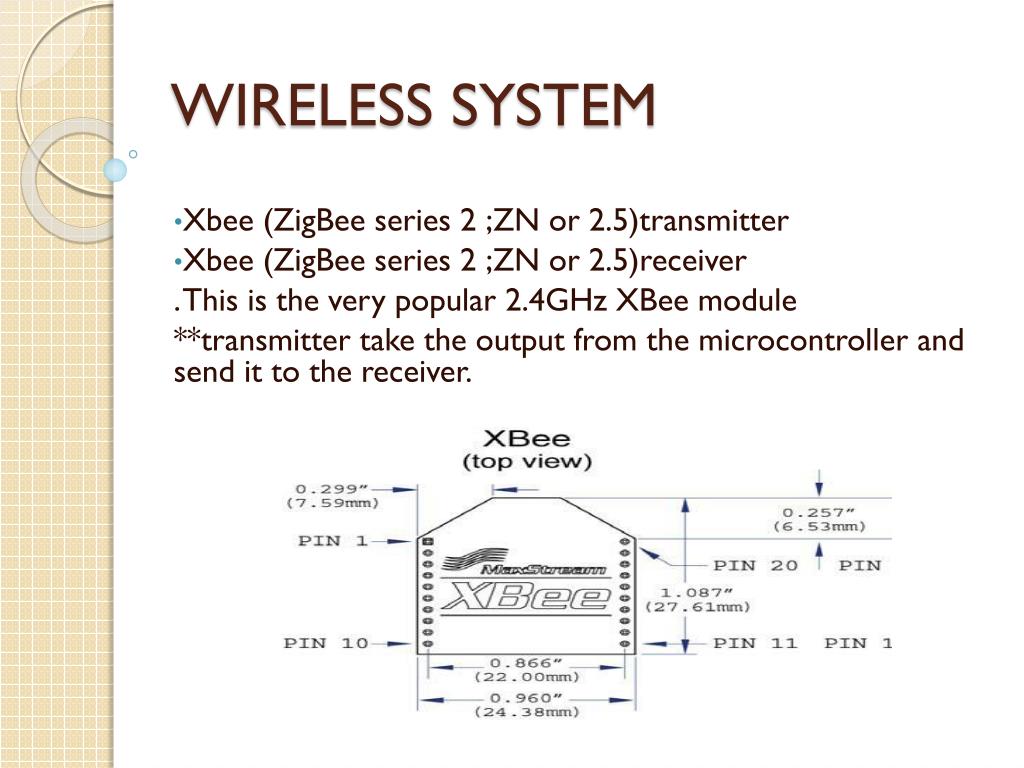

  17. WIRELESS SYSTEM Xbee (ZigBee series 2 ;ZN or 2.5)transmitter Xbee (ZigBee series 2 ;ZN or 2.5)receiver . This is the very popular 2.4GHz XBee module **transmitter take the output from the microcontroller and send it to the receiver.

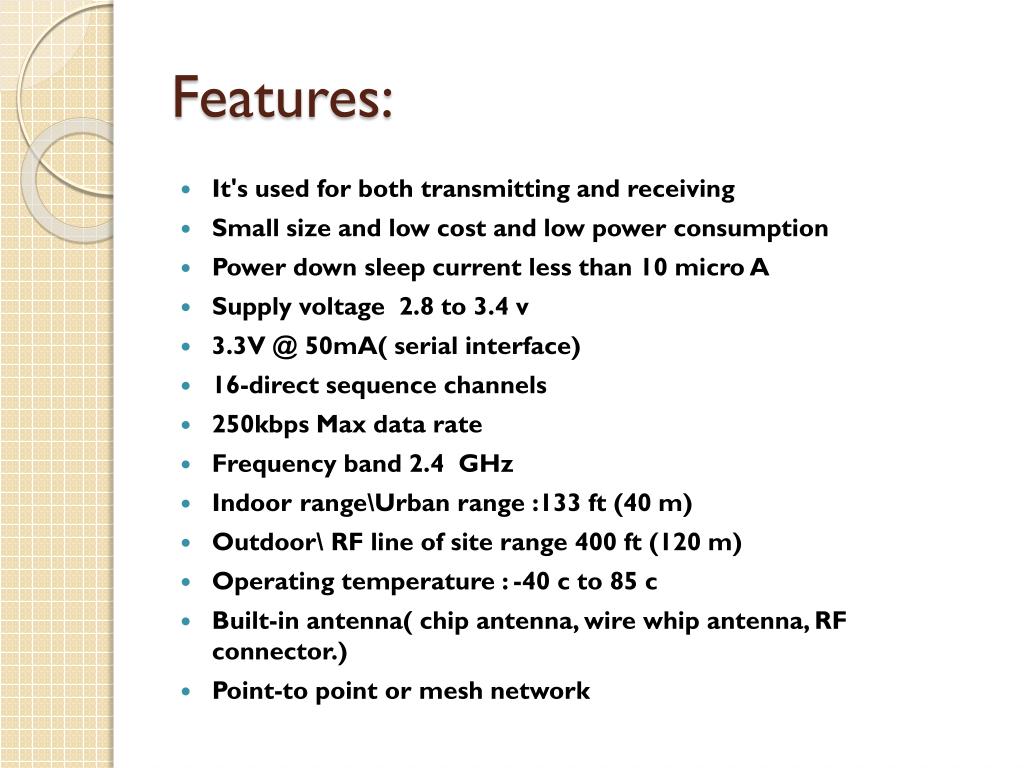

  18. Features: • It's used for both transmitting and receiving • Small size and low cost and low power consumption • Power down sleep current less than 10 micro A • Supply voltage 2.8 to 3.4 v • 3.3V @ 50mA( serial interface) • 16-direct sequence channels • 250kbps Max data rate • Frequency band 2.4 GHz • Indoor range\Urban range :133 ft (40 m) • Outdoor\ RF line of site range 400 ft (120 m) • Operating temperature : -40 c to 85 c • Built-in antenna( chip antenna, wire whip antenna, RF connector.) • Point-to point or mesh network

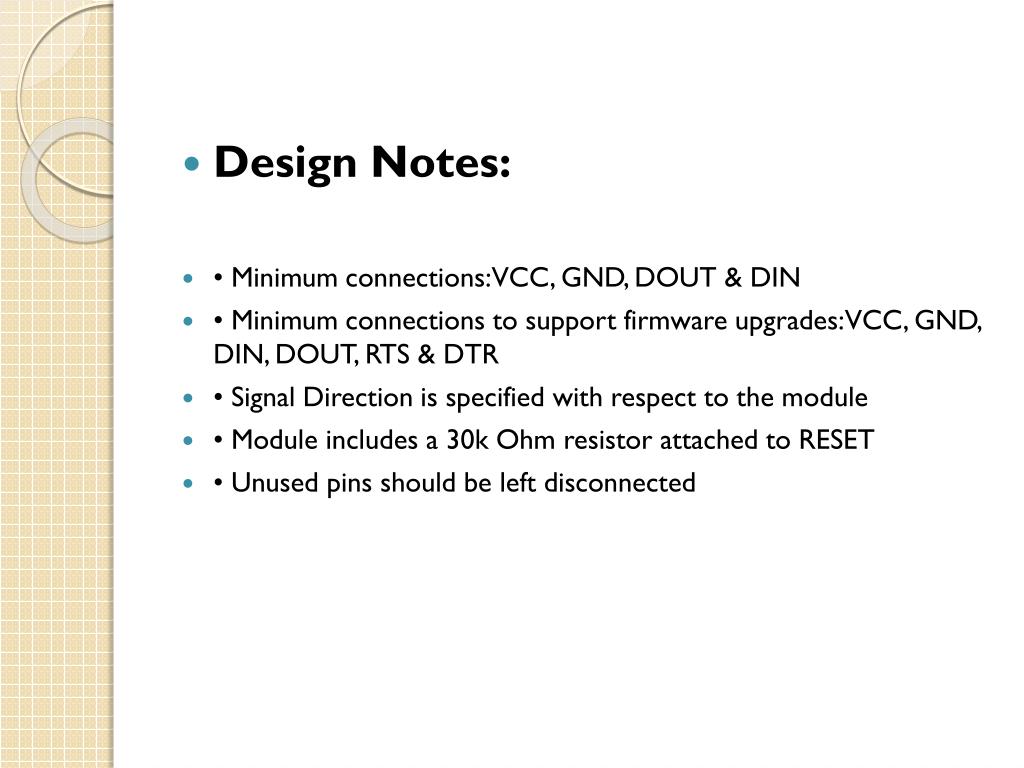

  19. Design Notes: • • Minimum connections: VCC, GND, DOUT & DIN • • Minimum connections to support firmware upgrades: VCC, GND, DIN, DOUT, RTS & DTR • • Signal Direction is specified with respect to the module • • Module includes a 30k Ohm resistor attached to RESET • • Unused pins should be left disconnected

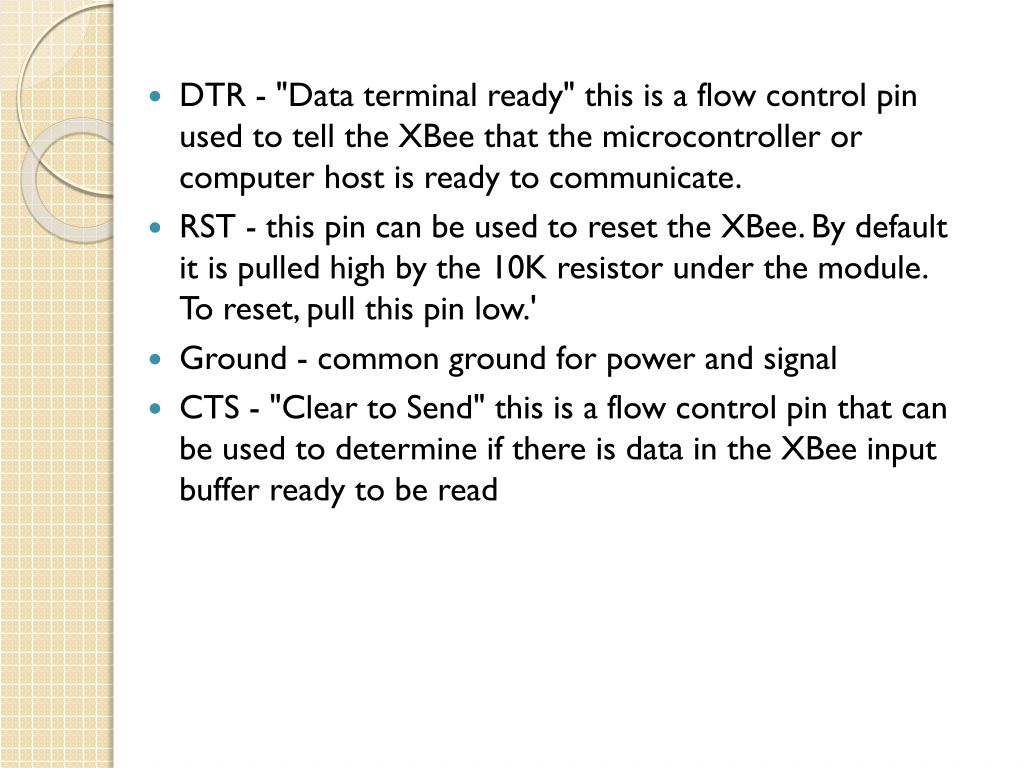

  20. DTR - "Data terminal ready" this is a flow control pin used to tell the XBee that the microcontroller or computer host is ready to communicate. • RST - this pin can be used to reset the XBee. By default it is pulled high by the 10K resistor under the module. To reset, pull this pin low.' • Ground - common ground for power and signal • CTS - "Clear to Send" this is a flow control pin that can be used to determine if there is data in the XBee input buffer ready to be read

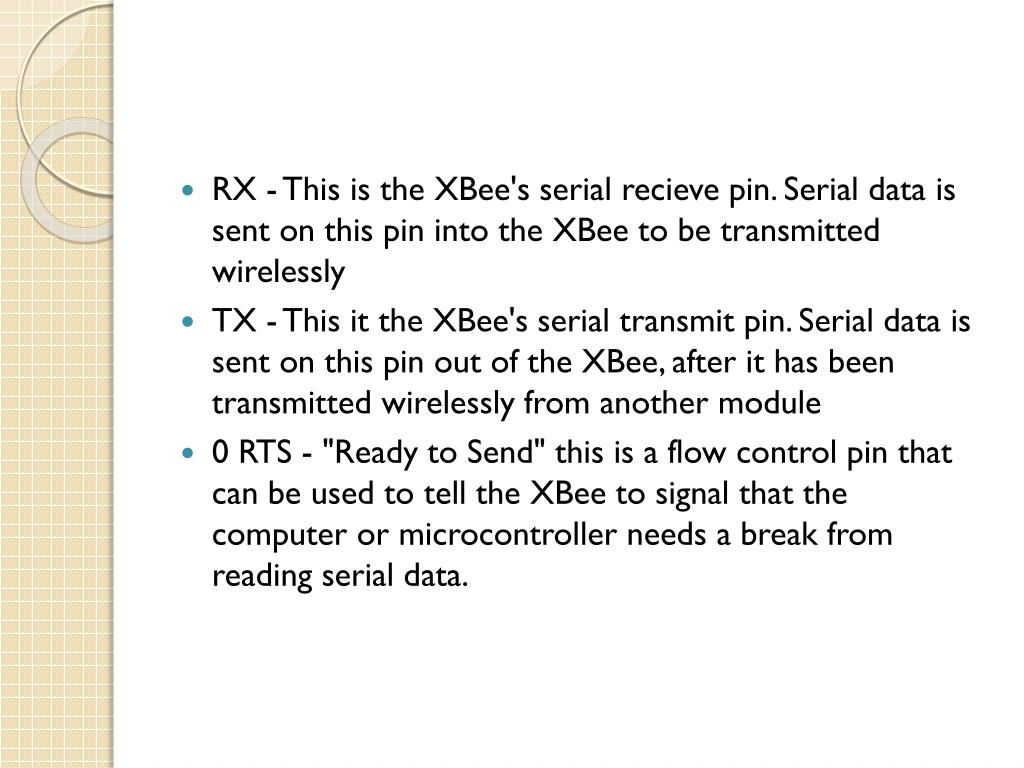

  21. RX - This is the XBee's serial recieve pin. Serial data is sent on this pin into the XBee to be transmitted wirelessly • TX - This it the XBee's serial transmit pin. Serial data is sent on this pin out of the XBee, after it has been transmitted wirelessly from another module • 0 RTS - "Ready to Send" this is a flow control pin that can be used to tell the XBee to signal that the computer or microcontroller needs a break from reading serial data.

  22. Serial Data • Data enters the module UART through the DIN (pin 3) as an asynchronous serial signal. The signal should idle high when no data is being transmitted. Each data byte consists of a start bit (low), 8 data bits (least significant bit first) and a stop bit (high). The following figure illustrates the serial bit pattern of data passing through the module.

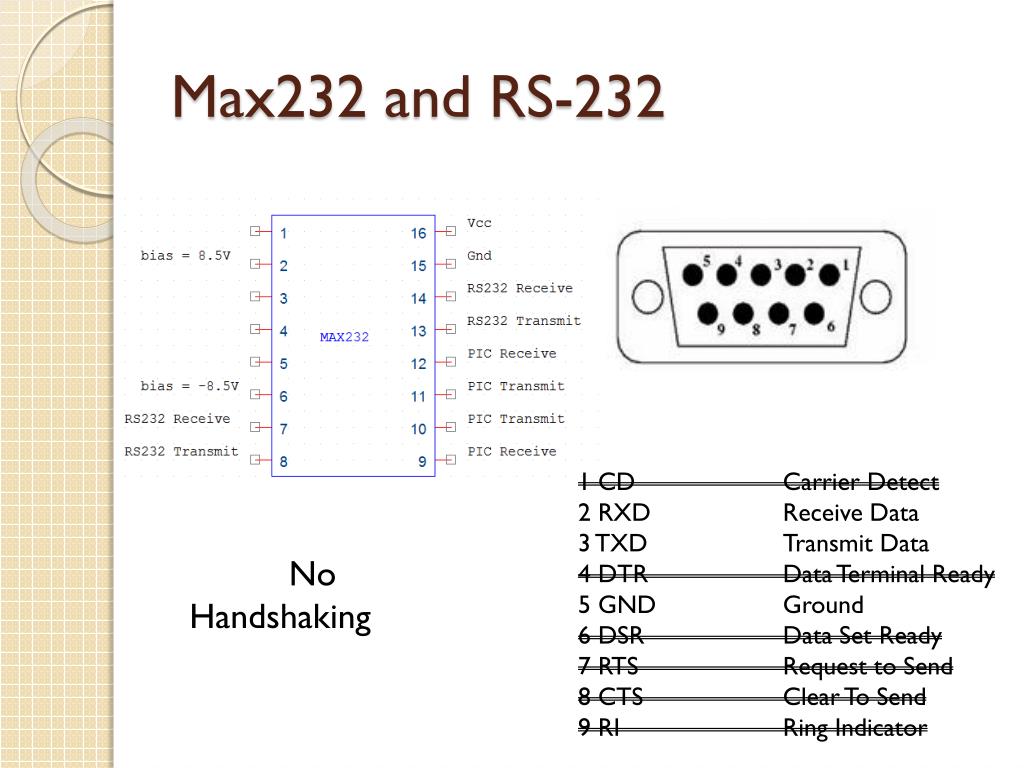

  23. Max232 and RS-232 1 CD Carrier Detect 2 RXD Receive Data 3 TXD Transmit Data 4 DTR Data Terminal Ready 5 GND Ground 6 DSR Data Set Ready 7 RTS Request to Send 8 CTS Clear To Send 9 RI Ring Indicator No Handshaking

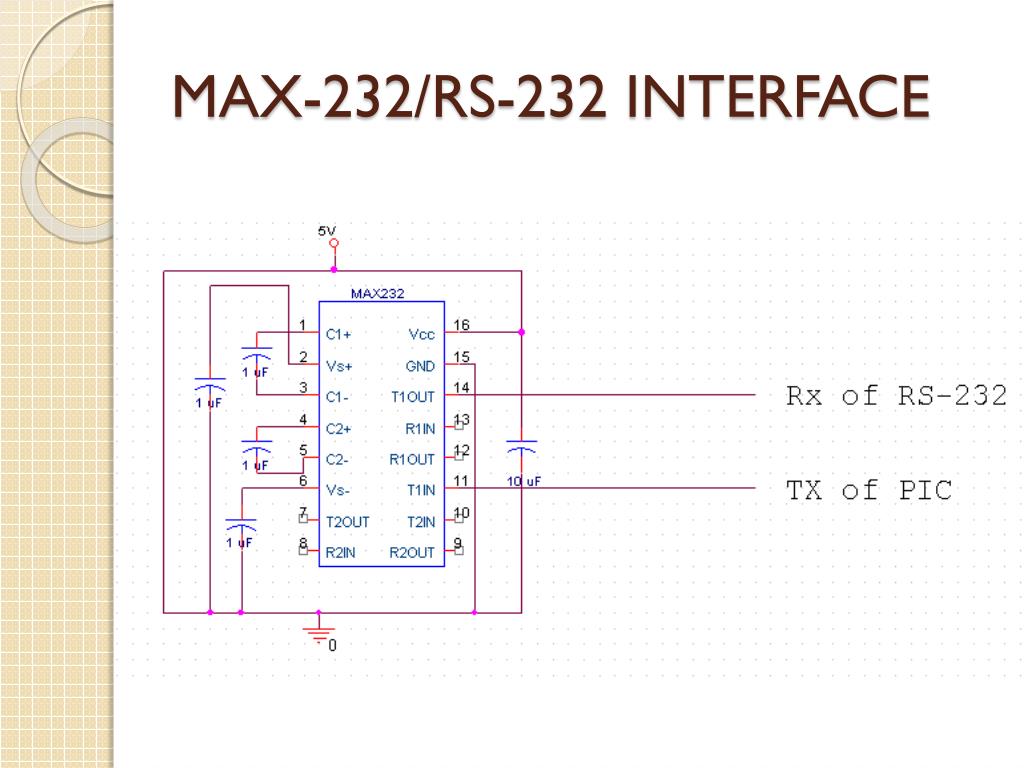

  24. MAX-232/RS-232 INTERFACE

  25. RECOMMENDATIONS Include usage of infrared sensors to make sure humans are detected as opposed to inanimate objects. TO solve the problems of the sensors; we can use (motion detection) camera.

  26. Questions?
