Presentation Transcript

  1. DRAWING SUBMISSION REQUIREMENTS FOR CONSULTANTS رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

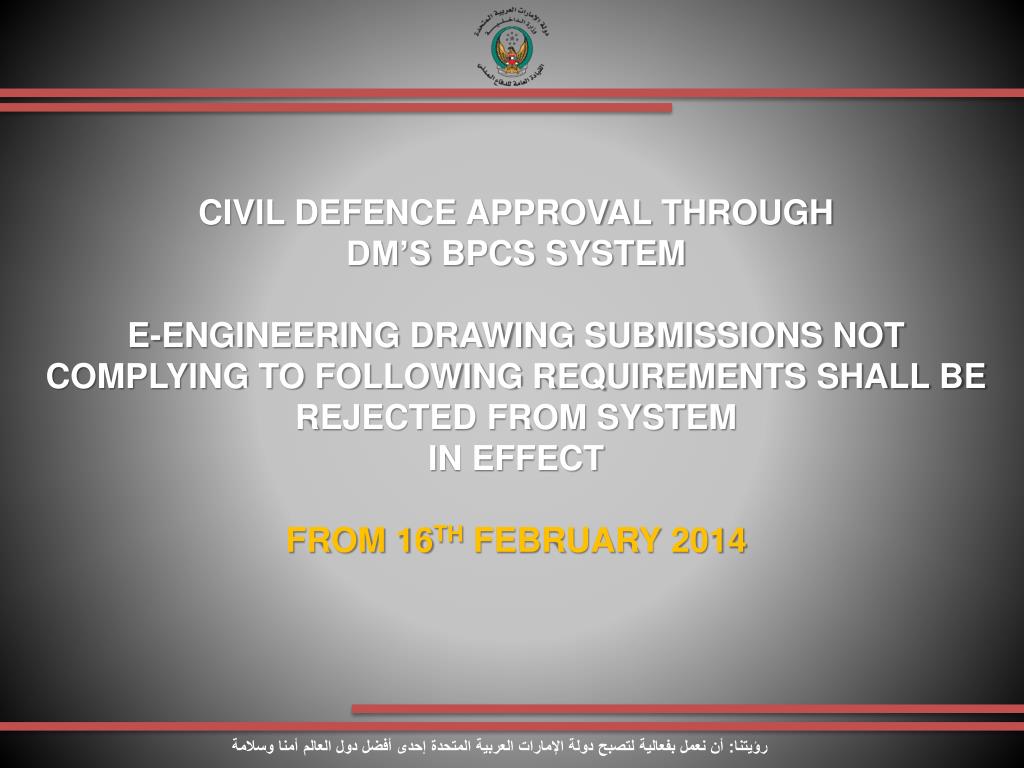

  2. CIVIL DEFENCE APPROVAL THROUGH DM’SBPCS SYSTEM E-ENGINEERING DRAWING SUBMISSIONS NOT COMPLYING TO FOLLOWING REQUIREMENTS SHALL BE REJECTED FROM SYSTEM IN EFFECT FROM 16TH FEBRUARY 2014 رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

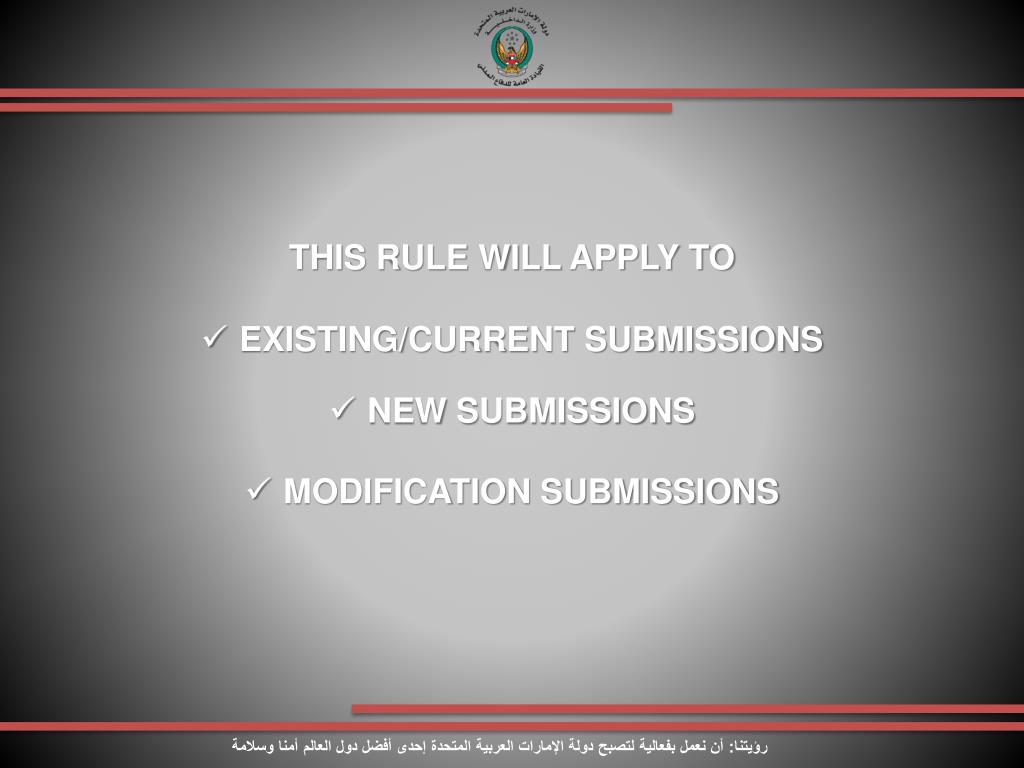

  3. THIS RULE WILL APPLY TO • EXISTING/CURRENT SUBMISSIONS • NEW SUBMISSIONS • MODIFICATION SUBMISSIONS رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

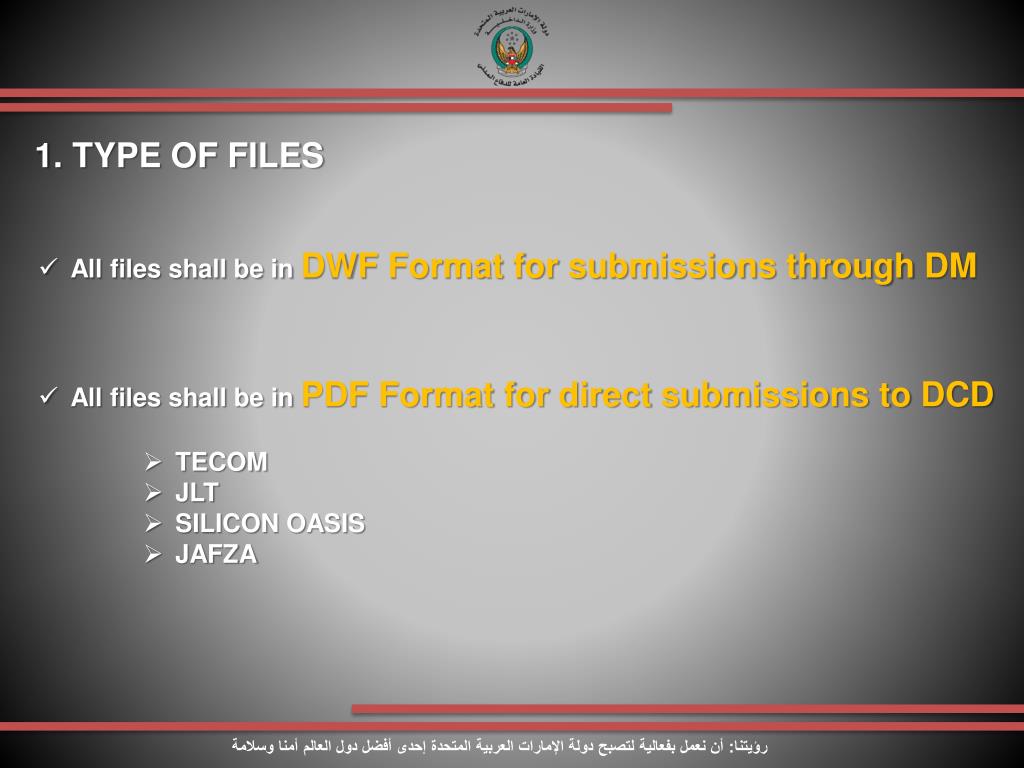

  4. 1. TYPE OF FILES • All files shall be in DWF Format for submissions through DM • All files shall be in PDF Format for direct submissions to DCD • TECOM • JLT • SILICON OASIS • JAFZA رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

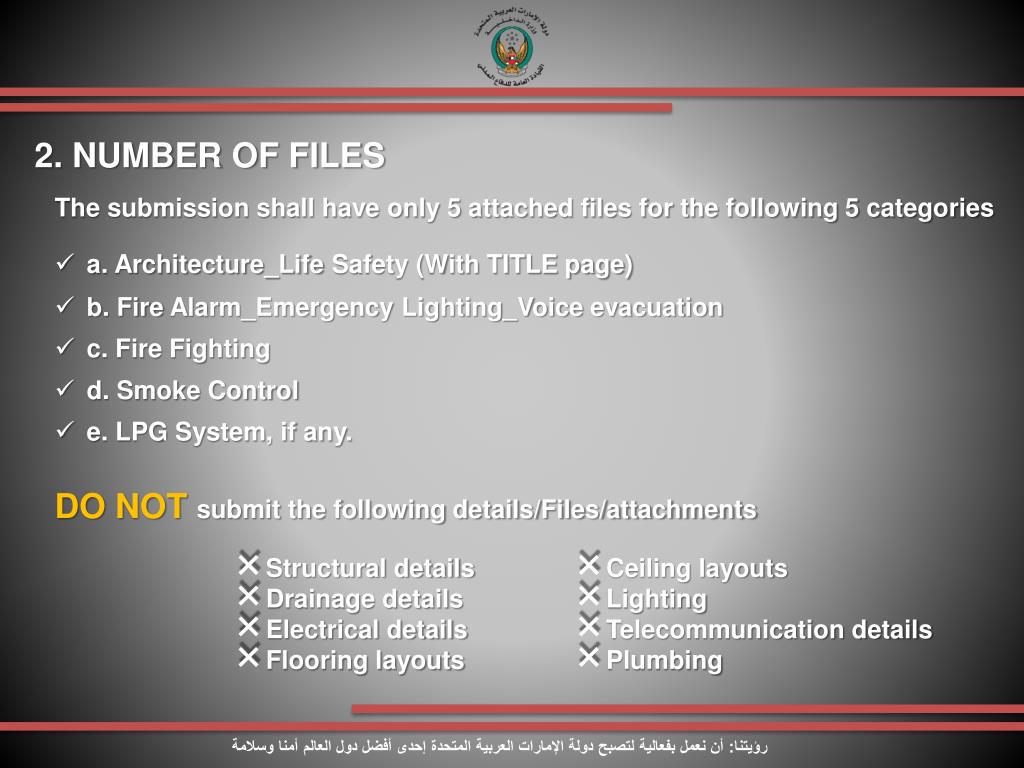

  5. 2. NUMBER OF FILES The submission shall have only 5 attached files for the following 5 categories • a. Architecture_Life Safety (With TITLE page) • b. Fire Alarm_EmergencyLighting_Voice evacuation • c. Fire Fighting • d. Smoke Control • e. LPG System, if any. DO NOT submit the following details/Files/attachments • Structural details • Drainage details • Electrical details • Flooring layouts • Ceiling layouts • Lighting • Telecommunication details • Plumbing رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

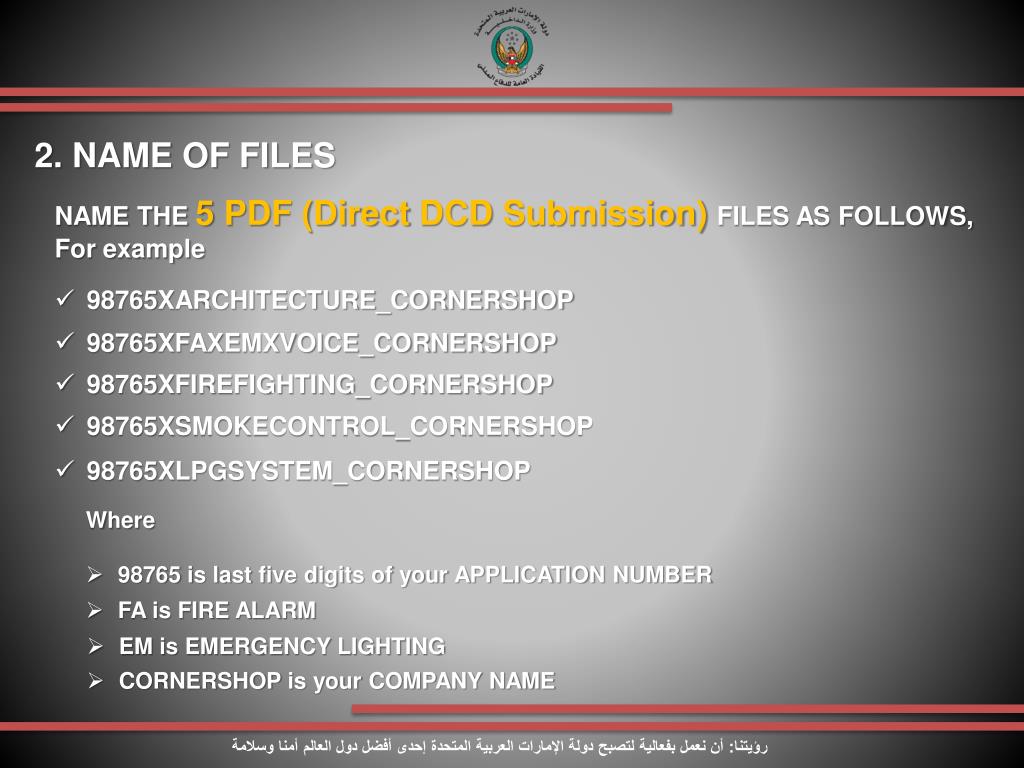

  6. 2. NAME OF FILES NAME THE 5 PDF (Direct DCD Submission) FILES AS FOLLOWS, For example • 98765XARCHITECTURE_CORNERSHOP • 98765XFAXEMXVOICE_CORNERSHOP • 98765XFIREFIGHTING_CORNERSHOP • 98765XSMOKECONTROL_CORNERSHOP • 98765XLPGSYSTEM_CORNERSHOP • Where • 98765 is last five digits of your APPLICATION NUMBER • FA is FIRE ALARM • EM is EMERGENCY LIGHTING • CORNERSHOP is your COMPANY NAME رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

  7. 2. NAME OF FILES NAME THE 5 DWF (Through DM Submission) FILES AS FOLLOWS, For example • 123-456XARCHITECTURE_CORNERSHOP • 123-456XFAXEMXVOICE_CORNERSHOP • 123-456XFIREFIGHTING_CORNERSHOP • 123-456XSMOKECONTROL_CORNERSHOP • 123-456XLPGSYSTEM_CORNERSHOP • Where • 123-456 is PARCEL NUMBER • FA is FIRE ALARM • EM is EMERGENCY LIGHTING • CORNERSHOP is your COMPANY NAME رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

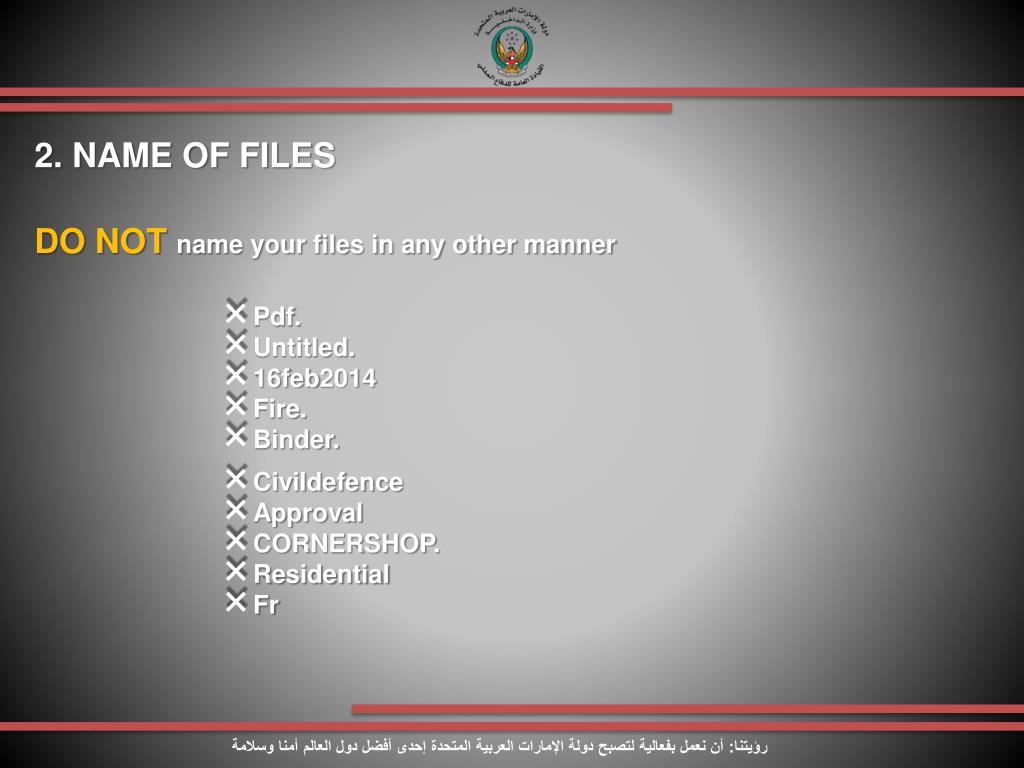

  8. 2. NAME OF FILES DO NOT name your files in any other manner • Pdf. • Untitled. • 16feb2014 • Fire. • Binder. • Civildefence • Approval • CORNERSHOP. • Residential • Fr رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

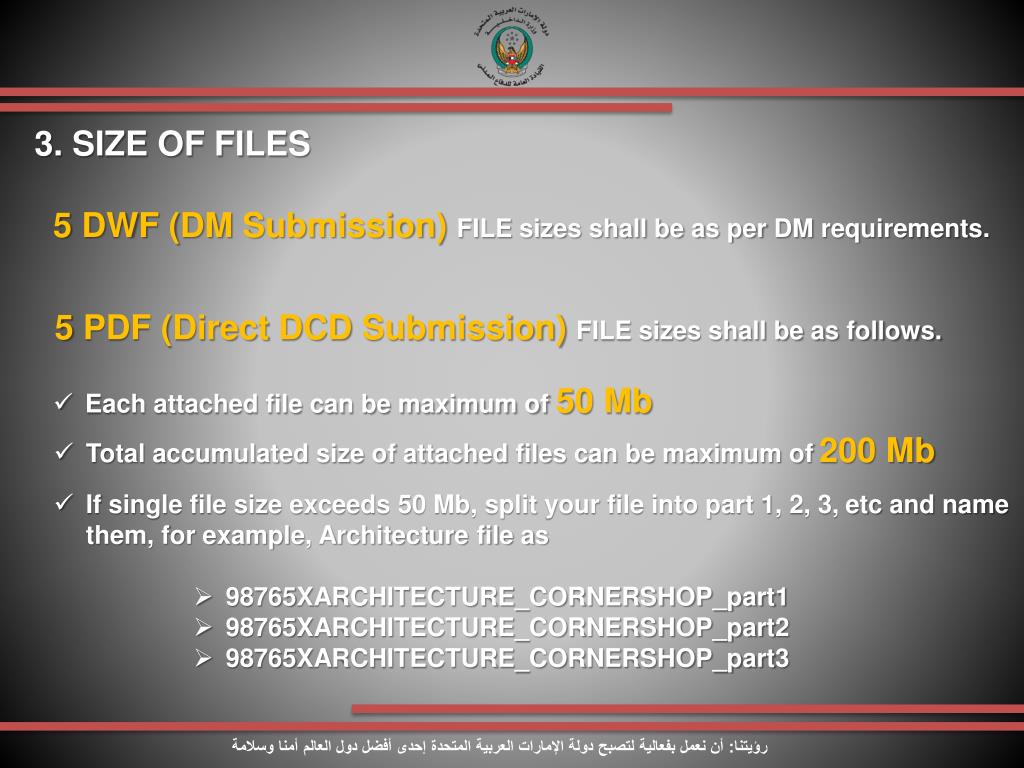

  9. 3. SIZE OF FILES 5 DWF (DM Submission) FILE sizes shall be as per DM requirements. 5 PDF (Direct DCD Submission) FILE sizes shall be as follows. • Each attached file can be maximum of 50 Mb • Total accumulated size of attached files can be maximum of 200 Mb • If single file size exceeds 50 Mb, split your file into part 1, 2, 3, etc and name them, for example, Architecture file as • 98765XARCHITECTURE_CORNERSHOP_part1 • 98765XARCHITECTURE_CORNERSHOP_part2 • 98765XARCHITECTURE_CORNERSHOP_part3 رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

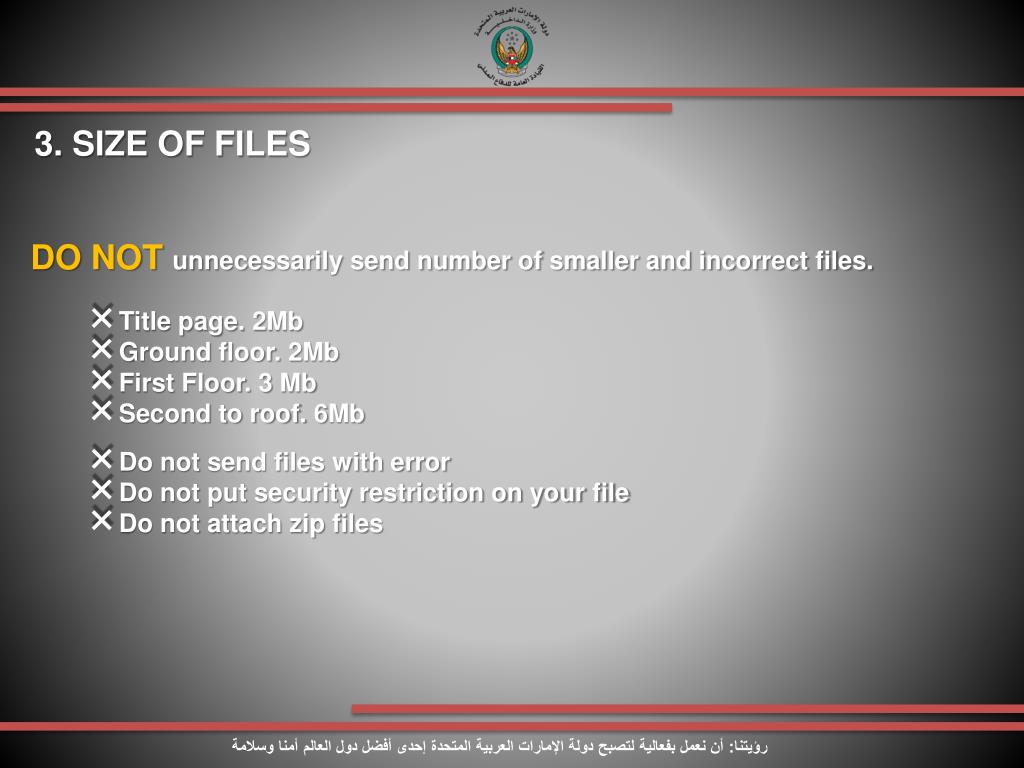

  10. 3. SIZE OF FILES DO NOT unnecessarily send number of smaller and incorrect files. • Title page. 2Mb • Ground floor. 2Mb • First Floor. 3 Mb • Second to roof. 6Mb • Do not send files with error • Do not put security restriction on your file • Do not attach zip files رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

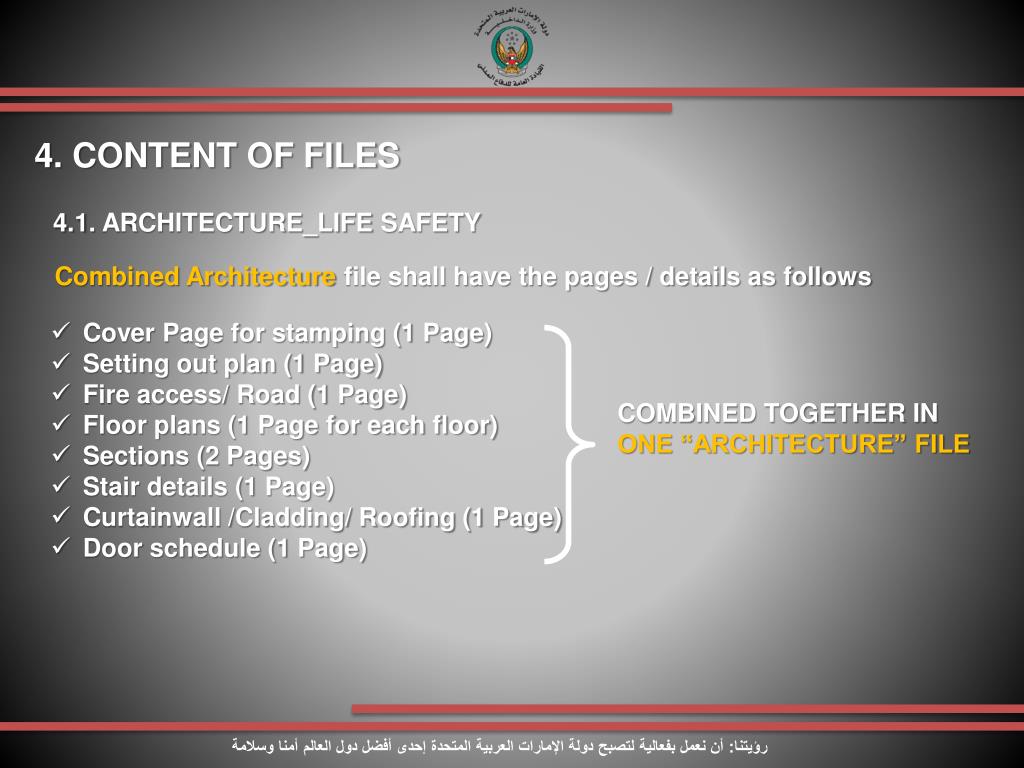

  11. 4. CONTENT OF FILES 4.1. ARCHITECTURE_LIFE SAFETY Combined Architecture file shall have the pages / details as follows • Cover Page for stamping (1 Page) • Setting out plan (1 Page) • Fire access/ Road (1 Page) • Floor plans (1 Page for each floor) • Sections (2 Pages) • Stair details (1 Page) • Curtainwall /Cladding/ Roofing (1 Page) • Door schedule (1 Page) COMBINED TOGETHER IN ONE “ARCHITECTURE” FILE رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

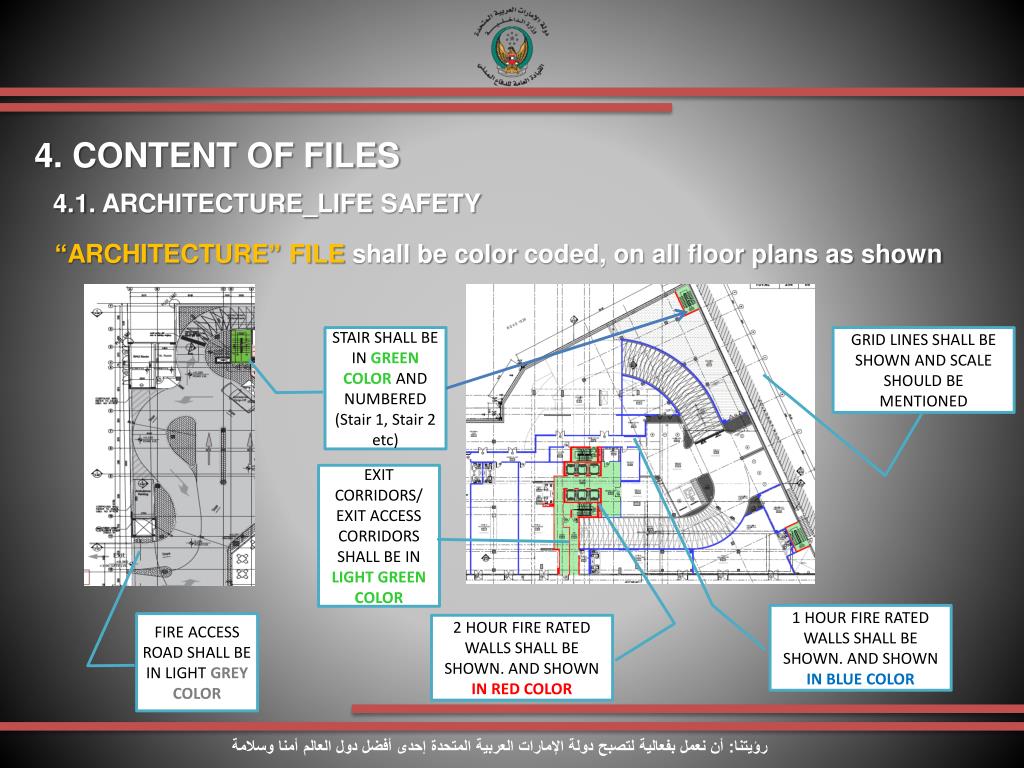

  12. 4. CONTENT OF FILES 4.1. ARCHITECTURE_LIFE SAFETY “ARCHITECTURE” FILE shall be color coded, on all floor plans as shown GRID LINES SHALL BE SHOWN AND SCALE SHOULD BE MENTIONED STAIR SHALL BE IN GREEN COLOR AND NUMBERED (Stair 1, Stair 2 etc) EXIT CORRIDORS/ EXIT ACCESS CORRIDORS SHALL BE IN LIGHT GREEN COLOR 1 HOUR FIRE RATED WALLS SHALL BE SHOWN. AND SHOWN IN BLUE COLOR 2 HOUR FIRE RATED WALLS SHALL BE SHOWN. AND SHOWN IN RED COLOR FIRE ACCESS ROAD SHALL BE IN LIGHT GREY COLOR رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

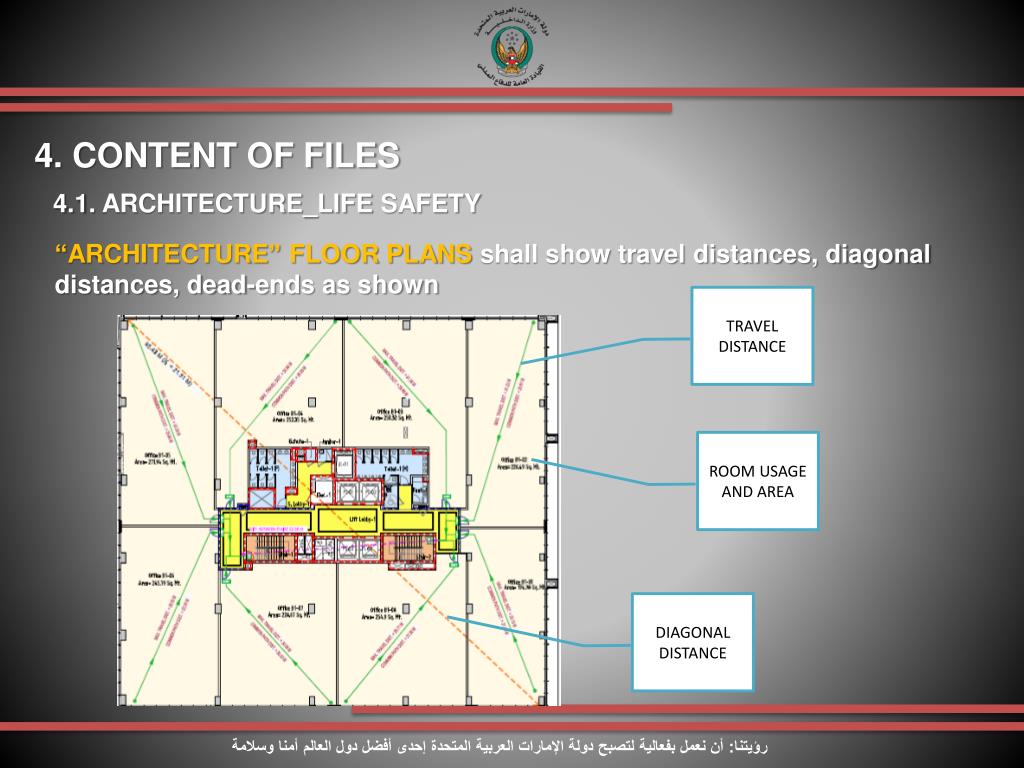

  13. 4. CONTENT OF FILES 4.1. ARCHITECTURE_LIFE SAFETY “ARCHITECTURE” FLOOR PLANS shall show travel distances, diagonal distances, dead-ends as shown TRAVEL DISTANCE ROOM USAGE AND AREA DIAGONAL DISTANCE رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

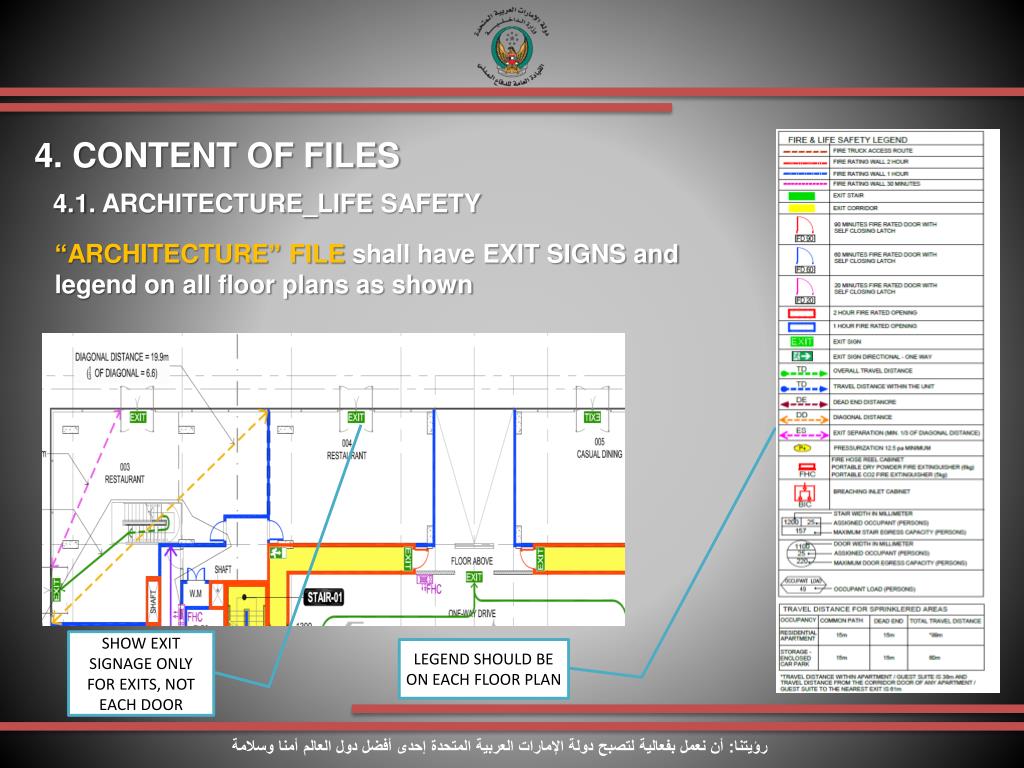

  14. 4. CONTENT OF FILES 4.1. ARCHITECTURE_LIFE SAFETY “ARCHITECTURE” FILE shall have EXIT SIGNS and legend on all floor plans as shown LEGEND SHOULD BE ON EACH FLOOR PLAN SHOW EXIT SIGNAGE ONLY FOR EXITS, NOT EACH DOOR رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

  15. 4. CONTENT OF FILES 4.1. ARCHITECTURE_LIFE SAFETY “ARCHITECTURE” FILE shall show OCCUPANT LOAD Table SHOW OCCUPANT LOADS/ FACTORS رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

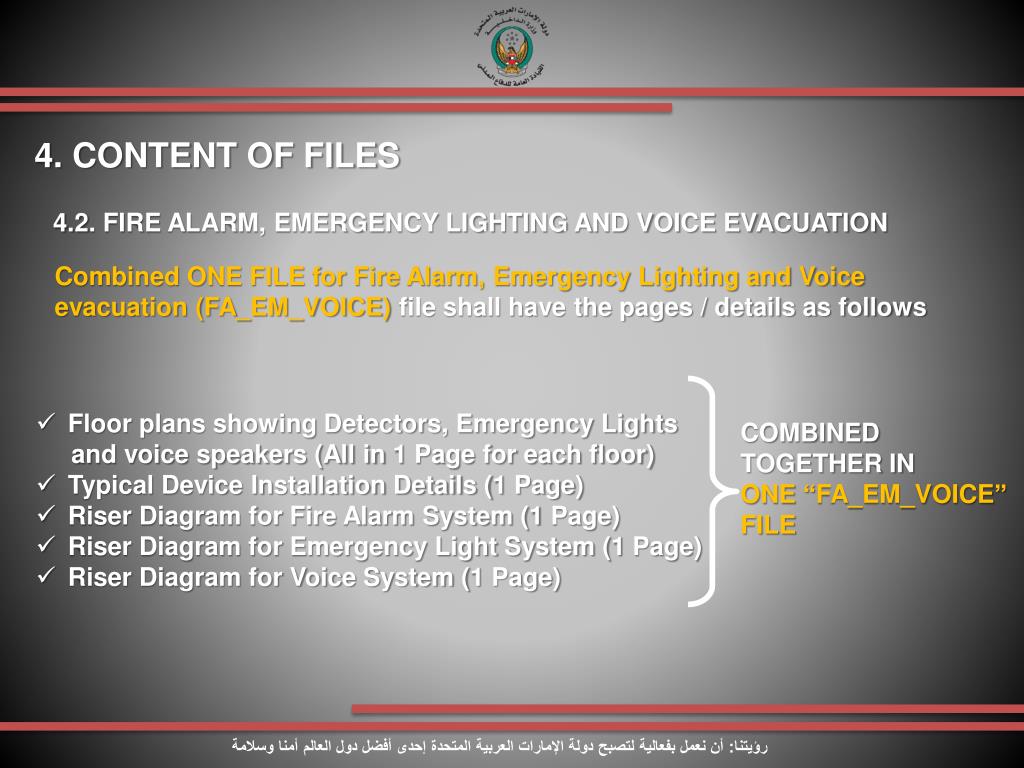

  16. 4. CONTENT OF FILES 4.2. FIRE ALARM, EMERGENCY LIGHTING AND VOICE EVACUATION Combined ONE FILE for Fire Alarm, Emergency Lighting and Voice evacuation (FA_EM_VOICE) file shall have the pages / details as follows • Floor plans showing Detectors, Emergency Lights • and voice speakers (All in 1 Page for each floor) • Typical Device Installation Details (1 Page) • Riser Diagram for Fire Alarm System (1 Page) • Riser Diagram for Emergency Light System (1 Page) • Riser Diagram for Voice System (1 Page) COMBINED TOGETHER IN ONE “FA_EM_VOICE” FILE رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

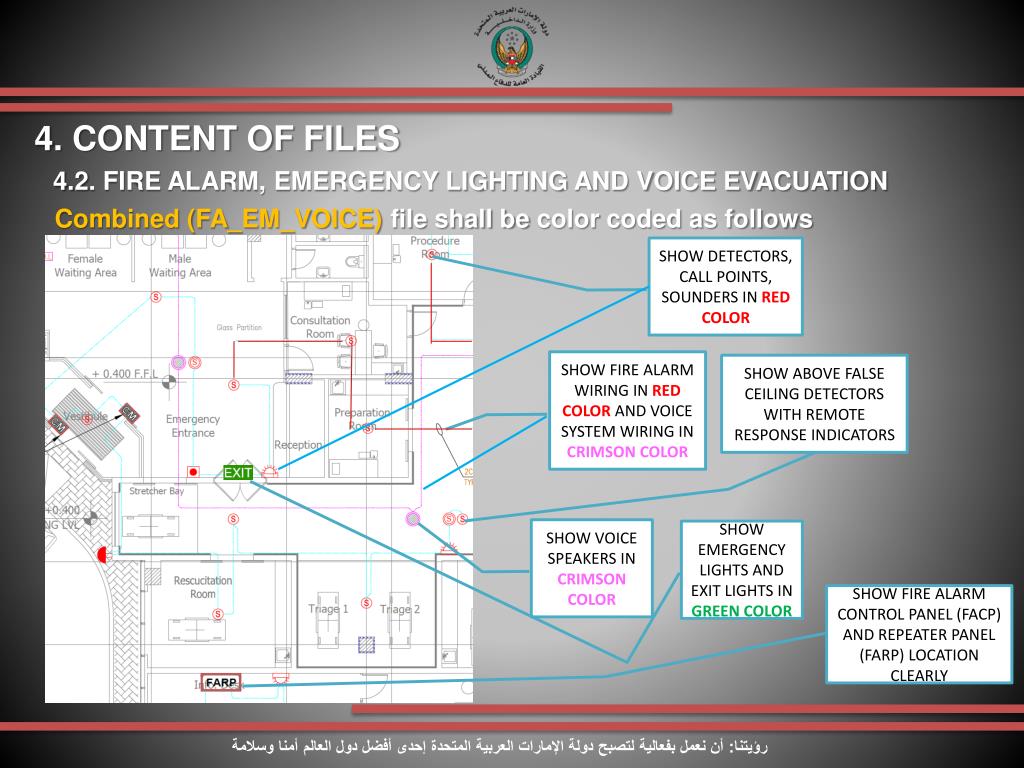

  17. 4. CONTENT OF FILES 4.2. FIRE ALARM, EMERGENCY LIGHTING AND VOICE EVACUATION Combined (FA_EM_VOICE) file shall be color coded as follows SHOW DETECTORS, CALL POINTS, SOUNDERS IN RED COLOR SHOW ABOVE FALSE CEILING DETECTORS WITH REMOTE RESPONSE INDICATORS SHOW FIRE ALARM WIRING IN RED COLORAND VOICE SYSTEM WIRING IN CRIMSON COLOR SHOW VOICE SPEAKERS IN CRIMSON COLOR SHOW EMERGENCY LIGHTS AND EXIT LIGHTS IN GREEN COLOR SHOW FIRE ALARM CONTROL PANEL (FACP) AND REPEATER PANEL (FARP) LOCATION CLEARLY رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

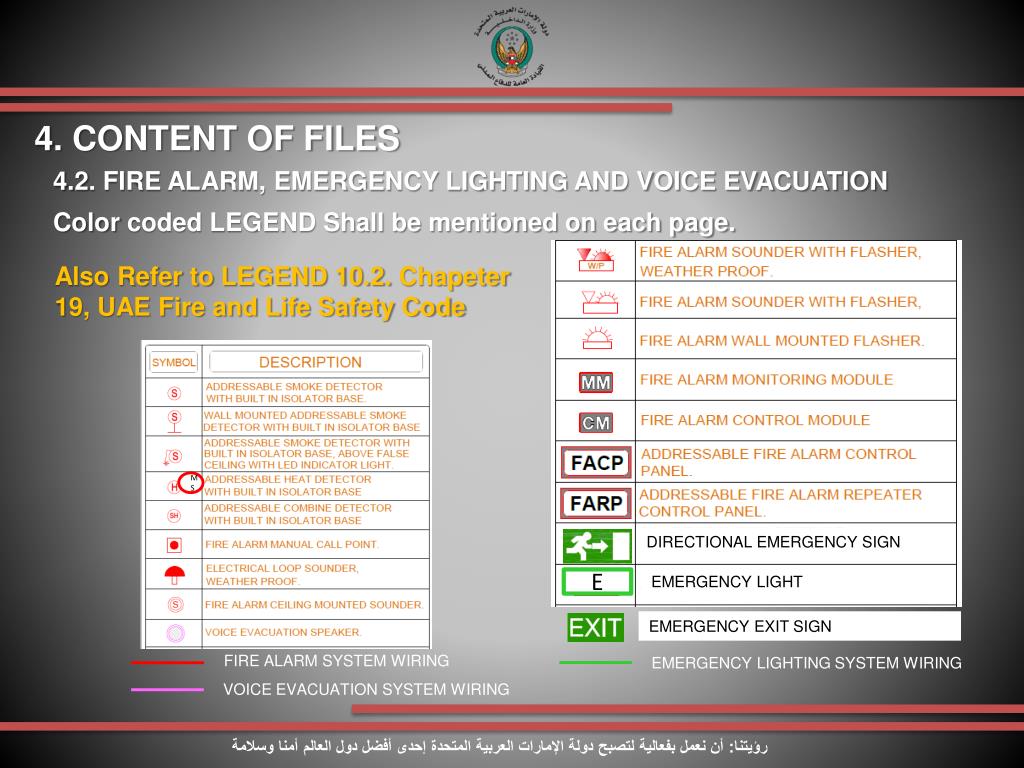

  18. 4. CONTENT OF FILES 4.2. FIRE ALARM, EMERGENCY LIGHTING AND VOICE EVACUATION Color coded LEGEND Shall be mentioned on each page. Also Refer to LEGEND 10.2. Chapeter 19, UAE Fire and Life Safety Code MS DIRECTIONAL EMERGENCY SIGN EMERGENCY LIGHT E EMERGENCY EXIT SIGN FIRE ALARM SYSTEM WIRING EMERGENCY LIGHTING SYSTEM WIRING VOICE EVACUATION SYSTEM WIRING رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

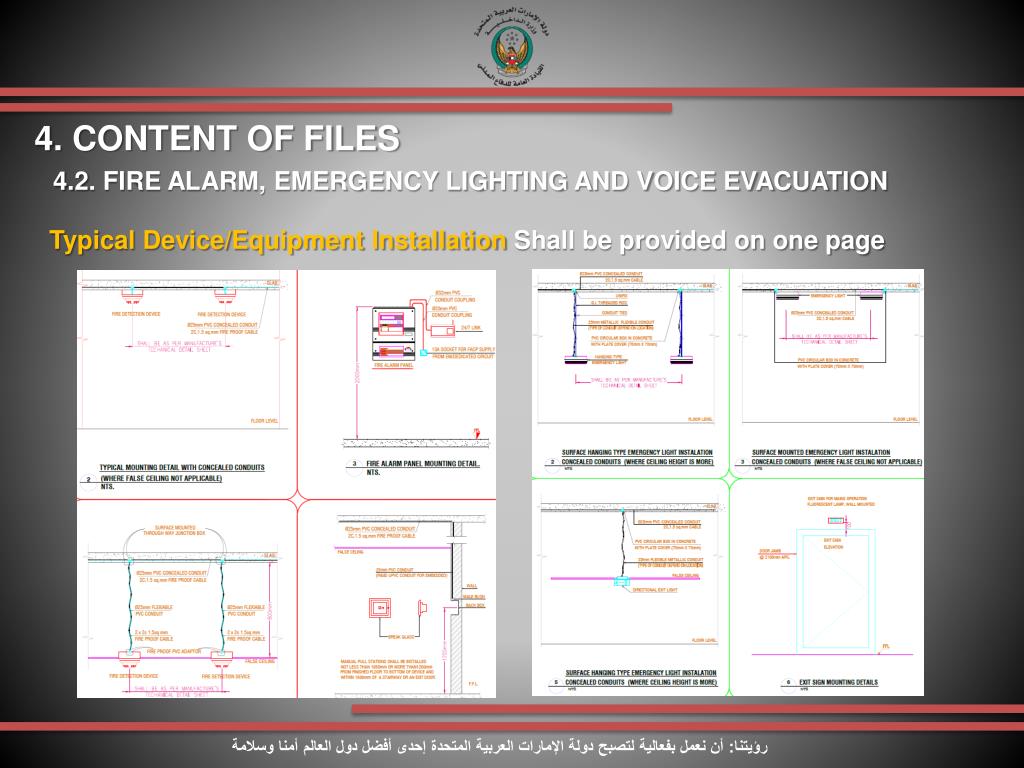

  19. 4. CONTENT OF FILES 4.2. FIRE ALARM, EMERGENCY LIGHTING AND VOICE EVACUATION Typical Device/Equipment Installation Shall be provided on one page رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

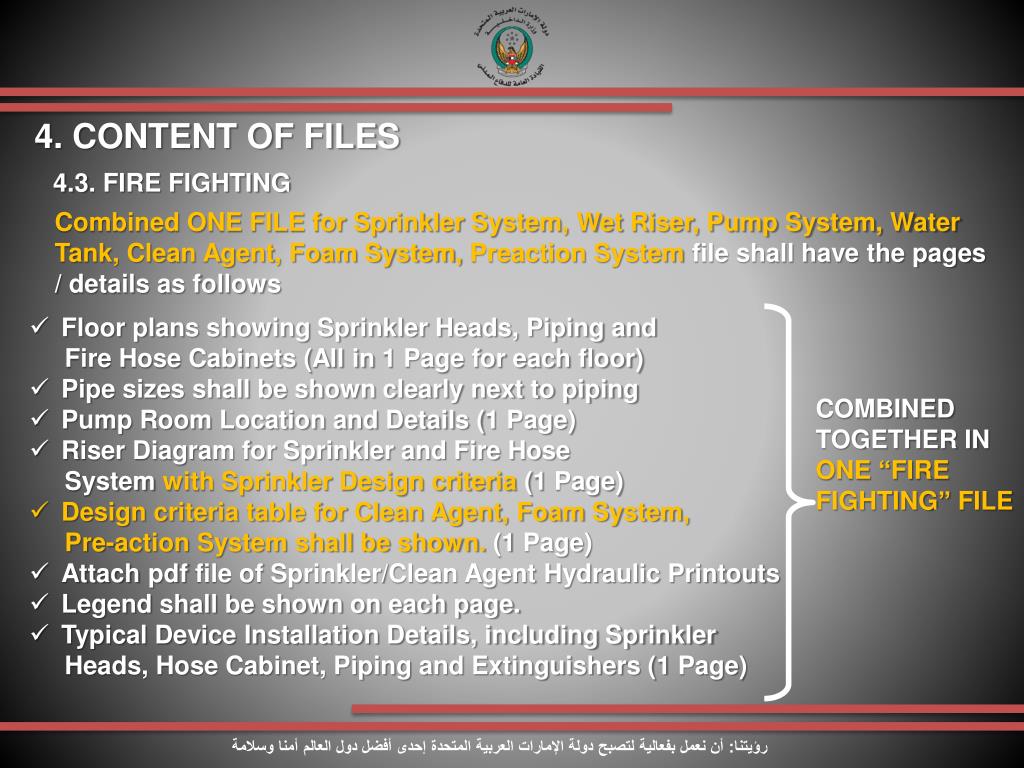

  20. 4. CONTENT OF FILES 4.3. FIRE FIGHTING Combined ONE FILE for Sprinkler System, Wet Riser, Pump System, Water Tank, Clean Agent, Foam System, Preaction System file shall have the pages / details as follows • Floor plans showing Sprinkler Heads, Piping and • Fire Hose Cabinets (All in 1 Page for each floor) • Pipe sizes shall be shown clearly next to piping • Pump Room Location and Details (1 Page) • Riser Diagram for Sprinkler and Fire Hose • System with Sprinkler Design criteria (1 Page) • Design criteria table for Clean Agent, Foam System, • Pre-action System shall be shown. (1 Page) • Attach pdf file of Sprinkler/Clean Agent Hydraulic Printouts • Legend shall be shown on each page. • Typical Device Installation Details, including Sprinkler • Heads, Hose Cabinet, Piping and Extinguishers (1 Page) COMBINED TOGETHER IN ONE “FIRE FIGHTING” FILE رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

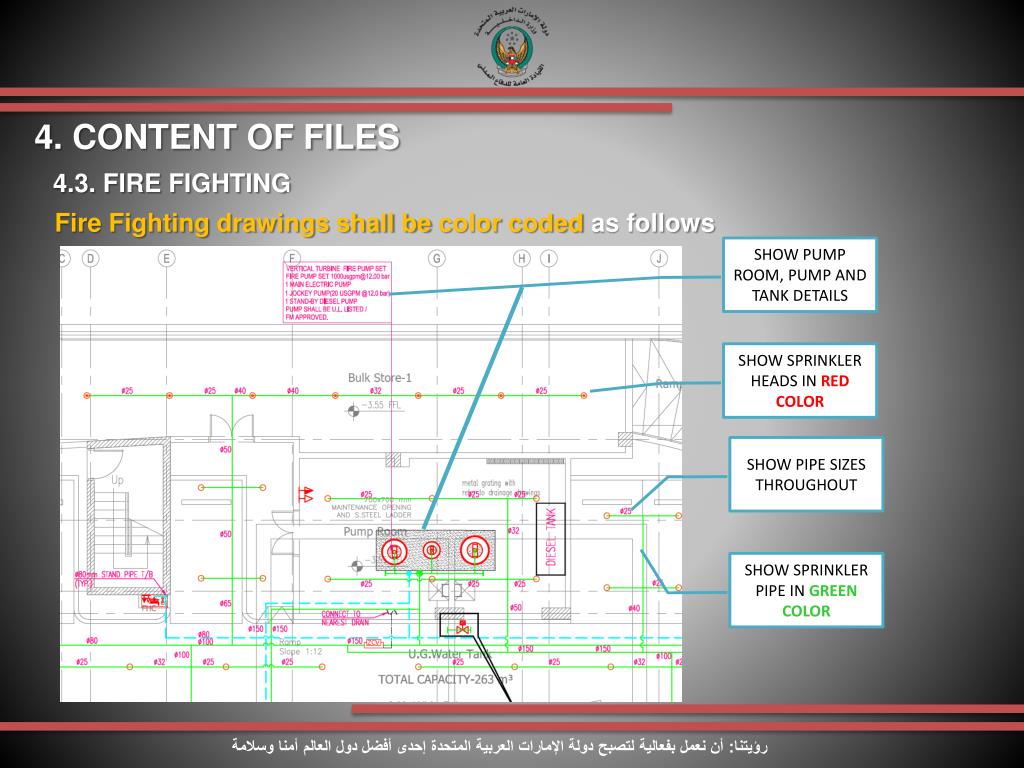

  21. 4. CONTENT OF FILES 4.3. FIRE FIGHTING SHOW PUMP ROOM, PUMP AND TANK DETAILS Fire Fighting drawings shall be color coded as follows SHOW SPRINKLER HEADS IN RED COLOR SHOW PIPE SIZES THROUGHOUT SHOW SPRINKLER PIPE IN GREEN COLOR رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

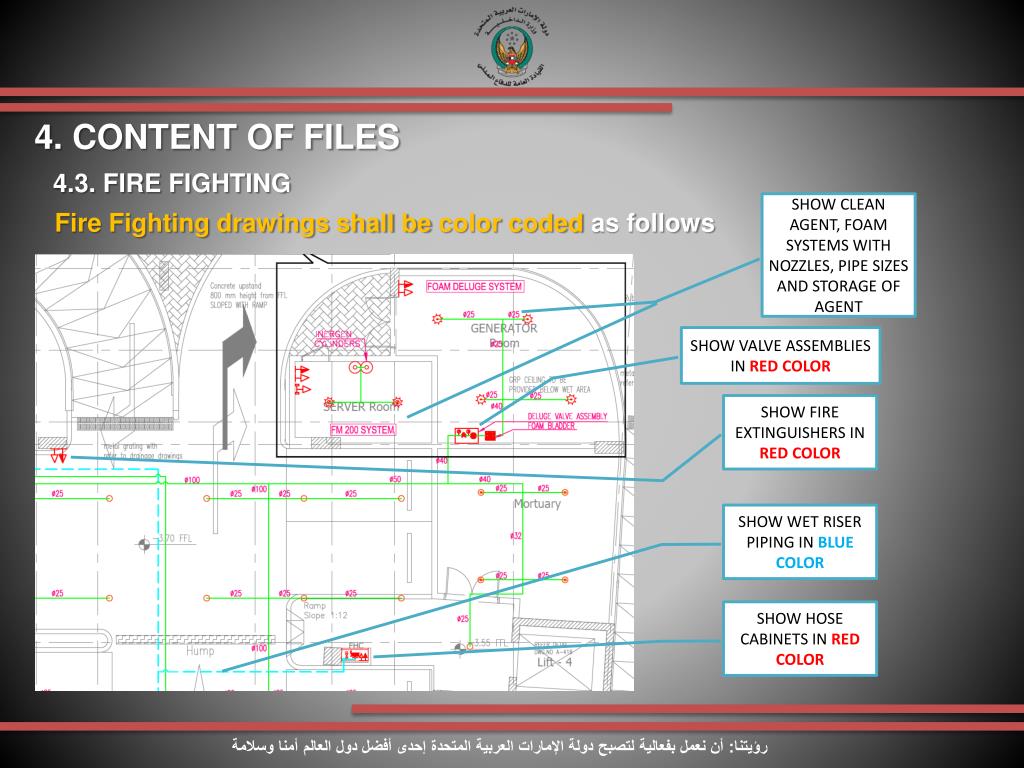

  22. 4. CONTENT OF FILES 4.3. FIRE FIGHTING SHOW CLEAN AGENT, FOAM SYSTEMS WITH NOZZLES, PIPE SIZES AND STORAGE OF AGENT Fire Fighting drawings shall be color coded as follows SHOW VALVE ASSEMBLIES IN RED COLOR SHOW FIRE EXTINGUISHERS IN RED COLOR SHOW WET RISER PIPING IN BLUE COLOR SHOW HOSE CABINETS IN RED COLOR رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

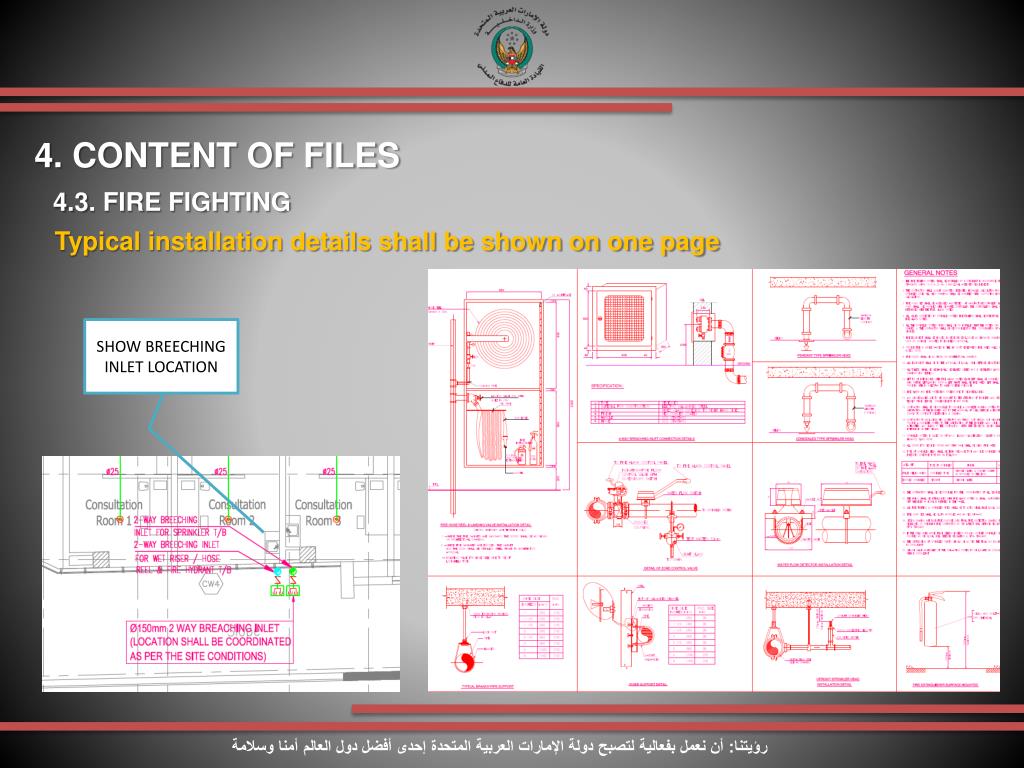

  23. 4. CONTENT OF FILES 4.3. FIRE FIGHTING Typical installation details shall be shown on one page SHOW BREECHING INLET LOCATION رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

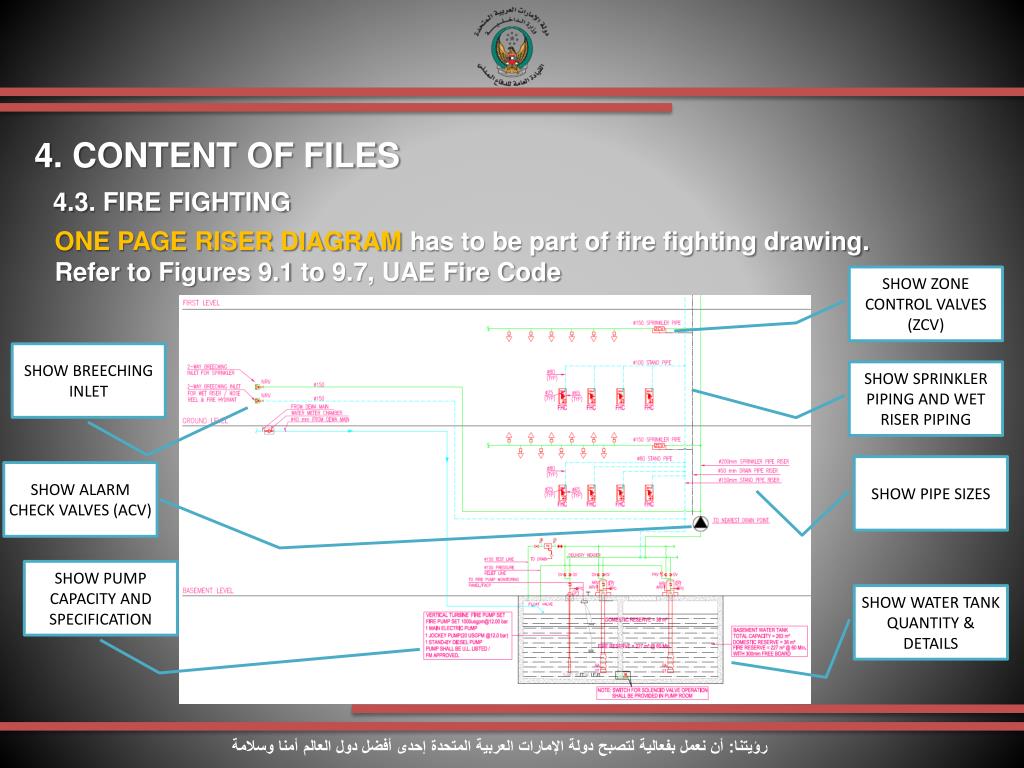

  24. 4. CONTENT OF FILES 4.3. FIRE FIGHTING ONE PAGE RISER DIAGRAM has to be part of fire fighting drawing. Refer to Figures 9.1 to 9.7, UAE Fire Code SHOW ZONE CONTROL VALVES (ZCV) SHOW BREECHING INLET SHOW SPRINKLER PIPING AND WET RISER PIPING SHOW PIPE SIZES SHOW ALARM CHECK VALVES (ACV) SHOW PUMP CAPACITY AND SPECIFICATION SHOW WATER TANK QUANTITY & DETAILS رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

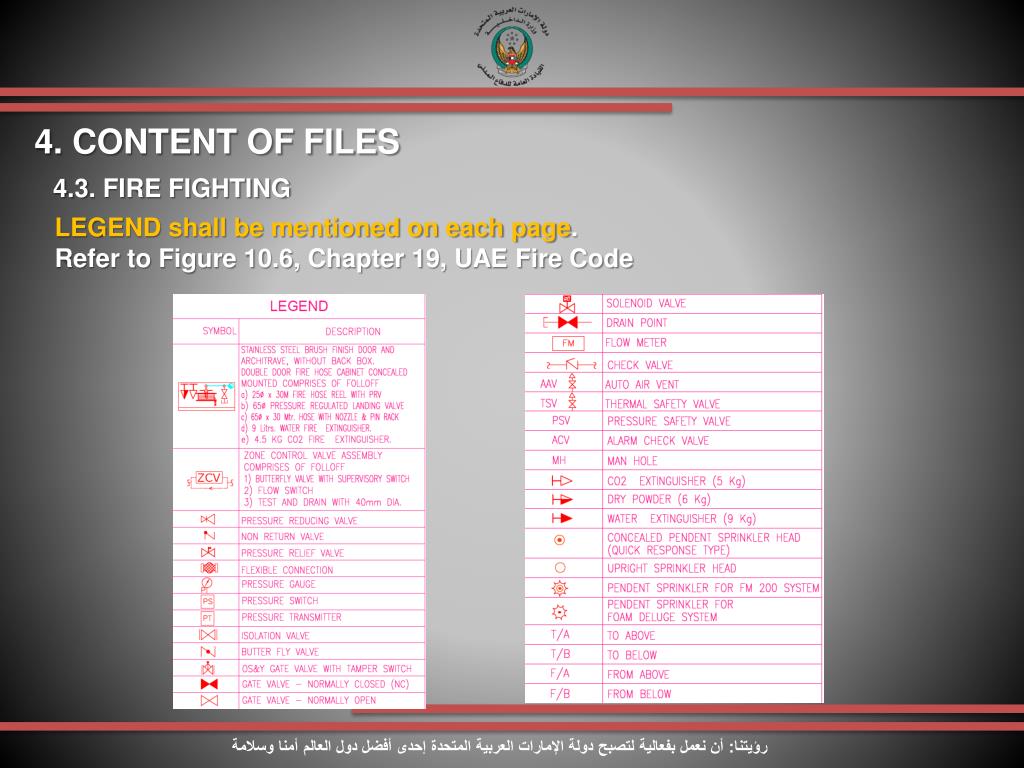

  25. 4. CONTENT OF FILES 4.3. FIRE FIGHTING LEGEND shall be mentioned on each page. Refer to Figure 10.6, Chapter 19, UAE Fire Code رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

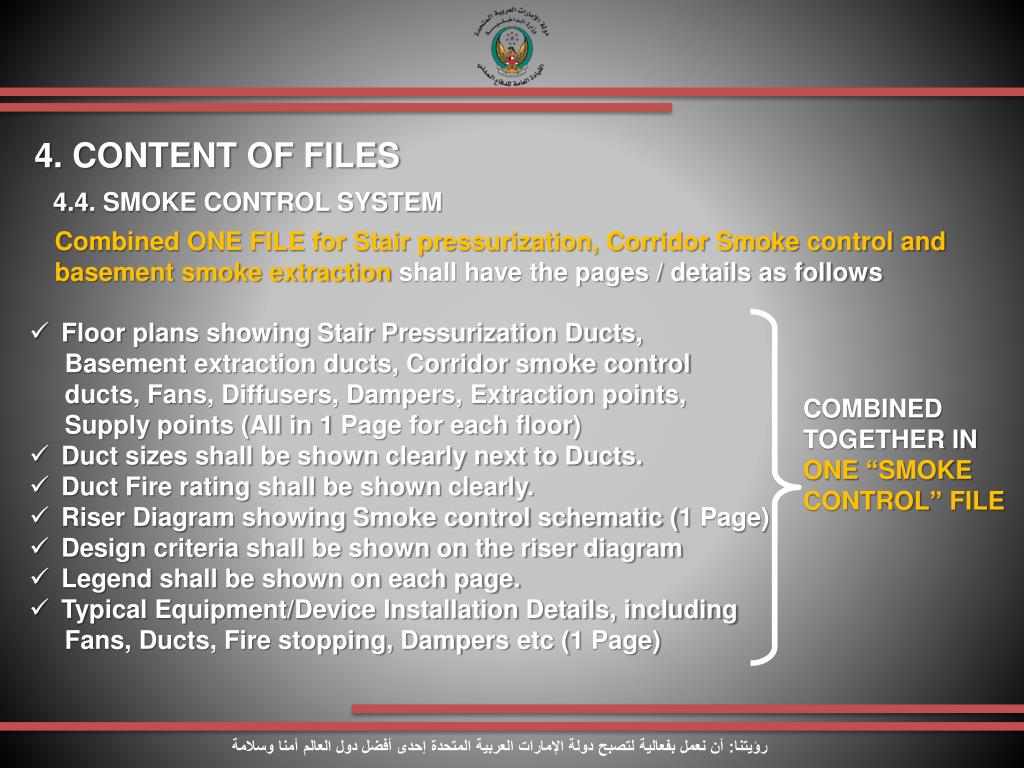

  26. 4. CONTENT OF FILES 4.4. SMOKE CONTROL SYSTEM Combined ONE FILE for Stair pressurization, Corridor Smoke control and basement smoke extraction shall have the pages / details as follows • Floor plans showing Stair Pressurization Ducts, • Basement extraction ducts, Corridor smoke control • ducts, Fans, Diffusers, Dampers, Extraction points, • Supply points (All in 1 Page for each floor) • Duct sizes shall be shown clearly next to Ducts. • Duct Fire rating shall be shown clearly. • Riser Diagram showing Smoke control schematic (1 Page) • Design criteria shall be shown on the riser diagram • Legend shall be shown on each page. • Typical Equipment/Device Installation Details, including • Fans, Ducts, Fire stopping, Dampers etc (1 Page) COMBINED TOGETHER IN ONE “SMOKE CONTROL” FILE رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

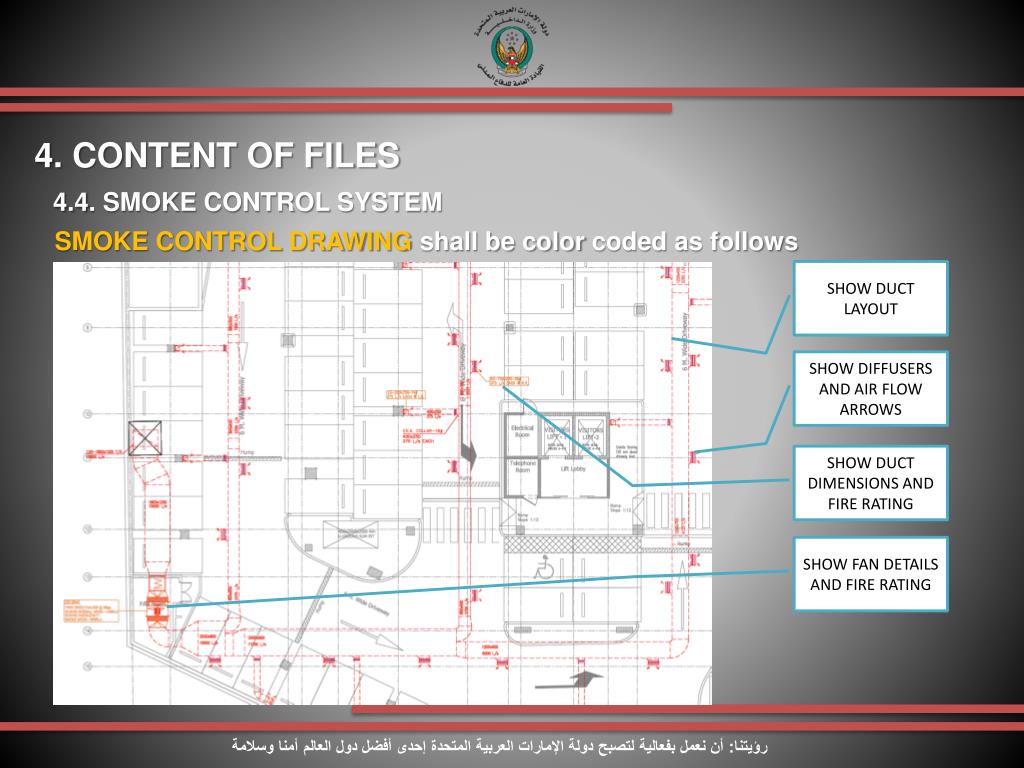

  27. 4. CONTENT OF FILES 4.4. SMOKE CONTROL SYSTEM SMOKE CONTROL DRAWING shall be color coded as follows SHOW DUCT LAYOUT SHOW DIFFUSERS AND AIR FLOW ARROWS SHOW DUCT DIMENSIONS AND FIRE RATING SHOW FAN DETAILS AND FIRE RATING رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

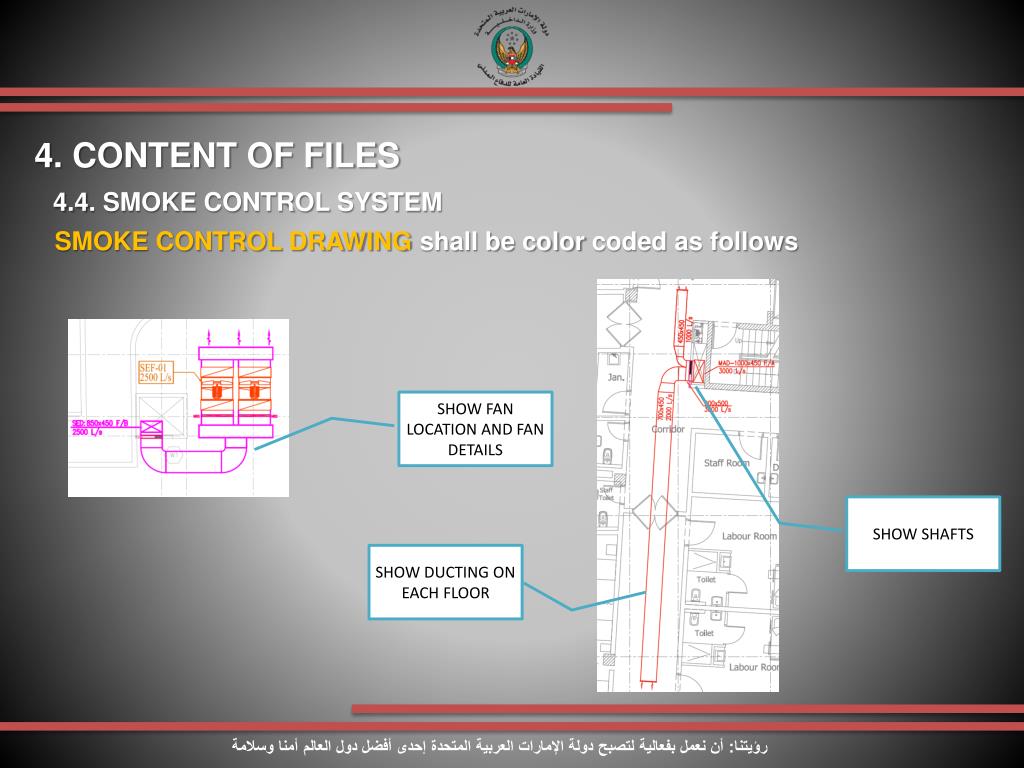

  28. 4. CONTENT OF FILES 4.4. SMOKE CONTROL SYSTEM SMOKE CONTROL DRAWING shall be color coded as follows SHOW FAN LOCATION AND FAN DETAILS SHOW SHAFTS SHOW DUCTING ON EACH FLOOR رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

  29. 4. CONTENT OF FILES 4.4. SMOKE CONTROL SYSTEM SHOW FAN DETAILS AND FIRE RATING SMOKE CONTROL RISER Diagram shall be provided SHOW FOR ALL FLOORS SHOW BASEMENT EXTRACTION WITH FAN DETAILS رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

  30. 4. CONTENT OF FILES 4.4. SMOKE CONTROL SYSTEM Show typical Duct, Fan, Damper Installation details (1 Page) رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

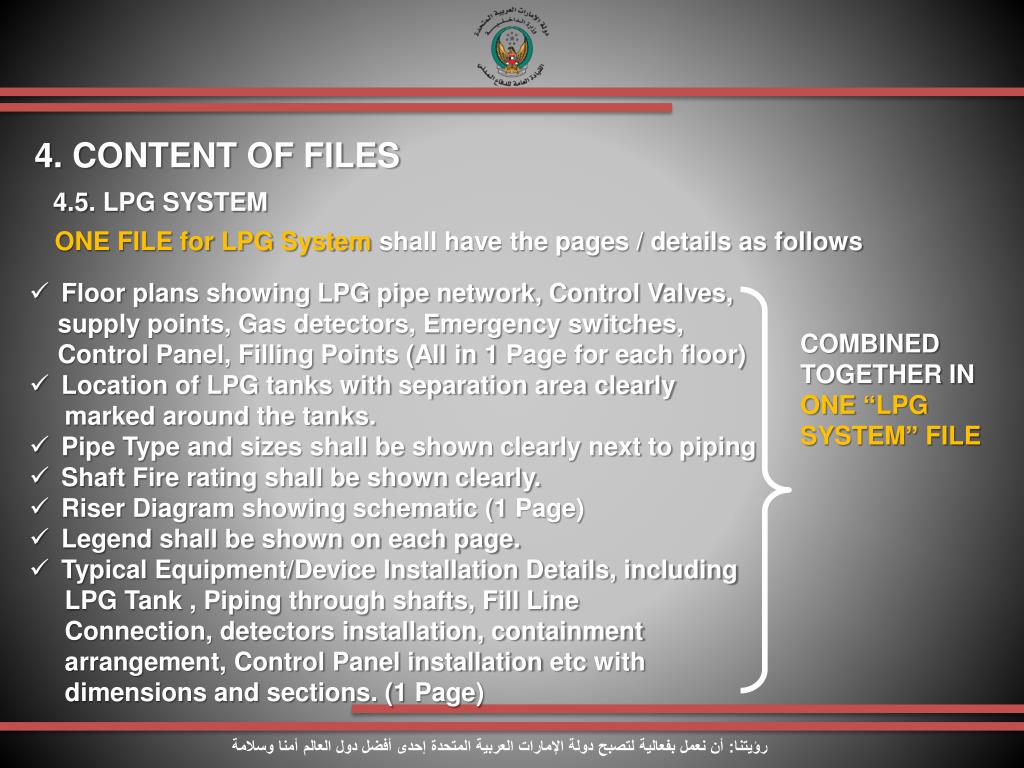

  31. 4. CONTENT OF FILES 4.5. LPG SYSTEM ONE FILE for LPG System shall have the pages / details as follows • Floor plans showing LPG pipe network, Control Valves, • supply points, Gas detectors, Emergency switches, • Control Panel, Filling Points (All in 1 Page for each floor) • Location of LPG tanks with separation area clearly • marked around the tanks. • Pipe Type and sizes shall be shown clearly next to piping • Shaft Fire rating shall be shown clearly. • Riser Diagram showing schematic (1 Page) • Legend shall be shown on each page. • Typical Equipment/Device Installation Details, including • LPG Tank , Piping through shafts, Fill Line • Connection, detectors installation, containment • arrangement, Control Panel installation etc with • dimensions and sections. (1 Page) COMBINED TOGETHER IN ONE “LPG SYSTEM” FILE رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

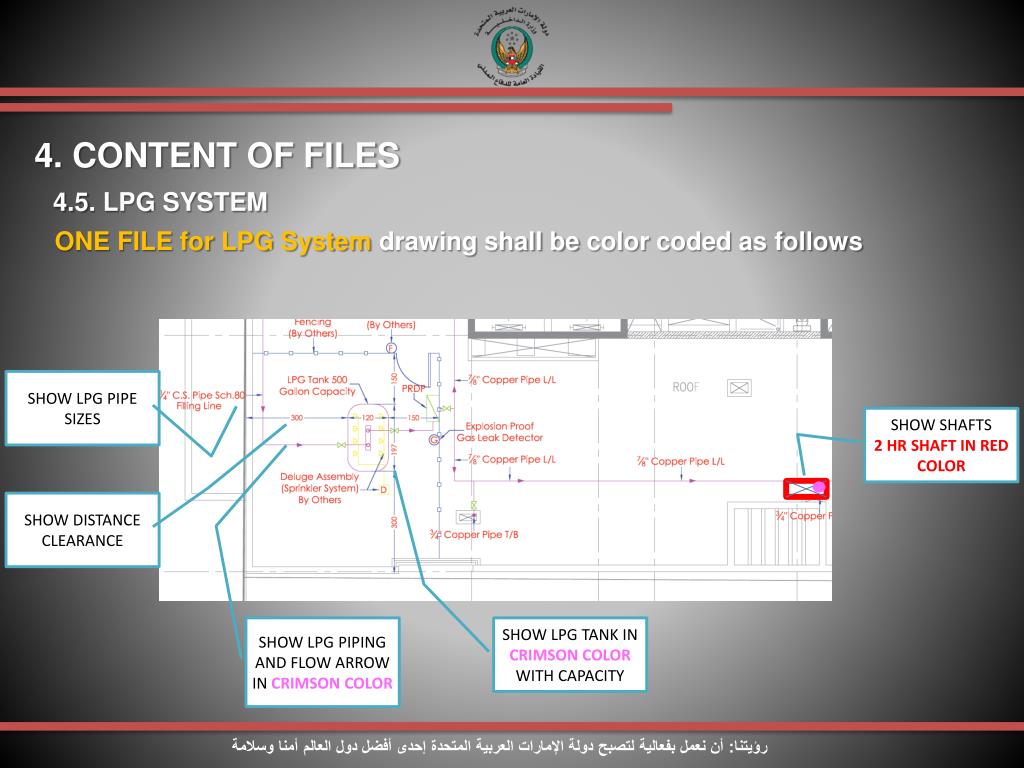

  32. 4. CONTENT OF FILES 4.5. LPG SYSTEM ONE FILE for LPG System drawing shall be color coded as follows SHOW LPG PIPE SIZES SHOW SHAFTS 2 HR SHAFT IN RED COLOR SHOW DISTANCE CLEARANCE SHOW LPG TANK IN CRIMSON COLOR WITH CAPACITY SHOW LPG PIPING AND FLOW ARROW IN CRIMSON COLOR رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

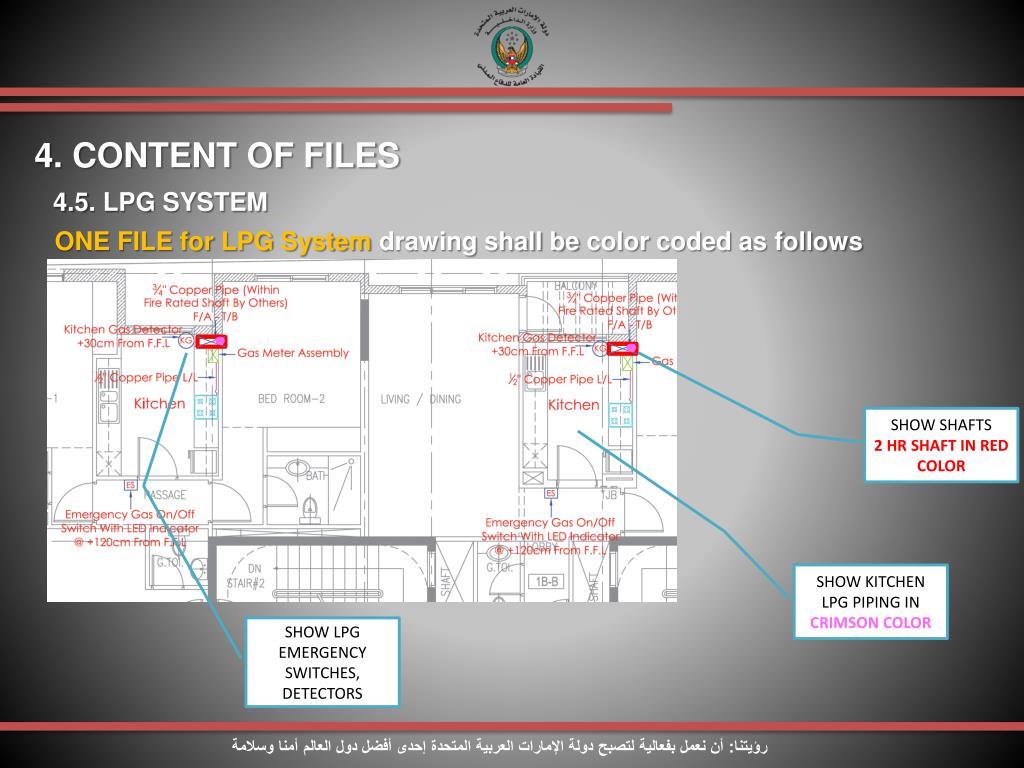

  33. 4. CONTENT OF FILES 4.5. LPG SYSTEM ONE FILE for LPG System drawing shall be color coded as follows SHOW SHAFTS 2 HR SHAFT IN RED COLOR SHOW KITCHEN LPG PIPING IN CRIMSON COLOR SHOW LPG EMERGENCY SWITCHES, DETECTORS رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

  34. 4. CONTENT OF FILES 4.5. LPG SYSTEM ONE PAGE for LPG System TYPICAL INSTALLATION details SHOW FILLING POINT SHOW TYPICAL INSTALLATION DETAILS رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

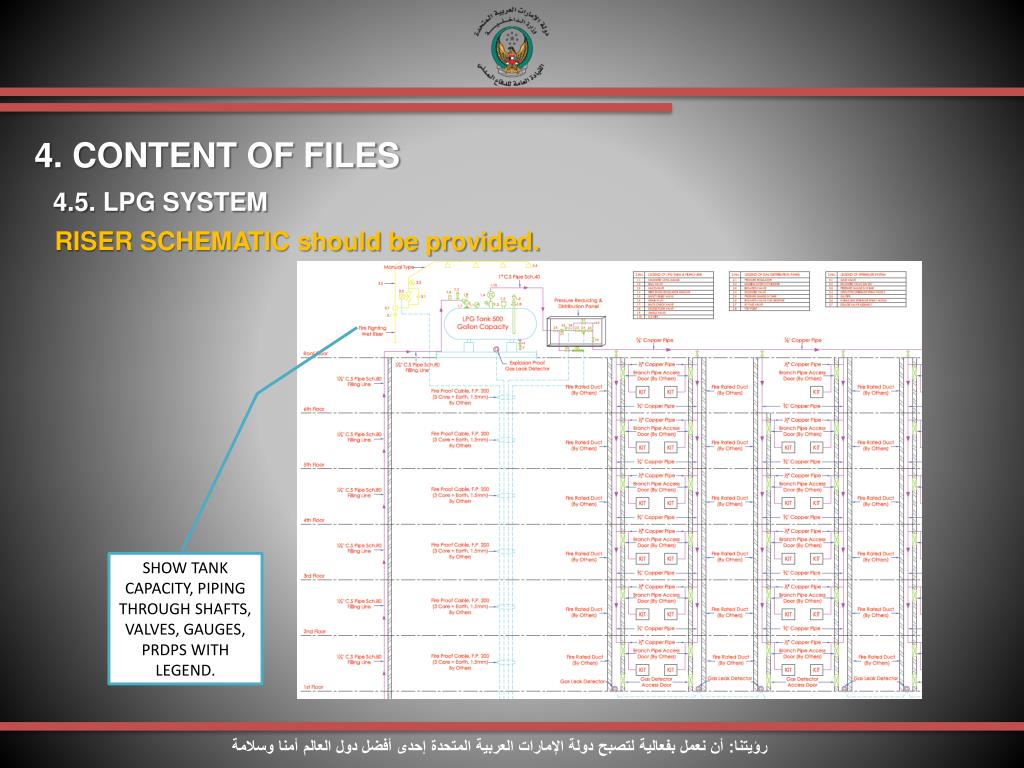

  35. 4. CONTENT OF FILES 4.5. LPG SYSTEM RISER SCHEMATIC should be provided. SHOW TANK CAPACITY, PIPING THROUGH SHAFTS, VALVES, GAUGES, PRDPS WITH LEGEND. رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

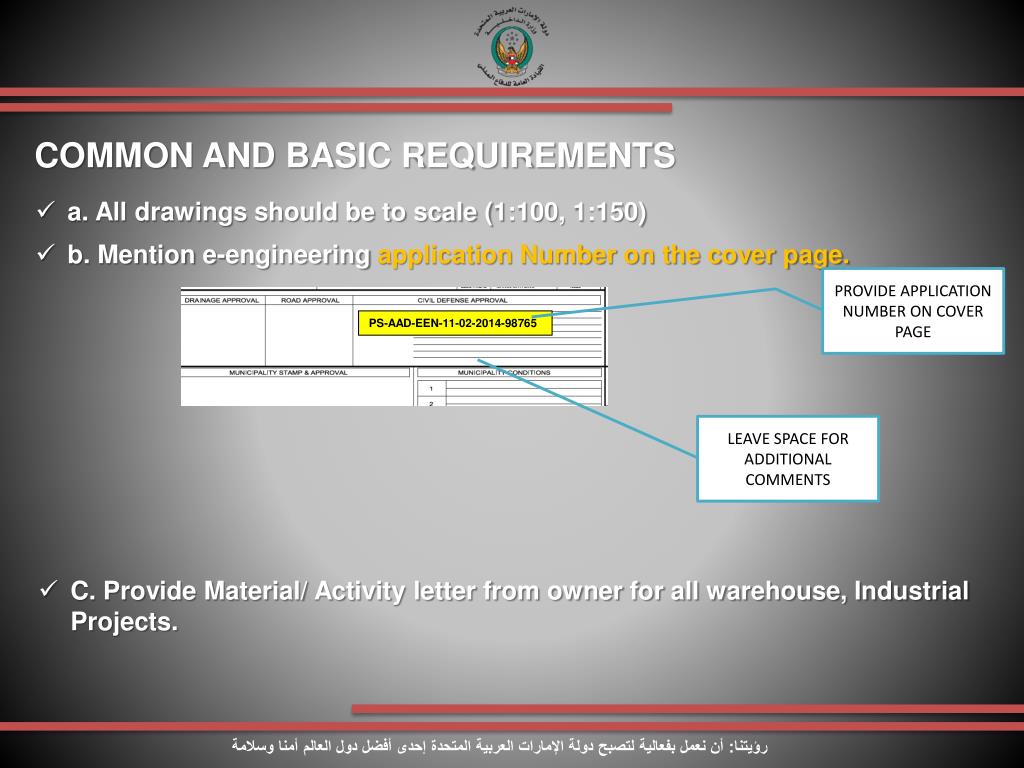

  36. COMMON AND BASIC REQUIREMENTS • a. All drawings should be to scale (1:100, 1:150) PROVIDE APPLICATION NUMBER ON COVER PAGE • b. Mention e-engineering application Number on the cover page. PS-AAD-EEN-11-02-2014-98765 LEAVE SPACE FOR ADDITIONAL COMMENTS • C. Provide Material/ Activity letter from owner for all warehouse, Industrial Projects. رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

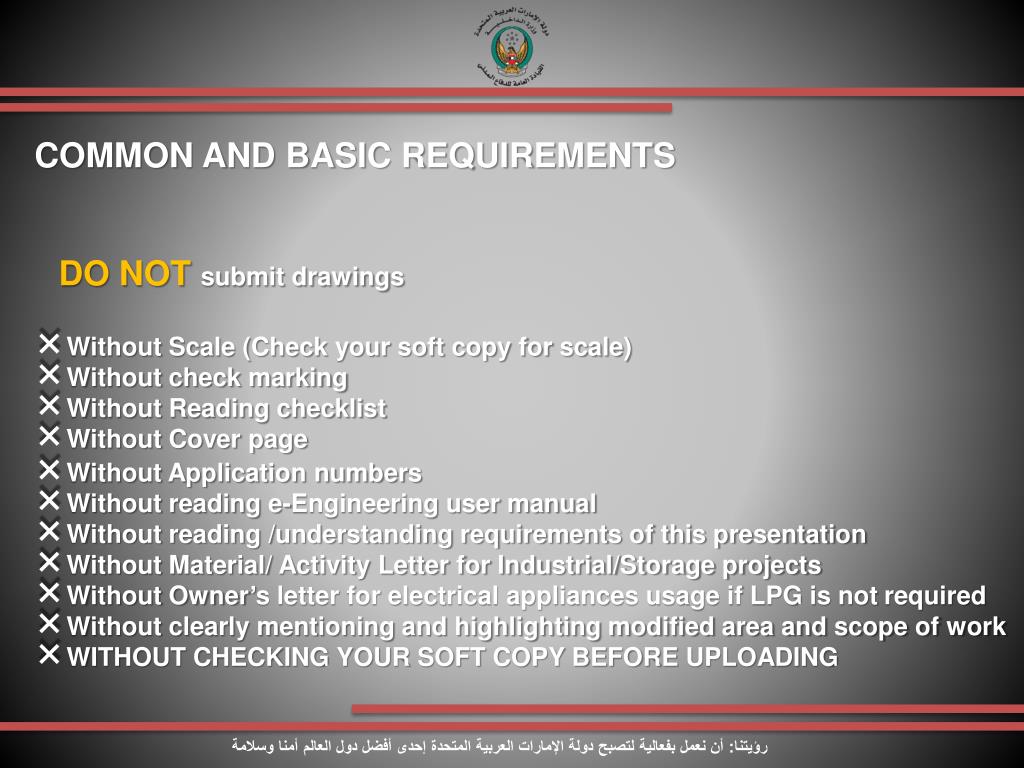

  37. COMMON AND BASIC REQUIREMENTS DO NOT submit drawings • Without Scale (Check your soft copy for scale) • Without check marking • Without Reading checklist • Without Cover page • Without Application numbers • Without reading e-Engineering user manual • Without reading /understanding requirements of this presentation • Without Material/ Activity Letter for Industrial/Storage projects • Without Owner’s letter for electrical appliances usage if LPG is not required • Without clearly mentioning and highlighting modified area and scope of work • WITHOUT CHECKING YOUR SOFT COPY BEFORE UPLOADING رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة

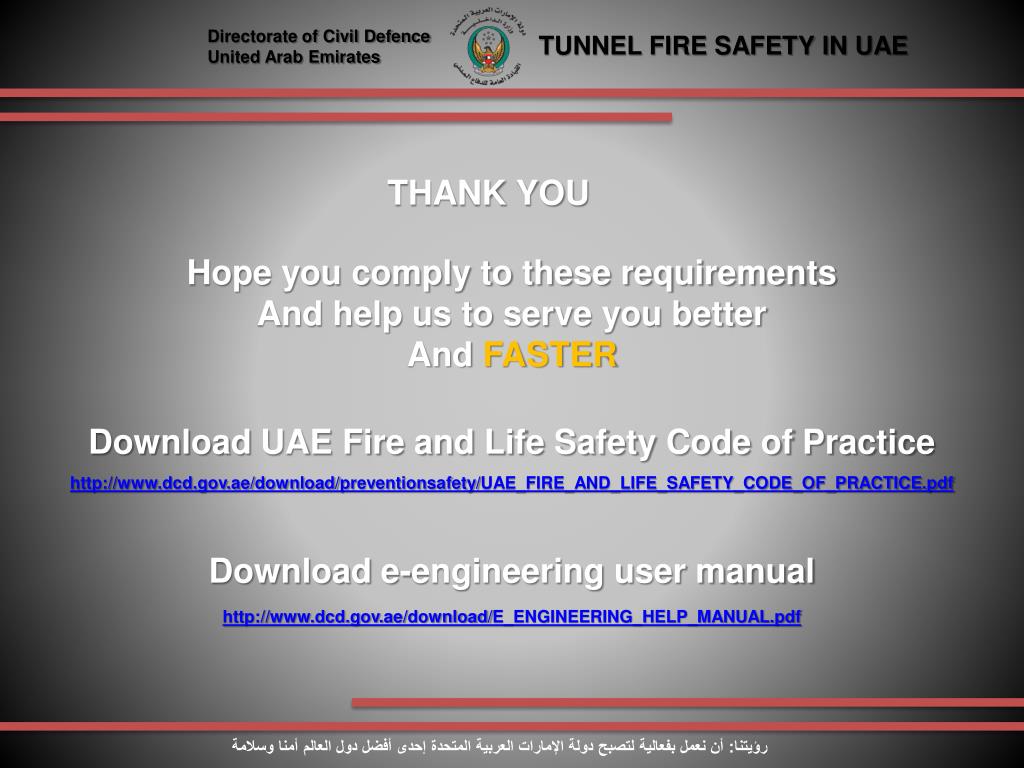

  38. Directorate of Civil Defence United Arab Emirates TUNNEL FIRE SAFETY IN UAE THANK YOU Hope you comply to these requirements And help us to serve you better And FASTER Download UAE Fire and Life Safety Code of Practice http://www.dcd.gov.ae/download/preventionsafety/UAE_FIRE_AND_LIFE_SAFETY_CODE_OF_PRACTICE.pdf Download e-engineering user manual http://www.dcd.gov.ae/download/E_ENGINEERING_HELP_MANUAL.pdf رؤيتنا: أن نعمل بفعالية لتصبح دولة الإمارات العربية المتحدة إحدى أفضل دول العالم أمنا وسلامة
