  1. Methane

  2. Hydrocarbons – compounds containing only carbon and hydrogen. hydrocarbons aromatic aliphatic alkanes alkenes alkynes

  3. Alkanes – hydrocarbons with the general formula CnH2n+2 (four bonds to each carbon and only single bonds) CH4 methane C2H6 ethane C3H8 propane Etc.

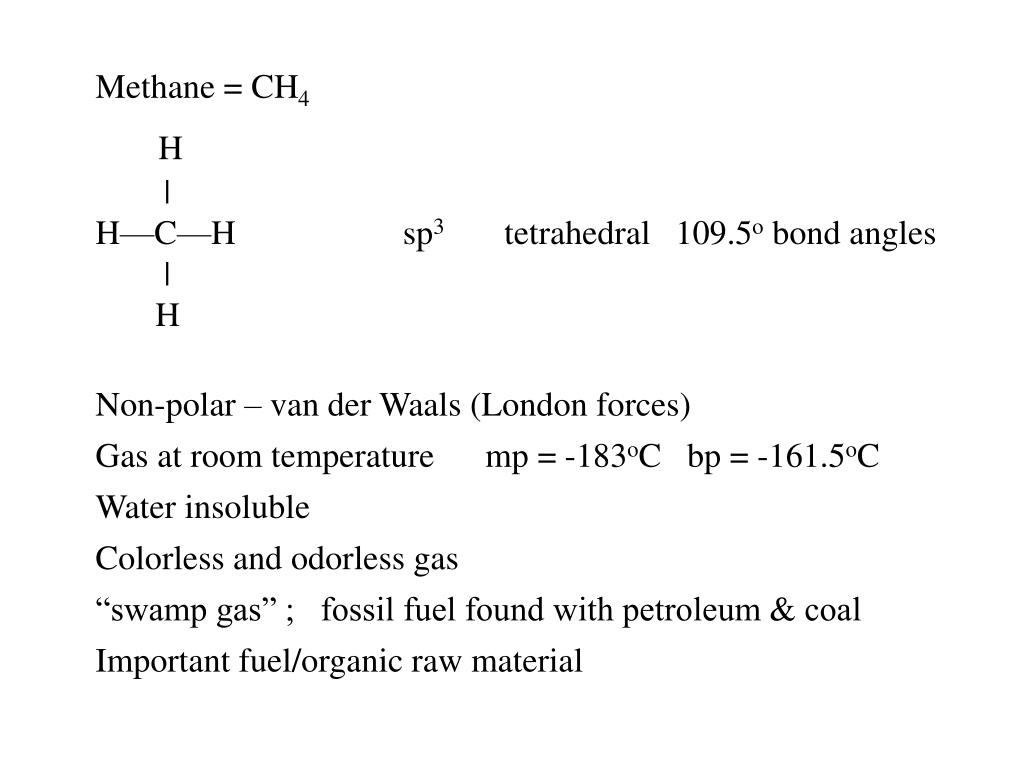

  4. Methane = CH4 H | H—C—H sp3 tetrahedral 109.5o bond angles | H Non-polar – van der Waals (London forces) Gas at room temperature mp = -183oC bp = -161.5oC Water insoluble Colorless and odorless gas “swamp gas” ; fossil fuel found with petroleum & coal Important fuel/organic raw material

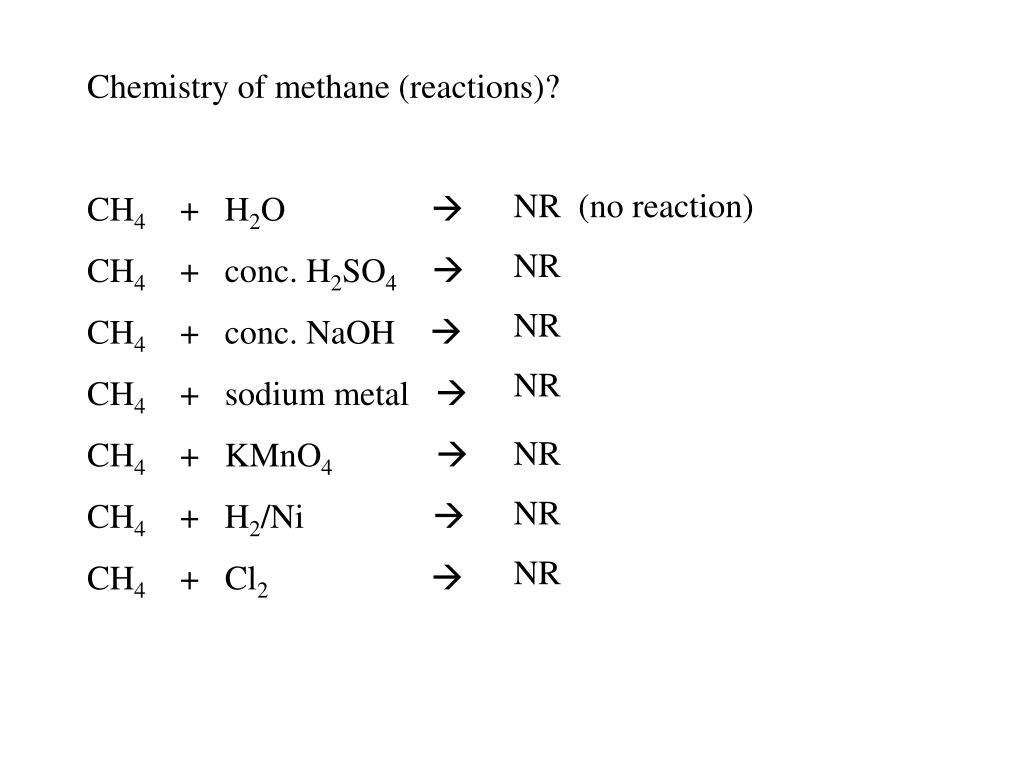

  5. Chemistry of methane (reactions)? CH4 + H2O  CH4 + conc. H2SO4 CH4 + conc. NaOH  CH4 + sodium metal  CH4 + KMnO4  CH4 + H2/Ni  CH4 + Cl2  NR (no reaction) NR NR NR NR NR NR

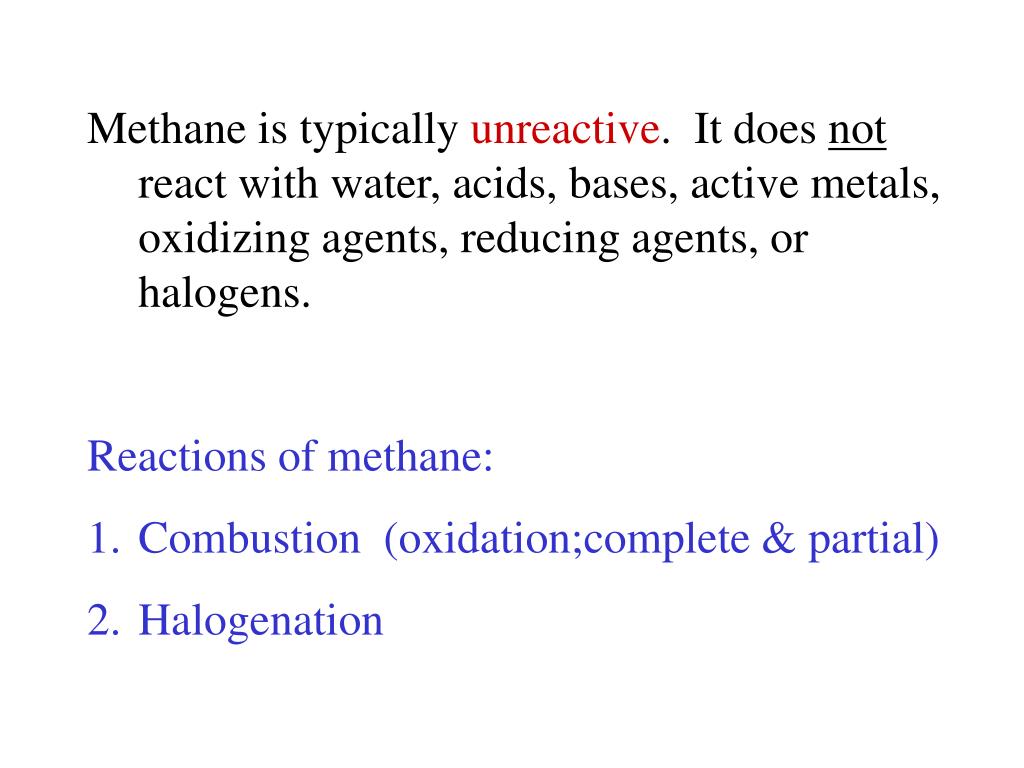

  6. Methane is typically unreactive. It does not react with water, acids, bases, active metals, oxidizing agents, reducing agents, or halogens. • Reactions of methane: • Combustion (oxidation;complete & partial) • Halogenation

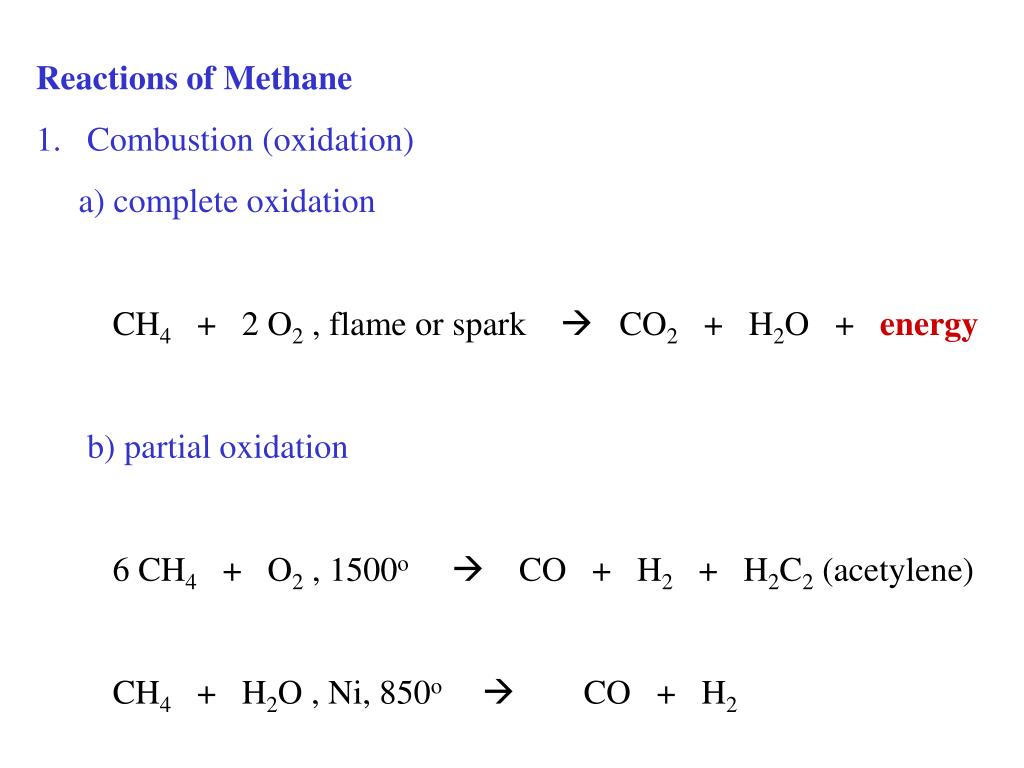

  7. Reactions of Methane • Combustion (oxidation) • a) complete oxidation • CH4 + 2 O2 , flame or spark  CO2 + H2O + energy • b) partial oxidation • 6 CH4 + O2 , 1500o  CO + H2 + H2C2 (acetylene) • CH4 + H2O , Ni, 850o  CO + H2

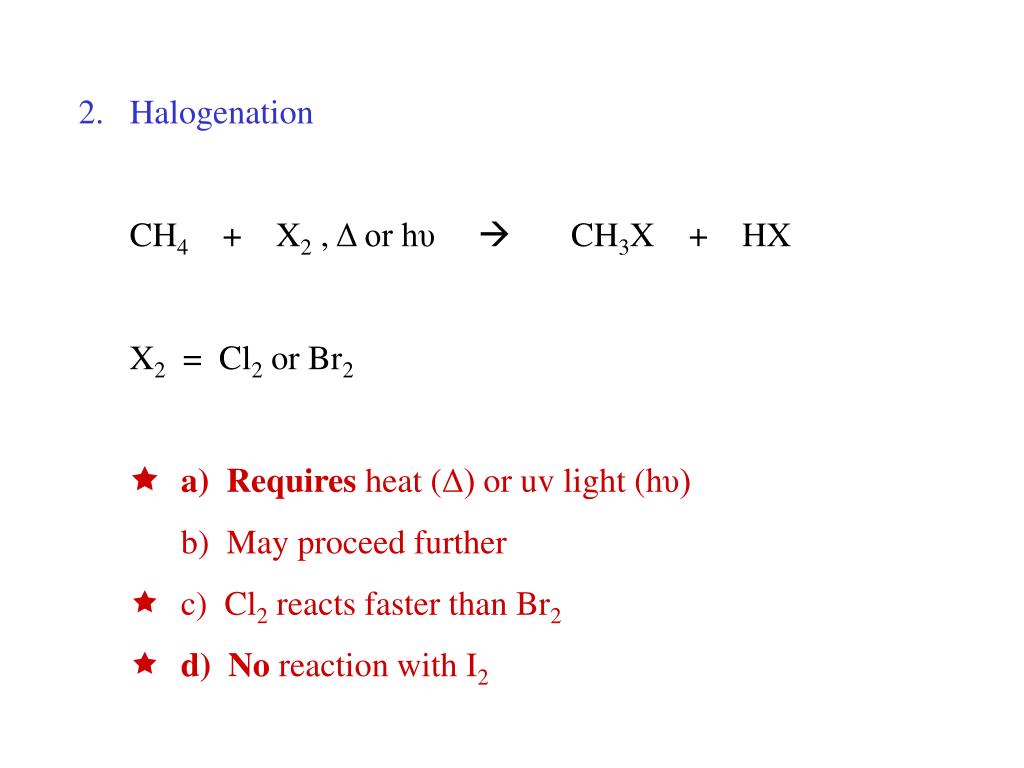

  8. Halogenation • CH4 + X2 , Δ or hυ  CH3X + HX • X2 = Cl2 or Br2 •  a) Requires heat (Δ) or uv light (hυ) • b) May proceed further •  c) Cl2 reacts faster than Br2 •  d) No reaction with I2

  9. “Substitution” reaction CH4 + Cl2 CH4 + I2, heat  CH4 + Br2, hv  NR (requires heat or uv light) NR (does not react with I2) CH3Br + HBr

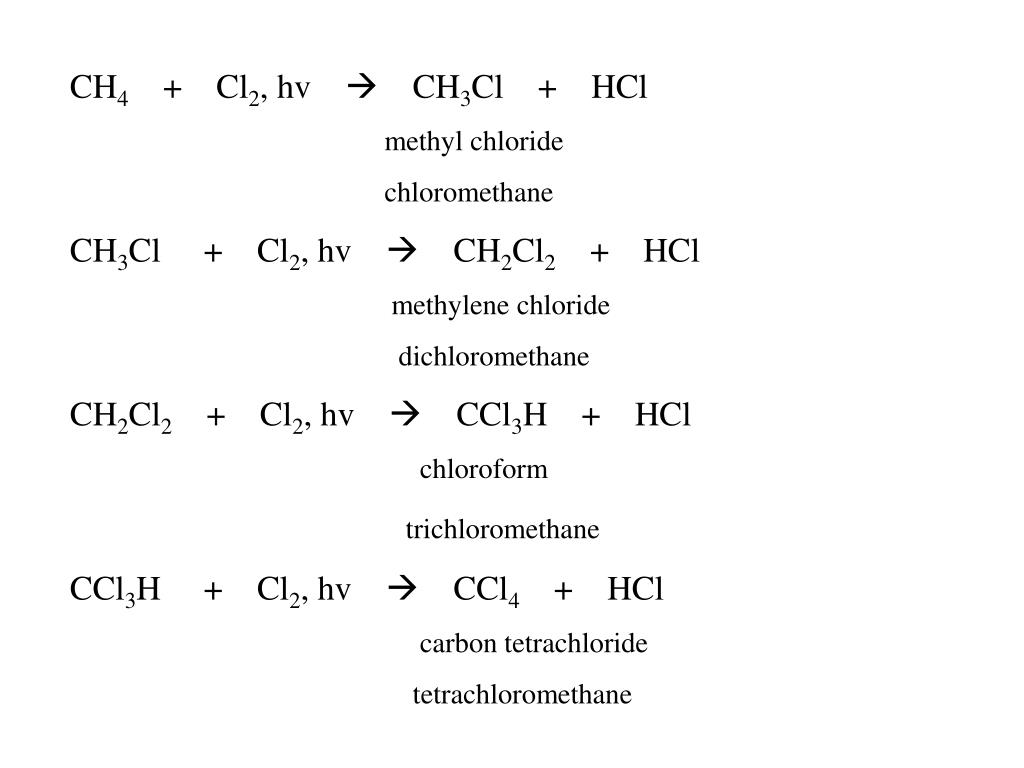

  10. CH4 + Cl2, hv  CH3Cl + HCl methyl chloride chloromethane CH3Cl + Cl2, hv  CH2Cl2 + HCl methylene chloride dichloromethane CH2Cl2 + Cl2, hv  CCl3H + HCl chloroform trichloromethane CCl3H + Cl2, hv  CCl4 + HCl carbon tetrachloride tetrachloromethane

  11. CH4 + Br2, hv  CH3Br + HBr methyl bromide bromomethane CH3Br + Br2, hv  CH2Br2 + HBr methylene bromide dibromomethane CH2Br2 + Br2, hv  CBr3H + HBr bromoform tribromomethane CBr3H + Br2, hv  CBr4 + HBr carbon tetrabromide tetrabromomethane

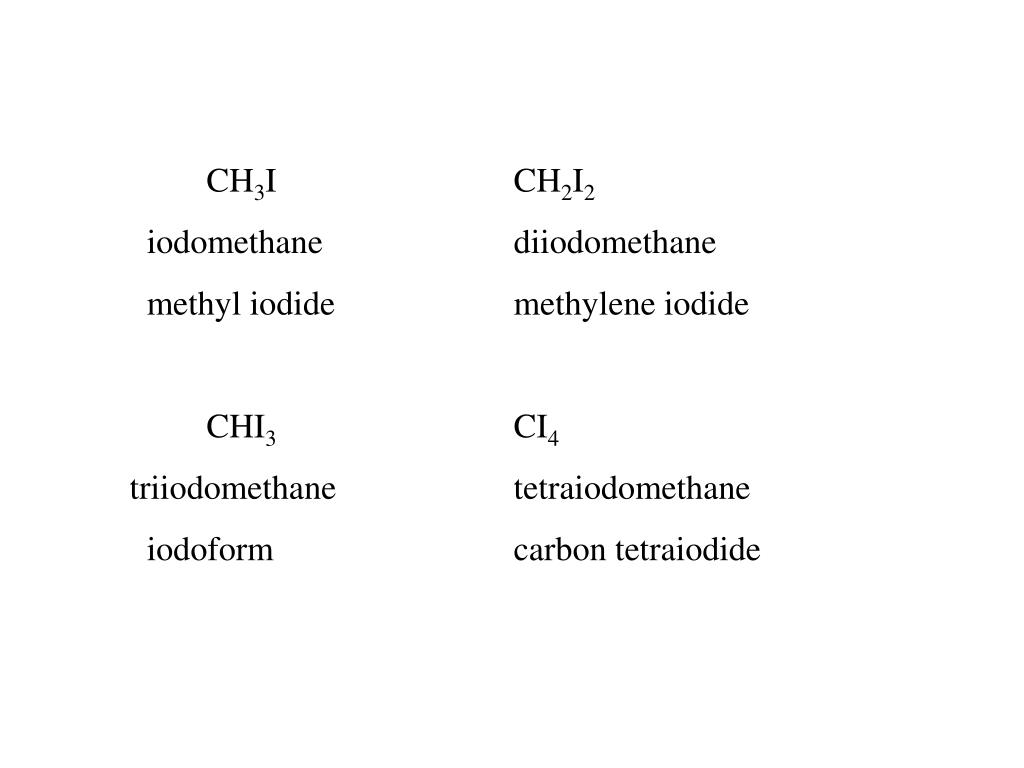

  12. CH3I CH2I2 iodomethane diiodomethane methyl iodide methylene iodide CHI3 CI4 triiodomethane tetraiodomethane iodoform carbon tetraiodide

  13. Can proceed further: CH4 + Cl2, heat  CH3Cl + CH2Cl2+ CHCl3+ CCl4 + HCl Control? (xs) CH4 + Cl2, heat  CH3Cl + HCl bp –162o bp –24o CH4 + (xs) Cl2, heat  CCl4 + 4 HCl

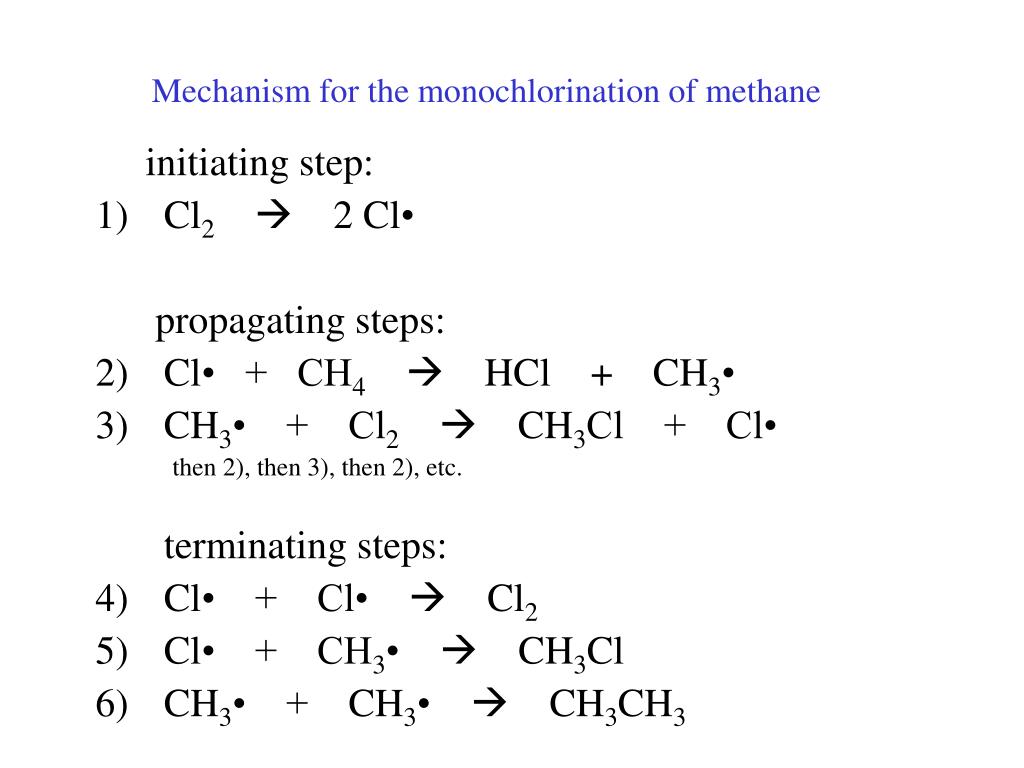

  14. Mechanism for the monochlorination of methane initiating step: • Cl2 2 Cl• propagating steps: • Cl• + CH4 HCl + CH3• • CH3• + Cl2 CH3Cl + Cl• then 2), then 3), then 2), etc. terminating steps: • Cl• + Cl•  Cl2 • Cl• + CH3•  CH3Cl • CH3• + CH3•  CH3CH3

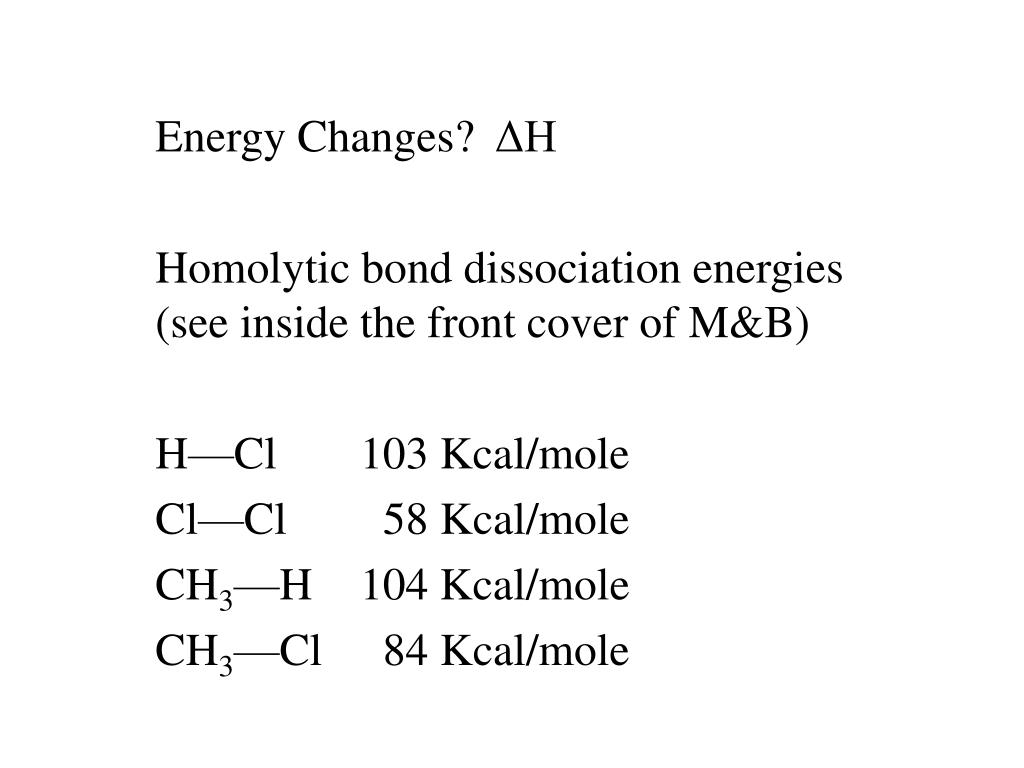

  15. Energy Changes? ΔH Homolytic bond dissociation energies (see inside the front cover of M&B) H—Cl 103 Kcal/mole Cl—Cl 58 Kcal/mole CH3—H 104 Kcal/mole CH3—Cl 84 Kcal/mole

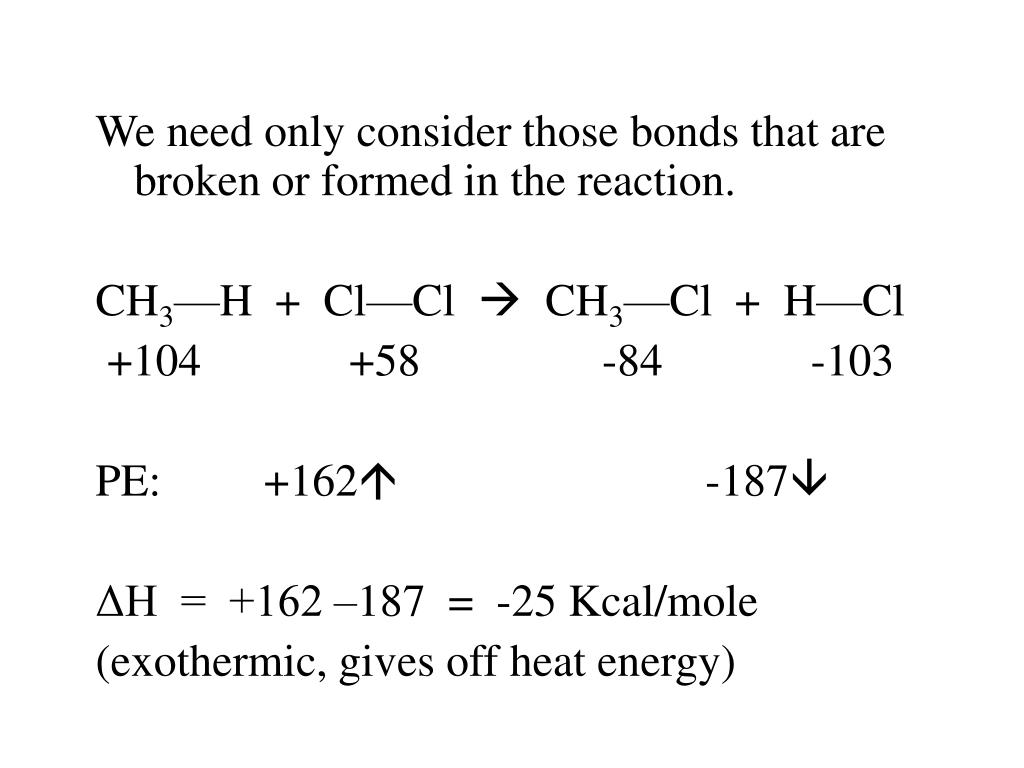

  16. We need only consider those bonds that are broken or formed in the reaction. CH3—H + Cl—Cl  CH3—Cl + H—Cl +104 +58 -84 -103 PE: +162 -187 ΔH = +162 –187 = -25 Kcal/mole (exothermic, gives off heat energy)

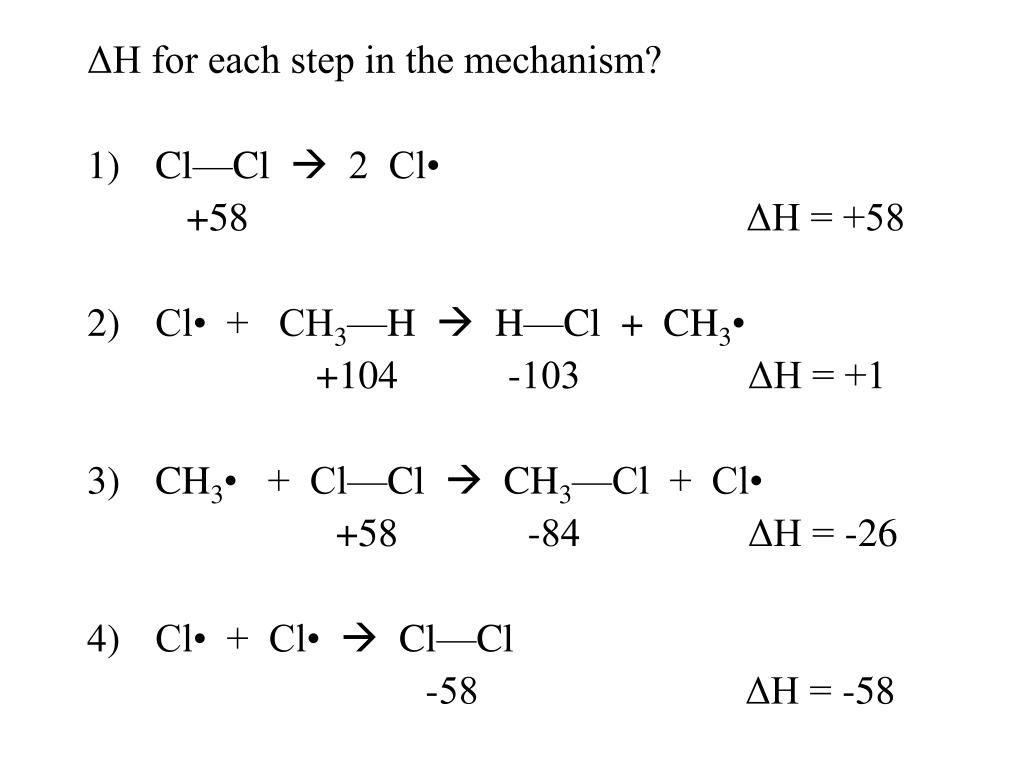

  17. ΔH for each step in the mechanism? • Cl—Cl  2 Cl• +58 ΔH = +58 • Cl• + CH3—H  H—Cl + CH3• +104 -103 ΔH = +1 • CH3• + Cl—Cl  CH3—Cl + Cl• +58 -84 ΔH = -26 • Cl• + Cl•  Cl—Cl -58 ΔH = -58

  18. Rates of chemical reactions depend on three factors: Collision frequency (collision per unit time) Probability factor (fraction of collisions with correct geometry) Energy factor (fraction of collisions with sufficient energy) “sufficient energy” = Energy of activation, minimum energy required for a collision to go to the product.

  19. Z = collision frequency P = probability factor e-Eact/RT = fraction of collisions with E > Eact Note: rate decreases exponentially as the Eact increases!

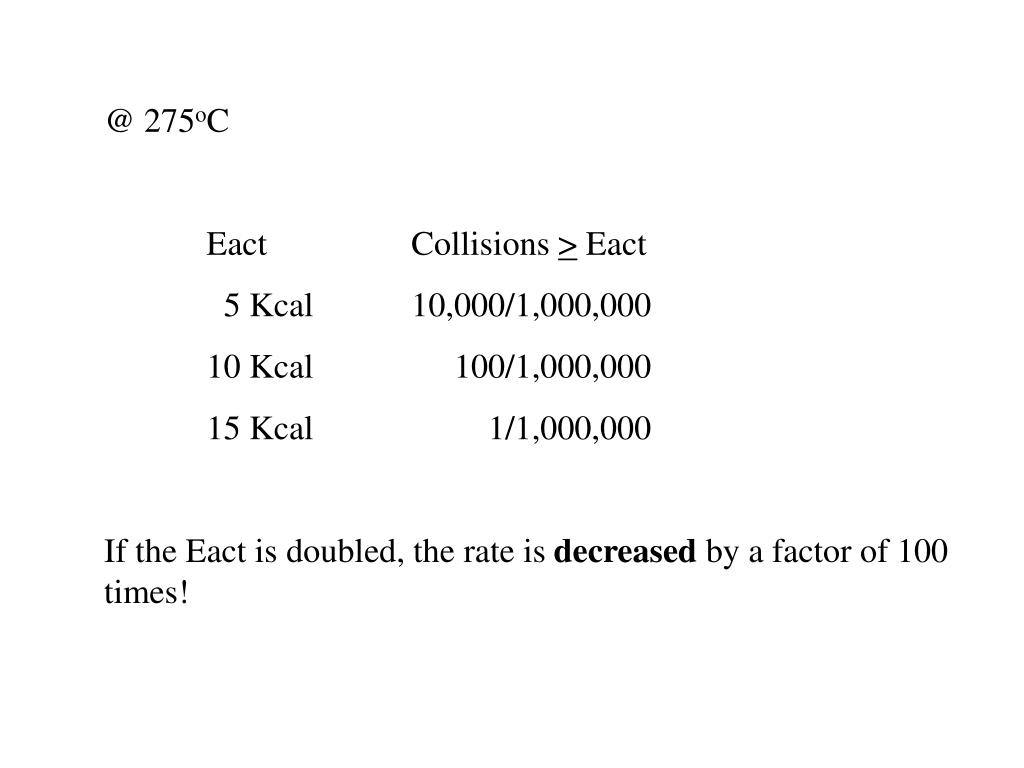

  20. @ 275oC Eact Collisions > Eact 5 Kcal 10,000/1,000,000 10 Kcal 100/1,000,000 15 Kcal 1/1,000,000 If the Eact is doubled, the rate is decreased by a factor of 100 times!

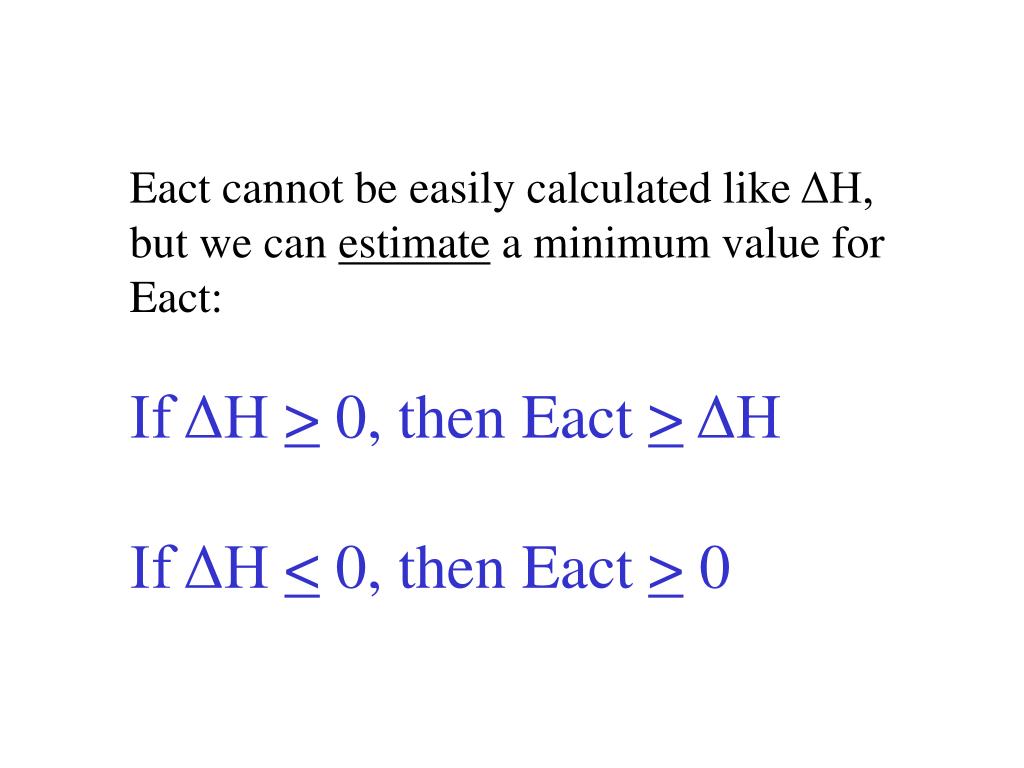

  21. Eact cannot be easily calculated like ΔH, but we can estimate a minimum value for Eact: If ΔH > 0, then Eact > ΔH If ΔH < 0, then Eact > 0

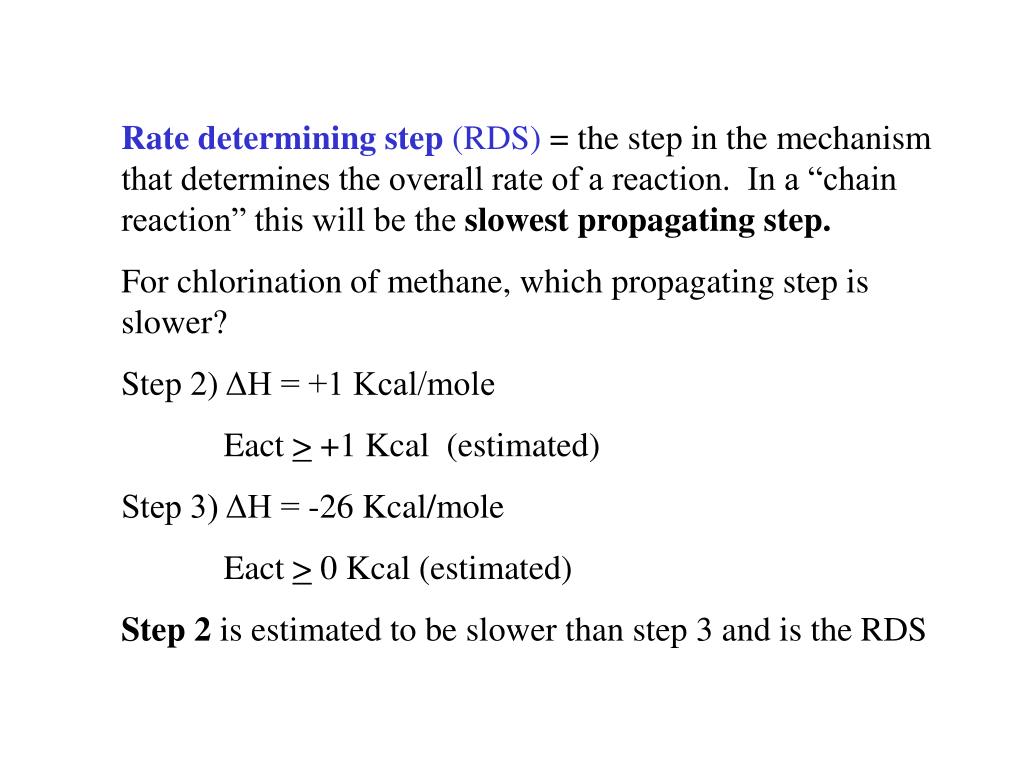

  22. Rate determining step (RDS) = the step in the mechanism that determines the overall rate of a reaction. In a “chain reaction” this will be the slowest propagating step. For chlorination of methane, which propagating step is slower? Step 2) ΔH = +1 Kcal/mole Eact > +1 Kcal (estimated) Step 3) ΔH = -26 Kcal/mole Eact > 0 Kcal (estimated) Step 2 is estimated to be slower than step 3 and is the RDS

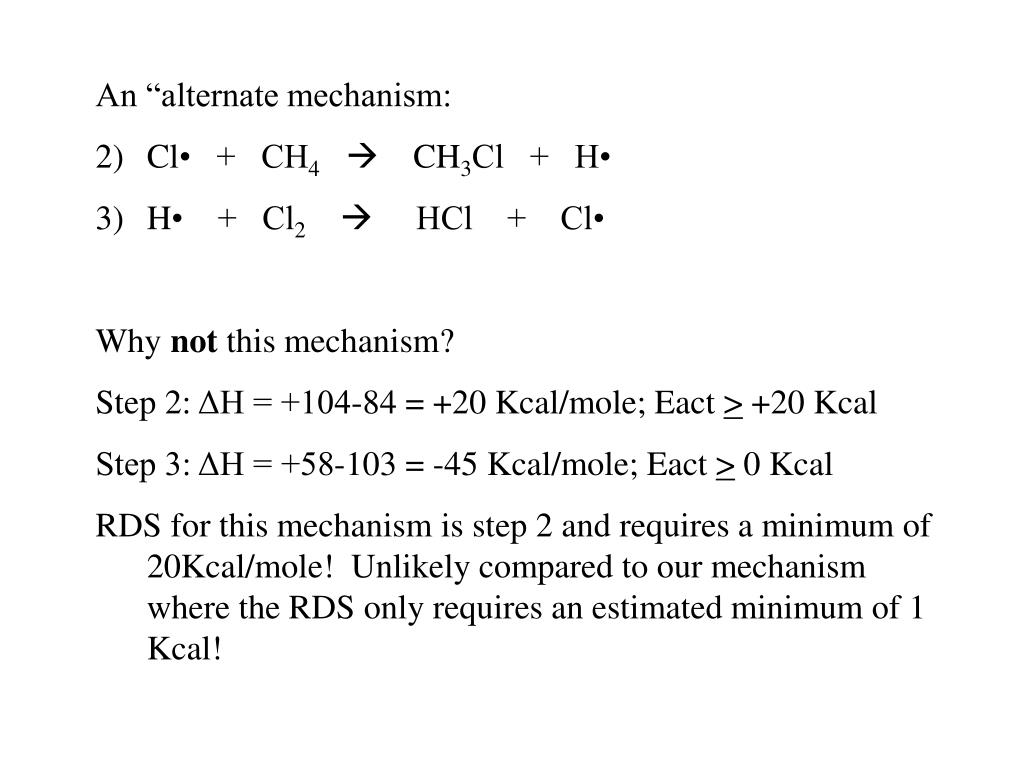

  23. An “alternate mechanism: • Cl• + CH4 CH3Cl + H• • H• + Cl2 HCl + Cl• • Why not this mechanism? • Step 2: ΔH = +104-84 = +20 Kcal/mole; Eact > +20 Kcal • Step 3: ΔH = +58-103 = -45 Kcal/mole; Eact > 0 Kcal • RDS for this mechanism is step 2 and requires a minimum of 20Kcal/mole! Unlikely compared to our mechanism where the RDS only requires an estimated minimum of 1 Kcal!

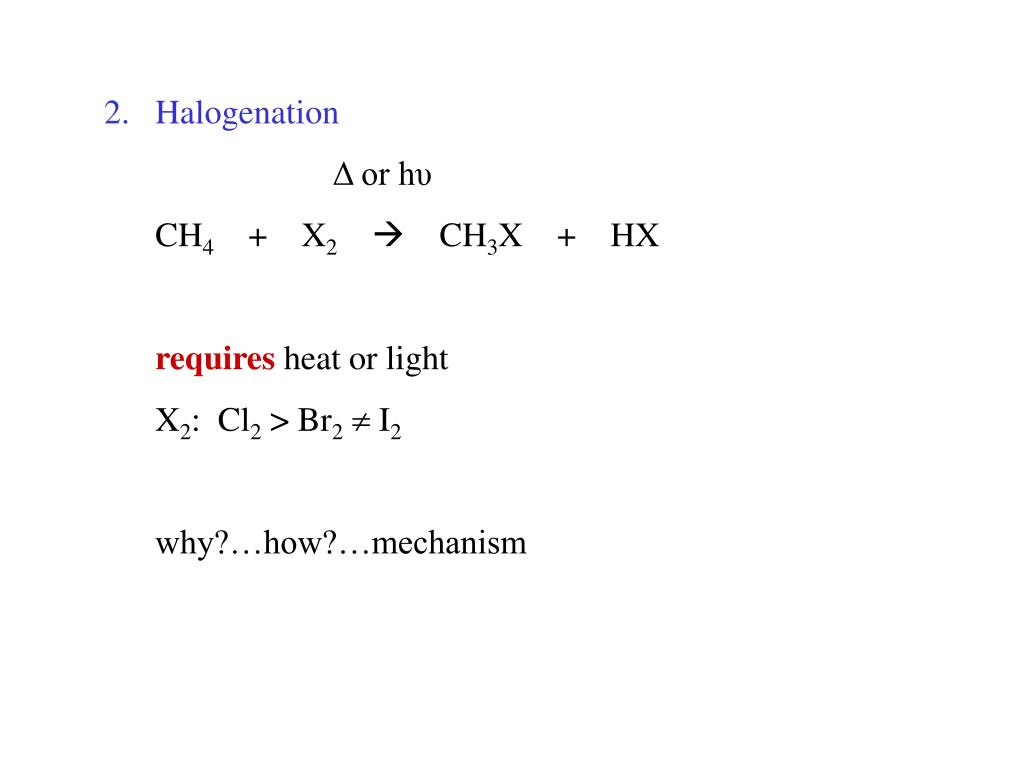

  24. Halogenation • Δ or hυ • CH4 + X2 CH3X + HX • requires heat or light • X2: Cl2 > Br2 I2 • why?…how?…mechanism

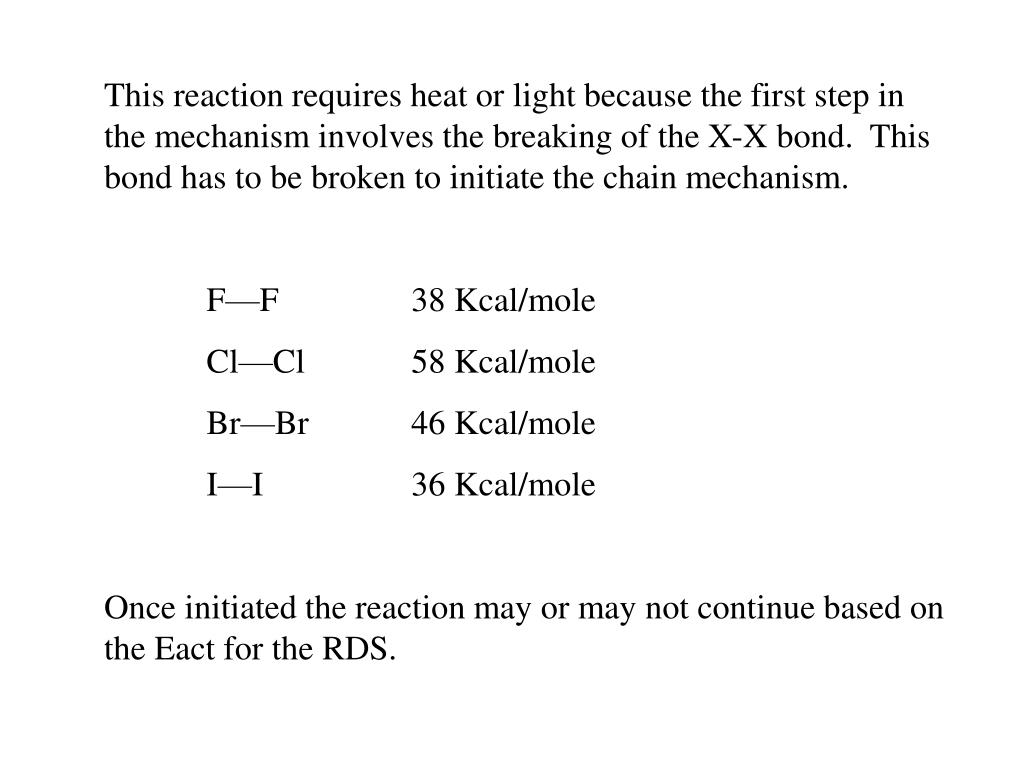

  25. This reaction requires heat or light because the first step in the mechanism involves the breaking of the X-X bond. This bond has to be broken to initiate the chain mechanism. F—F 38 Kcal/mole Cl—Cl 58 Kcal/mole Br—Br 46 Kcal/mole I—I 36 Kcal/mole Once initiated the reaction may or may not continue based on the Eact for the RDS.

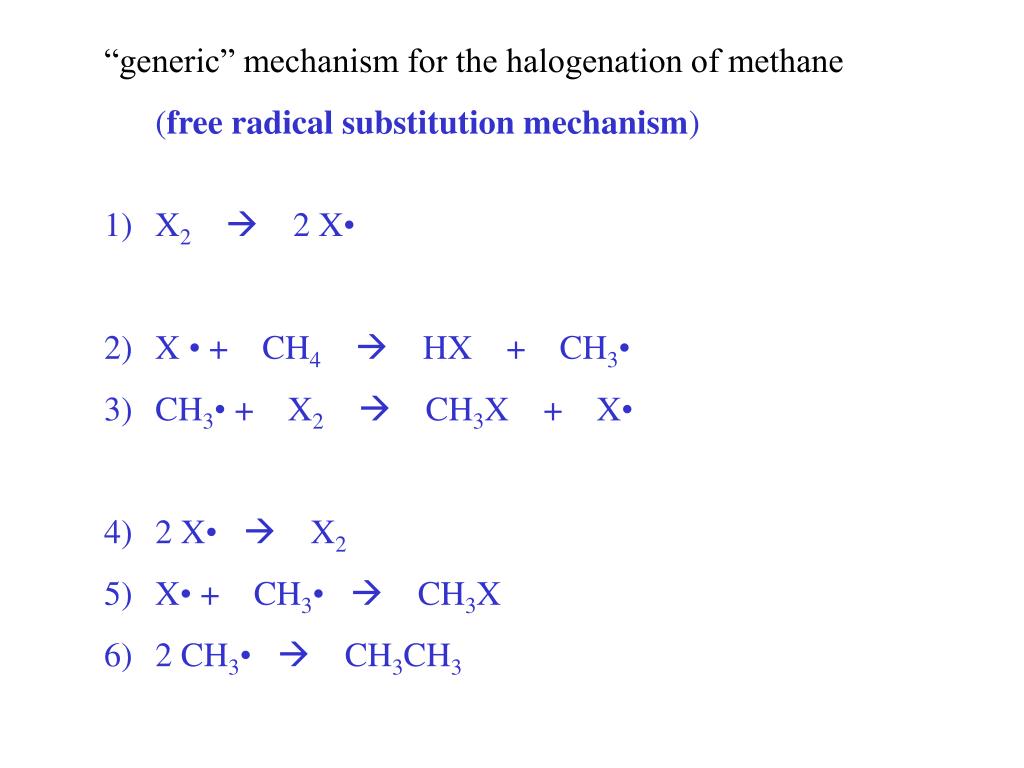

  26. “generic” mechanism for the halogenation of methane • (free radical substitution mechanism) • X2 2 X• • X • + CH4 HX + CH3• • CH3• + X2  CH3X + X• • 2 X•  X2 • X• + CH3•  CH3X • 2 CH3•  CH3CH3

  27. ΔH for each step in the mechanism by halogen: F Cl Br I 1 +38 +58 +46 +36 2 -32 +1 +16 +33 3 -70 -26 -24 -20 4 -38 -58 -46 -36 5 -108 -84 -70 -56 6 -88 -88 -88 -88

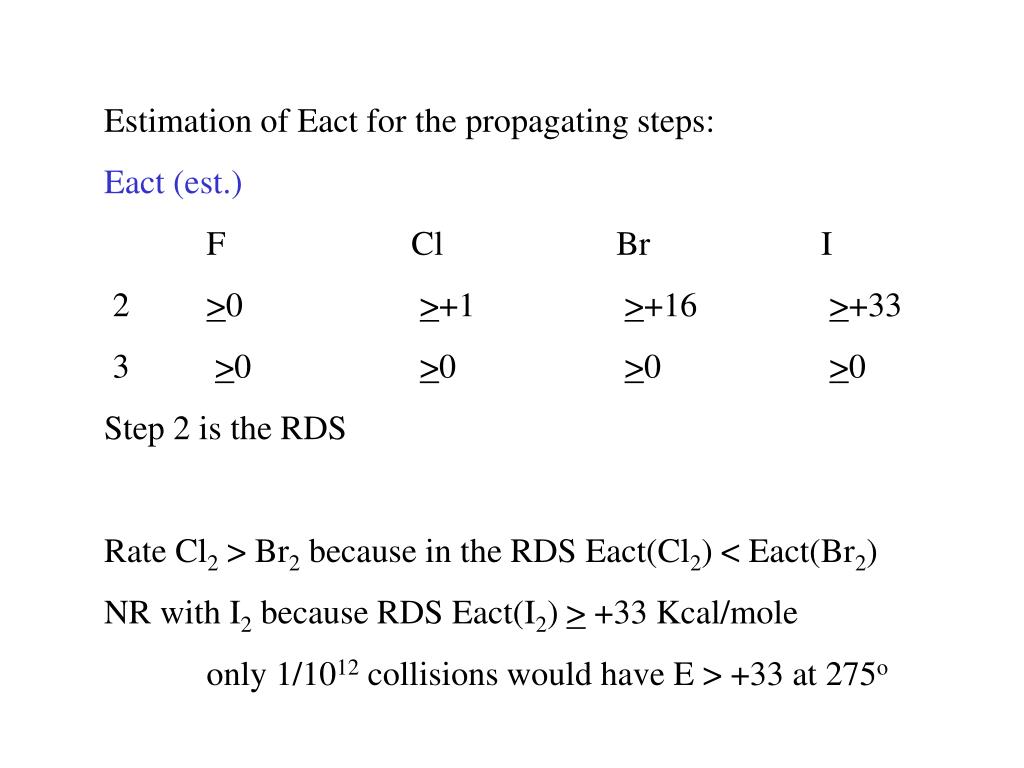

  28. Estimation of Eact for the propagating steps: Eact (est.) F Cl Br I 2 >0 >+1 >+16 >+33 3 >0 >0 >0 >0 Step 2 is the RDS Rate Cl2 > Br2 because in the RDS Eact(Cl2) < Eact(Br2) NR with I2 because RDS Eact(I2) > +33 Kcal/mole only 1/1012 collisions would have E > +33 at 275o

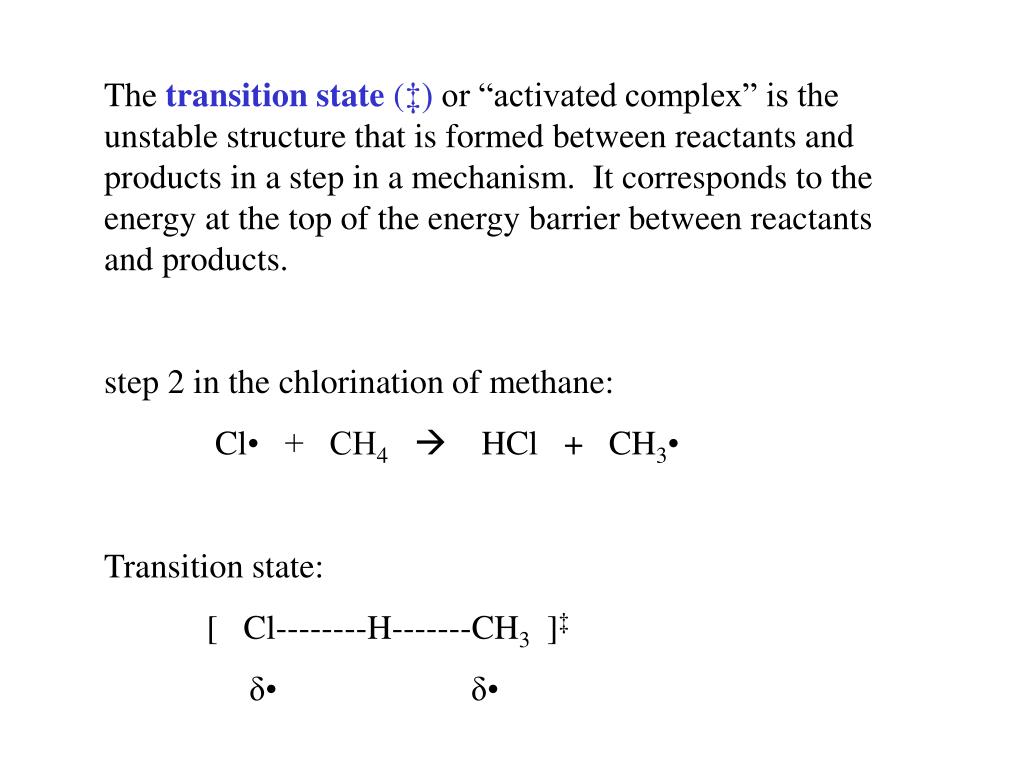

  29. The transition state (‡) or “activated complex” is the unstable structure that is formed between reactants and products in a step in a mechanism. It corresponds to the energy at the top of the energy barrier between reactants and products. step 2 in the chlorination of methane: Cl• + CH4 HCl + CH3• Transition state: [ Cl--------H-------CH3 ]‡ δ• δ•

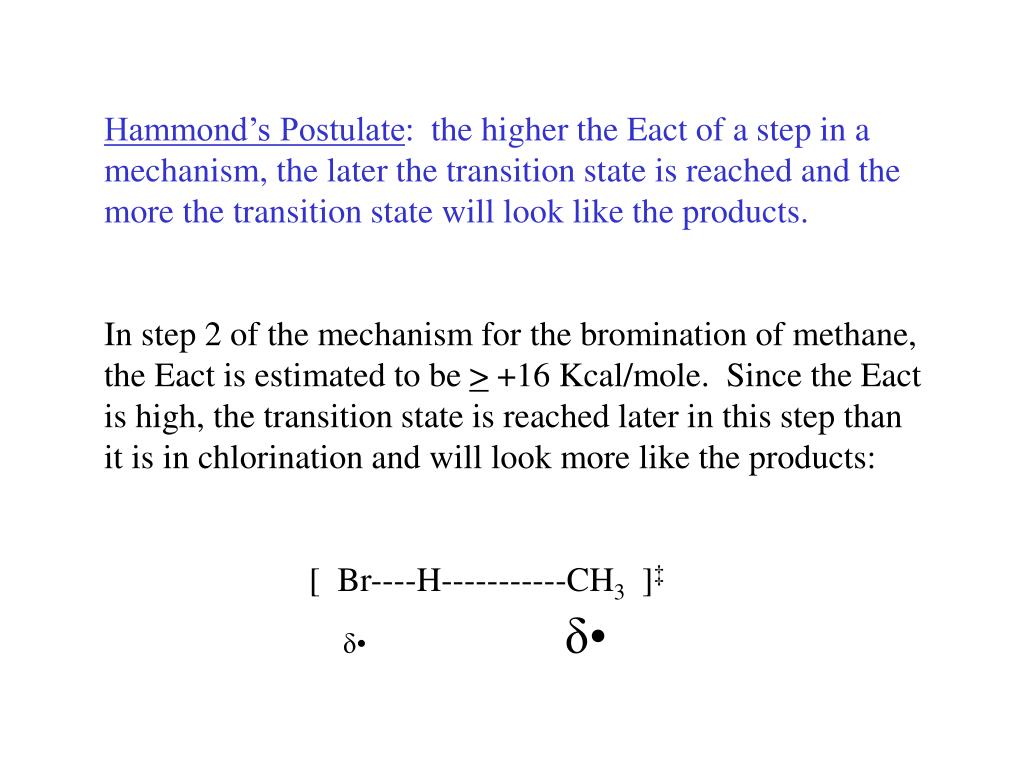

  30. Hammond’s Postulate: the higher the Eact of a step in a mechanism, the later the transition state is reached and the more the transition state will look like the products. In step 2 of the mechanism for the bromination of methane, the Eact is estimated to be > +16 Kcal/mole. Since the Eact is high, the transition state is reached later in this step than it is in chlorination and will look more like the products: [ Br----H-----------CH3 ]‡ δ•δ•

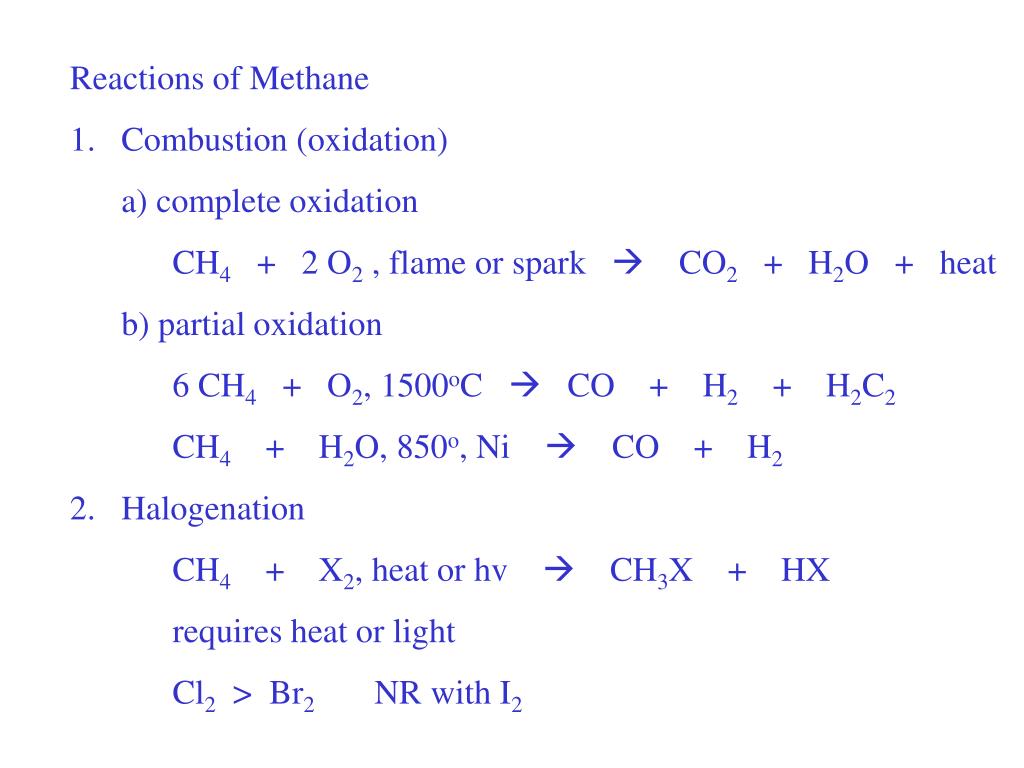

  31. Reactions of Methane • Combustion (oxidation) • a) complete oxidation • CH4 + 2 O2 , flame or spark  CO2 + H2O + heat • b) partial oxidation • 6 CH4 + O2, 1500oC  CO + H2 + H2C2 • CH4 + H2O, 850o, Ni  CO + H2 • Halogenation • CH4 + X2, heat or hv  CH3X + HX • requires heat or light • Cl2 > Br2 NR with I2
