  1. Small Test:Bank account manager • System has to run on an automated teller machine. • User must be able to deposit checks into the account. • User must be able to draw money from the account. • User should be able to query the balance of his/her account. • The user should get a receipt for a transaction on request. The transaction type (withdrawal or deposit), the transaction date, the account number, the amount, and the new balance should be visible on the receipt. • After each transaction the new balance should be displayed to the user. CPSC 333: Foundations of Software Engineering J. Denzinger

  2. Errors regarding arrows (connections) • connection between actors and use cases have no direction • Connections between use cases are dotted ( ) and should be labeled <<extend>> or <<include>> • <<extend>>:arrow points from use case describing the alternative event flow to the “standard” case • <<include>>:arrow points from “calling” use case to use case that describes actions to include CPSC 333: Foundations of Software Engineering J. Denzinger

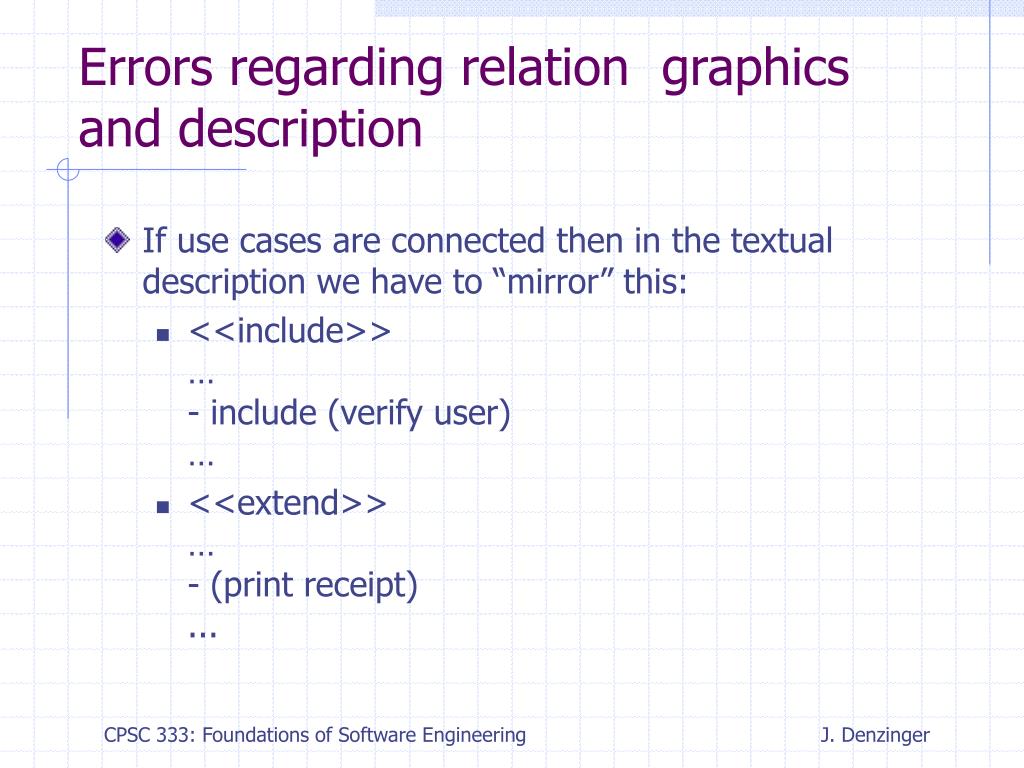

  3. Errors regarding relation graphics and description • If use cases are connected then in the textual description we have to “mirror” this: • <<include>>…- include (verify user)… • <<extend>>…- (print receipt)... CPSC 333: Foundations of Software Engineering J. Denzinger

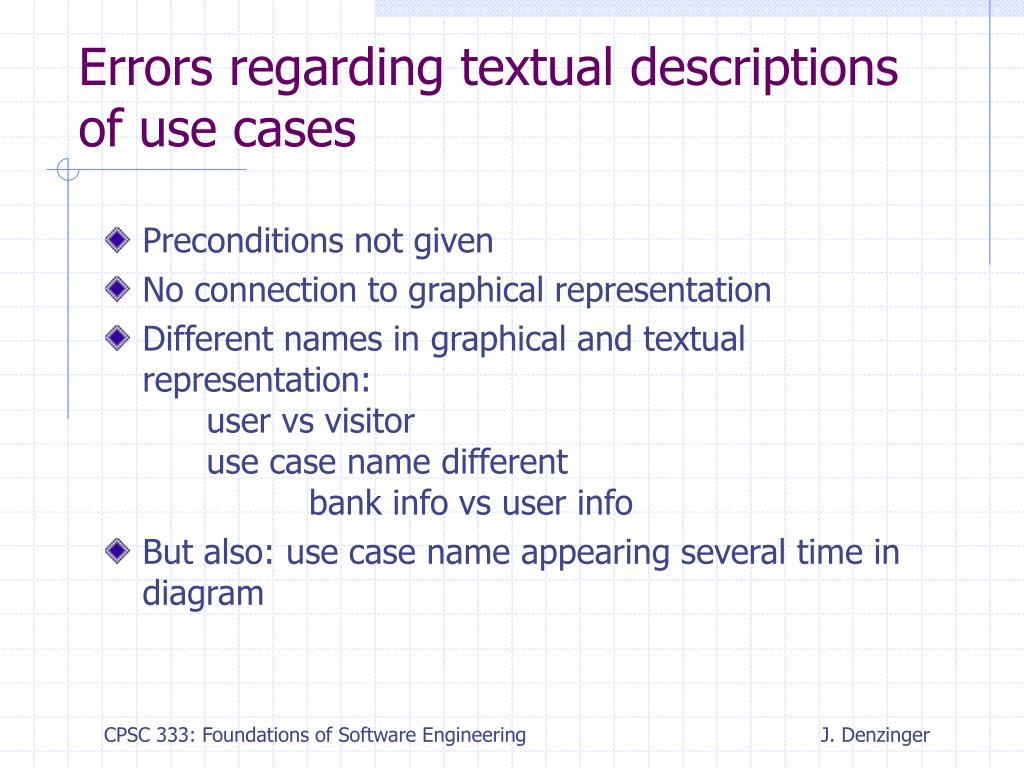

  4. Errors regarding textual descriptions of use cases • Preconditions not given • No connection to graphical representation • Different names in graphical and textual representation: user vs visitor use case name different bank info vs user info • But also: use case name appearing several time in diagram CPSC 333: Foundations of Software Engineering J. Denzinger

  5. Other often occuring errors • Flow charts instead of use casesremember: use case = sequence of actions achieving a goalnot: action = use case • Exceptional flow: not only exception condition, but also actions if it occurs • Exceptional flow: indicate in main flow at which point to check for this exception (if not obvious)! CPSC 333: Foundations of Software Engineering J. Denzinger

  6. User Good solution (1): <<extend>> (print receipt) withdraw with receipt withdraw <<include>> check balance <<include>> Verify user <<include>> deposit with receipt deposit <<extend>> (print receipt) CPSC 333: Foundations of Software Engineering J. Denzinger

  7. Good solution (2): Use case: withdraw Precondition: User has selected withdraw option Main flow: • Include (Verify user) • Prompt user for amount to withdraw • Check available funds of user • Check available money of ATM • Remove amount from account • Give money • (print receipt) • Print current balance Exceptional flow • If not sufficient funds or money available, prompt user for lower amount CPSC 333: Foundations of Software Engineering J. Denzinger

  8. Good solution (3): Use case: deposit Precondition: User has selected deposit option Main flow: • Include (Verify user) • Prompt user for amount of deposit • Open slot • Get check • (print receipt) • Print (balance + deposited amount) CPSC 333: Foundations of Software Engineering J. Denzinger

  9. Good solution (4): Use case: check balance Precondition: User has selected balance option Main flow: • Include (Verify user) • Print balance CPSC 333: Foundations of Software Engineering J. Denzinger

  10. Good solution (5)(not required in test): Use case: verify user Precondition: none Main flow: • User enters ID card • User enters PIN number • System checks validity of card and number Exceptional flow: • If combination is not valid, reject user CPSC 333: Foundations of Software Engineering J. Denzinger

  11. Good solution (6)(not required in test): Use case: withdraw with receipt Precondition: User has selected withdraw option and print receipt option … Use case: deposit with receipt Precondition: User has selected deposit option and print receipt option ... CPSC 333: Foundations of Software Engineering J. Denzinger

  12. User Acceptable solution (1): <<extend>> (print receipt) withdraw with receipt withdraw check balance deposit with receipt deposit <<extend>> (print receipt) CPSC 333: Foundations of Software Engineering J. Denzinger

  13. Acceptable solution (2): Use case: withdraw Precondition: User is verified and has selected withdraw option … Similar for other use cases CPSC 333: Foundations of Software Engineering J. Denzinger
