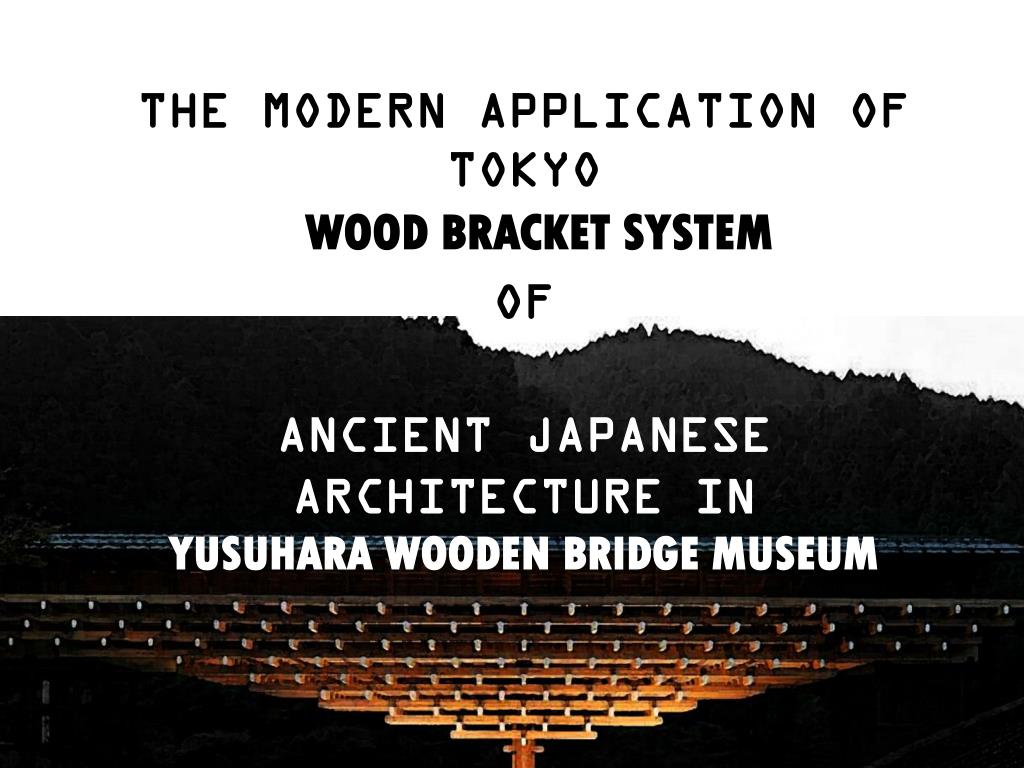

  1. THE MODERN APPLICATION OF TOKYOWOOD BRACKET SYSTEM OFANCIENT JAPANESE ARCHITECTURE IN YUSUHARA WOODEN BRIDGE MUSEUM

  2. Tokyo wood Bracket • unique feature of Traditional Japanese architecture • essential support to the timber frame structure and eaves of traditional Japanese buildings • a combination system of weight bearing blocks (masu) and bracket arms (hijiki) • fitted together by joinery alone without glue or fasteners

  3. WHAT IS THE ORIGIN OF TOKYO BRACKET SYSTEM ? • Originated from ancient China • Notable architectural component call Dou Gong (wood bracket). • earliest record of the use of Dou-Gong in Zhou Dynasty • widely used in the Spring and Autumn Period • Reach its peak in Tang and Song dynasty

  4. In Song Dynasty , form fully developed, style unified , size standardized • number of layers used depends on importance of the building • Also as a status symbol • After Song Dynasty , Dougongbecome more ornamental • 6thcentury , introduction of Buddhism influences Japanese architecture • large scale temple using complicated techniques in wood • Japanese study architecture from Tang Dynasty

  5. HOW DOES IT FUNCTIONAS A STRUCTURAL SUPPORT FOR BUILDING ? • Structural support for building • Support weight of horizontal beams that span the vertical columns by transferring the weight on horizontal beams over a larger area to the vertical columns. • To support roof’s weight • The further the eaves extend, the more complex thetokyo be • highly resistant to earthquakes

  6. WHAT IS THE CONSTRUCTION METHOD OF TOKYO BRACKET SYSTEM ? • Wood is the main material • Multiple interlocking bracket sets formed by placing block (Masu) on a column to provide base for the bow-shaped brackets (Hijiki) that support the beam or another bracket above it.

  7. Yusuhara Wooden Bridge Museum • KengoKuma & Associates • Located at Yusuhara, town in the Kochi prefecture, Japan • a covered gallery pedestrian bridge that connects a hotel and a spa, which had previously been separated by a cliff and a road. • also  as  accommodations, work   and exhibition  rooms

  8. 154-ft. span • an interlocking beams system developed. • Alternating arrangement of interwoven wooden beams creates a construction which floats in the air, supported by a single central pillar. • Long beams rest above shorter ones , whole structure tapers to a point at a slender central column • Columns on end merge with background surrounding

  9. The bridge evokes the traditional construction method of tokyo wood bracket system employed in Japan • By repeating this method persistently to the scale of a bridge, it creates a new expression of architecture while having its authentic Asian appearance.
