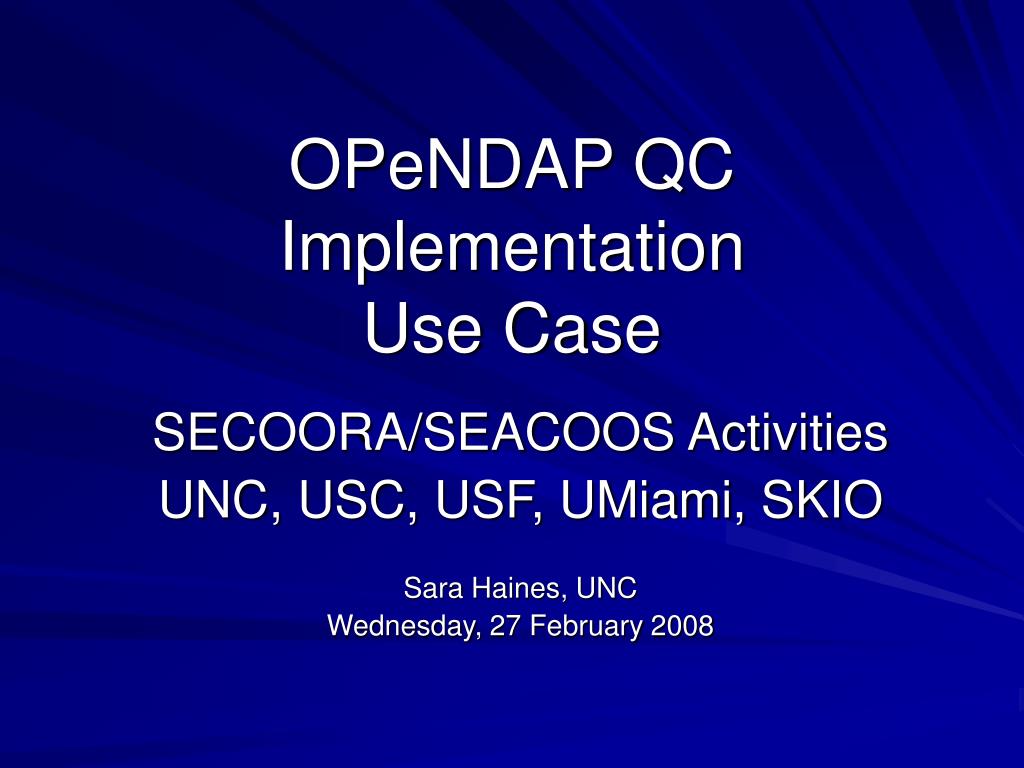

  1. OPeNDAP QC ImplementationUse Case SECOORA/SEACOOS Activities UNC, USC, USF, UMiami, SKIO Sara Haines, UNC Wednesday, 27 February 2008

  2. Implementing QC for Regional Data Sharing SECOORA/SEACOOS Activities UNC, USC, USF, UMiami, SKIO Sara Haines, UNC Wednesday, 27 February 2008

  3. What is SEACOOS? • Southeast Atlantic Coastal Ocean Observing System • Kick-off meeting October 2002 • Observing, modeling, outreach, and data management • Partnership of only a few • http://www.seacoos.org What is SECOORA? • Southeast Coastal Ocean Observing Regional Association • Fall 2006 • Many of the same people and ideas are now part of SECOORA • Stakeholders and established governance, more diverse • http://www.secoora.org

  4. SEACOOS Data Management • Share data from a wide range of instruments (CTD, HFRADAR, ADCP, Met-packages) • From many different platforms (ships, aircraft, buoys, moorings, satellite, AUVs, drifters) • Initial parameters addressed were winds, temperature, salinity, water level and currents • We needed standards but there were none • Created a Common Data Language (CDL) • Established a Data Dictionary (included by MMI)

  5. Data Flow using OPeNDAP

  6. Best of both worlds

  7. SEACOOS CDL v2.0 • Specifies required and recommended metadata fields and attributes for • Provides several canonical formats modeled on how measurement taken (e.g. ship-mounted ADCP, or moored string of CTDs) • Initially intended for netCDF, but could be used for other formats such as HDF, XML

  8. SEACOOS CDL v2.0Examples • Fixed point • Fixed profile • Moving profile • Fixed map • Moving 2D map • Moving 3D point

  9. SECOORA QA/QC Workshop March 9-10, 2006 Data Sharing and Data Quality of Ocean Currents and Temperature towards an Operational Data Management System • Regional Association (RA) Responsibilities • Aggregator of data and/or access to distributed data • QC of aggregated data • Assuring data available (Is a cataloged sensor/data there for time desired?) • Catalogue of assets • Ratify and “support” a few well chosen standards • Make it easy as possible to submit data

  10. SECOORA QA/QC Workshop March 9-10, 2006 • List of QC Tests and Who is Responsible: • Data Availability DP (or RA) • Range checks DP (or RA) • Time Continuity DP (or RA) • Rate of Change DP (or RA) • Data Format DP (or RA) • Instrument uncertainties DP • Nearest Neighbor RA (or DP) • Climatology RA (or DP) • Model Comparison RA (or DP) • Based on QARTOD recommended tests

  11. Implementation Sprint for QC July 11-14, 2006 • Focus on QC or the step that supports the output of high quality data • Assume QA addressed by those responsible for proper operation of instrumentation and assessment of normal operation • Draw on QARTOD findings and IOOS DMAC recommendations • We needed more standards • Extended the Common Data Language (draft SEACOOS CDL v3.0) which defined required information • Specified Tests • Specified Flags (specific and aggregate)

  12. Draft SEACOOS CDL with QC (v3.0) • Wind, SST, Current • For each variable of interest, and for each instance of data for that variable, there will be multiple QA/QC tests and multiple QA/QC flags. • Test Flags • Aggregate Flag • Example SST

  13. Stub Out • Specifications for data providers (required and recommended) on OPeNDAP-servers (Draft CDL v3.0) • Specifications for regional provider (Draft CDL v3.0) • Regional search and database schema to accept QC flags and info (beta) • GUI Control (beta)

  14. Stub out • Lack funds and resources for data managers to do QA/QC work of implementing data model • SECOORA/SEACOOS only lacked individual institutions to output QC Flags and info on OPeNDAP-servers using this data model

  15. Next Steps • Add variables for testing (currents, waves) • Define and implement analysis of aggregated QA/QC effectiveness. • Nearest neighbor, add model comparison • Uncertainty values • Sensor specific assessment, tests and flags • Revisit draft CDL for currents and temperature with QARTOD 4 findings • Continue monitoring IOOS DMAC and QARTOD as new QA/QC recommendations, parameters and technologies emerge
