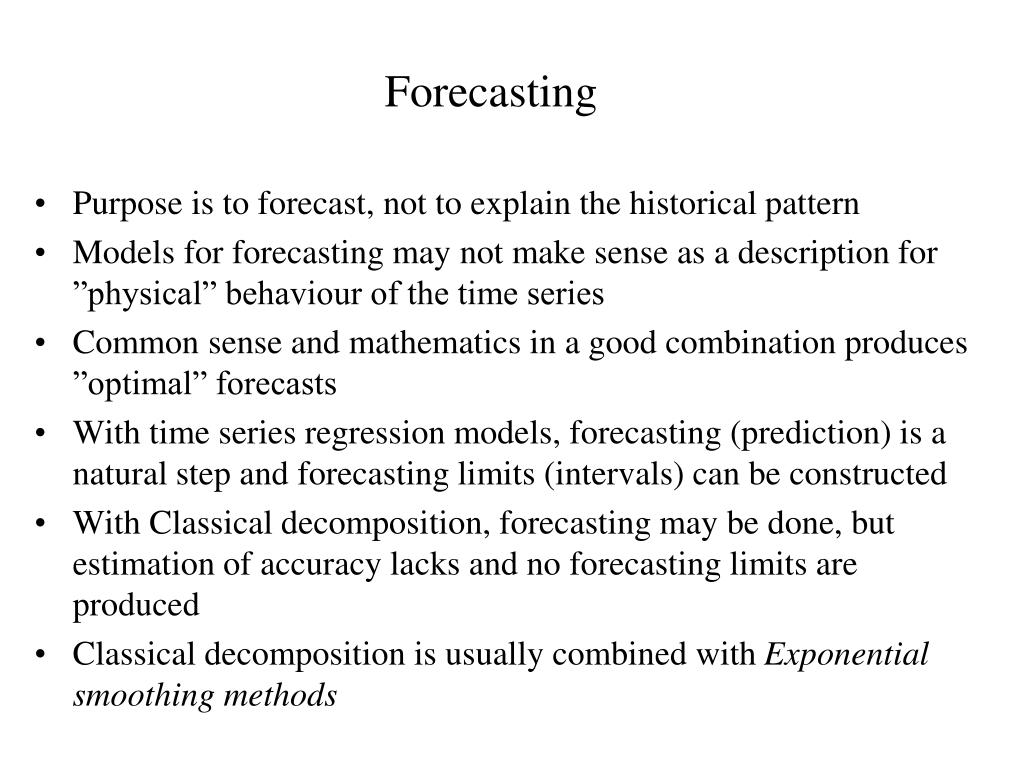

  1. Forecasting • Purpose is to forecast, not to explain the historical pattern • Models for forecasting may not make sense as a description for ”physical” behaviour of the time series • Common sense and mathematics in a good combination produces ”optimal” forecasts • With time series regression models, forecasting (prediction) is a natural step and forecasting limits (intervals) can be constructed • With Classical decomposition, forecasting may be done, but estimation of accuracy lacks and no forecasting limits are produced • Classical decomposition is usually combined with Exponential smoothing methods

  2. Exponential smoothing • Use the historical data to forecast the future • Let different parts of the history have different impact on the forecasts • Forecast model is not developed from any statistical theory

  3. Single exponential smoothing • Given are historical values y1,y2,…yT • Assume data contains no trend

  4. Algorithm for forecasting: where is a smoothing parameter with value between 0 and 1 • The forecast procedure is a recursion formula • How shall we choose α? • Where should we start, i.e. which is the initial value ?

  5. For long length time series: Use a part (usually first half) of the historical data and calculate their average: Set Update with the rest of the historical data using the recursion formula

  6. Example: Sales of everyday commodities Year Sales values 1985 151 1986 151 1987 147 1988 149 1989 146 1990 142 1991 143 1992 145 1993 141 1994 143 1995 145 1996 138 1997 147 1998 151 1999 148 2000 148 Note! This time series is short but we use it for illustration purposes!

  7. Calculate the average of the first 8 observations of the series: Set Assume first that the sales are very stable, i.e. during the period the background mean valueis assumed not to change Set α to be relatively small. This means that the latest observation plays a less role than the history in the forecasts. Thumb rule: 0.05 < α < 0.3 E.g. Set α=0.1 Update using the next 8 values of the historical data

  8. Forecasts:

  9. For short length time series: Calculate the average ofall historical data i.e. Update from the beginning of the time series: • There are a lot of alternatives: • Average of all data, update from the middle of the series • Average of the first half, update from beginning • etc.

  10. Analysis of example data with MINITAB

  11. MTB > Name c3 "FORE1" c4 "UPPE1" c5 "LOWE1" MTB > SES 'Sales values'; SUBC> Weight 0.1; SUBC> Initial 8; SUBC> Forecasts 3; SUBC> Fstore 'FORE1'; SUBC> Upper 'UPPE1'; SUBC> Lower 'LOWE1'; SUBC> Title "SES alpha=0.1". Single Exponential Smoothing for Sales values Data Sales values Length 16 Smoothing Constant Alpha 0.1

  12. Accuracy Measures MAPE 2.2378 MAD 3.2447 MSD 14.4781 Forecasts Period Forecast Lower Upper 17 146.043 138.094 153.992 18 146.043 138.094 153.992 19 146.043 138.094 153.992

  13. MINITAB uses smoothing from 1st value!

  14. Assume now that the sales are less stable, i.e. during the period the background mean valueis possibly changing. (Note that a change means an occasional “level shift” , not a systematic trend) Set α to be relatively large. This means that the latest observation becomes more important in the forecasts. E.g. Set α=0.5 (A bit exaggerated)

  15. Single Exponential Smoothing for Sales values Data Sales values Length 16 Smoothing Constant Alpha 0.5 Accuracy Measures MAPE 1.9924 MAD 2.8992 MSD 13.0928 Forecasts Period Forecast Lower Upper 17 147.873 140.770 154.976 18 147.873 140.770 154.976 19 147.873 140.770 154.976

  16. Slightly narrower prediction intervals

  17. We can also use some adaptive procedure to continuosly evaluate the forecast ability and maybe change the smoothing parameter over time Alt. We can run the process with different alphas and choose the one that performs best. This can be done with the MINITAB procedure.

  18. Single Exponential Smoothing for Sales values --- Smoothing Constant Alpha 0.567101 Accuracy Measures MAPE 1.7914 MAD 2.5940 MSD 12.1632 Forecasts Period Forecast Lower Upper 17 148.013 141.658 154.369 18 148.013 141.658 154.369 19 148.013 141.658 154.369 Yet, narrower prediction intervals

  19. Exponential smoothing for times series with trend and/or seasonal variation • Double exponential smoothing (one smoothing parameter) for trend • Holt’s method (two smoothing parameters) for trend • Multiplicative Winter’s method (three smoothing parameters) for seasonal (and trend) • Additive Winter’s method (three smoothing parameters) for seasonal (and trend)

  20. Modern methods • The classical approach:

  21. Explanation to the static behaviour: The classical approach assumes all components except the irregular ones (i.e. tand IRt ) to be deterministic, i.e. fixed functions or constants To overcome this problem, all components should be allowed to be stochastic, i.e. be random variates. A time series yt should from a statistical point of view be treated as a stochastic process. We will interchangeably use the terms time series and process depending on the situation.

  22. Stationary and non-stationary time series • Characteristics for a stationary time series: • Constant mean • Constant variance •  A time series with trend is non-stationary!

  23. Box-Jenkins models A stationary times series can be modelled on basis of the serial correlations in it. A non-stationary time series can be transformed into a stationary time series, modelled and back-transformed to original scale (e.g. for purposes of forecasting) ARIMA– models Auto Regressive, Integrated, Moving Average This part has to do with the transformation These parts can be modelled on a stationary series

  24. Different types of transformation 1. From a series with linear trend to a series with no trend: First-order differences zt = yt – yt – 1 MTB > diff c1 c2

  25. Note that the differenced series varies around zero.

  26. 2. From a series with quadratic trend to a series with no trend: Second-order differences wt = zt – zt – 1 = (yt – yt – 1) – (yt – 1 – yt – 2) = yt – 2yt – 1 + yt – 2 MTB > diff 2 c3 c4

  27. 3. From a series with non-constant variance (heteroscedastic) to a series with constant variance (homoscedastic): Box-Cox transformations (per def 1964) Practically  is chosen so that yt + is always > 0 Simpler form: If we know that yt is always > 0 (as is the usual case for measurements)

  28. The log transform (ln yt) usually also makes the data ”more” normally distributed Example: Application of root (yt) and log (ln yt ) transforms

  29. AR-models (for stationary time series) Consider the model yt = δ + ·yt –1 + at with {at }i.i.d with zero mean and constant variance = σ2 and where δ (delta) and  (phi) are (unknown) parameters Set δ = 0by sake of simplicity  E(yt) = 0 Let R(k) = Cov(yt,yt-k) = Cov(yt,yt+k) = E(yt ·yt-k) = E(yt ·yt+k)  R(0) = Var(yt) assumed to be constant

  30. Now: • R(0) = E(yt ·yt) = E(yt ·(·yt-1 + at) = · E(yt ·yt-1) + E(yt ·at) = • = ·R(1) + E((·yt-1 + at)·at) = ·R(1) + · E(yt-1·at) + E(at ·at)= • = ·R(1) + 0 + σ2 (for atis independent of yt-1) • R(1) = E(yt ·yt+1) = E(yt ·(·yt + at+1) = · E(yt ·yt) + E(yt ·at+1) = • = ·R(0) + 0 (for at+1is independent of yt) • R(2) = E(yt ·yt+2) = E(yt ·(·yt+1 + at+2) = · E(yt ·yt+1) + • + E(yt ·at+2) = ·R(1) + 0 (for at+1is independent of yt) • 

  31. R(0) = ·R(1) + σ2 • R(1) = ·R(0) Yule-Walker equations • R(2) = ·R(1) • … •  R(k ) = ·R(k – 1) =…= k·R(0) • R(0) = 2 ·R(0)+ σ2

  32. Note that for R(0) to become positive and finite (which we require from a variance) the following must hold: This in effect the condition for an AR(1)-process to be weakly stationary Now, note that

  33. ρkis called the Autocorrelation function (ACF) of yt ”Auto” because it gives correlations within the same time series. For pairs of different time series one can define the Cross correlation function which gives correlations at different lags between series. By studying the ACF it might be possible to identify the approximate magnitude of 

  34. Examples:

  35. The look of an ACF can be similar for different kinds of time series, e.g. the ACF for an AR(1) with  = 0.3 could be approximately the same as the ACF for an Auto-regressive time series of higher order than 1 (we will discuss higher order AR-models later) To do a less ambiguous identification we need another statistic: The Partial Autocorrelation function (PACF): υk = Corr (yt ,yt-k | yt-k+1, yt-k+2 ,…, yt-1 ) i.e. the conditional correlation between yt and yt-kgiven all observations in-between. Note that –1  υk  1

  36. A concept sometimes hard to interpret, but it can be shown that for AR(1)-models with positive the look of the PACF is and for AR(1)-models with  negative the look of the PACF is

  37. Assume now that we have a sample y1, y2,…, ynfrom a time series assumed to follow an AR(1)-model. Example:

  38. The ACF and the PACF can be estimated from data by their sample counterparts: • Sample Autocorrelation function (SAC): • if n large, otherwise a scaling • might be needed • Sample Partial Autocorrelation function (SPAC) • Complicated structure, so not shown here

  39. The variance function of these two estimators can also be estimated  Opportunity to test H0: k= 0 vs. Ha: k 0 or H0: k= 0 vs. Ha: k 0 for a particular value of k. Estimated sample functions are usually plotted together with critical limits based on estimated variances.

  40. Example (cont) DKK/USD exchange: SAC: SPAC: Critical limits

  41. Ignoring all bars within the red limits, we would identify the series as being an AR(1) with positive . The value of  is approximately 0.9 (ordinate of first bar in SAC plot and in SPAC plot)

  42. Higher-order AR-models AR(2): or yt-2 must be present AR(3): or other combinations with 3 yt-3 AR(p): i.e. different combinations with p yt-p

  43. Stationarity conditions: For p > 2, difficult to express on closed form. For p = 2: The values of 1 and 2 must lie within the blue triangle in the figure below:
