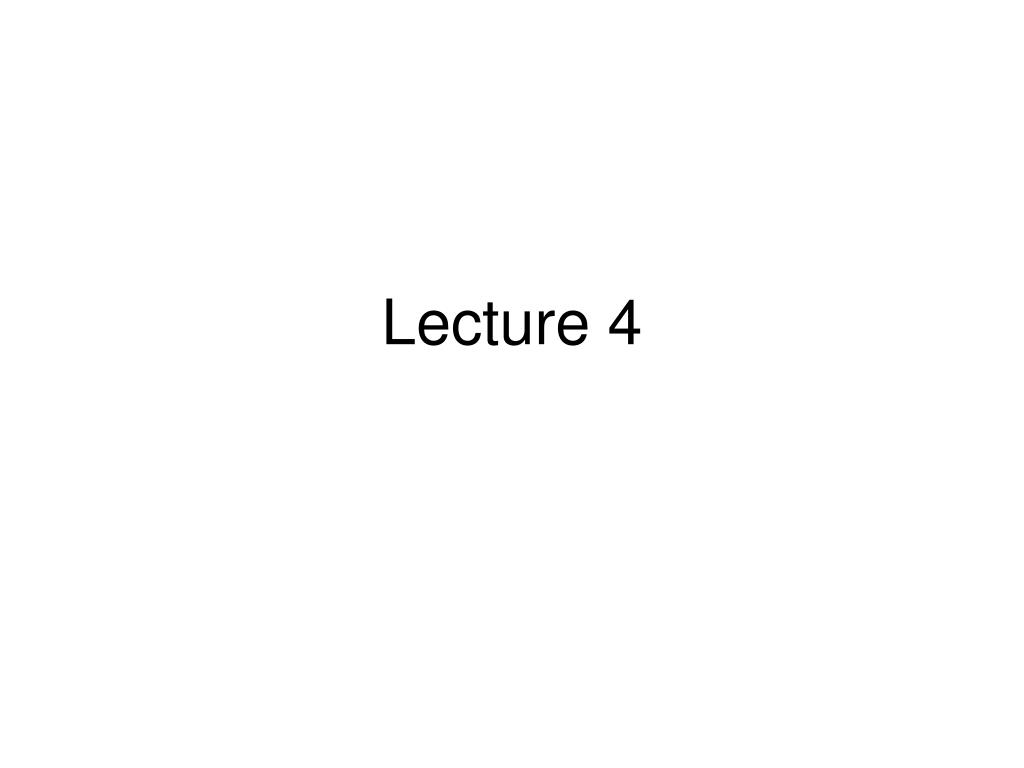

  1. Lecture 4

  2. Objectives • IEEE 802.11i • IEE 802.1x • WPA • WPA 2

  3. IEEE 802.11i • Provides solid wireless security model • Robust security network (RSN) • Addresses both encryption and authentication • Encryption accomplished by replacing RC4 (stream cipher) with a block cipher • Manipulates entire block of plaintext at one time • Block cipher used is Advanced Encryption Standard (AES)

  4. IEEE 802.11i (continued) Table 9-1: Time needed to break AES

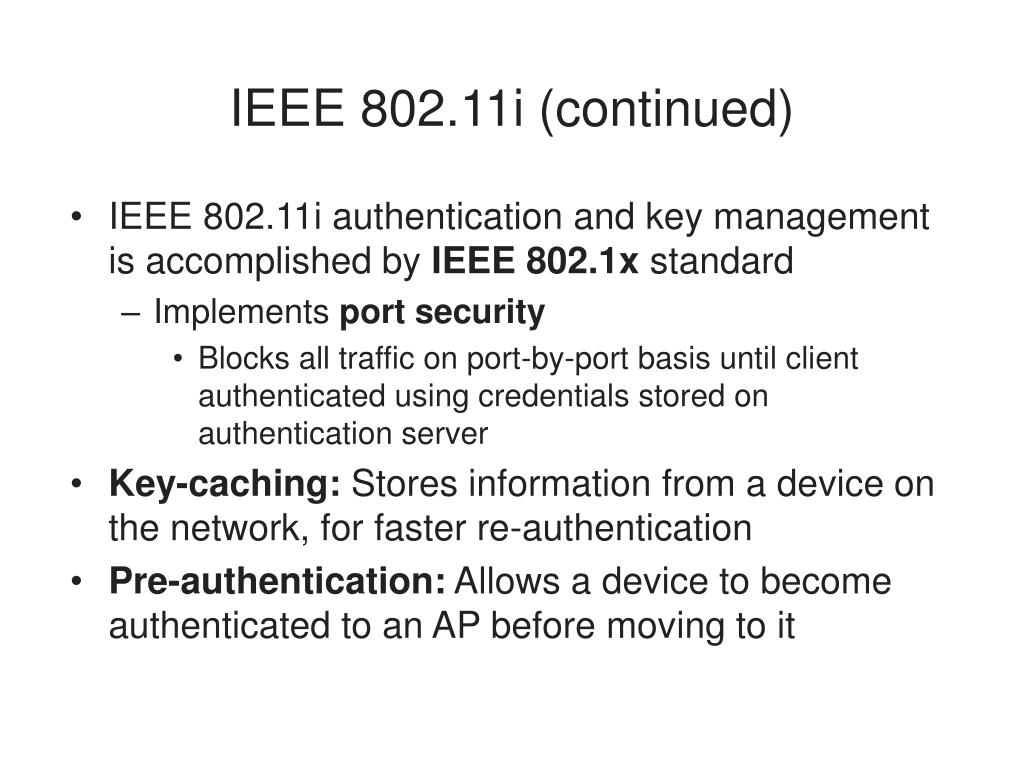

  5. IEEE 802.11i (continued) • IEEE 802.11i authentication and key management is accomplished by IEEE 802.1x standard • Implements port security • Blocks all traffic on port-by-port basis until client authenticated using credentials stored on authentication server • Key-caching: Stores information from a device on the network, for faster re-authentication • Pre-authentication: Allows a device to become authenticated to an AP before moving to it

  6. IEEE 802.11i (continued) Figure 9-2: IEEE 802.1x

  7. WEP Insecurities -- Checksum (ICV) • CRC-32 is NOT a hash function! • Still can be malicious Linear Properties: CRC-32(P  C) = CRC-32(P)  CRC-32(C) - Bit flipping

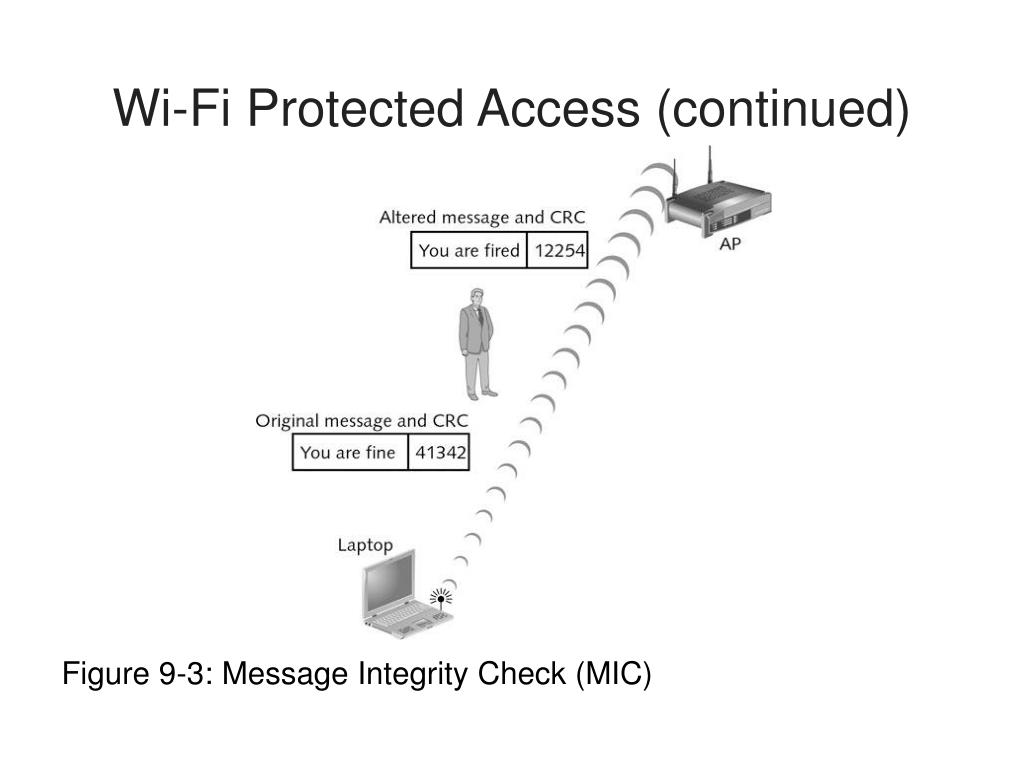

  8. Wi-Fi Protected Access (continued) Figure 9-3: Message Integrity Check (MIC)

  9. Wi-Fi Protected Access (WPA) • Subset of 802.11i that addresses encryption and authentication • Temporal Key Integrity Protocol (TKIP): Replaces WEP’s encryption key with 128-bit per-packet key • Dynamically generates new key for each packet • Prevents collisions • Authentication server can use 802.1x to produce unique master key for user sessions

  10. TKIP • Temporal Key Integrity Protocol • Cryptographic message integrity code (MIC) forgery • New IV sequencing (TSC) replay • Per-Packet mixing function weak IV • Re-keying key reuse

  11. WPA Personal Security: TKIP Encryption (continued) Figure 9-7: TKIP/MIC process

  12. Wi-Fi Protected Access (continued) • Message Integrity Check (MIC): Designed to prevent attackers from capturing, altering, and resending data packets • Replaces CRC from WEP • CRC does not adequately protect data integrity • Authentication accomplished via IEEE 802.1x or pre-shared key (PSK) technology • PSK passphase serves as seed for generating keys

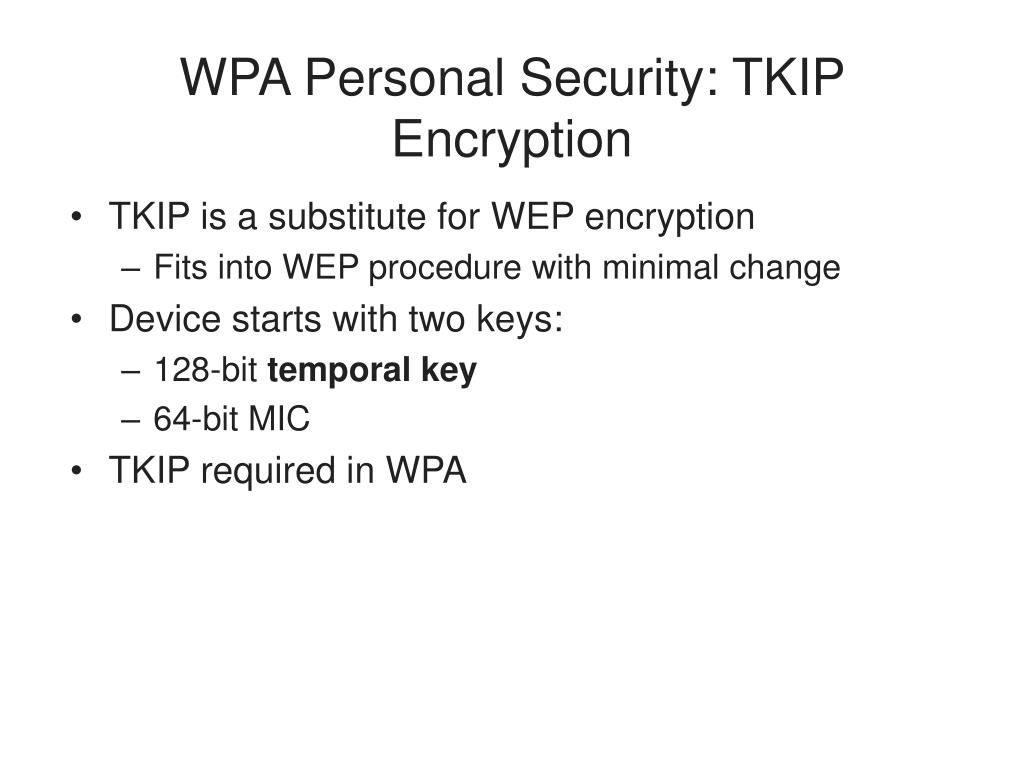

  13. WPA Personal Security: TKIP Encryption • TKIP is a substitute for WEP encryption • Fits into WEP procedure with minimal change • Device starts with two keys: • 128-bit temporal key • 64-bit MIC • TKIP required in WPA

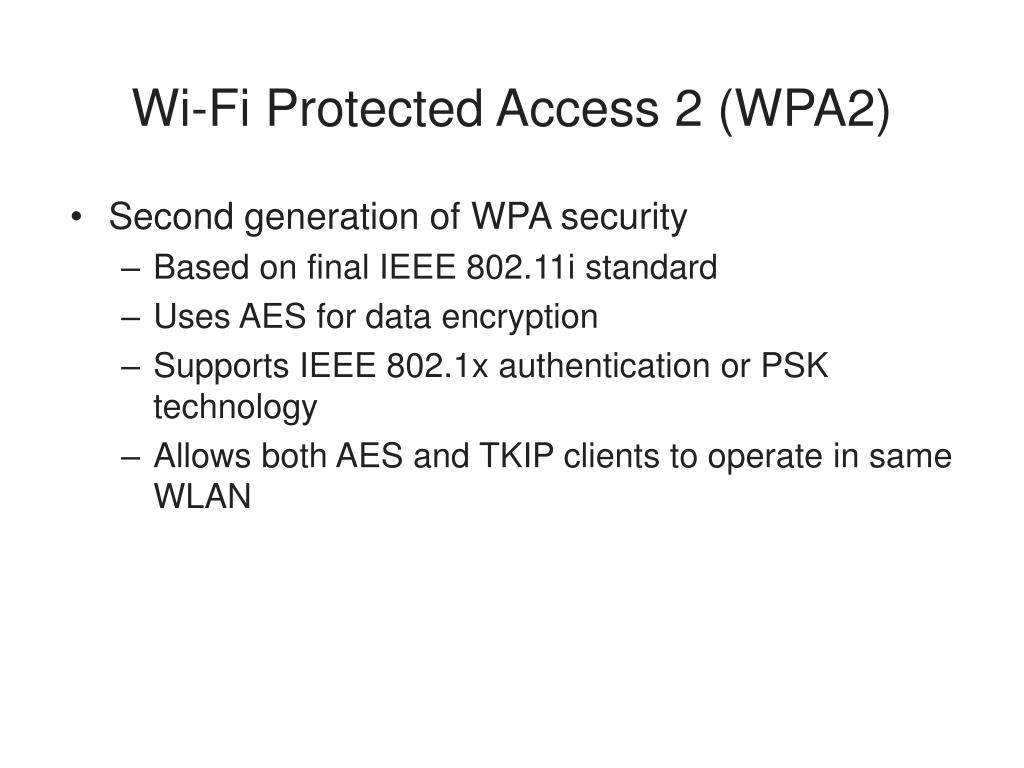

  14. Wi-Fi Protected Access 2 (WPA2) • Second generation of WPA security • Based on final IEEE 802.11i standard • Uses AES for data encryption • Supports IEEE 802.1x authentication or PSK technology • Allows both AES and TKIP clients to operate in same WLAN

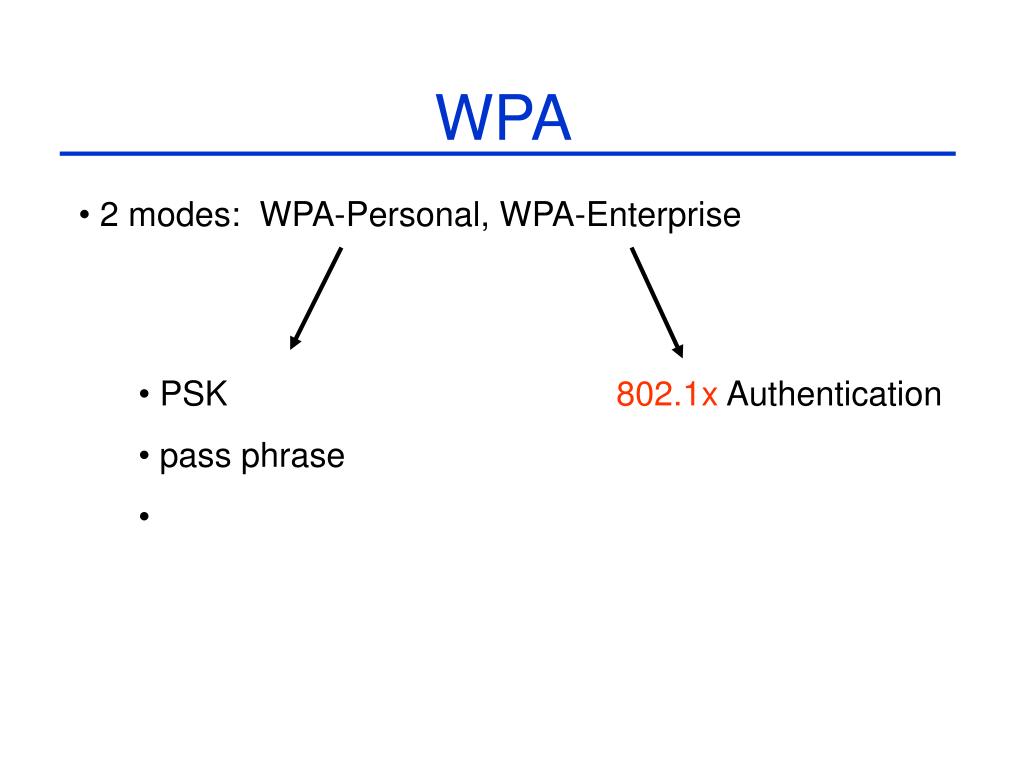

  15. WPA • 2 modes: WPA-Personal, WPA-Enterprise • PSK • pass phrase 802.1x Authentication

  16. Summary of Wireless Security Solutions (continued) Table 9-2: Wi-Fi modes Table 9-3: Wireless security solutions

  17. Transitional Security Model • Transitional wireless implementation • Should be temporary • Until migration to stronger wireless security possible • Should implement basic level of security for a WLAN • Including authentication and encryption

  18. Authentication: Shared Key Authentication • First and perhaps most important step • Uses WEP keys • Networks that support multiple devices should use all four keys • Same key should not be designated as default on each device

  19. Authentication: SSID Beaconing • Turn off SSID beaconing by configuring APs to not include it • Beaconing the SSID is default mode for all APs • Good practice to use cryptic SSID • Should not provide any information to attackers

  20. Authentication: MAC Address Filtering Figure 9-6: MAC address filter

  21. WEP Encryption • Although vulnerabilities exist, should be turned on if no other options for encryption are available • Use longest WEP key available • May prevent script kiddies or “casual” eavesdroppers from attacking Table 9-4: Transitional security model

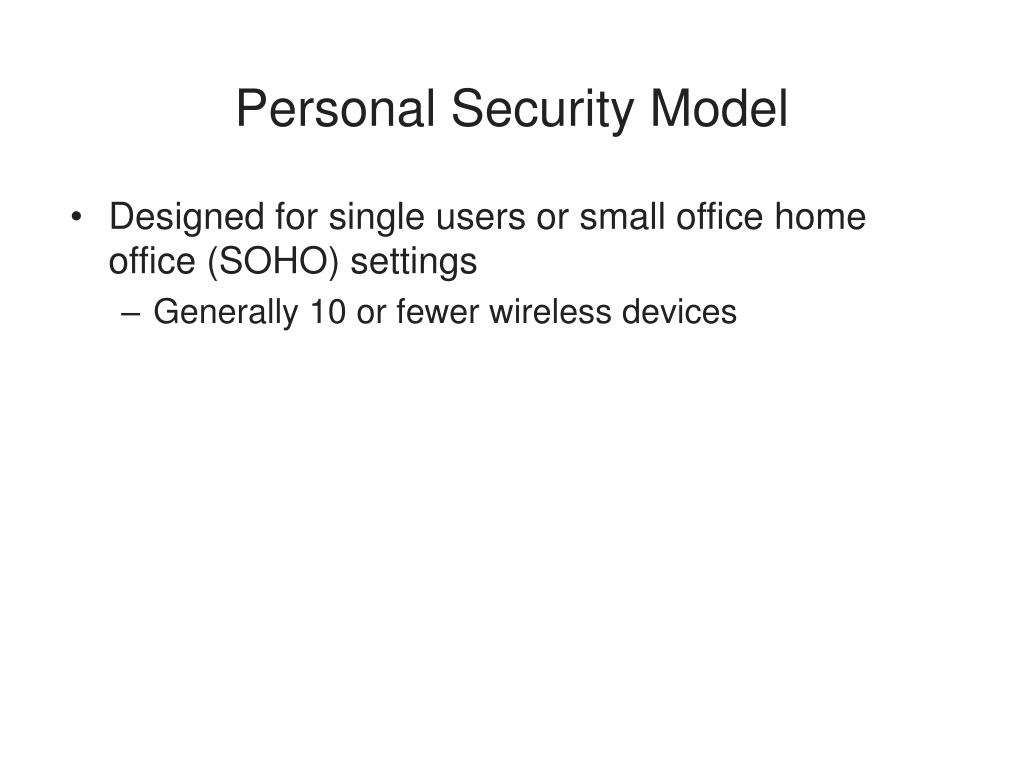

  22. Personal Security Model • Designed for single users or small office home office (SOHO) settings • Generally 10 or fewer wireless devices

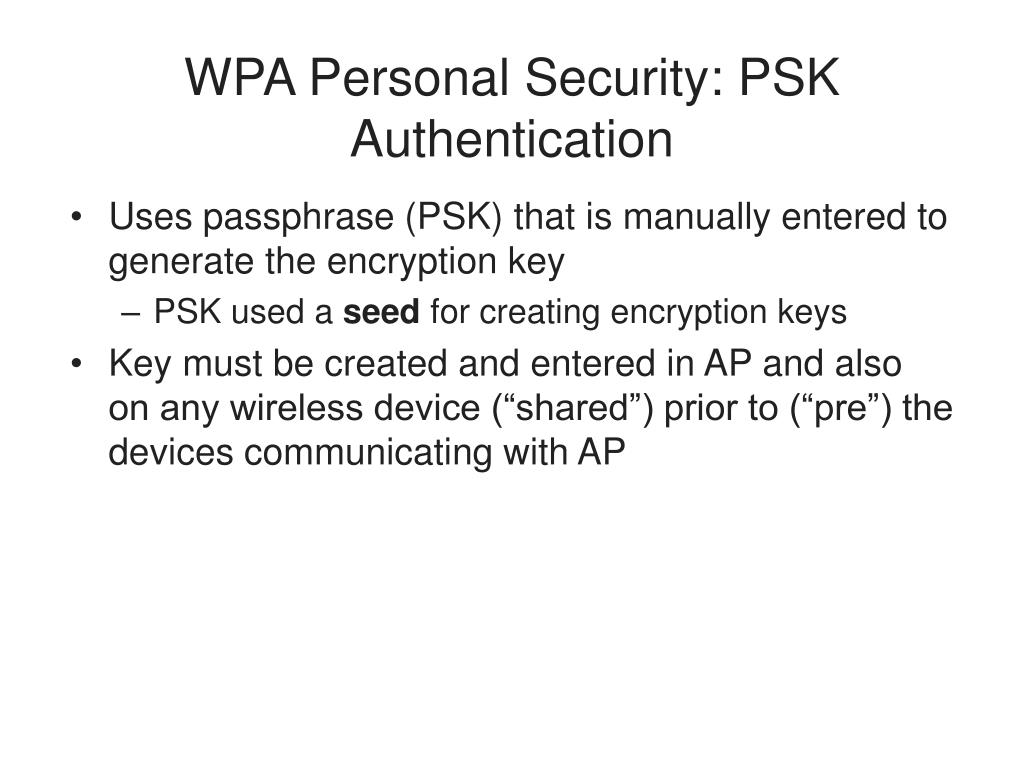

  23. WPA Personal Security: PSK Authentication • Uses passphrase (PSK) that is manually entered to generate the encryption key • PSK used a seed for creating encryption keys • Key must be created and entered in AP and also on any wireless device (“shared”) prior to (“pre”) the devices communicating with AP

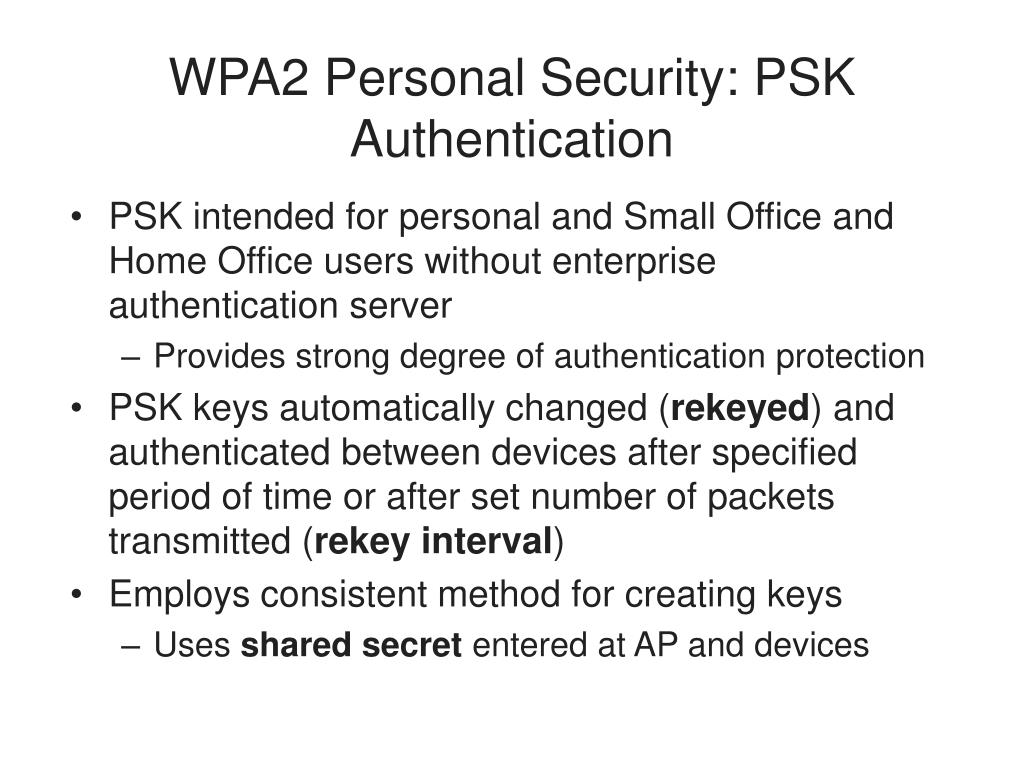

  24. WPA2 Personal Security: PSK Authentication • PSK intended for personal and Small Office and Home Office users without enterprise authentication server • Provides strong degree of authentication protection • PSK keys automatically changed (rekeyed) and authenticated between devices after specified period of time or after set number of packets transmitted (rekey interval) • Employs consistent method for creating keys • Uses shared secret entered at AP and devices

  25. WPA2 Personal Security: AES-CCMP Encryption • WPA2 personal security model encryption accomplished via AES • AES-CCMP: Encryption protocol in 802.11i • CCMP based on Counter Mode with Cipher Block Chaining Message Authentication Code (CBC-MAC) (CCM) of AES encryption algorithm • CCM provides data privacy • CBC-MAC provides data integrity and authentication • AES processes blocks of 128 bits • Cipher key length can be 128, 192 and 256 bits • Number of rounds can be 10, 12, and 14

  26. WPA2 Personal Security: AES-CCMP Encryption (continued) • AES encryption/decryption computationally intensive • Better to perform in hardware Table 9-5: Personal security model

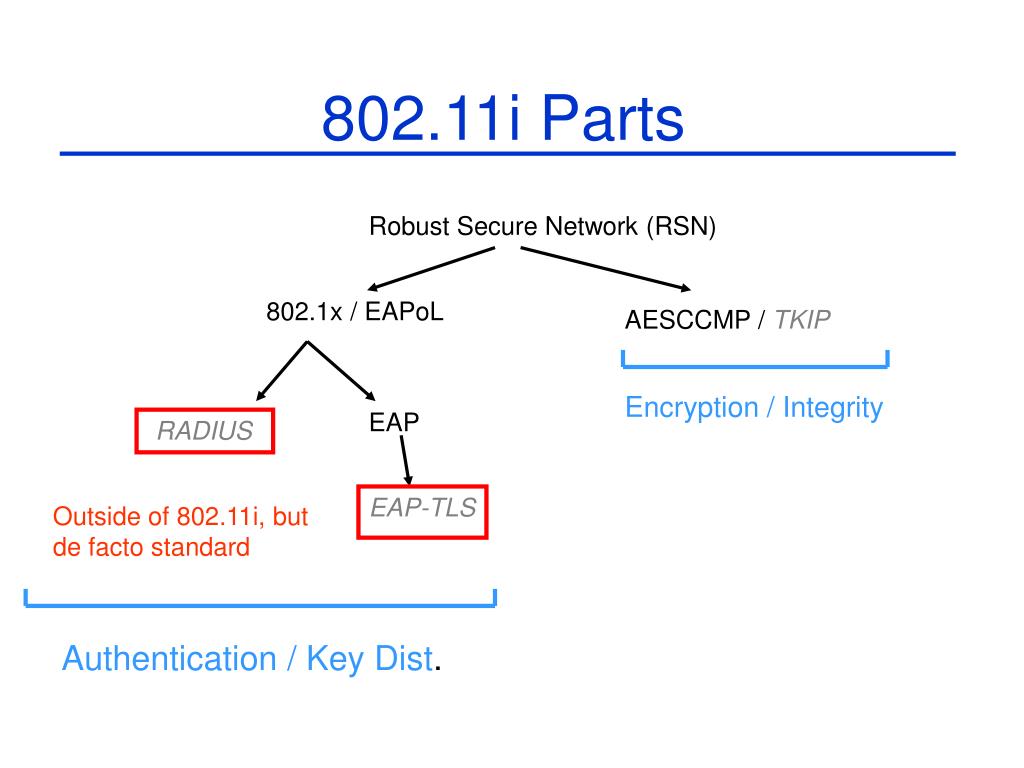

  27. 802.11i Parts Robust Secure Network (RSN) 802.1x / EAPoL AESCCMP / TKIP Encryption / Integrity EAP RADIUS EAP-TLS Outside of 802.11i, but de facto standard Authentication / Key Dist.

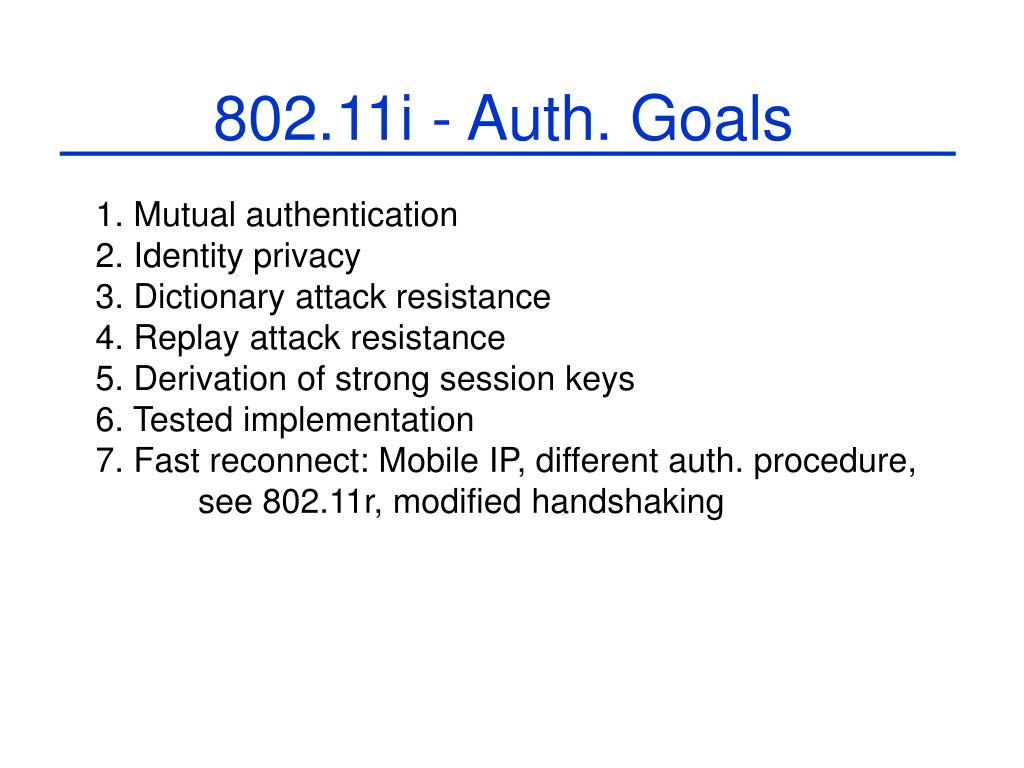

  28. 802.11i - Auth. Goals 1. Mutual authentication 2. Identity privacy 3. Dictionary attack resistance 4. Replay attack resistance 5. Derivation of strong session keys 6. Tested implementation 7. Fast reconnect: Mobile IP, different auth. procedure, see 802.11r, modified handshaking

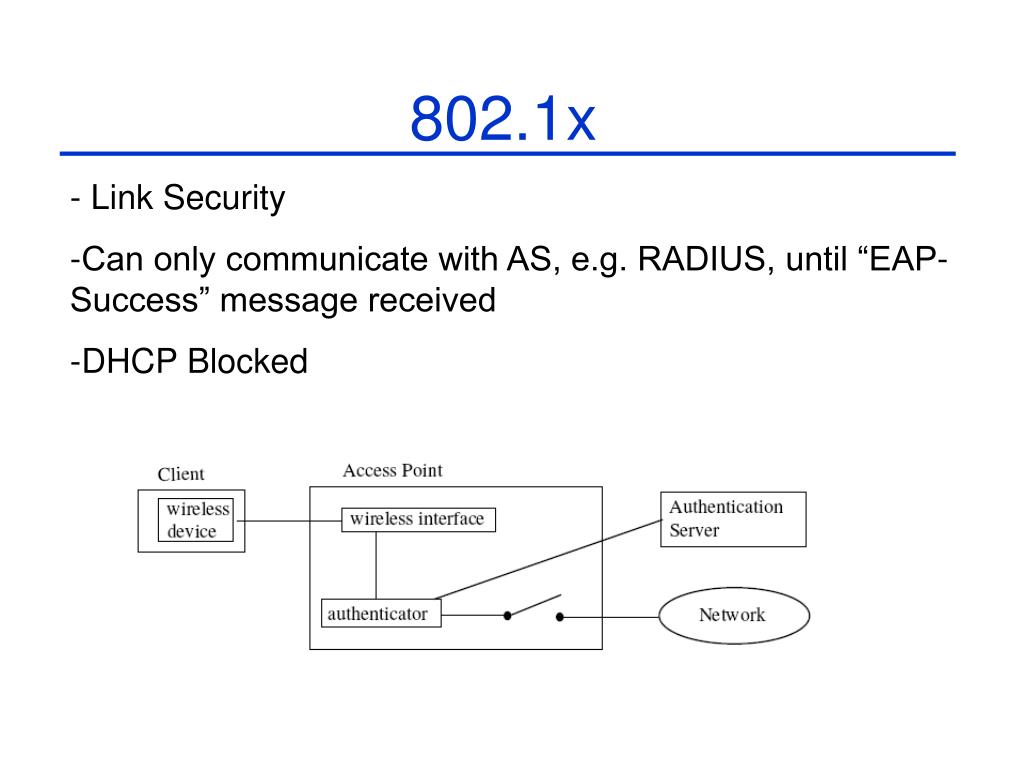

  29. 802.1x • - Link Security • Can only communicate with AS, e.g. RADIUS, until “EAP-Success” message received • DHCP Blocked

  30. LAB WEP Crack II • For this lab you will require two computers and one AP (Cisco or Linksys) • Set up a linksys or CISCO wireless router with a WEP key (use the smallest key size available in the router so you can crack it fast (64 bit)). Use your phone number for a ley • Refer to LAB B, conduct a DSS attack as indicated in LAB B in one of the computers • In the second computer, Launch Commview • Set up the location of the log file as indicated by your instructor • Connect to the AP you want to attack by using Commview and collect at least 300,000 packets • Once you reach at least 300,000 packets, stop collecting data. • Launch log viewer and open the latest log file (tagged by date) • Export the log file as a tcmpdump format • Run aircrack-ng GUI and chose the file that you exported as tcmp dump • Lauch the attack by clicking in the launch tool
