  1. Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title:Extension of Simulink Bluetooth Model to Include MAC Layer Protocol for Coexistence Analysis Date Submitted: November 15, 2001 Source:R. Durrant Company: Intel Address: 1357 Garden of The Gods Rd, Colorado Springs, CO 80907 TEL (719) 884-2415, FAX: (719) 548-1`3193, E-Mail: randy.durrant@intel.com Re: Abstract: This document presents a simulation model for use in coexistence analysis of Bluetooth. Purpose: To stimulate discussion of a Simulink model of the Bluetooth PHY layer and it’s extension to include MAC layer protocols. Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. R. Durrant/Intel

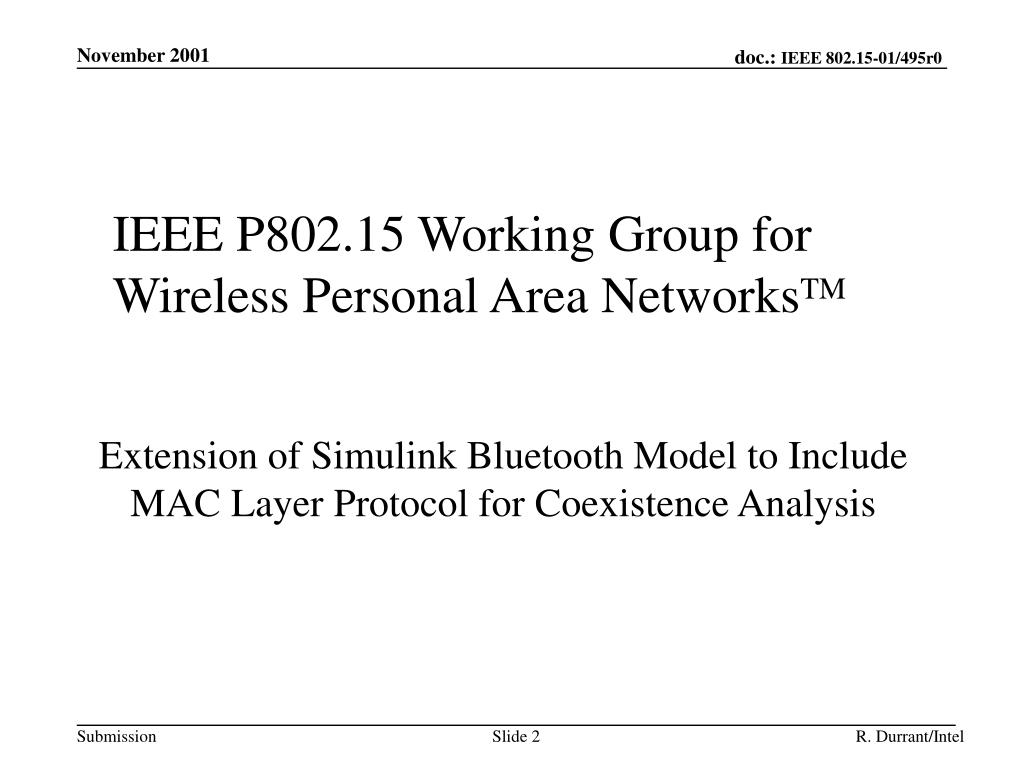

  2. Extension of Simulink Bluetooth Model to Include MAC Layer Protocol for Coexistence Analysis IEEE P802.15 Working Group for Wireless Personal Area NetworksTM R. Durrant/Intel

  3. Overview • Simulink Bluetooth Model • Features & Capabilities • Planned Extensions • Comments Invited R. Durrant/Intel

  4. The Simulink Bluetooth Model • Developed by The Mathworks with the in conjunction with Agere. • Models a simplex HV3 PHY layer with a simulated 802.11b jammer. • Download Information: • http://www.mathworks.com/matlabcentral/ • Click on ‘file exchange’, then ‘Signal Processing, Comms, and DSP’, then ‘Bluetooth Voice • A description of the Bluetooth model is now on-line with a link to the model: http://www.mathworks.com/company/digest/nov01/bluetooth.shtml R. Durrant/Intel

  5. Simulink Bluetooth Model R. Durrant/Intel

  6. Why Another Simulator? • Many companies involved in communications system design already use MatLab and Simulink. • Smaller learning curve • Lower cost • State Flow can be used to expand model to include MAC protocols. • Provides a path to hardware implementation. • Developed and Supported by The Mathworks. R. Durrant/Intel

  7. Model Features • PHY Layer • Frame generation, access code, header, HEC, • HV3 mode including CVSD encoder/decoder • GFSK modulation, demodulation • Frequency Hopping • 100 samples/bit, full 100 MHz sim BW • On/off, random or by Bluetooth spec. • 802.11b like interferer • AWGN channel • Measurement of BER, RBER, FER R. Durrant/Intel

  8. Model Features • Transmitter R. Durrant/Intel

  9. Model Features • Receiver R. Durrant/Intel

  10. Model Features • Demonstration R. Durrant/Intel

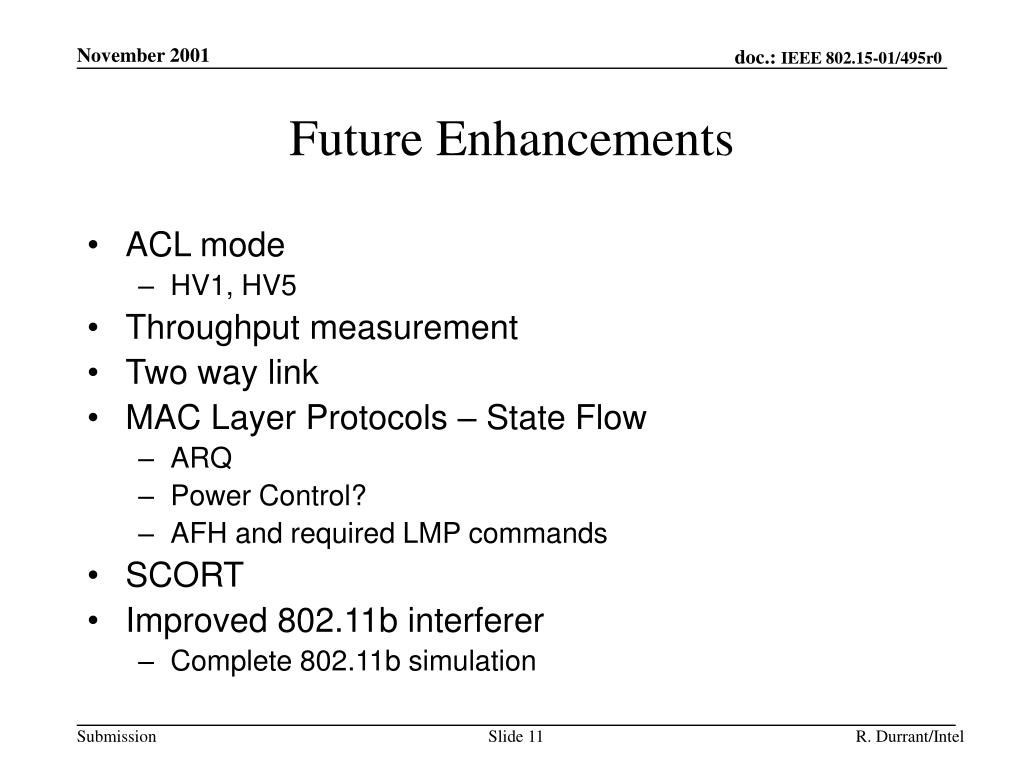

  11. Future Enhancements • ACL mode • HV1, HV5 • Throughput measurement • Two way link • MAC Layer Protocols – State Flow • ARQ • Power Control? • AFH and required LMP commands • SCORT • Improved 802.11b interferer • Complete 802.11b simulation R. Durrant/Intel

  12. Future Enhancements • Download it and try it out • Comments, suggestions and improvements welcome R. Durrant/Intel
